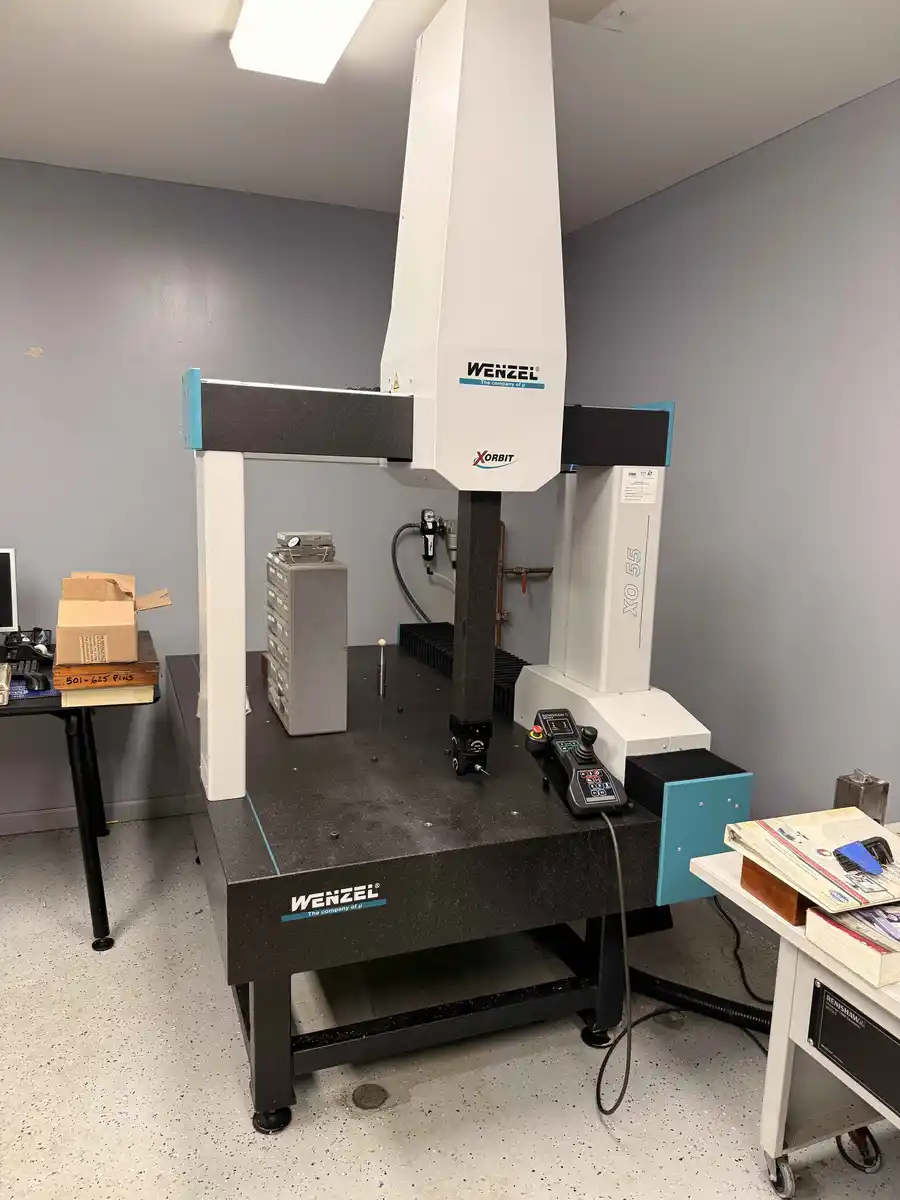

Coordinate Measuring Machines

SPECIFICATIONS:
Hard Drive
Measuring range 11.81" × 9.84" × 5.91"
Min. Display Unit, Distance
Min. Display Unit, Angle 0.0001 Degrees
Measurement Accuracy, Repeat-ability
Measurement Accuracy, Indication error Stage Locked: ±8 um*1
Stage Capacity 25 kg
Probe connection port, Inputs
Console Input
External Remote Input
Interfaces USB 2.0 Series A - 3 Ports
Display, Built-in display 15" LCD monitor
CAMERA:
Image pickup device 4 megapixel CMOS image sensor
Wavelength at light receiving center Near-Infrared
Environmental resistance:
Ambient temperature
Relative humidity
Weight Head, Approx. 28.2 kg (Including Camera and Cable)
Console, Approx. 150g (Including Cable)



Equipped With:
XM-1500 PCU w/320 GM Hard Drive
(2)XM-P1000 Hand Held Touch Probes
15" LCD Monitor
Multiple Ruby Touch Probe Tips in Multiple Diameters
Various Sizes and Types of Fixture Hardware
Probe Tip Calibrator
Multi-Use Training Artifact
OP-87946 Target
Stage
