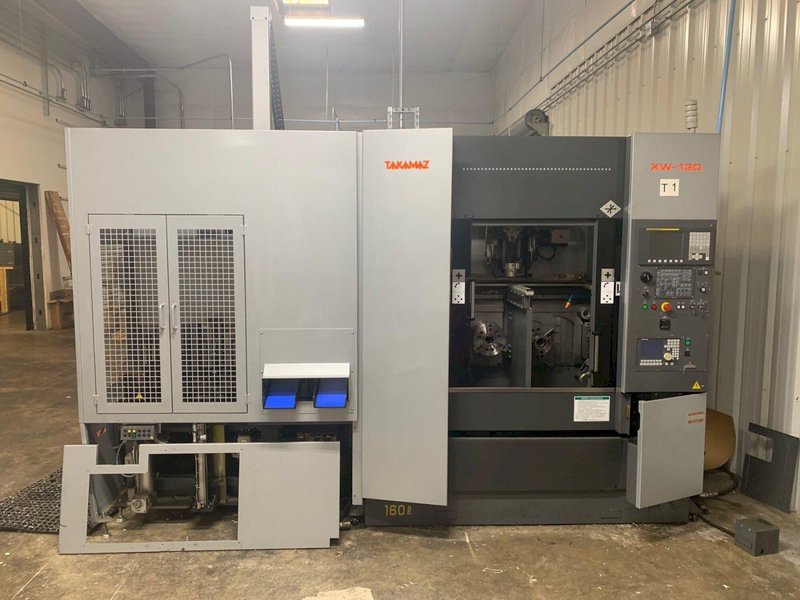

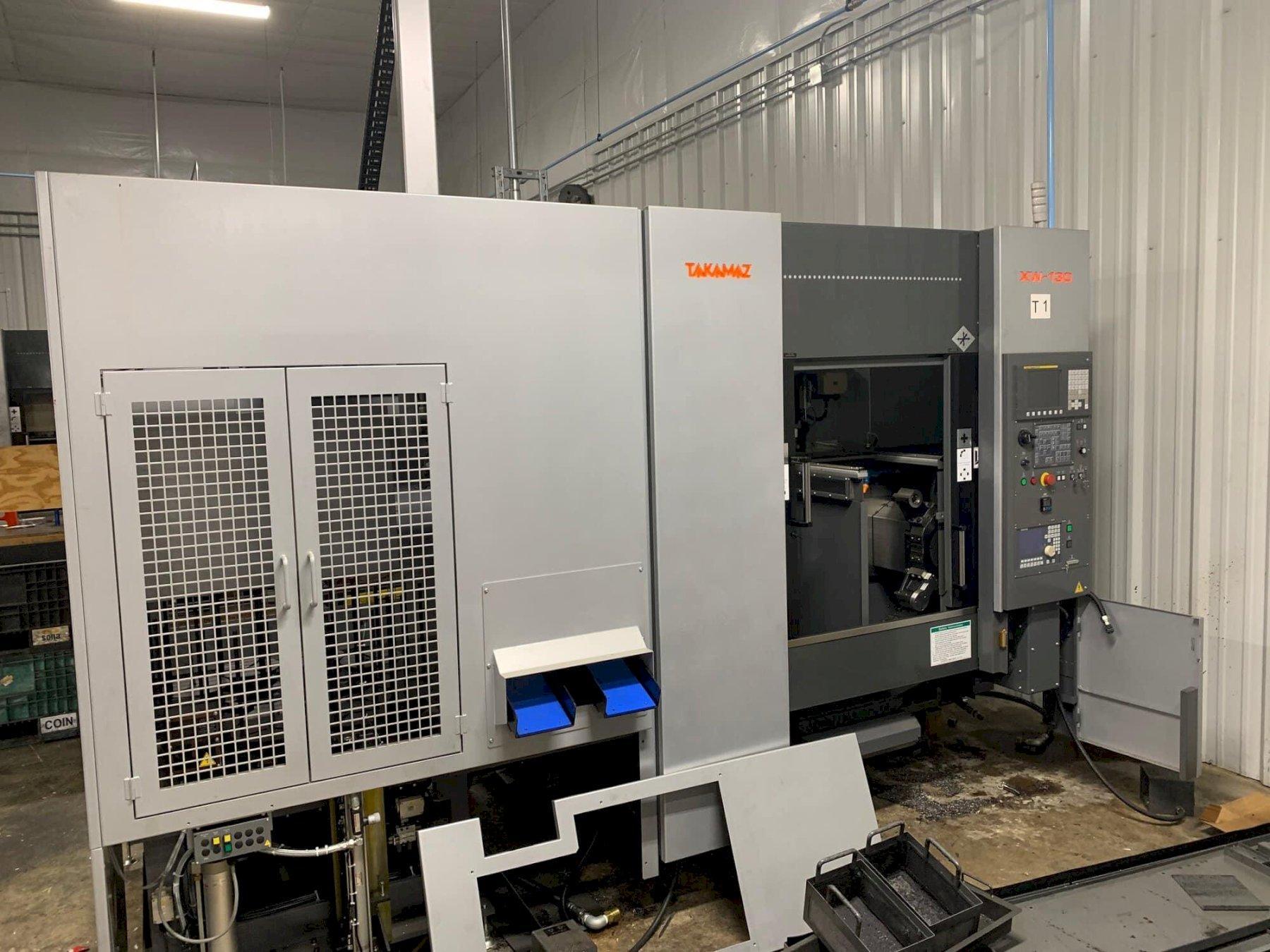

Takamaz XW-130 Twin-Spindle CNC Turning Center, 2016 – GTH150 Gantry Loader, Fanuc 0i-TD & 16-Station Stocker

Control: Fanuc 0i-TD Number of Spindles: 2 Spindle Speed: 4,000 RPM Spindle Power: 11 kW / 15-Minute Rating Spindle Nose: A2-6 Turrets: (2) 8-Station Turrets Axes: X/Z per Turret Chucks: (2) Kitagawa B208 3-Jaw Hydraulic Chucks Chucking: Hydraulic Thread Cutting: Spindle Encoder Automation: Takamaz GTH150 Gantry Loading System Stocker: 16-Station Rotary Stocker System Electrical: 208 VAC / 3 Phase / 43 kVA Compressed Air: 80 PSI

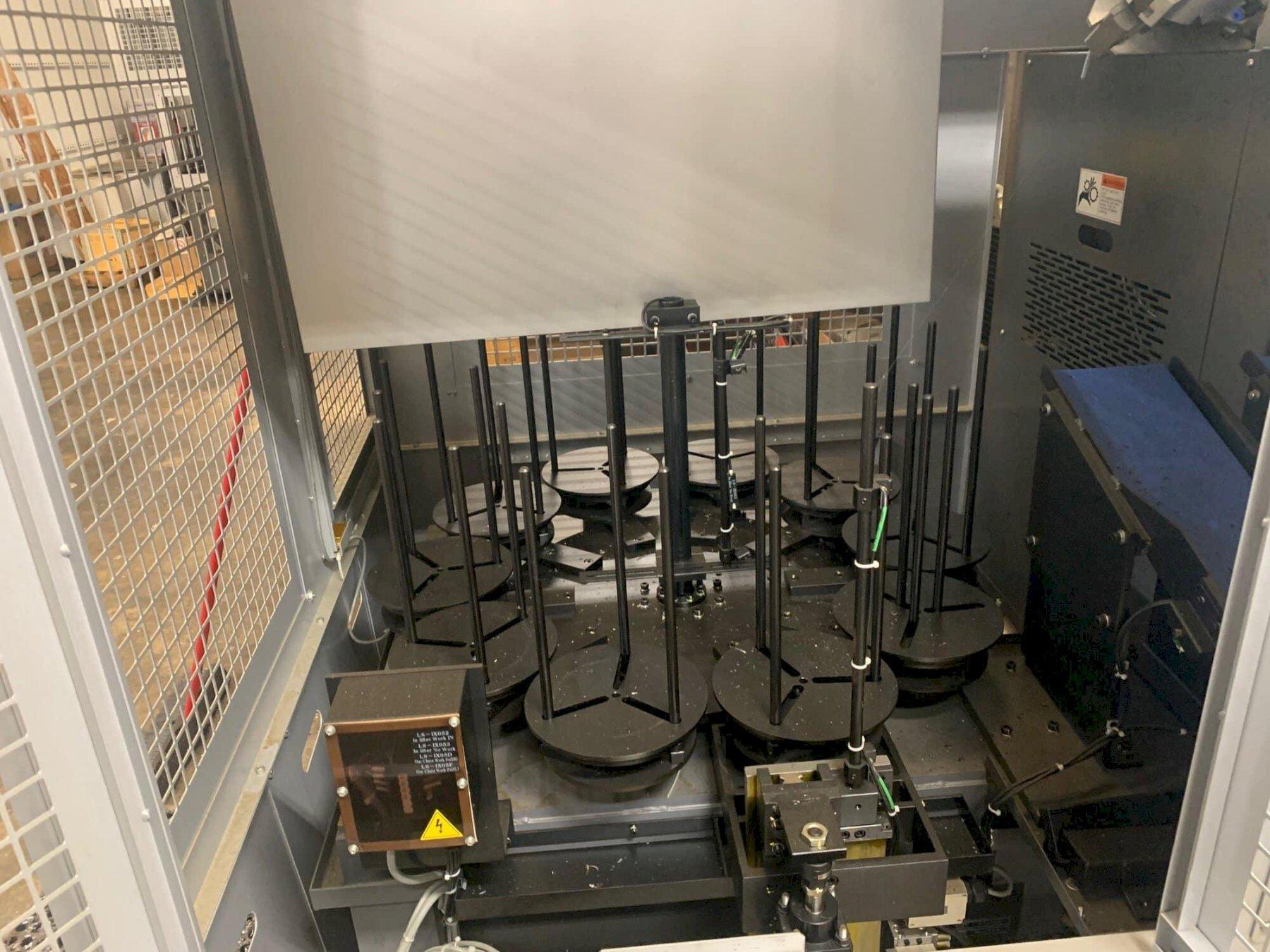

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gantry Automation Takamaz GTH150 Gantry Loader Dedicated L-Hand configuration OP 10/10 or OP 10/20 part flow Part turn station Extended loader rail 16-station IN/OUT rotary stocker Loader/unloader grippers formed for one part Loader part pusher Loader software supporting: OP10/10 OP10/20 Left-to-Right Left-to-Left Right-to-Left Right-to-Right Safety fencing with access-door interlock

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc Oi-TD Control (2) Kitagawa B208 3-Jaw Hydraulic Chucks (2) Hydraulic Chucking Cylinders Chuck Clamp/Unclamp Confirmation Sensors Spindle Cooling Device Coolant-Through-Spindle Flushing Chip Blaster D-30/70 1,000 PSI High-Pressure Coolant System Dual Cartridge Filtration 160-Liter Coolant System Rear-Mounted Belt-Type Chip Conveyor Front-Side Air Blow Parts Preset Counter Splashguard Door with Safety Interlock 3-Color Signal Tower Internal LED Machine Light (4) 1.5″ ID Boring Holders (4) 1″ Square-Shank Turning Holders Service Tool Kit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
