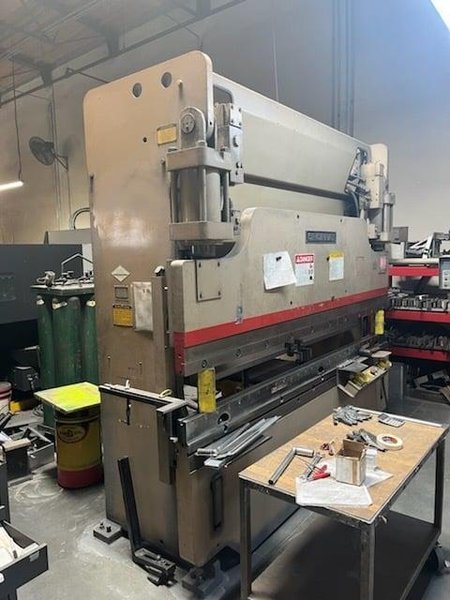

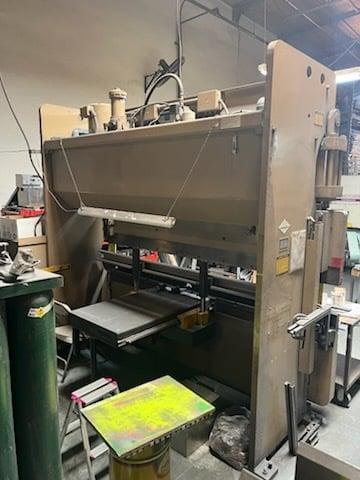

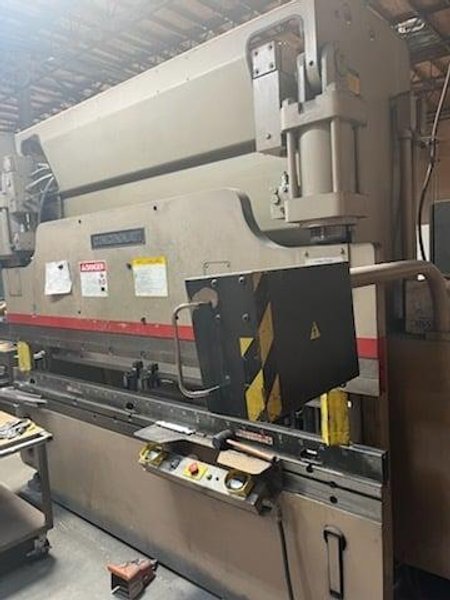

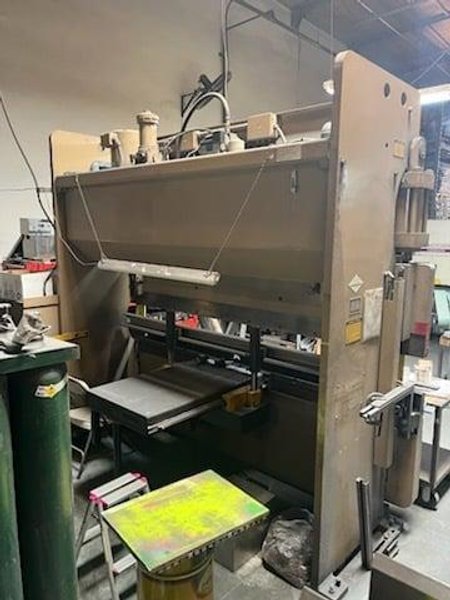

90 Ton X 10’ Hydraulic Press Brake with Cincinnati CNC 2 - Axis Control, Dual Palm Button Operation, Remote Foot Pedal and Manual R - Axis.

GENERAL SPECIFICATIONS
Capacity:                        90 Tons
Distance Between Housings:            8’ 6”
Stroke:                        8”
Throat:                        7”
Overall Die Surface:                    10”
Die Space - Open:                    15”
Die Space - Closed:                    7”
Approach Speed:                    260 IPM
High Speed:                        80 IPM
Low Speed:                        10 IPM
Return Speed:                    280 IPM

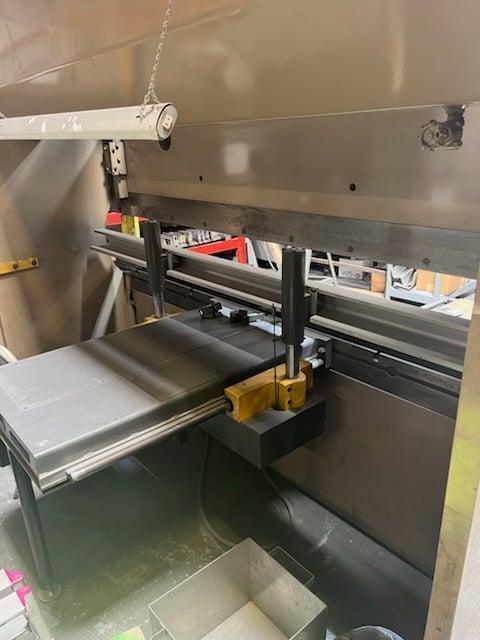

Back Gauge Range:                    24”
Motor:                            15 HP
Approx Overall Dimensions:            60” X 120” X 116” H
Approx. Weight:                    14,000 Lbs

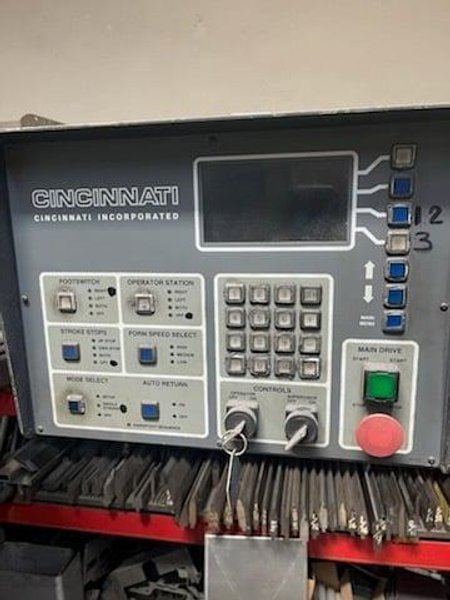

INCLUDES: Cincinnati CNC 2-Axis Control, Dual Palm Button Operation, Remote Foot Pedal and Manual R - Axis.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
