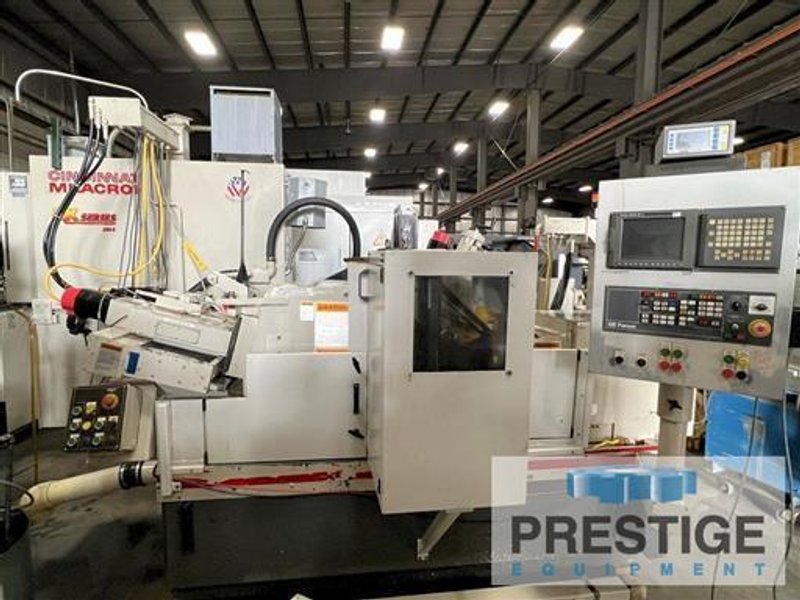

Grinders Centerless

CAPACITIES:
Maximum Workpiece Diameter 4.5"
Minimum Workpiece Diameter 0.060"
GRINDING WHEEL:
Maximum New Wheel Diameter 24"
Minimum Worn Wheel Diameter 17"
Maximum Wheel Width 10"
Mounting Hole Diameter 12"
GRINDING WHEEL:
Surface Speed With Max. Dia. Wheel 8500 FPM
Grinding Wheel Speed 1800 RPM with 256T Frame
Grinding Wheel Drive Motor 20 HP
REGULATING WHEEL:
Maximum New Wheel Diameter 14"
Minimum Worn Wheel Diameter 11"
Mounting Hole Diameter 6"
Maximum Width Without Cobore 8"
Maximum Width With Cobore 10"
Range Of RPM During Dressing 0-300 RPM
Surface Speed 0-1100 FPM
Servo Drive Motor 14 N-m
Housing Swivel (Workfeed Angle) + 8 DEG TO -
SWIVEL PLATE:
Swivel To Front Measured To Adjustor 0.50"
Swivel To Front Measured To Adjustor 0.50"
UPPER & LOWER SLIDE:
Upper Slide Maximum Travel 9.05"
Lower Slide Maximum Travel 5.27"
Upper & Lower Slide Clamps (2) Each Manual
MACHINE WEIGHT & ELECTRICS:
Approximate Machine Weight 22,500 LBS
Electrics 480V/3/60



Equipped With:
Fanuc 18i-T CNC Control
Grinding Wheel Dresser
Regulating Wheel Dresser
Infeed Capability
Single Axis Slide Drive
SBS Model SB-5500 Balancing System
Etamic Part Conveyor System
Hydraulic System
Lube System
Manuals
