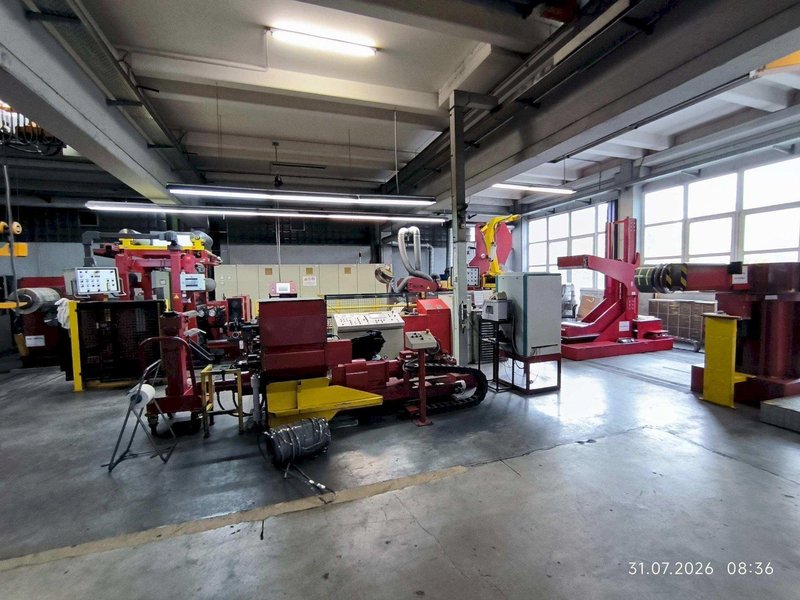

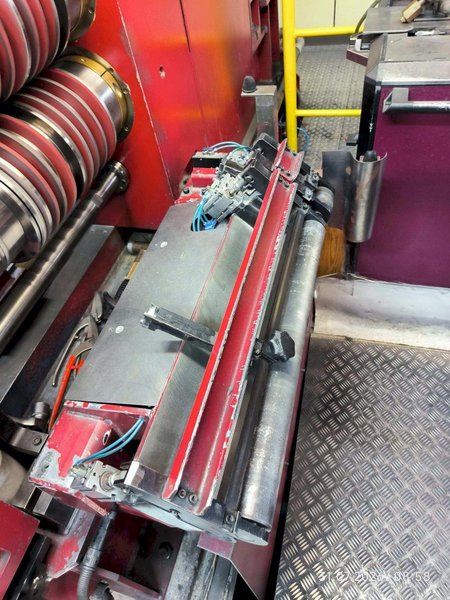

600MM X 2MM x 5 TON BURGHARDT + SCHMIDT SINGLE LOOP SLITTING LINE

Brand
BURGHARDT+SCHMIDT
Category
Coil Handling Equipment
Type
Slitters & Slitting Lines
Model
Not specified
Stock #
117396
Year
1999
Condition
Used

Location

Not specified
Manufacturer: Burghardt + Schmidt
Yom: 1999

Slitting shaft OD: 145mm

Tool OD: 240mm

Material that has been slit:

  • Stainless
  • Aluminium
  • Coated / Paint coated material, Colours, stripes, etc.

Coil weight: 5Tons (coil cars 6ton)

Width:

  • Entry min/max: 35 - 590mm (600mm)
  • Slit strip Min/max: 19,5mm - 585mm - Less is possible with different tooling

Thickness:

  • Min/Max: 0,1mm - 2mm

Speed:

  • Stainless: 120m/min (Thicker end)
  • Aluminium: 370m/min

Coil ID's:

  • 300; 400; 500mm

Power:

  • Pay off winder - 86kW DC
  • Slitter - 82kW DC
  • Re-Coiler - 230kW DC
  • Scrap winder - 46kW DC

Includes

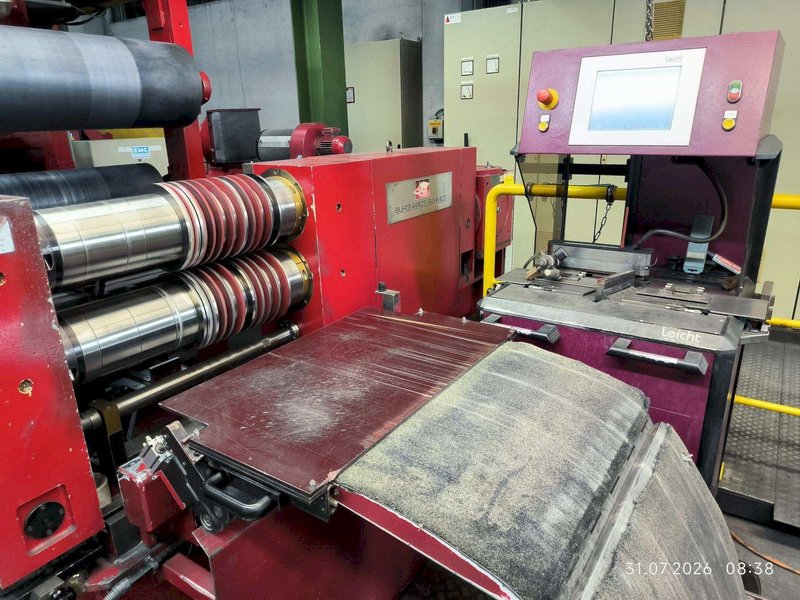

Leicht stamping + welding unit (WIG(TIG) 120/05/2/75/D-Z)
EMG edge control at pay-off

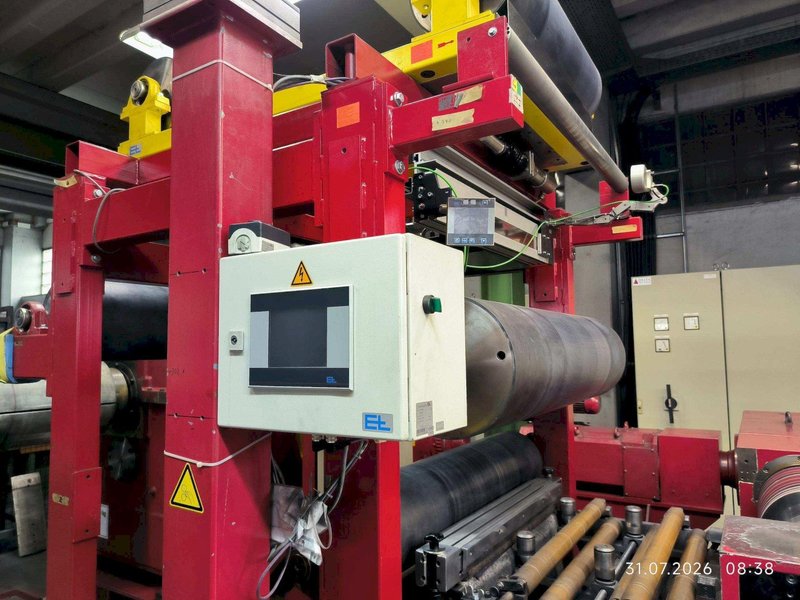

Entry bridle stand with edge control, camera control for e.g perfect parallelism of striped strips (painted etc.)

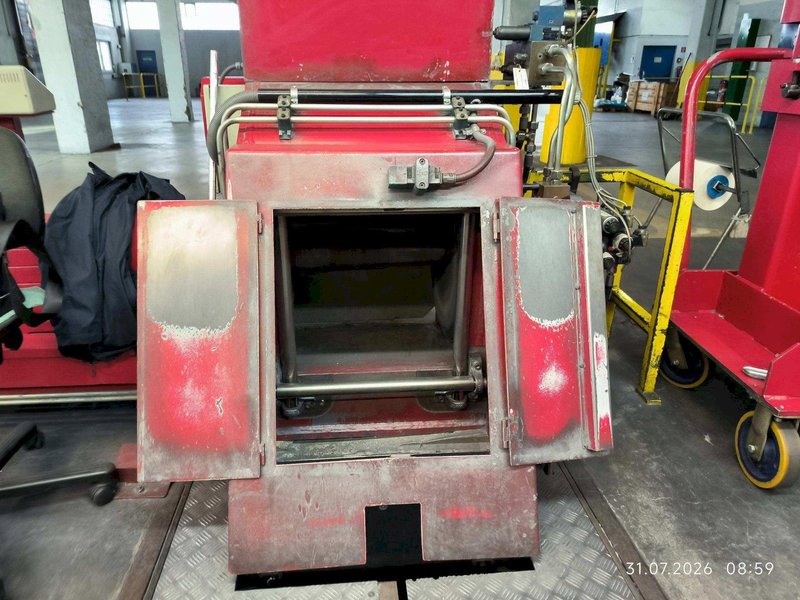

Fume exhaust
Scrap winder

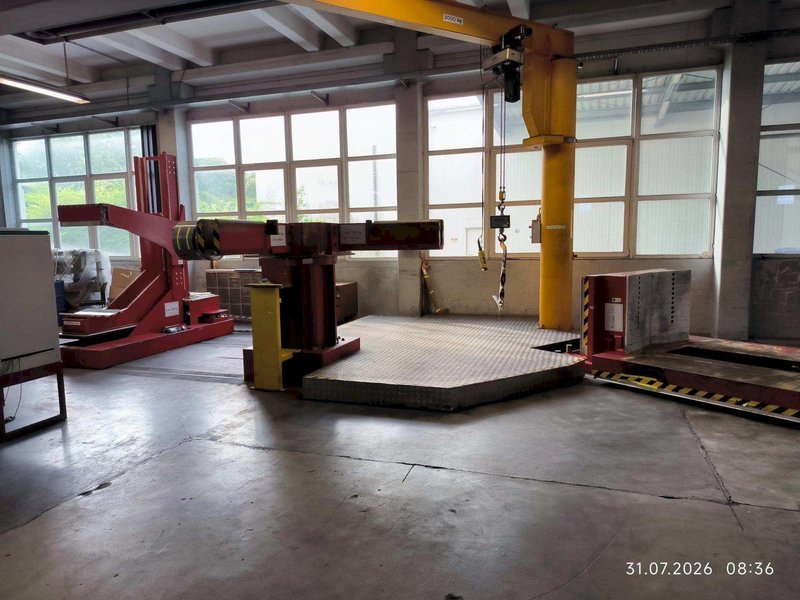

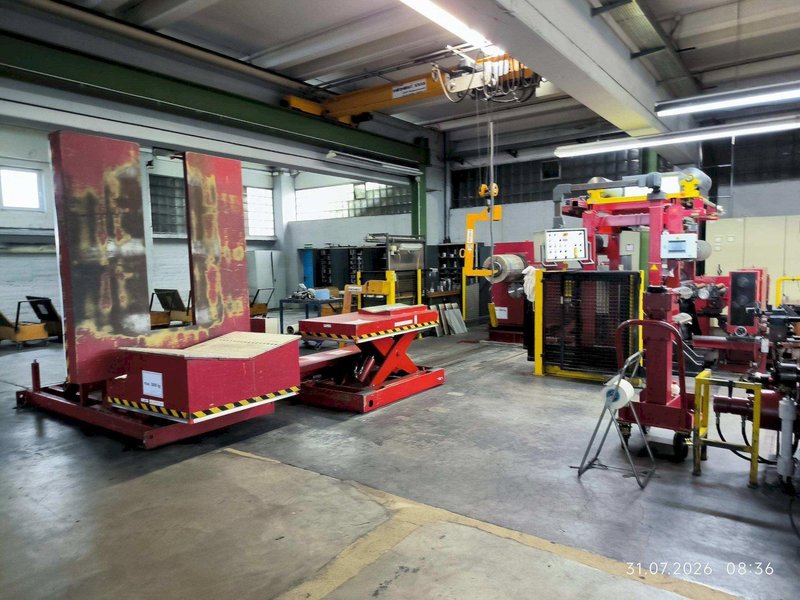

2 Coil tilting tables, packaging table
Fume exchaust at tension stand
Siemens S7 controls
On floor coil cars
Overarm separation at rewinder
Rewinder with hydraulic push off plate
Traveling tension stand on linear guides
4 - arm coil turnstile at re-coiler

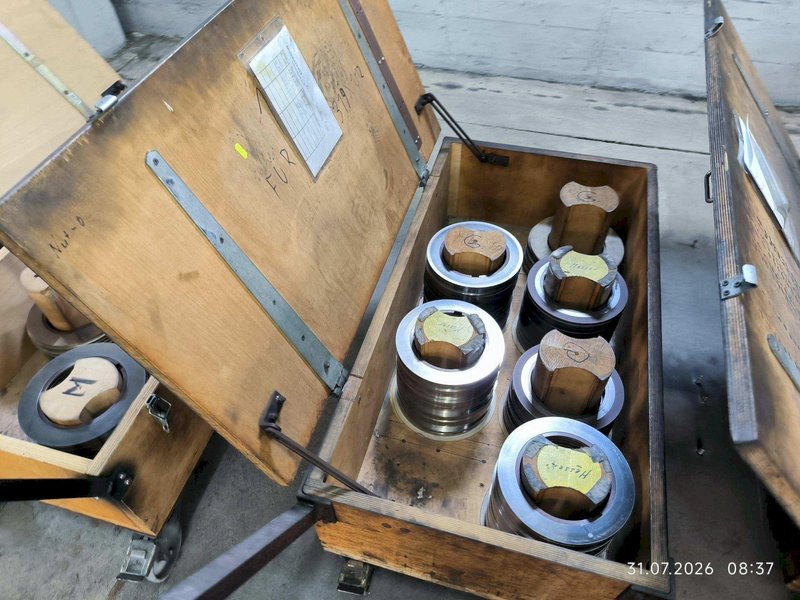

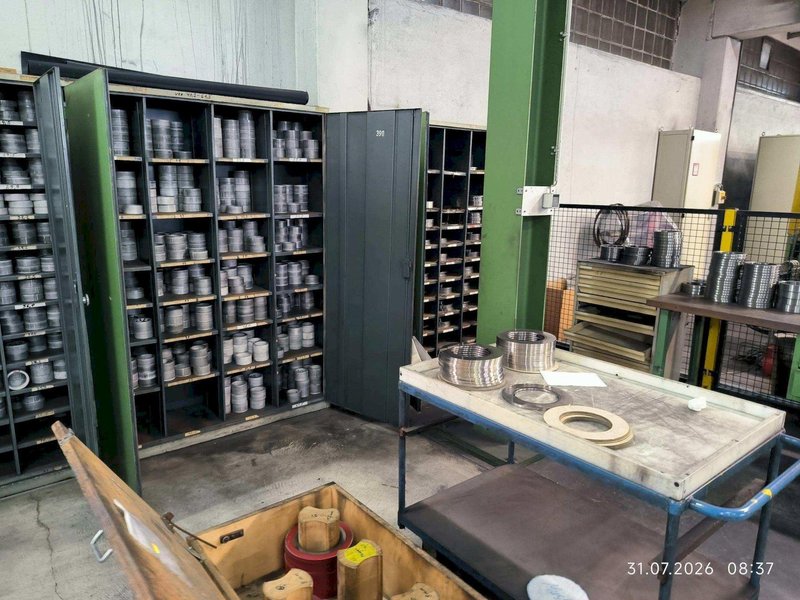

Large set of tooling

Required space aprox 16 x 12m (16 x 16 with the tilting tables, packaging area etc.)
Watch https://appriver3651007856-my.sharepoint.com/:v:/g/personal/dominik_nationalmachy_com/IQAXcR54dS0lSI5P7cIWgkpPAXITBdVN2E72K3YOa0TdLqM?e=Qnlq5d&referrer=Outlook.Desktop&referrerScenario=email-linkwithembed
