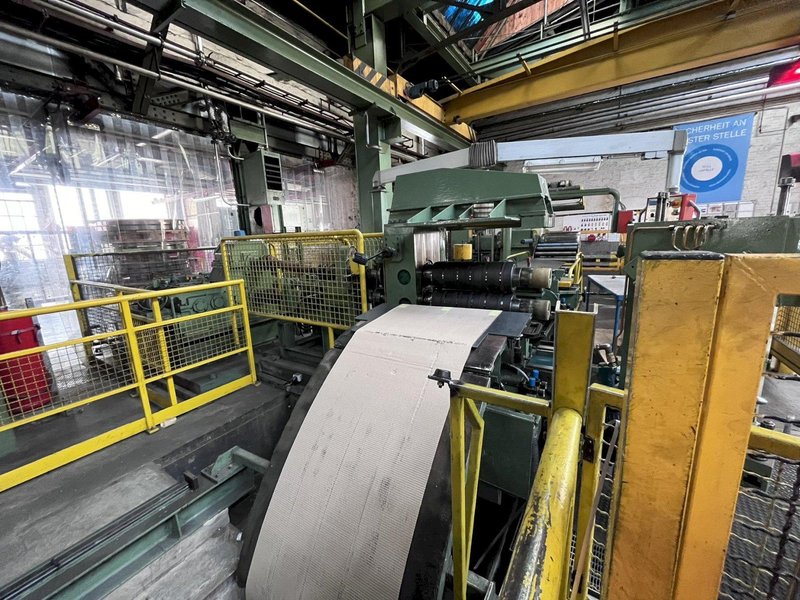

TILGERT - BURGHART & SCHMIDT 650MM, DOUBLE PIT, PRECISION SLITTING LINE
Brand
Category
Model
Not specified
Stock #
116547
Year
Not specified
Condition
Used
Location
Not specifiedGermany
|
TILGERT / BURGHART SCHMIDT SLITTING LINE
BUILT 1978; REFURBISHED / REBUILT by BURGHART SCHMIDT 2002
ENTRY
MAX COIL WEIGHT......10 TON
COIL STRIP WIDTH......10MM - 650MM
MAX COIL THICKNESS:.....0.2 MM - 1.50MM
ENTRY COIL ID: .......400MM / 500MM
ENTRY MAX COIL OD: ....2000MM
COIL WEIGHT EXIT......6TON / 12TON / 12TON
EXIT COIL I.D.:........300MM / 400MM / 500MM
EXIT COIL O.D.:.........2000MM
CONFIGURATION
PAPER WINDER........100MM TO 800MM DIAMETER ROLL
COIL CAR
UNCOILER
HYDRAULIC EXPANSION, TRAVERSE, EDGE GUIDE, SNUBBER ROLL
LEAVES FOR LARGER ID
MAIN MOTOR......71kW, 1550 RPM, 400V
PIT WITH ROLLER ENTRY AND EXIT GUIDE RAMP

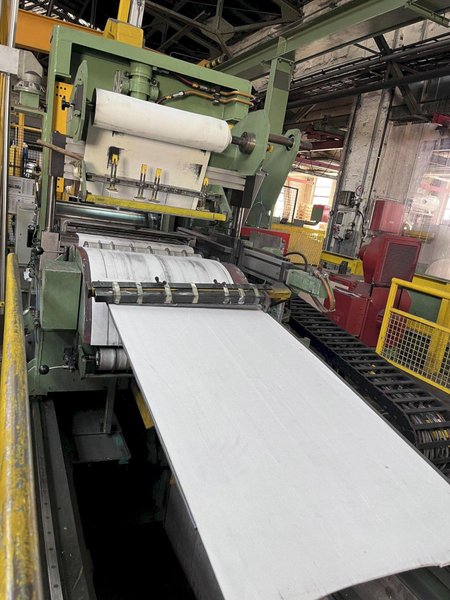

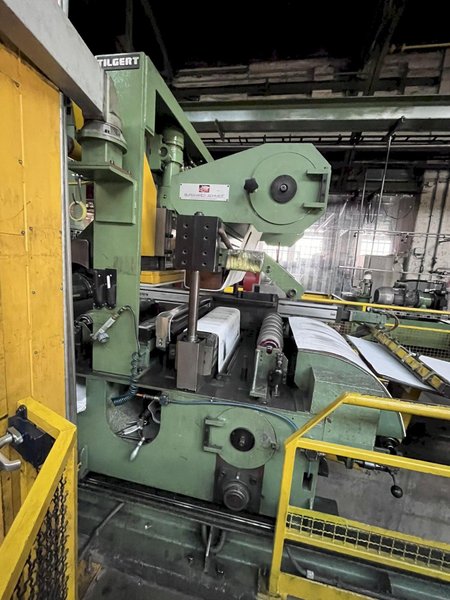

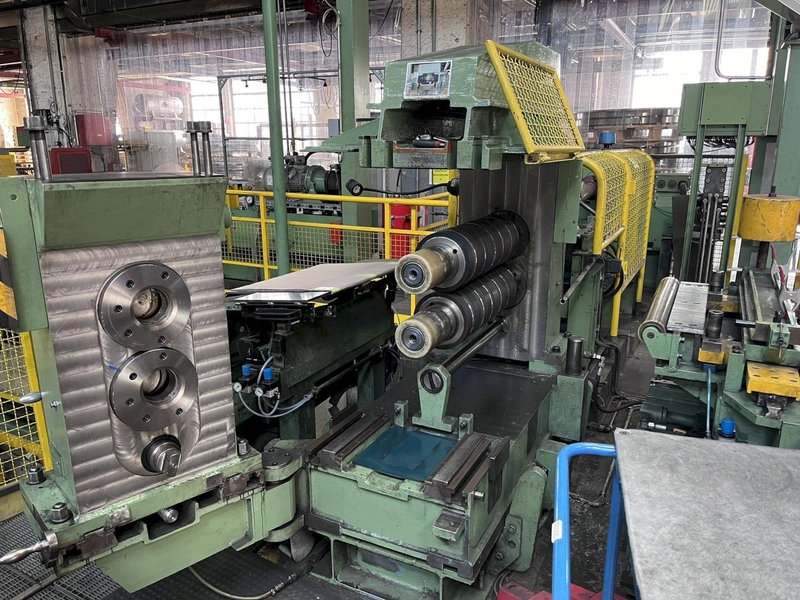

TILGERT SLITTING HEAD
ARBOR FACE.....715MM
ARBOR DIAMETER...140MM
SWING OUT OUTBOARD SUPPORT STAND
MAIN MOTOR......142kW, 2500RPM

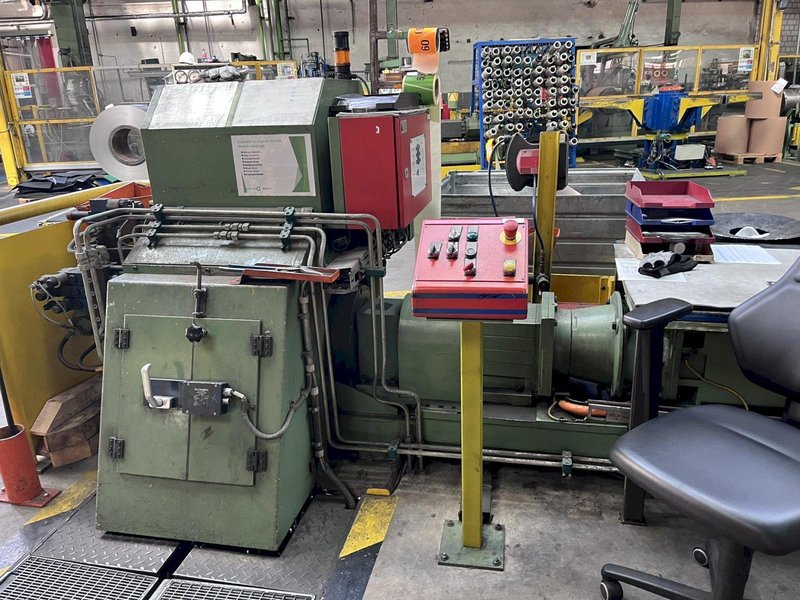

TILGERT SCRAP WINDER, MODEL LTA3, 2007
POWER........41 KW, 2000 RPM
WINDING SPEED...0 - 300 M/MIN
USABLE WIDTH....600MM
BALL DIAMETER, MAX..600MM
PIT WITH TILGERT ENTRY AND EXIT GUIDE RAMP
BURGHART & SCHMIDT TRAVELING TENSION STAND
5.5kW,
OVER PIT
STRIP SEPARATOR KNIFE GUIDE
BRIDLE ROLL

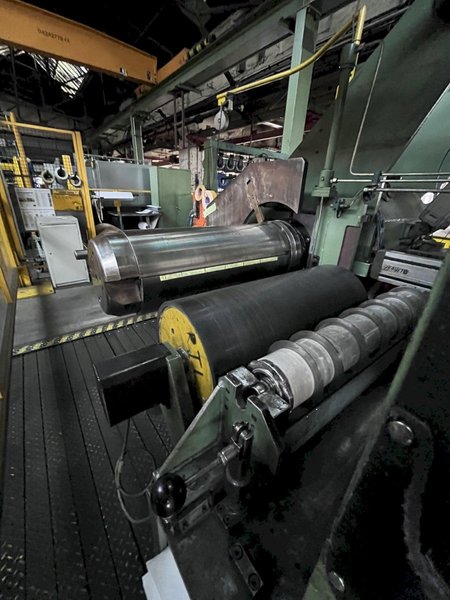

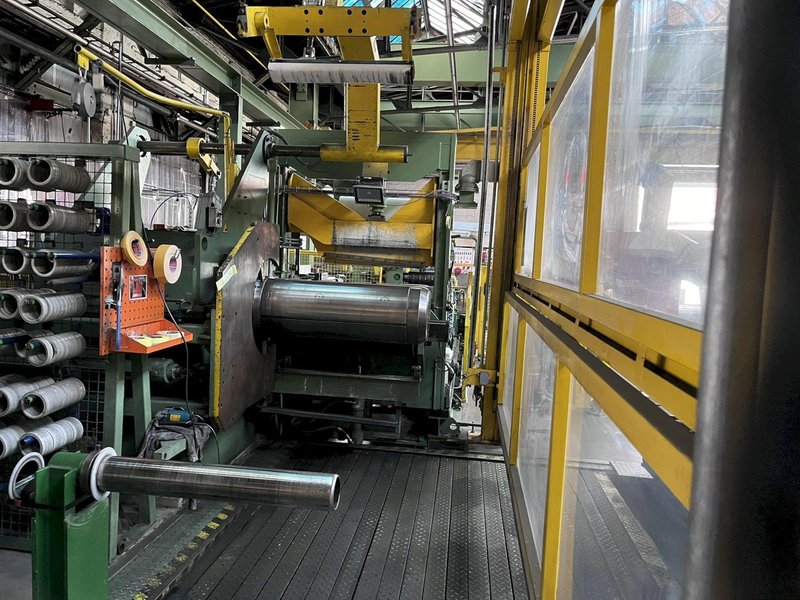

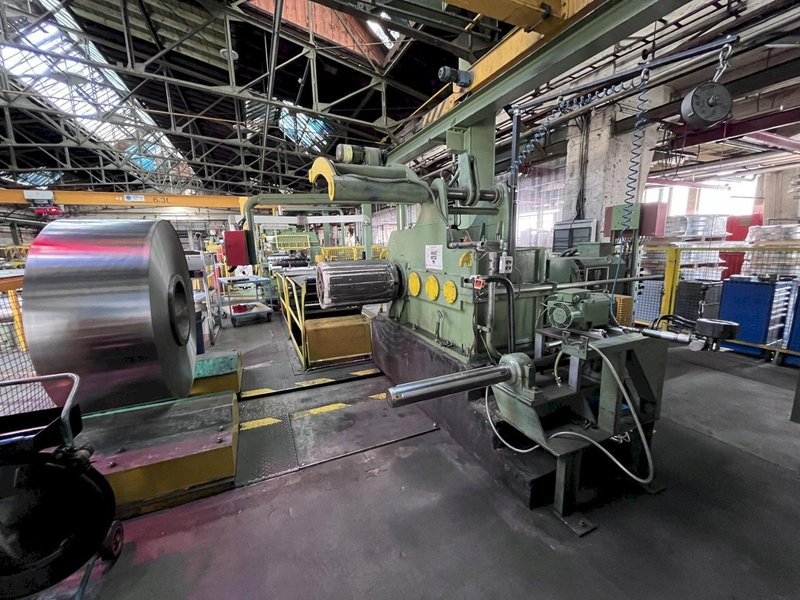

RECOILER
MANDREL DIMENSIONS....750MM X 300 / 400 / 500MM
MAX COIL OD:.........2000MM
MOTOR.............170kW, 1150RPM
HYDRAULIC PUSH OFF PLATE

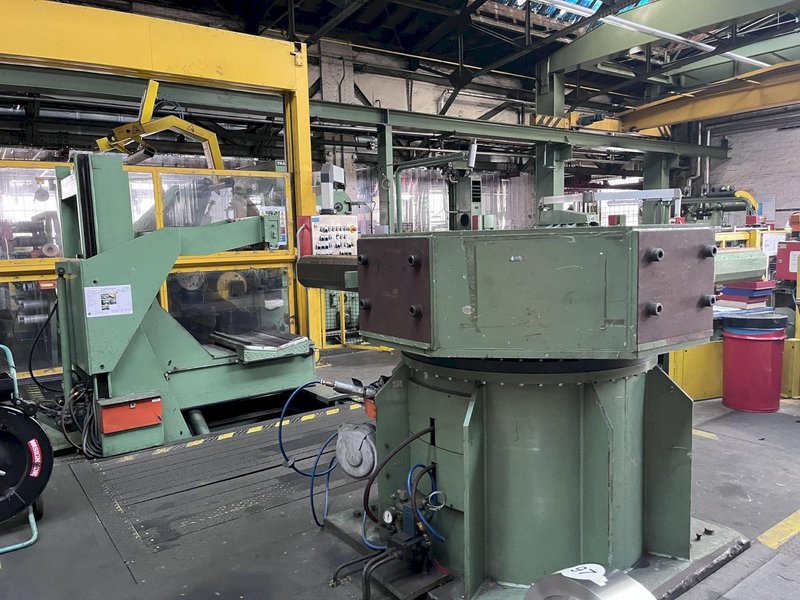

TURNSTILE
SNUB / CONTROL OVERARM
PAPER WINDER
COIL CAR, "L" SHAPE WITH KEEPER
2 ARM TURNSTILE (BUILT AND MACHINED FOR 2 MORE ARMS)
MISCELLANEOUS

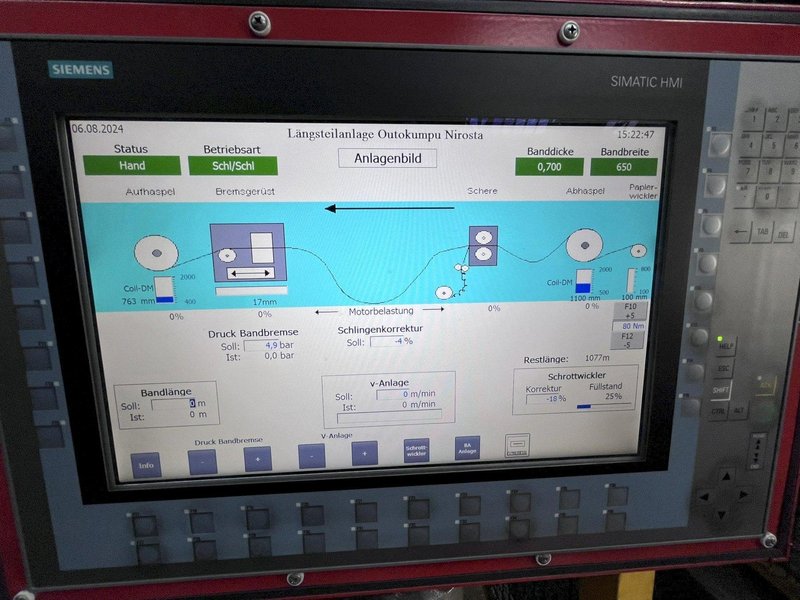

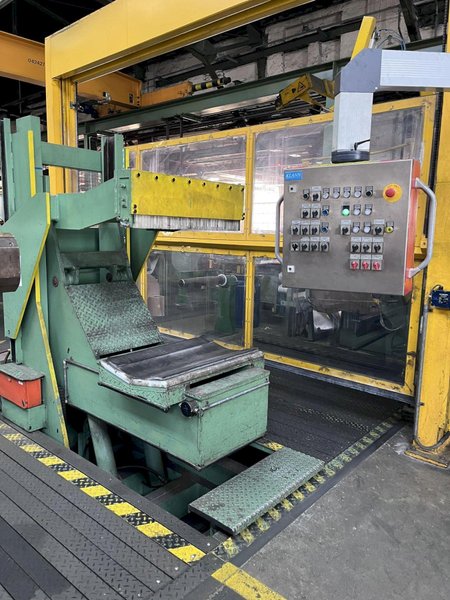

OPERATOR CONTROL PULPITS

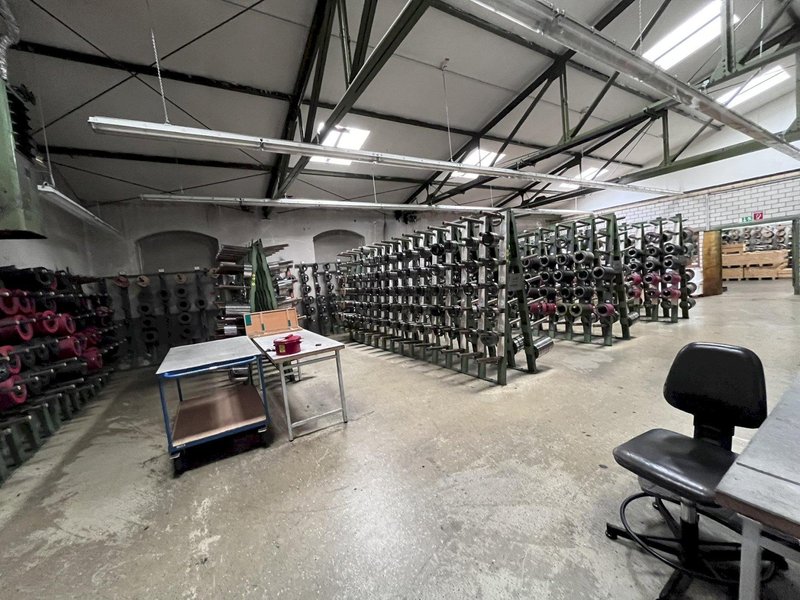

LARGE SELECTION OF KNIVES AND SPACERS |
