Title: 220 Ton Komatsu SSDC Servo Press
Type: Presses, Straight Side, Double Crank (Single Action)
Brand: KOMATSU

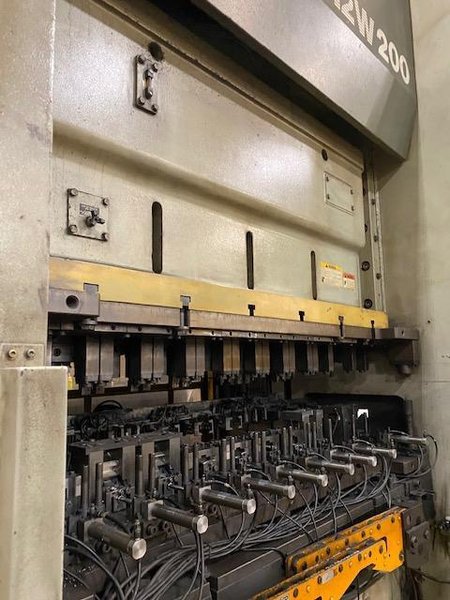

Model: H2W200
Year: 2009
Message
Information

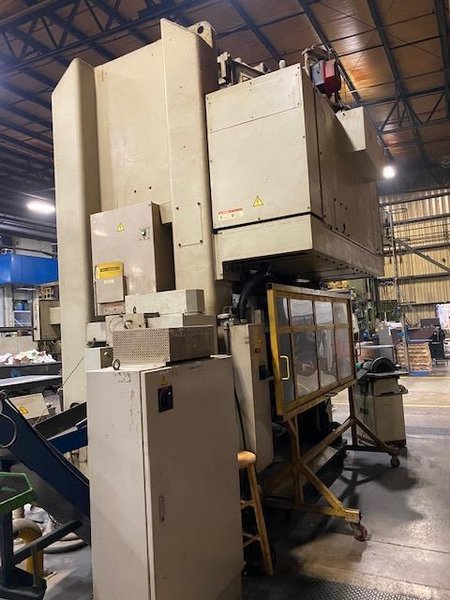

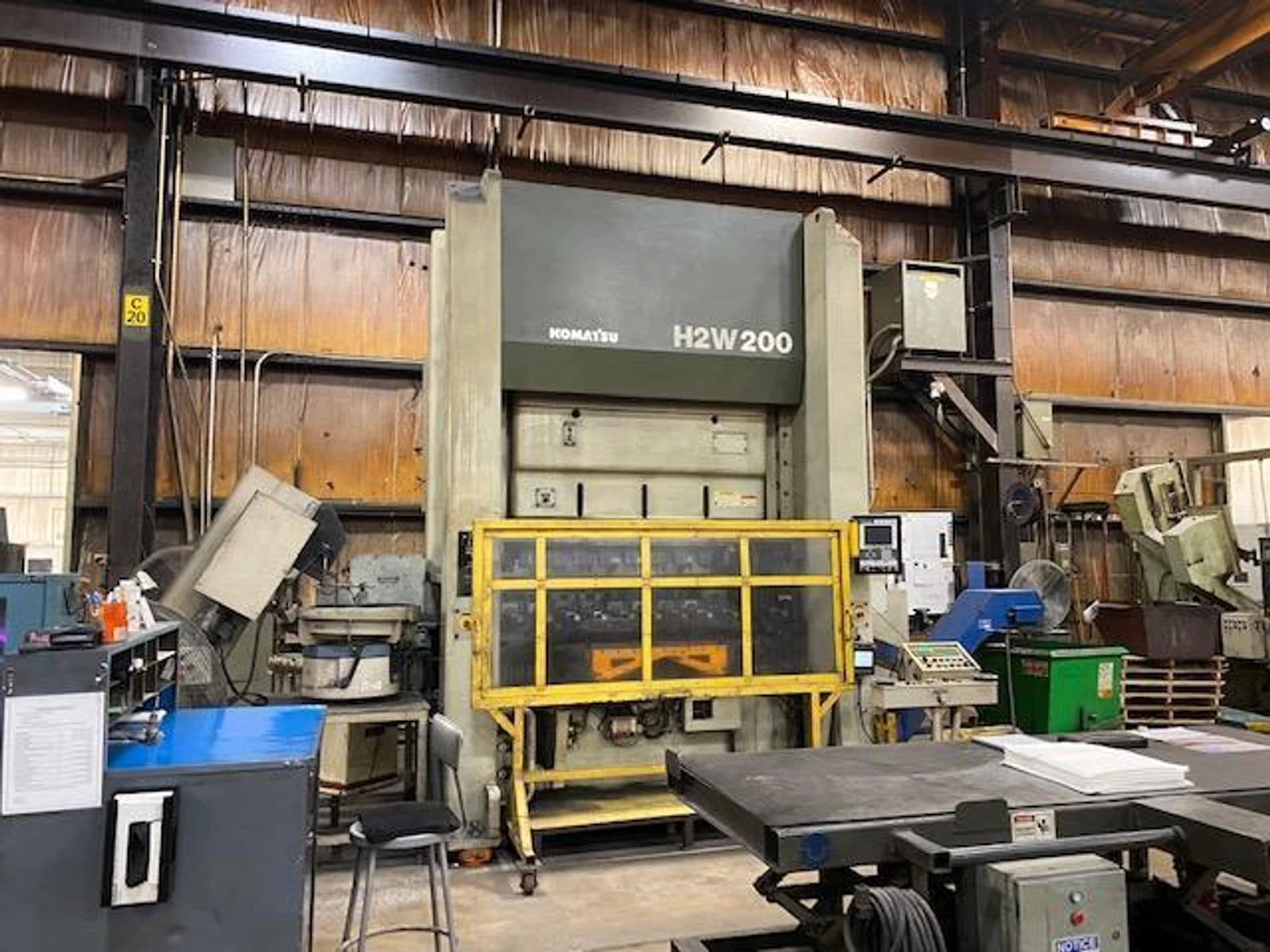

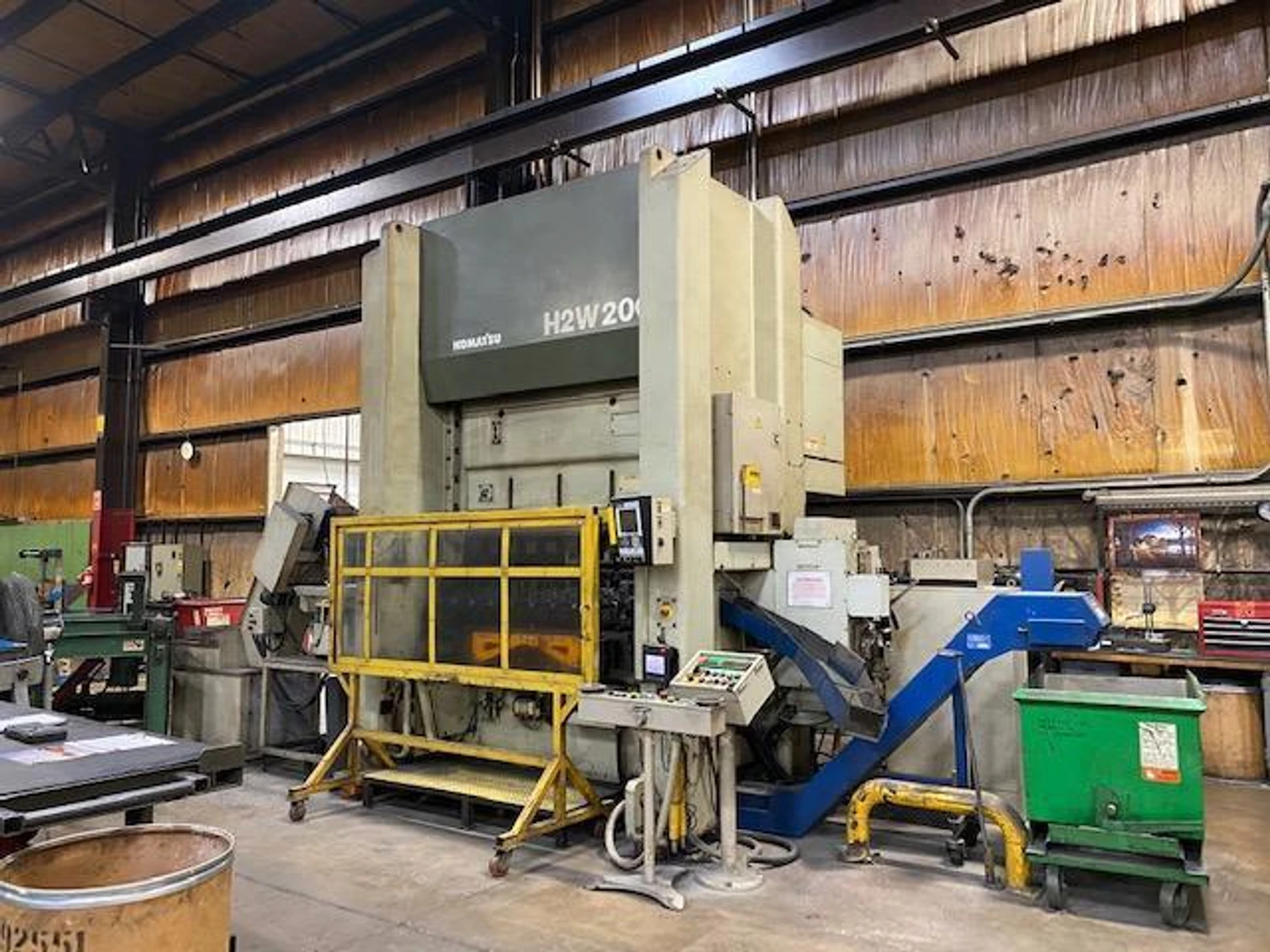

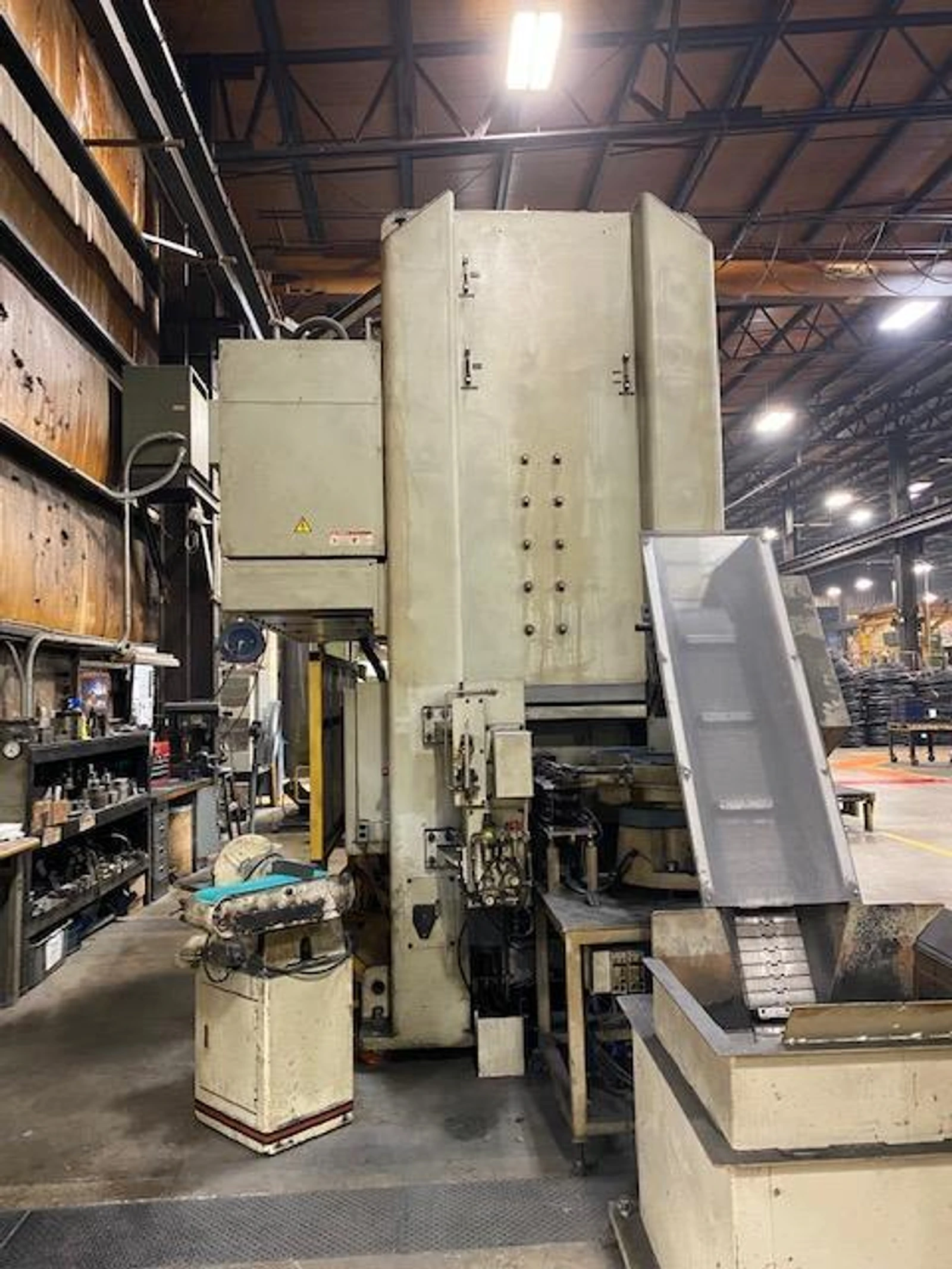

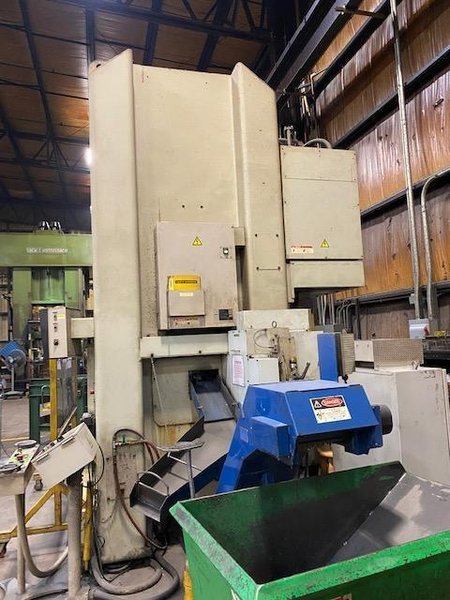

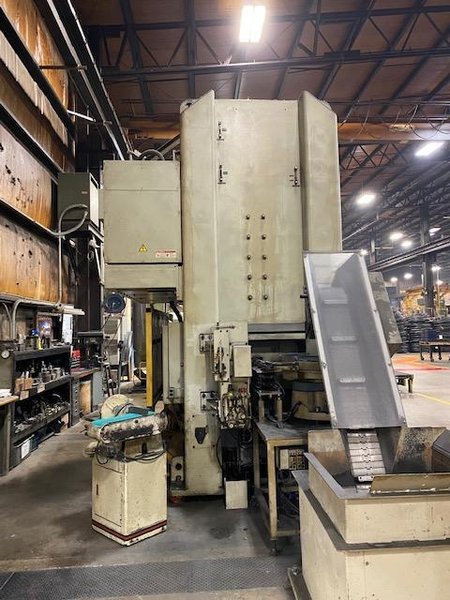

220 Ton Komatsu SSDC Servo Press

Brand
KOMATSU
Category
Presses (Stamping)
Type
Presses, Straight Side, Double Crank (Single Action)
Model
H2W200
Stock #
Z21037
Year
2009
Condition
Very Good
Location
Ohio

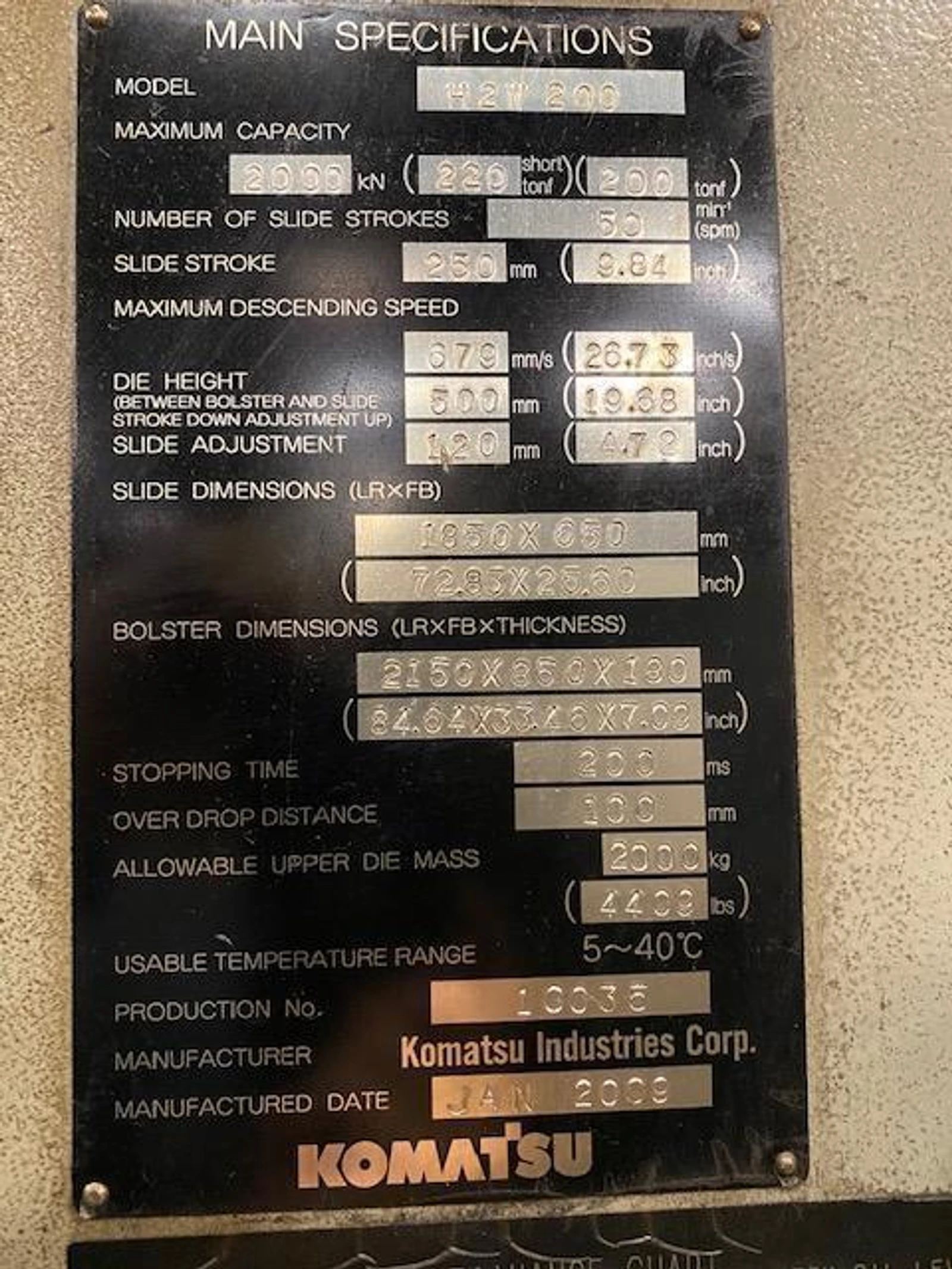

Forge Press: 200 Kn ( 200MT)
SPM: 50
SPM 70 Pendulum
Slide Stroke: 250mm or 9.94"
Descending Speed: 679mm/s
Die Height: 500mm or 26.73"
Slide Adjustment: 120mm or 4.72"
Slide Dimensions: 1850mm x 650mm, 72.83" x 25.60"
Bolster Dimensions: 2150mm x 850mm x 180mm, 84.64 x 33.46 x 7.09"
Stopping Time: 200 m/s
Over Drop Distance: 100mm

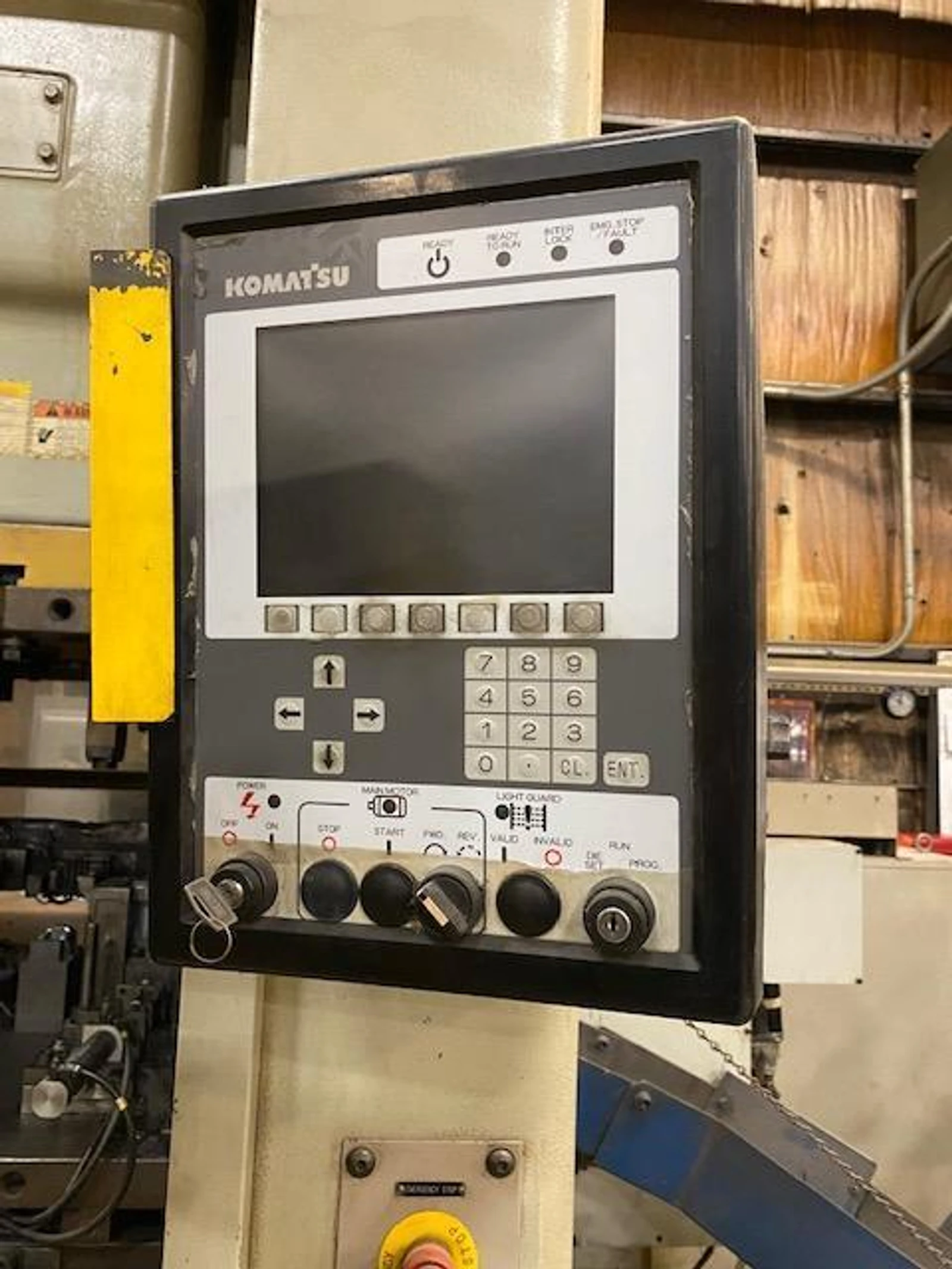

39.4" WINDOWS
2009
FLOOR STANDING
Electrics: 460 Volts
Weight: 60,000 Lbs.
DIMENSIONS 120"LR X 104"FB X 165" TALL
Watch https://youtu.be/nepSHTkbHYQ
