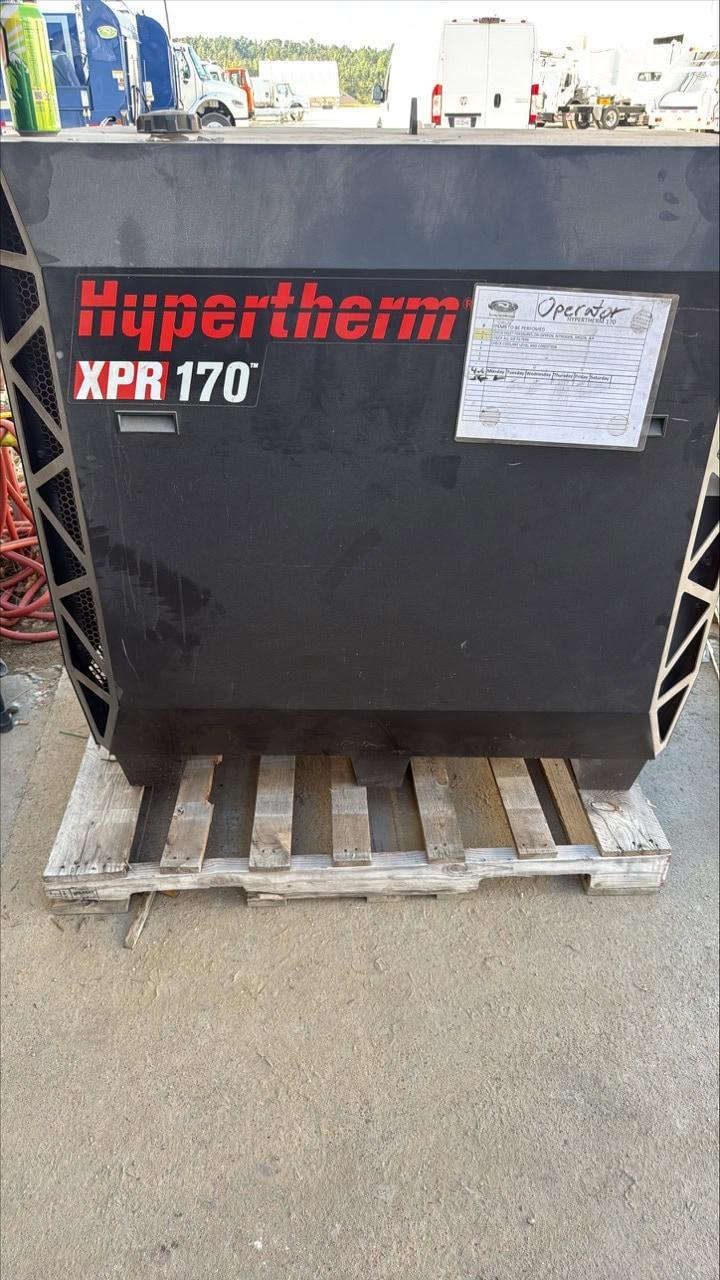

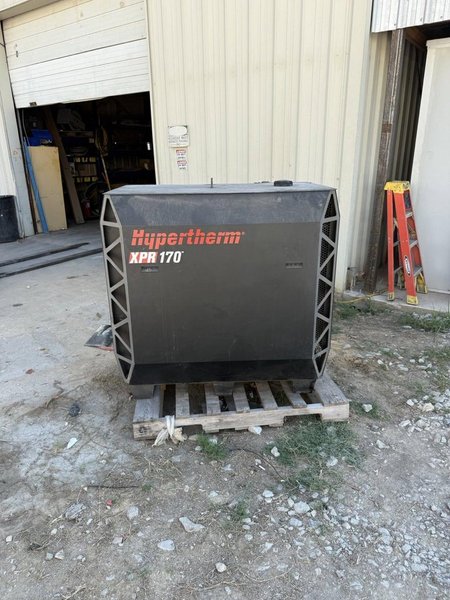

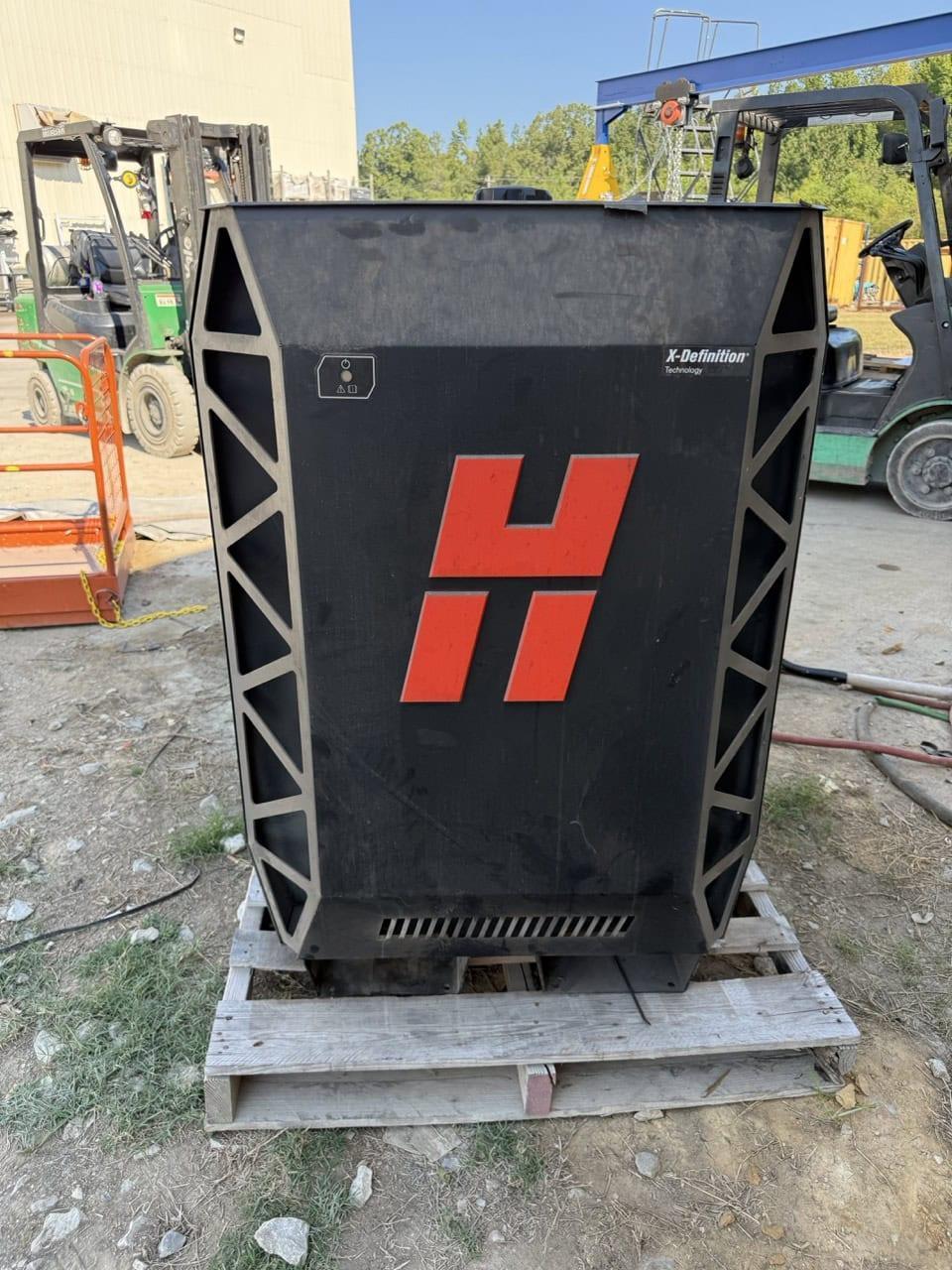

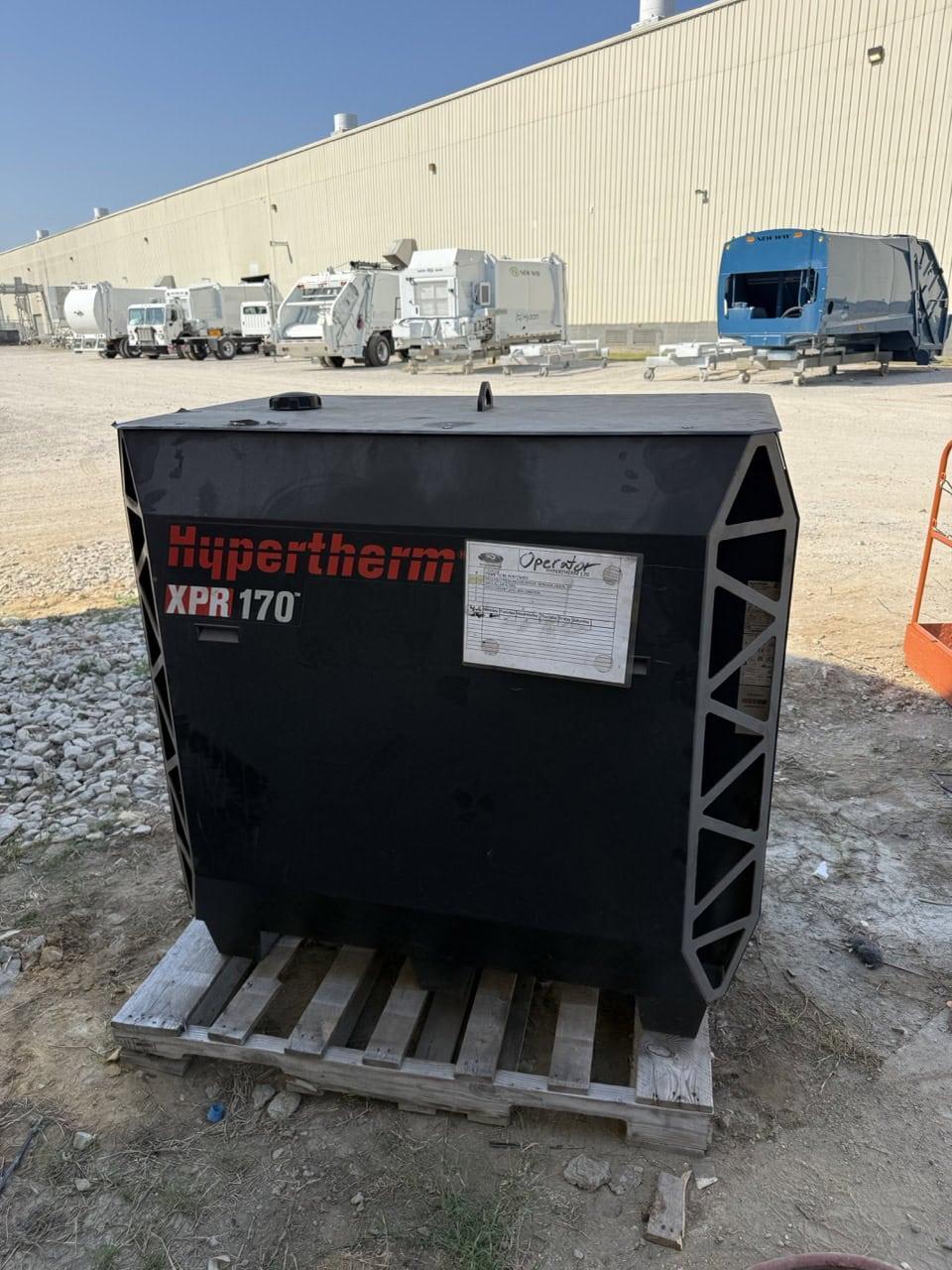

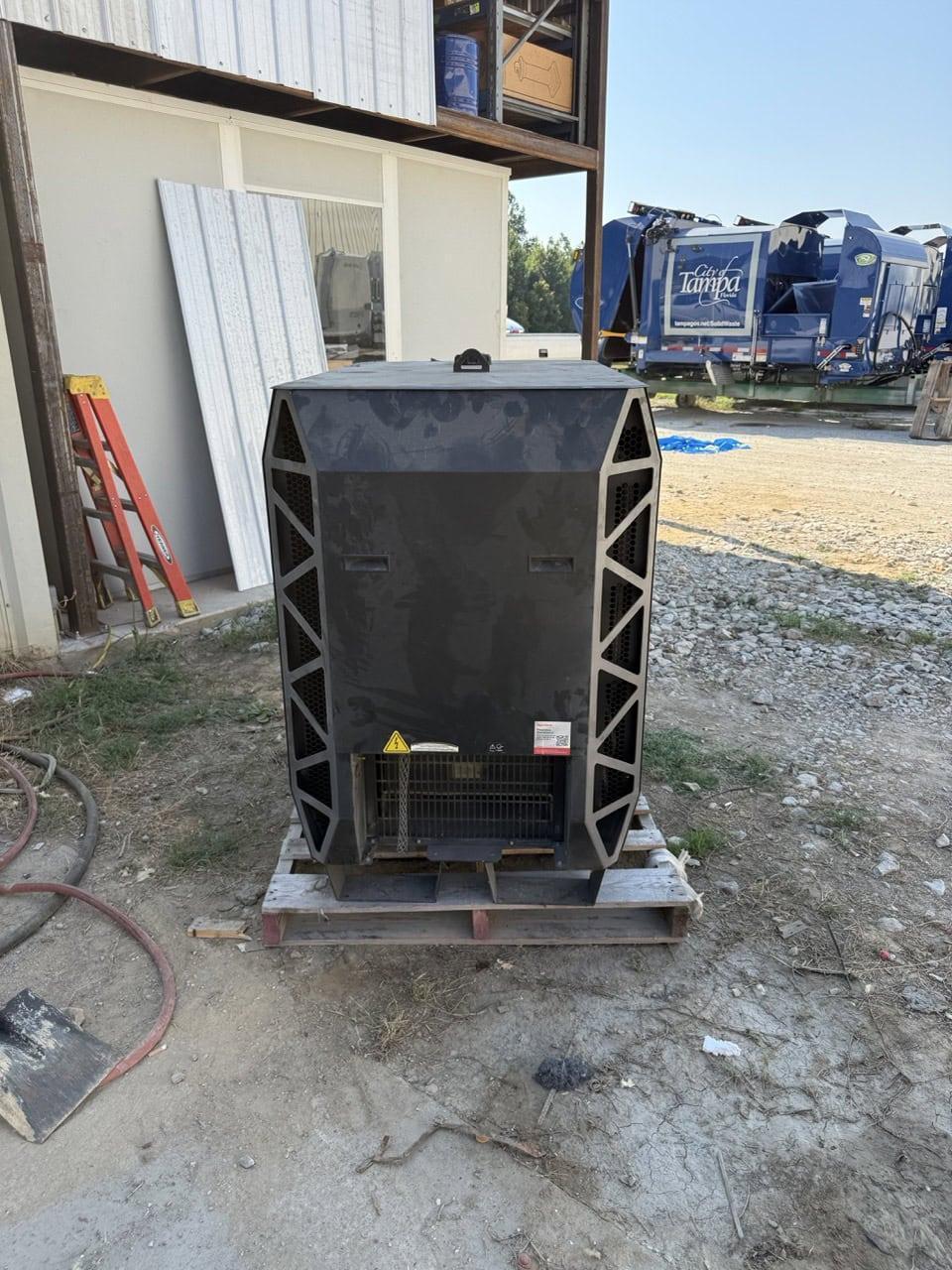

Hypertherm XPR 170 Plasma Cutting System, 2022

Output

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max output current: 170 A Output voltage: 50–210 VDC Max open-circuit voltage: 360 VDC Duty cycle: 100% @ 35.7 kW Max gas inlet pressure: 1.48 MPa (215 psi)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cut capacity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mild steel: pierce 1-3/8″ (air shield) / 1-9/16″ (argon-assist, requires CorePlus, VWI or OptiMix console); severance 2-3/8″ Stainless: pierce 7/8″, severance 1-1/2″ Aluminum: pierce 1″, severance 1-1/2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Physical

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,842 x 1,248 x 1,238 mm (33.1″ x 49.1″ x 48.8″) 1,002 lbs Top lift eye rated 1,500 lbs, fork slots in base

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,480 VAC, 3-phase, 60 Hz Rated input current: 49 A (HYP) / 34.3 A (IEC) 40.6 kVA, power factor 0.98 Class F forced-air cooling, Class H insulation, IP21S
