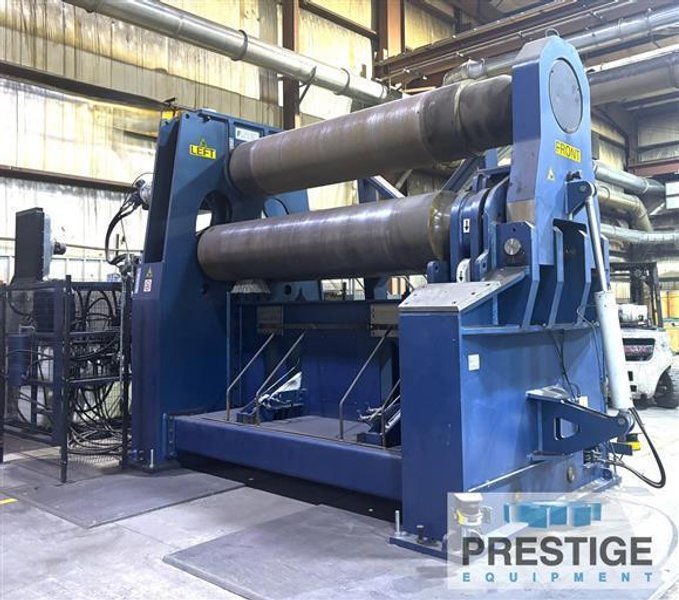

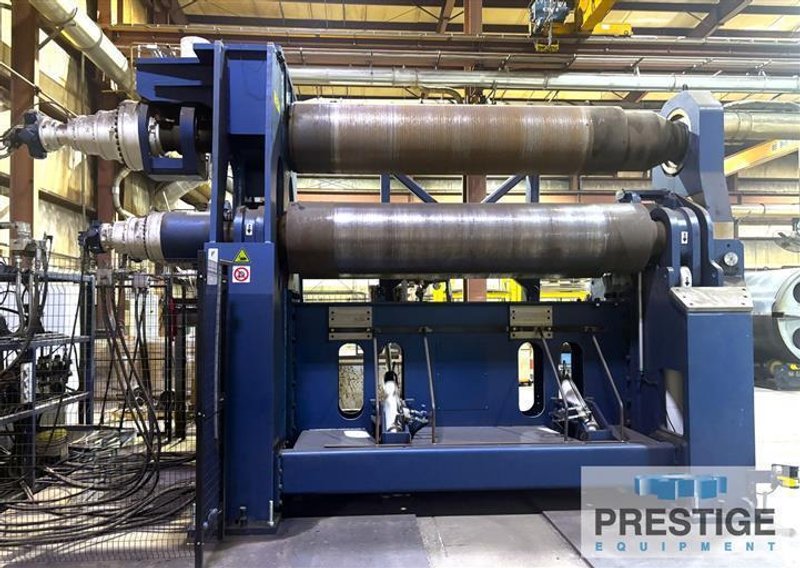

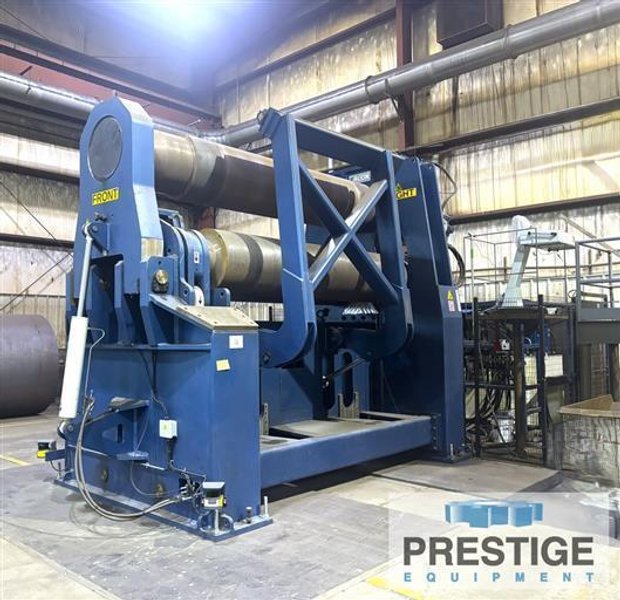

Rolls Plate Bending

CAPACITY:
Max. Plate Width 120"
Top Roll Diameter 26"
Side Rolls (2) Diameter 24.8"
Max. Rolling Speed 20 FPM
Main Drive Motor 175 HP
BENDING CAPACITIES, MATERIAL YIELD STRENGTH 37.7 KSI:
Max. Plate Thickness @130" ID 3" x 120"
Max. Plate Thickness @34" ID 2.5" x 120"
Max. Plate Thickness @130" ID 3.75" x 60"
PRE-BEND CAPACITIES, MATERIAL YIELD STRENGTH 37.7 KSI:
Max. Plate Thickness @130" ID 2.5" x 120"
Max. Plate Thickness @34" ID 2" x 120"
Max. Plate Thickness @130" ID 3.13" x 60"
BENDING CAPACITIES, MATERIAL YIELD STRENGTH 52.2 KSI:
Max. Plate Thickness @130" ID 2.5" x 120"
Max. Plate Thickness @34" ID 2.18" x 120"
Max. Plate Thickness @130" ID 3.13" x 60"
PRE-BEND CAPACITIES, MATERIAL YIELD STRENGTH 52.2 KSI:
Max. Plate Thickness @130" ID 2" x 120"
Max. Plate Thickness @34" ID 1.75" x 120"
Max. Plate Thickness @130" ID 2.5" x 60"



Equipped With:

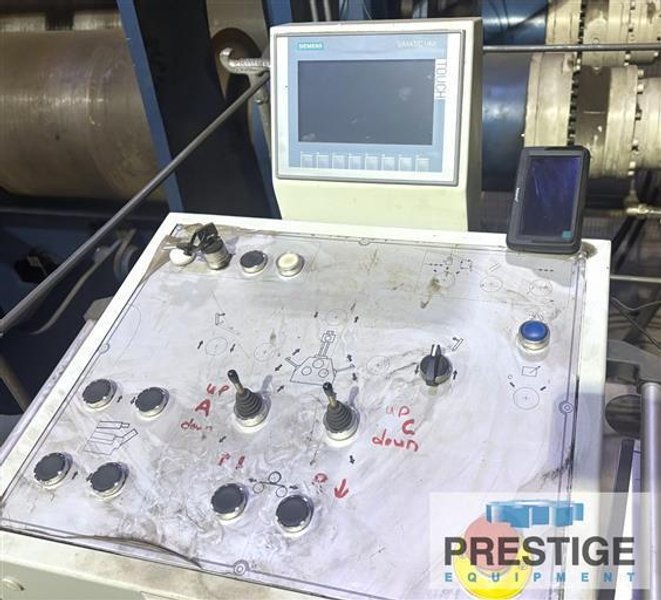

Operators Control Console On Wheels
(2) Electronic Digital Roll Position Readouts
Special Alloyed Rolls for high surface hardness plate processing.

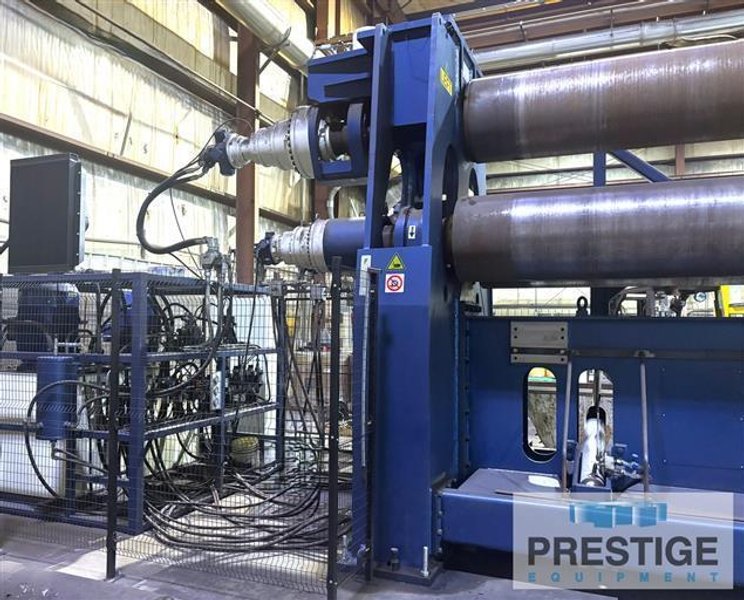

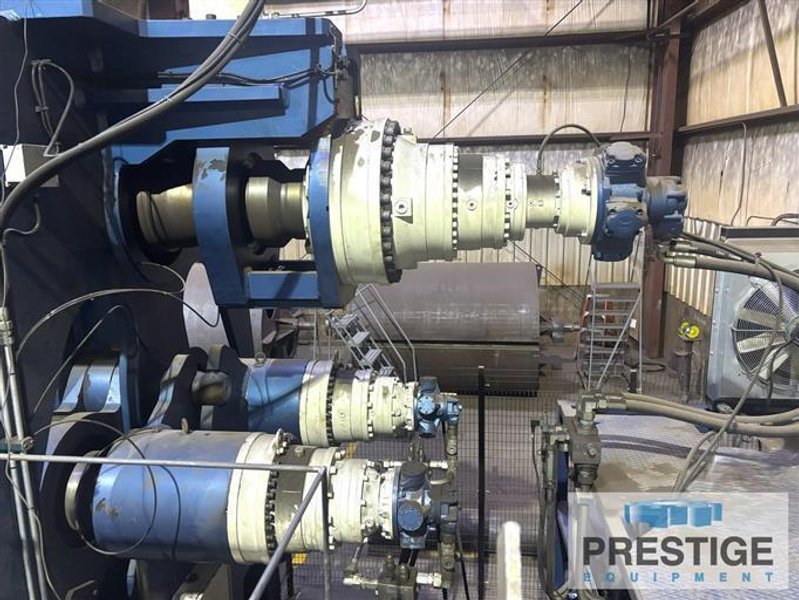

(3) Rolls independently motorized for maximum torque
Planetary system for side rolls movement
Electronic balancing system for the synchronization of rolls movement

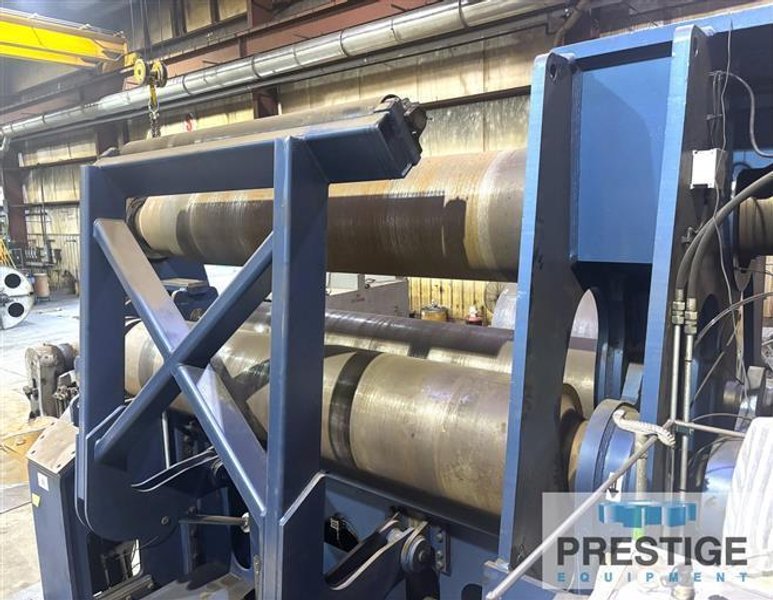

Extra-large double shaft drop end


NOTE: Inspect In Plant Under Power
