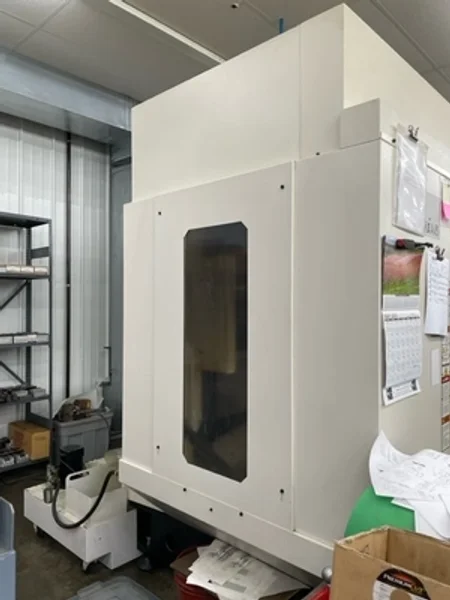

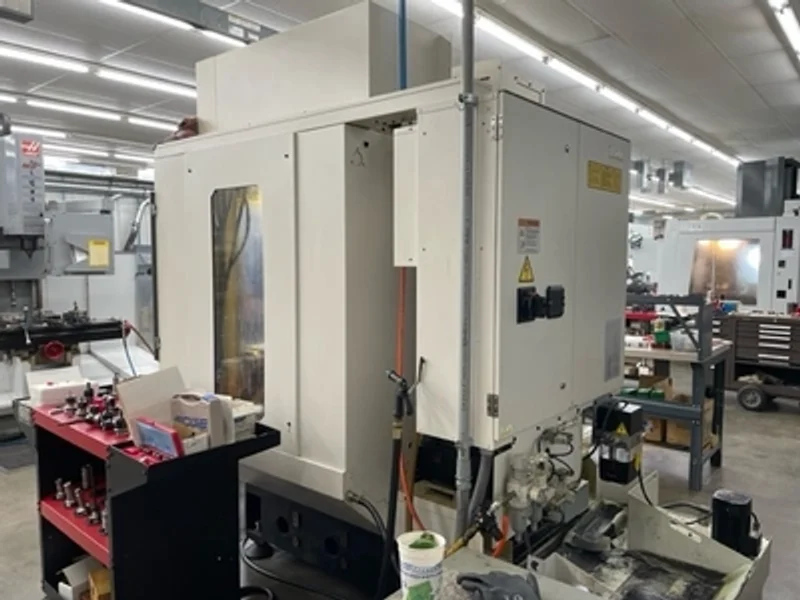

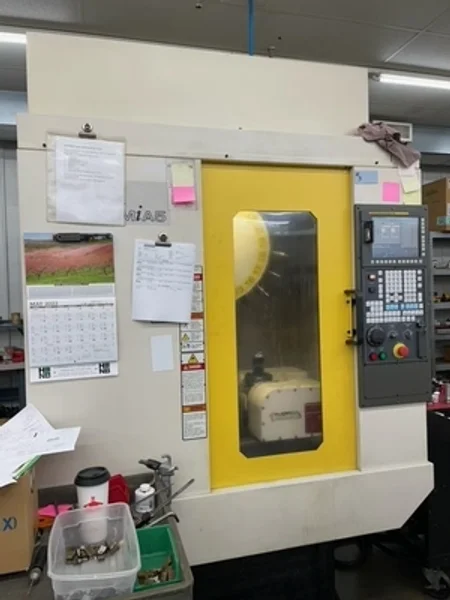

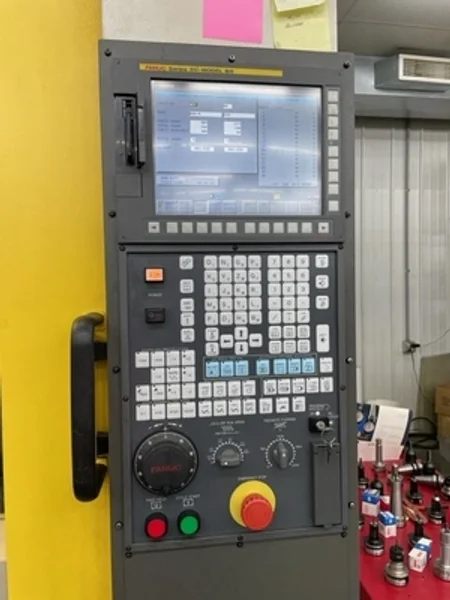

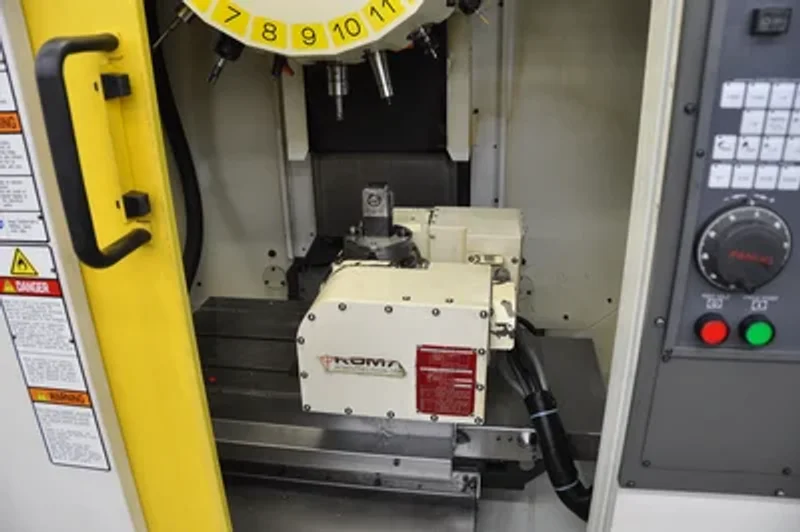

2013 Fanuc Robodrill Alpha-21 MiA5 Vertical Machining Center - 5-Axis Capability

Brand
FANUC
Category
Machining Centers
Type
Vertical Machining Centers (5-axis Or More)
Model
Robodrill Alpha-21 MiA5
Stock #
57786
Year
2013
Condition
Very Good

Location

Minnesota
CNC Control yes
Type Of CNC Control Fanuc
# Axis 5
X 19.68 inches
Y 15.74 inches
Z 12.99 inches
Max Spindle RPM 10000
Taper Big Plus 30
Weight 4409 pounds



Specifications:





anuc Robodrill Alpha D21MiA5 5 Axis Machining Center (2013)

X-Axis 19.68″
Y-Axis 15.74″
Z-Axis 12.99″
Table Size 25.59″ x 15.74″
Spindle Speed 10000 RPM
Spindle Taper BT-30 Big Plus
Spindle Motor 7.5 HP

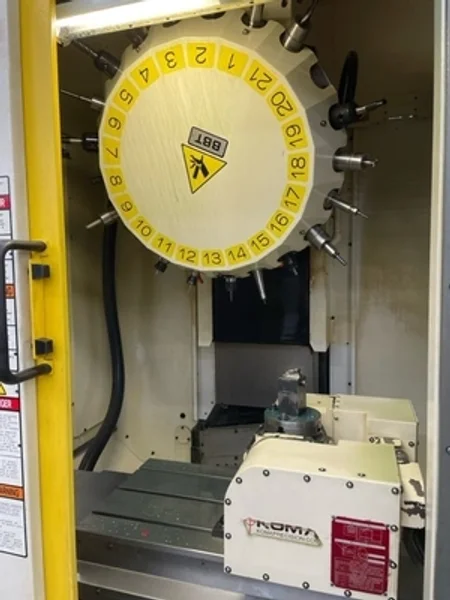

Tools 21
Table Load Capacity 660 lbs.
Rapid Traverse Rates 2125 IPM
Max Tool Diameter 3.14″
Max Tool Length 9.84″
Max Tool Weight 6.6 lbs.
Machine Dimensions (L x W x H) 63.58″ x 80.3″ x 88″
Machine Weight 4409 lbs.
Spindle Torque 51.6 ft. lbs.
Tool Change Time (T – T / C – C) 0.9 / 1.6 Seconds
