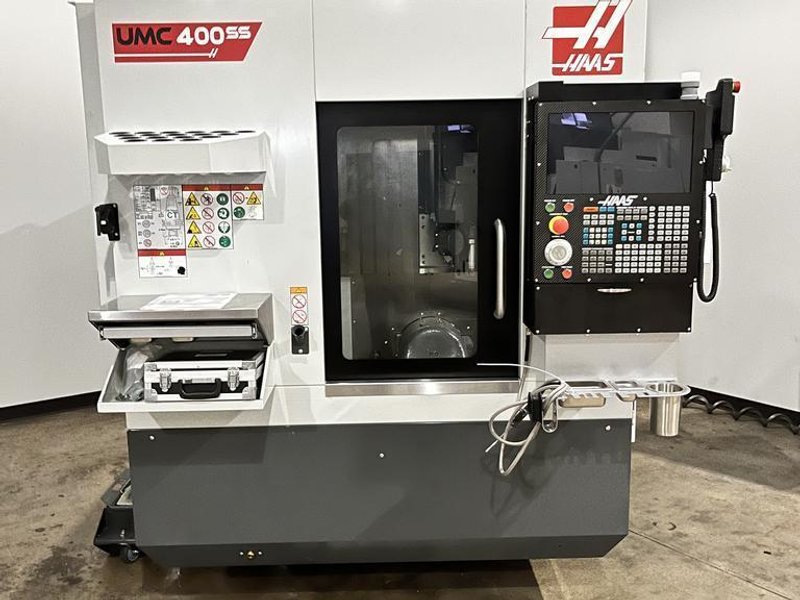

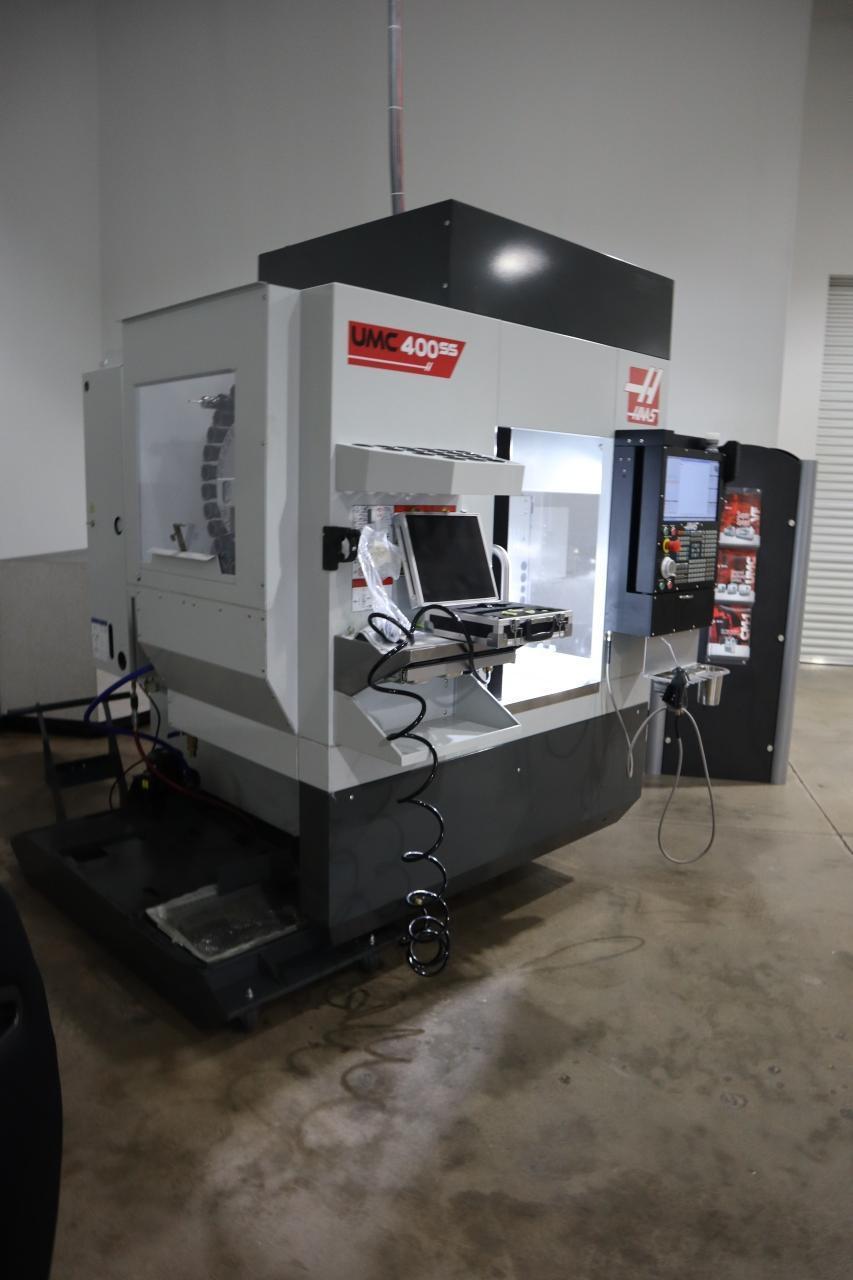

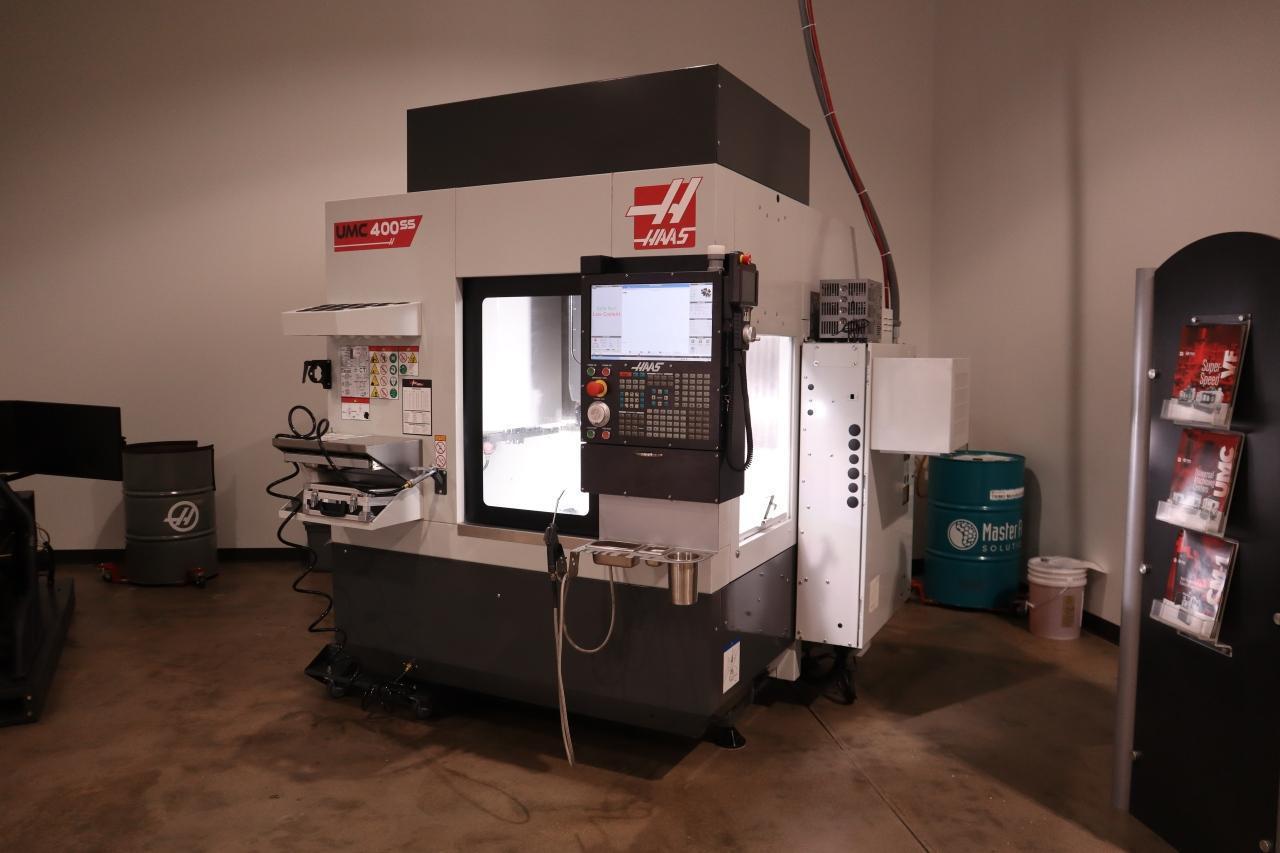

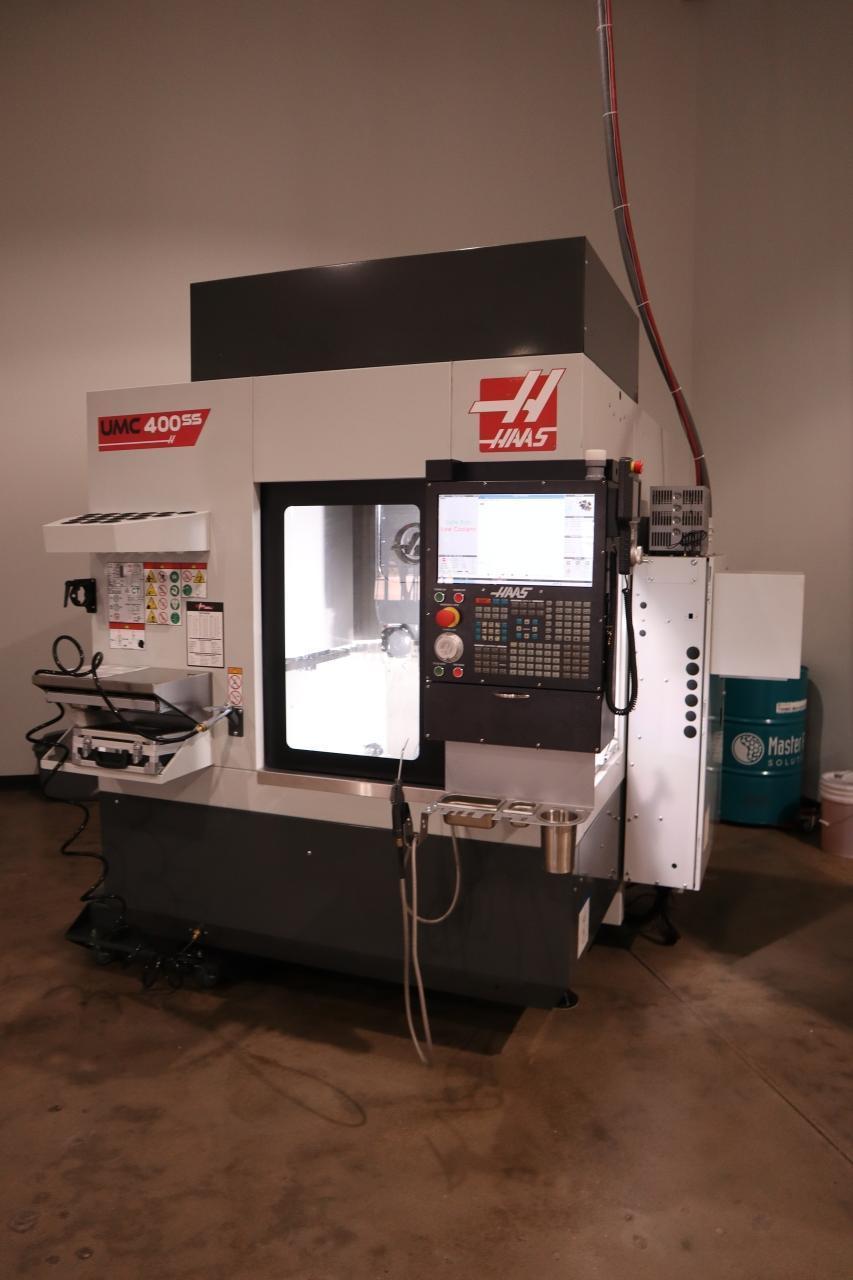

Haas UMC-400SS CNC 5-Axis Vertical Machining Center, Ct40, 12K RPM, 30 ATC, Probing, 230mm Diameter Work Platter, High Speed Machining, Programmable Coolant Nozzle, Chip Auger
Brand
Category
Model
UMC-400SS
Stock #
7414
Year
2025
Condition
Not specified
Location
Not specified
|

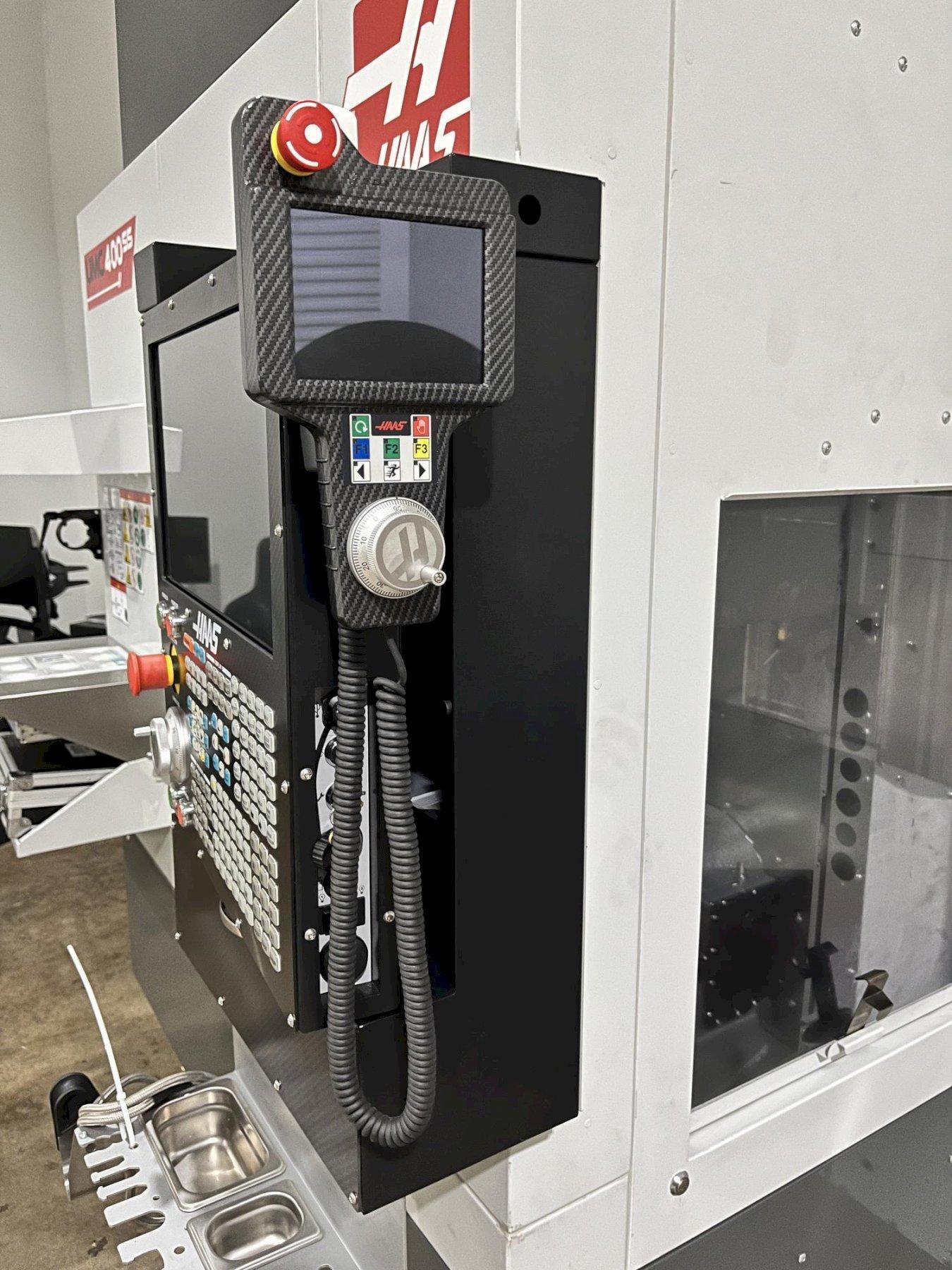

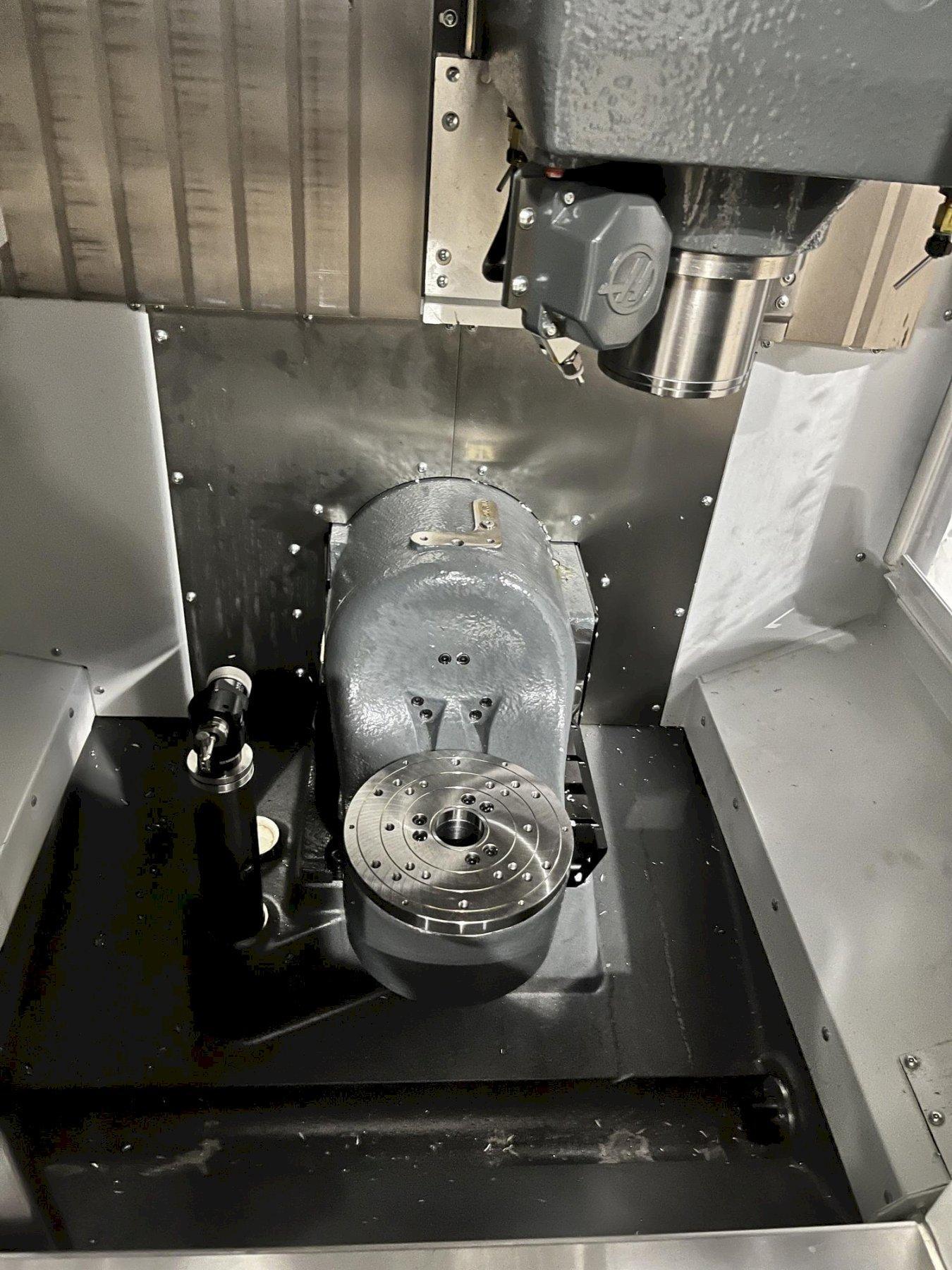

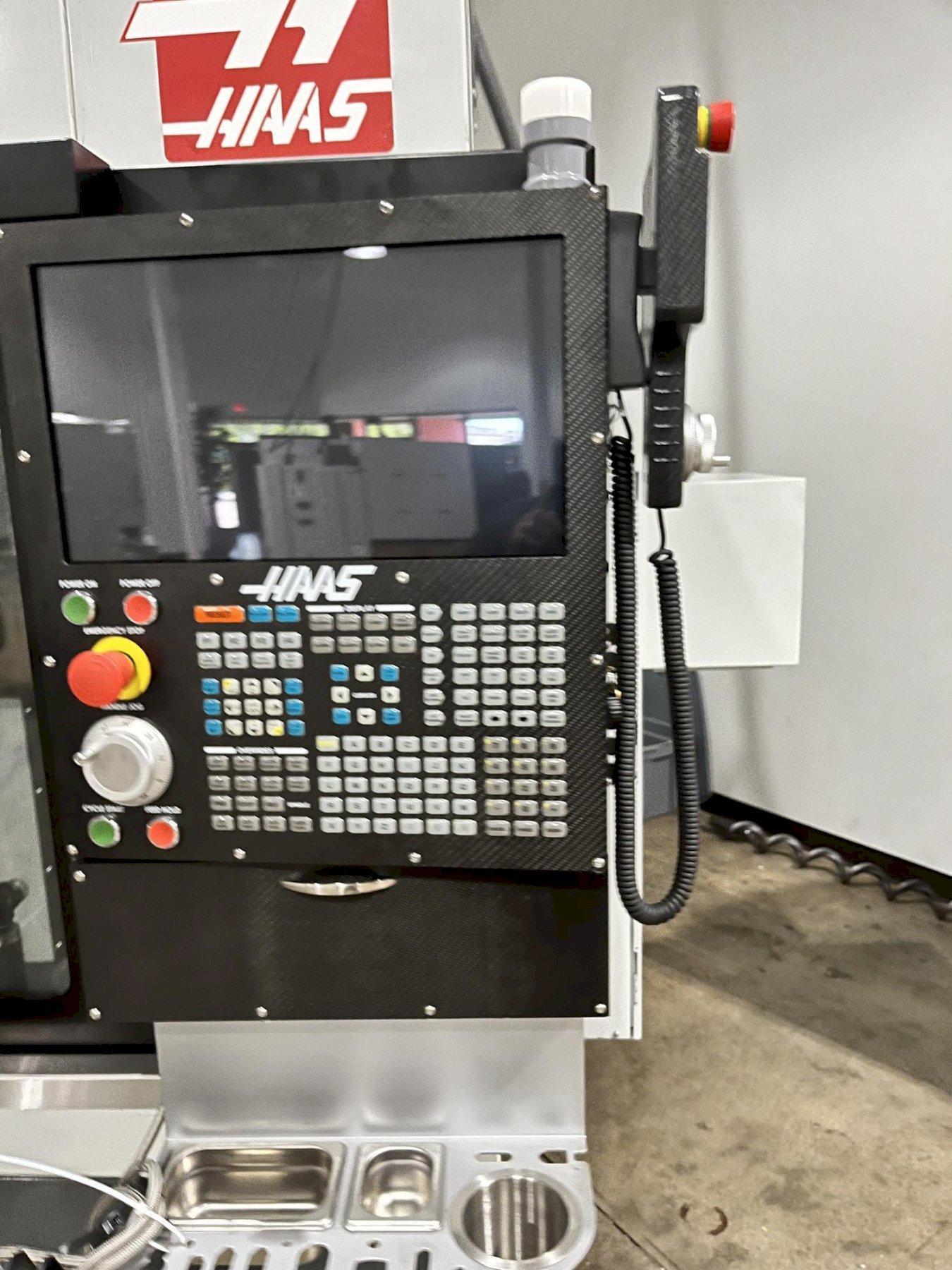

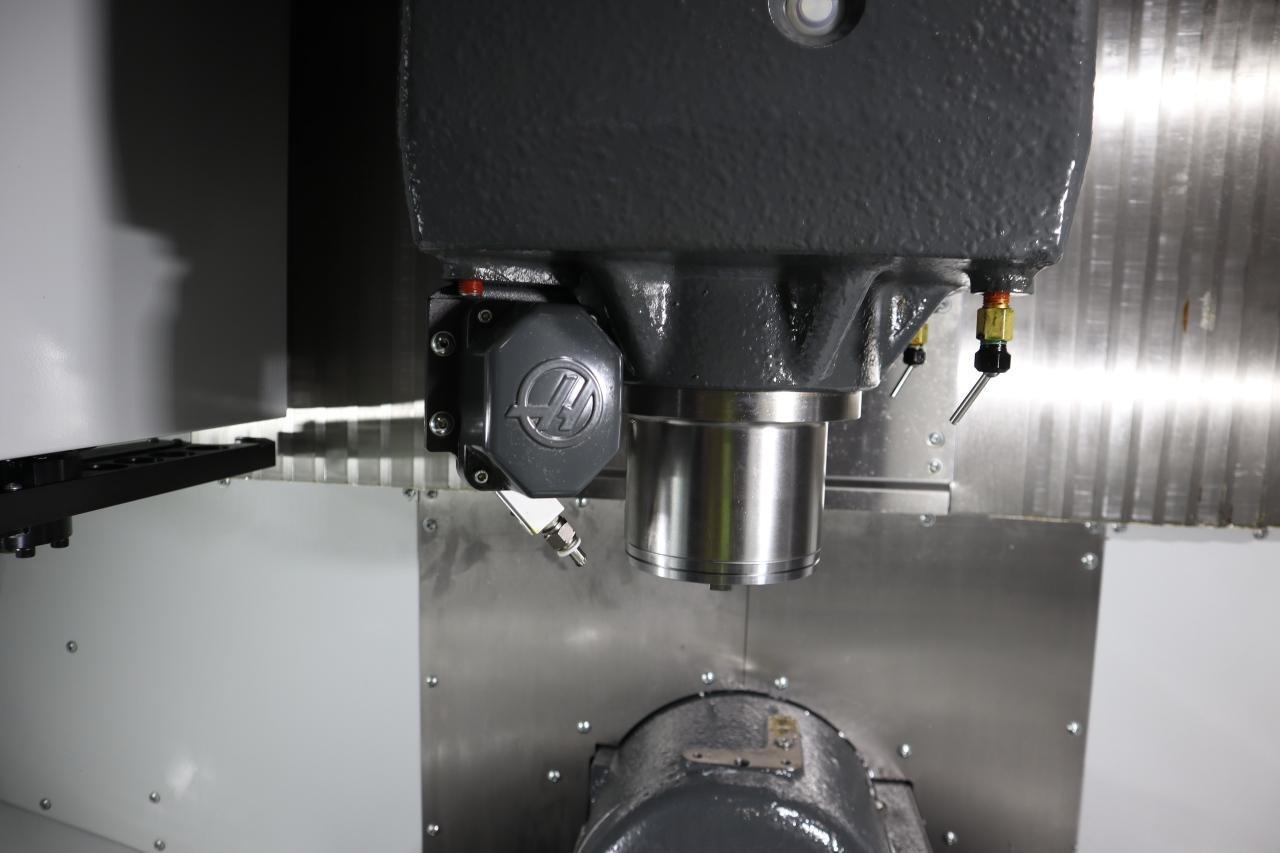

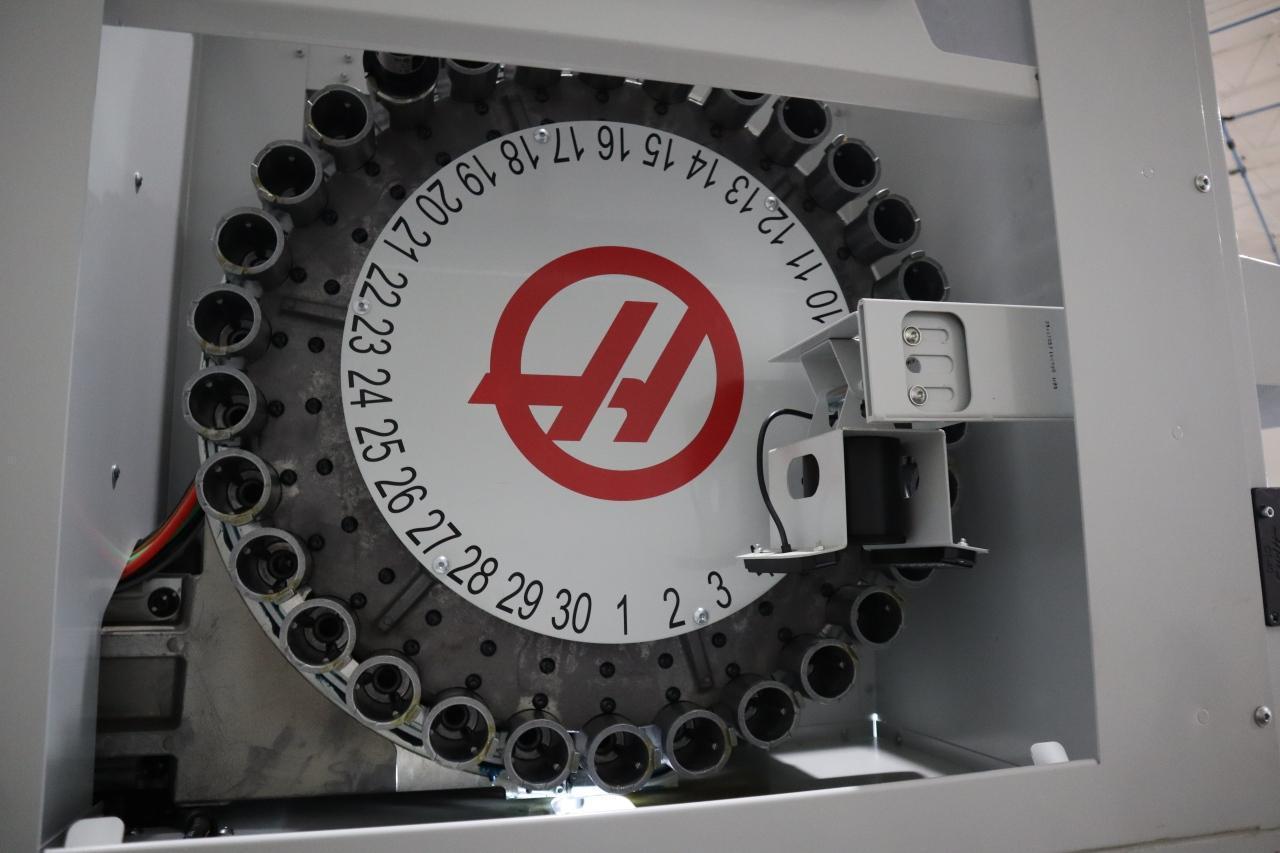

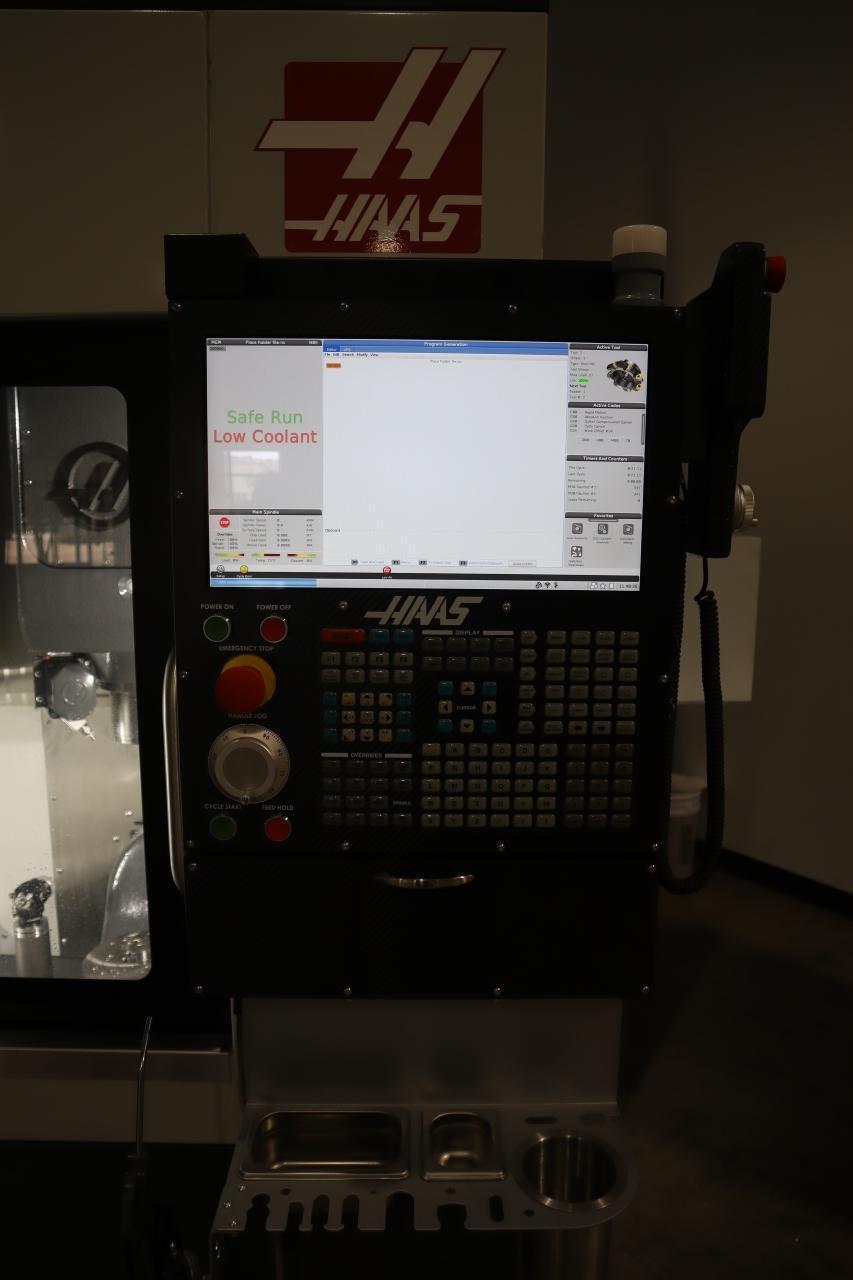

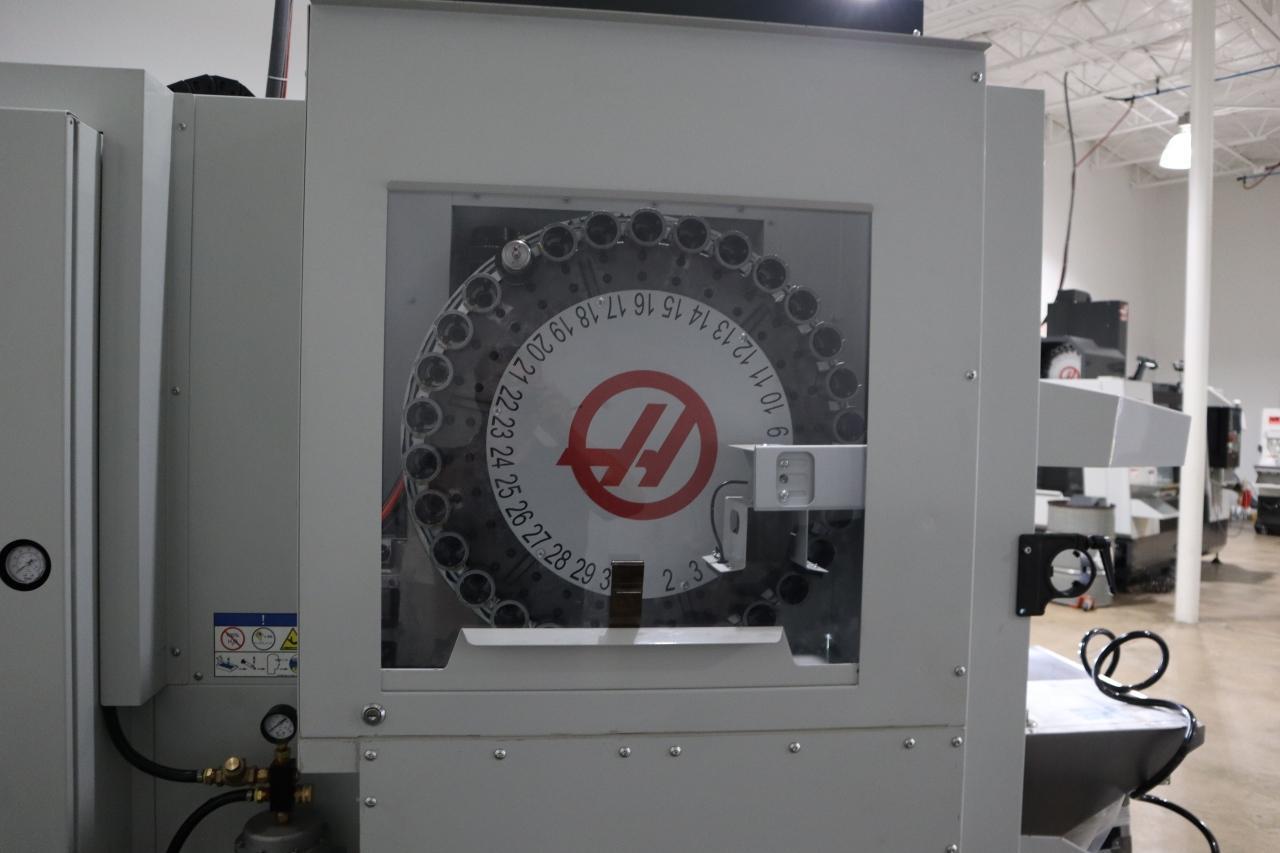

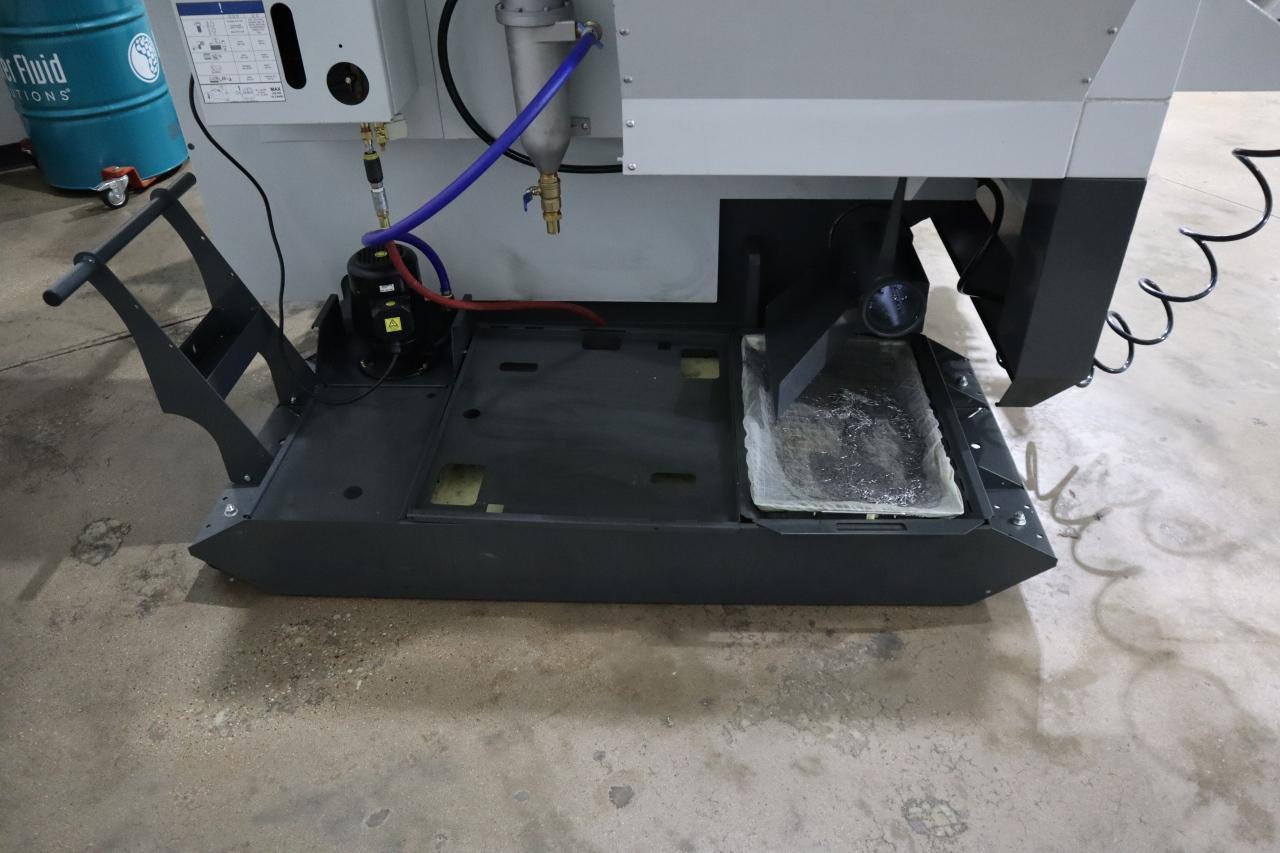

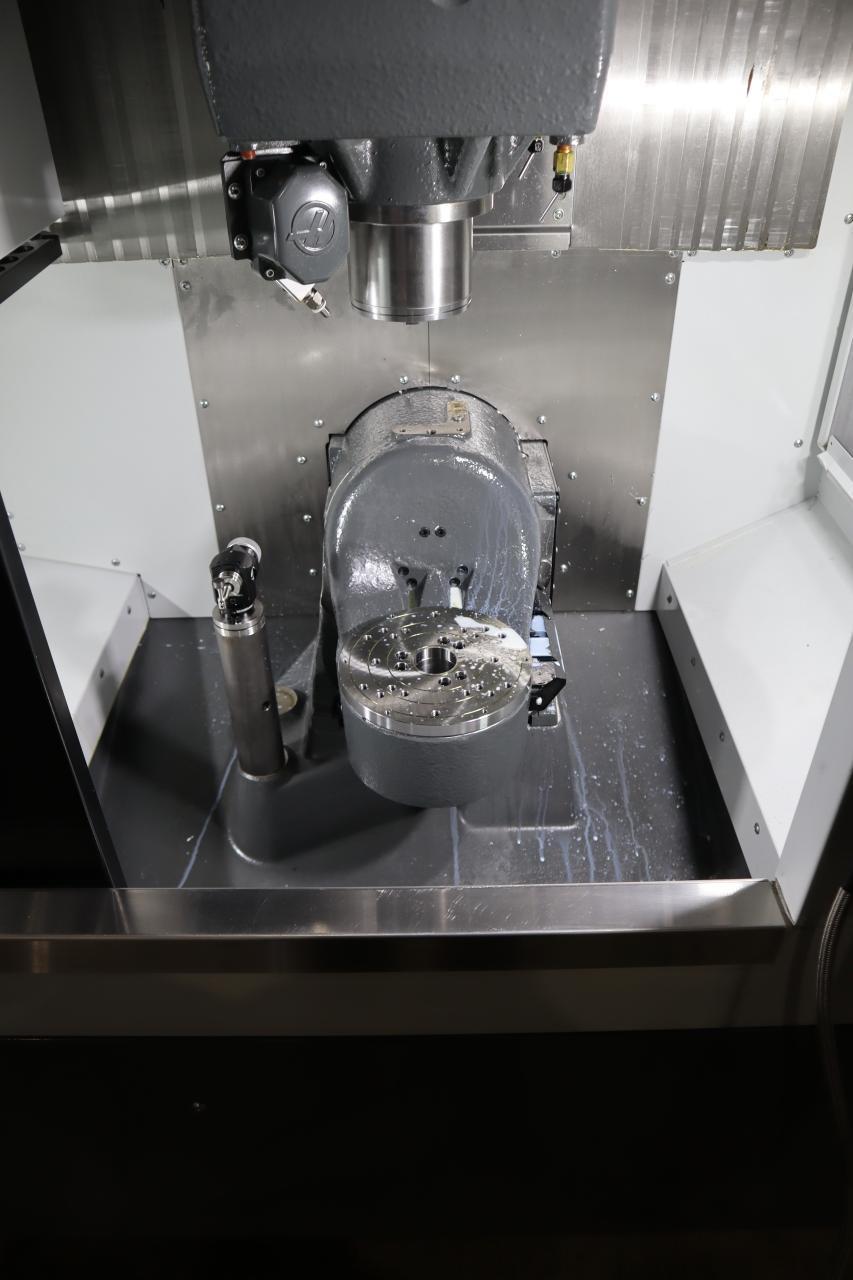

Control: Haas Next Generation CNC Control Machine Travels X/Y/Z: 17" x 11" x 13" Travels Distance Spindle Nose to Platter: 4" - 17" 5-Axis Table Style: Trunnion with 9.1" Diameter Platter 5th Axis Swivel (Tilt) Range: B-Axis Tilt 120 Degrees to -45 Degrees B Axis Max Speed: 80 Degrees / Second Table Size: 9.1" Diameter Max Part Swing: 14.5" C-Axis Rotation: 360 Degrees Rapid Traverse X/Y/Z: 1,200 IPM Max Cutting Feedrates X/Y/Z: 833 IPM Spindle Speeds: 12,000 Max RPM Spindle Taper: CT40 Tool Changer Capacity: 30 Stations +1 Tool Changer Type: Side-Mount, Twin-Arm Automatic Tool Changer Tool Change Time: 1.8 Seconds Tool-to-Tool / 2.4 Seconds Chip-to-Chip Max Tool Diameter / Max Tool Length: 2.5" Full (5" Adjacent Empty) x 7" MaxLength Spindle Drive System: Inline Direct-Drive C-Axis Max Speed: 100 Degrees / Second Spindle Drive: 15 HP (11.2 kW) Vector Spindle Drive Coolant Tank Capacity: 45 Gallons Description: The Haas UMC-400SS is a high-performance 5-axis CNC universal machining center designed for manufacturers requiring complex part production, reduced setups, and increased productivity. Built on Haas Automation's proven UMC platform, the UMC-400SS combines a compact footprint with high-speed machining capabilities, making it ideal for aerospace, medical, automotive, mold making, and precision component manufacturing. Equipped with a 12,000 RPM inline direct-drive spindle, high-speed rapids, and a full 5-axis trunnion table, the UMC-400SS allows operators to machine multiple sides of a part in a single setup. Simultaneous 5-axis interpolation improves surface finishes, shortens cycle times, and enables production of intricate geometries that would be difficult or impossible with conventional 3-axis machining. Equipped With: Haas Next Generation CNC Control, CT 40 Spindle Taper, 12,000 Max RPM Spindle Speed, Haas Probing System with Tool and Parts Probes, 230mm Diameter Work Platter, 30 Station Twin-Arm automatic ToolChanger, Dynamic Work Offset and Tool Center Point Control Software, High Speed Machining, Rigid Tapping, Touchscreen Remot Jog Handwheel, 1GB Memory, Programmable Coolant Nozzle, Coolant System, Chip Auger, 45 Gallon Coolant Tank, Ethernet Interface, WiFi Connect, Cabinet Cooler. Electrics: 220 Volt, 3 Phase |
