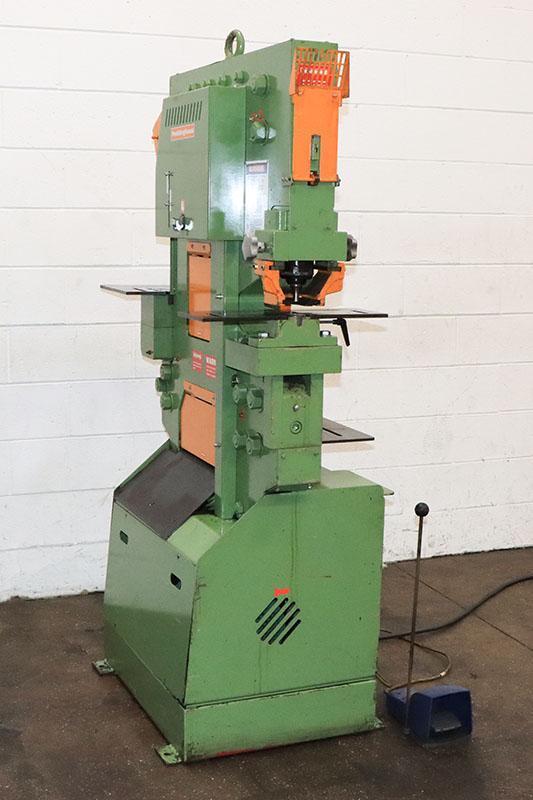

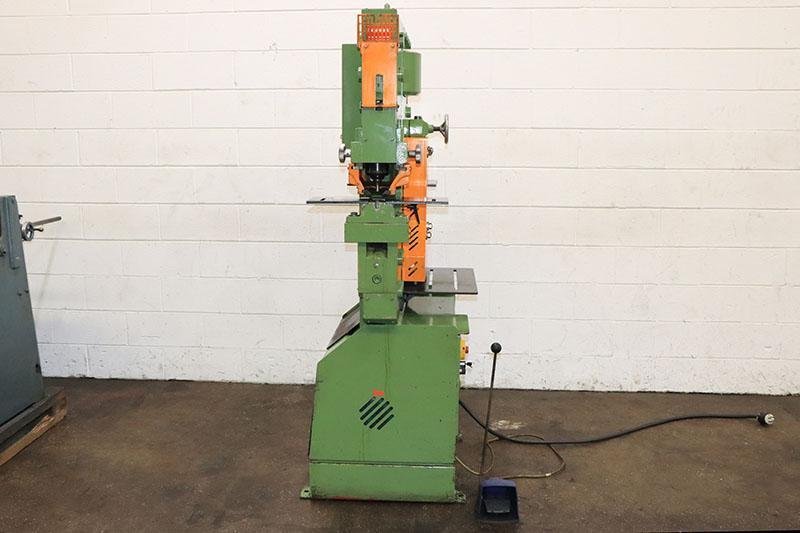

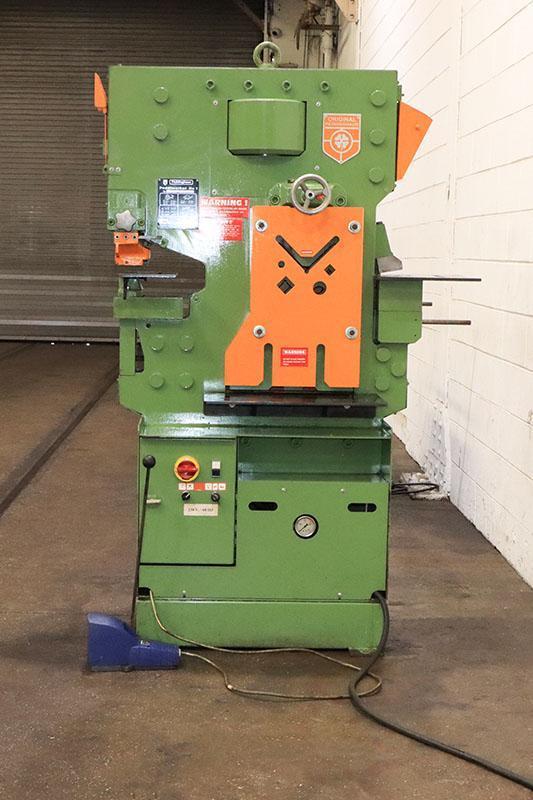

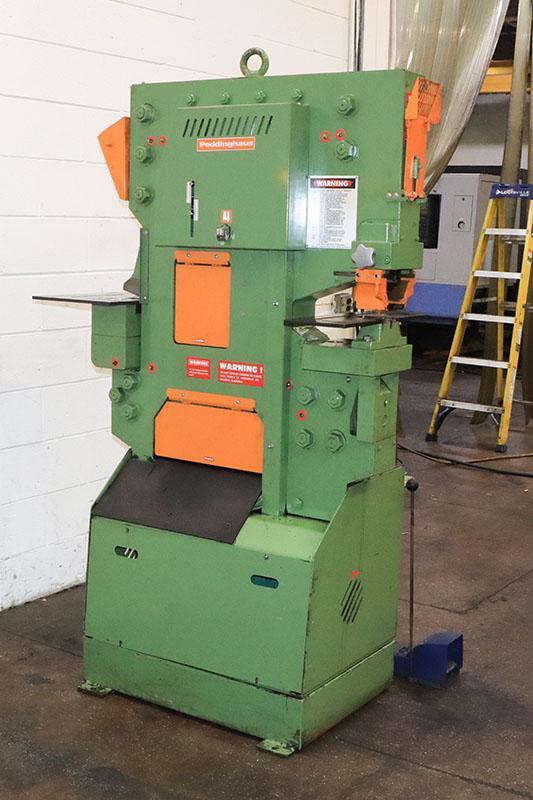

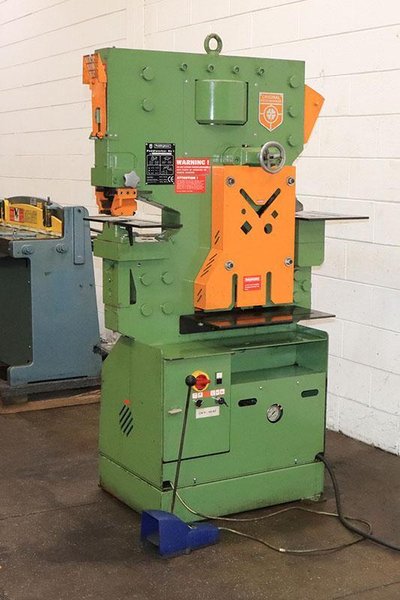

100 TON PEDDINGHAUS HYDRAULIC IRONWORKER, MODEL: PEDDIWORKER 1
Brand
Category
Type
Model
PEDDIWORKER 1
Stock #
5121
Year
2009
Condition
Used
Location
New Jersey
|

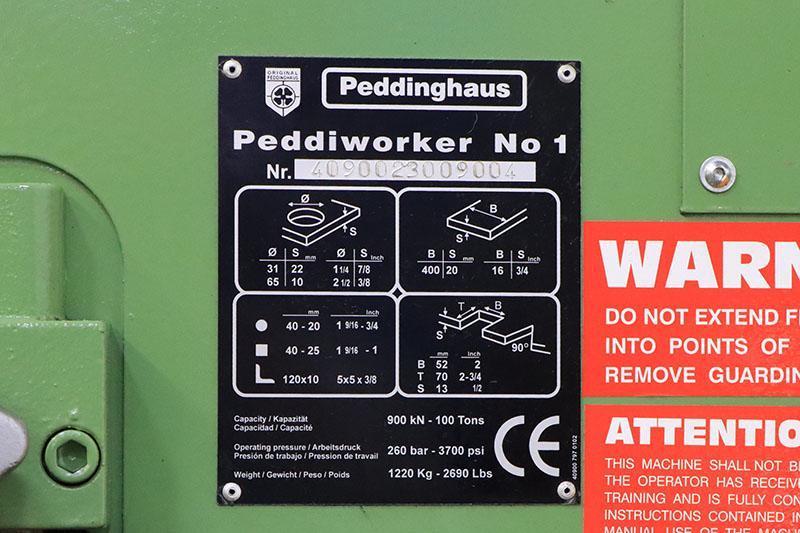

100 TON PEDDINGHAUS HYDRAULIC IRONWORKER
MODEL PEDDIWORKER 1

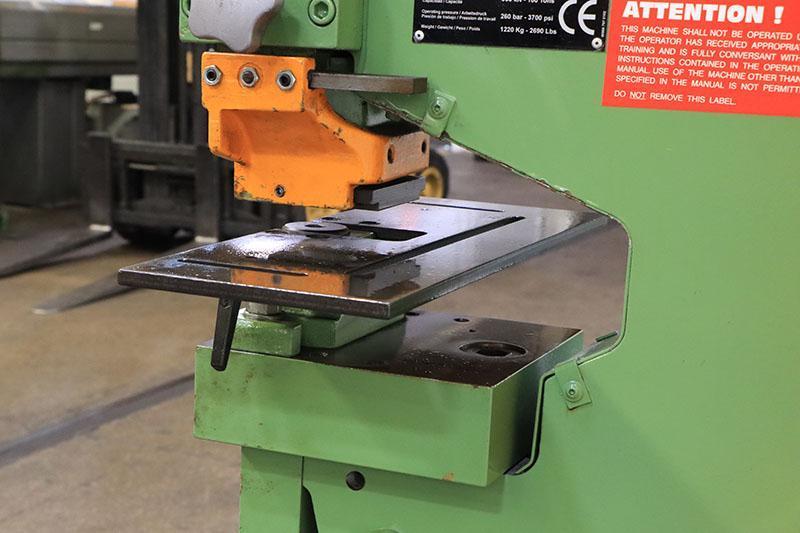

Punching:
Maximum punch capacity ........ 100 TONS
Depth of throat ............... 10"
Working height ................ 46-1/4"
Stroke, variable .............. 3/8" to 1-5/8"
Speed at 3/4" stroke .......... 26 S.P.M.
Standard punch diameter ....... 1-1/4" in 7/8"
Shearing:
Angles at 90 degrees .......... 5" x 3/8"
Angles at 45 degrees .......... 5" x 1/2"
Rounds ........................ 1-5/8"
Squares ....................... 1-5/8"
Working Height ................ 47-1/4"
Flat Shear .................... 16" x 3/4"
Length of Cut ................. 16-3/4"
Working Height ................ 31-1/2"
Notching:
Flat Bar ...................... 1/2"
Angle Iron .................... 3" x 3/8"
Channels in Flange ............ 3" - 5"
I-Beams in Flange ............. 3" - 6"
Working Height ................ 46-1/4"
Width & Depth ................. 2" x 2-3/4"
Equipped with:
- 5.5 HP Motor
- 12 Gallon Reservois
- Hydraulic design with infinitely variable stroke and stroke position setting

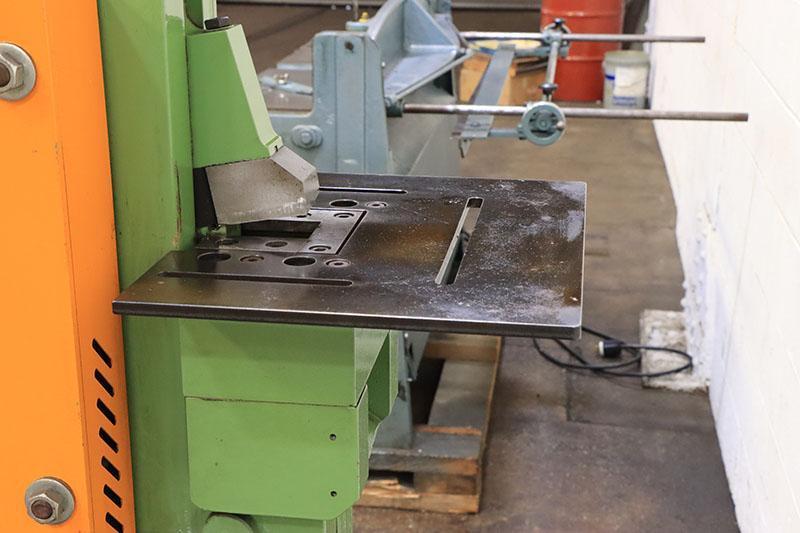

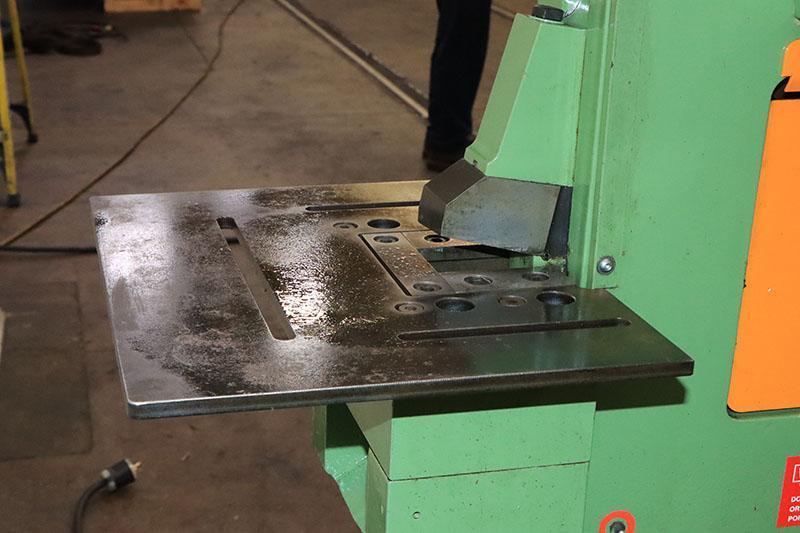

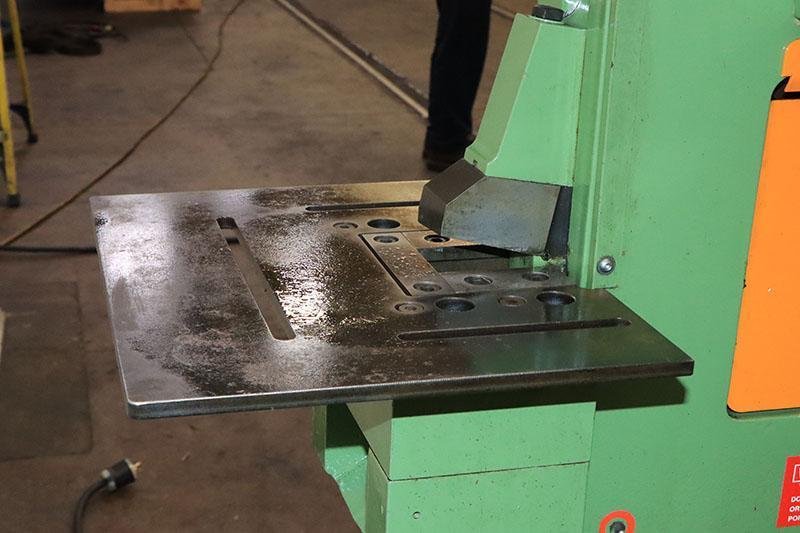

- Material support table with gauge stops on the flat shear station

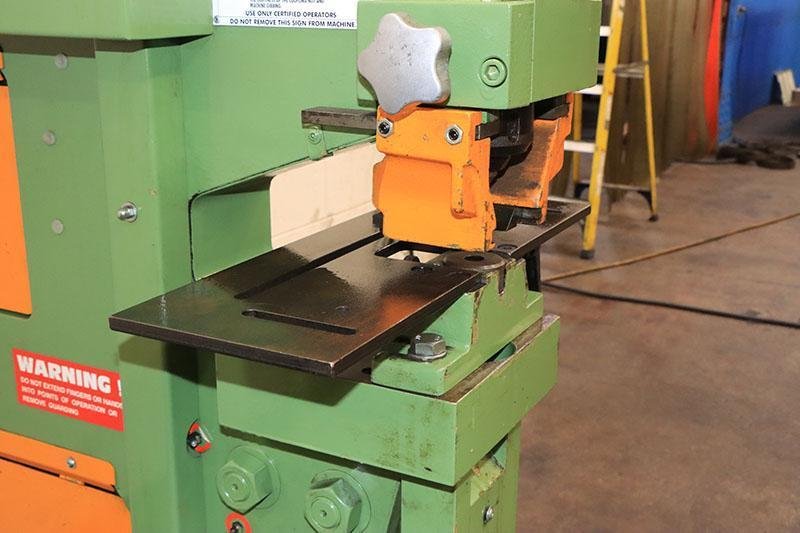

- Quick-change punching attachment

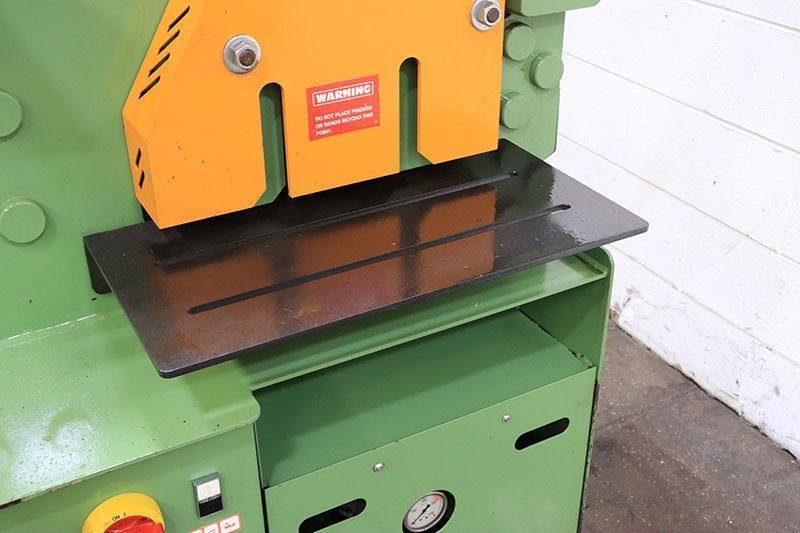

- Square notcher with material support table on shear end

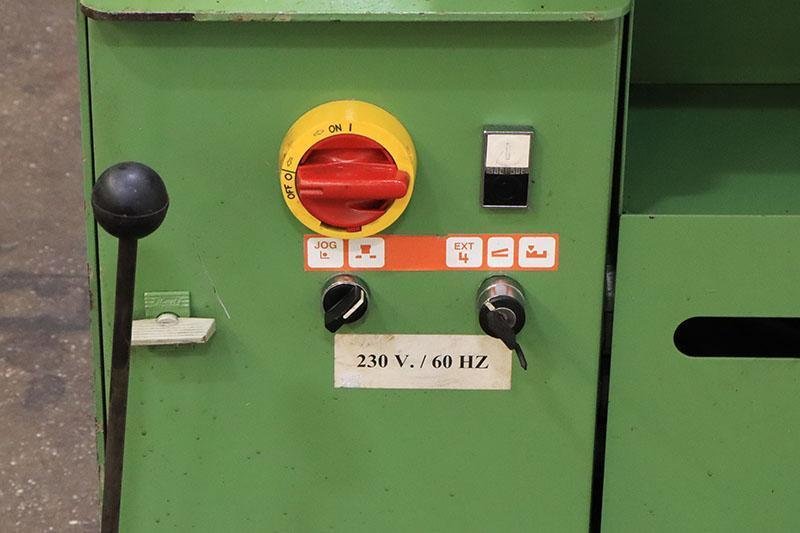

- Dual voltage (230-460) electrics

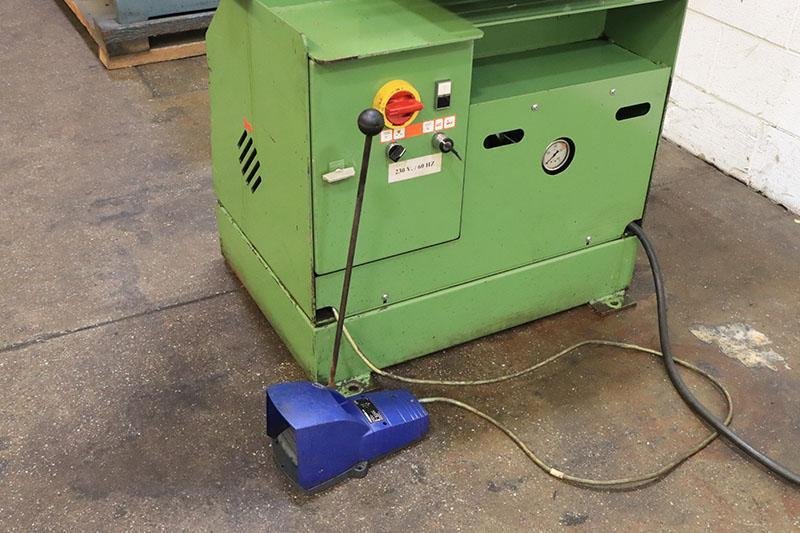

- Foot Pedal
Approximate Weight: 2,700 Lbs.
Approximate Dimensions: 48" Long x 27" Wide x 76" High
FOB: Origin |
