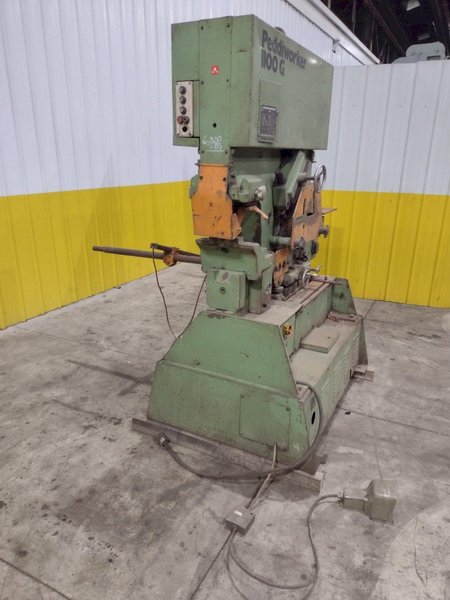

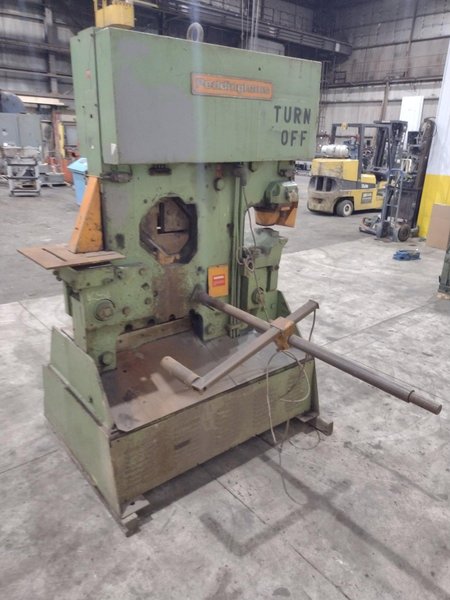

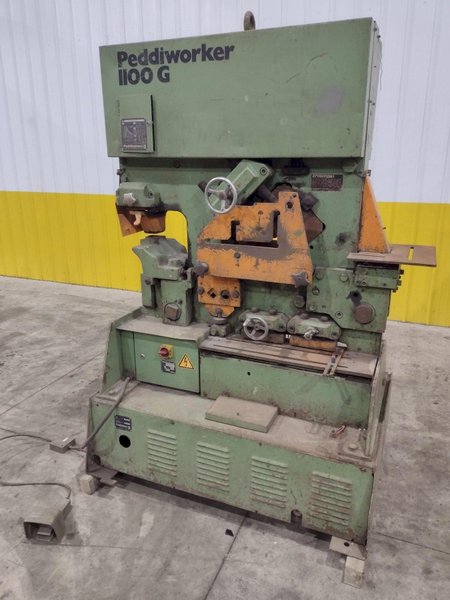

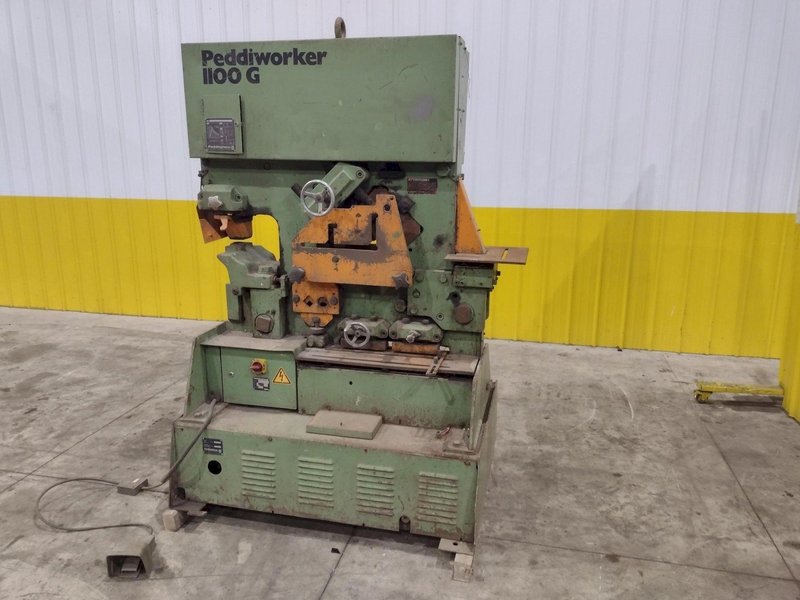

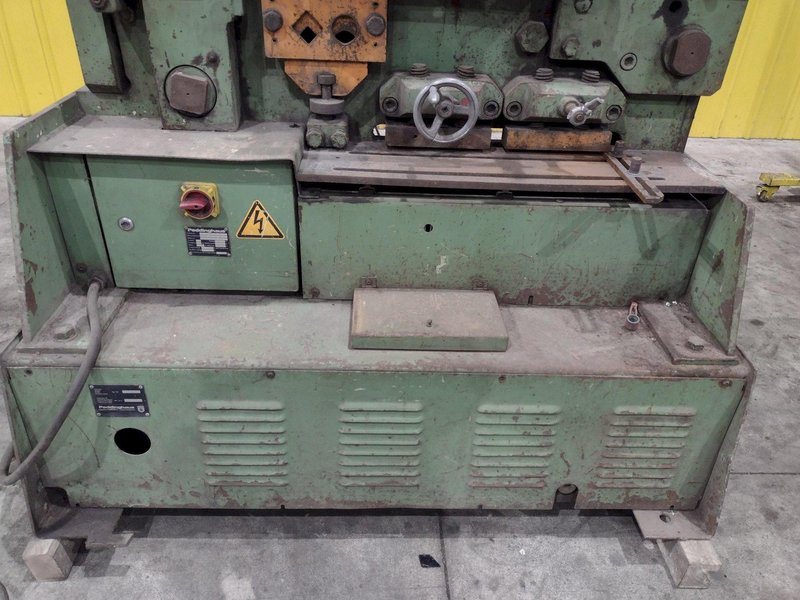

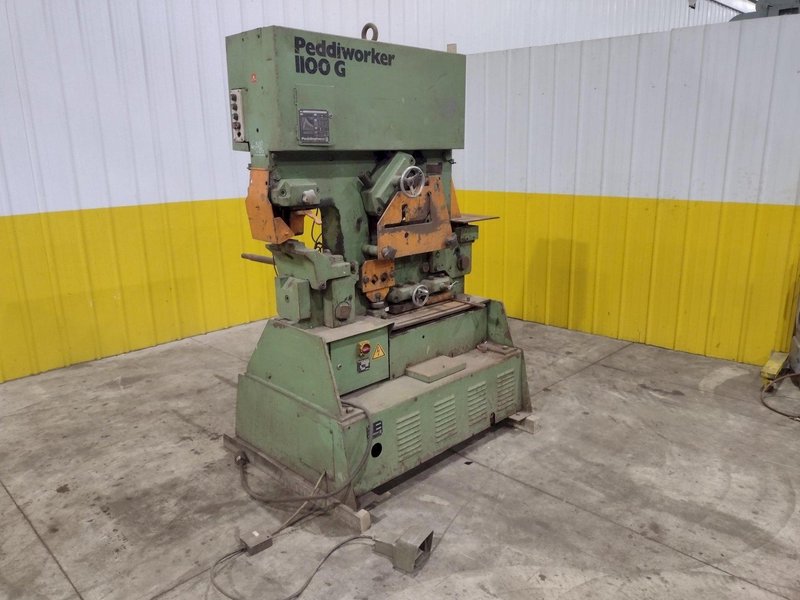

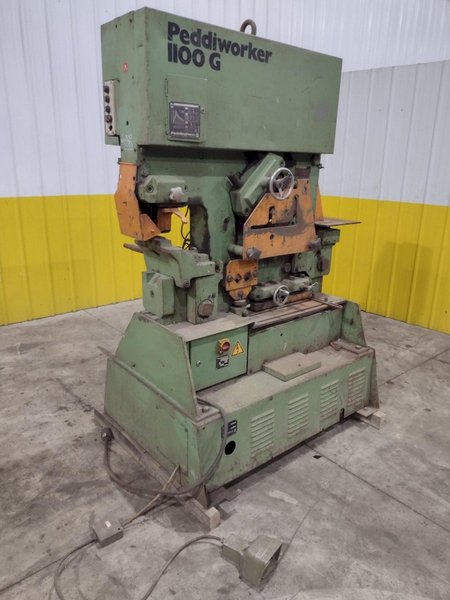

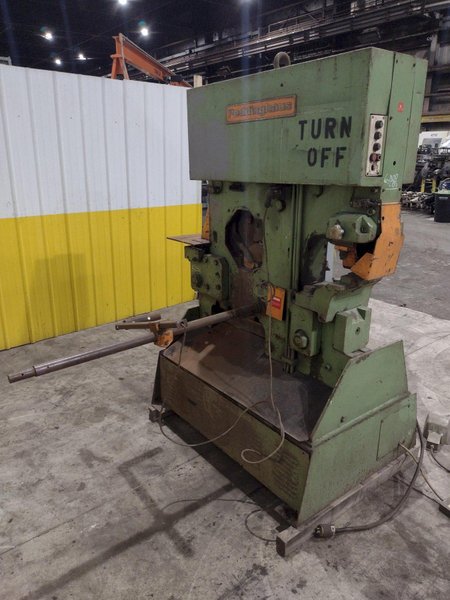

110 TON PEDDINGHAUS "PEDDIWORKER" 1100G HYDRAULIC IRONWORKER: STOCK #22724

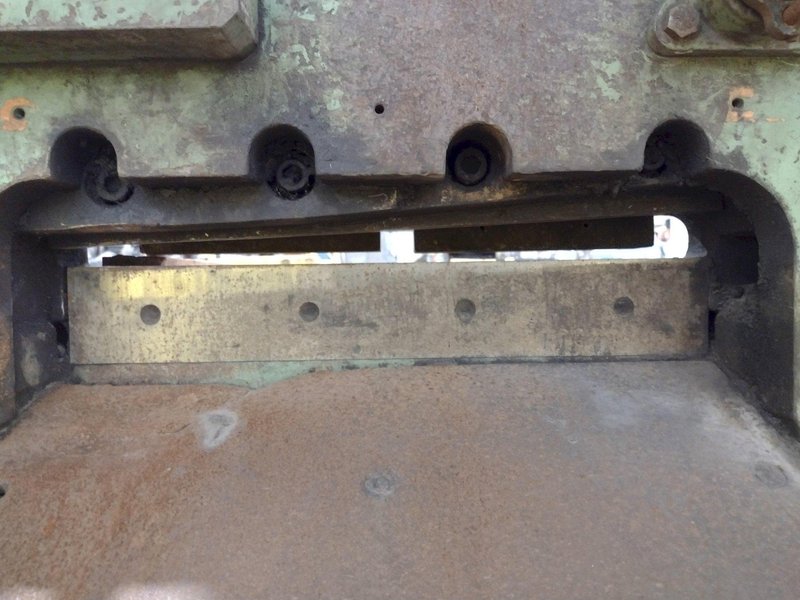

FLAT BAR SHEAR

• FLAT BAR (SLIGHTLY DISTORTED 6 DEGREES): 8”X1”
• FLAT BAR (DISTORTION-FREE 3 DEGREES): 12” X ¾”,
• 20”X 5/8”
• BLADE LENGTH: 20-7/8”
• WORKING HEIGHT: 26-1/2”

SECTION SHEAR

• SHEARING CROSS SECTION: 4.75”
• STROKE (INFINITELY VARIABLE): 3/8” – 1-9/16”

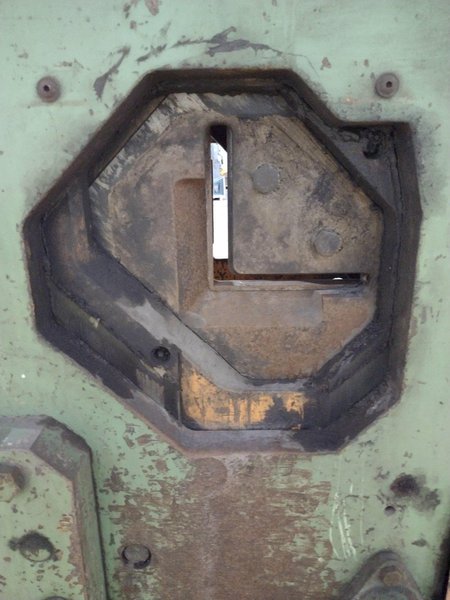

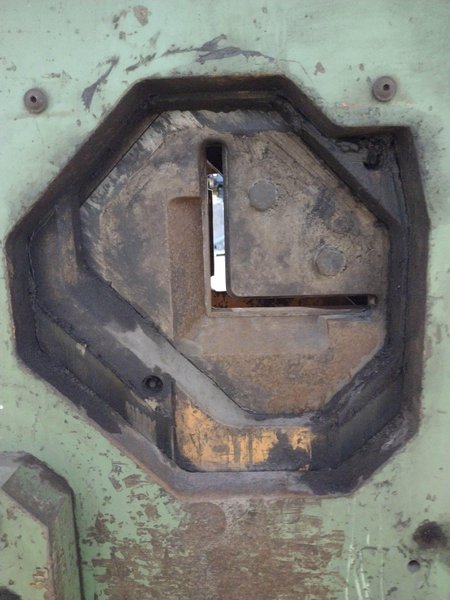

SHEARS WITH ANGLE IRON KNIVES (STANDARD)

• ANGLES (90 DEGREES): 6” X ½”
• ANGLES (45 DEGREES): 4” X 3/8”

BAR STOCK SHEAR

• ROUNDS: 1-3/4”
• SQUARES: 1-9/16”

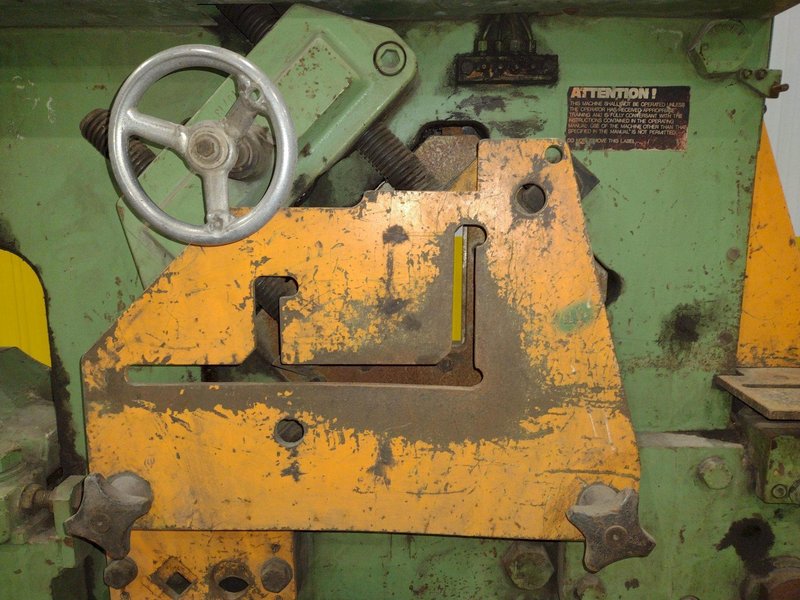

SQUARE NOTCHING ATTACHMENT

• PLATE: ½”
• ANGLES: 3-1/2” X 3/8”
• CHANNELS IN FLANGE: 3-6
• I-BEAMS IN FLANGE: 3-6
• WIDTH OF NOTCH: 2-9/16”
• DEPTH OF NOTCH: 3-5/16”

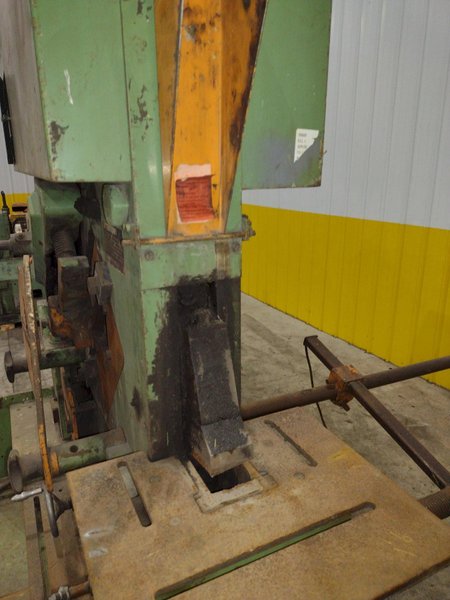

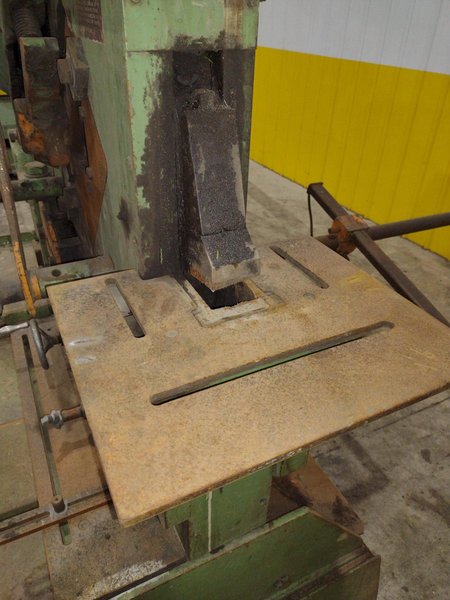

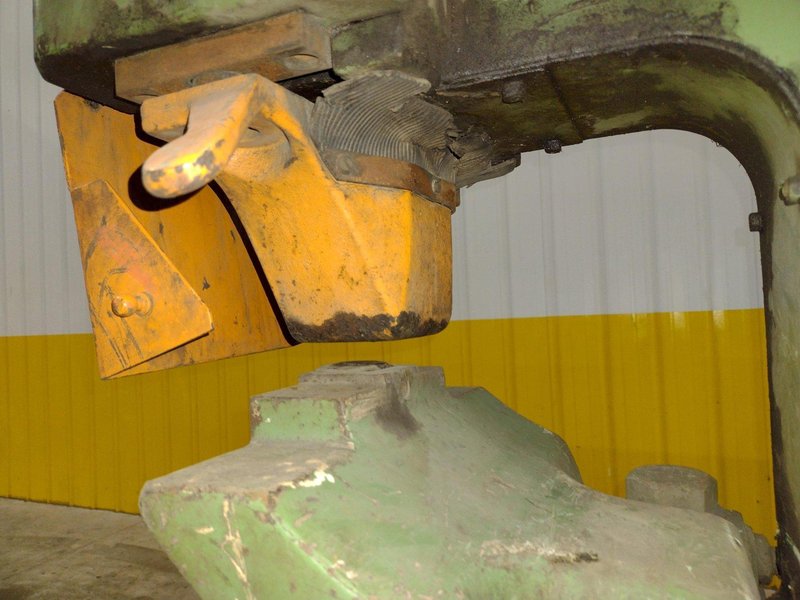

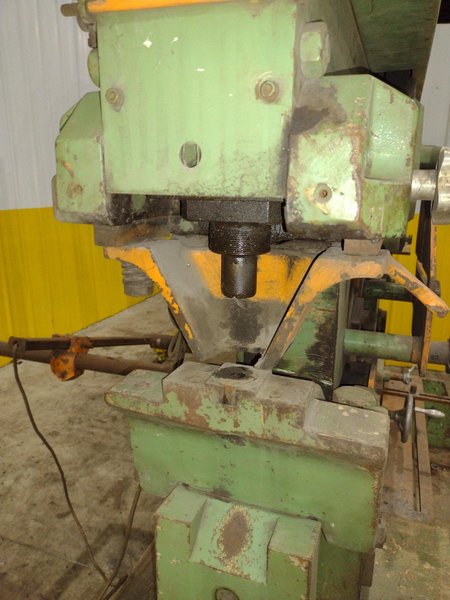

PUNCH UNIT

• RATED CAPACITY: 110 TONS
• STROKE (INFINITELY VARIABLE): ½” – 1-9/16”
• THROAT DEPTH: 10”
• WORKING HEIGHT: 44-1/2”

MACHINE DATA

• NUMBER OF STROKES AT X INCHES PER STROKE: 24-3/8”

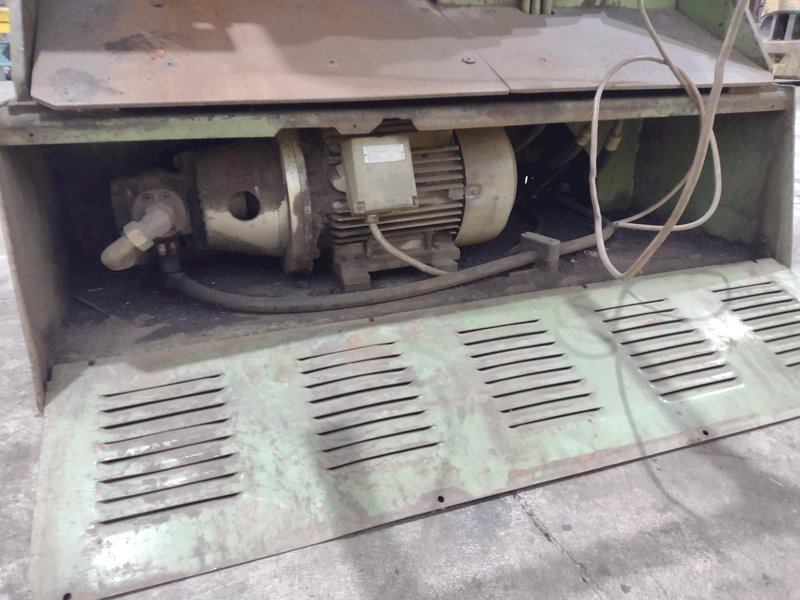

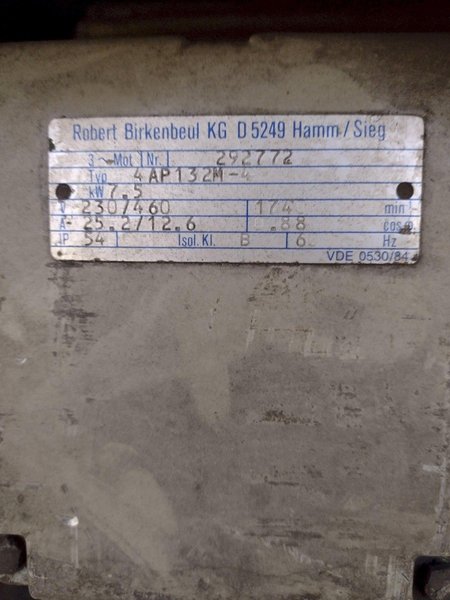

• CONNECTED LOAD: 10 HP
• CHARGE OF OIL: 21 GALLONS
• NET WEIGHT WITH OIL (APPROX): 6,200 LBS
• GROSS WEIGHT (APPROX): 6,600 LBS
• OVERALL MACHINE DIMENSIONS: 60” X 41” X 84”
