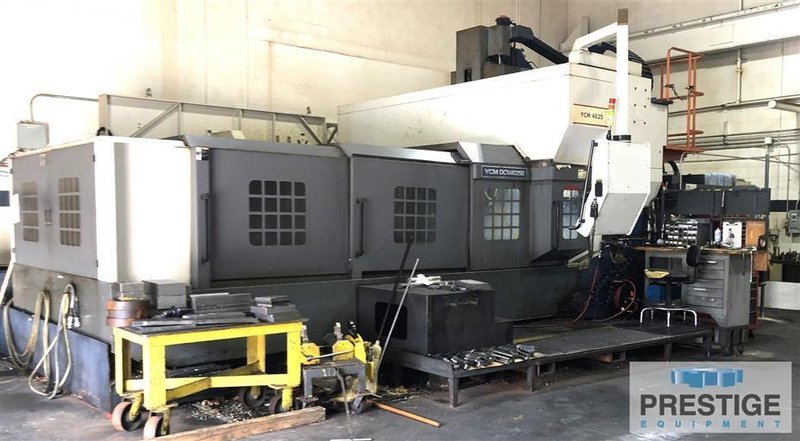

Machining Centers Vertical Bridge Type CNC

SPECIFICATIONS:
TABLE SIZE............................. 158" x 94.5" 158" x 94.5"
TABLE WEIGHT CAPACITY 44,092 LBS.
LONGITUDINAL TRAVEL, X-Axis............ 160" 160"
CROSS TRAVEL, Y-Axis 98"
RAM STROKE, Z-Axis 40"
FEED RATE X, Y, Z 472/591/591 IPM
CUTTING FEED RATE 0.04~394 IPM
SPINDLE SPEEDS......................... 10,000 RPM 10,000 RPM
SPINDLE DRIVE.......................... 25/30 HP (18.5/22 kw) 25/30 HP (18.5/22 kw)
SPINDLE TAPER.......................... CAT 50 CAT 50
TOOL CHANGER 120 ATC
DISTANCE BETWEENS COLUMNS.............. 107.9" 107.9"
MAX. TOOL WEIGHT 44.1 Lbs.
MAX. TOOL DIMENSIONS 4.92" x 13.78"
DISTANCE SPINDLE NOSE & TAPLE TOP 7.87~47.87"
MACHINE Weight 101,412 Lbs.
MACHINE ELECTRICS 220/480



Equipped With:

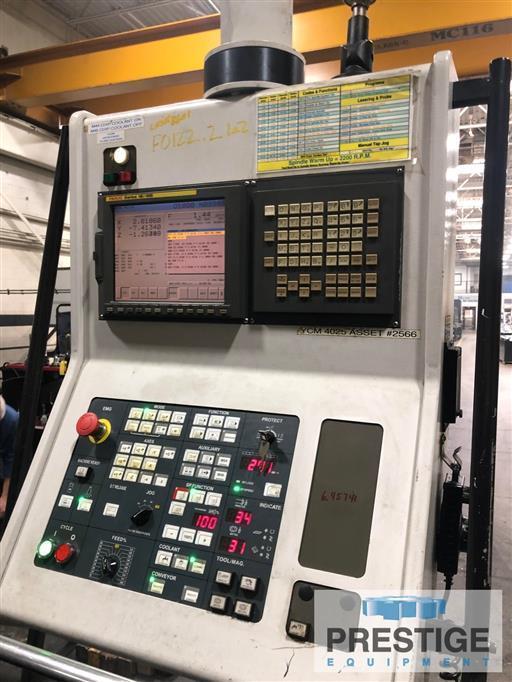

FANUC 18iMB CNC CONTROLS

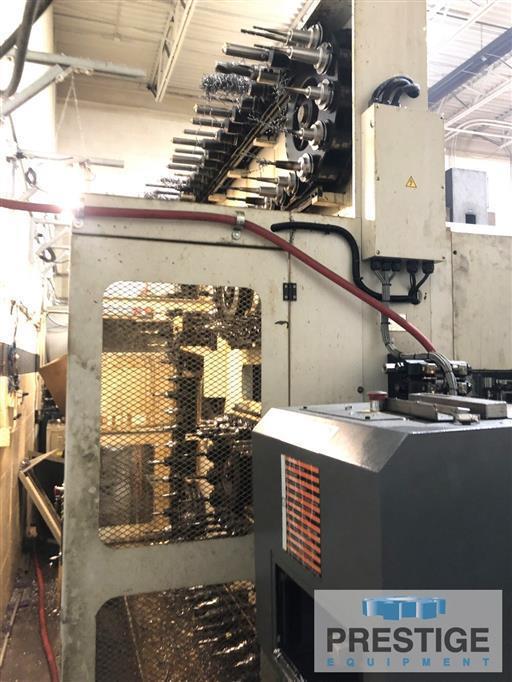

120-STATION AUTOMATIC TOOL CHANGER
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
COOLANT THROUGH SPINDLE
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS

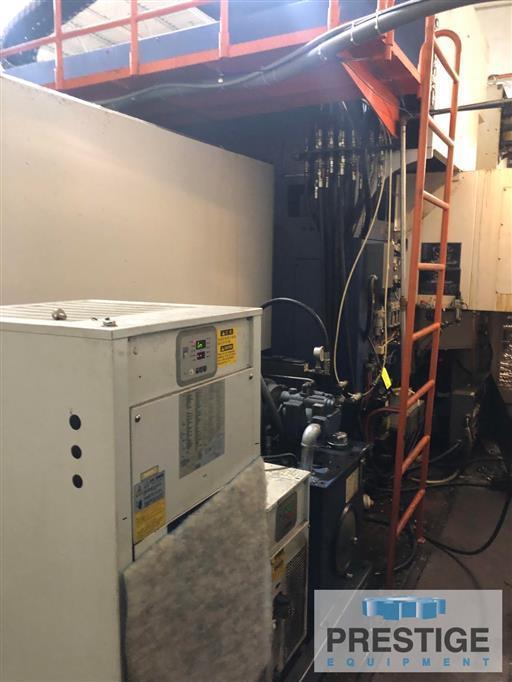

CHILLER UNIT
CHIP CONVEYOR
