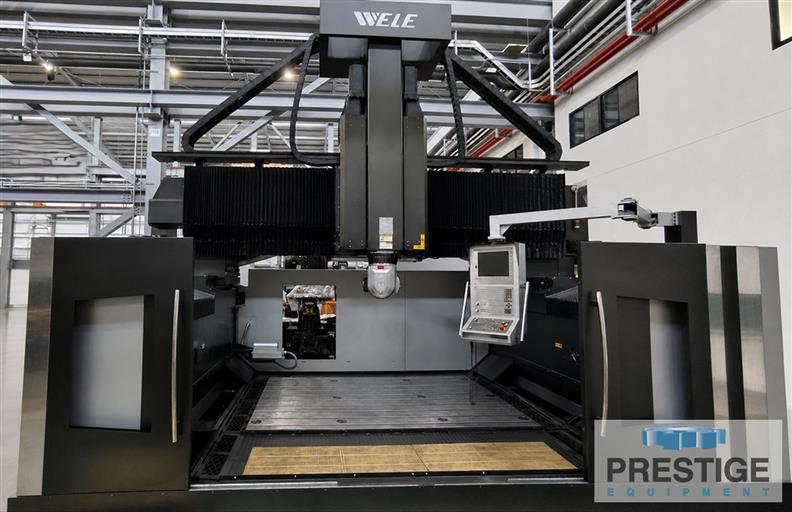

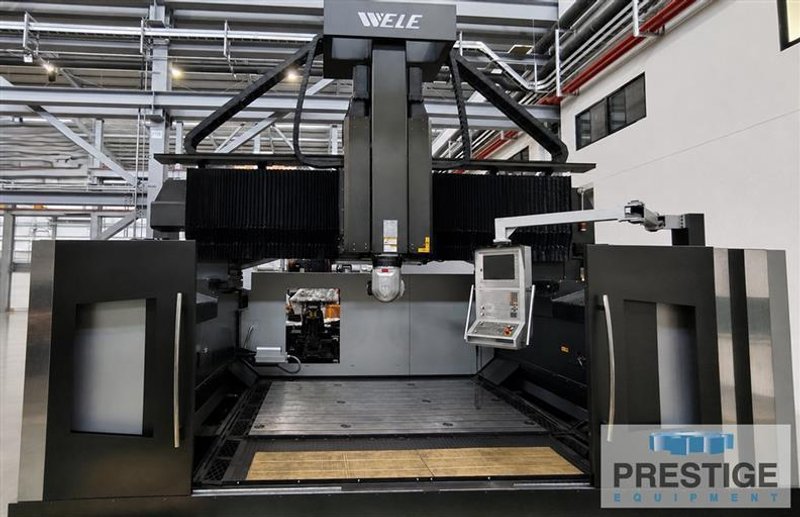

Machining Centers Vertical Bridge Type CNC

SPECIFICATIONS:
X-Axis Travel 118.11"
Y-Axis Travel 78.74"
Z-Axis Travel 43.30"
A-Axis Travel +/-115 Deg.
C-Axis Travel +/-360 Deg.
A & C Axis Indexing 0.001 Deg.
Spindle Nose to Table (A=0 Deg.) 0-43.3"
Spindle Nose to Table (A=90 Deg.) 8.66"-51.96"
Table Size 110.23" x 78.74"
Table Capacity 16,500 Lbs.
Distance Between Columns 149.60"
GERMAN CYTEC S8 A/C HEAD:
Spindle Speeds 18,000 RPM
Spindle Drive Motor 30.6 HP / 24 HP
Spindle Taper HSK-63



Equipped With:
Heidenhain TNC 640 iTNC CNC Control with 15.1" LCD
24-Position Automatic Tool Changer
5-Axis Machining
German Cytec S8 Two-Axis Head
X/YU/Z Axis Roller Linear Guide Ways
X/YU/Z Axis Heidenhain Linear Scales
Coolant Thru Spindle
Spindle Air Blast
Blum TC-60 Part Measuring System
Blum NT-A3 Tool Measuring System
Spindle Oil Cooler
Air Conditioner
Chip Conveyor with Bucket
