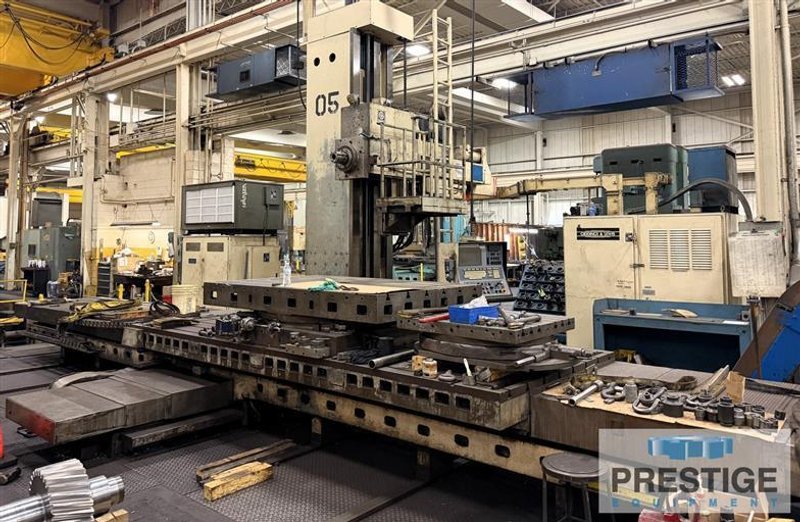

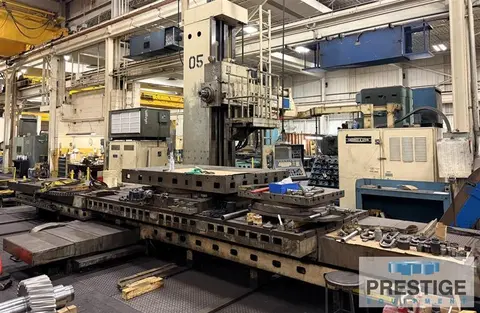

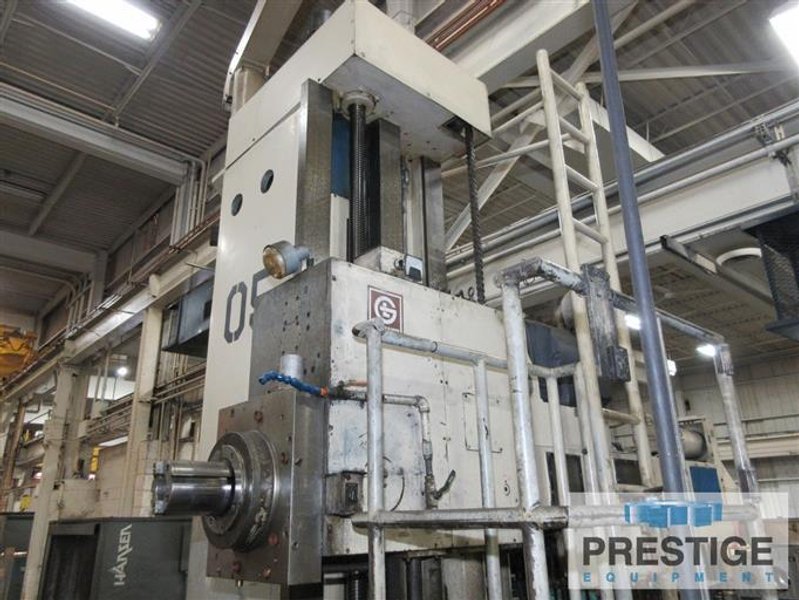

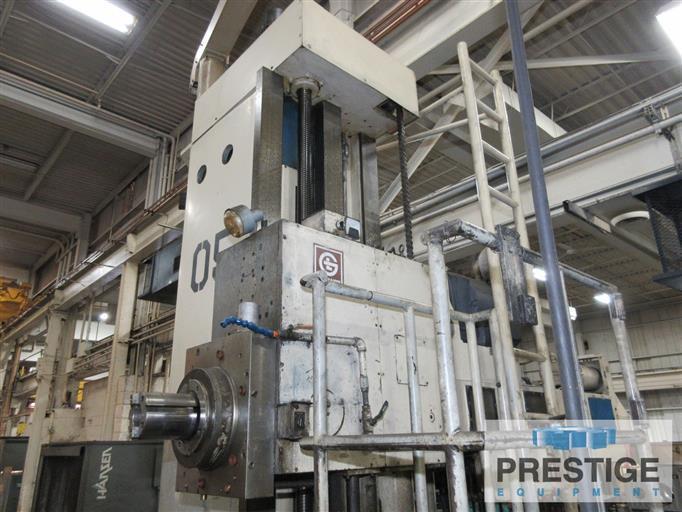

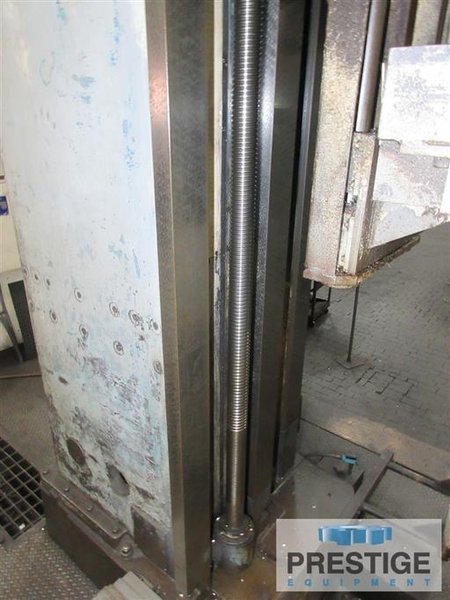

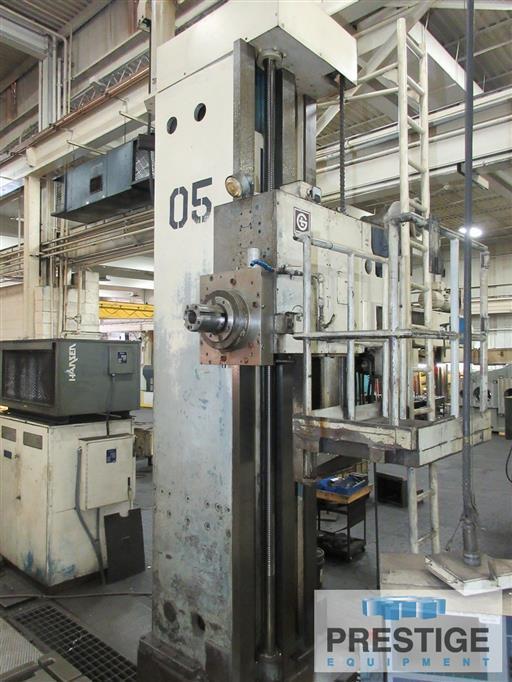

Boring Mills Horizontal Table Type CNC

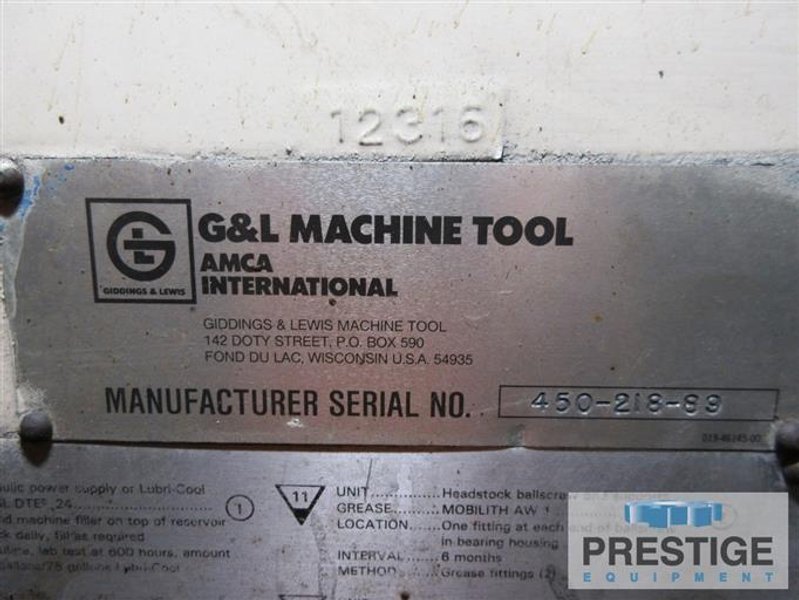

Serial Number450-218-88
SPECIFICATIONS:

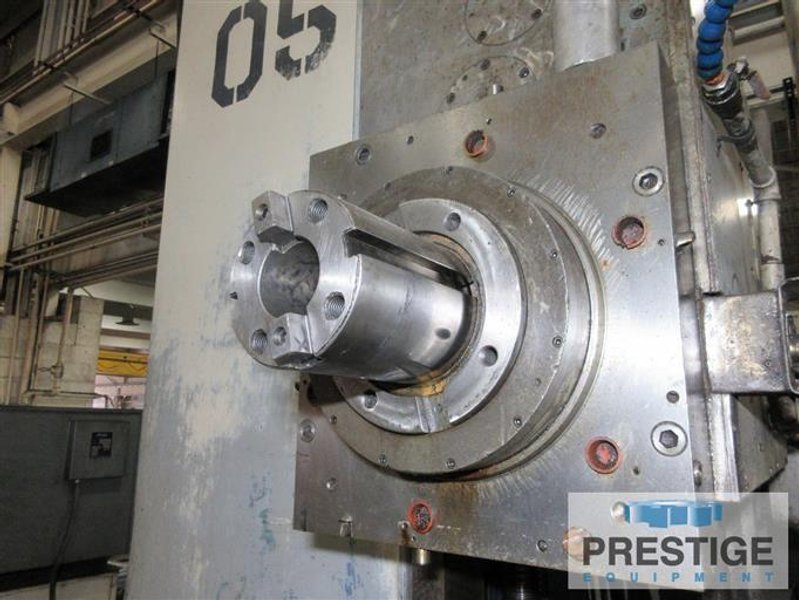

Spindle Diameter 6"
Spindle Taper #50 ANSI B5.5
X-Axis Table Cross Travel 168"
Y-Axis Vertical Travel of Headstock 115"
Z-Axis Spindle Travel 48"
W-Axis Saddle Travel 35"
Table Dimensions 72" x 168"
Spindle Speeds Range................... 12-2500 RPM 12-2500 RPM
Spindle Speeds Infinitely Variable
Feeds, X,Y,Z,W Axes .1 to 100 IPM
Coolant Thru-Spindle 10 HP 60 PSI
Table Weight Capacity 70,000 Lbs
Electrics 460/3/60



Equipped With:

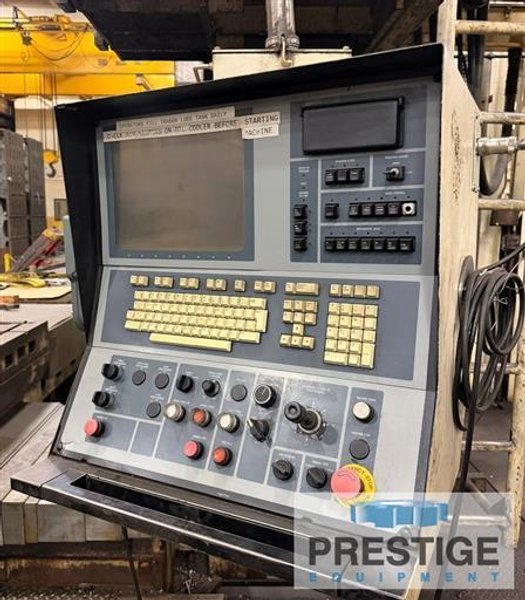

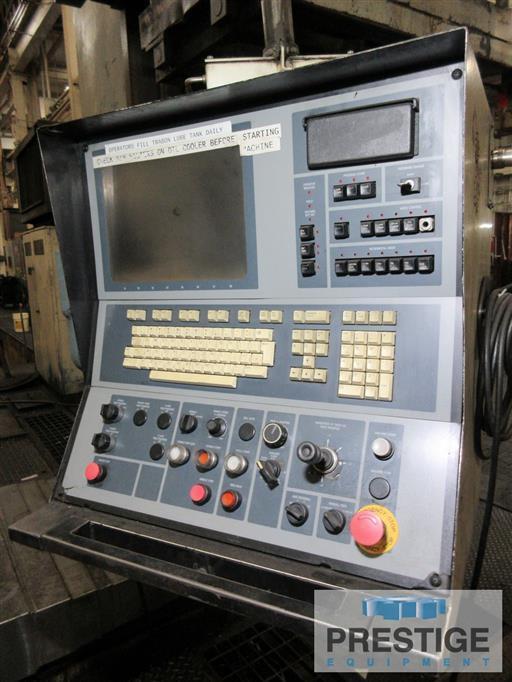

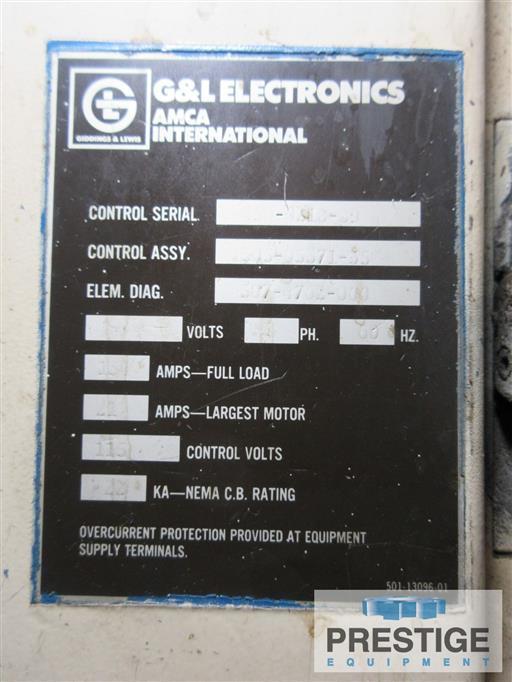

Giddings & Lewis 8000 CNC Control

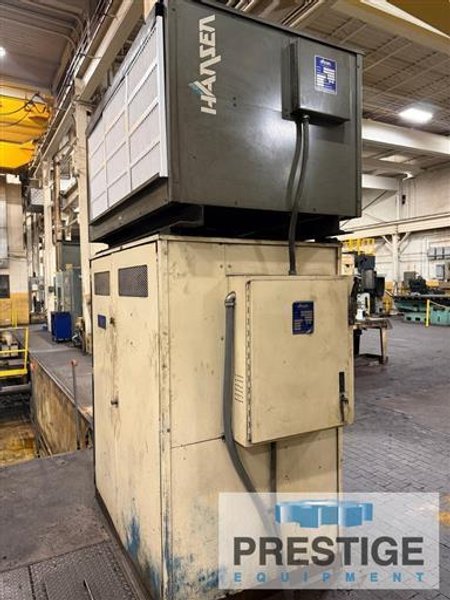

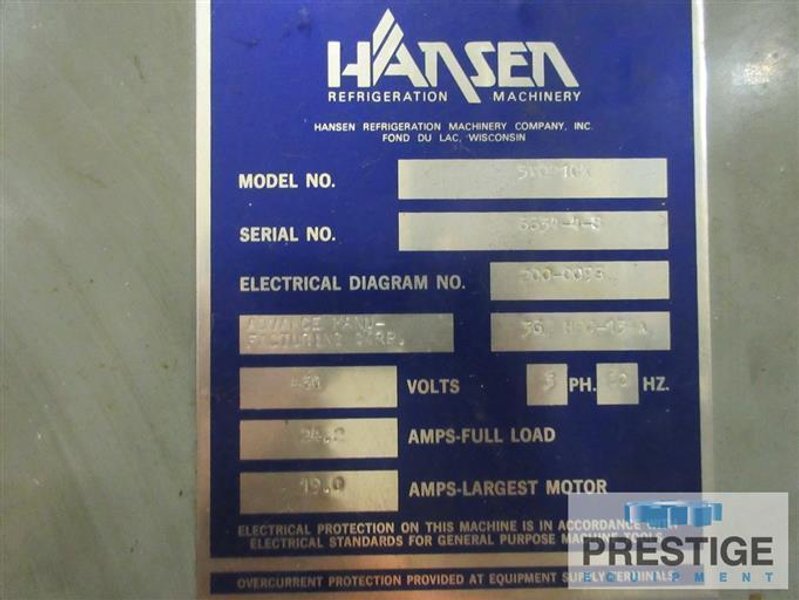

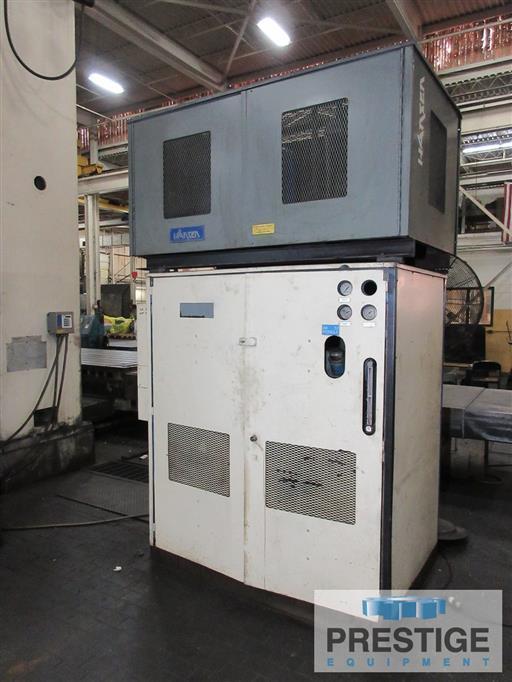

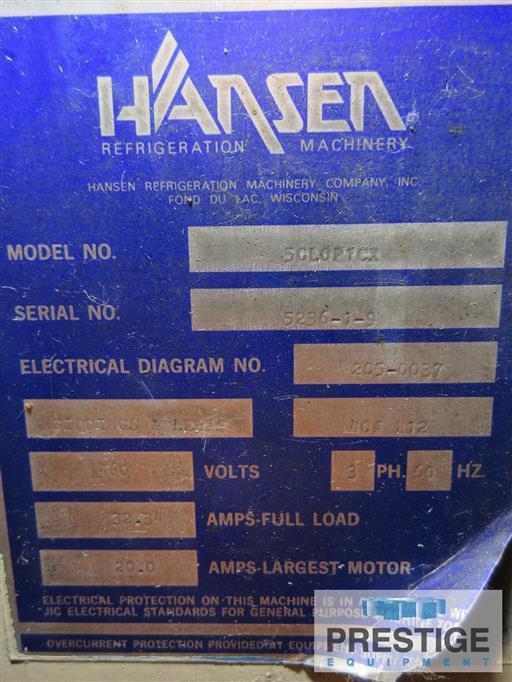

Hansen Oil Chiller System
Thru-Spindle Coolant
Flood Coolant

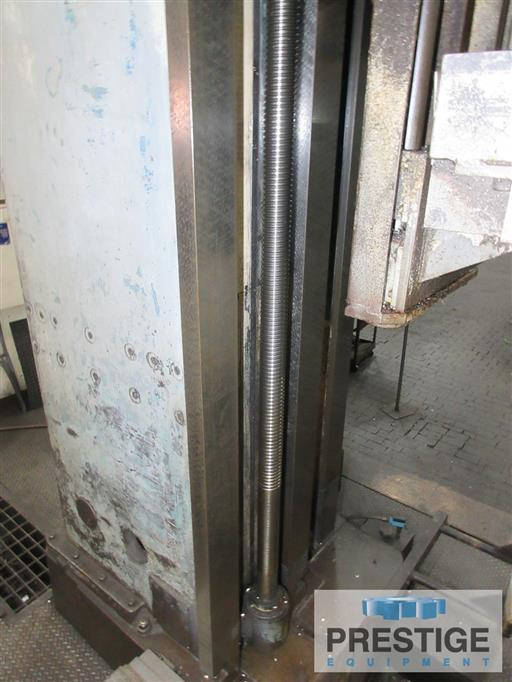

Hardened Ways on Bed & Saddle
Steel Telescoping Way Covers on Table & Saddle Ways
Double Table Outrigger Supports
50 HP Spindle Motor


NOTE: Inspect In Plant Under Power

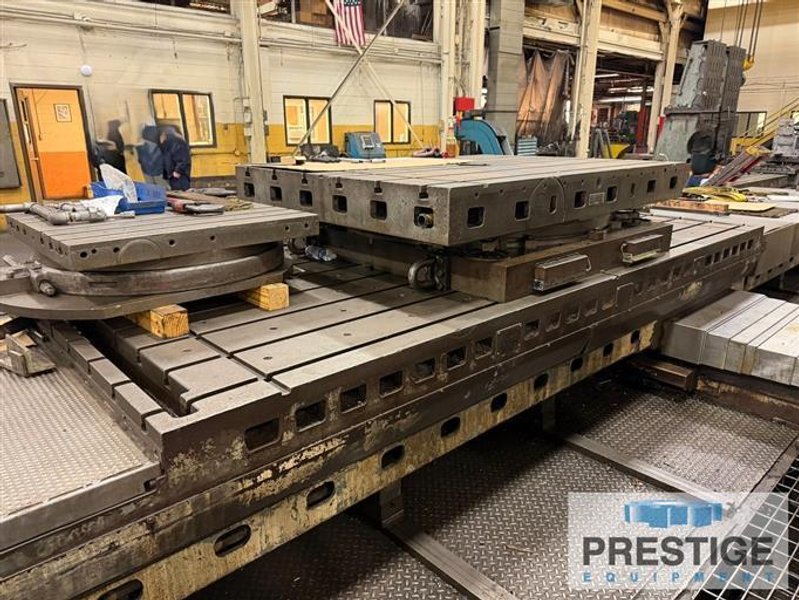

Rotary Tables To Be Sold Separately
60" x 84" Giddings & Lewis Rotary Table
36" x 36" Giddings & Lewis Rotary Table


Auction Message:
Being Offered at Auction September 1st




View The Auction
