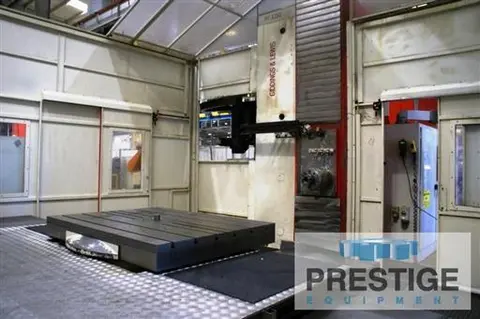

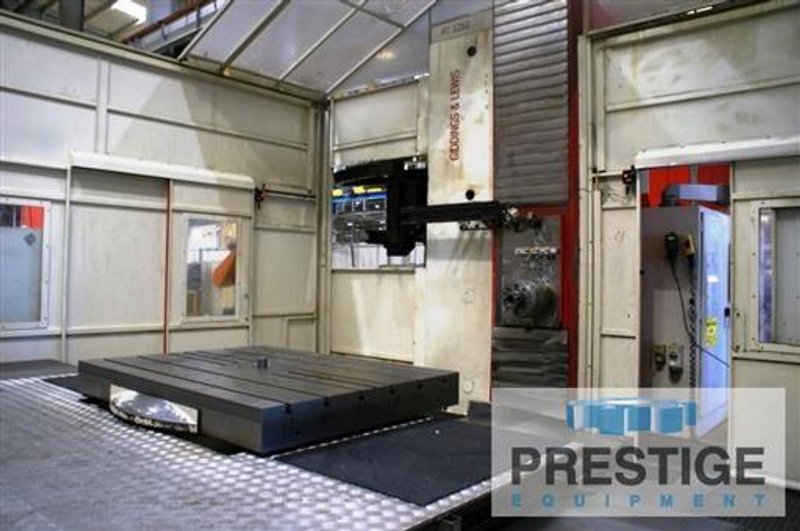

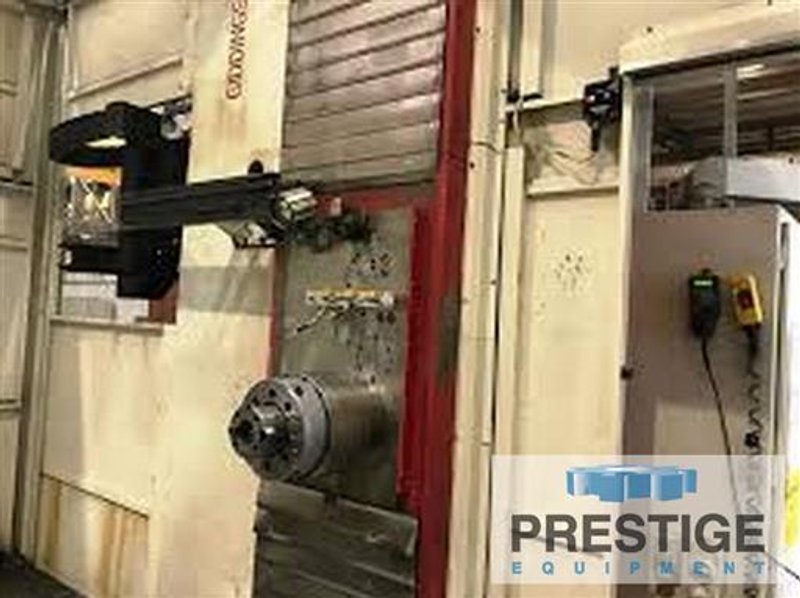

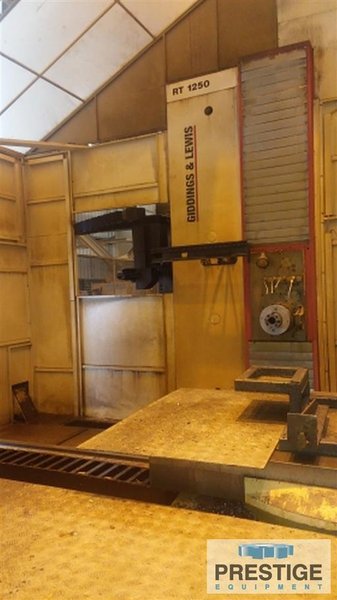

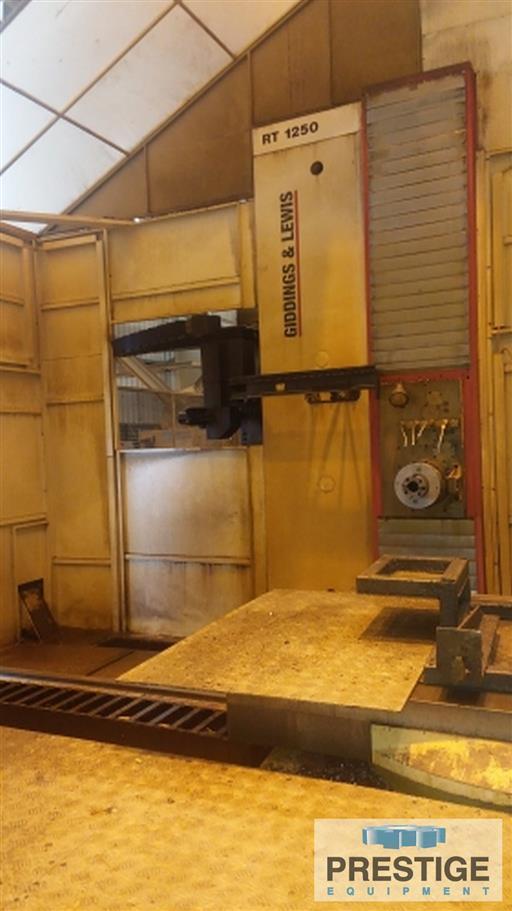

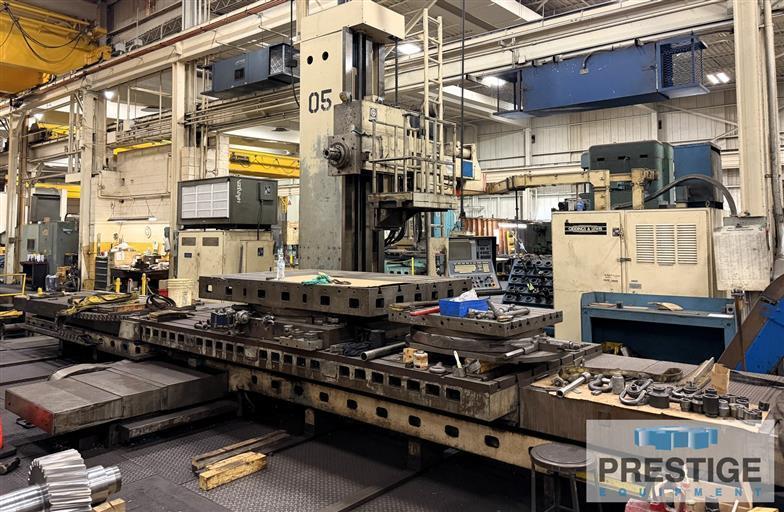

Boring Mills Horizontal Table Type CNC

FEATURES
Siemens 840D CNC Control

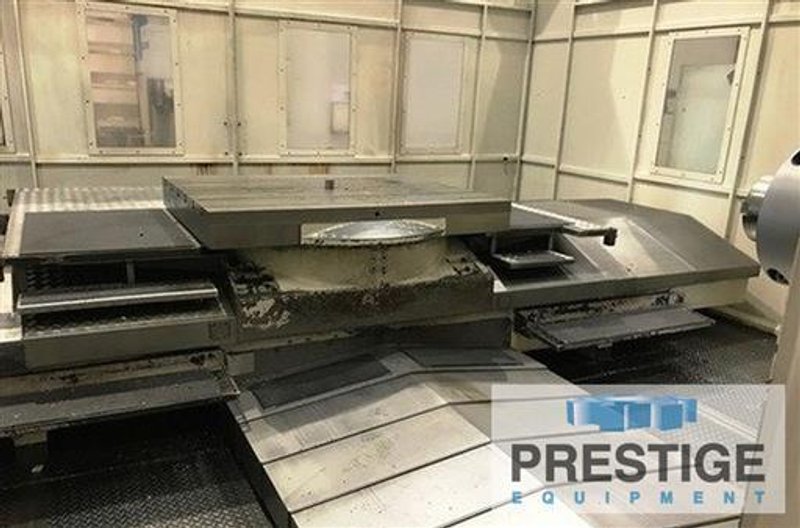

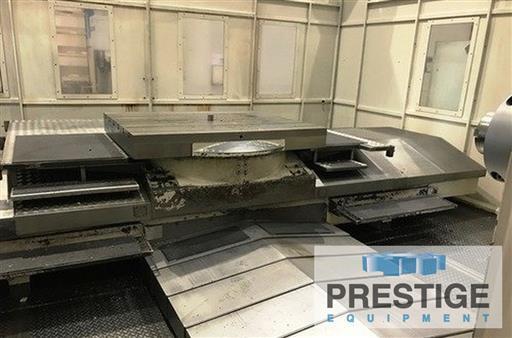

Built-In B-Axis Rotary Table
Thru-Spindle Coolant
90-Position Automatic Tool Changer
Tool & Part Probe Software
Heavy Duty Hardened & Ground Ways
SPECIFICATIONS:

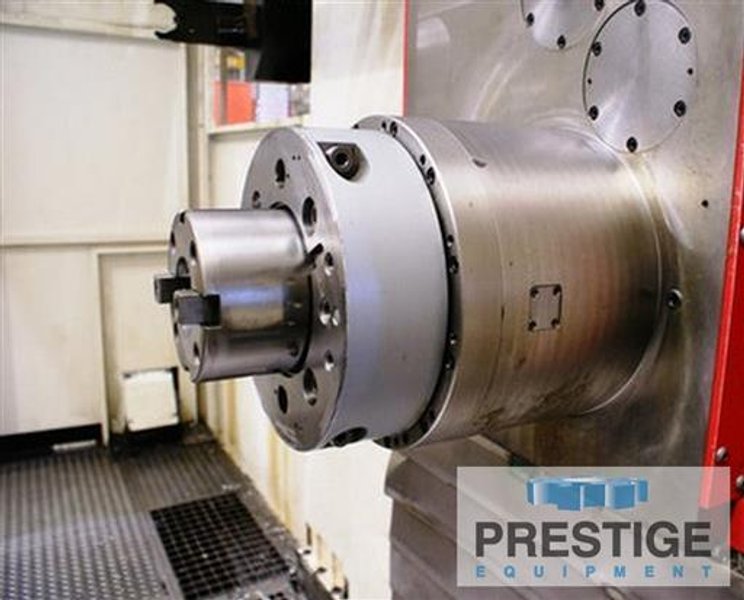

Spindle Diameter 6.1"
Taper In Spindle Cat 50
Vertical Headstock Travel, Y-Axis...... 82.7" 82.7"
Vertical Travel Above Table, Y-Axis 78.74"
Table Travel, X-Axis..... ............. 141.7"
Saddle Travel, W-Axis 98.4"
Spindle Travel, Z-Axis 49.2"
Table Size, Built-In Rotary 49.2" x 63"
Table Rotation, B-Axis 360,000 Positions
Table Rotation 0 to 6 RPM
Table Load Capacity 33,100 Lbs
Spindle Speeds 1-3500 RPM
Spindle Drive Motor 50 HP/74 HP
Speed Ranges 3
Rapid Traverse, X-Axis 985 IPM



Equipped With:
Siemens 840D CNC Control
90-Station Automatic Tool Changer
Mold Making, High Speed Machining Software
Rigid Tapping
Software for CH Facing Heads
Program Preprocessing
3D Tool Radius Compensation
Renishaw Tool Probe Software
Coolant-Thru Spindle, 70 Bar
Remote Pendant
Manual Cam Lock Latch Coupler For Attachments

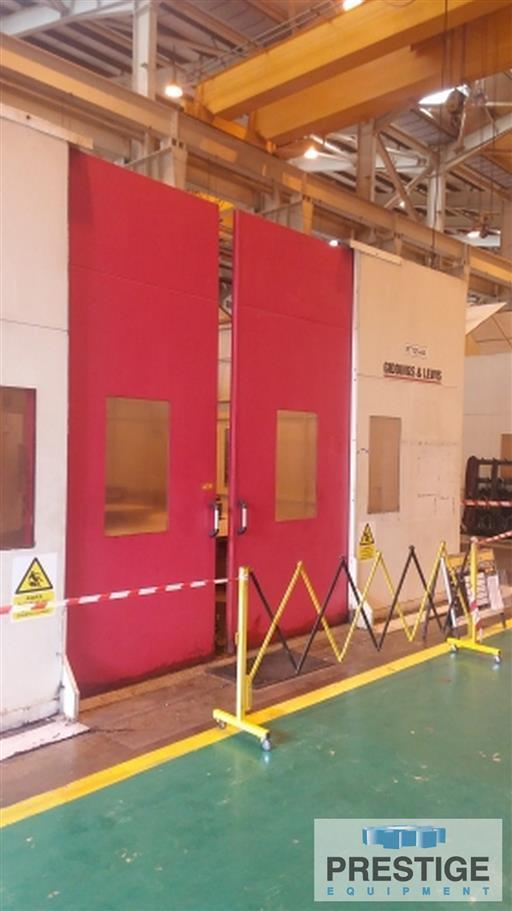

Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Chip Conveyor
50 HP / 74 HP Spindle Motor
