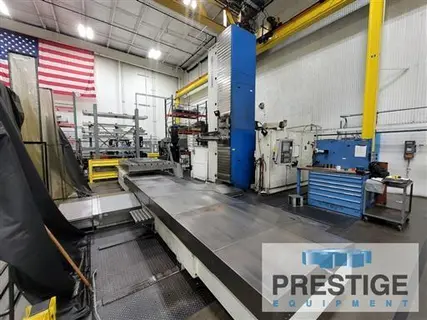

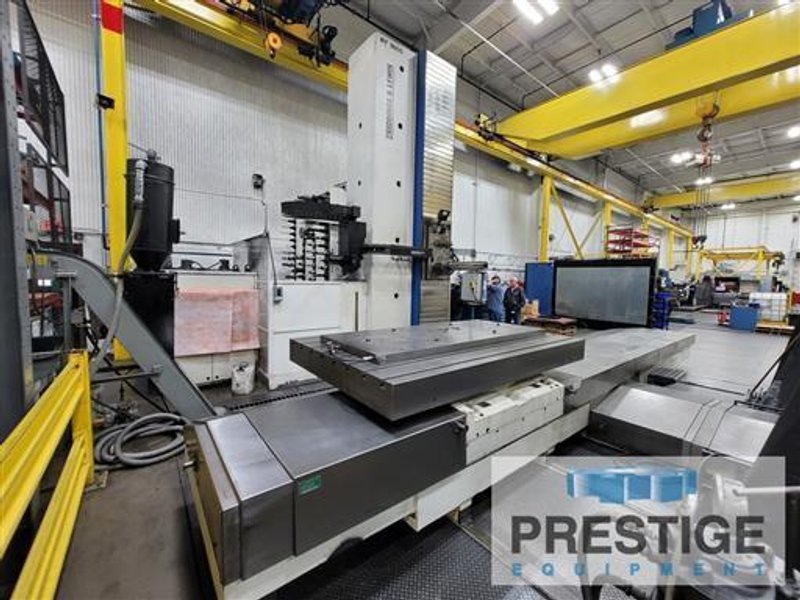

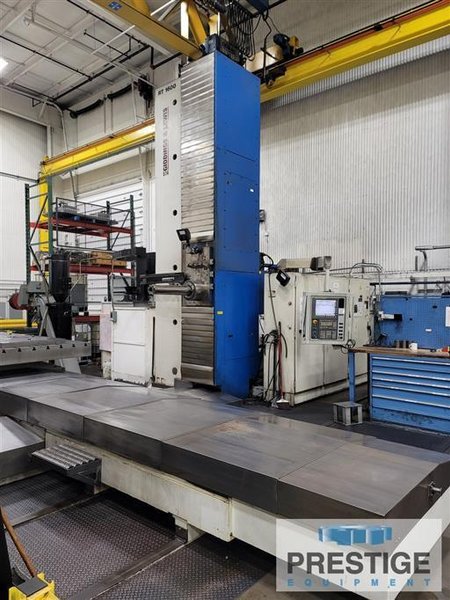

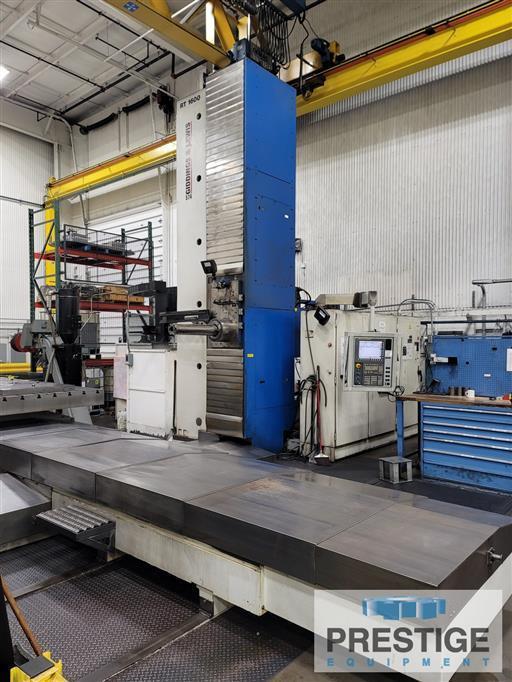

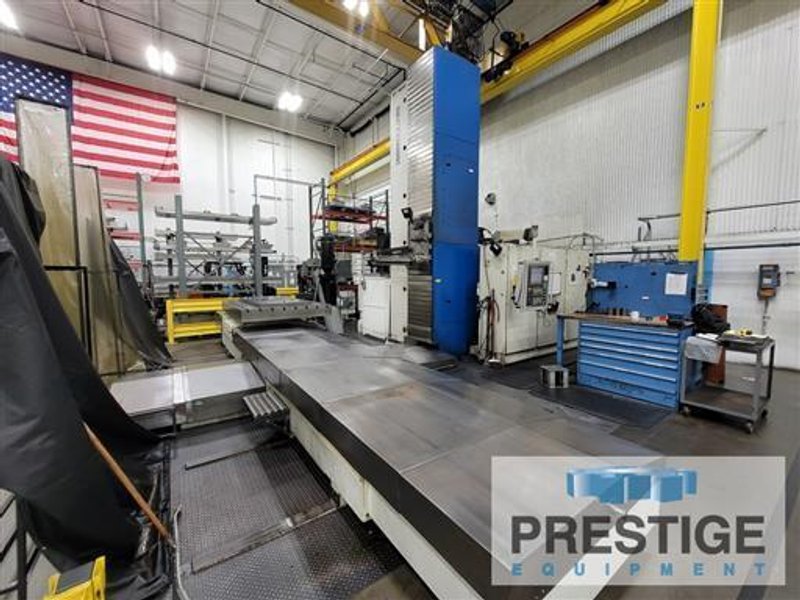

Boring Mills Horizontal Table Type CNC

SPECIFICATIONS:

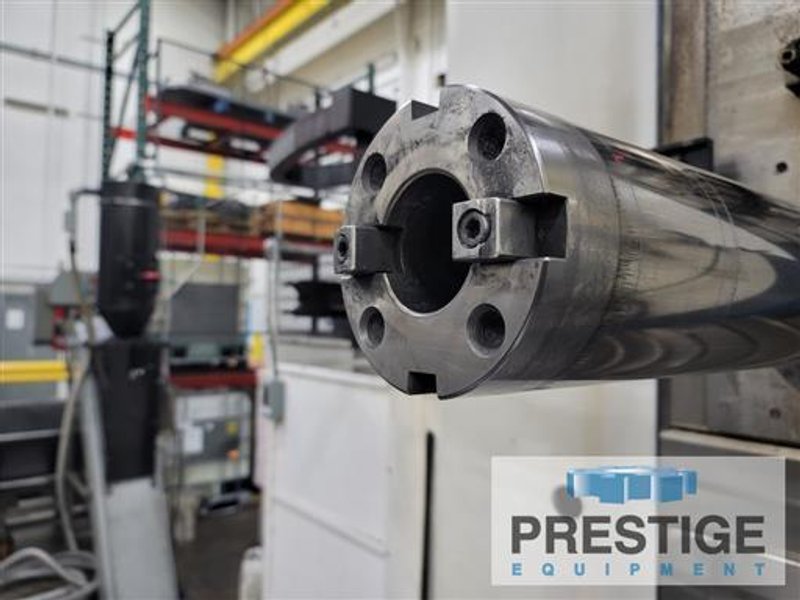

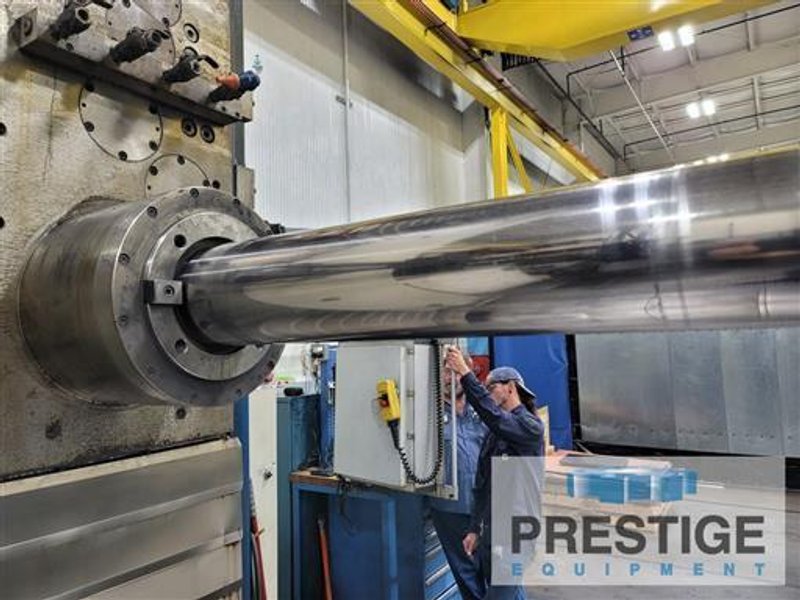

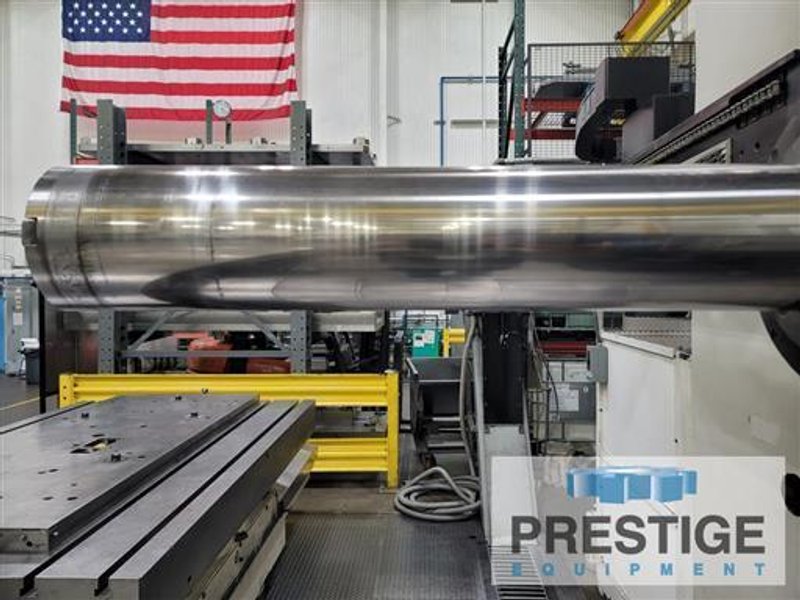

Spindle Diameter 6.1"
Taper In Spindle ANSI B5.50 R.K
X-Axis Table Travel 189"
Y-Axis Vertical Head Travel 141.7"
Y-Axis Travel Above Table 136.4"
W-Axis Table Infeed Travel 78.7
Z-Axis Spindle Travel 49.2"

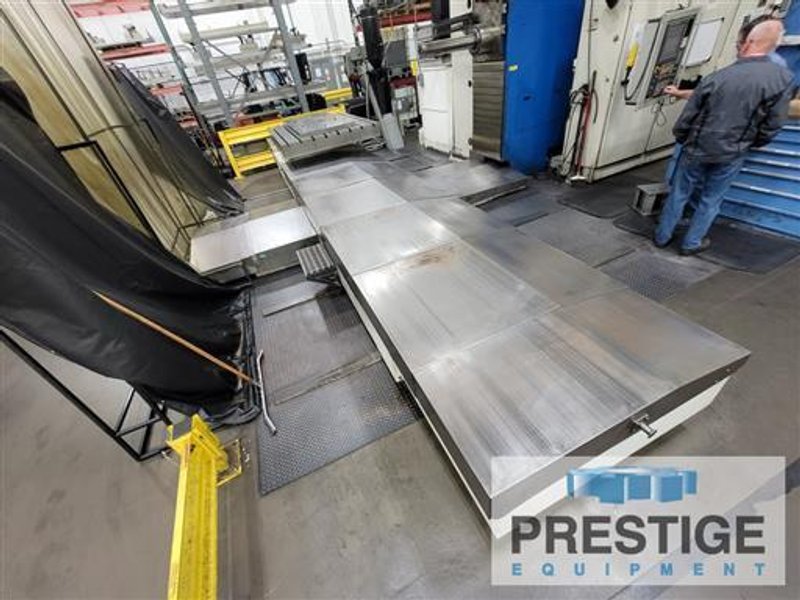

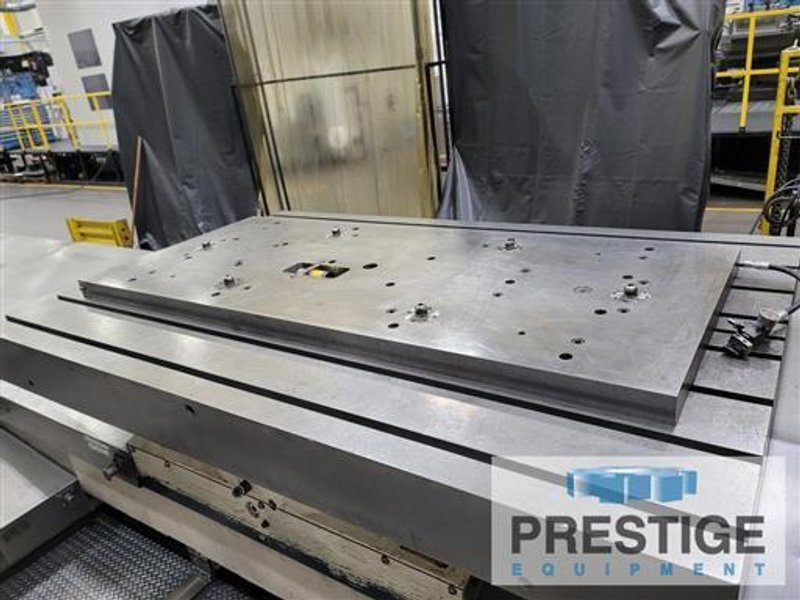

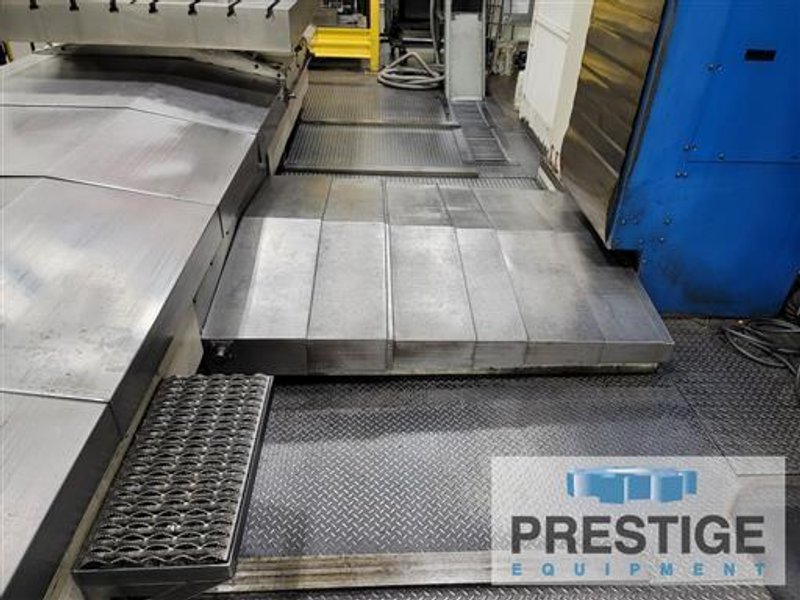

Table Size, Built-In Rotary 63" x 98"
Table Rotation, B-Axis .001 degrees
Table Load Capacity 55,100 Lbs
Spindle Speeds 1-3500 RPM
Spindle Speed Ranges 4
Spindle Motor 50 HP/74 HP



Equipped With:

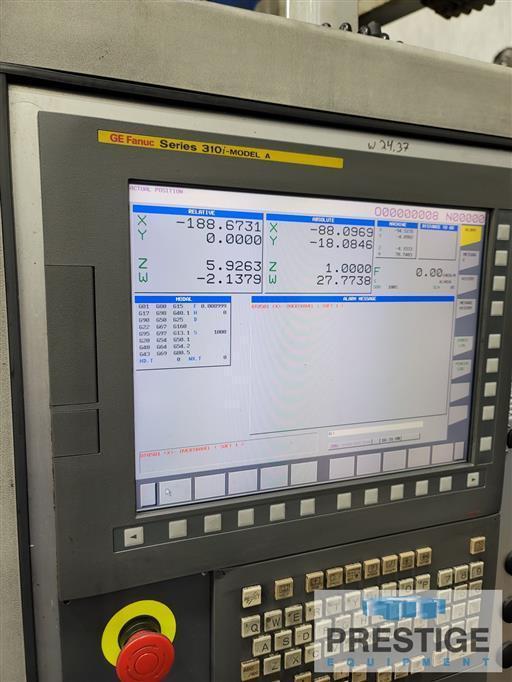

Fanuc 310i High Performance CNC Control with Machine Control Panel

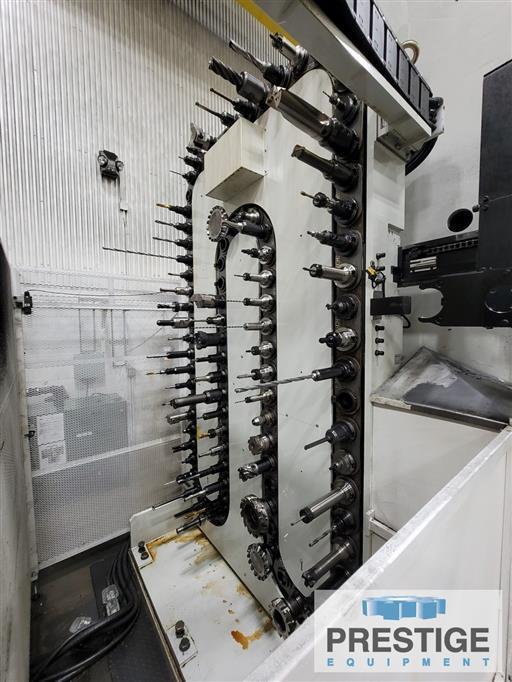

90 Position Tool Changer
Thru-Spindle Programmable Coolant
Renishaw RMP60 Probe With Radio Transmission

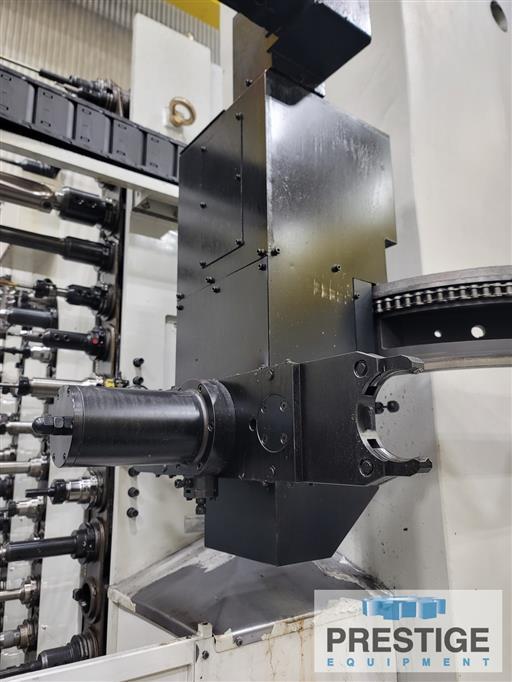

4-Speed Headstock
Rigid Tapping
Remote Manual Jog Pendant
Linear Scale Feedback, X, Y, & W Axes
Servo Motor Encoded, Z-Axis
Direct Feedback Encoder, B-Axis
3.5" Floppy Drive


FANUC CNC CONTROL EQUIPPED WITH: Fanuc 310i High Performance CNC
Rigid Tapping
High Level Programming Capability (variables and
parameters)
Remote hand held pendant with MPG

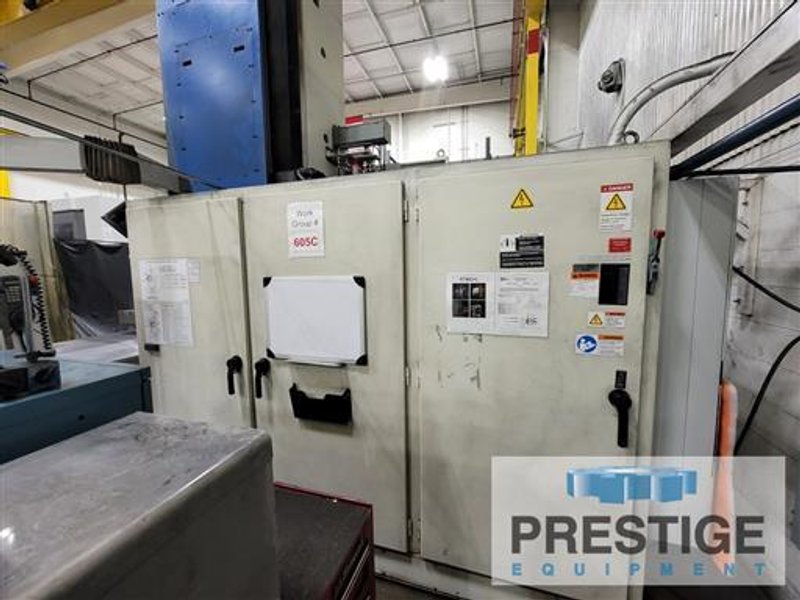

Interior lighting for control cabinet
Rigid Tapping
High Level Programming Capability (variables and
parameters)
Remote hand held pendant with MPG
Interior lighting for control cabinet
Coordinate System Rotation (J893)
Work Coordinate System (J894)
48 Additional Work Piece Coordinate Systems (J895)
Remote Pendant with MPG (T014)
Fixed Cycles G7x-G8x Series Cycles (J890)
Rigid Tapping - G74, G84 (J828)
Tool Retract and Return w/ret for Rigid Tapping (J823, J664)
Custom Macros & Variables - 600 Total Commom (J873,J887)
Programmable Inch / Metric (J876)
Programmable Mirror Image (J880)
Programmable Data Input (J872)
Stored Pitch Error Compensation (J841)
Stored Limit Check before Movement (J749)
5120 Meters of Part Program Storage (J948)
1000 Stored Part Programs (J953)
Background Editing (J956)
Bell Shaped Acc/Dec after Interp. for Cutting Feed (J829)
Helical Interpolation (J819)
Distance Coded Linear Scale (J670)
Dual Position Feedback (J704)
Tool Length Measurement (J938)
Stored Limit Check Before Movement (J749)
Cylindrical Interpolation A 70.2.011 - G7.1 (J816)
Rotary Table Fixture Compensation - G54.2 (S728)
Inverse Time Feed - G93 (J715)
Manual Handle Interruption (J837)
Program Restart (J838)
Remote Handy Operator Station
Software for control of CH facing heads and prog. boring bars


NOTES: Inspect Under Power Prior To Removal From Ohio Plant
