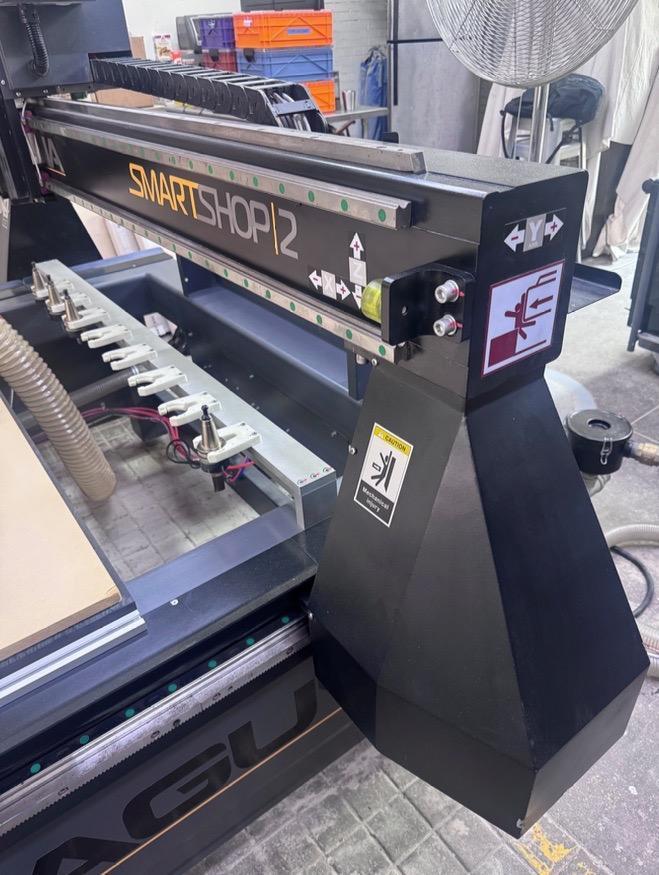

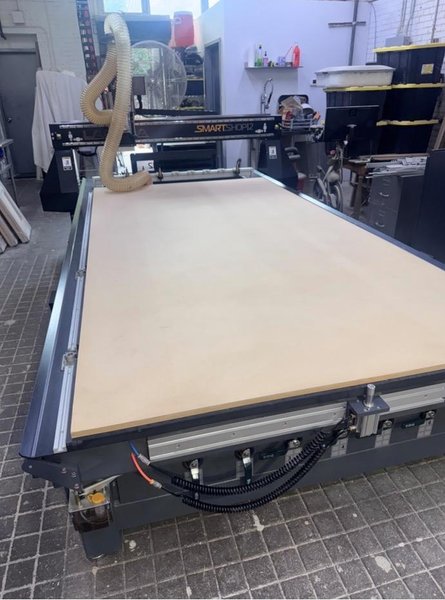

5′ x 10′ Laguna SmartShop II SS2-2 CNC Router, 2021 – 12 HP HSD ATC, Syntec Controller

Laguna Tools SmartShop II SS2-2 Year: 2021 Controller: Syntec FC60-CA Cutting Area: 5 ft. x 10 ft.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Manufacturer: HSD Spindle Power: 12 HP Spindle Type: ISO-30 Automatic Tool Change (ATC) Bearings: Ceramic Maximum Spindle Speed: 24,000 RPM Voltage: 208-230V, 3 Phase

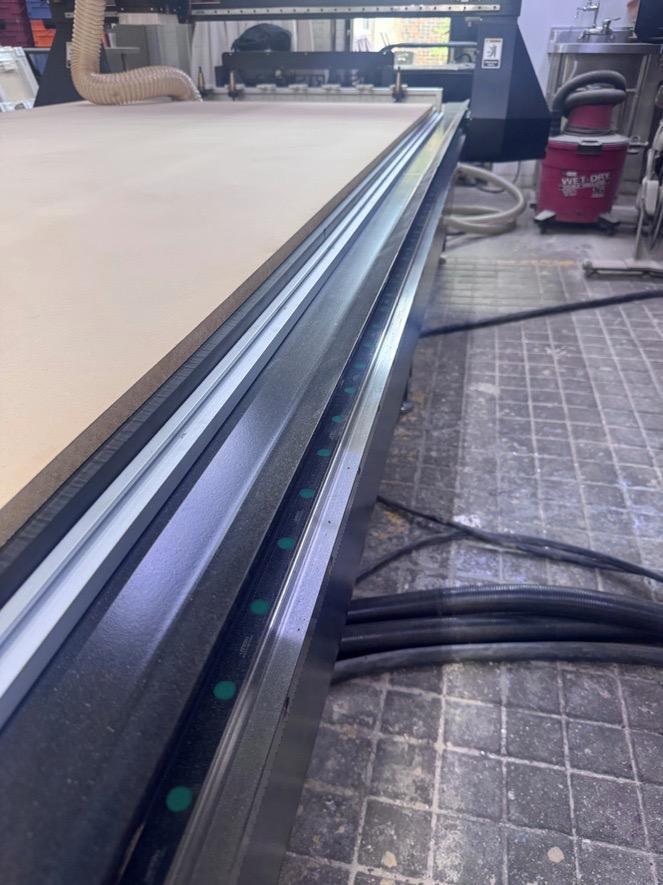

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Changer Automatic Tool Changer: 8 Position Tool Holders Included: 4 Tool Cone Holder for Quick Bit Changes Table Table Size: 5′ x 10′ Vacuum Table: Universal Grid Phenolic Vacuum

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table T-Slot Workholding Vacuum Zones: 6 Independently Controlled Zones

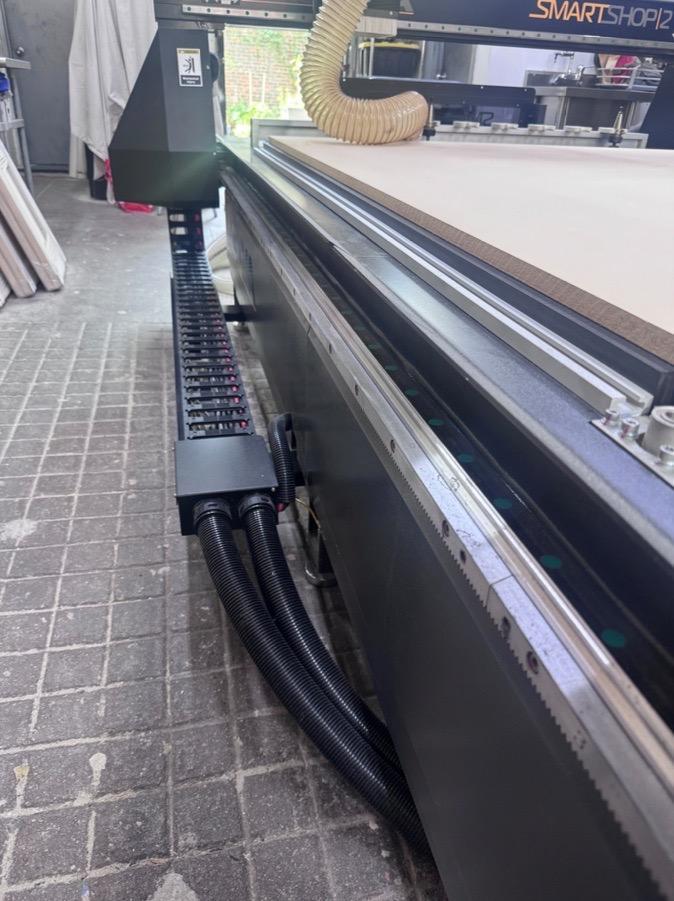

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Motion System X-Axis: Helical Rack & Pinion Y-Axis: Dual Helical Rack & Pinion Z-Axis: Precision Ground Ball Screw

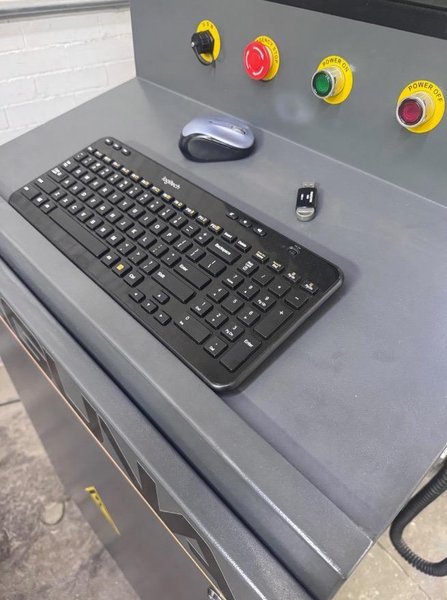

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Features Programmable Dust Hood with M-Code Driven Retraction Emergency Stop Soft Limits with Limit Switches on All Axes Heavy-Duty All-Welded Structural Steel Frame Approximate Machine Weight: 3,500 lbs.

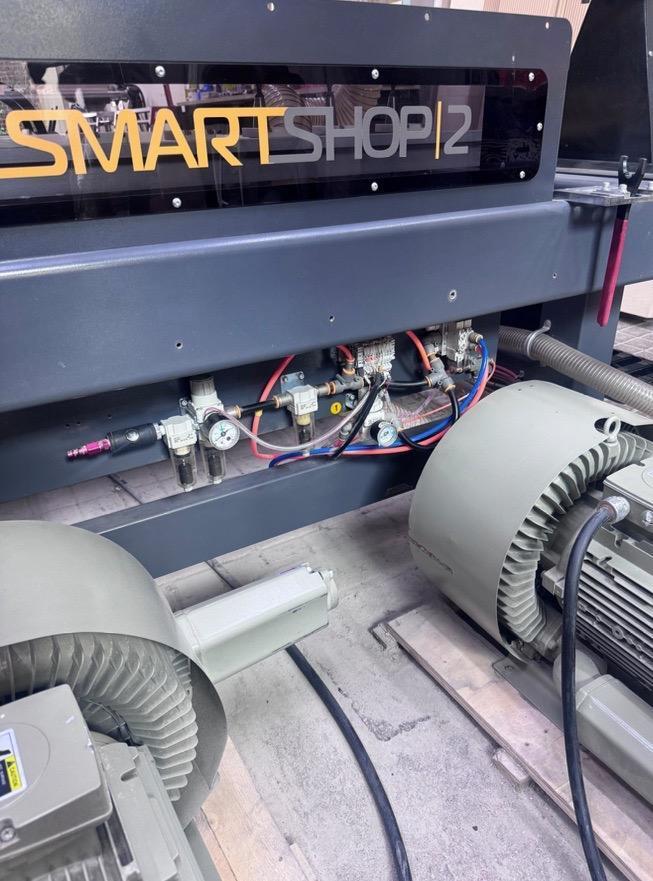

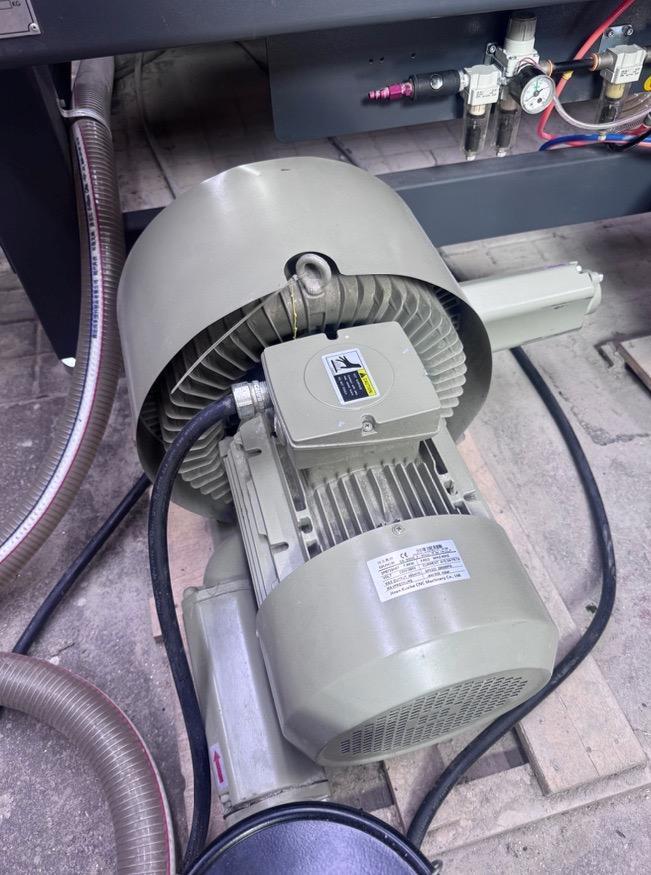

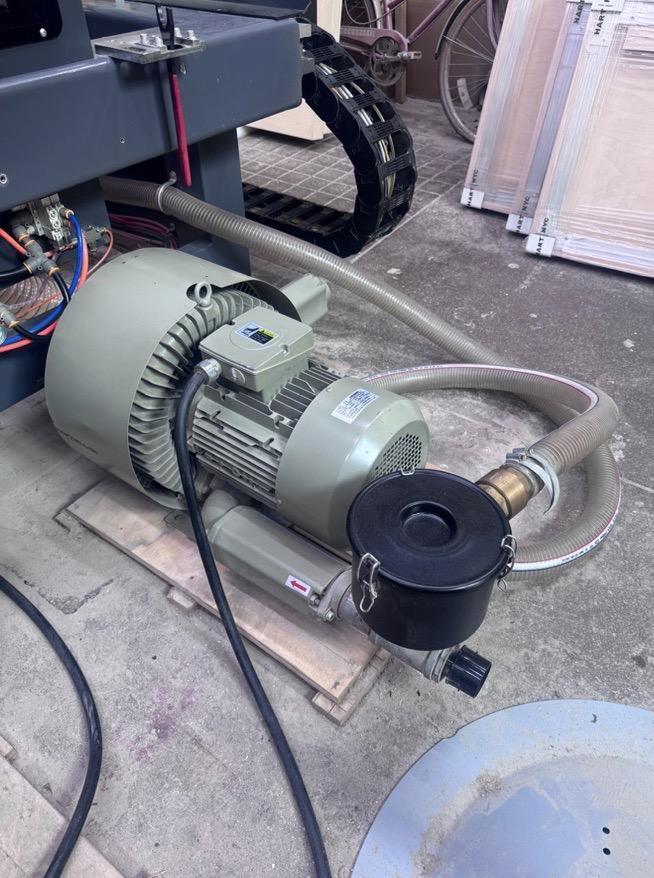

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum System (2) 10 HP Regenerative Blower Vacuum Pumps 285 CFM Each 220V, 3 Phase Includes Filter Housing & Filter Fittings

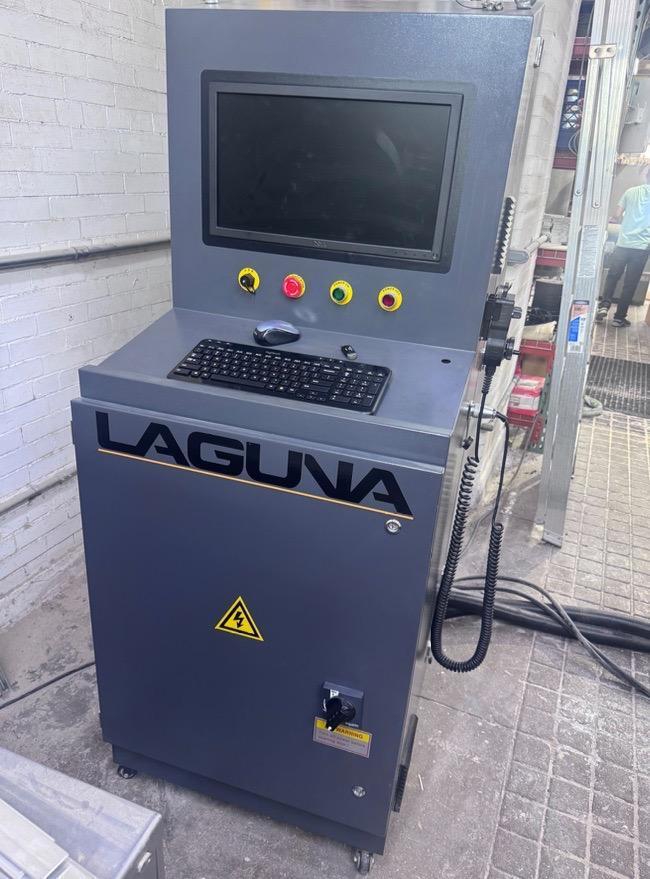

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Software Syntec FC60-CA Controller VCarve Pro Software Included (Original Purchase)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
