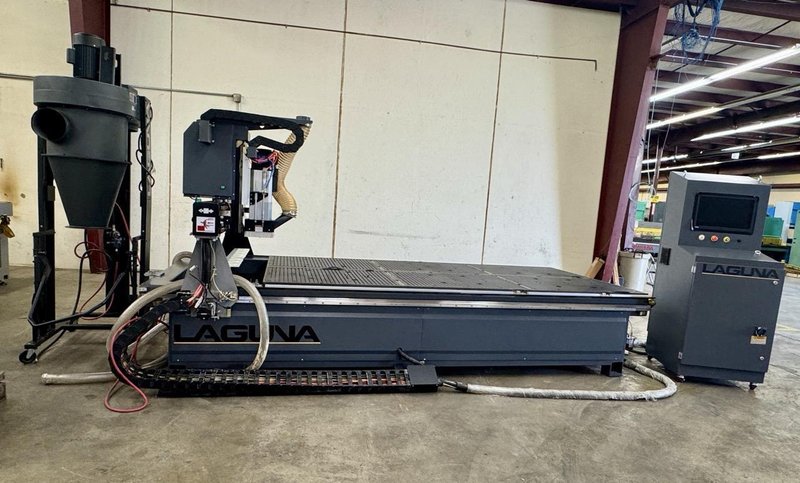

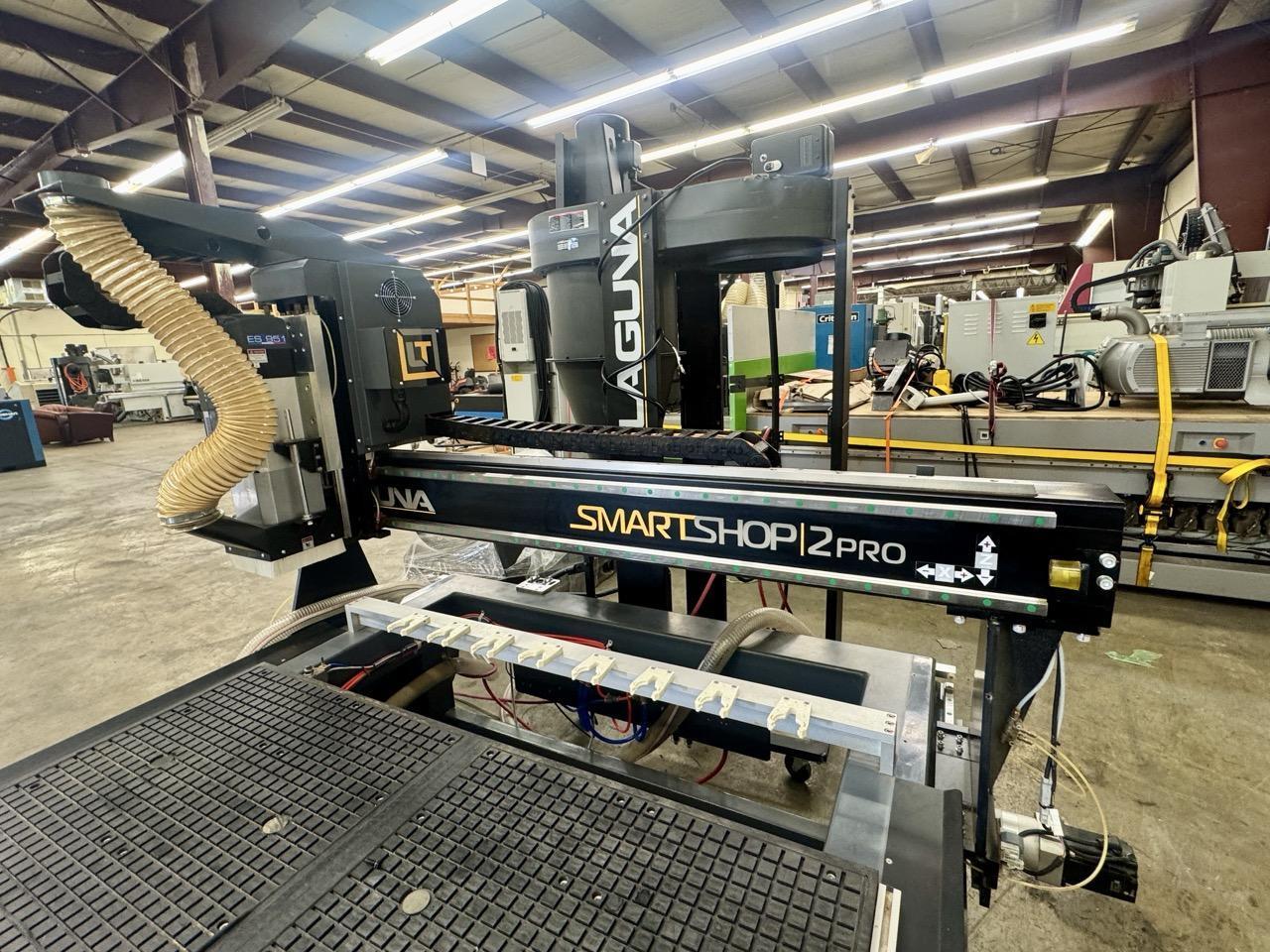

Laguna Tools SmartShop II MCNC SS2-2 5’ x 10’ CNC Router, 2024 – 11 HP HSD Spindle, 8-Tool ATC & 10 HP Vacuum Pump

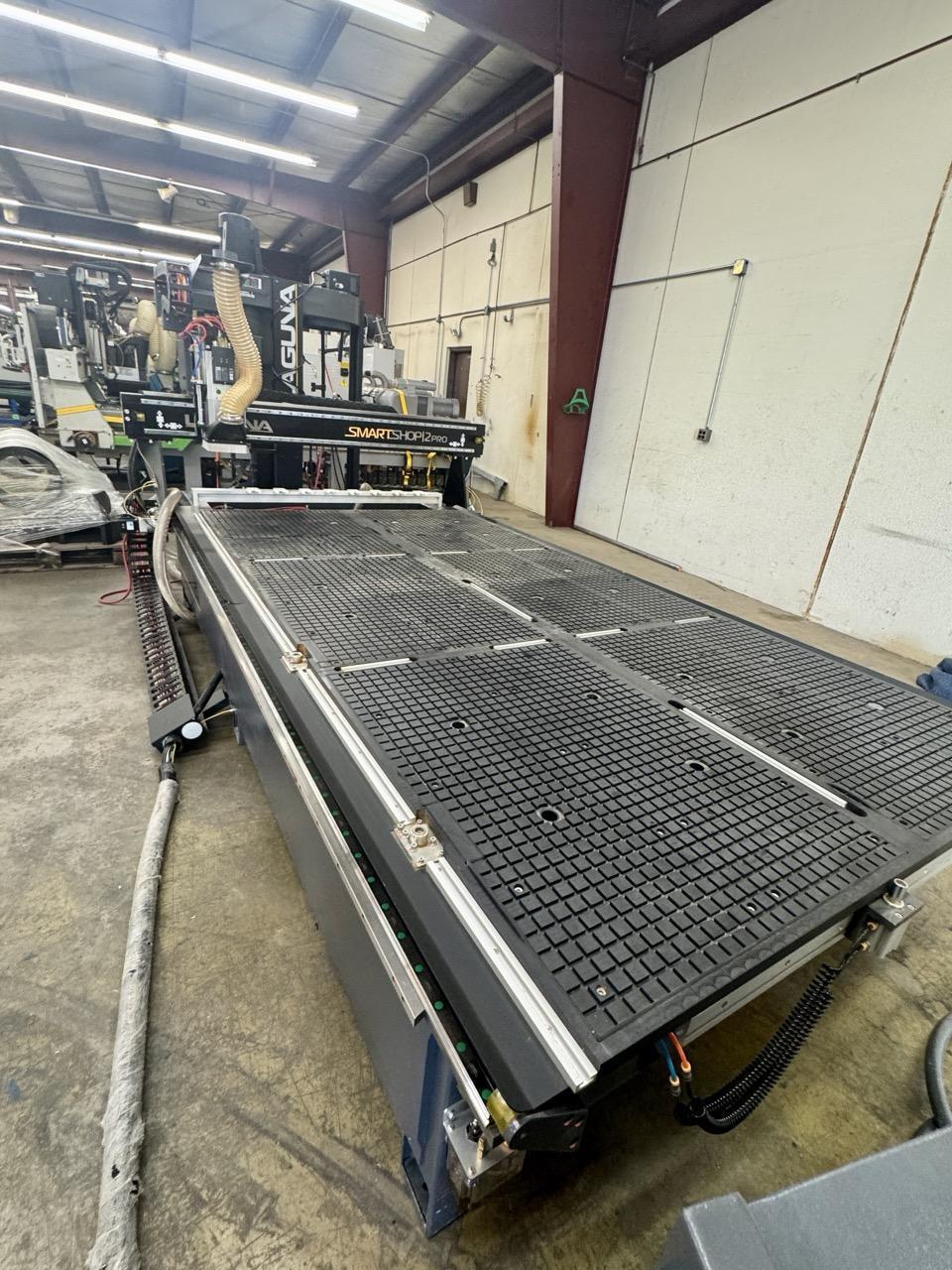

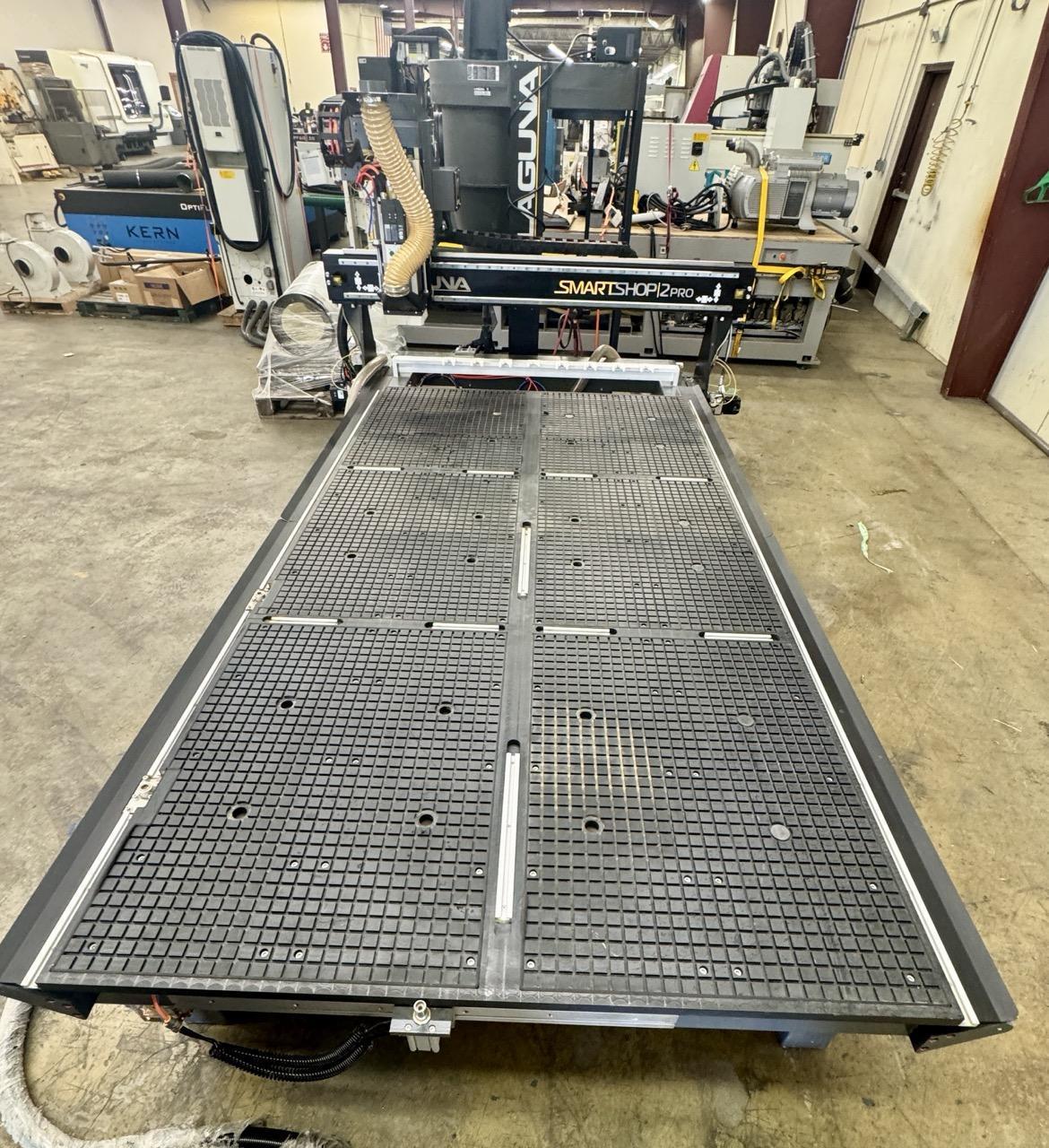

Late-model 2024 Laguna Tools SmartShop II industrial CNC router featuring a full 5’ x 10’ vacuum table, powerful HSD automatic-tool-change spindle, 8-position ISO-30 tool changer and included 10 HP vacuum pump for high-production cabinet, woodworking, plastics and composite applications.

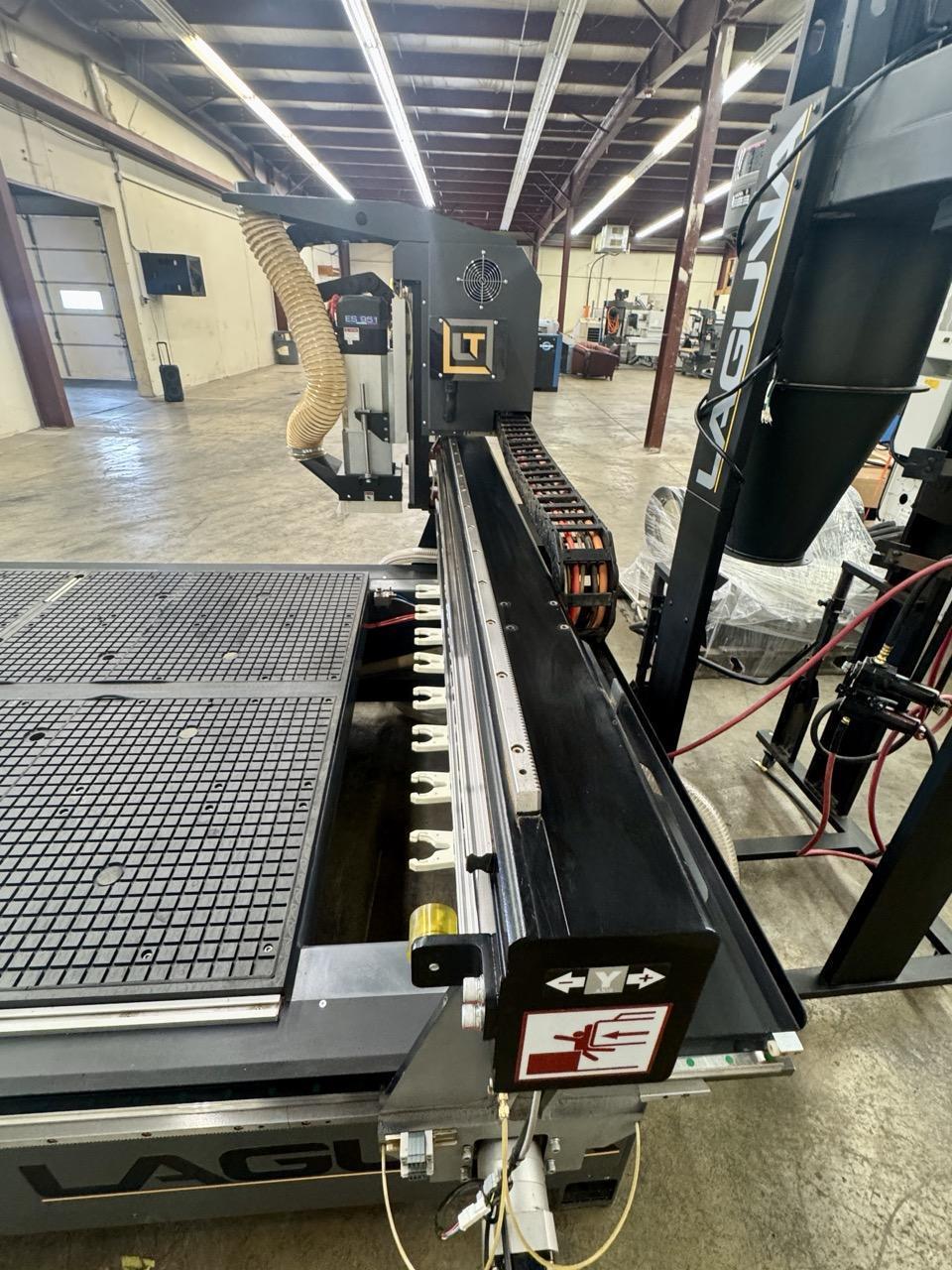

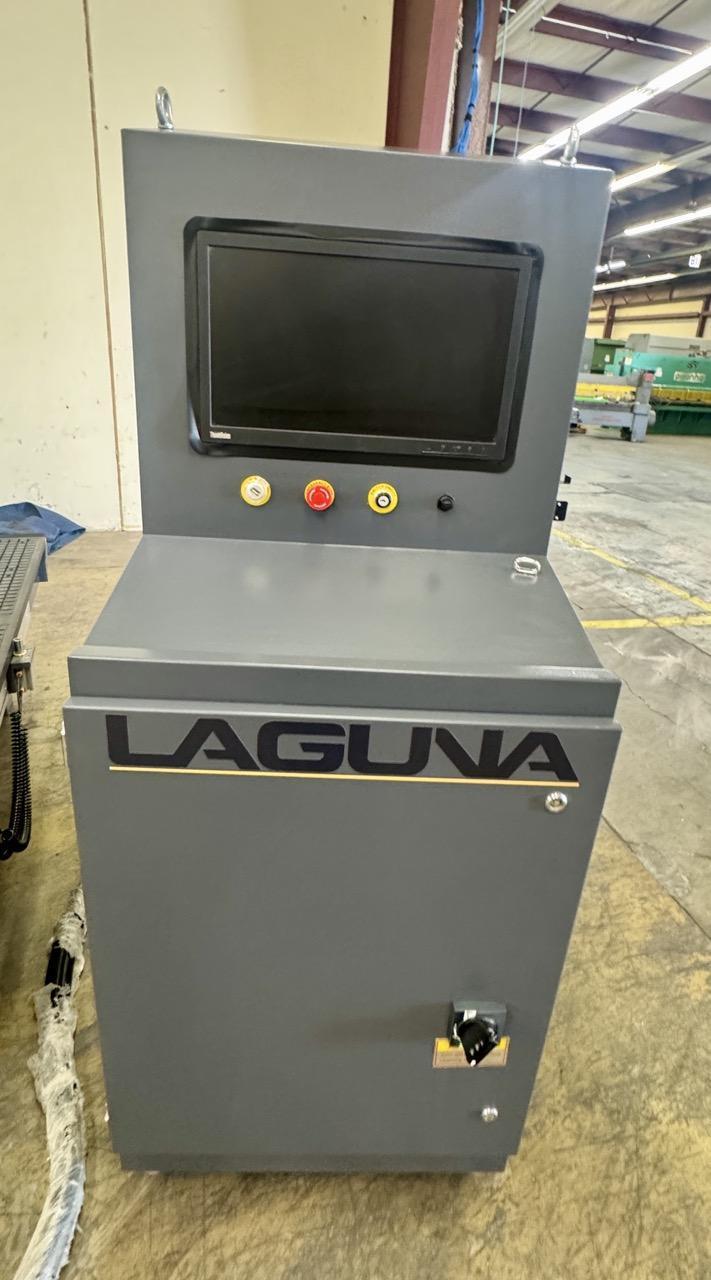

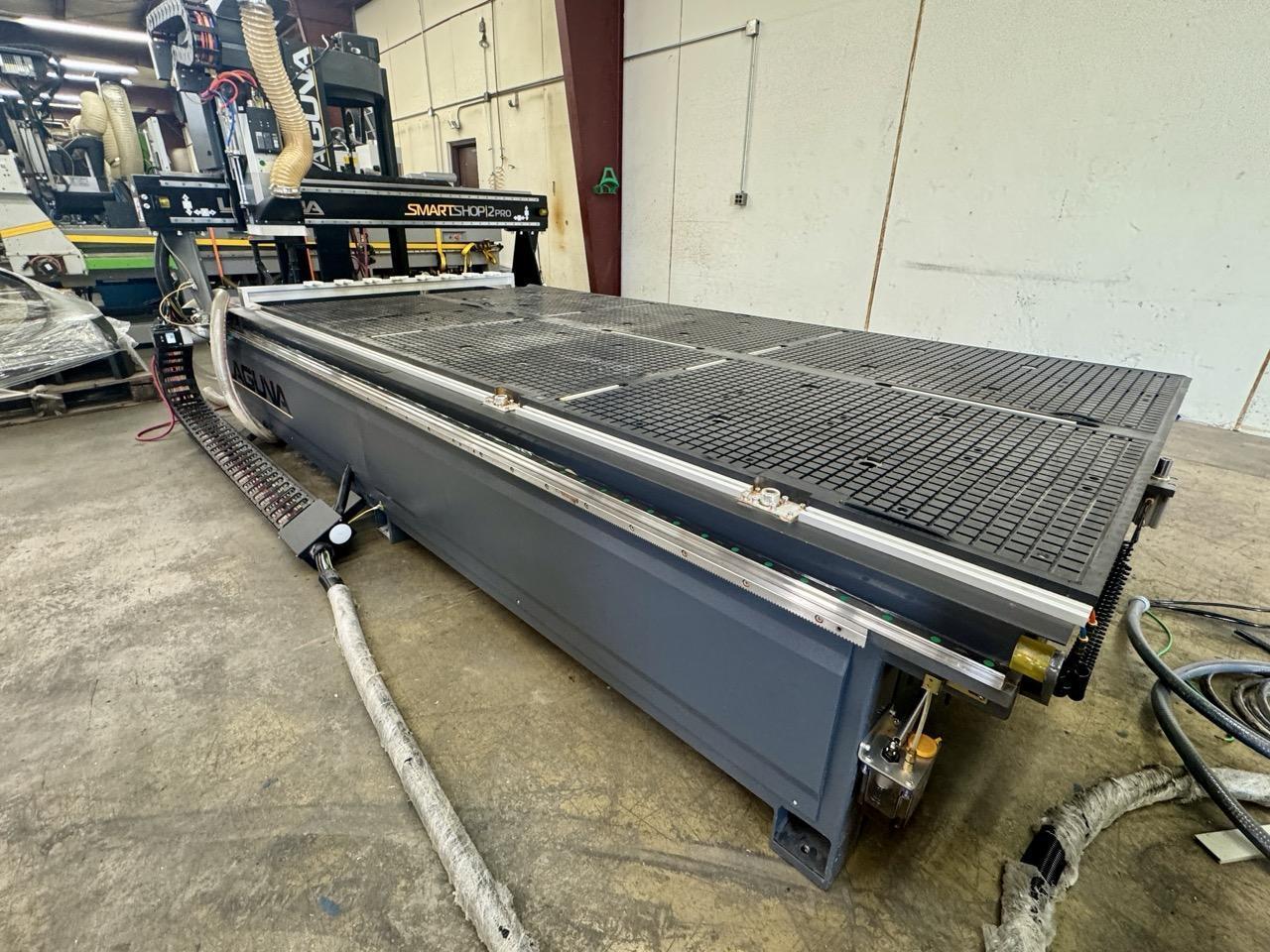

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model SmartShop II Model Number MCNC SS2-2 / confirm complete serial-plate designation Year 2024 Machine Type 3-Axis CNC Router Table Size 60″ x 120″ Nominal Sheet Capacity 5′ x 10′ X-Axis Travel 60″ Y-Axis Travel 120″ Z-Axis Travel Approximately 9.5″ Work Envelope Approximately 61″ x 121″ x 8″ Gantry Clearance Approximately 11″ Spindle HSD Italian electrospindle Spindle Horsepower commonly 11 HP on this SS2 configuration Spindle Speed 6,000–24,000 RPM Spindle Taper ISO-30 Automatic Tool Changer 8-position rear tool rack Table Type Phenolic vacuum table with T-slots Vacuum Zones Six independently controlled zones Vacuum Pump Included 10 HP vacuum pump Axis Drive Helical rack-and-pinion on X and Y axes Z-Axis Drive Precision-ground ball screw Gantry Drive Dual-drive Y-axis Linear Guides 25 mm HiWin HG-series linear bearings and rails Controller Laguna Touch-series CNC controller Programming Industry-standard G-code Program Transfer USB and Ethernet Rapid Traverse Approximately 720 IPM Cutting Speed Up to approximately 550 IPM Lubrication Centralized lubrication system Dust Port 4″ Electrical 208–220 volts; phase and amperage dependent upon configuration Machine Footprint Approximately 90″ x 160″ Machine Weight Approximately 3,500–4,500 lb., depending on configuration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
