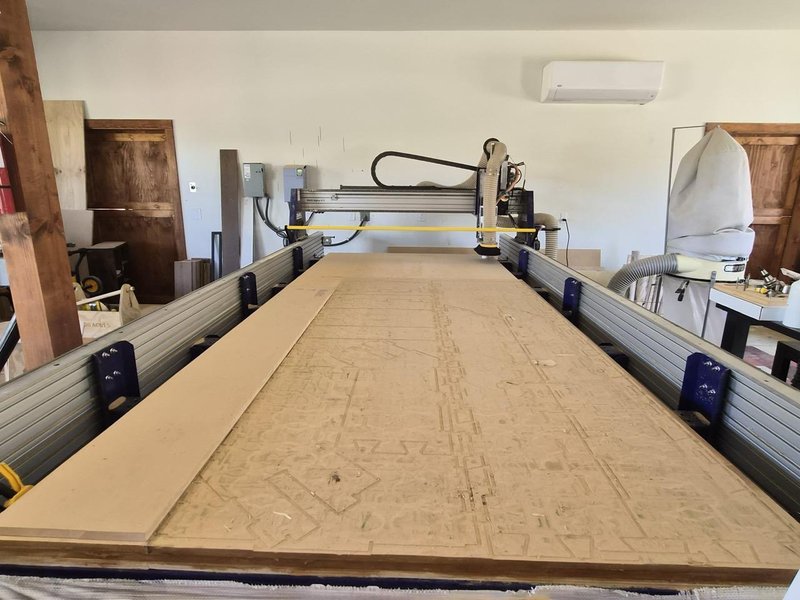

5’ x 12’ ShopBot PRS-5Alpha ATC CNC Router, 2025 – Dust Collector, Tool Changer

Machine Core Model: PRS5alpha ATC 144″ × 60″ × 14″ Spindle: 5 HP ATC, 1‑phase, 110V motors X Axis Travel: 144″ Y Axis Travel: 60″ Z Axis Travel: 14″ Motor Control: Alpha closed loop, 150 lbs side force Feed Rate: 12 ips max Rapid Rate: 30 ips Resolution: 0.0004″ Repeatability: ±0.002″ Max Cut Speed: 720 inches per minute Max Rapid Speed: 1800 inches per minute

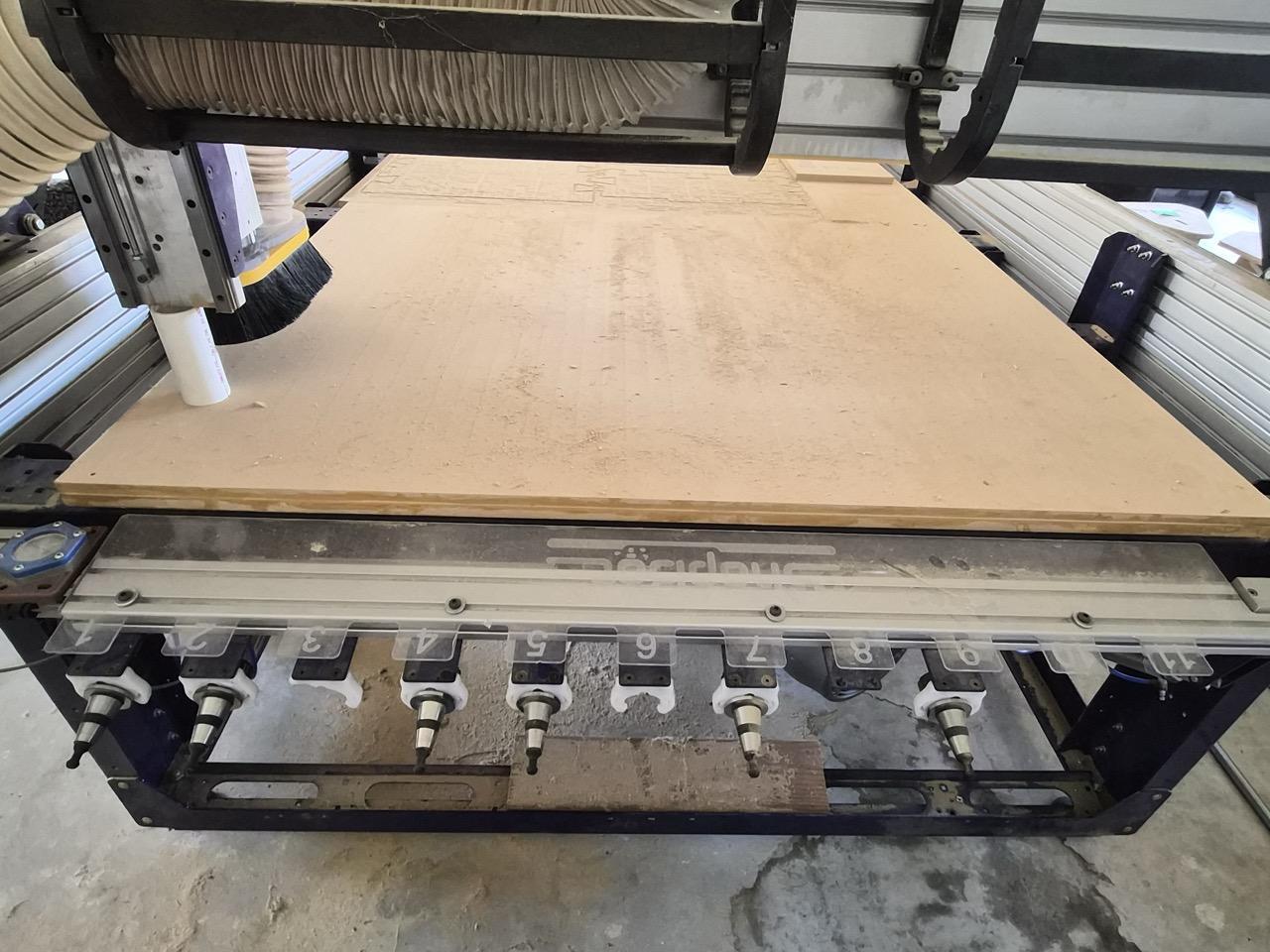

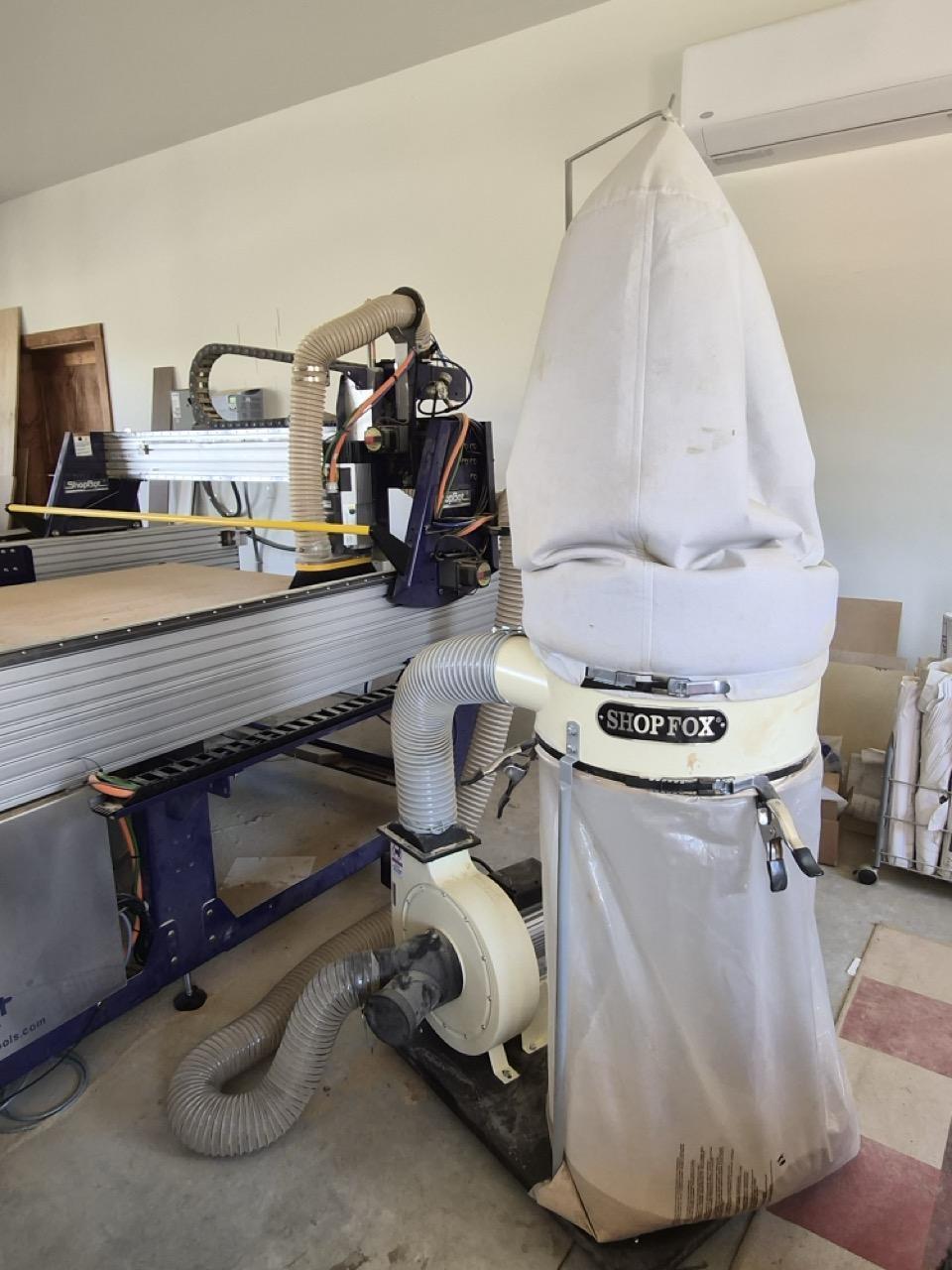

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accessories Becker Vacuum System: 10 HP, 220V, 1‑phase, 60A, PVC 144″ × 60″, 8‑zone kit Cradle Hose Kit Dust Collector: 1.5 HP, 60 Hz, with 4″ × 25′ hose Control Laptop (Lenovo Ideapad 15.6″ FHD, Ryzen 3, 8 GB RAM, 256 GB SSD, Windows 11 Home) Aspire Software (upgrade option) Bit Kit: 8‑piece ATC set Bits: 3/16″ (¼″ shank), ⅝″ cut, 2‑flute “O” ¼″ SC, 2‑flute upcut ⅜″ spiral ballnose, 2‑flute Extra Collets: ¼″ ER32, ½″ ER32 Ramp: 46″ × 48″ × 3″ (optional)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Crating, dust foot, X/Y/Z limit switches Z‑Zero plate Collets: ¼″ and ½″ SB3 Control Software (lifetime updates) VCarve Pro CAD/CAM software

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
