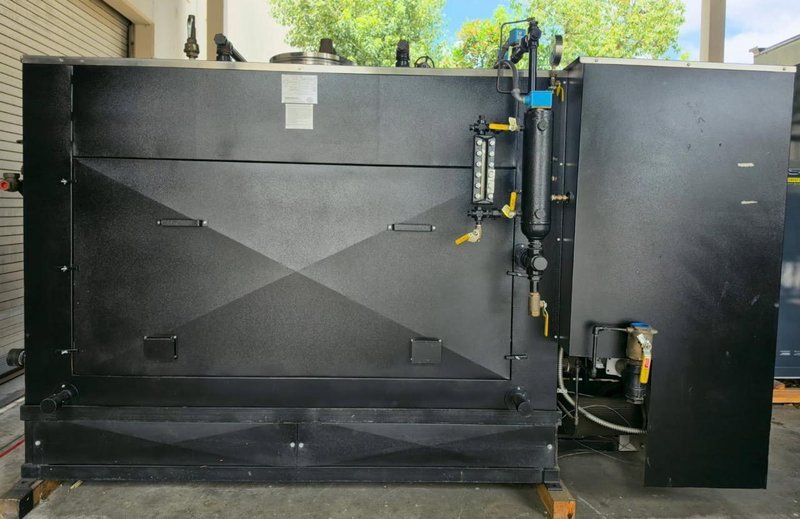

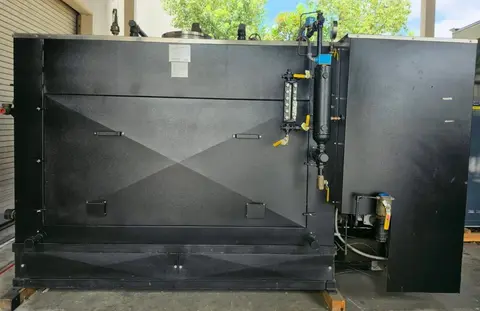

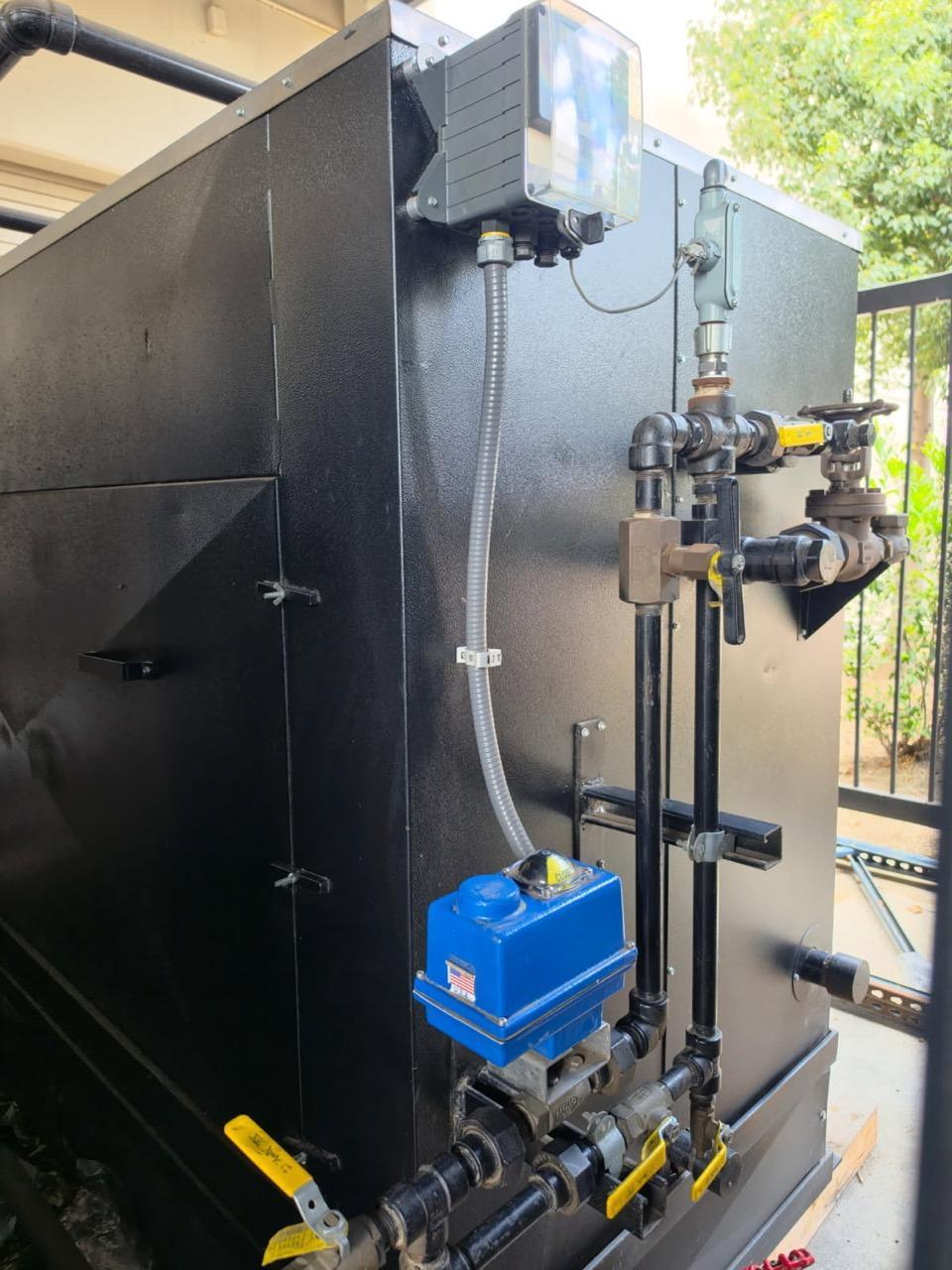

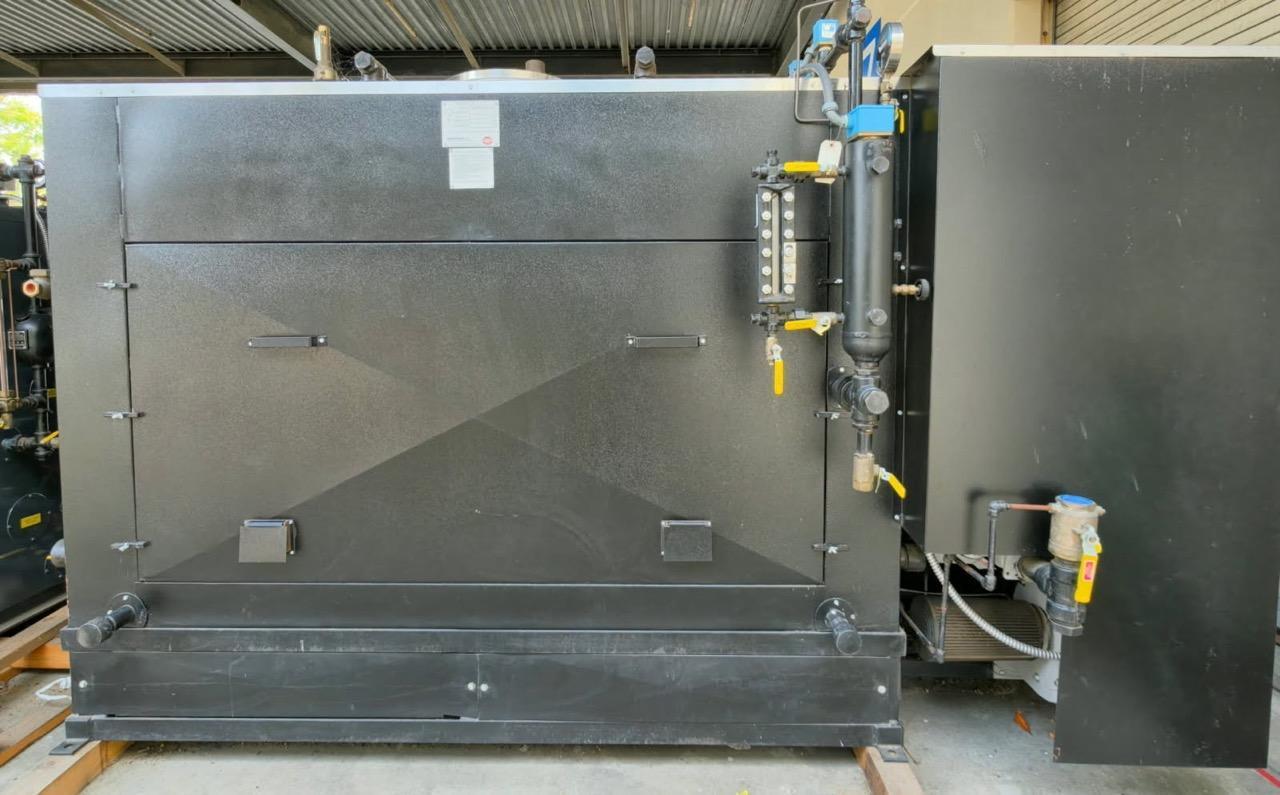

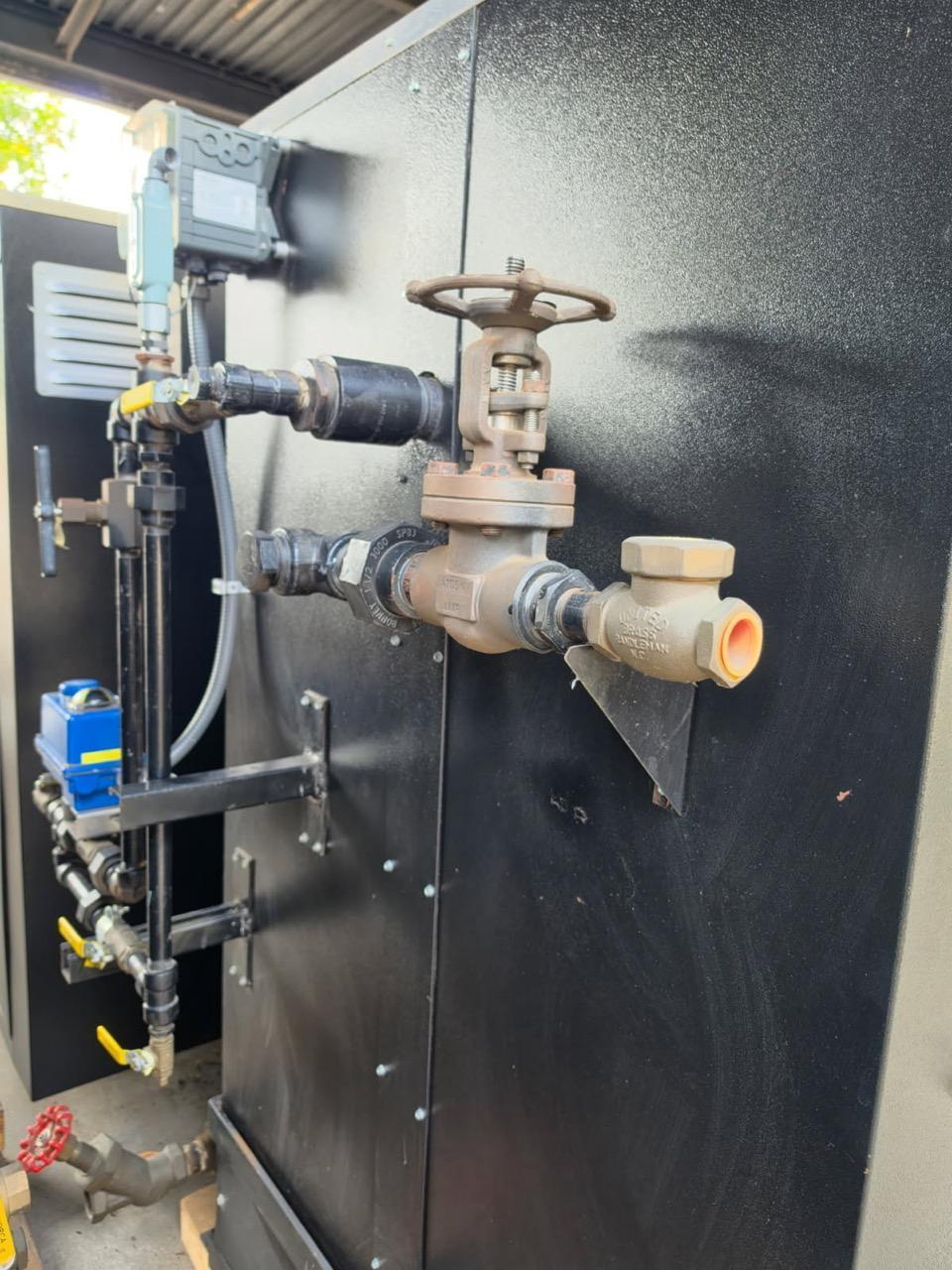

Parker Dual 48 HP Low NOx Steam Boiler System, 2022 – (2) Model 48L Boilers, 150 PSI, Complete Package

Manufacturer: Parker Boiler System Type: Dual Steam Boiler Package Boiler Quantity: 2 Boiler Model: 48L Boiler Horsepower: 48 HP each Fuel: Natural Gas Maximum Allowable Working Pressure: 150 PSI Recommended Operating Pressure: Up to 135 PSIG Steam Capacity: 1,656 lbs/hr each (3,312 lbs/hr total) Heat Input: 1,995 MBH each Heat Output: 1,596 MBH each Boiler Construction: Horizontal Drum Sectional Water Tube ASME: “S” Stamp Electrical Requirements: 230V / 3 Phase / 60 Hz 115V / 1 Phase / 60 Hz controls Burner Type: Low NOx Premix Metal Fiber Burners Ignition: Spark Ignition Steam Outlet: 2 in. Gas Supply: 7–14 in. W.C. Steam Relief Valve: 150 PSI Approximate Weight (Each Boiler): 4,305 lbs Approximate Shipping Weight (Each Boiler): 4,680 lbs

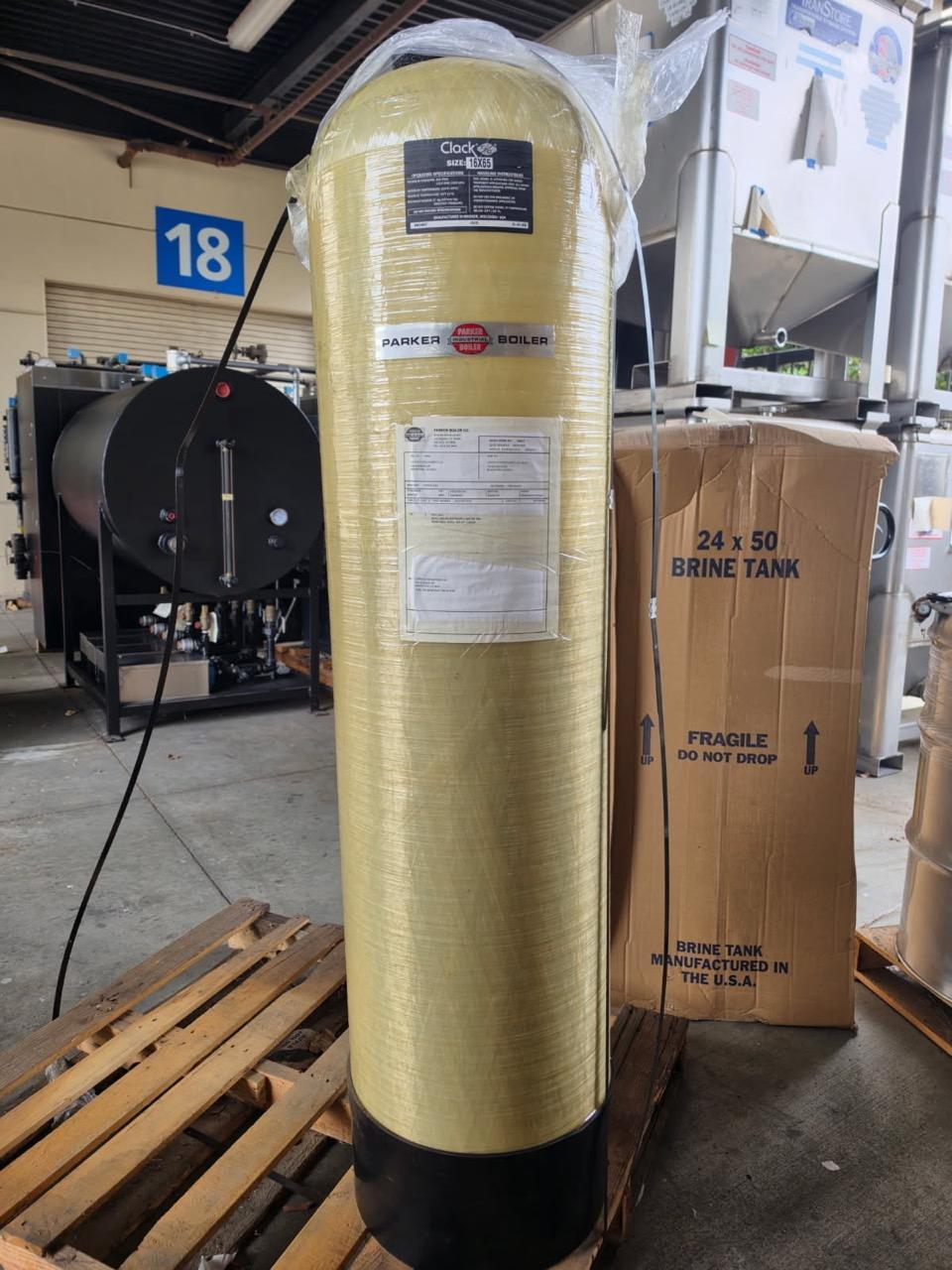

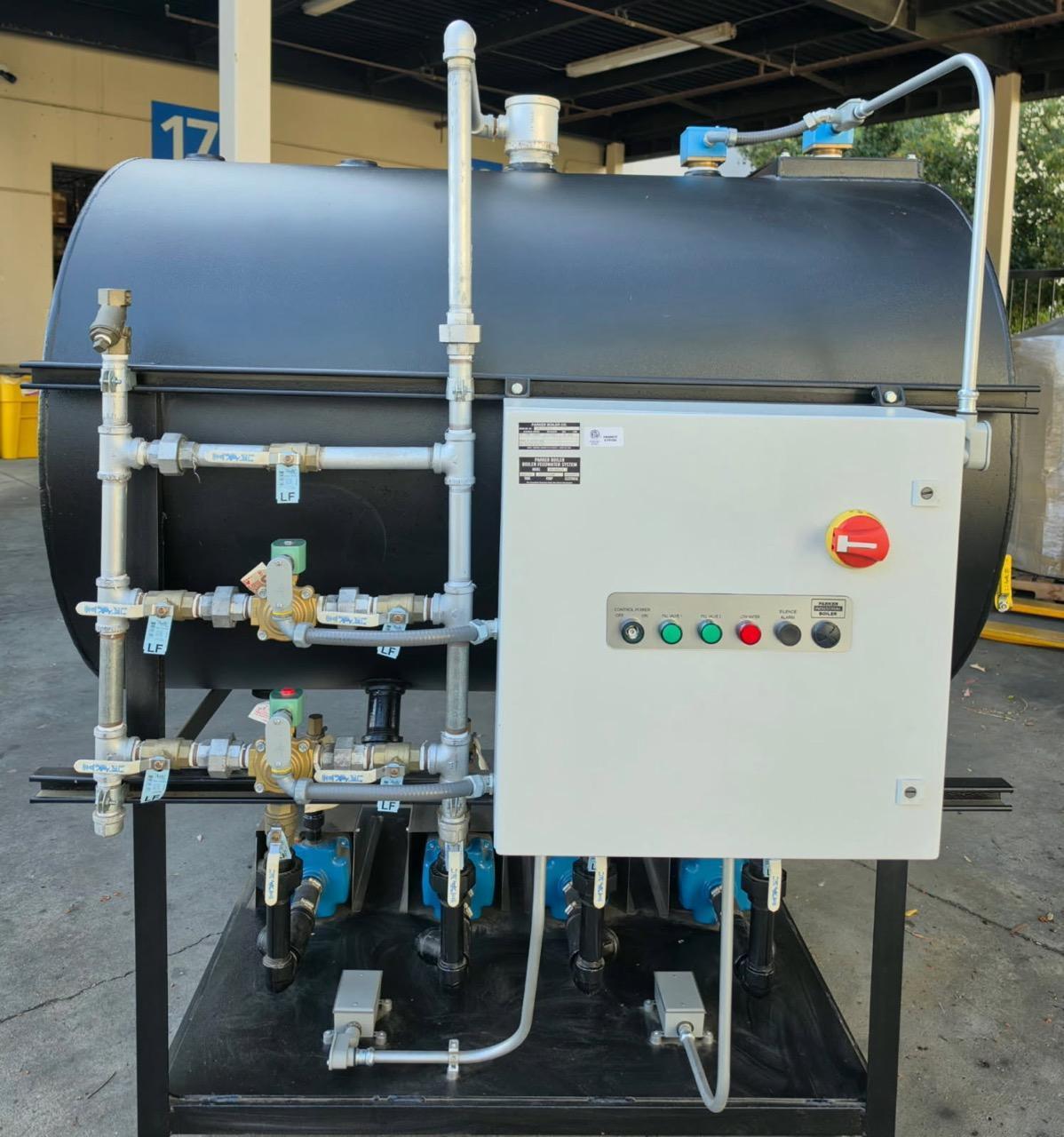

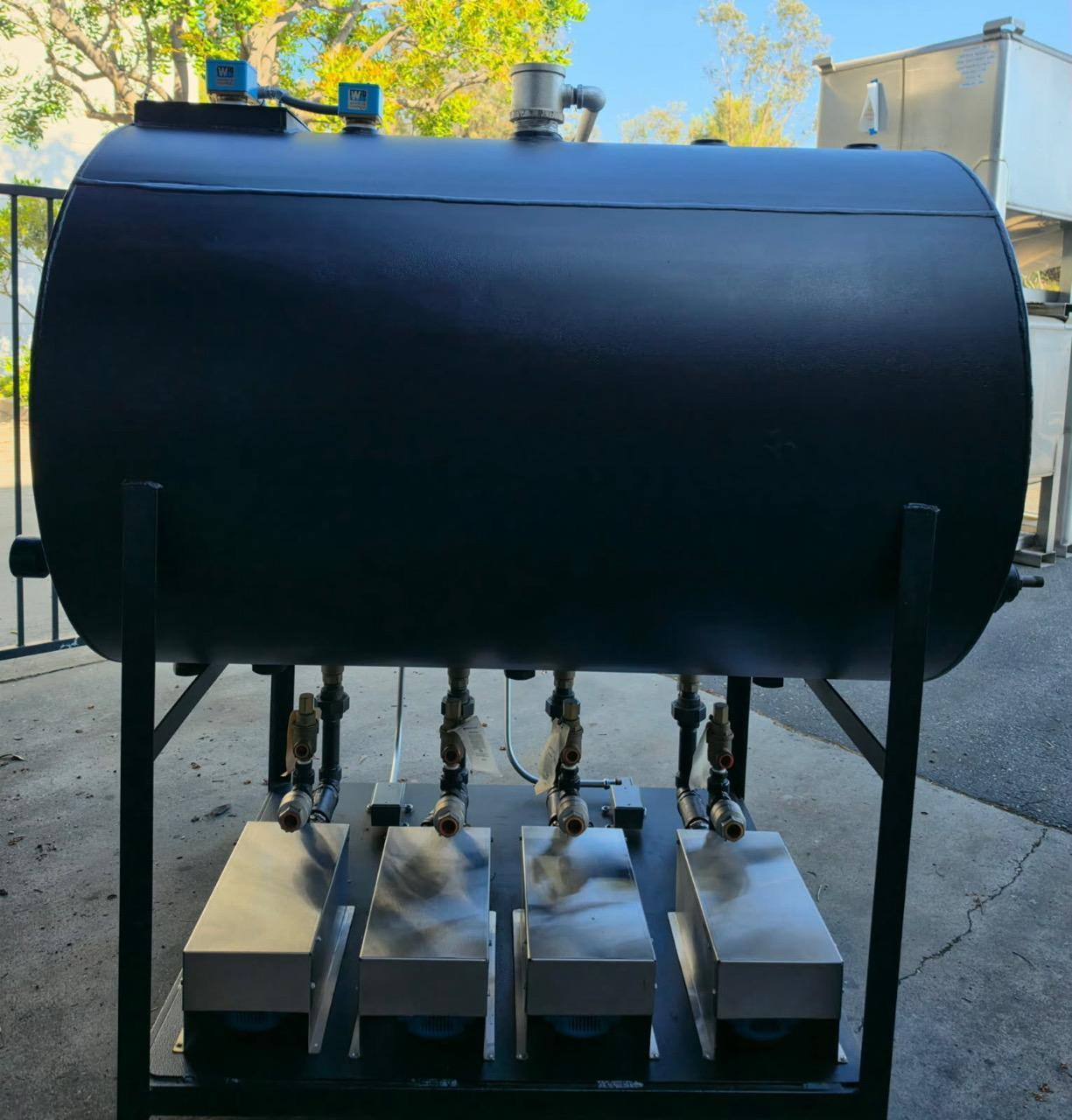

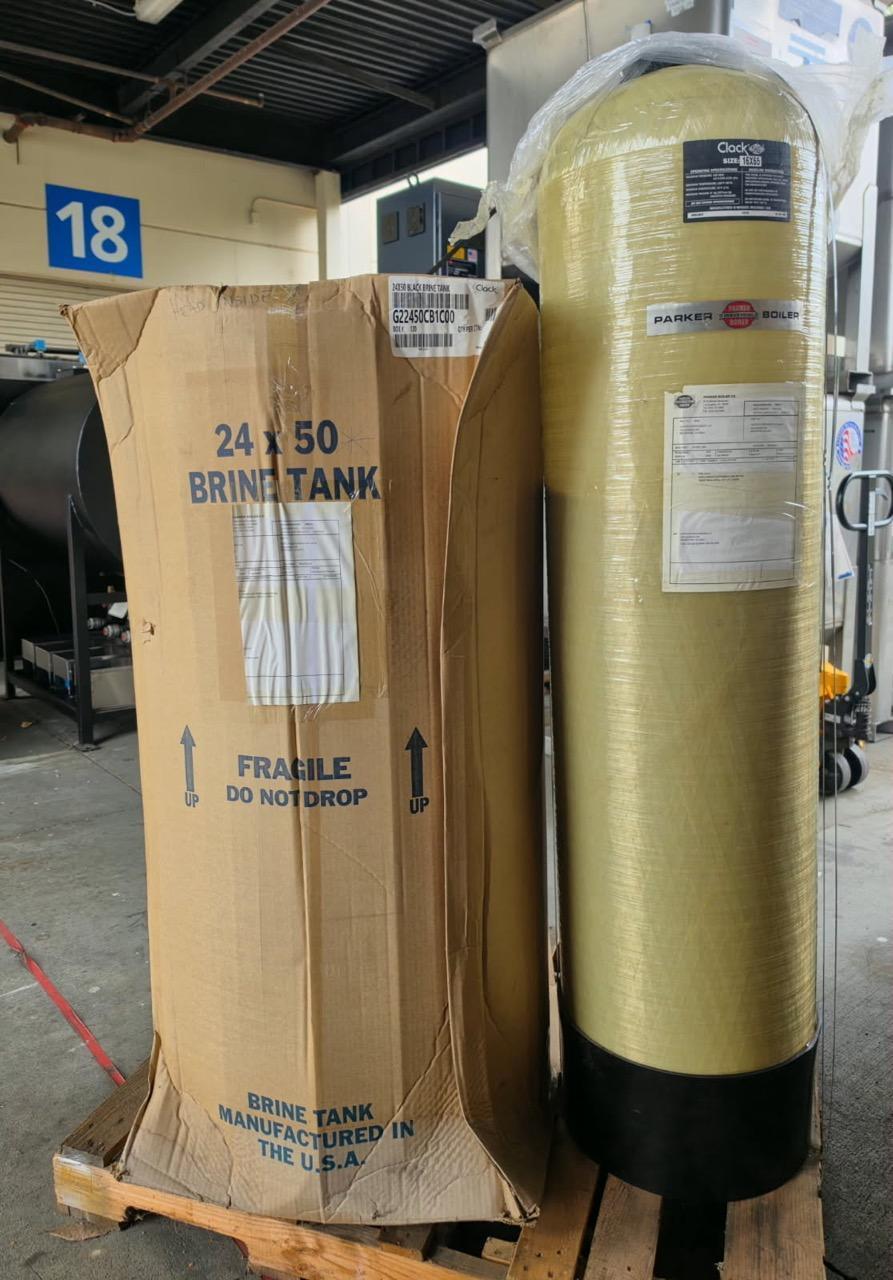

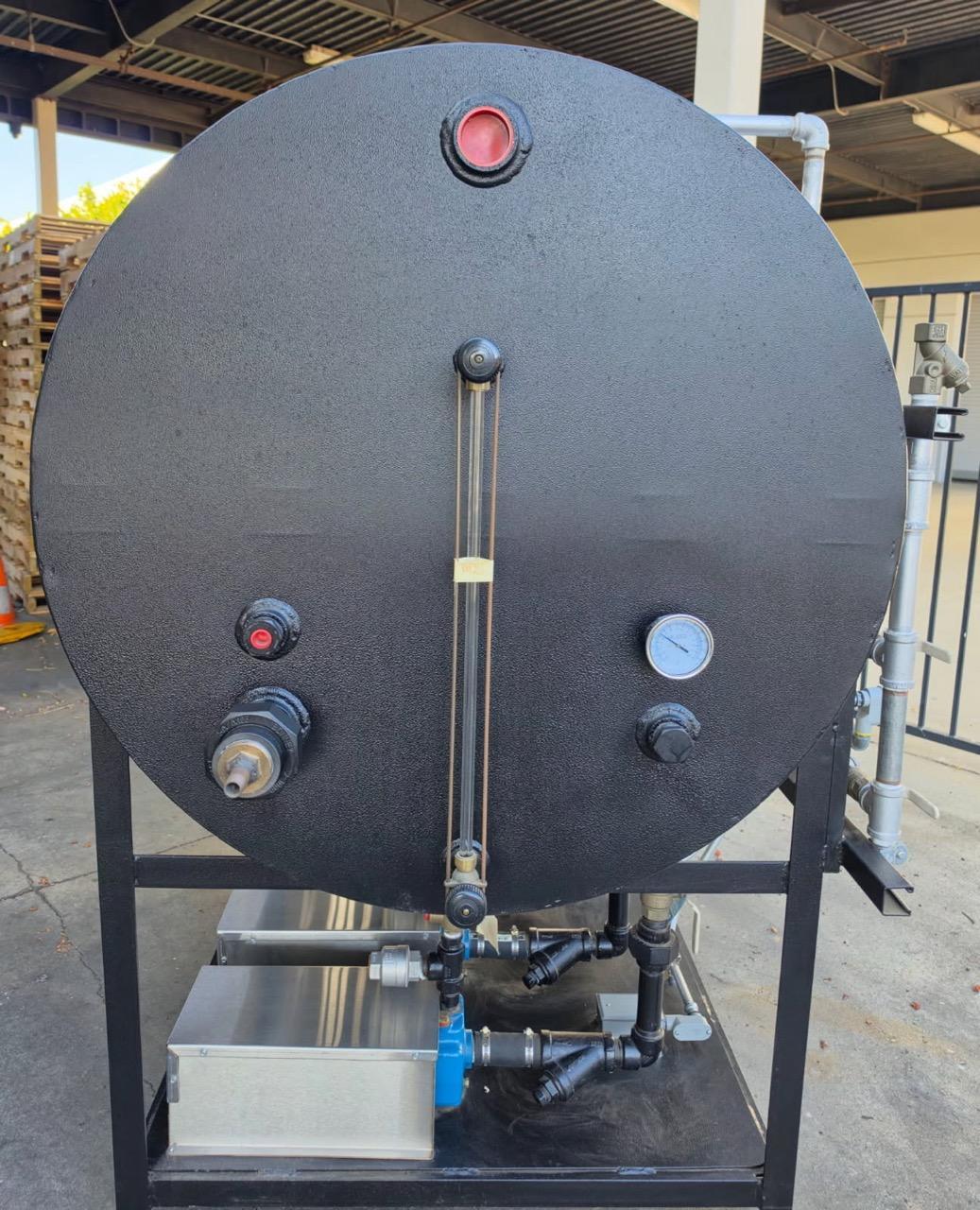

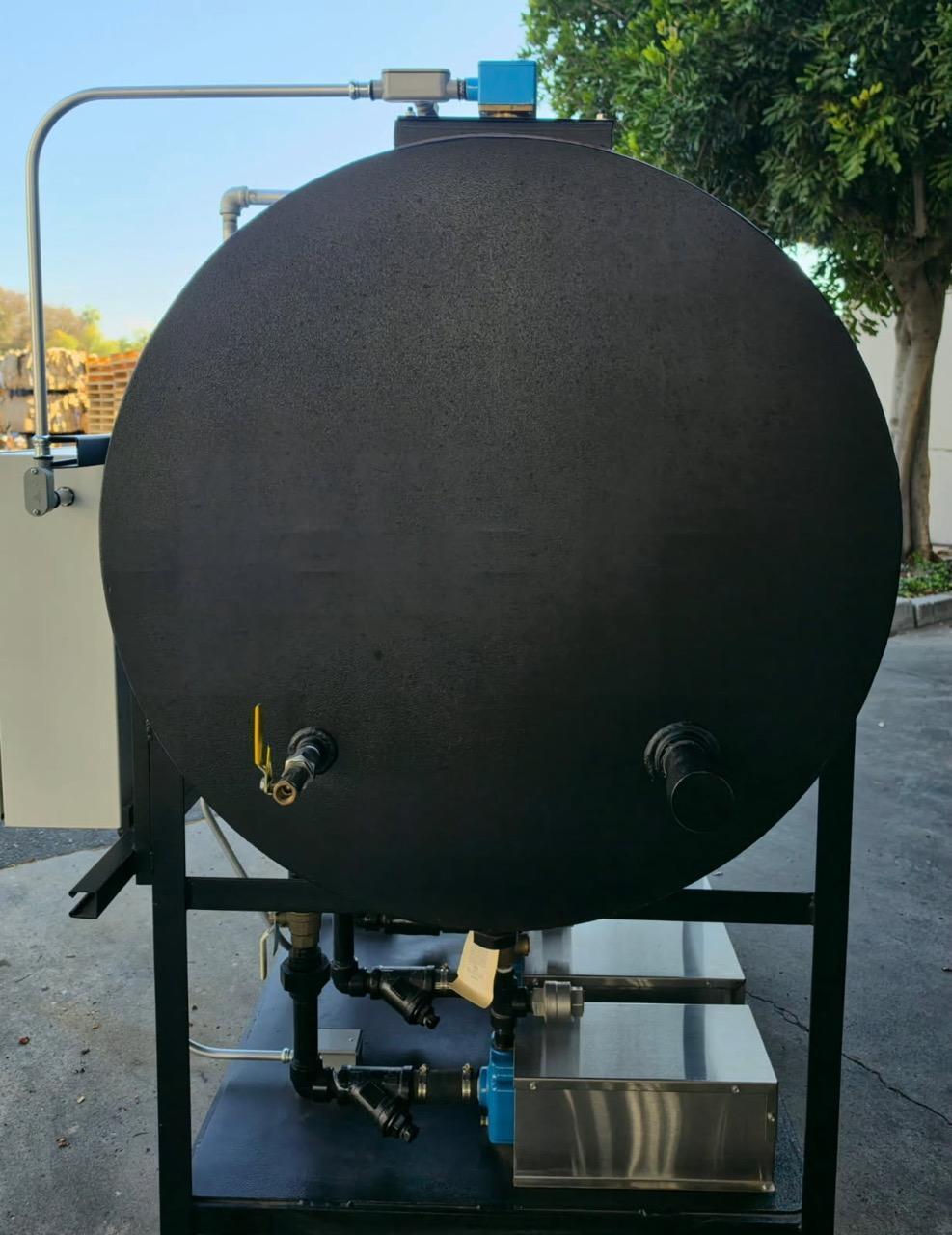

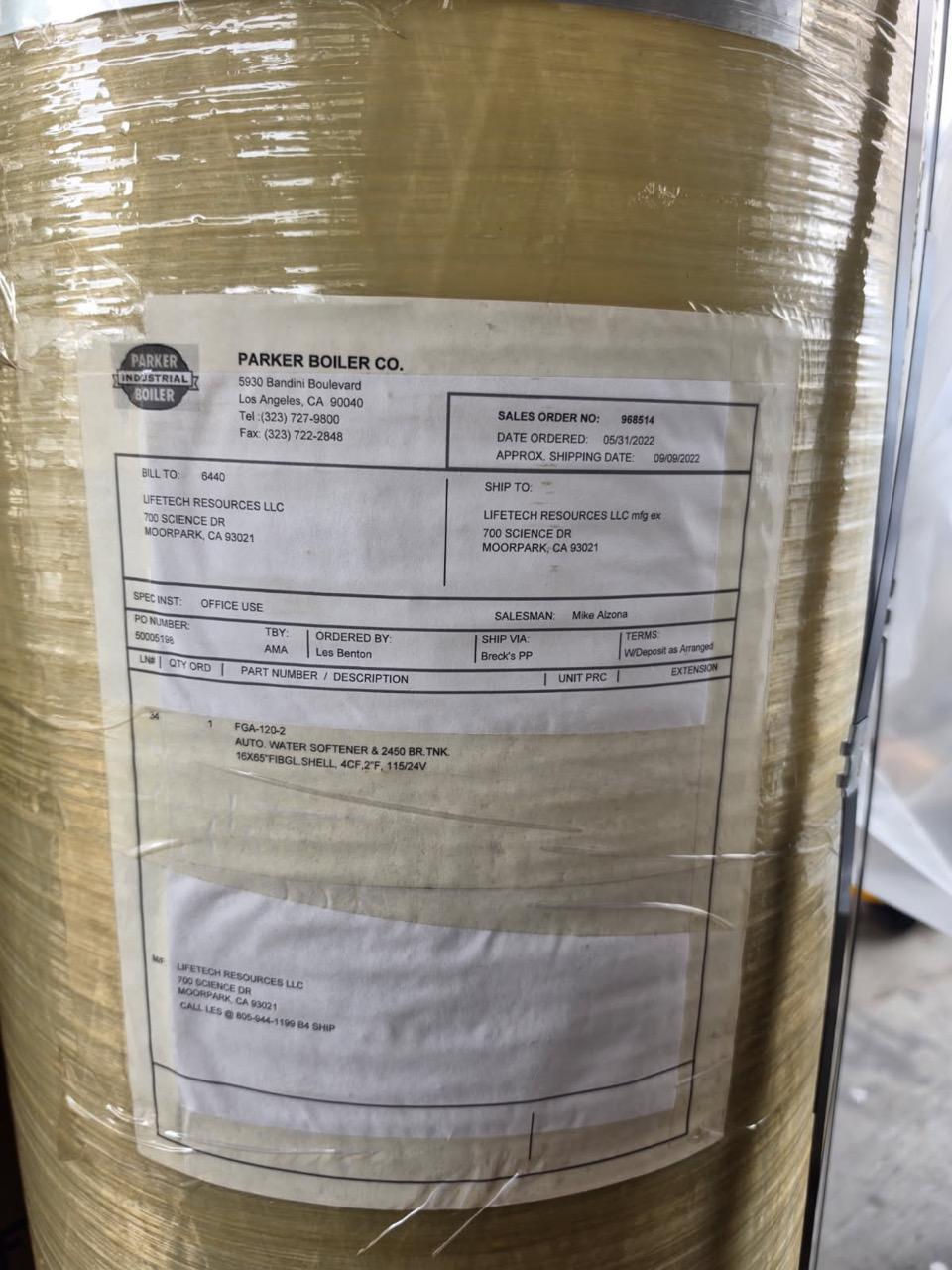

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included Equipment (2) Parker 48L Low NOx Steam Boilers Parker R8-150-3 Feedwater Return System 264-gallon tank Dual feed pumps Automatic water make-up Parker BD3048 Blowdown Tank Dual LMI Chemical Feed Pumps Poly Chemical Tank Parker FGA-120 Automatic Water Softener ParkerView Lead/Lag Boiler Control Panel Boiler control panel upgrades Automatic boiler sequencing Cellular remote monitoring capability Alarm monitoring and historical data logging

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
