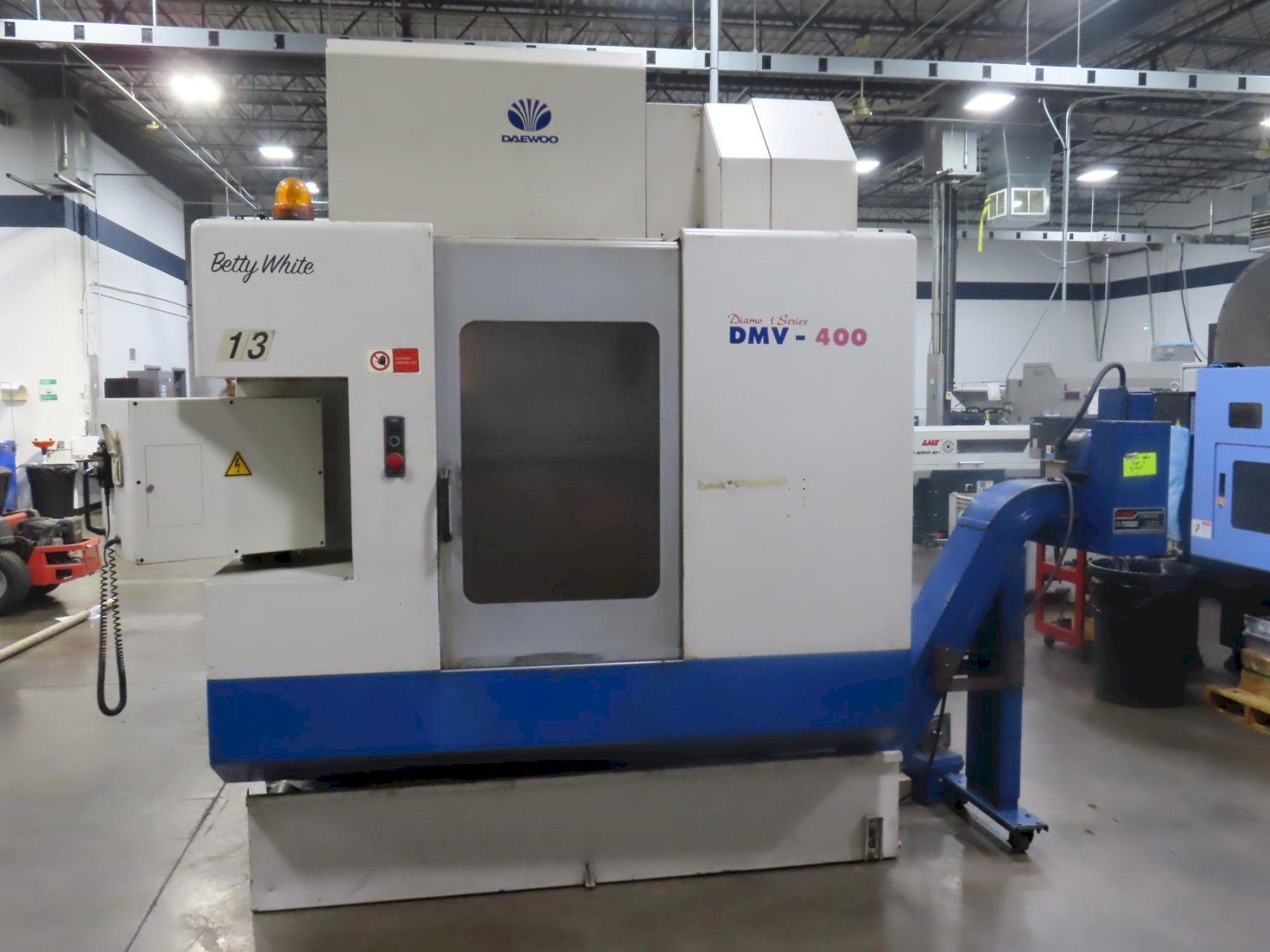

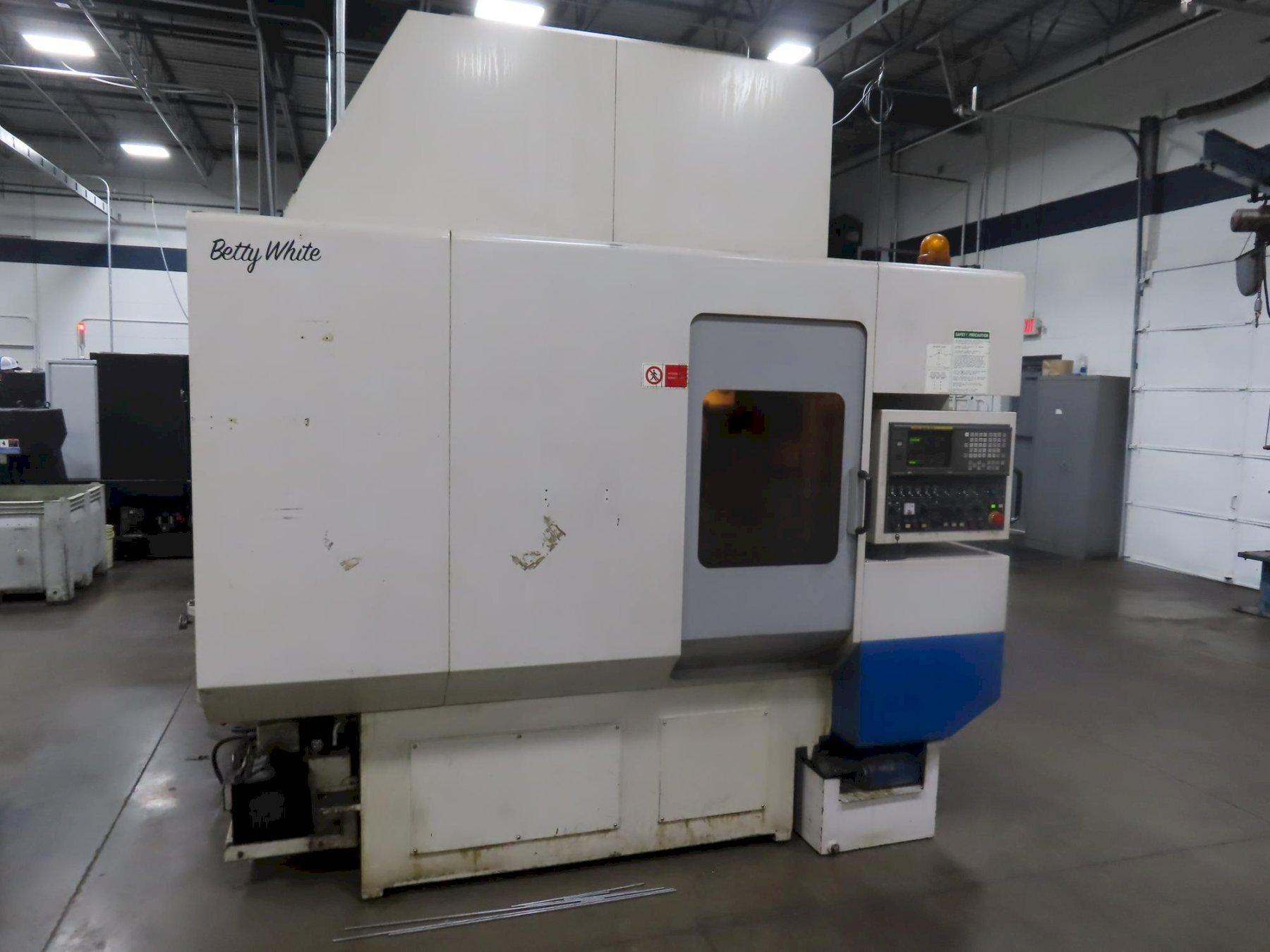

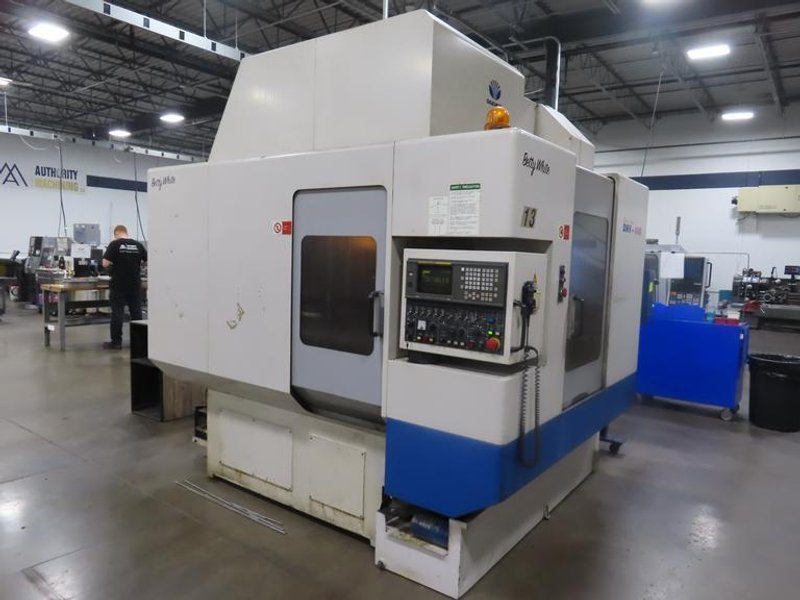

Daewoo DMV-400 CNC Vertical Machining Center with Automatic Pallet Changer, Fanuc 18, 30 ATC, Thru Spindle Coolant- Auction Item
Brand
Not specified
Category
Model
DMV-400
Stock #
Lot No.: 150
Year
2000
Condition
Not specified
Location
Minnesota
|
View Auction Item at: https://www.machinesused.com/lots/50915">,

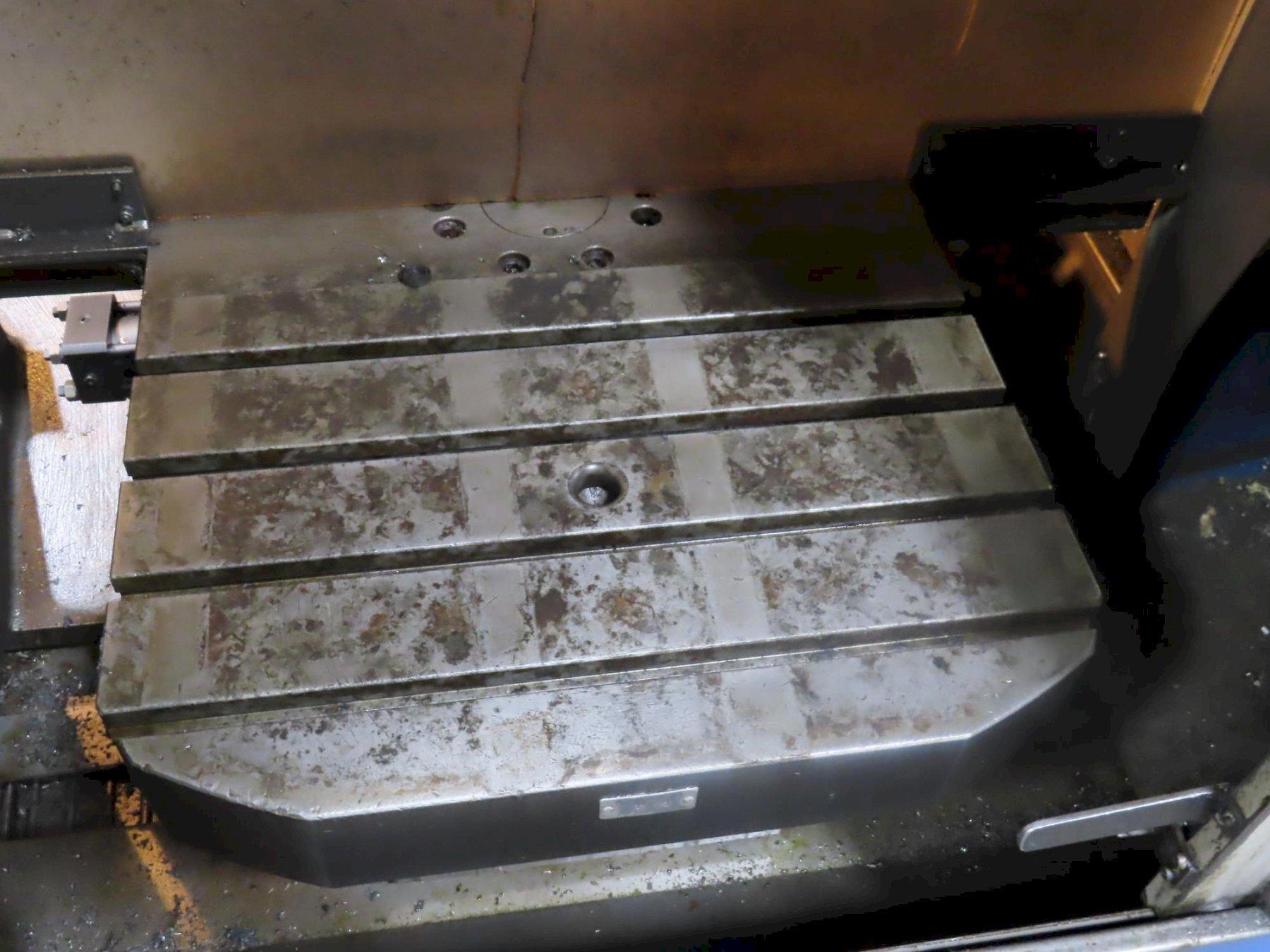

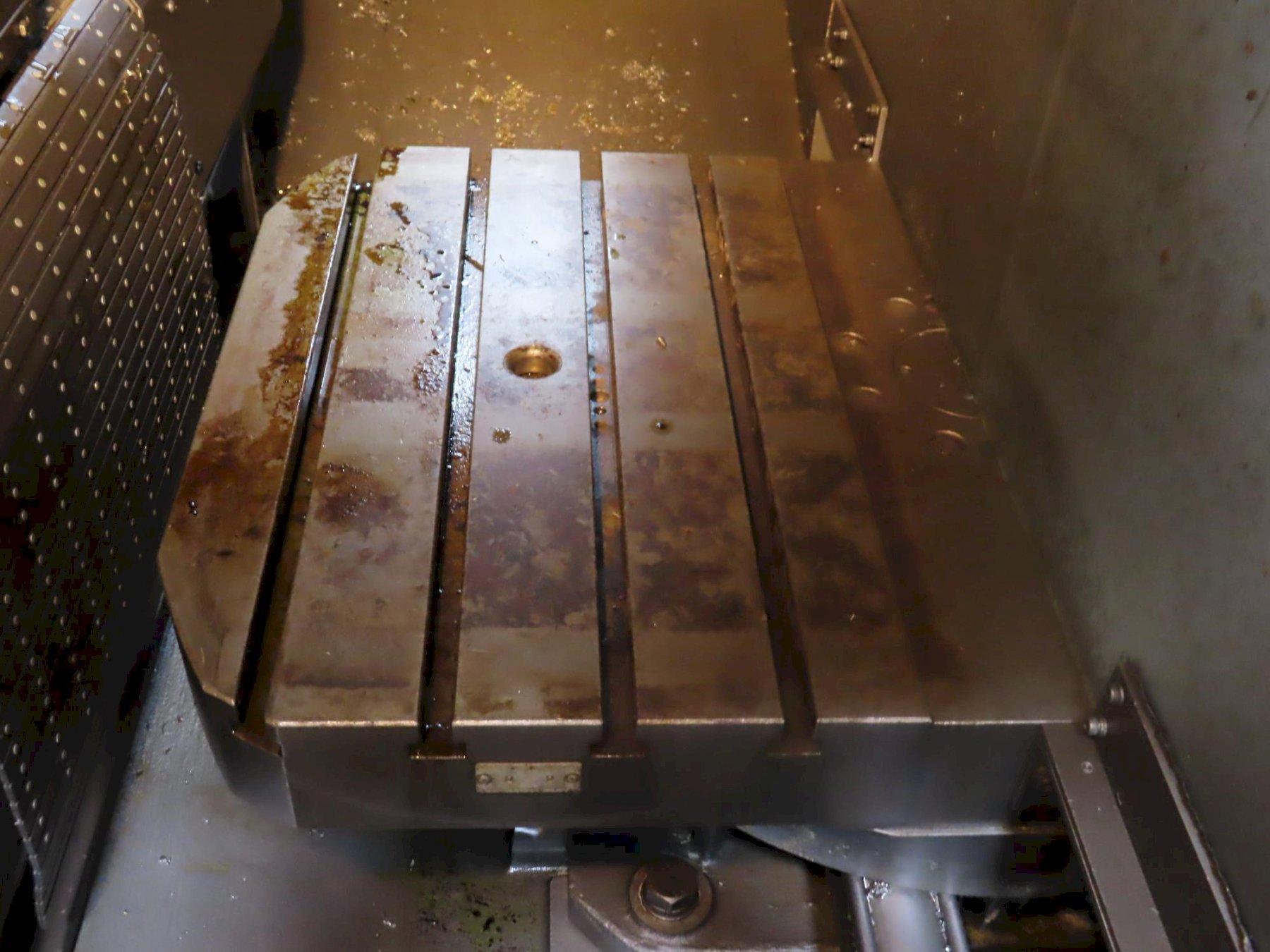

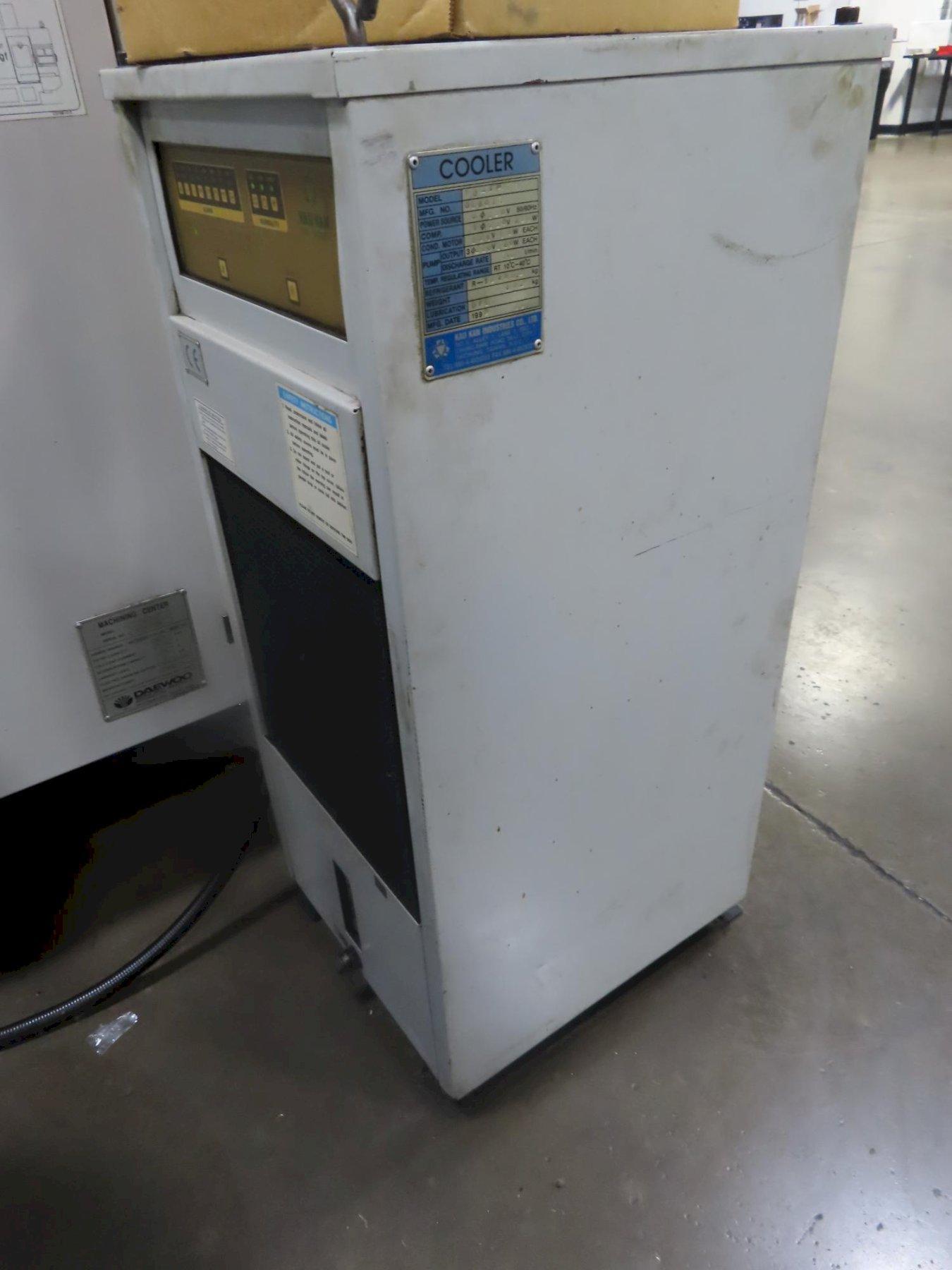

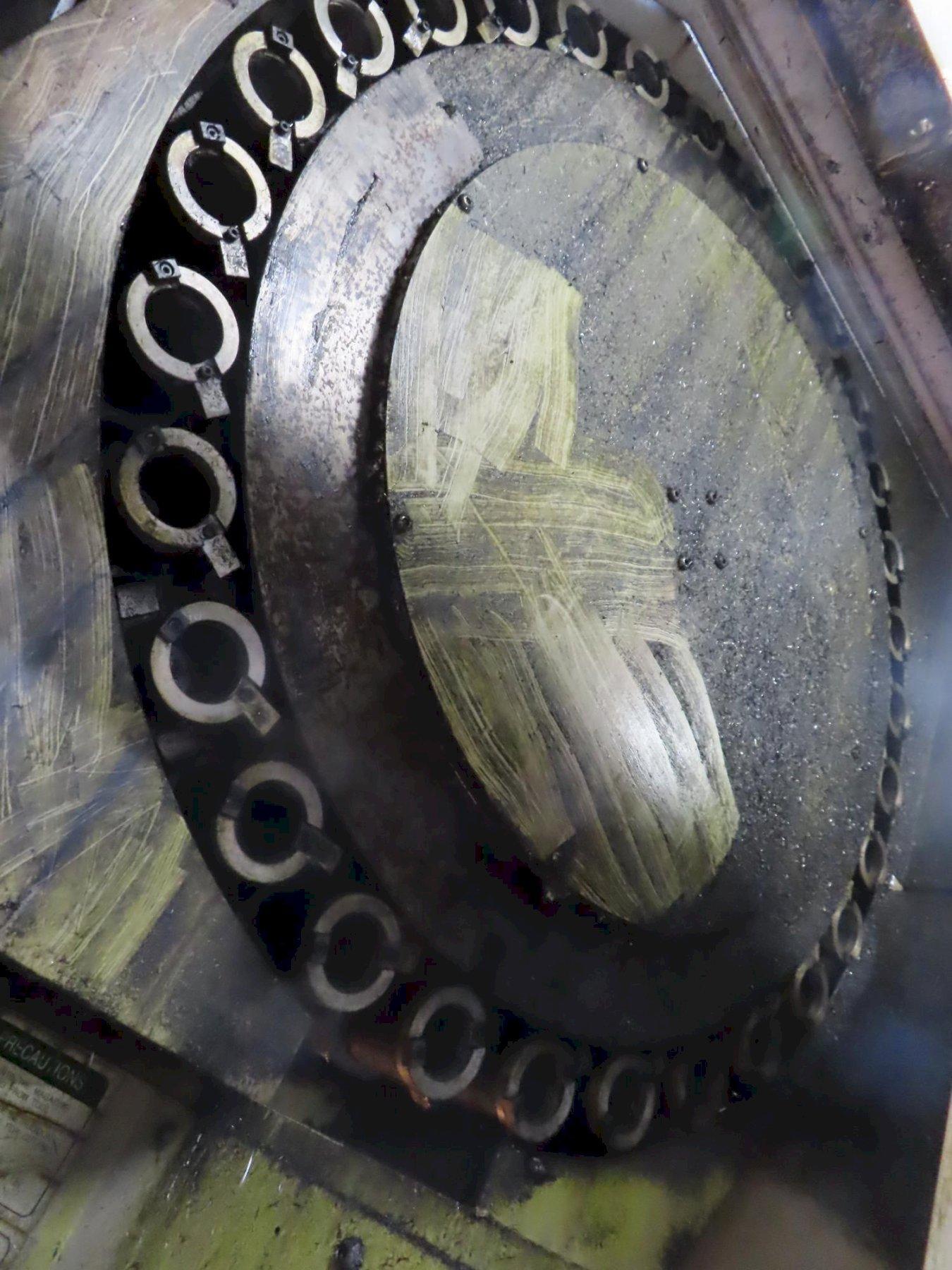

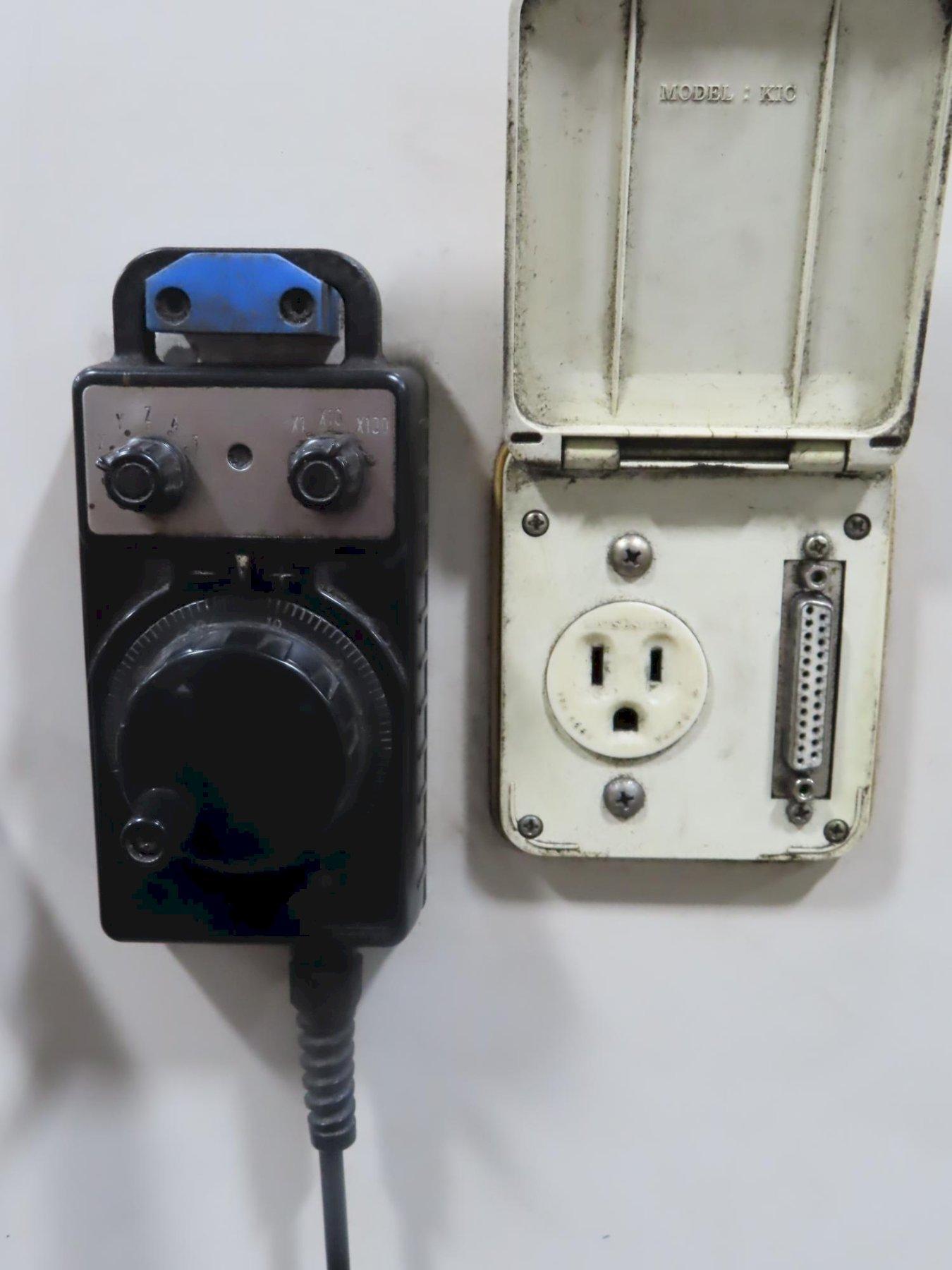

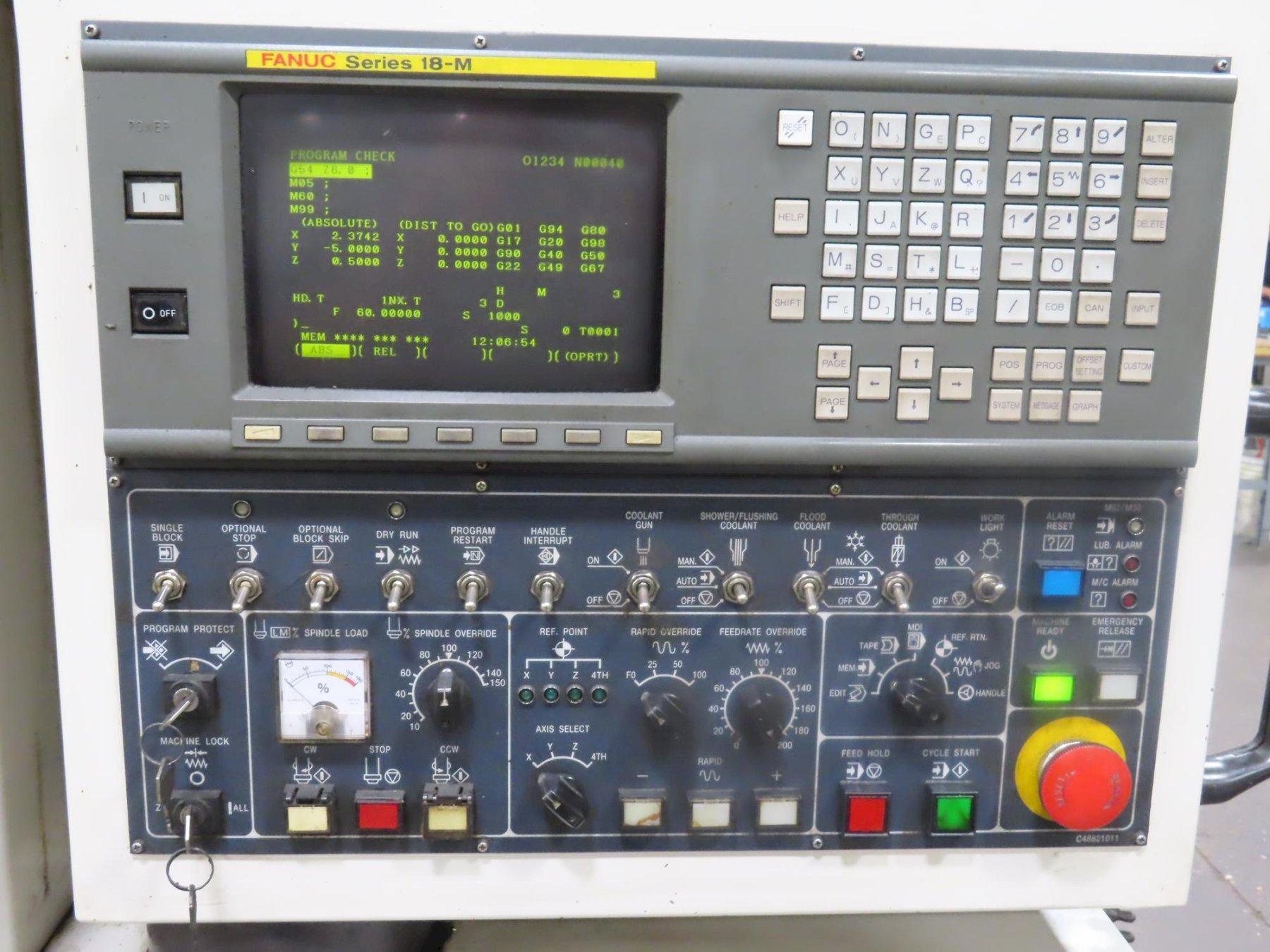

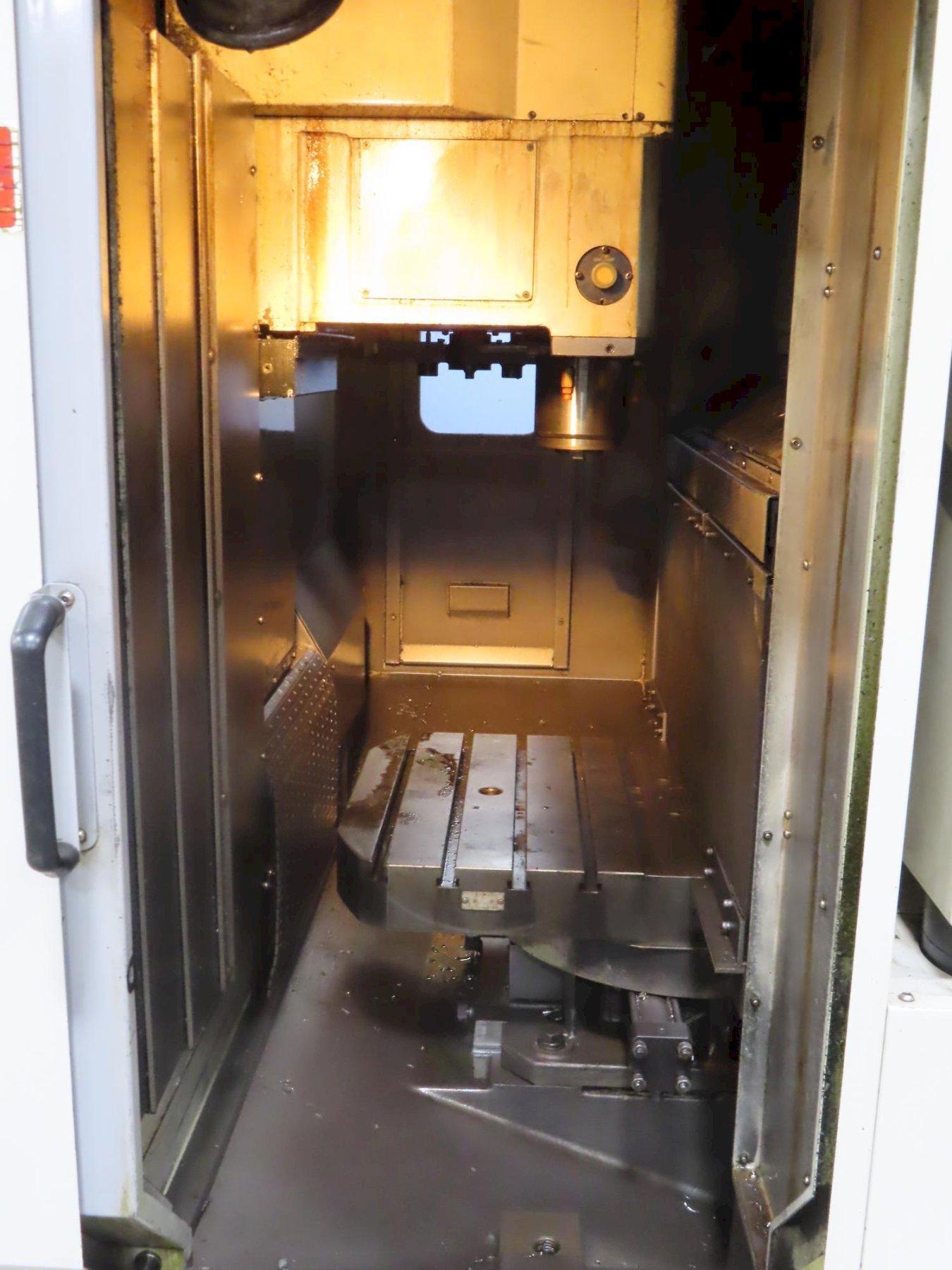

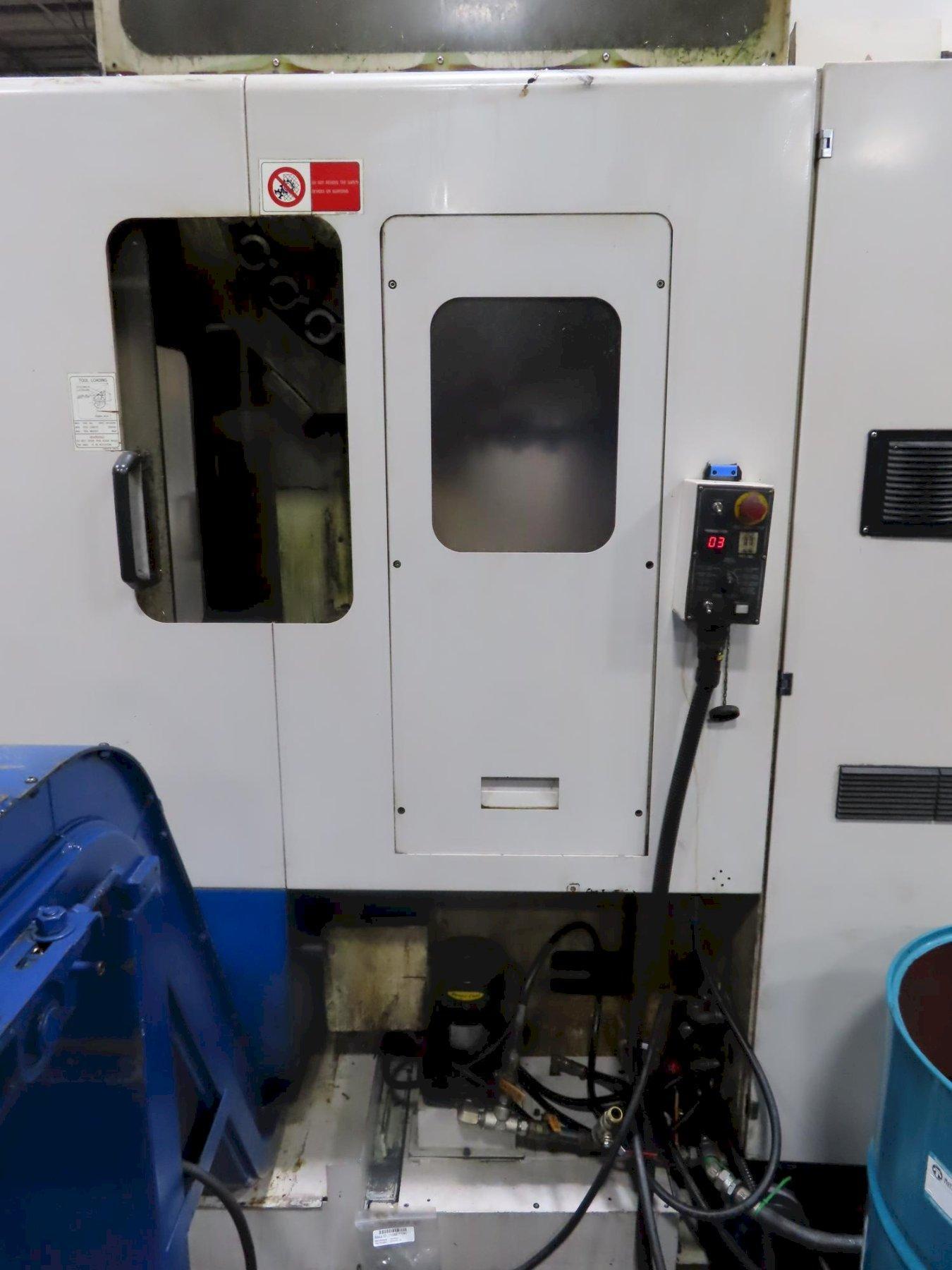

Lot 150: Daewoo DMV-400 CNC Vertical Machining Center with Automatic Pallet Changer, Fanuc 18, 30 ATC, Thru Spindle Coolant Equipped With: Fanuc 18M CNC Control, 2-Station Lazy-Susan Style Pallet Changer with (2) 25.6" x 21.5" Work Tables, CAT 40, 8,000 RPM Maximum Spindle Speed, Spindle Chiller, CoolJet 290 PSI Thru Spindle Coolant, Turbo Chip Conveyor, Coolant Tank and Pump, Remote Jog Handle, Assorted Manuals. NOTE: Spindle Rebuilt in 2022 Electrics: 200/220V Manufacturer: Daewoo Model: DMV-400 Year: 2000 Serial Number: AV3S1086 Main Unit Approx Weight: 13230.00 lbs Main Unit Dimensions (in inches): Length: 92.00" Width: 116.00" Height: 117.00" Specs: Control: Fanuc 18-M CNC Control Machine Travels (X/Y/Z): 22" / 15.7" / 22.4" Number of Pallets: 2 Pallet Change Style: 180 Degree Index Pallet Size: (2) 25.6" x 17.7" Spindle Taper: Cat 40 Taper Spindle Speeds: 8,000 RPM Spindle Drive: 15 HP Rapid Traverse (X/Y/Z): 1181 / 1181 / 945 ipm Pallet Change Time: 5 sec Toolchanger Style: Side Mount Twin Arm Toolchanger Capcity: 30 Stations Max Tool Weight: 17.6 lbs Max Tool Length/Diameter: 11.8" Long / 5.9" Dia. Tool Change Time: 1.5 Sec Tool to Tool Spindle Face to Pallet: 5.9" - 28.3" Spindle Center to Column: 18.9" Seller Company: Authority Machining Seller Contact: Bryce Brethorst Phone: (612) 419-9861 Item Location: Authority Machining, 1150 McKinley St, Anoka, MN 55303 Location Contact: Bryce Brethorst Phone: (612) 419-9861 Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday Removal Dates and Times: This item must be removed between Tuesday, August 18, 2026 and Friday, August 28, 2026 |
