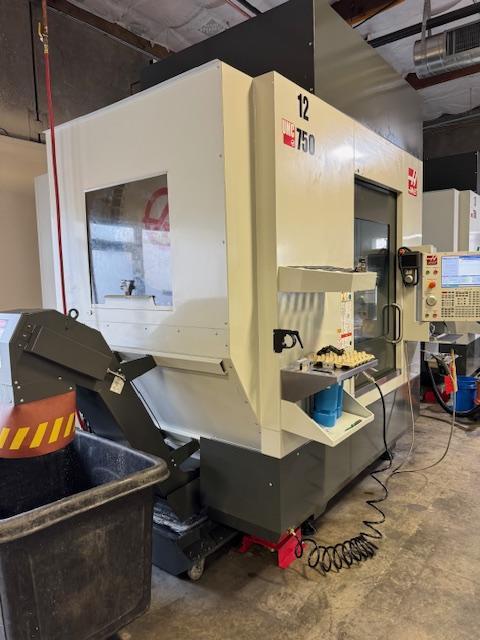

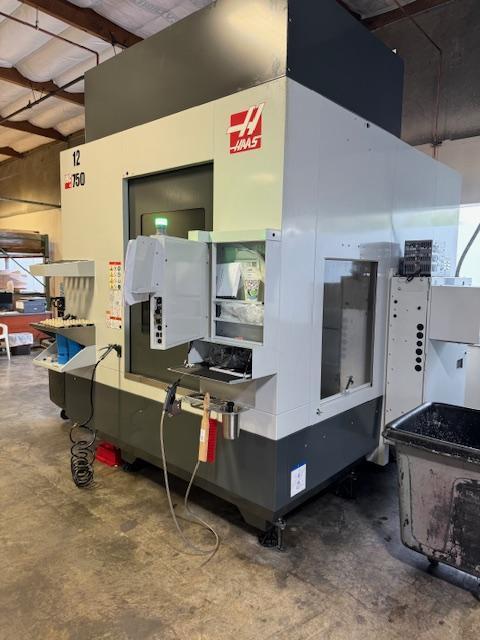

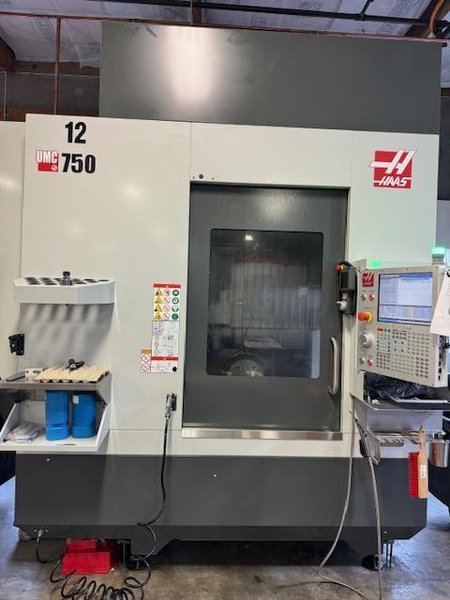

Haas UMC-750 5-Axis VMC, 2022 – 30” Travels, 15K Spindle, 50+1 Tools, TSC & Chip Conveyor (1)

Highly equipped 2022 Haas UMC-750 5-axis CNC vertical machining center featuring 30” x 20” x 20” travels, a 15,000-rpm 40-taper inline direct-drive spindle, 50+1 high-speed tool changer, 300 PSI through-spindle coolant, high-speed machining and a belt-type chip conveyor.

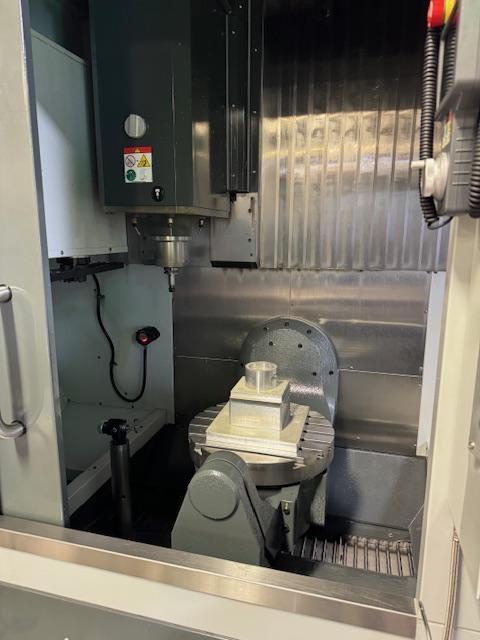

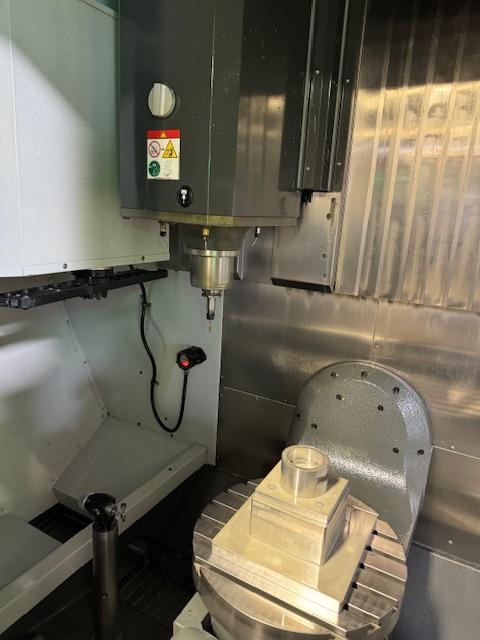

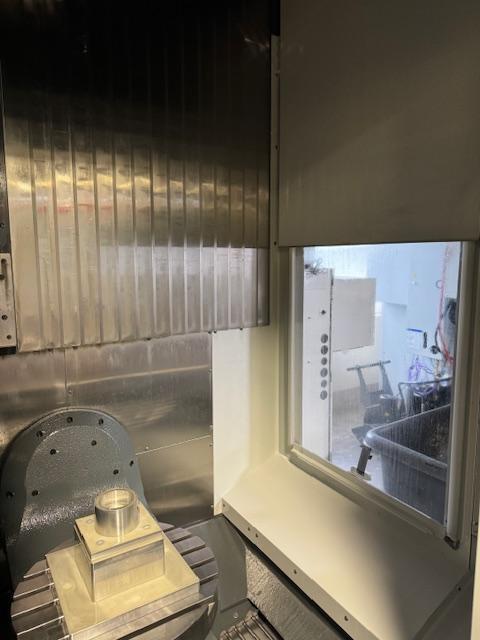

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,2022 Haas UMC-750 5-Axis CNC Vertical Machining Center General Manufacturer: Haas Automation Model: UMC-750 Year: 2022 Machine Type: 5-Axis CNC Universal Vertical Machining Center CNC Control: Haas Next Generation Control Machining Capability: 3+2 positioning and simultaneous 5-axis machining Axis Travels X-Axis Travel: 30” / 762 mm Y-Axis Travel: 20” / 508 mm Z-Axis Travel: 20” / 508 mm Number of Controlled Axes: 5 Rotary Configuration: Integrated dual-axis trunnion table Spindle Maximum Spindle Speed: 15,000 RPM Spindle Taper: 40 Taper Spindle Motor: 30 HP / 22.4 kW Spindle Drive: Inline Direct Drive Spindle Control: Vector Drive Toolholder Requirement: G2.5-balanced toolholders required above 10,000 RPM Automatic Tool Changer Type: High-Speed Side-Mount Tool Changer Tool Capacity: 50+1 Tool Taper: 40 Taper Coolant System Through-Spindle Coolant: 300 PSI / 21 bar Coolant Delivery: High-pressure coolant delivered directly through the cutting tool Power Requirement for TSC: Three-phase power Chip Management Belt-Type Chip Conveyor High-volume automatic chip removal Discharge Height: Standard 55-gallon barrel height Programming and Performance Options High-Speed Machining Software 5-Axis CNC machining capability High-speed contouring and complex-part machining

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
