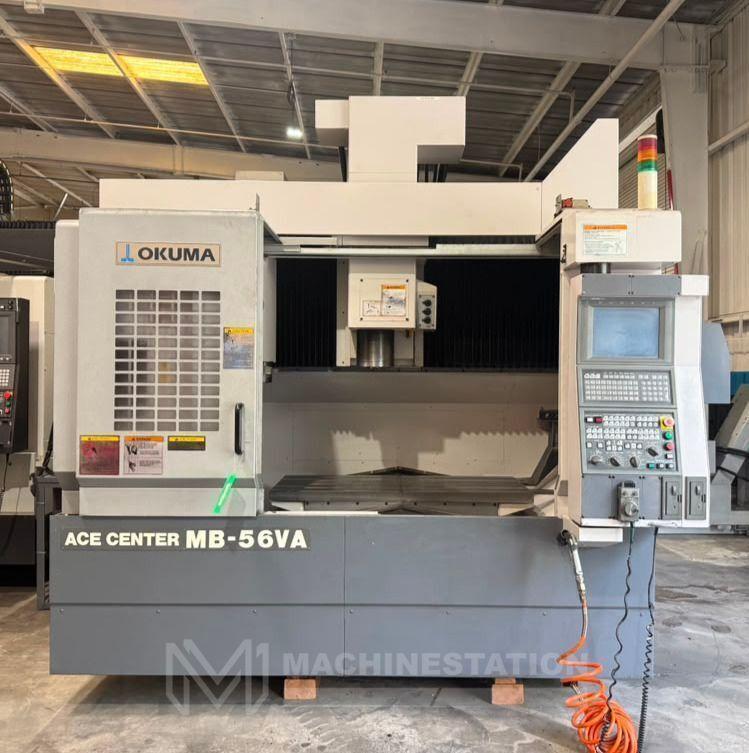

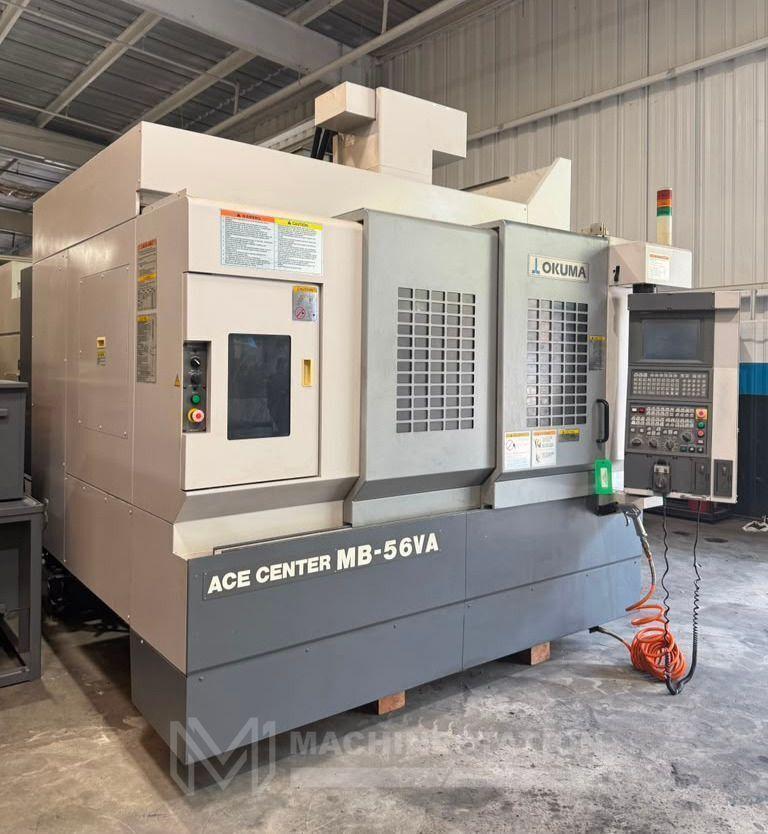

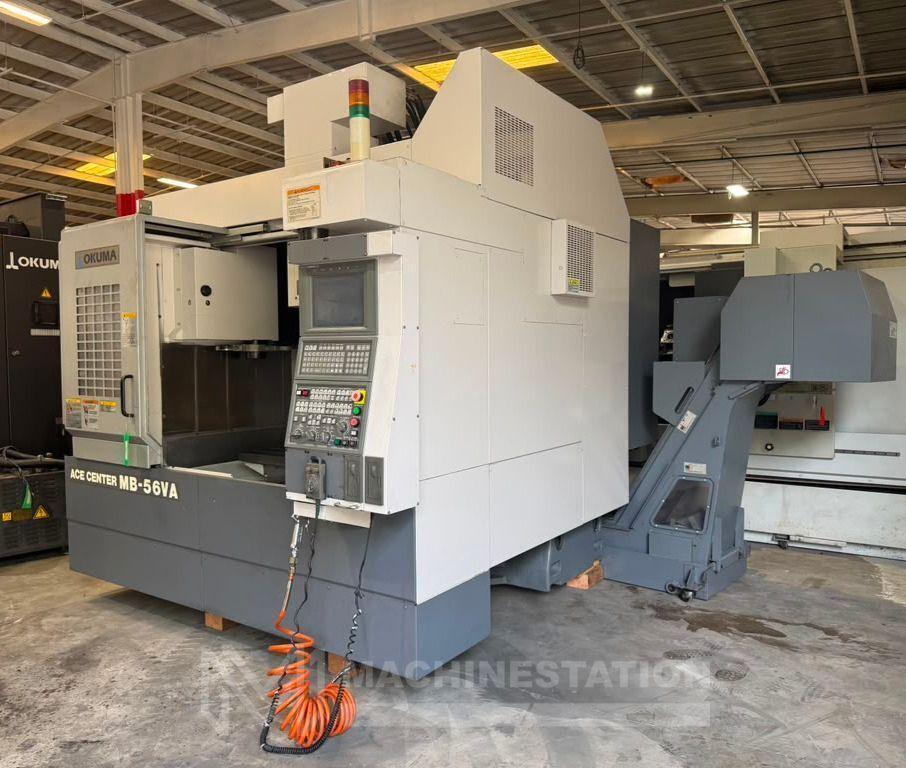

Name: Okuma MB-56VA CNC Vertical Machining Center – Mill
Brand: OKUMA
SKU: 113613
Availability: InStock

Brand

OKUMA

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Okuma
Model:	MB-56VA
Year:	2005

Features:

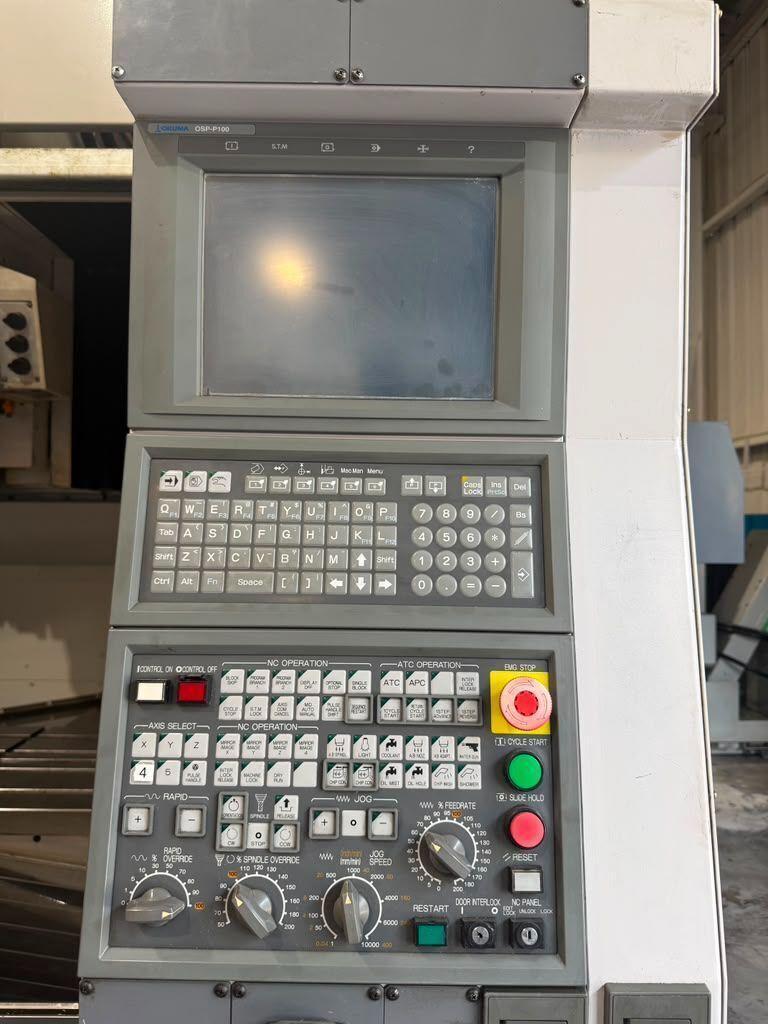

Okuma OSP-P100 CNC Control
8,000 RPM High-Speed Spindle
Through Spindle Coolant

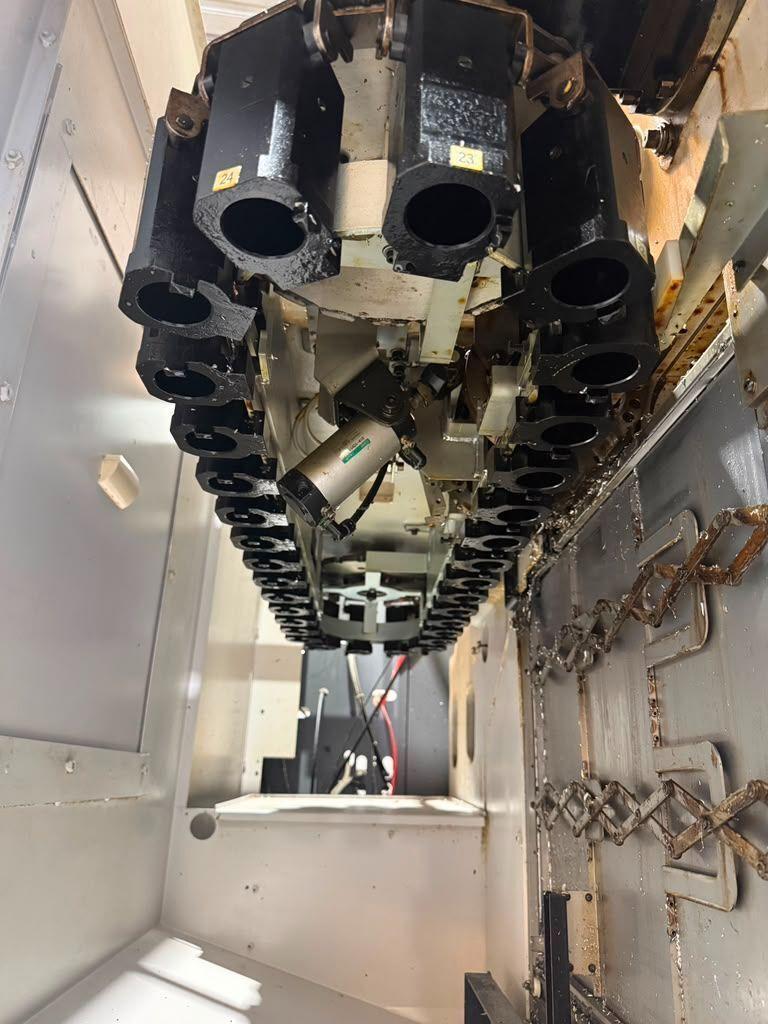

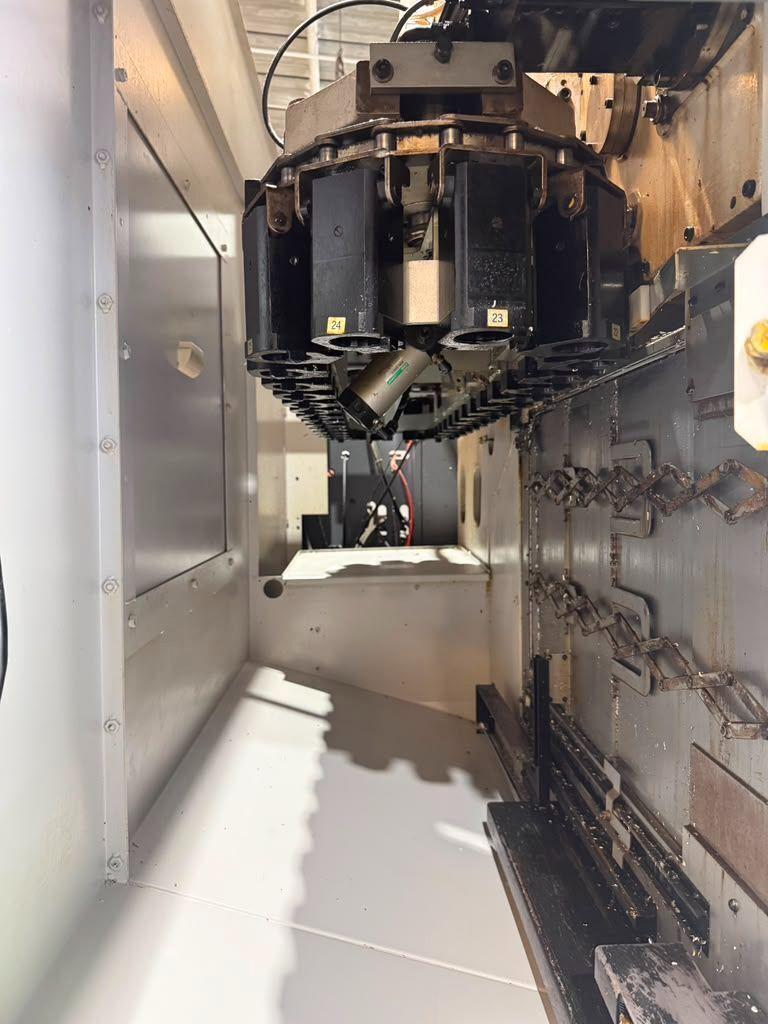

32-Station Automatic Tool Changer
CAT-40 Taper Spindle
Spindle Chiller Unit
MPG Handwheel Control

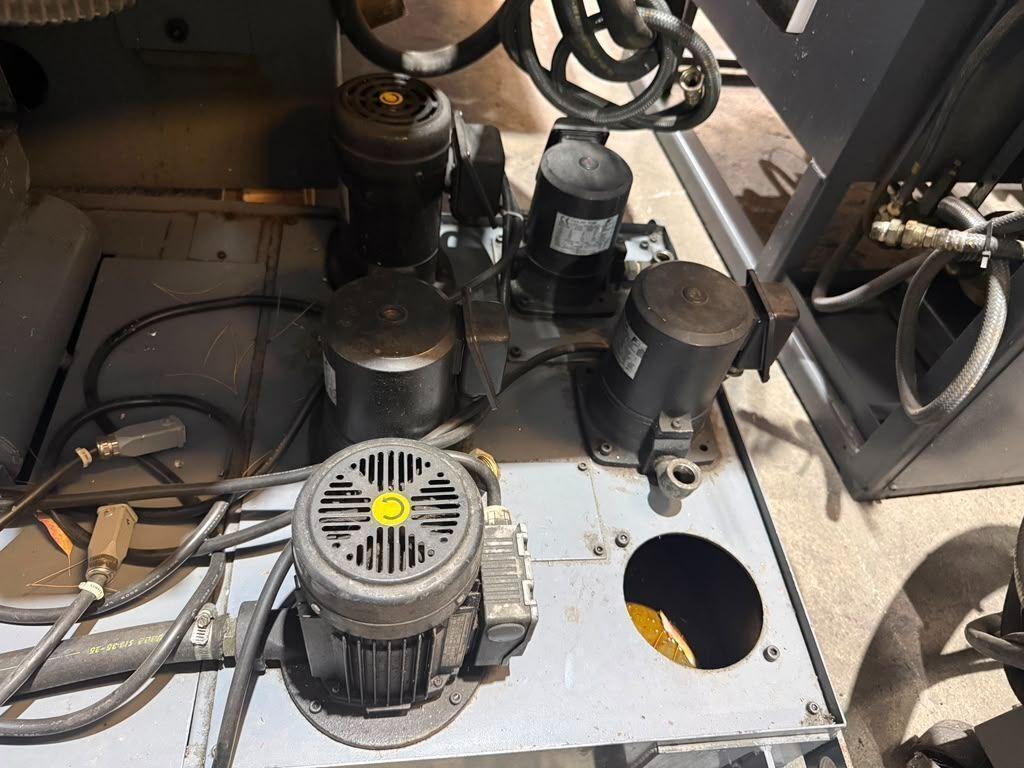

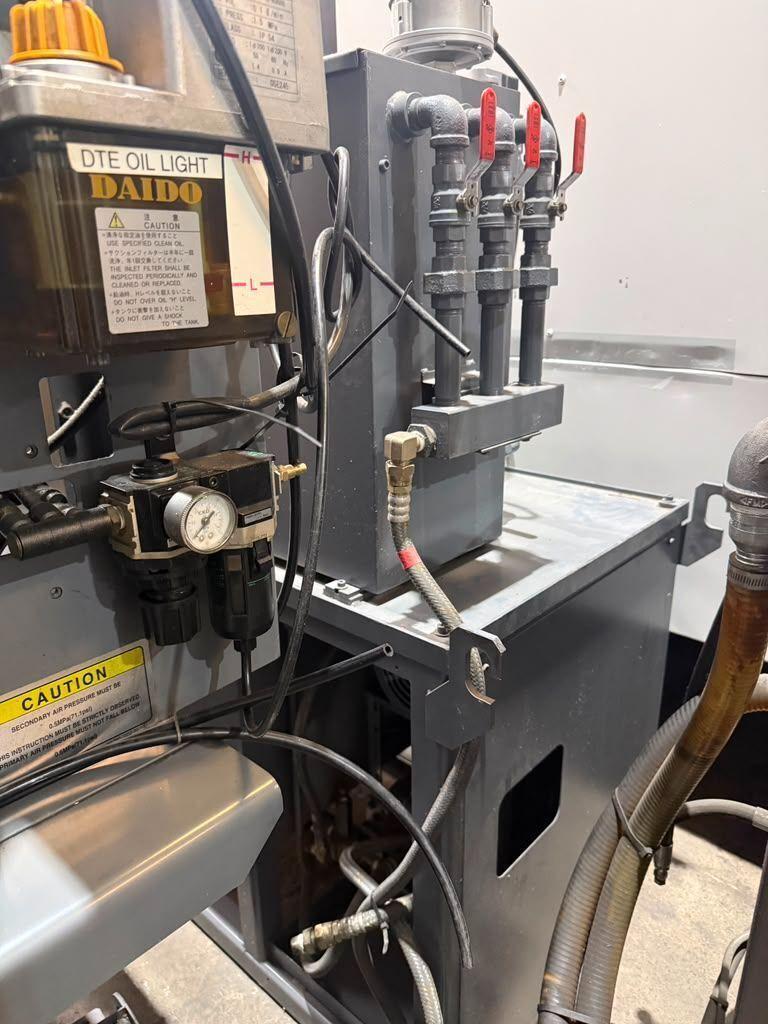

Coolant Tank

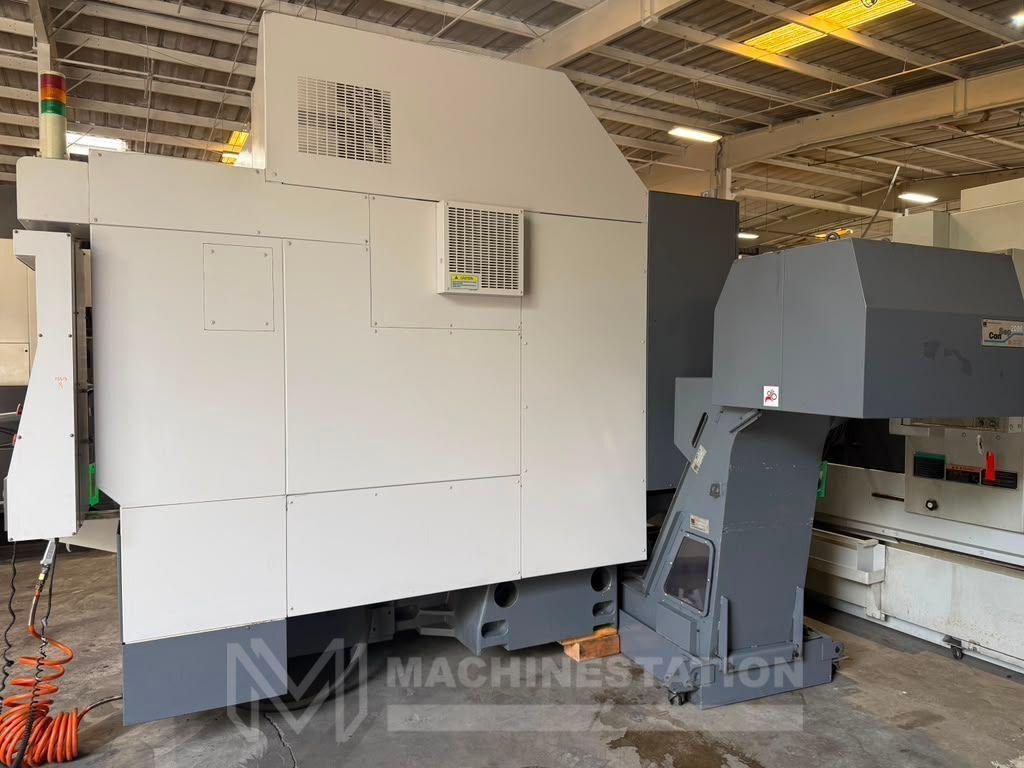

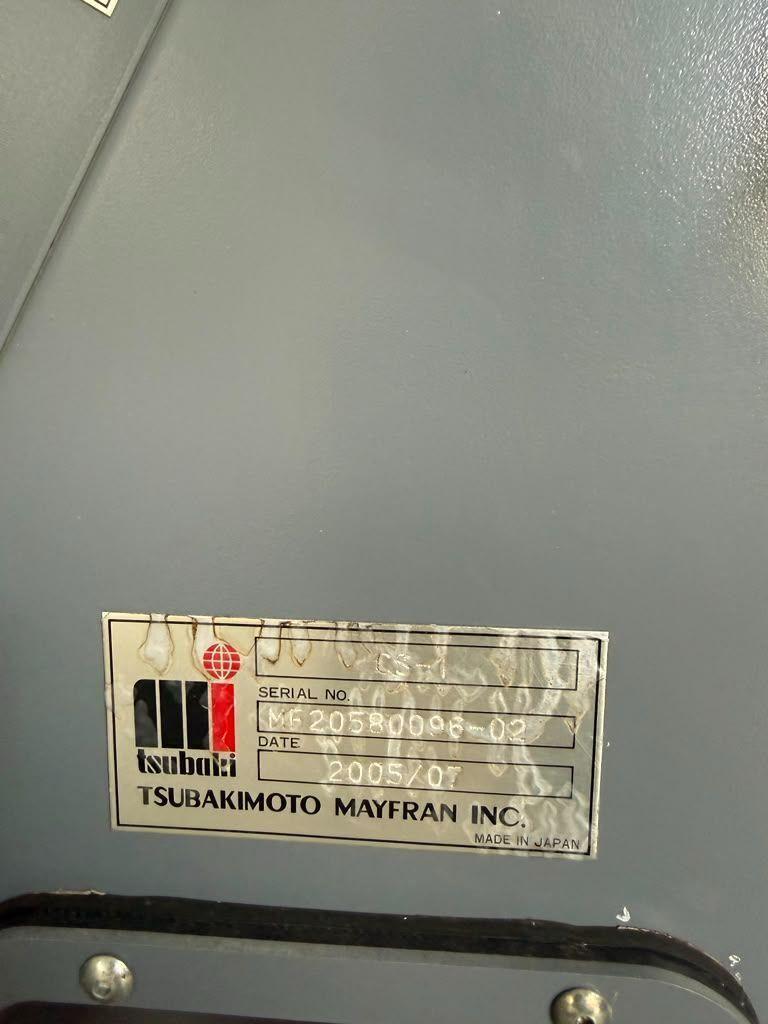

Chip Conveyor

Travels:
X-Axis Travel: 41.34″
Y-Axis Travel: 22.05″
Z-Axis Travel: 18.11″
X & Y Axis Rapid Traverse Rates: 1,575 IPM
Z-Axis Rapid Traverse Rate: 1,260 IPM
Cutting Feed Rate: 1,260 IPM
Spindle Nose to Table (Min.-Max.): 5.91″ – 24.02″

Table:
Length: 51.18″
Width: 22.05″
Maximum Weight on Table: 1,980 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 32-Station Side Mounted
Maximum Tool Weight: 18 lbs
Maximum Tool Length: 11.81″
Maximum Tool Diameter: 3.54″

General:
Air Required: 90 psi, 4 scfm

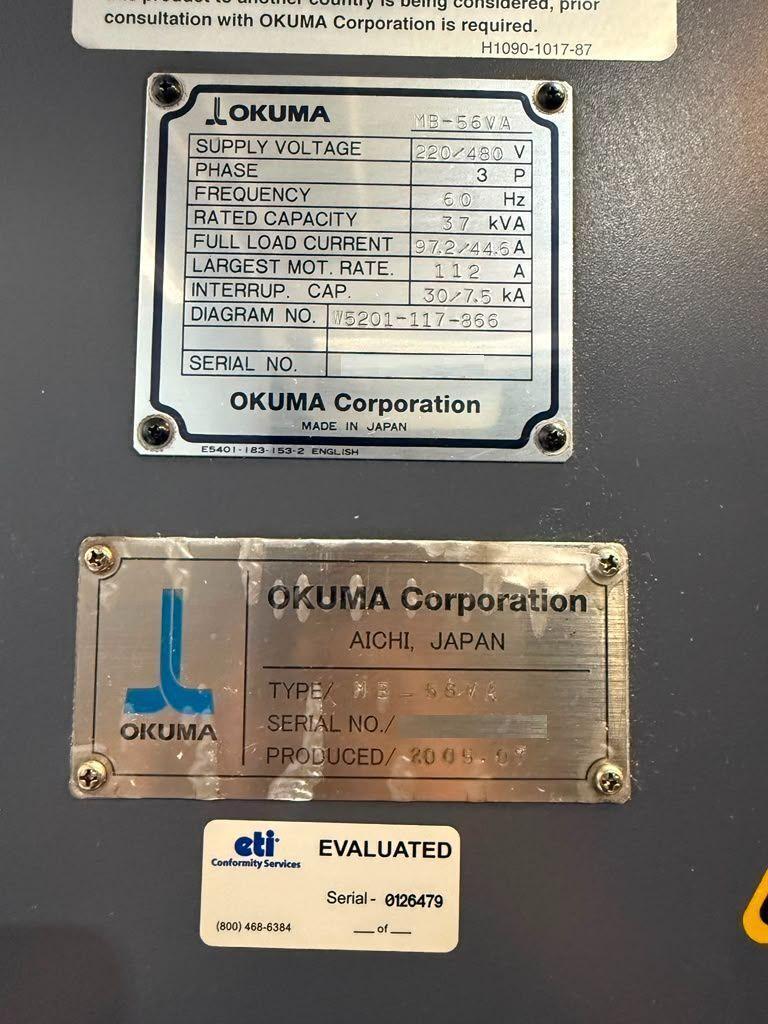

Power: 220V / 480V / 37 kVA / 3-Phase
Overall Dimensions: 100″ × 123″ × 108″ High Approx.
Weight: 18,260 lbs Approx.

No files or videos to display
