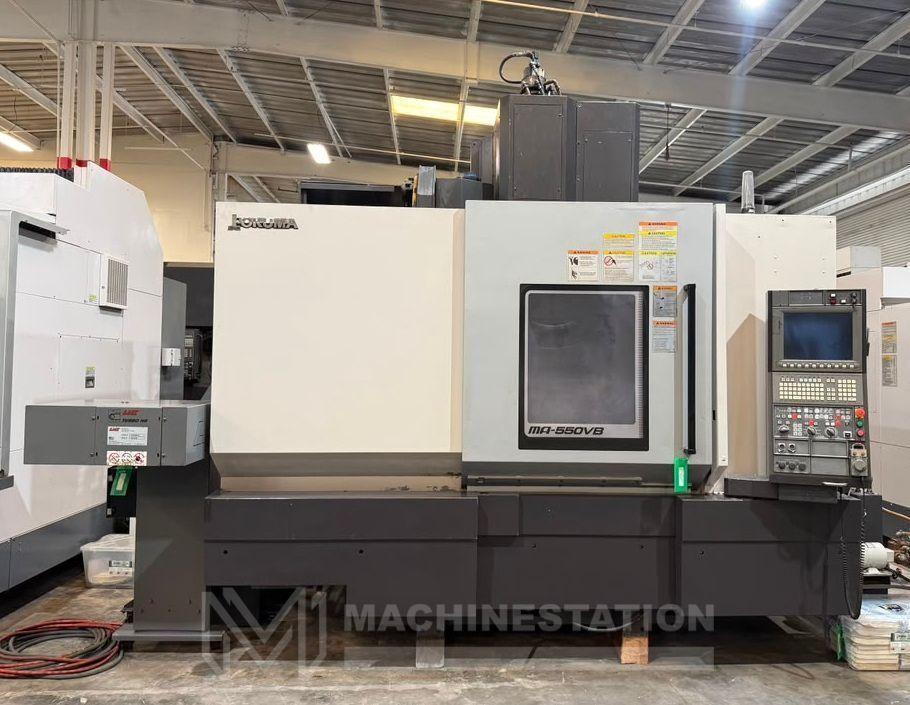

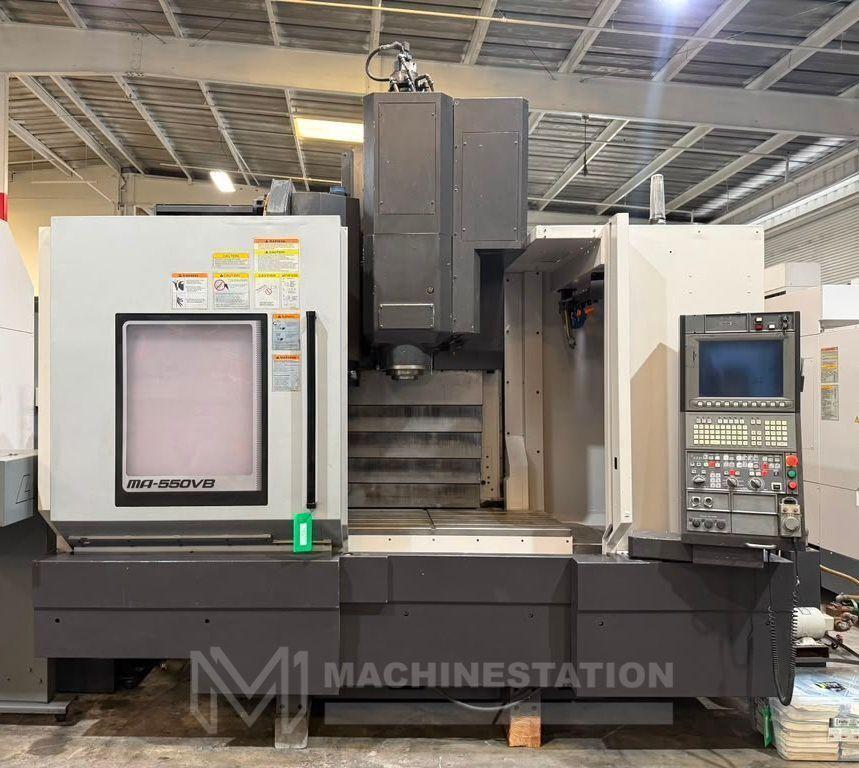

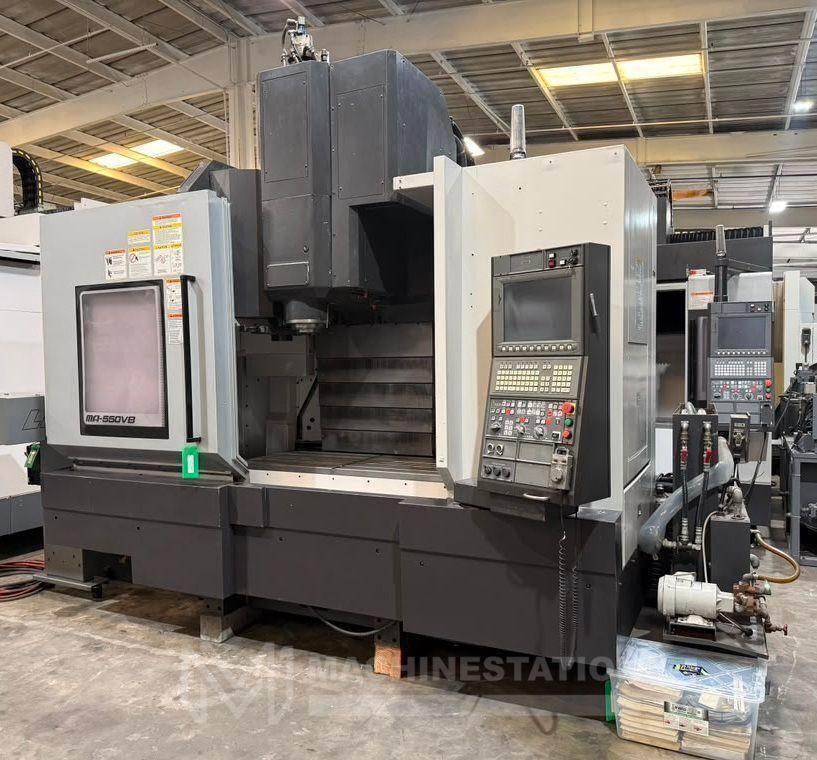

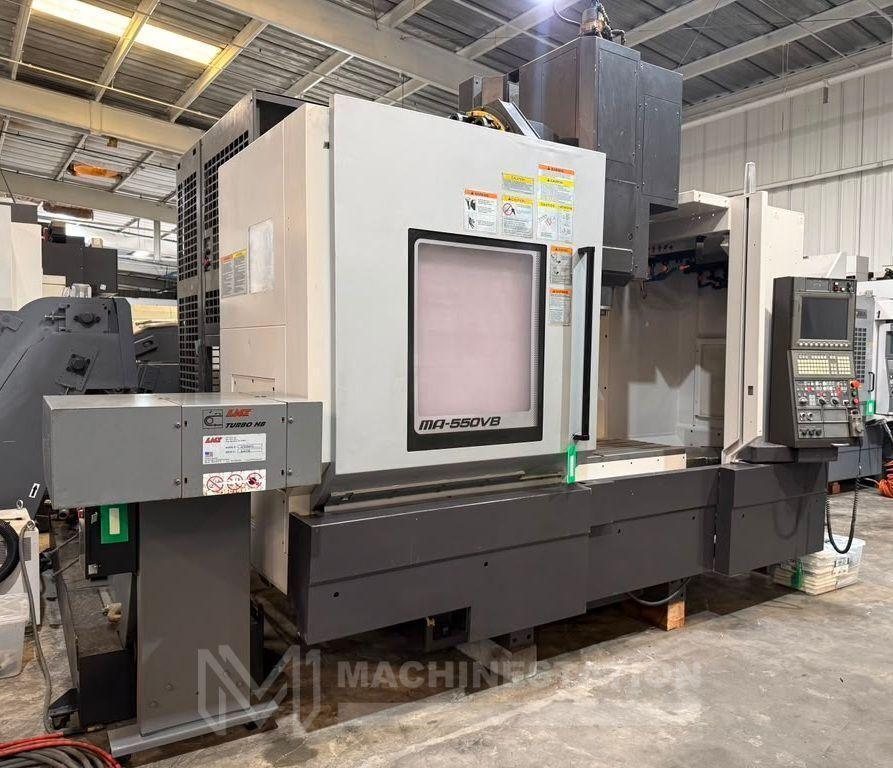

Okuma MA-550VB CNC Vertical Machining Center – 50 Taper Mill

Brand
OKUMA
Category
Machining Centers
Type
Vertical Machining Centers
Model
MA-550VB
Stock #
113633
Year
2014
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 113633
Make: Okuma
Model: MA-550VB
Year: 2014
Equipped With:

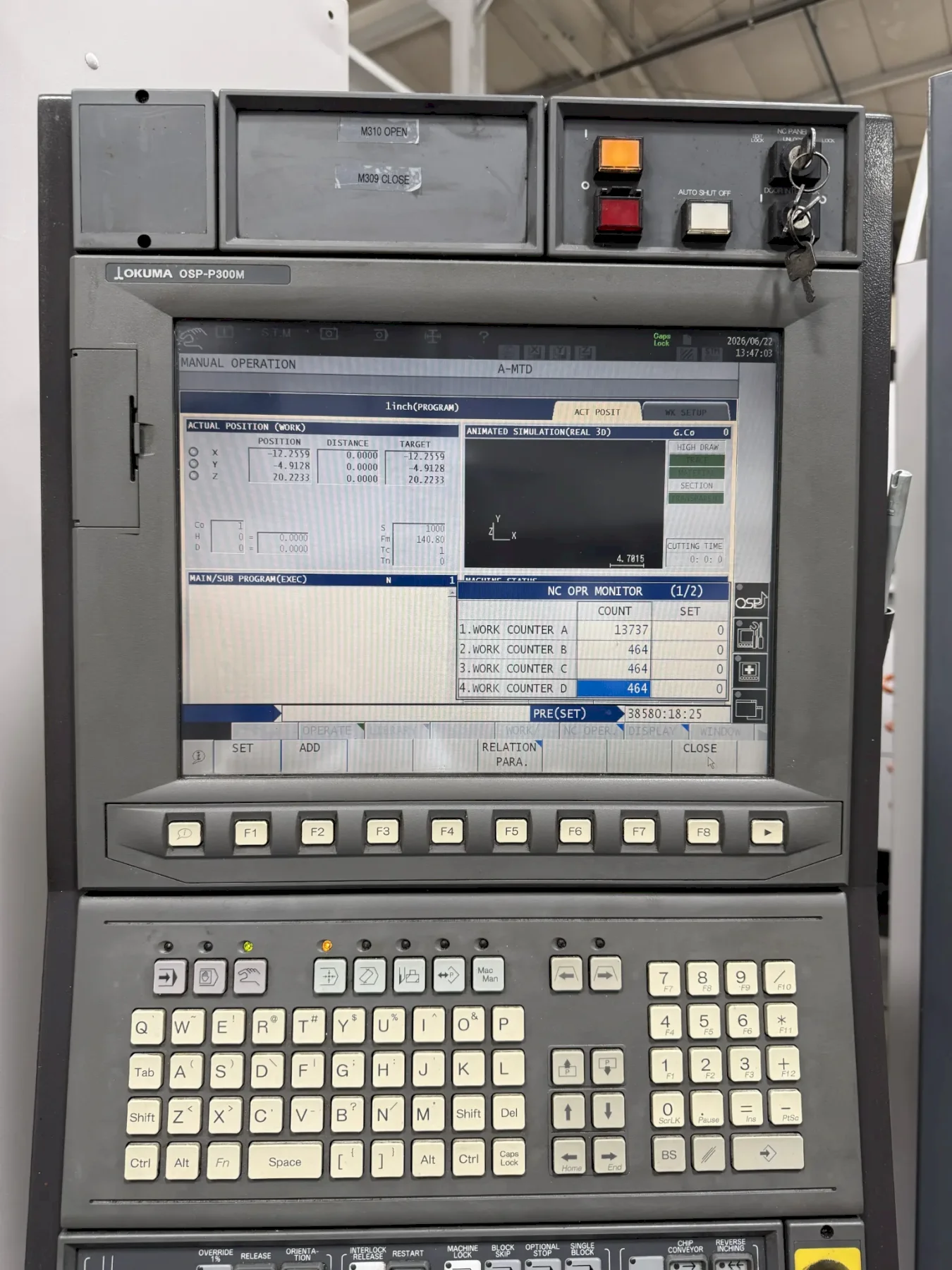

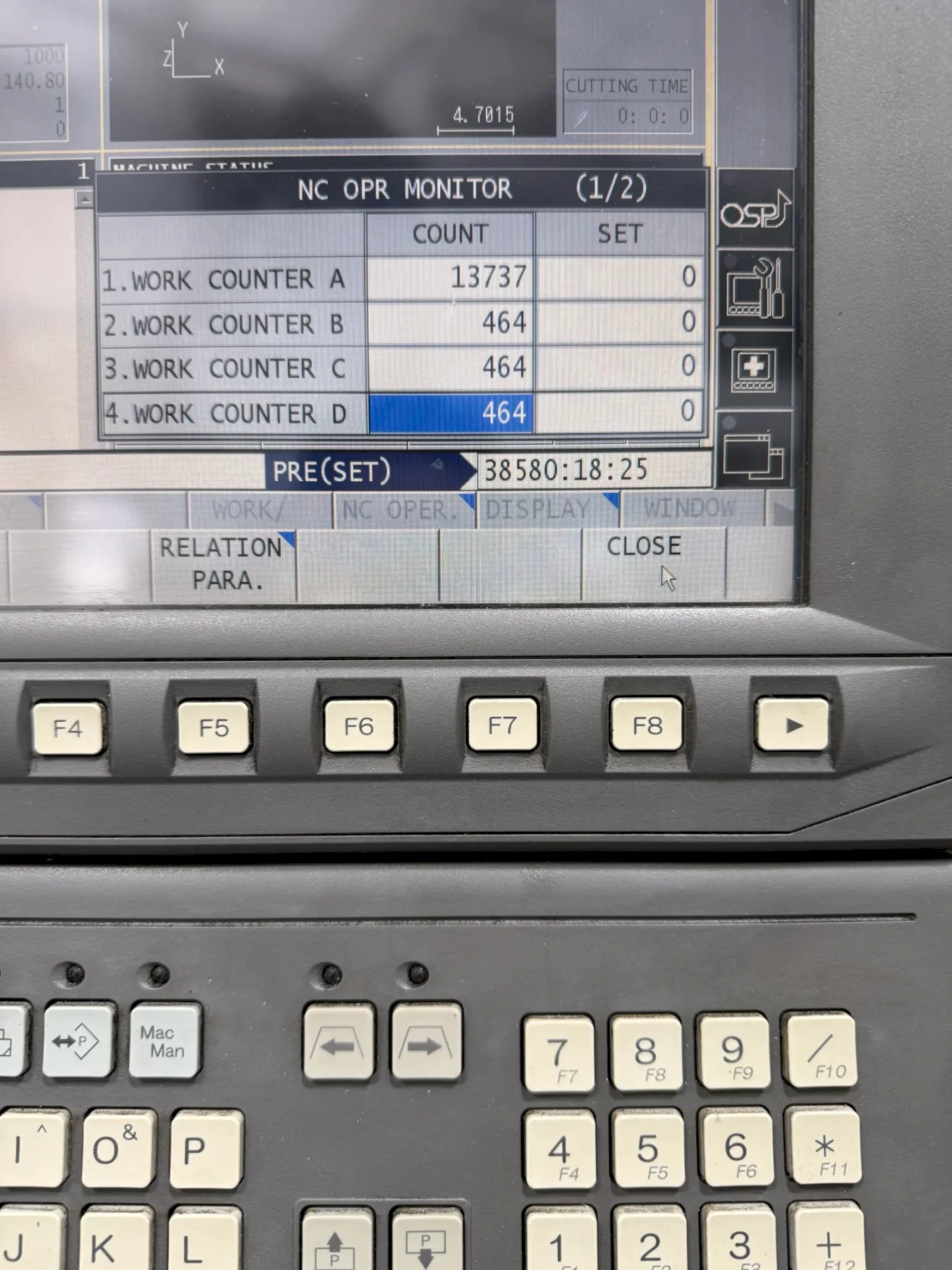

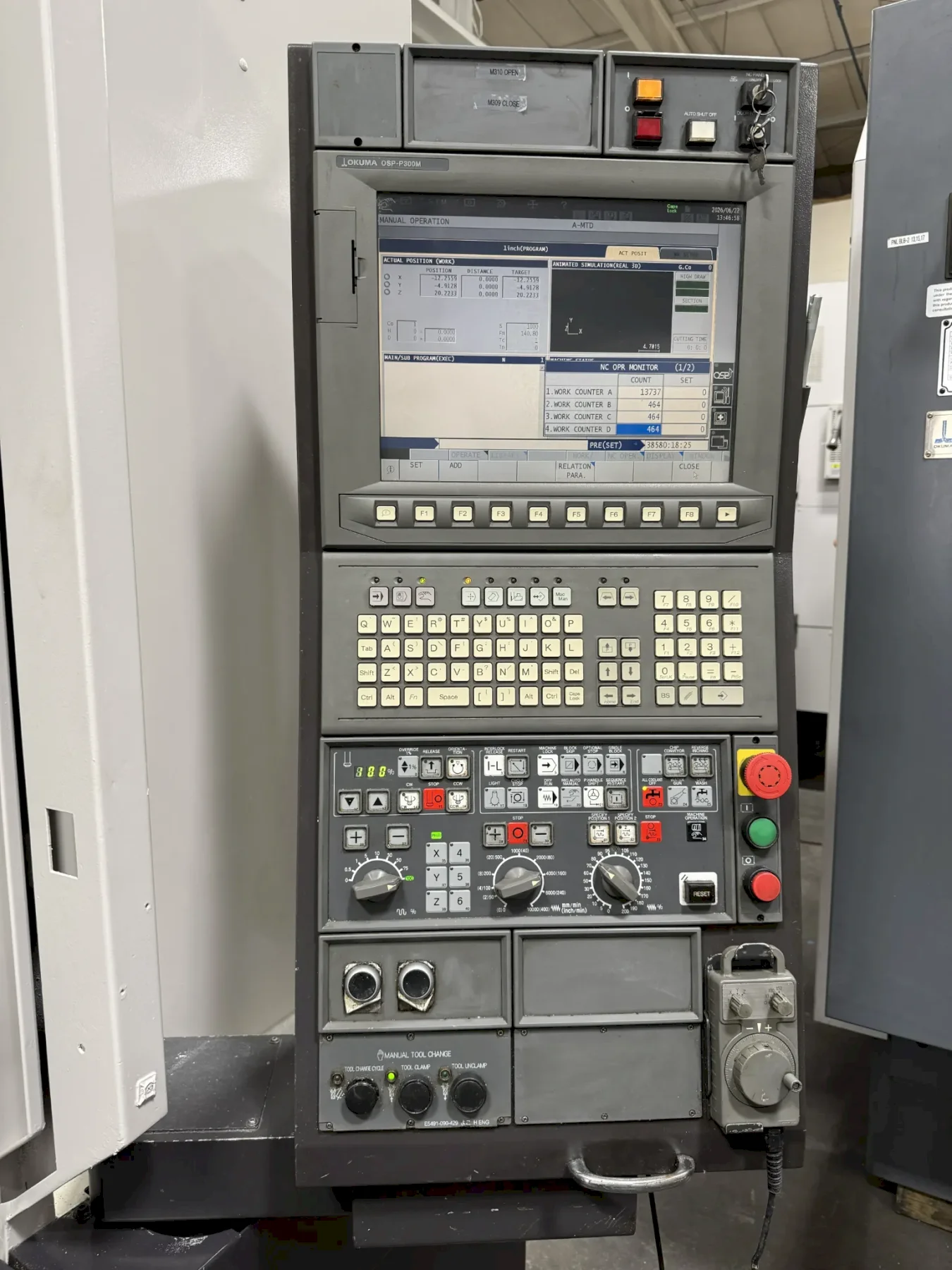

Okuma OSP-P300M CNC Control
6,000 RPM Gear Head Spindle
32-Station Automatic Tool Changer
Through-Spindle Coolant
CAT-50 Big Plus Taper Spindle

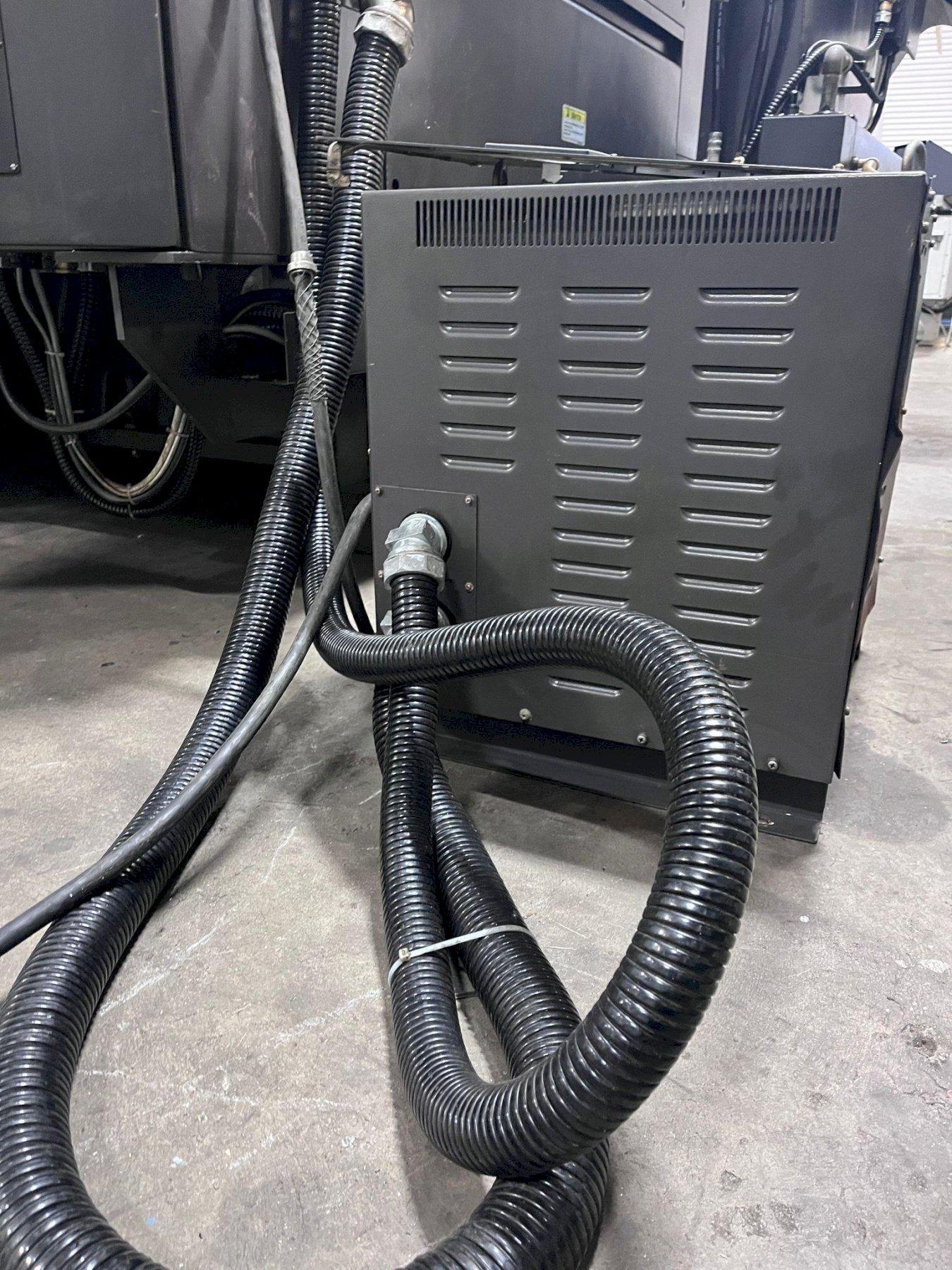

Spindle Chiller Unit
MPG Handwheel Control
USB Ports
Rigid Tapping
Coolant Tank
Chip Conveyor

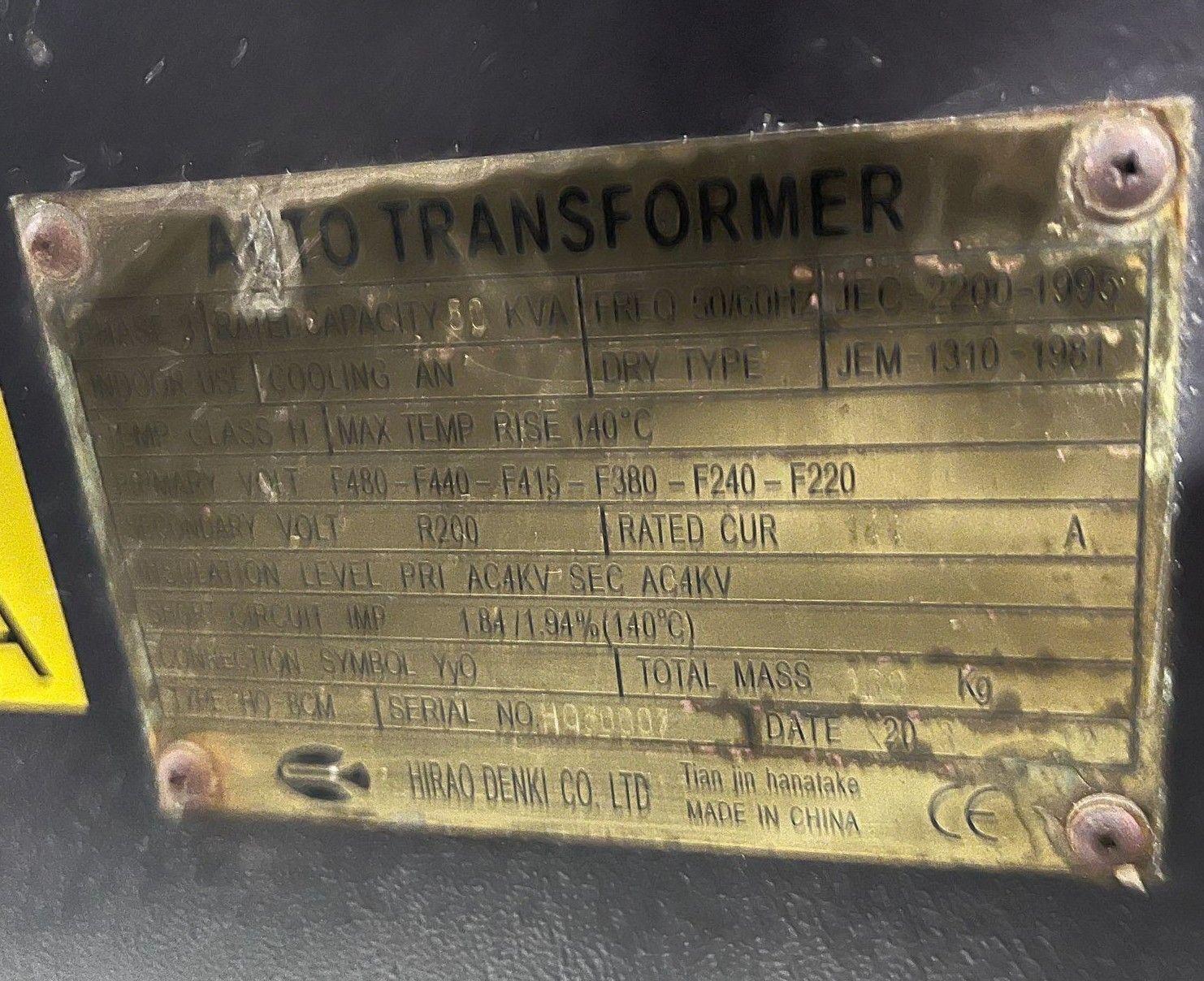

Transformer
Books & Manuals
Travels:
X-Axis Travel: 51.18″
Y-Axis Travel: 22.04″
Z-Axis Travel: 22.04″
X & Y Axis Rapid Traverse Rates: 1,575 IPM
Z-Axis Rapid Traverse Rate: 1,181 IPM
Cutting Feed Rate: 1,181 IPM
Spindle Nose to Table (Min.-Max.): 7.87″ – 29.92″

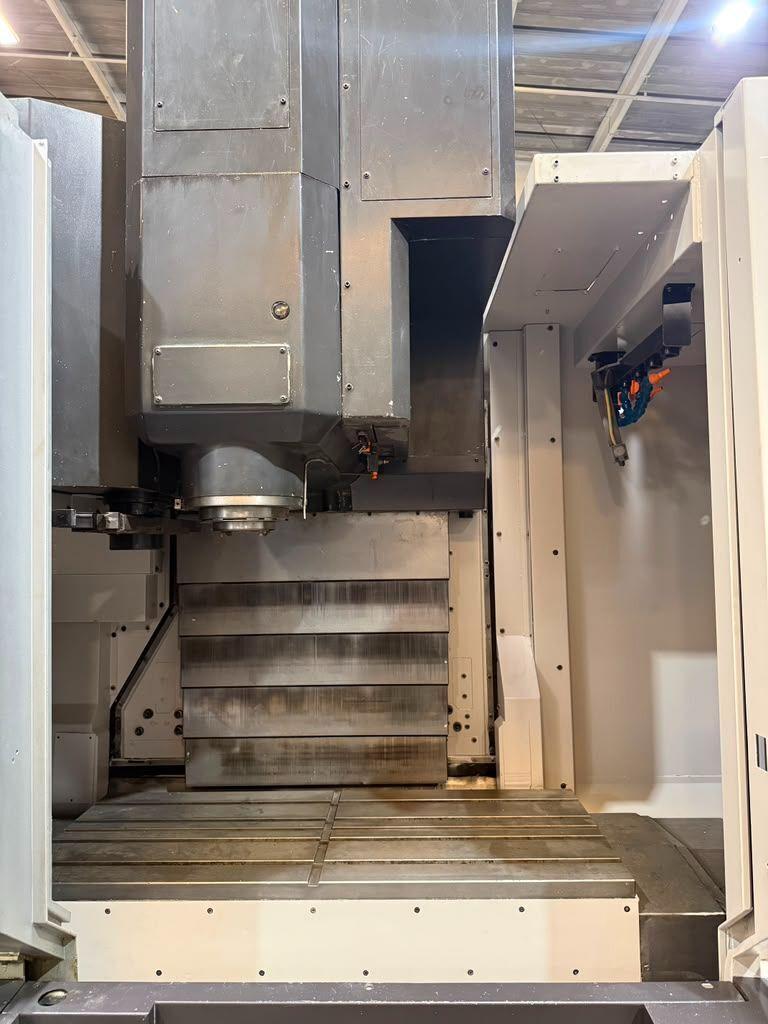

Table:
Length: 51.18″
Width: 22.04″
Number of T-Slots: 5
T-Slot Width: 0.7″
Maximum Weight on Table: 2,204 lbs
Spindle:
Spindle Type: Gear Head
Taper Size: CAT-50 Big Plus
Speed Range: 6,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 32-Station Side Mounted
Maximum Tool Weight: 44 lbs
Maximum Tool Length: 15.74″
Maximum Tool Diameter: 5.31″
General:
Air Required: 90 psi, 4 scfm

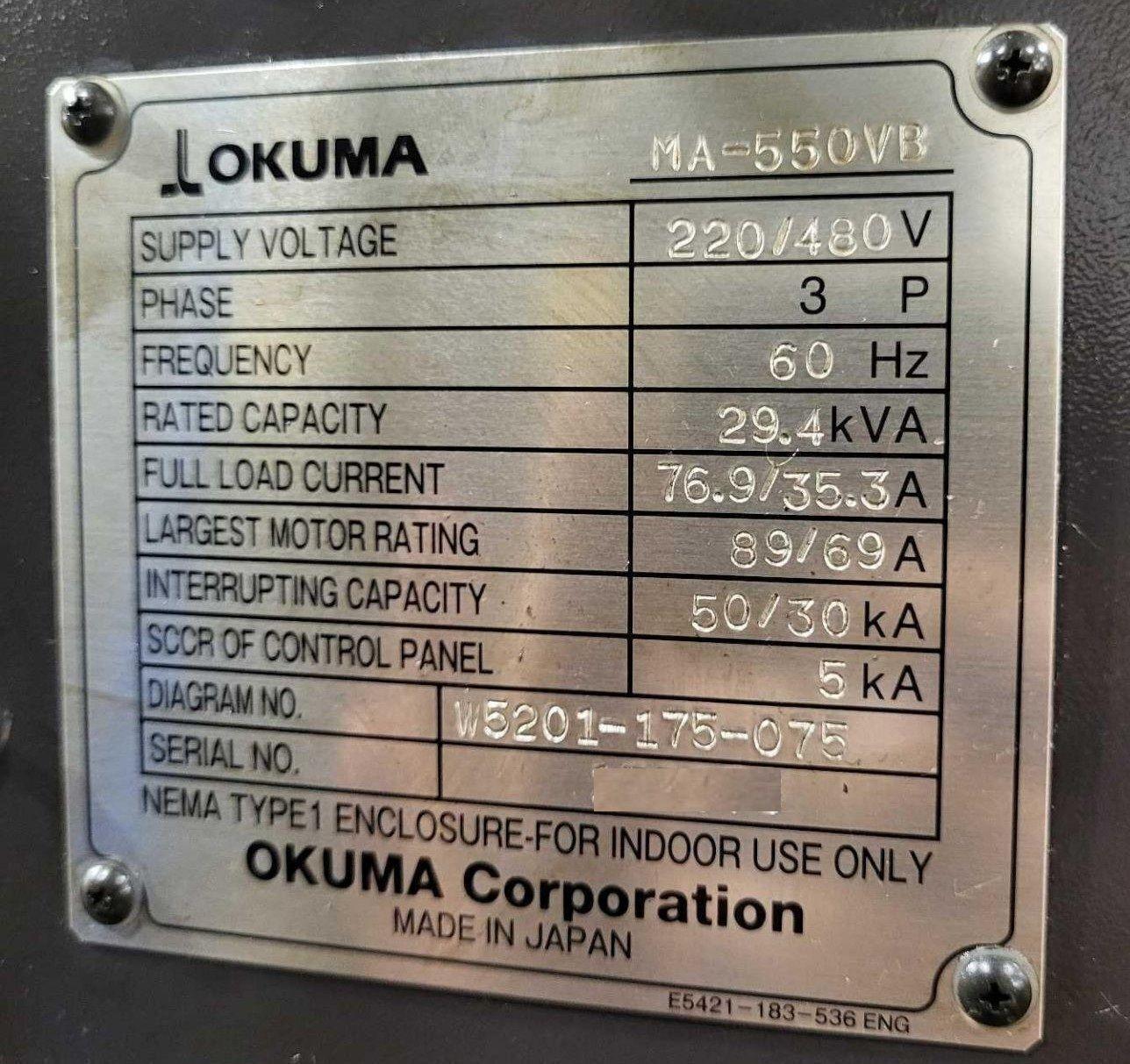

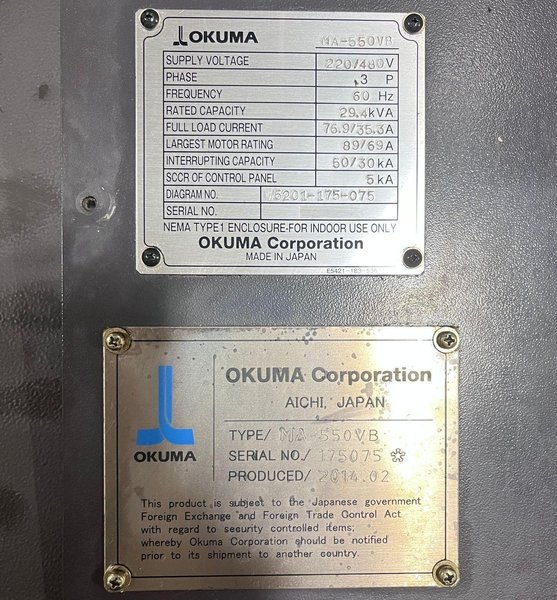

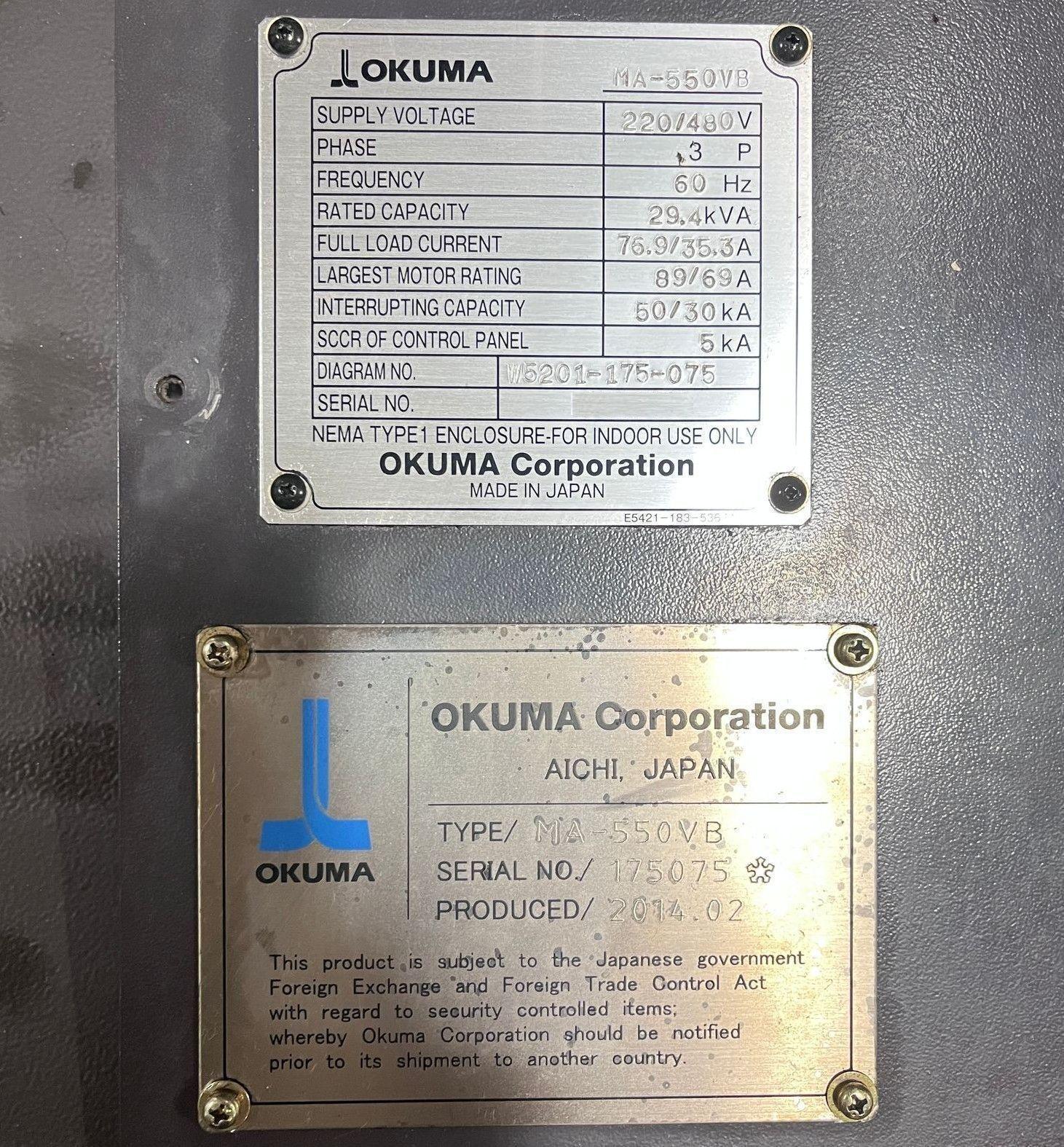

Power: 440V / 220V / 29.4 kVA / 3-Phase
Overall Dimensions: 126″ × 112″ × 114″ High
Weight: 29,960 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Okuma MA-550VB CNC Vertical Machining Center – 50 Taper Mill

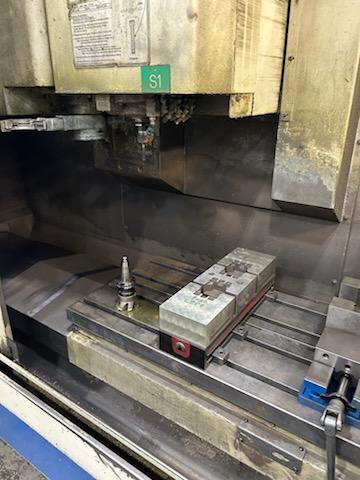

Okuma MC-V4020 VMC, 2005 – Chip Conveyor, 15,000 RPM 32 Slot Tool Changer
OKUMA

Machining Centers, Vertical

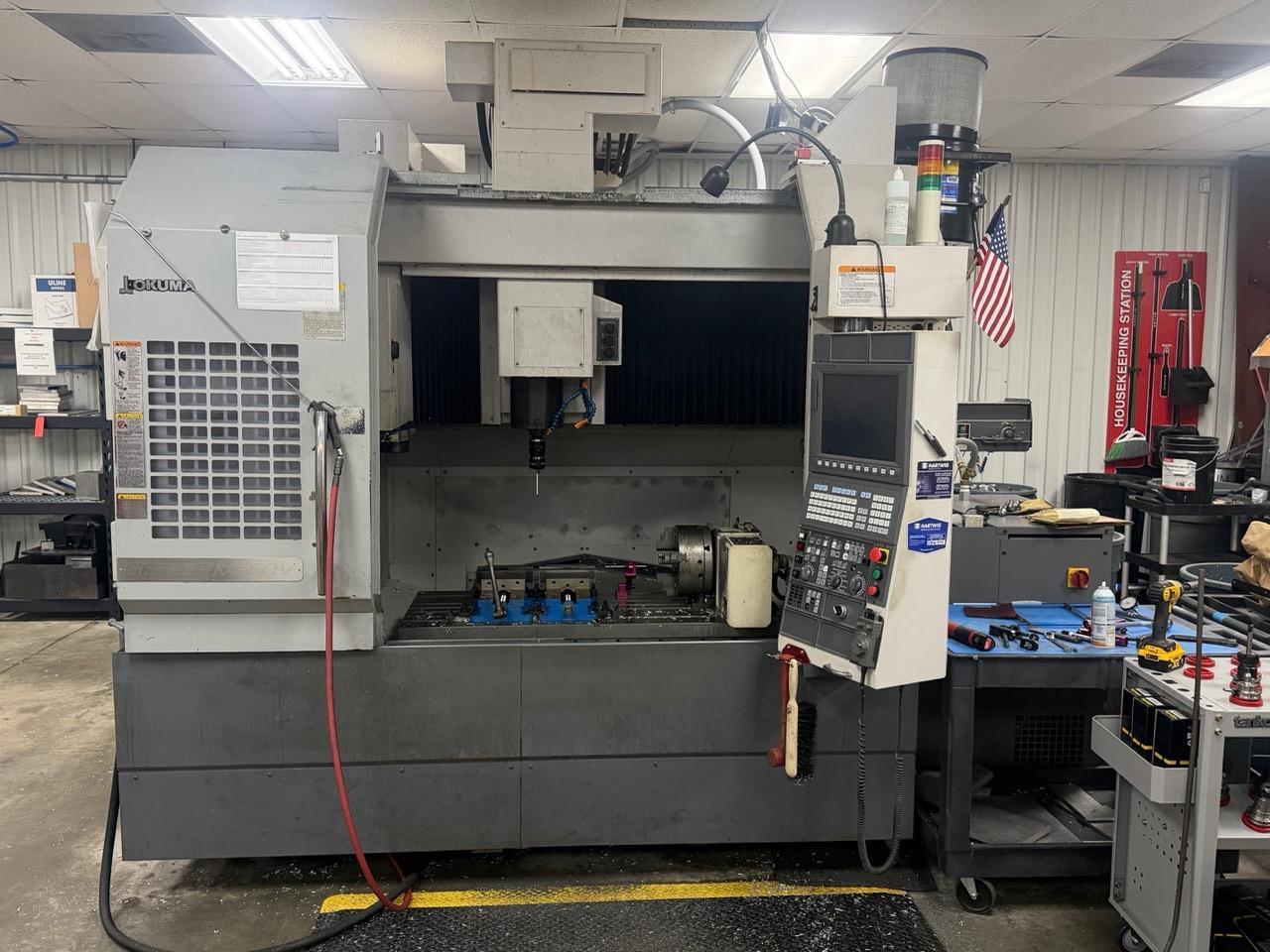

Okuma Genos M560-V VMC, 2013 – TSC, Probe, Rotary Table
OKUMA

Machining Centers, Vertical

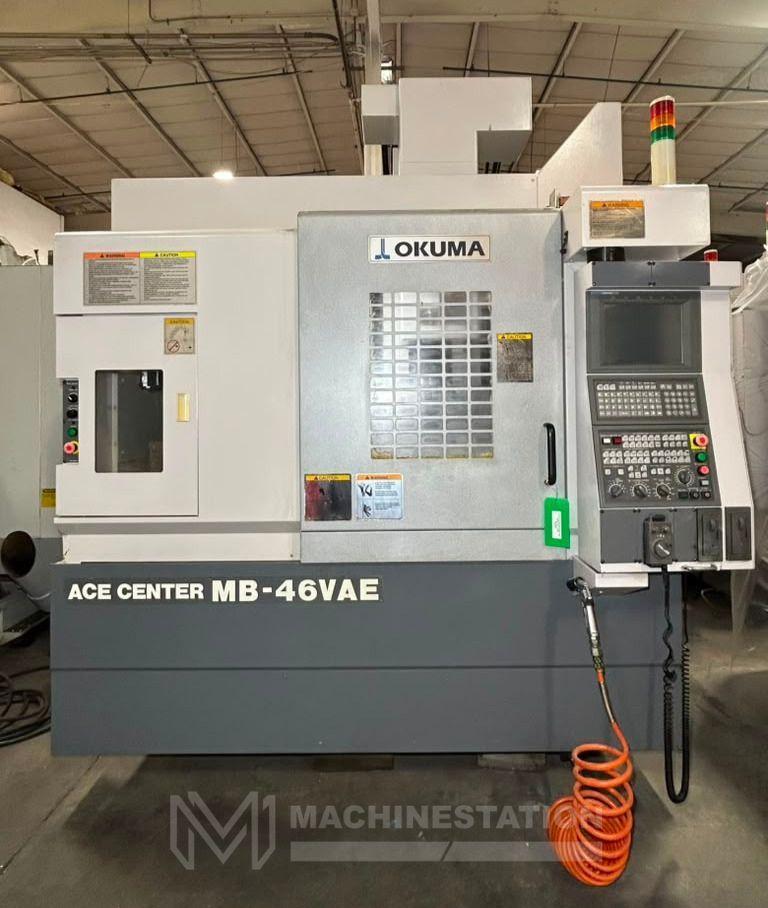

Okuma MB-46VAE CNC Vertical Machining Center – 15,000 RPM Mill
