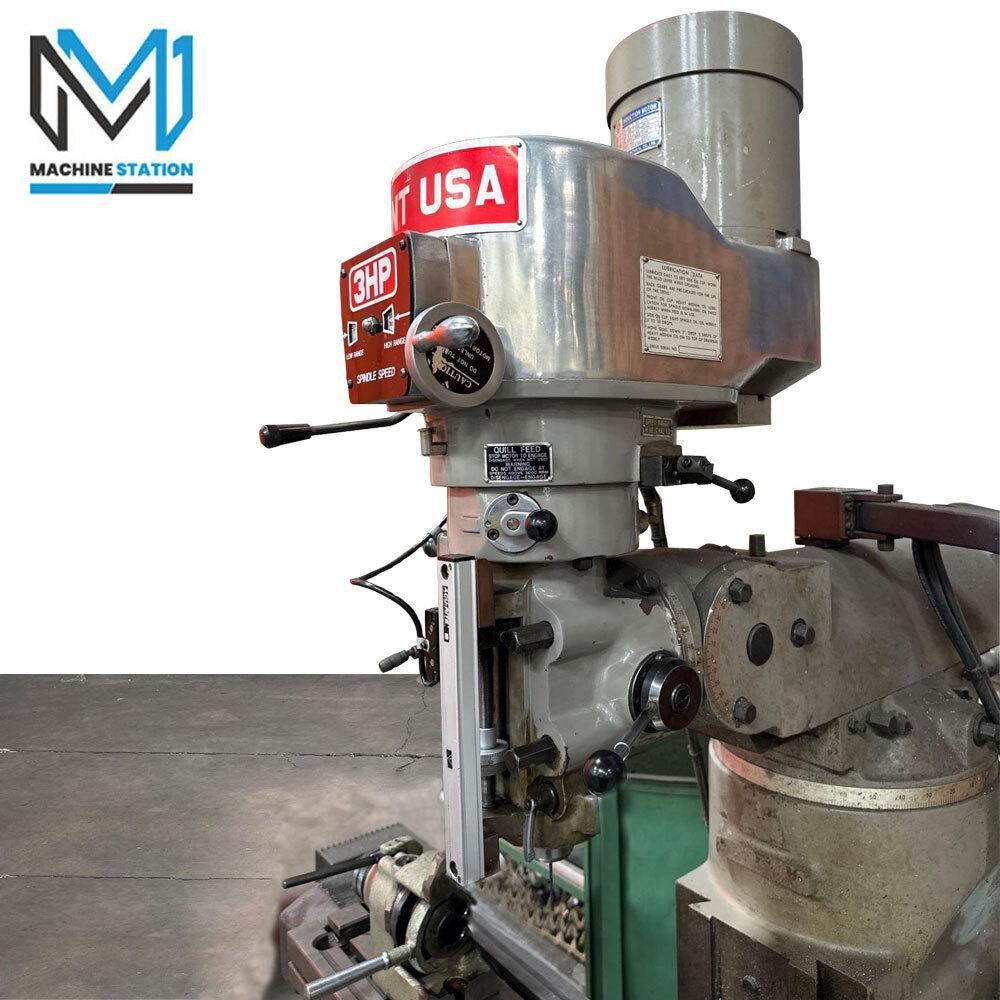

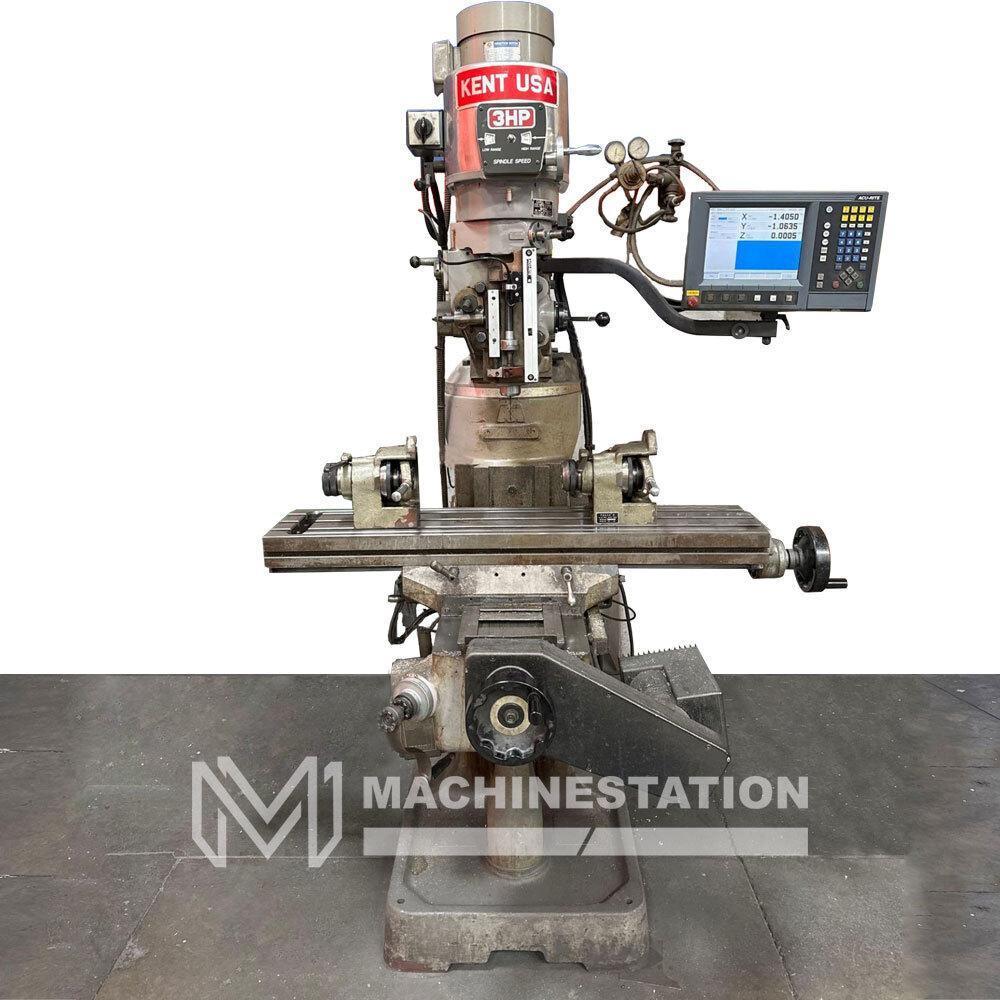

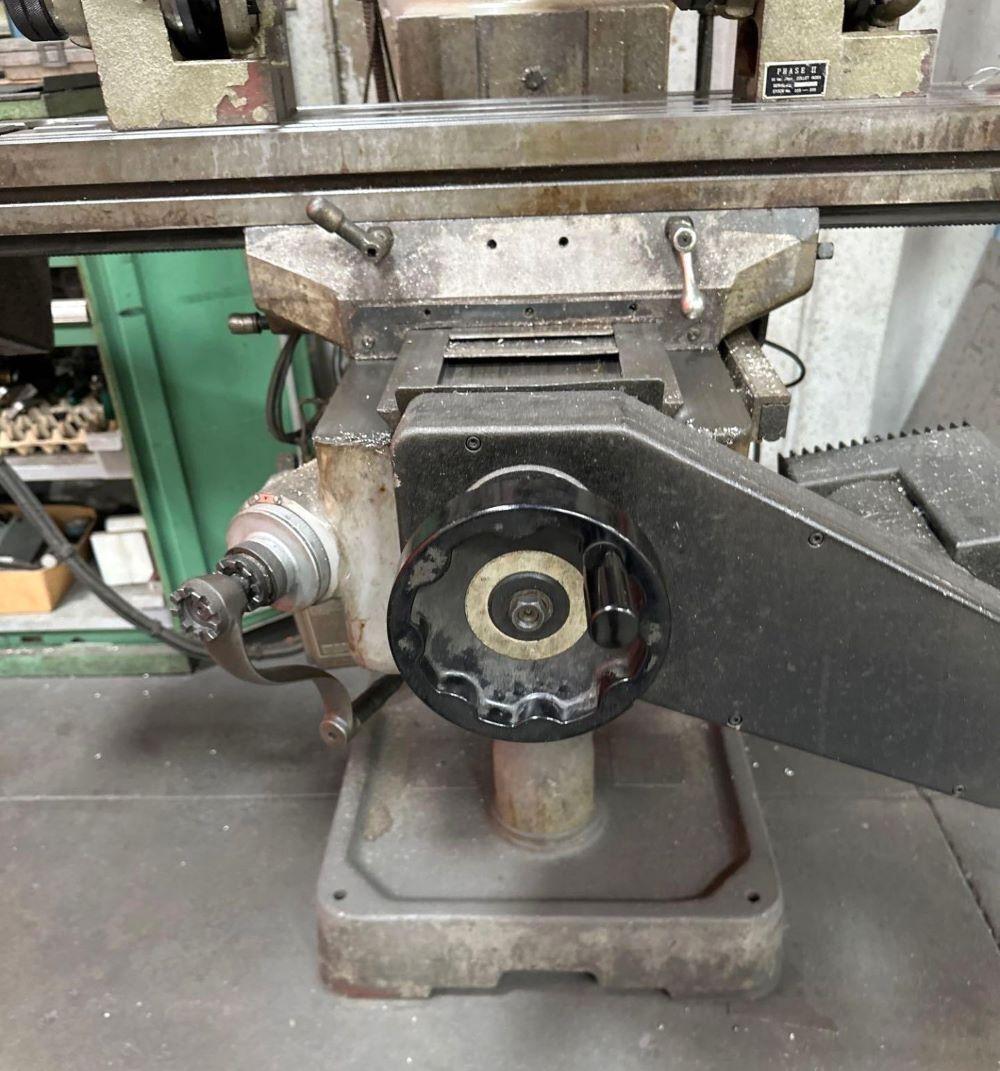

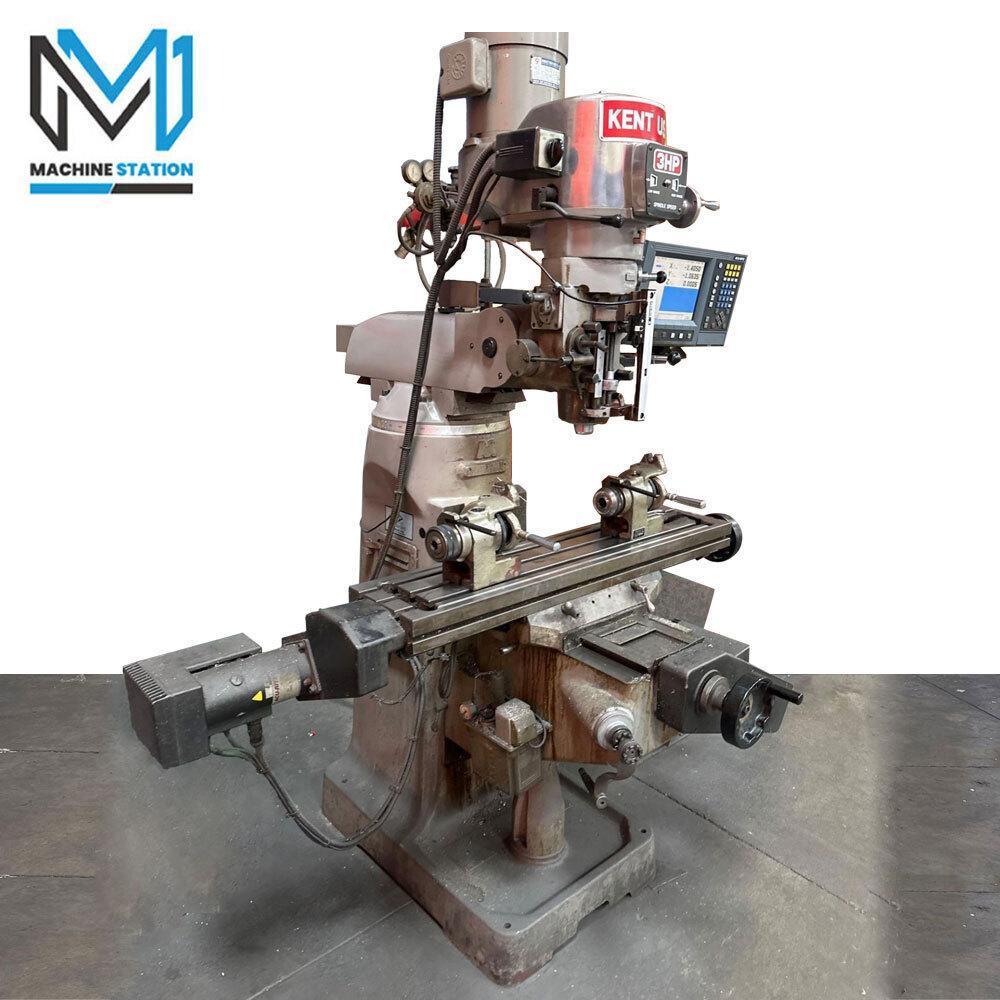

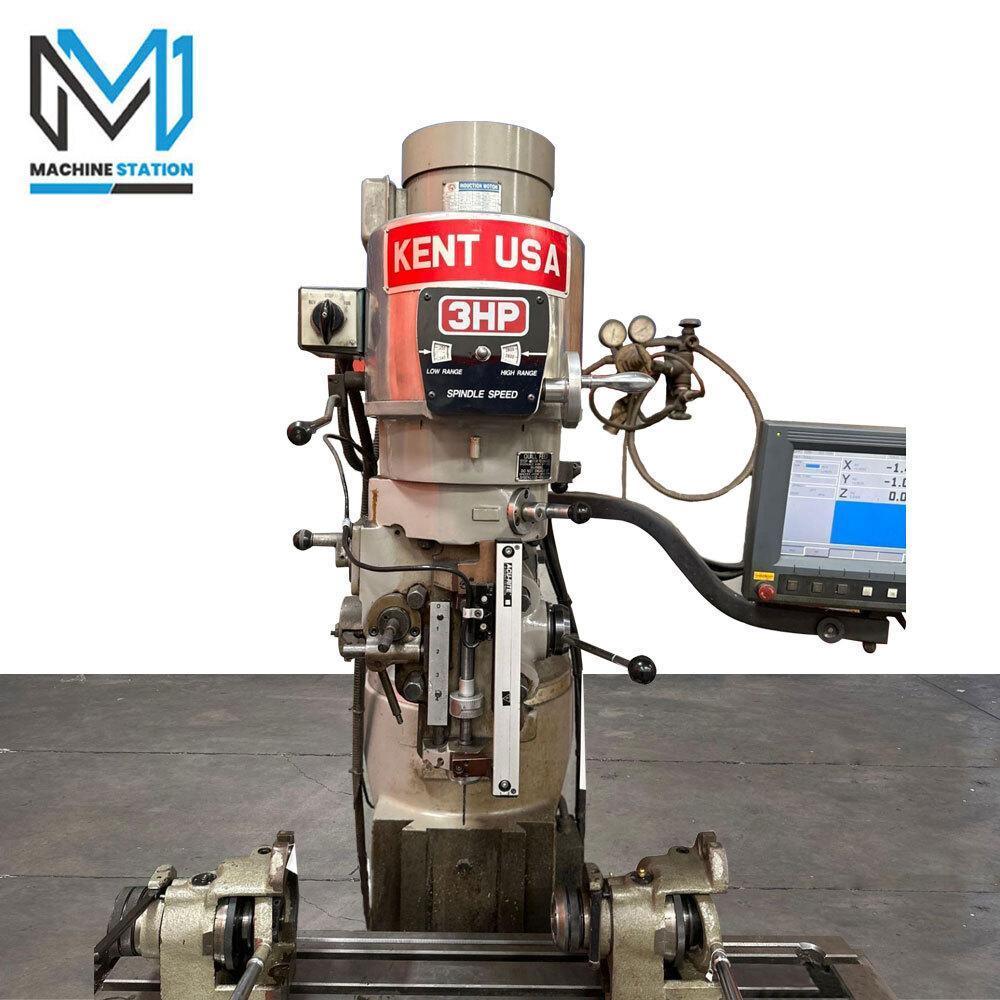

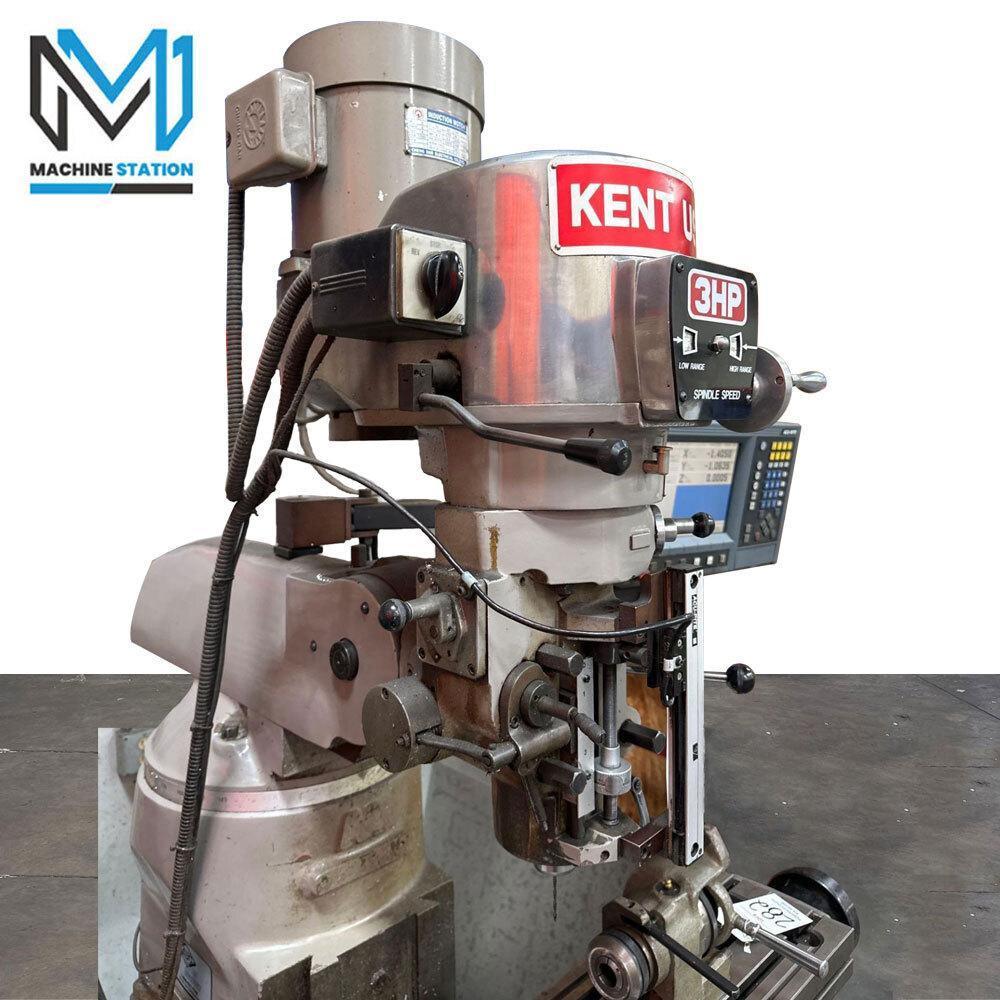

Kent KTM-3VS 9″ x 42″ Variable Speed CNC Vertical Milling

Kent KTM-3VS 9″ x 42″ Variable Speed CNC Vertical Milling

Name: Kent KTM-3VS 9″ x 42″ Variable Speed CNC Vertical Milling
Brand: KENT
SKU: 112553
Availability: InStock

Brand

KENT

Location

Not specified

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112553
Make:	Kent
Model:	KTM3VS

Features:

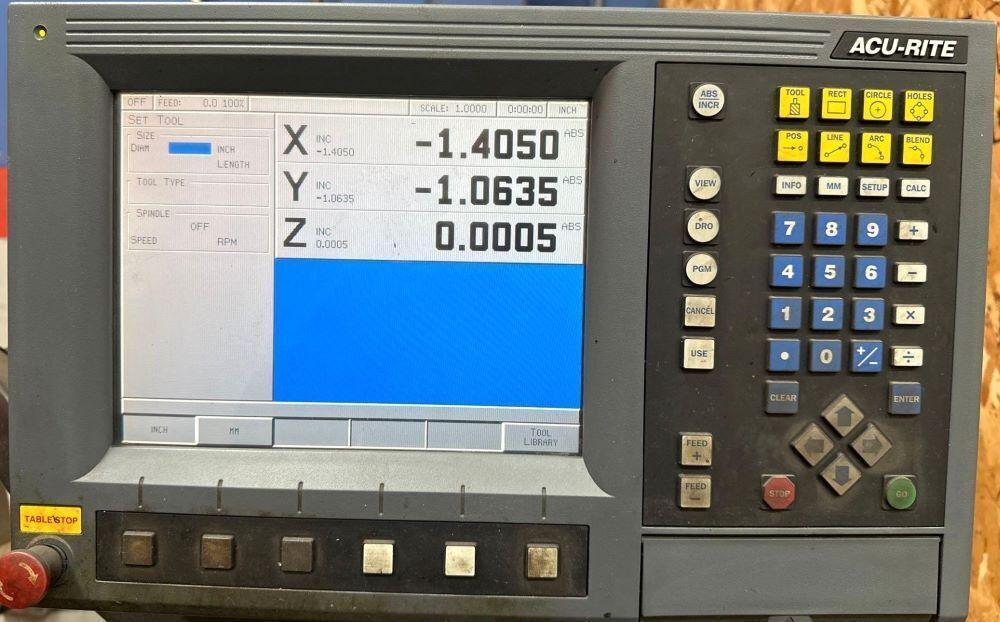

ACU-RITE 3-Axis CNC Control
Hardened and ground table surface, saddle, and knee
60 – 4200 RPM Variable Spindle Speed
90° \| 45° Head Movement (Right or Left \| Front or Back)
3 HP Spindle Motor

Capacity:
Maximum Table Longitudinal Travel: 35″
Maximum Table Cross Travel : 12″
Maximum Knee Travel: 15″
Maximum Ram Travel: 14.5″
Maximum Spindle Travel: 5″
Head Movement (Right or Left \| Front or Back): 90° \| 45°
Spindle to Column (min-max): 6-3/4″ – 18-1/2″
Spindle Nose to Table (min-max): 3-1/4″ – 18-1/4″

Table:
Working Surface: 9″ x 42″
T-Slot Number, Size: 3, 5/8″

Spindle:
Spindle Taper: R-8
Spindle Motor: 3 HP
Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM
Quill Down Feed Rates: .0015 – .003 – .006 (IPR)
Diameter of Quill: 3-3/8″
Number of Spindle Speeds: Mechanical Variable Speed
Head Tilt (Right to left each way): 90 Degrees
Head Tilt (Front and Back each way): 45 Degrees
