OZ Machine GARNET Mini 3-Axis NC Compact Aluminum & PVC Profile Machining Center, 2024 – 18,000 RPM

2024 OZ Machine GARNET Mini 3-axis NC compact profile machining center designed for automated milling, drilling, slotting, lock, handle and hinge preparation on aluminum and PVC profiles with three independent high-speed spindles and 10″ touchscreen control.

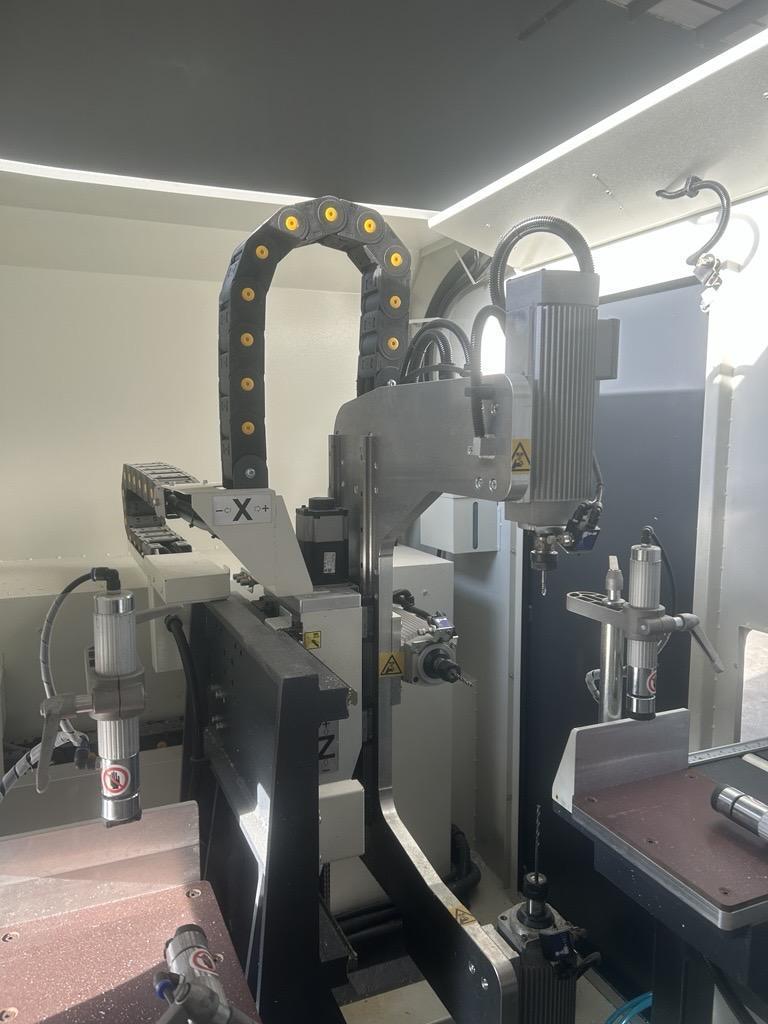

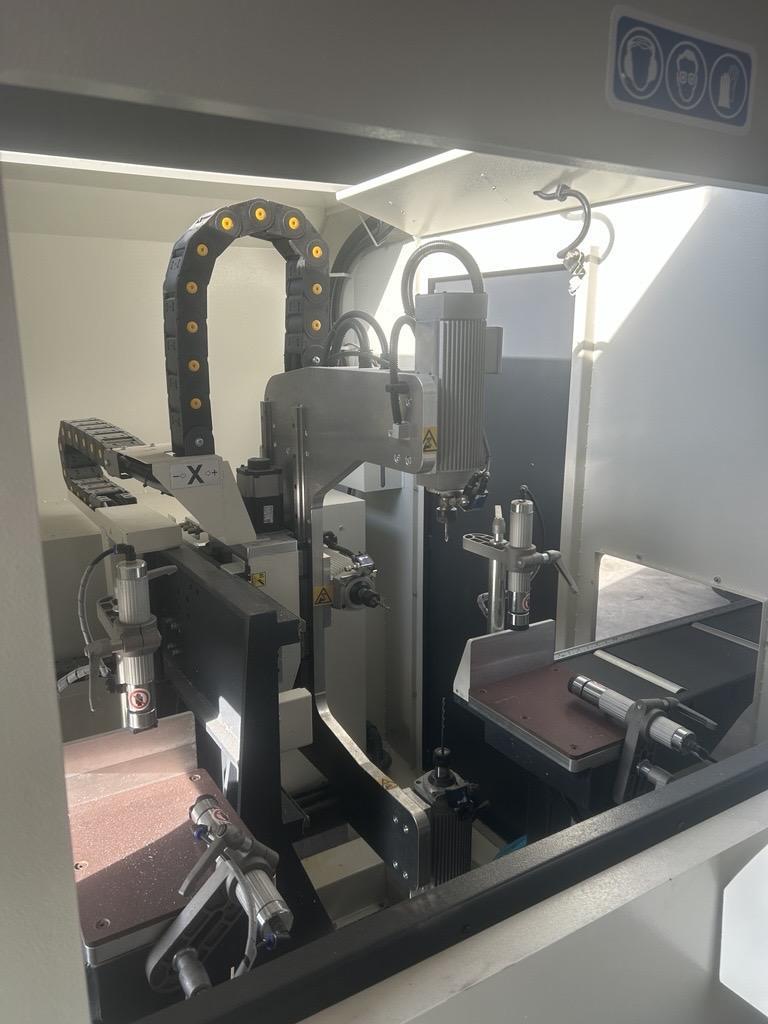

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer OZ Machine / Özçelik Machinery Model GARNET Mini Year 2024 Machine Type 3-Axis NC Compact Profile Machining Center Primary Materials Aluminum and PVC / vinyl profiles Axes 3 Axis X-Axis Machining Travel 350 mm / 13.78″ Y-Axis Machining Travel 150 mm / 5.91″ Z-Axis Machining Travel 120 mm / 4.72″ X-Axis Positioning Speed 30 m/min Y-Axis Positioning Speed 30 m/min Z-Axis Positioning Speed 30 m/min Spindles 3 independent spindle motors Spindle Arrangement Top, bottom and side profile machining Maximum Spindle Speed 18,000 RPM Spindle Power Up to 3 kW Tool Holder ER20 Maximum Tool Diameter Approx. 13 mm Control 10″ HMI touchscreen Programming Parametric profile-machining programs Data Transfer USB Profile Positioning Right & left profile gauges Positioning Aid Laser marking Clamping 4 pneumatic clamps – 2 top / 2 front Cooling System Automatic machining/tool cooling Air Pressure 6–8 bar Air Consumption 40 L/min Machine Voltage 400V, 3 Phase Frequency 50–60 Hz Maximum Rated Power 12 kW per current manufacturer literature Approx. Net Weight 800 kg / 1,764 lb Approx. Gross Weight 1,000 kg / 2,205 lb Approx. Dimensions 2,900 × 2,115 × 2,045 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
