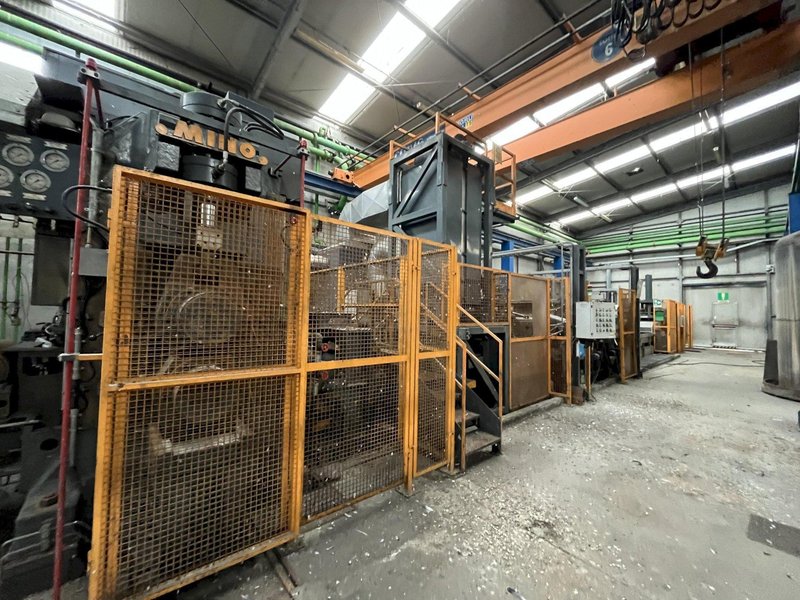

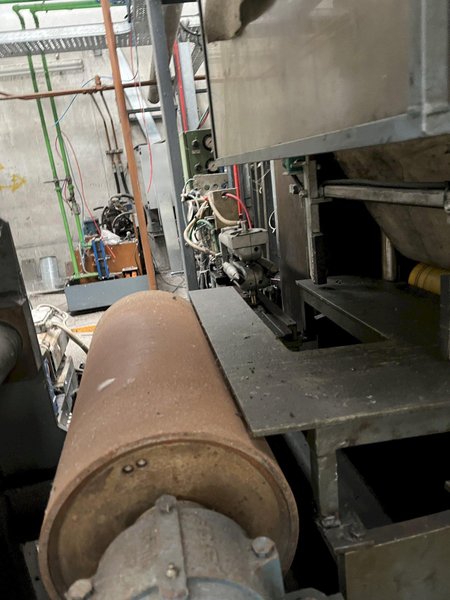

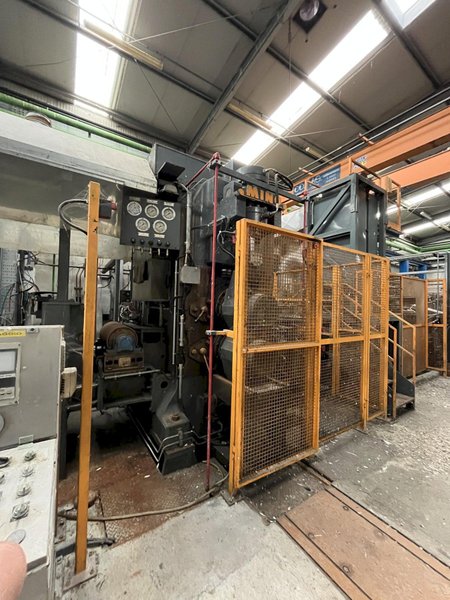

MINO PICKLING LINE WITH 2HI SKINPASS MILL

Type: Skinpass Rolling Mill

• Max force: 300 tons
• Positive bending
• AGC control
• Includes pickling line

Technical Specifications:

• Area: 300 m²
• Electrical Power: 95 kW
• Lubrication: Oil
• Roll Positioning: Hydraulic gap adjustment
• Coiler Diameter: 650–360 mm
• Thickness: Entry max 2.5 mm
• Direction….R-L
• Speed: 72 m/min

CONFIGURATION

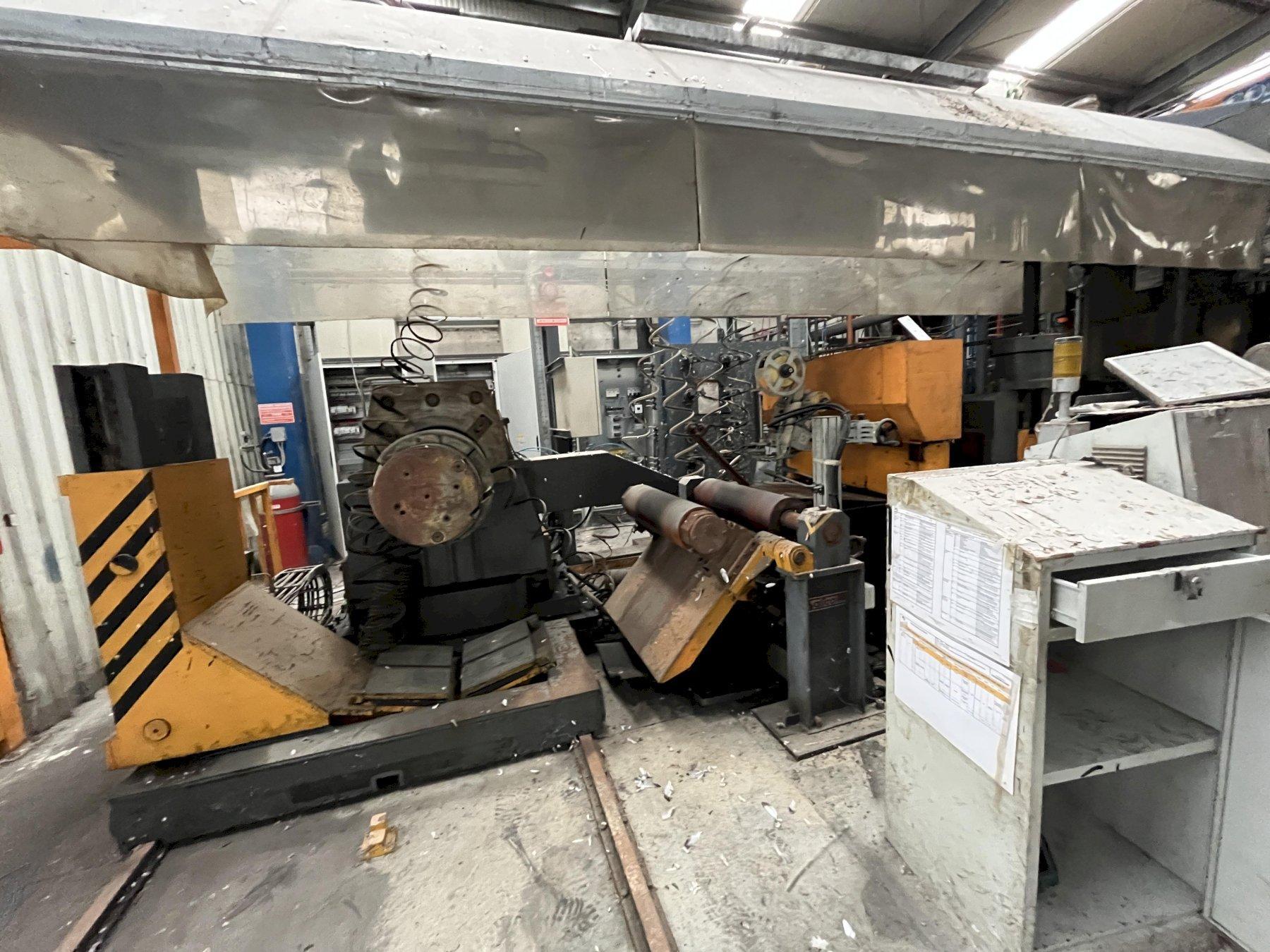

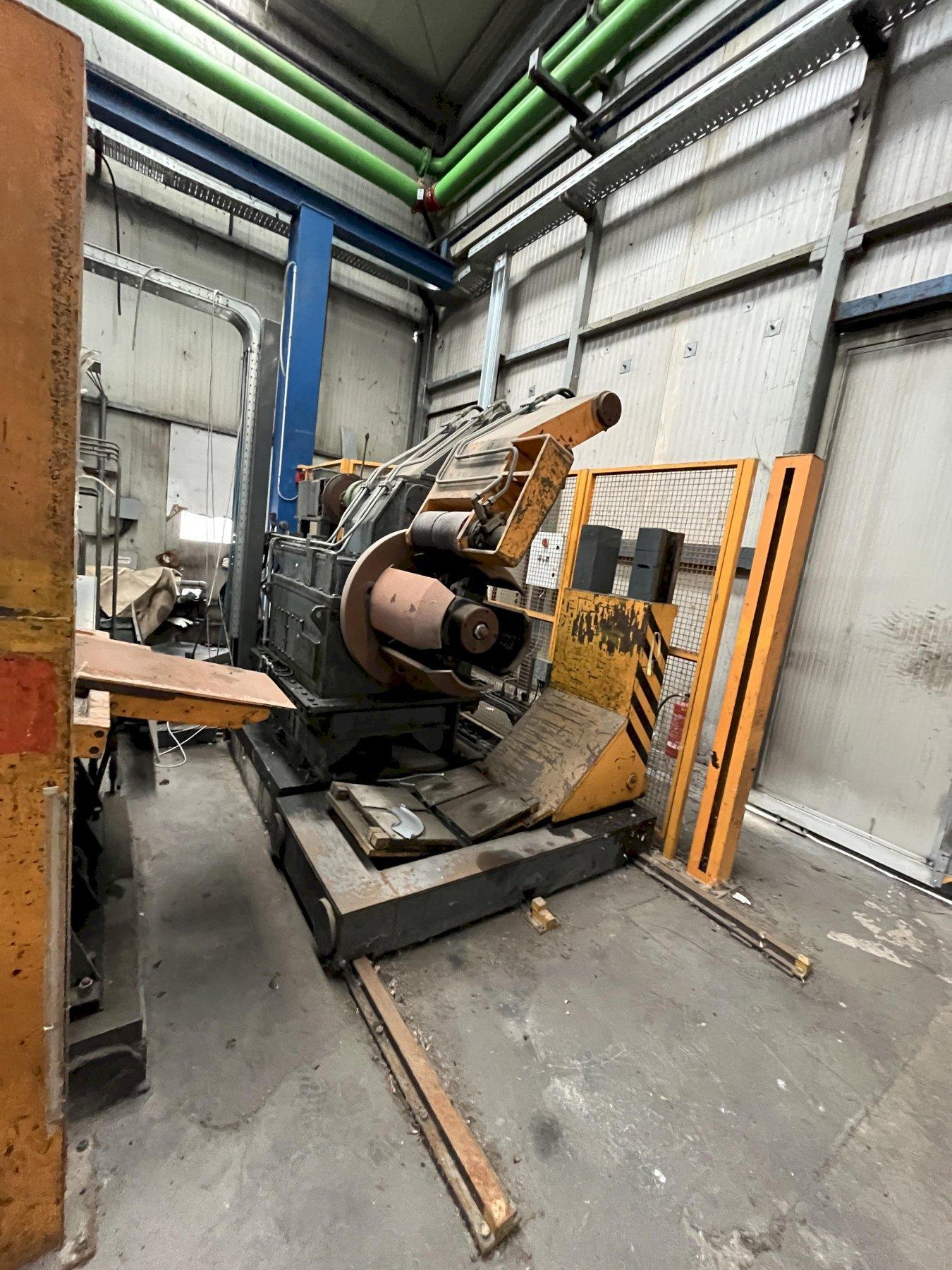

ENTRY UNCOILER

Mandrel Diameter……………508mm

“L” Shaped Coil Car on rails, Elevating

Peeler Table

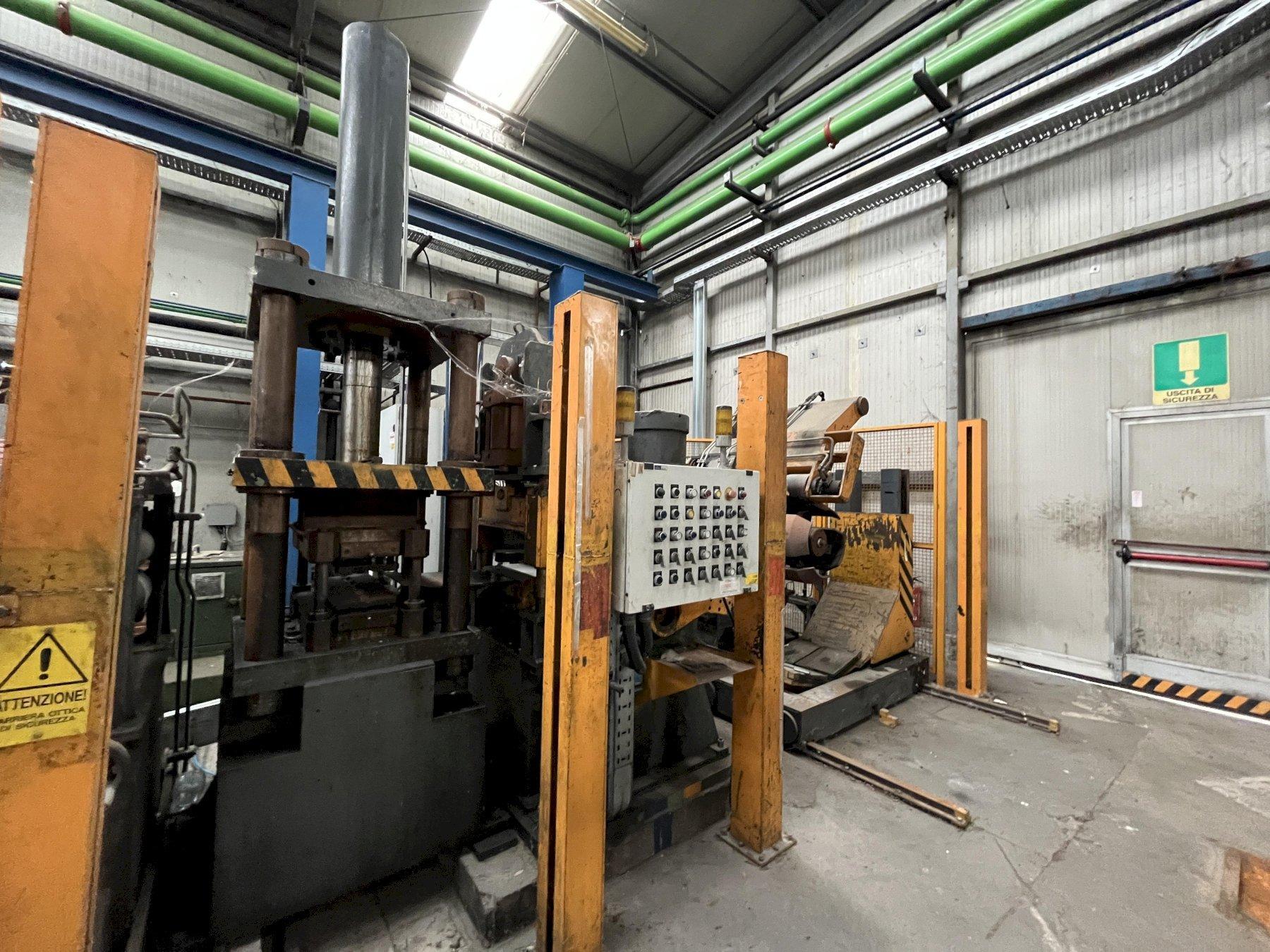

STICHING PRESS, Hydraulic

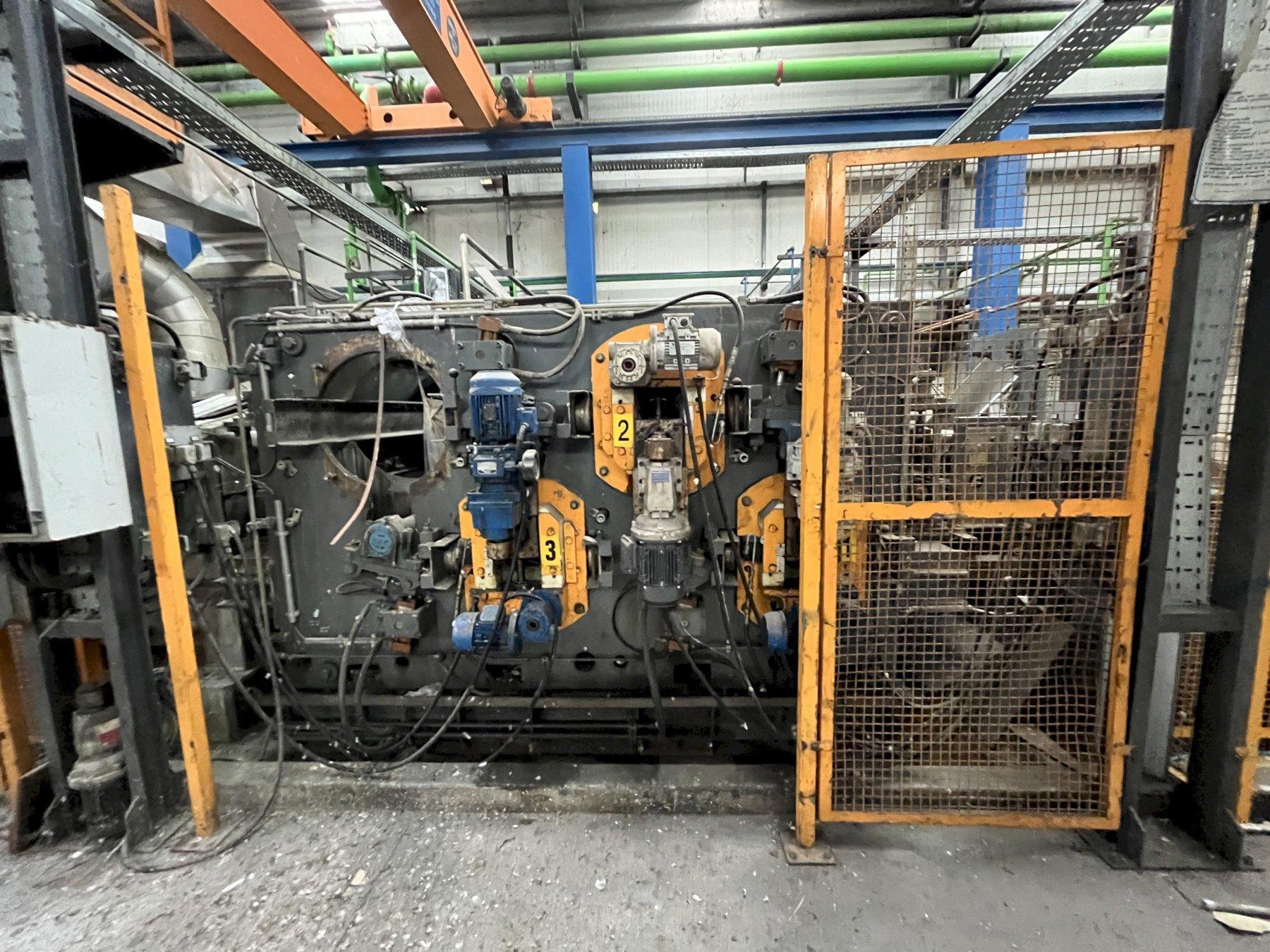

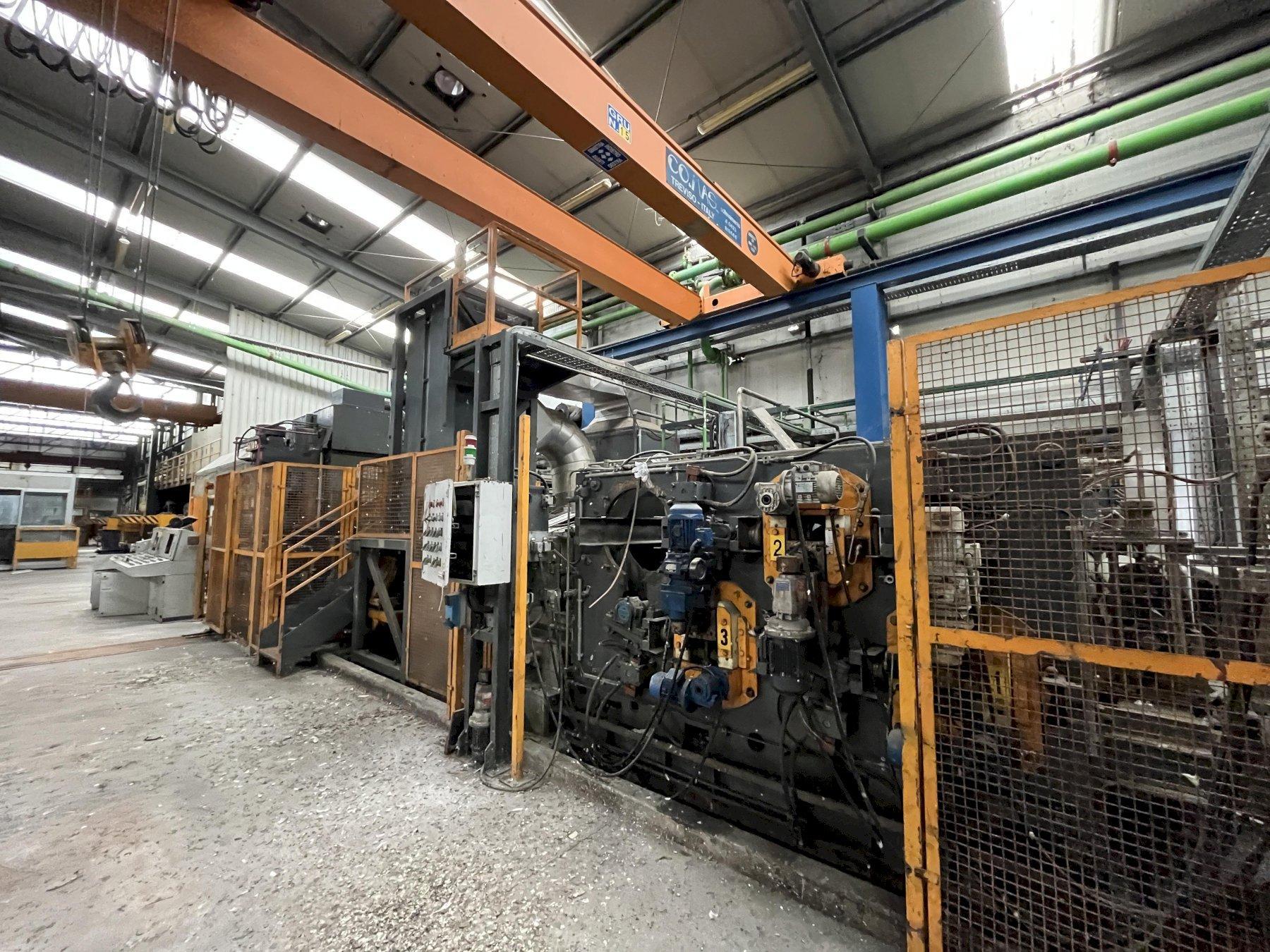

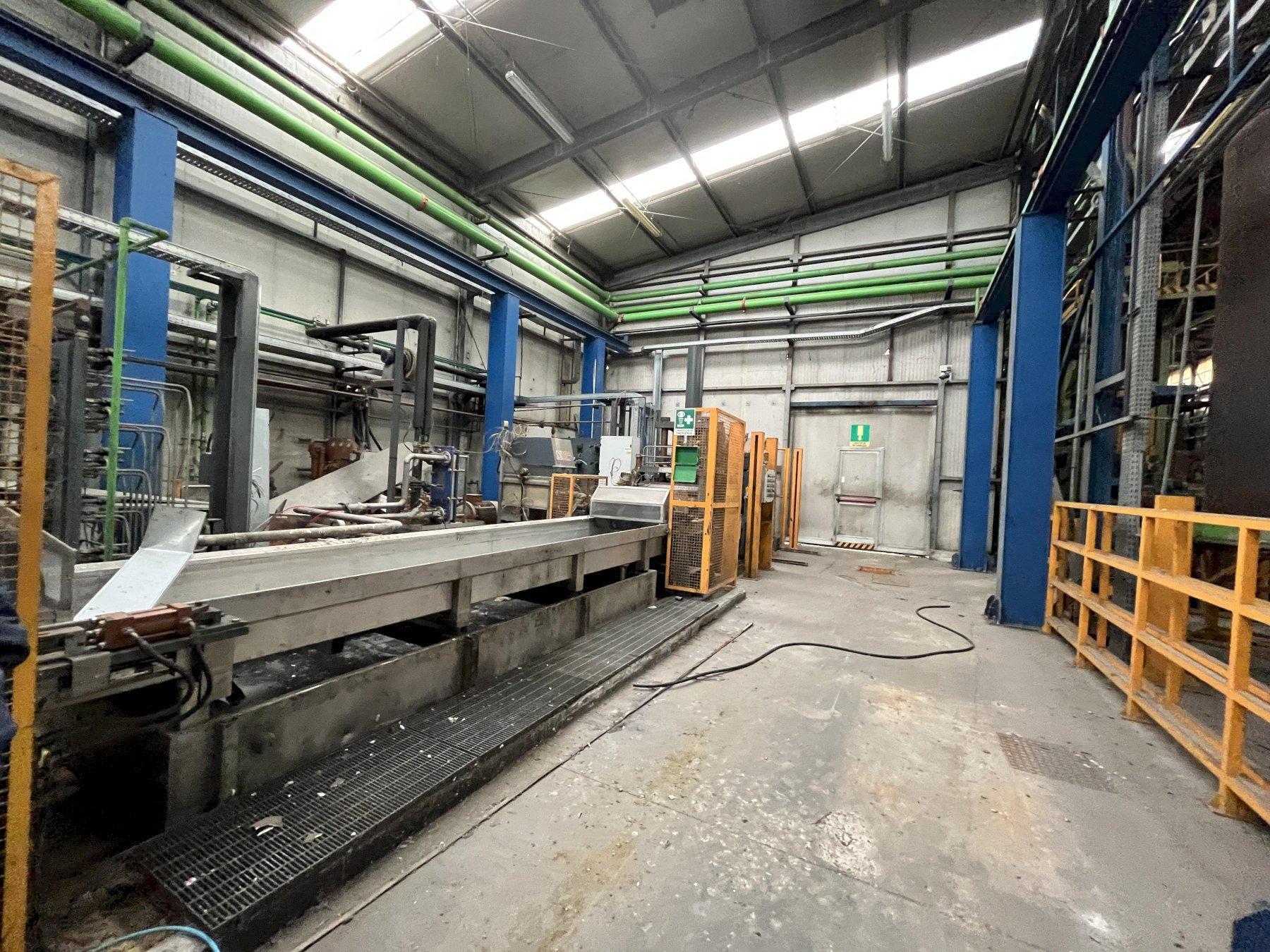

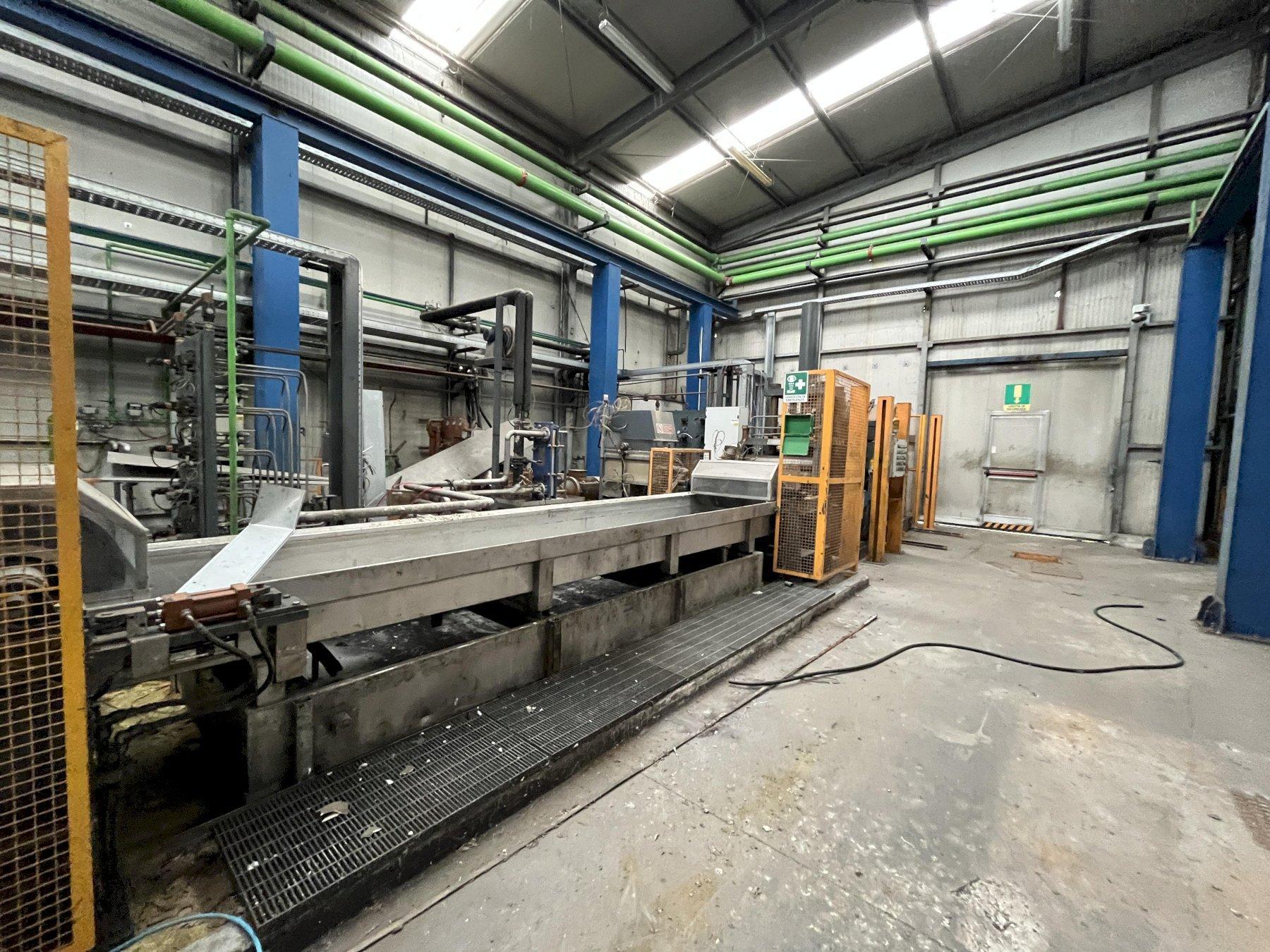

PICKLE TANK

FIFE EDGE CONTROL

Brushing and Cleaning Line

          4 Roll (1 Roll missing)

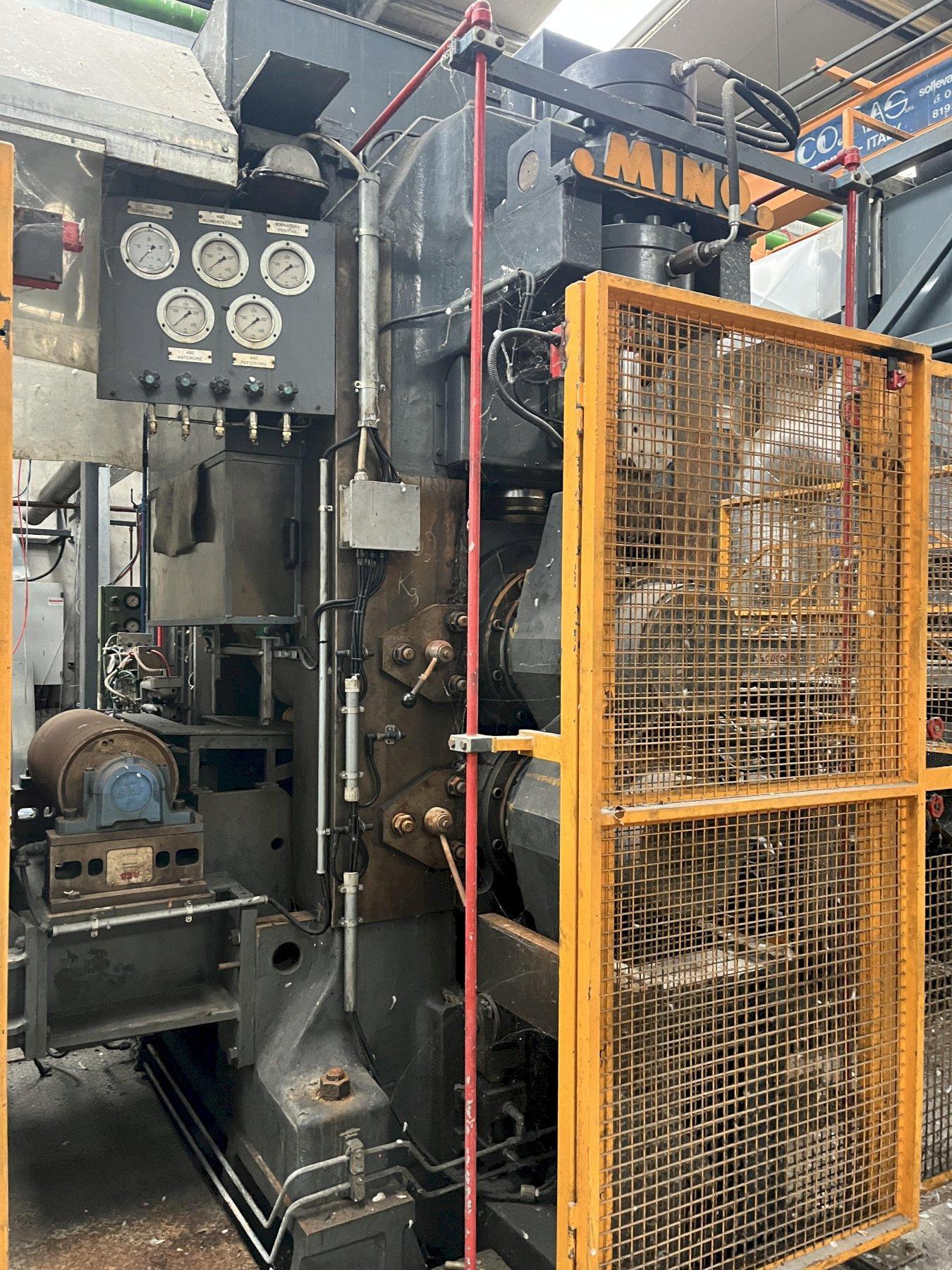

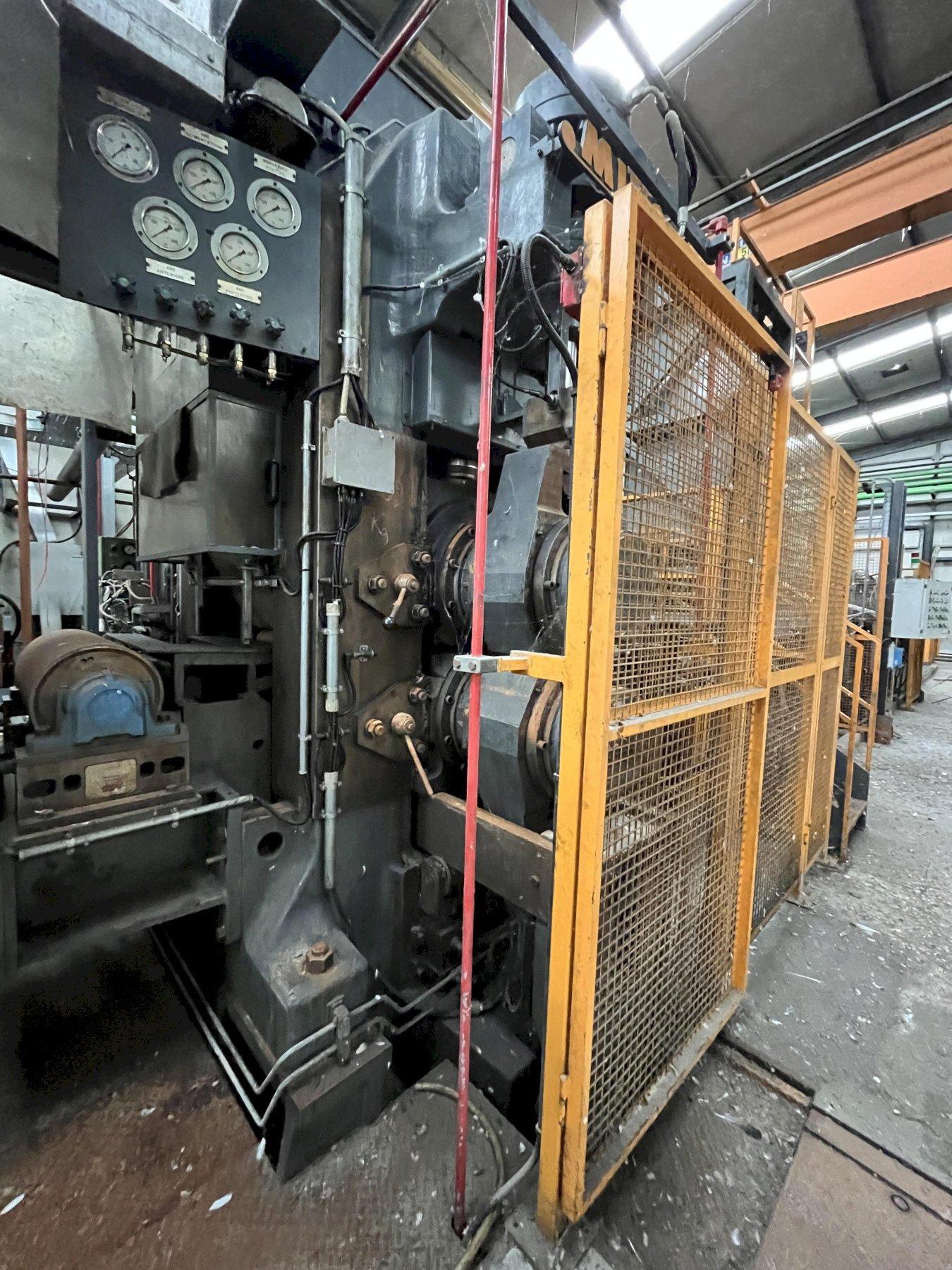

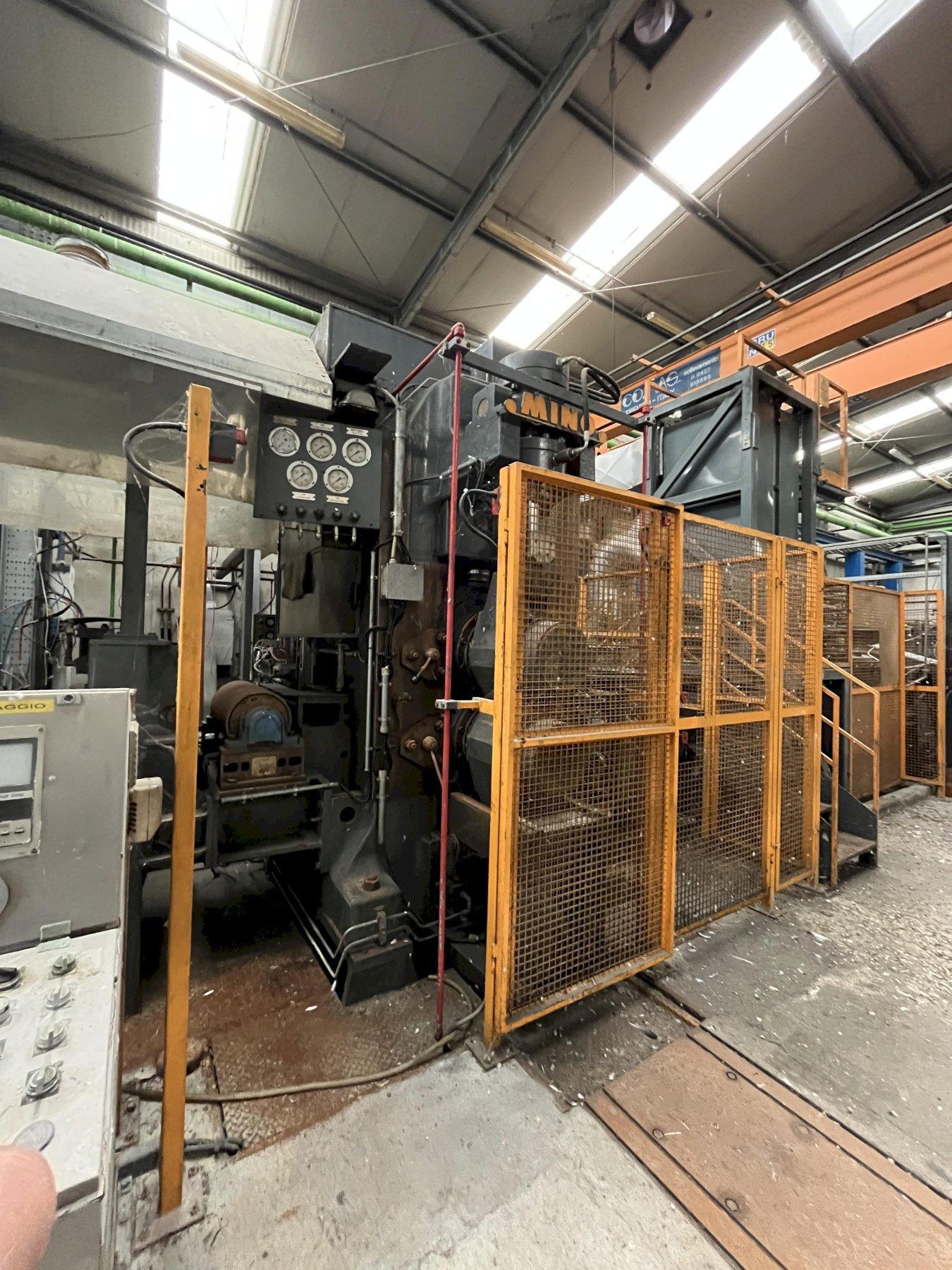

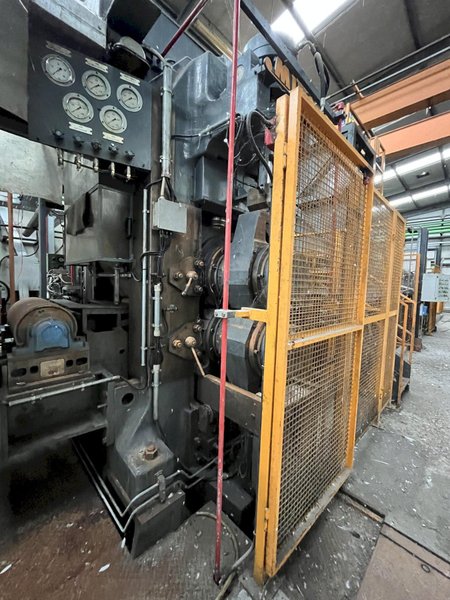

MINO 2HI Skin Pass Mill

          Hydraulic Screws

          Outboard Roll Bending

VOLLMER Exit Thickness Gauge

ABB Bridle Roll

PINCH ROLL

Crop shear, Hydraulic

RECOILER

          Mandrel Diameter…………508mm

                    With leaves…………610mm

          Push off plate

EXIT COIL CAR. “L” Shaped, Elevating
