72" x .060" - .500" carbon steel Thickness x 40 Ton Coils
Speed of line 200 and 400 FPM


Coil Weight: 20,000# - 80,000#
Coil OD: 42" - 80"
Coil ID: 20" with cone inserts, 24" - 36" mandrel
Coil ID exit 24"


Consisting of:

Coil Transfer Car

Double End Expanding Mandrel Uncoiler
2-75 HP DC Drag generators
peeler pinch roll combination
5 roll flattener
200 HP DC

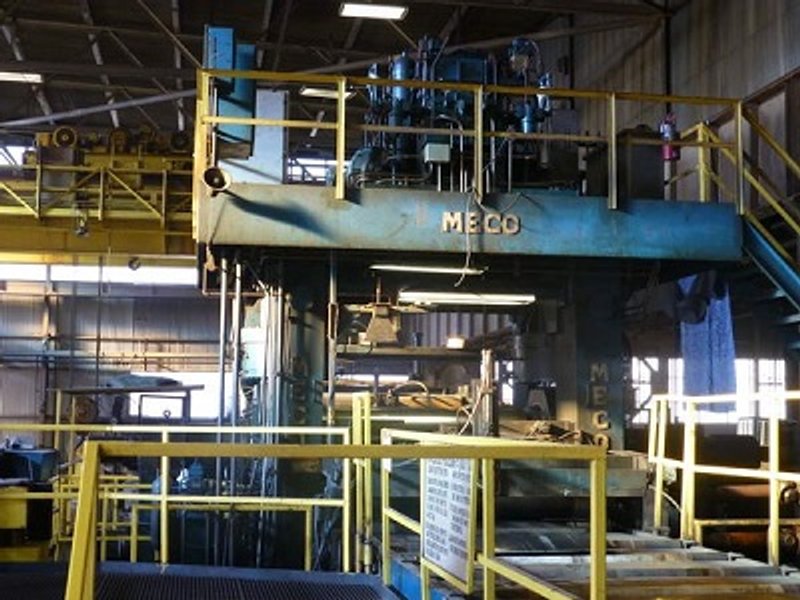

2 HI MECO Temper Mill included with Shape Correction/roll bending
80" x 38" diameter work rolls
Hydraulic screw downs
2 400 HP DC Motors

Recoiler and 400 HP DC drive for temper pass only processing



EXIT SECTION
Edge Trimmer, 125 HP DC
In Line Slitter Head, 150 HP DC
3 roll flex roll processor
Turret Recoiler with full hydraulic drum
250 HP DC motor
floor standing exit coil car
4 arm exit turnstile

OTHER COMPONENTS

80" Peabody Electrostatic Oiler


2 sets of complete chocks and rolls for the temper mill

approximately 3,000 square feet of dedicated spare parts
(Detailed list to be provided)


General Electric controls and drives on the pickling portion
