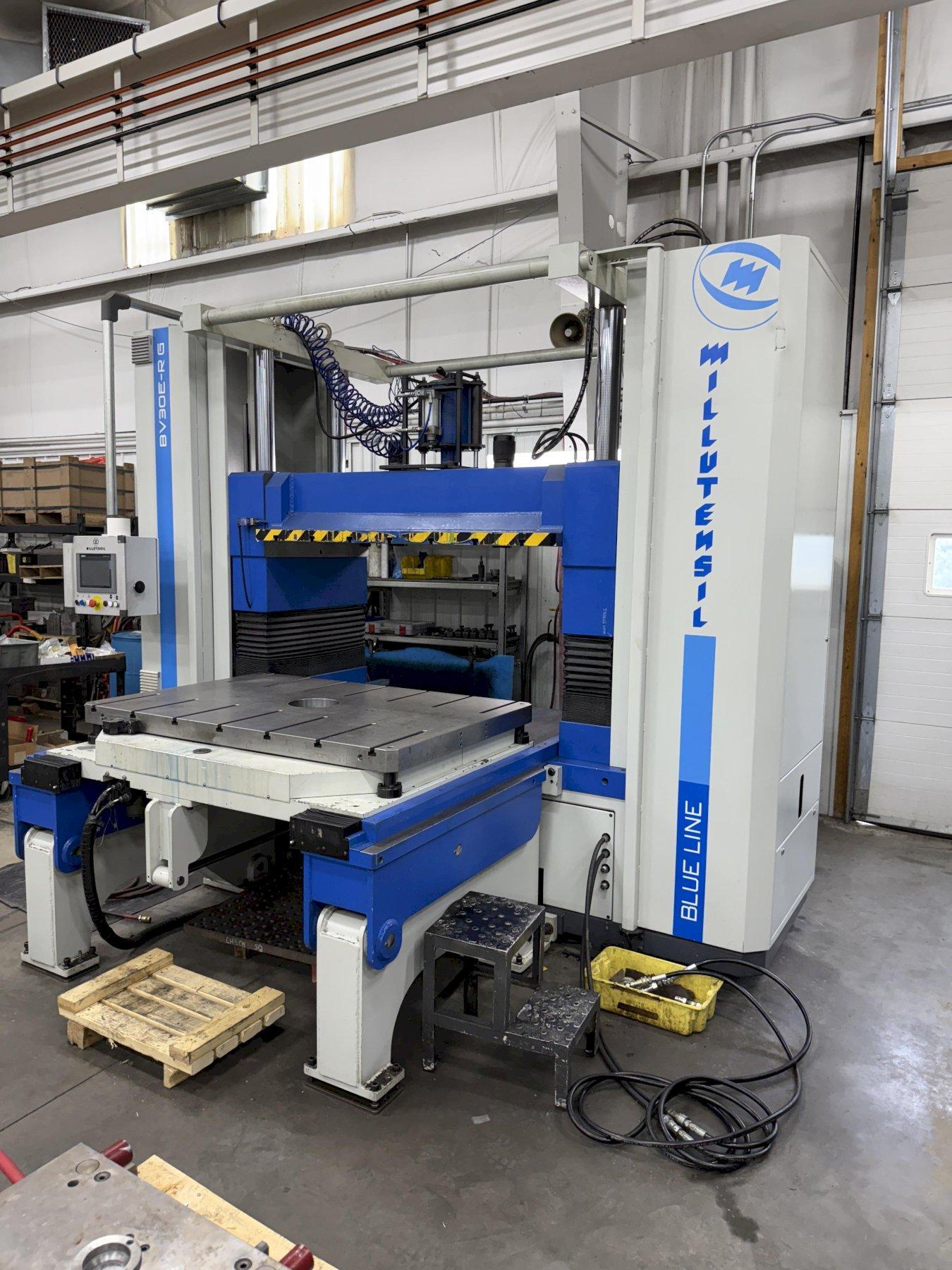

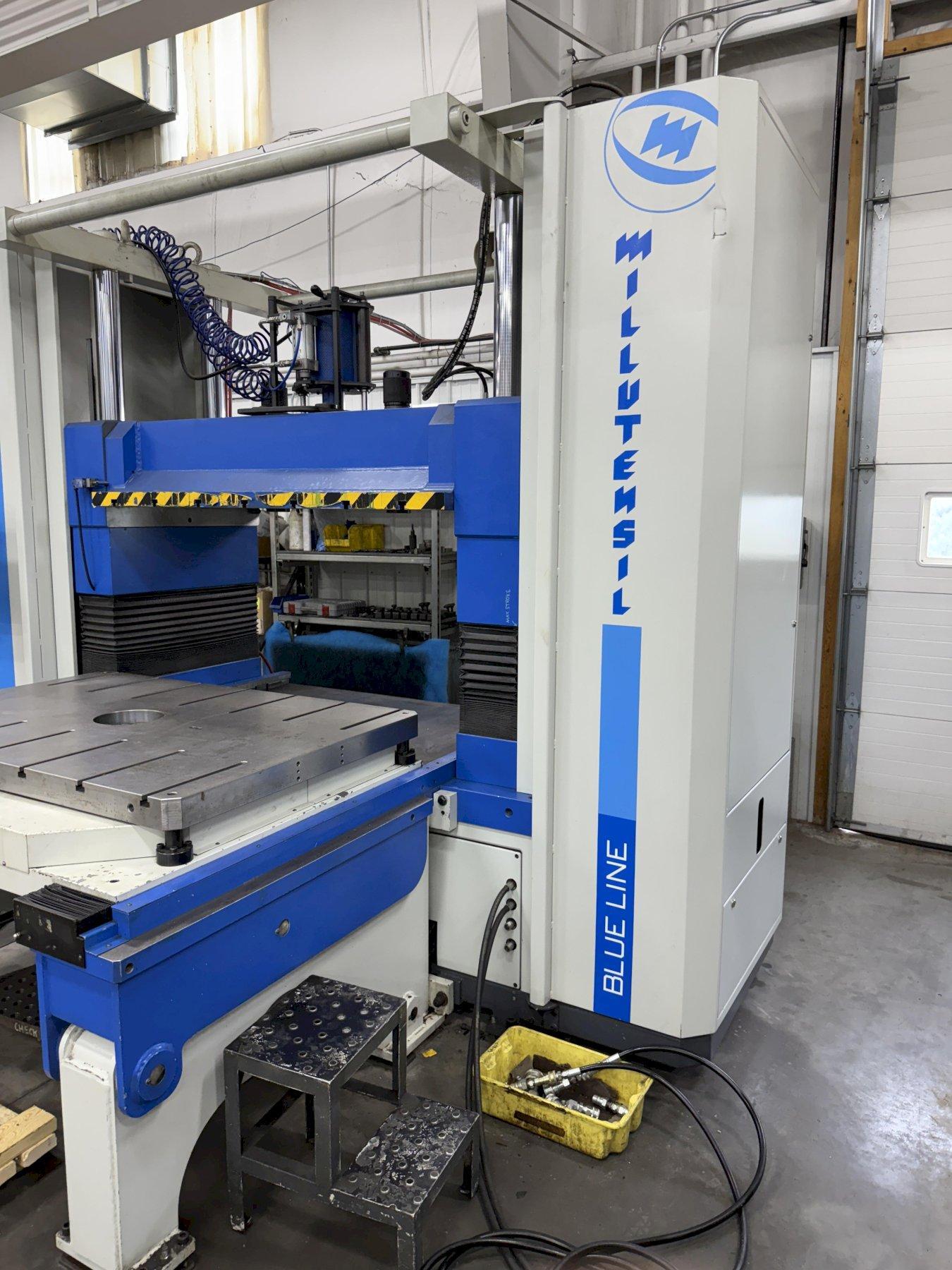

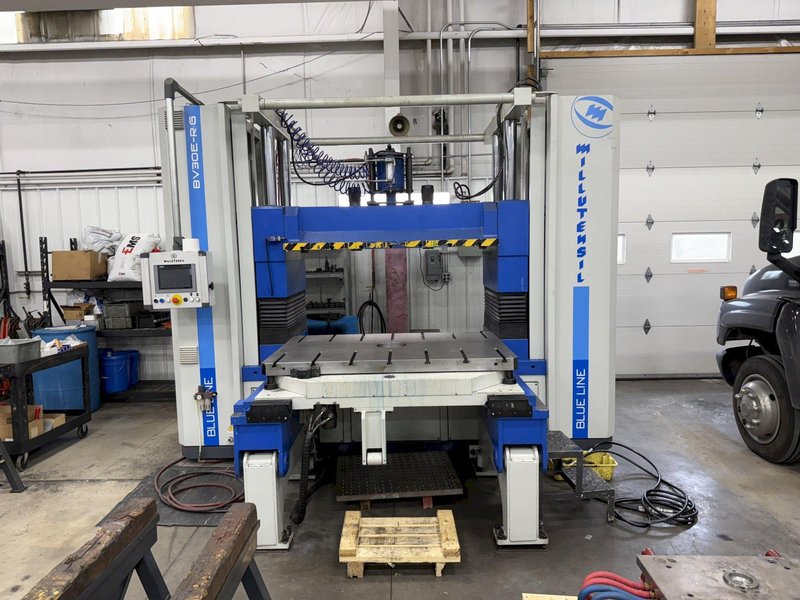

2014 Millutensil BV.30ERG Used CNC Die Spotting Press For Sale

2014 Millutensil BV.30ERG Used CNC Die Spotting Press For Sale

Name: 2014 Millutensil BV.30ERG Used CNC Die Spotting Press For Sale
Brand: MILLUTENSIL
SKU: kr63521
Availability: InStock

Brand

MILLUTENSIL

Location

Not specified

Specifications
Files & Videos

CNC Control	yes

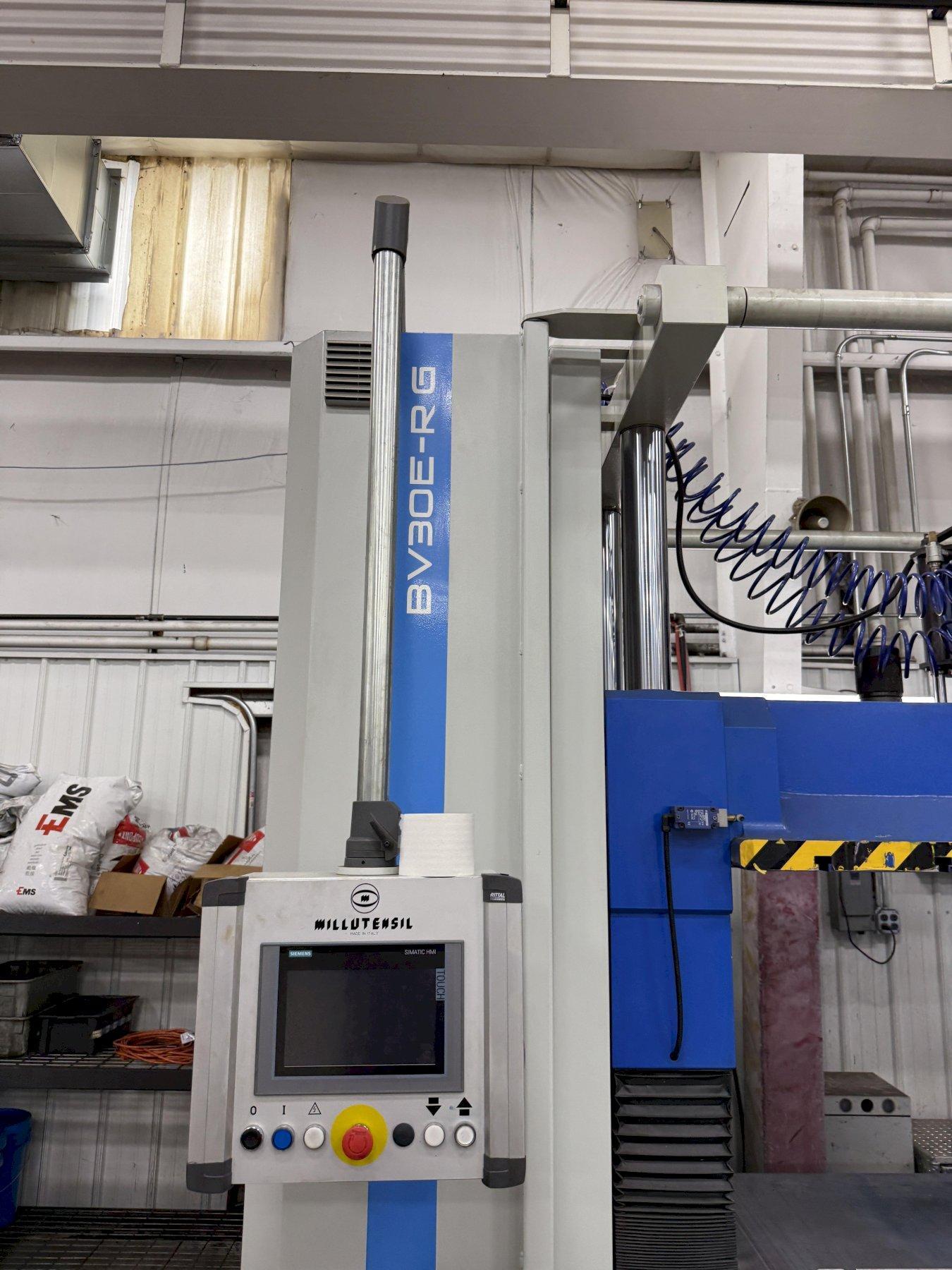

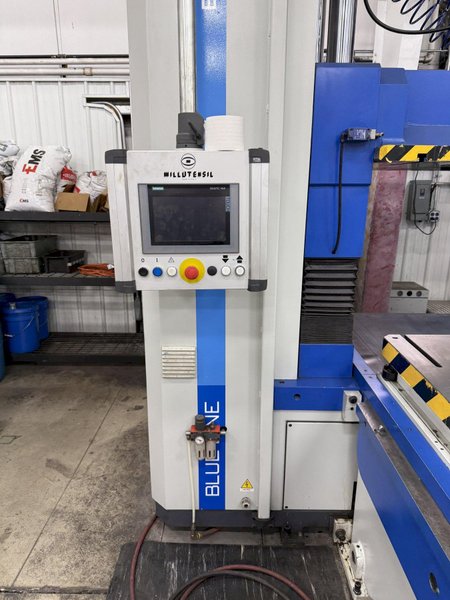

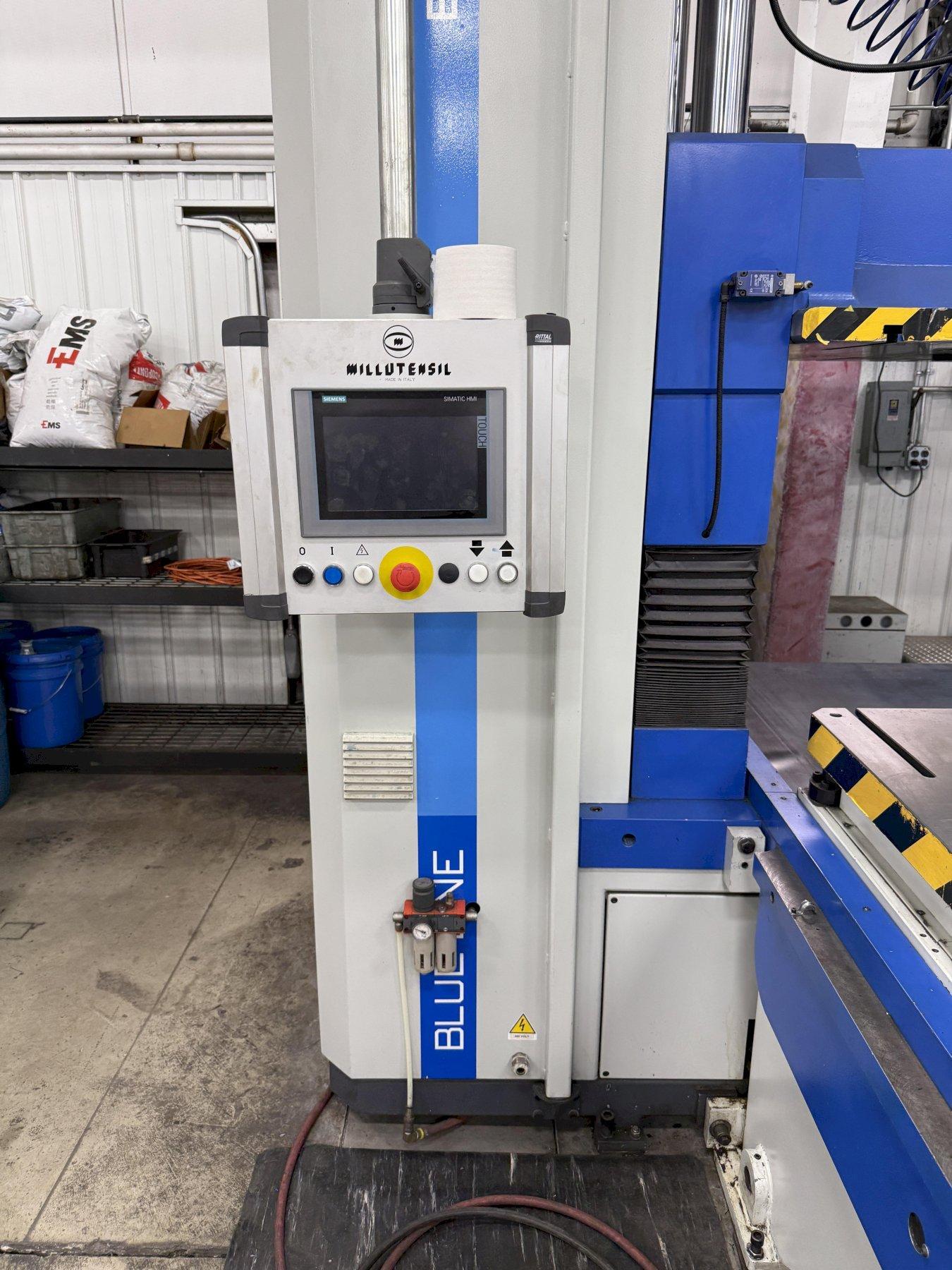

Type Of CNC Control	Siemens SMATIC HMI
Size Of Plates	59" x 39.37"
Distance Between Columns	63.38 inches
Max Clamping Force	500 kN
Max Opening Force	300 kN
Vertical Stroke	29.53 inches
Main Motor	7.5 hp
Max Load On Upper Plate For 360° Rotation	5511 pounds

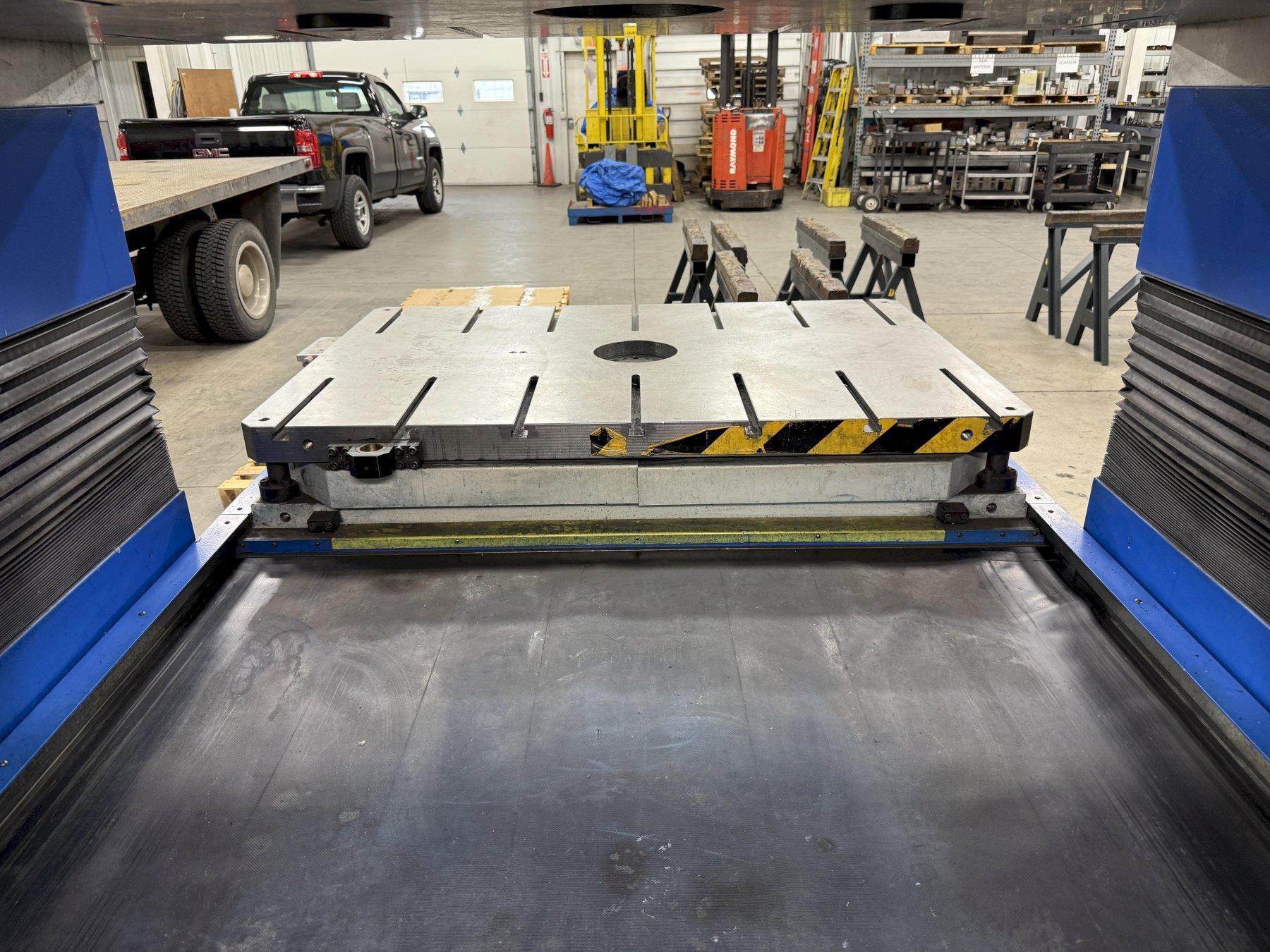

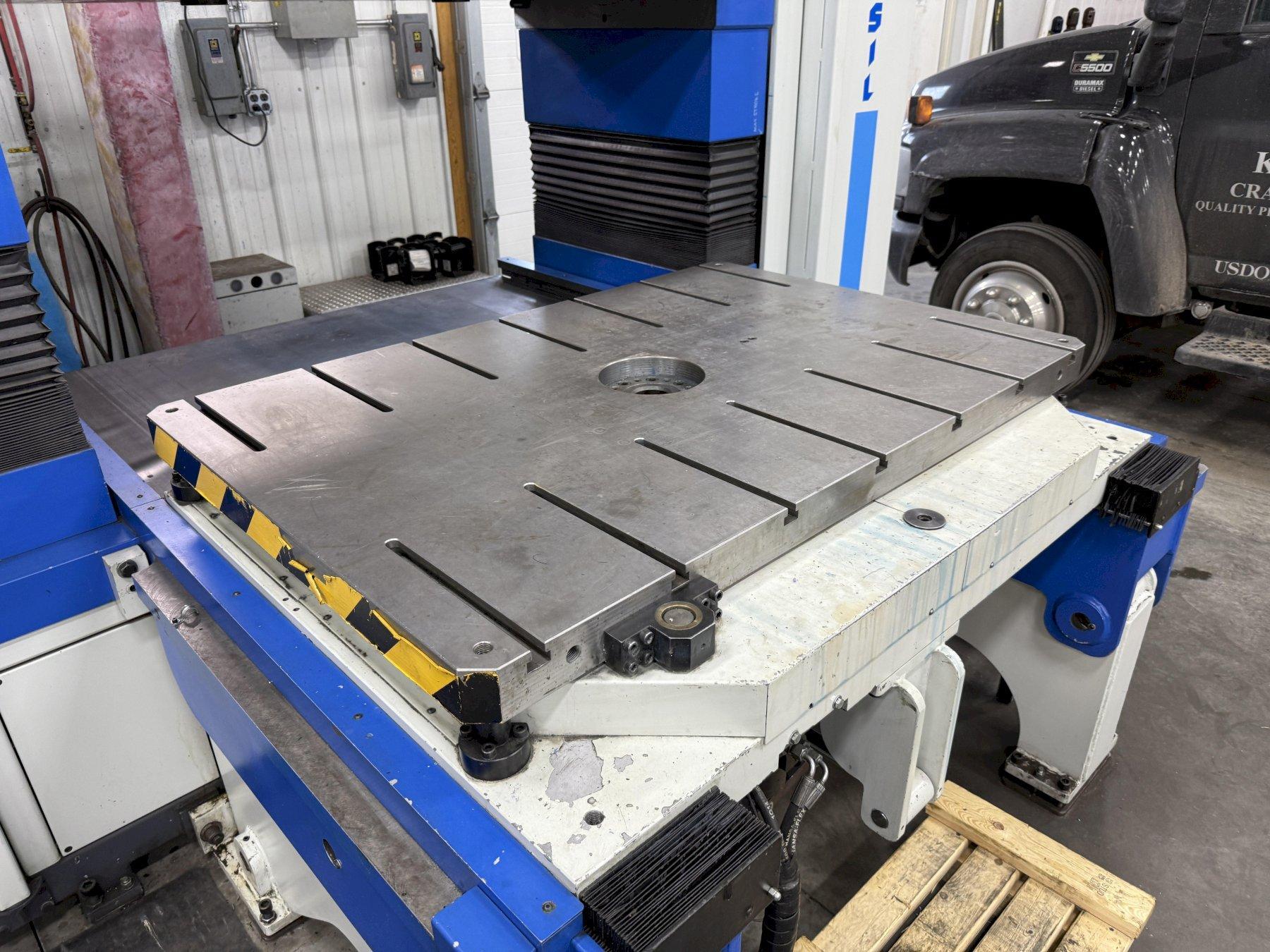

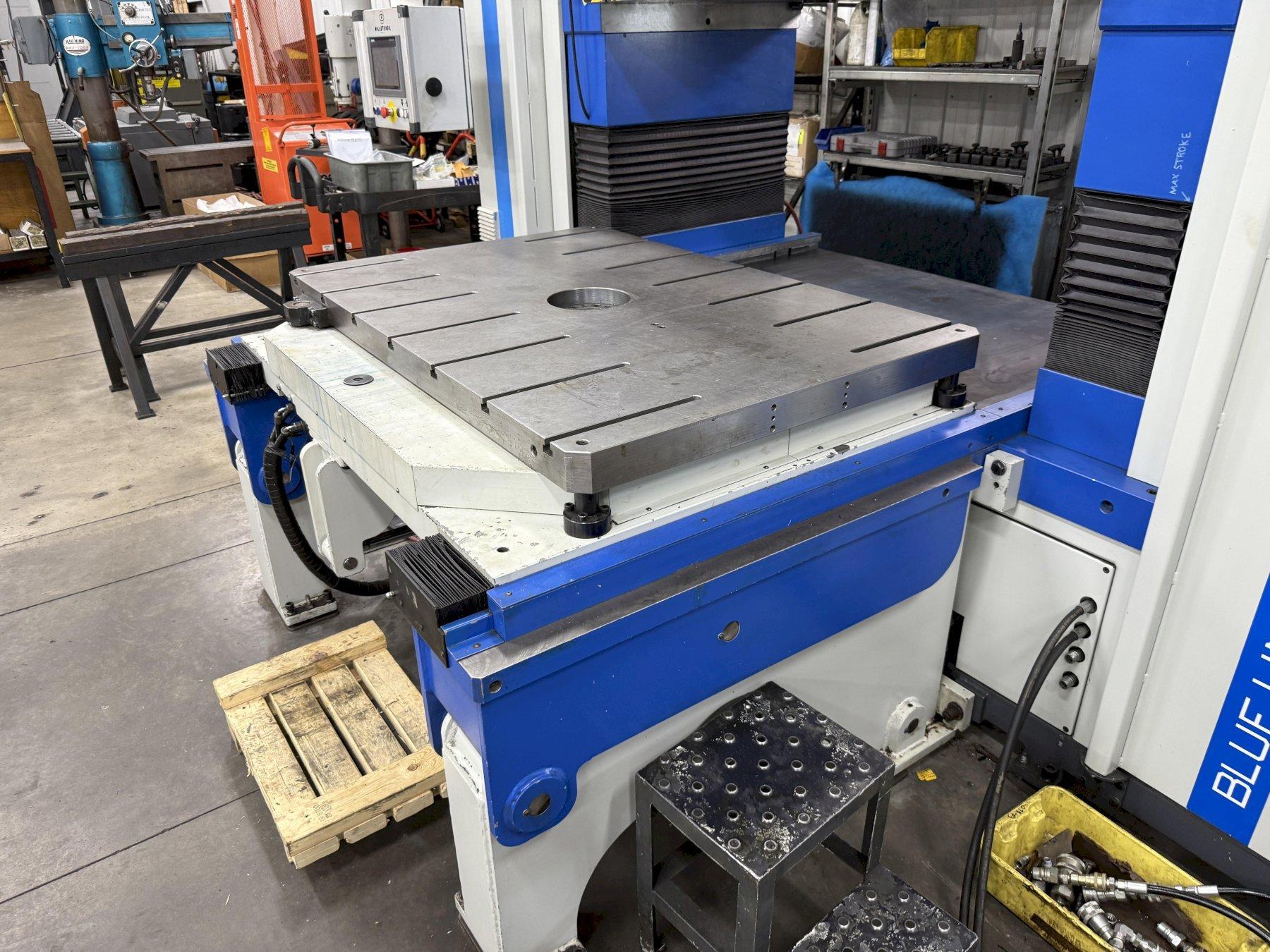

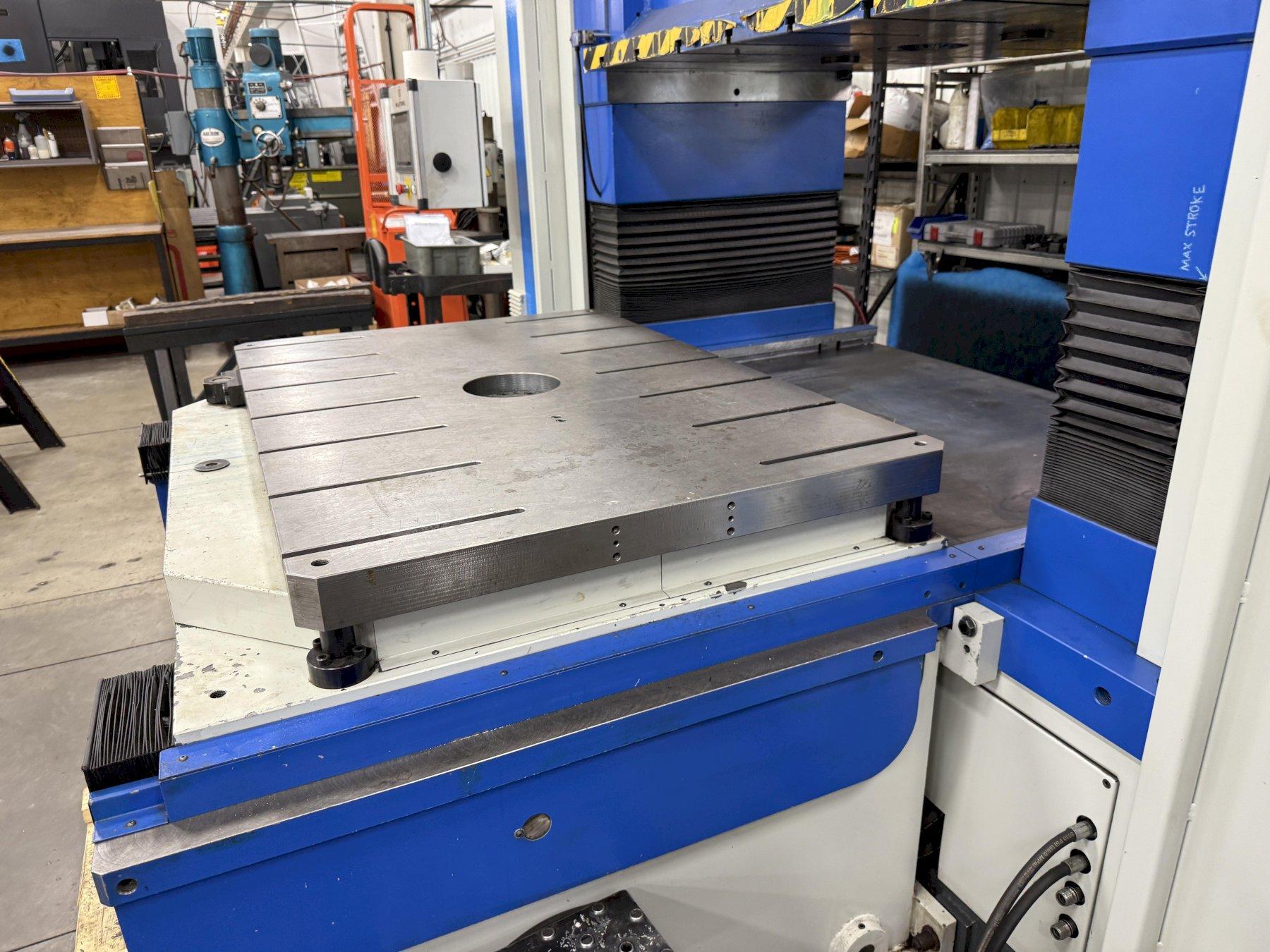

Max Load Capacity For Rotating Plate 0-180°	11023 pounds
Dimensions	134" x 107" 105"
Weight	24700 pounds

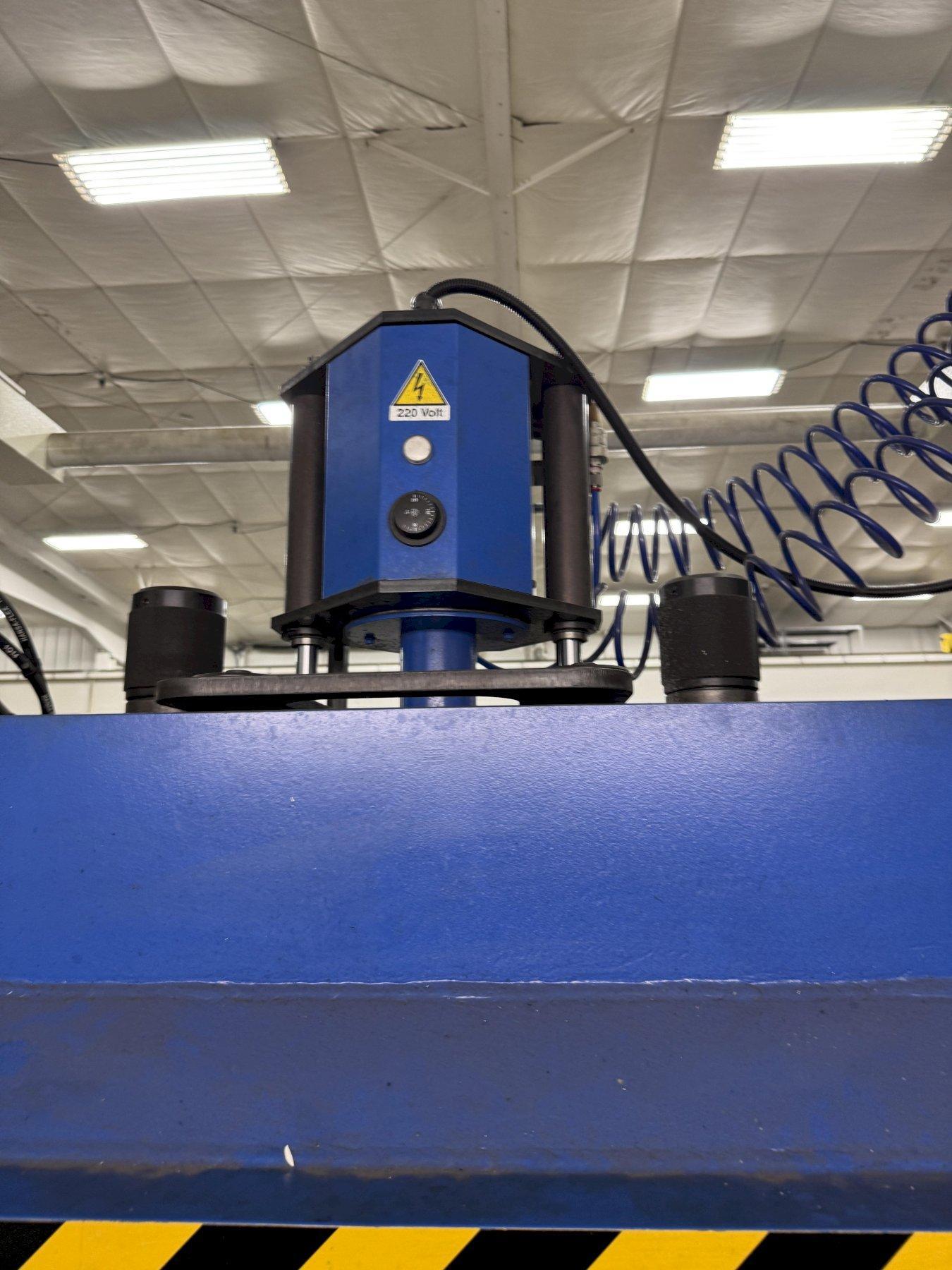

- Hydraulic Ejector Pin The ejection unit initiates the movement of the ejection pins die and molds for plastic materials or die casting. - Hydraulic Auxiliary Cylinder Controls 2+2 Connection The trial on slide’ and hydraulic cylinders’ movement is wholly integrated in the press. Through the touch panel it is possible to manage up to Max. 2 pairs of hydraulic cylinders (2 inputs and 2 outputs), either individually or synchronously. The operating pressure is variable, and it is always set on the touch panel. The hydraulic line connection is made using quick couplers and flexible hoses. - Single Shot Energy Accumulators This operation sets up dies and molds for plastic materials, rubber and die casting. It is a hydraulic device that that is be fixed to the press’s upper plate. It functions to strike a shot on the closed mold, in order to better gauge the adjustment between the two mold halves (matrix and punch). The dynamic action of this device is independent from the press clamping movement. As a result, the dynamic action of the energy accumulator will be coupled with the press clamping force. - Electronic Upper Plate Parallelism Anti-Unbalance Safety Device The control system includes 2 electronic measurement devices (heidenhain optical rulers) which continuously check the press upper plate position & parallelism compared to the lower plate, and which are located on the sides outside the upper plate, where columns are. - Wax Injection Unit This function allows you to check the workpiece dimensions and the formation of burrs, to check the mold sealing to avoid the use of a production machine for spotting, to manufacture a visual sample for customers to provide a quality assurance as well as to check for the correct mold dynamic - Extensible Lower Plate This system guarantees high repeatability accuracy equal to =/- 0.04mm It allows you to take the mold lower part (extensible, driven by the hydraulic cylinders) to a comfortable position for the work outside the press - 360° Rotating Press Upper Plate For optimal access to the mold, the press upper plate can be rotated forward by 360° This means an advantageous working position maximizing working safety
