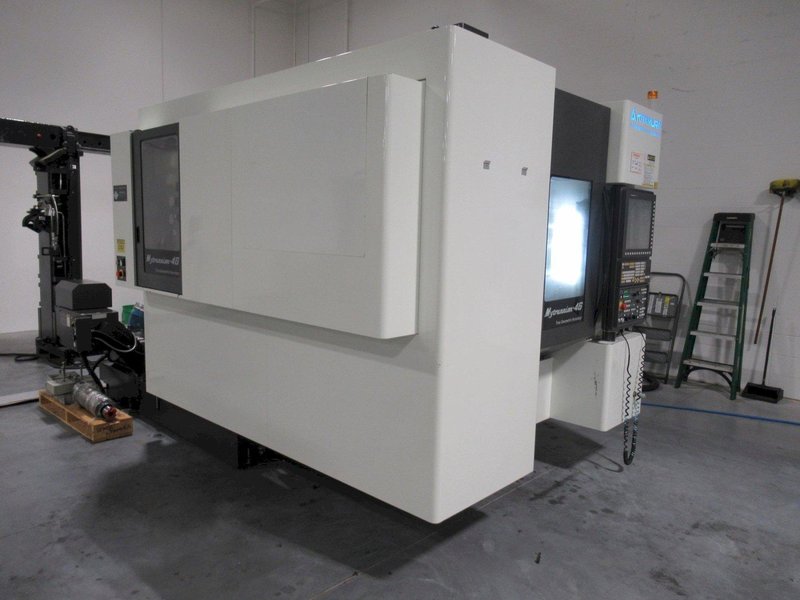

Kitamura Mytrunnion 4G 5-Axis Vertical Machining Center, 15K RPM, 60 ATC, Probing, Thru Spindle Coolant, NEW 2016

Kitamura Mytrunnion 4G 5-Axis Vertical Machining Center, 15K RPM, 60 ATC, Probing, Thru Spindle Coolant, NEW 2016

Name: Kitamura Mytrunnion 4G 5-Axis Vertical Machining Center, 15K RPM, 60 ATC, Probing, Thru Spindle Coolant, NEW 2016
Brand: KITAMURA
SKU: 7367
Availability: InStock

Brand

KITAMURA

Location

Not specified

Specifications
Files & Videos

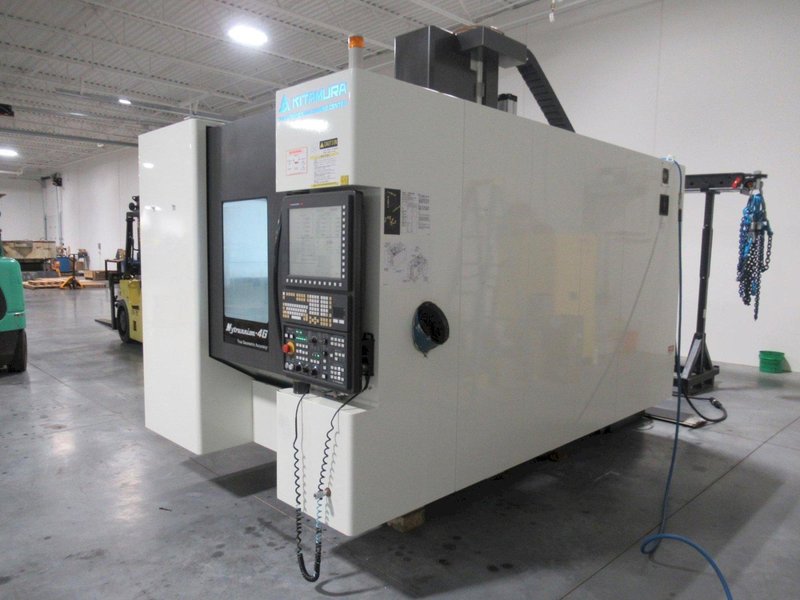

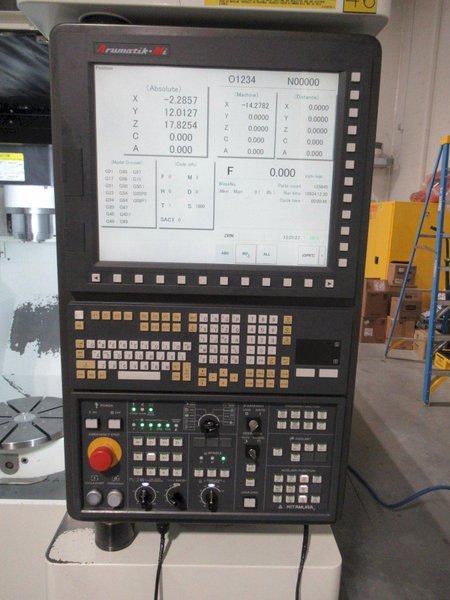

Control: Arumatik Mi Control

Machine Travels X/Y/Z: X-Axis - 24.02", Y-Axis-24.02", Z-Axis - 19.68", A-Axis 150°, C-Axis - 360°

Rapid Traverse X/Y/Z: (X&Y)-1968 IPM Z-984 IPM (A&C)-18,000 Deg/Min

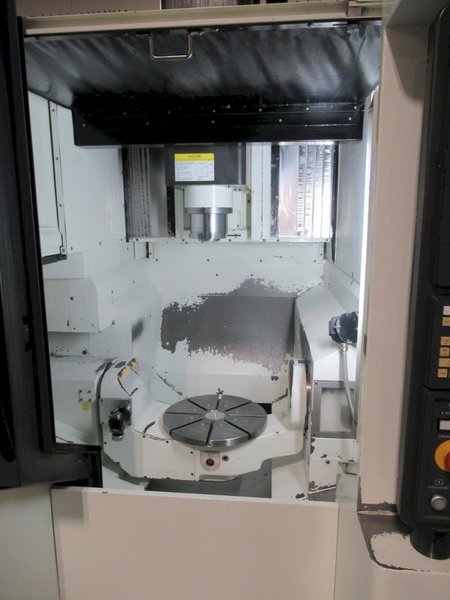

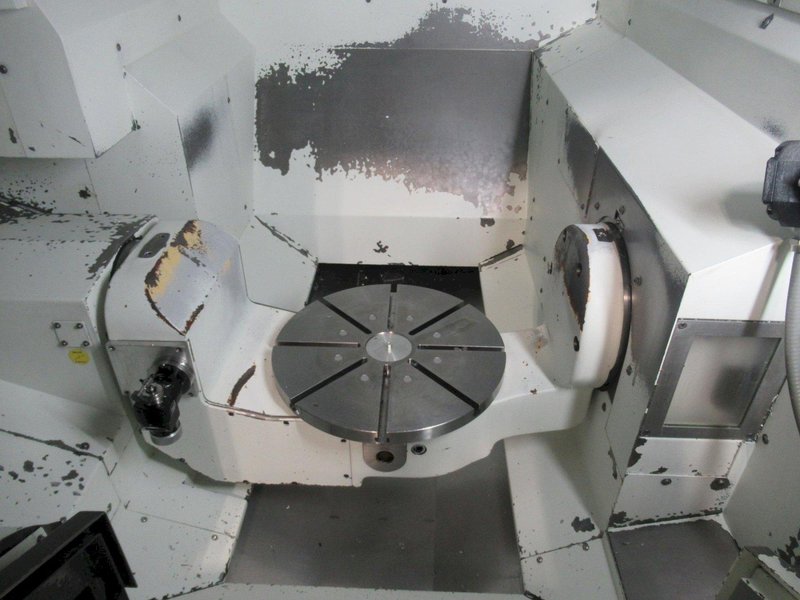

5-Axis Table Style: Trunnion

Table Size: 400mm

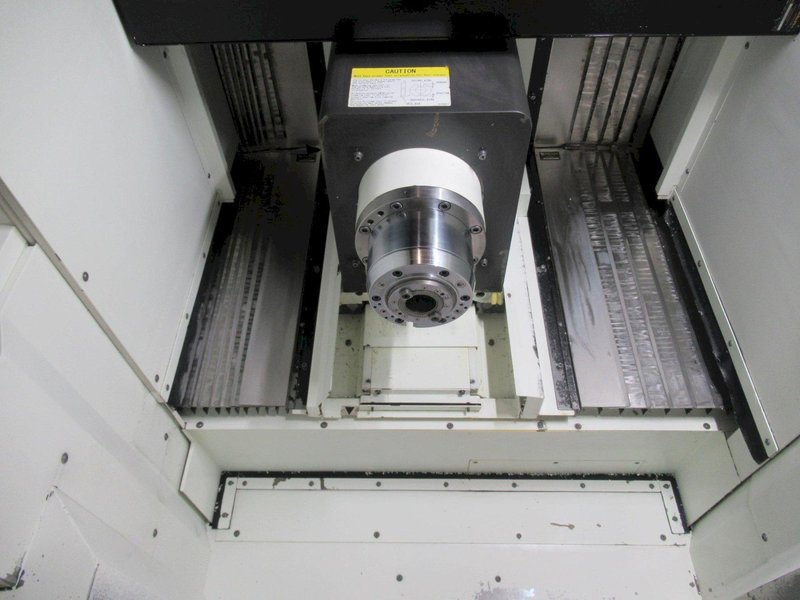

Spindle Taper: CT40

Spindle Speeds: 40-15,000 RPM

Spindle Drive: AC 15 KW

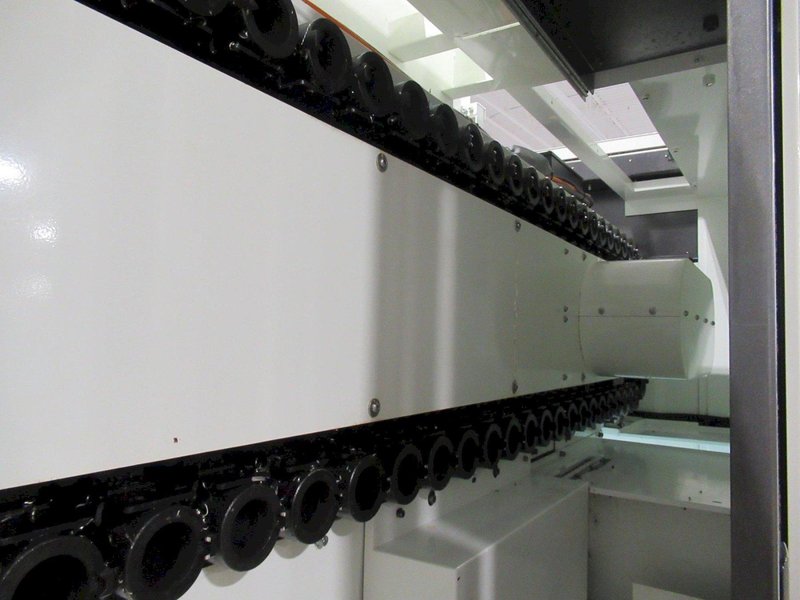

Tool Changer Capacity: 60 Tools

Tool Change Time: 2.2 Sec

Table Indexing: A,C Axis .001°

Table Capacity: 441 lbs

Distance from Table Surface to Spindle Nose A=0°: 5.91' - 25.6'

Description:

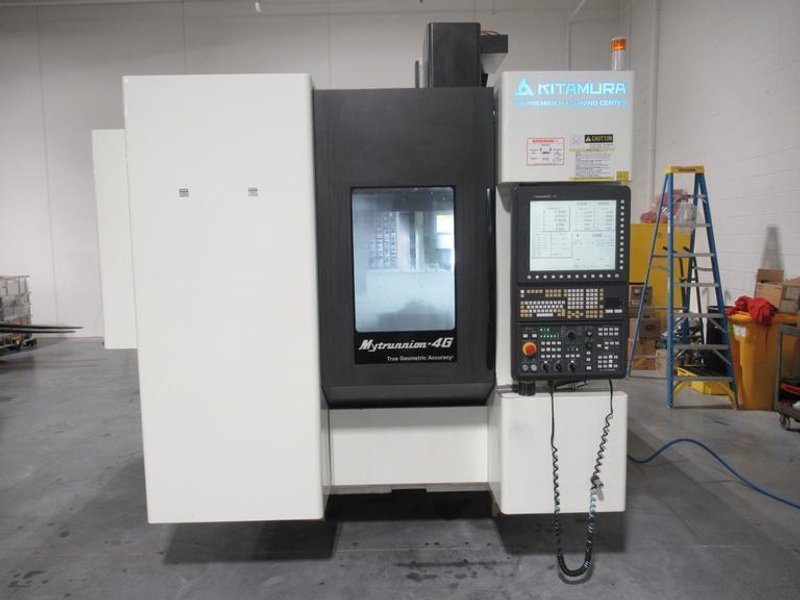

The Kitamura Mytrunnion-4G CNC Machining Center is a compact yet powerful full 5-axis machining center engineered for precision manufacturing of complex components. Designed with Kitamura’s renowned rigid construction and accuracy-focused engineering, the Mytrunnion-4G delivers simultaneous 5-axis machining capabilities for aerospace, medical, mold, die, and high-performance production environments. Built with a high-speed spindle, integrated trunnion table, and advanced CNC controls, the Mytrunnion-4G excels in tight-tolerance applications requiring superior surface finishes and reduced setup time. Its compact footprint makes it ideal for shops looking to expand 5-axis capacity without sacrificing valuable floor space.

Equipped With:

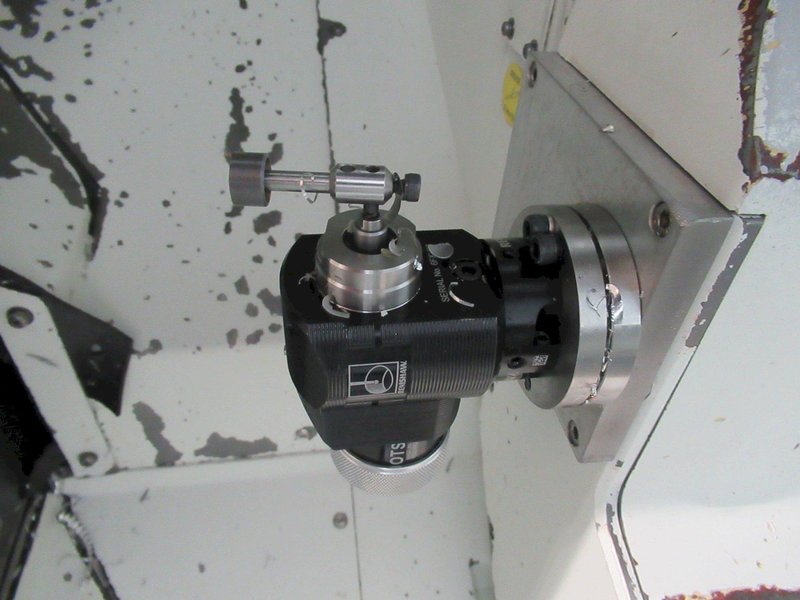

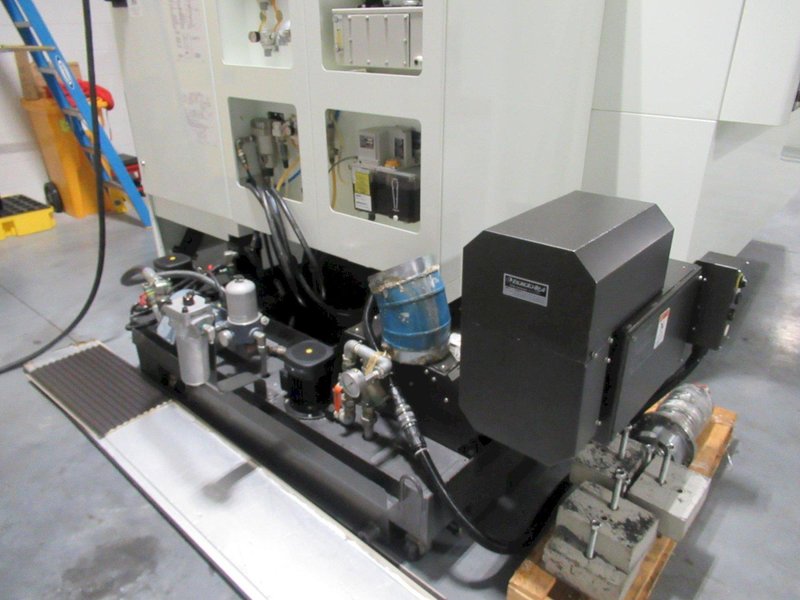

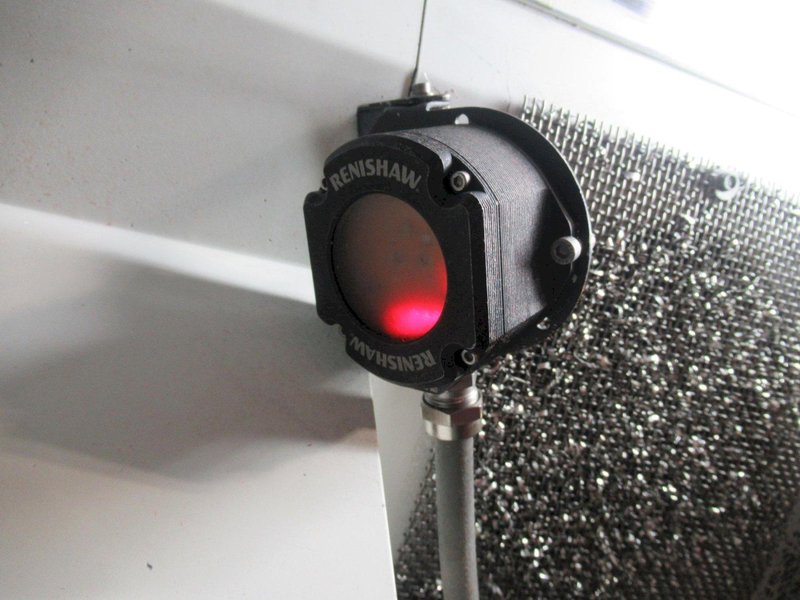

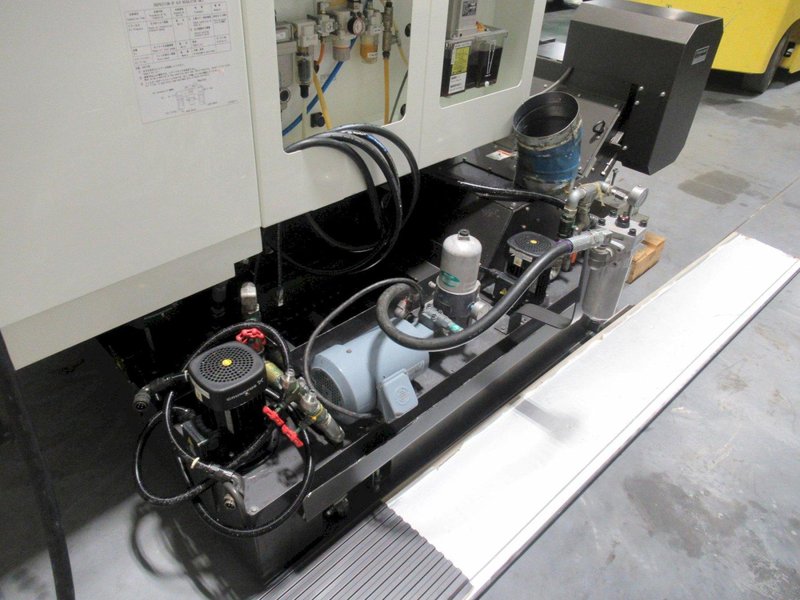

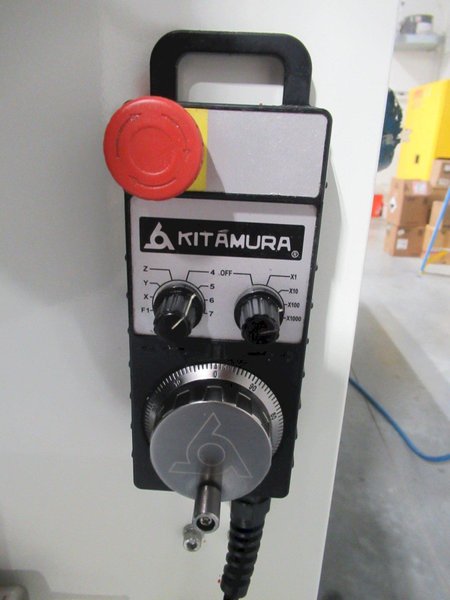

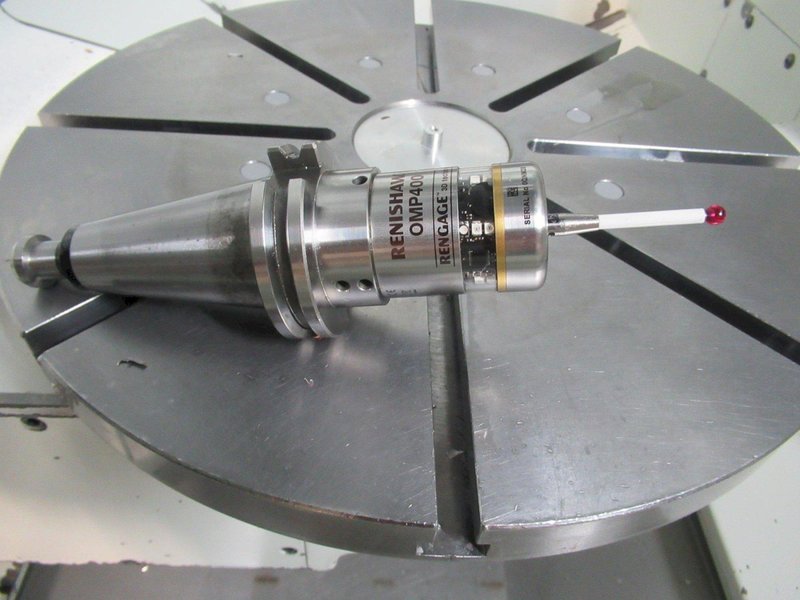

Arumatik-Mi CNC Control (Mitsubishi), 15,000 RPM Max Spindle Speed, Remote Jog Handle, 60 Station Automatic Tool Changer, Renishaw Tool and Parts Probes, Chip Conveyor, Built-In Daikin Chiller, Thru Spindle Coolant and Coolant System, Second Spindle, Machine Manuals, Keys, Manuals, Parameters

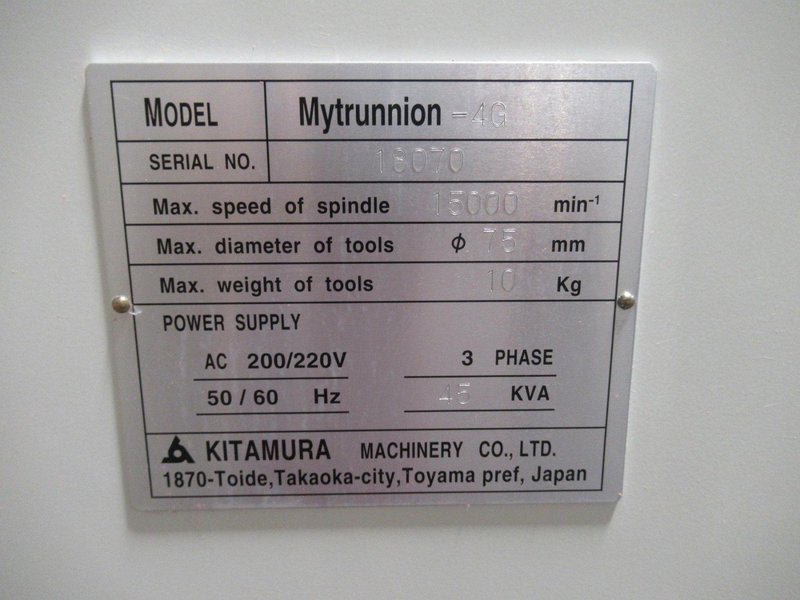

Electrics:

200/220 Volt 3 Phase
