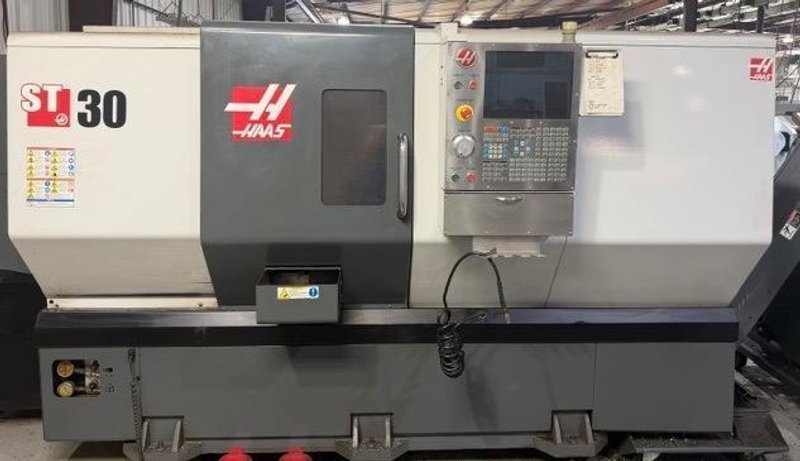

Haas ST-30 CNC Lathe, 2012 – Tailstock, Conveyor
Brand
Category
Type
Model
ST-30
Stock #
716690
Year
2012
Condition
Not specified
Location
Not specified
|
Chuck Size: 10″
Bar Capacity: 3.0″
Swing Over Bed: 31.7″
Swing Over Cross Slide: 20.8″
Maximum Turning Diameter: 26″
Maximum Cutting Length / Distance Between Centers: 30″
Spindle Bore: 3.5″
Spindle Nose: A2‑6
Spindle Speed: 0–3400 RPM
Main Motor Power: 30 HP vector drive

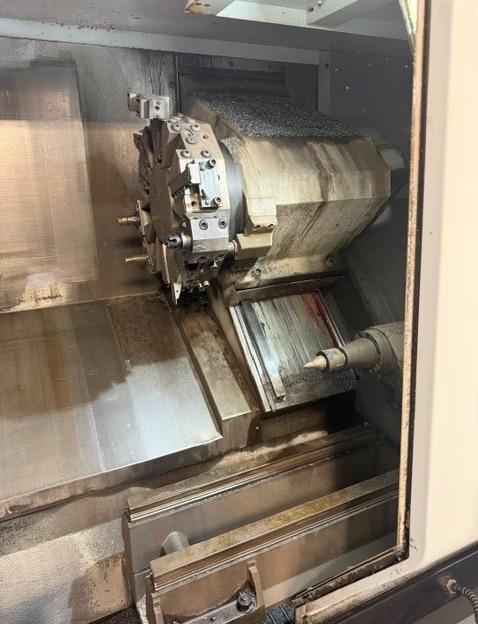

Turret: 12‑station
X‑Axis Travel: 12.5″
Z‑Axis Travel: 30″
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Haas CNC Control Tailstock Chip Conveyor *Tool Presetter (Eye needs to be calibrated) All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
