USED HAAS 21" X 32.5" CNC LATHE MODEL ST-30 WITH HAAS V2 BARFEEDER

USED HAAS 21" X 32.5" CNC LATHE MODEL ST-30 WITH HAAS V2 BARFEEDER

Name: USED HAAS 21" X 32.5" CNC LATHE MODEL ST-30 WITH HAAS V2 BARFEEDER
Brand: HAAS
SKU: 11277
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Lathes, CNC

Manufacturer:

HAAS

Model:

ST-30

Year:

2025

Stock #:

11277

Status:

For Sale

Description

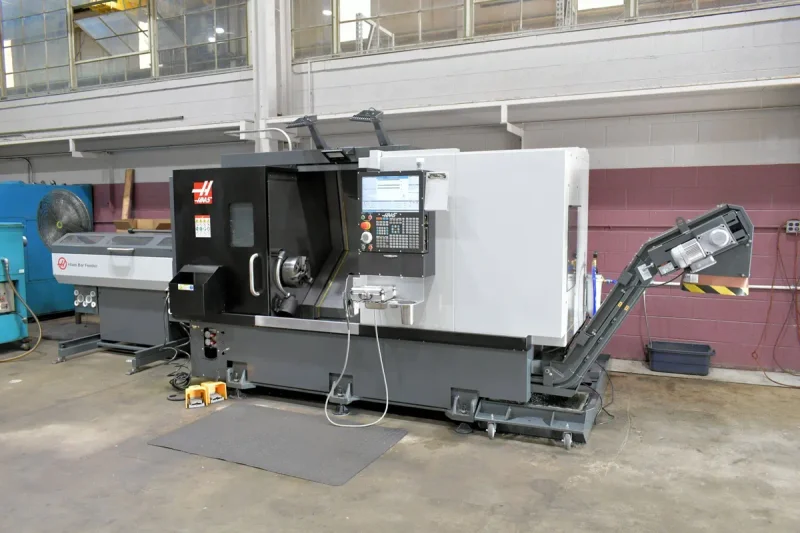

Used Haas ST-30 CNC Lathe, 21" swing, 32.5" machining length, 10" chuck, 3" bar capacity. Equipped with Haas V2 barfeeder, hydraulic tailstock, and chip conveyor. Features include rigid tapping and 24V lighting.

ImperialMetric

Swing	21"	533.4 mm
Machining Length	32.5"	825.5 mm
Chuck Size	10"	254 mm
Bar Capacity	3"	76.2 mm
Power	30 hp	22.4 kW
Max RPM	3,400 RPM	3,400 RPM
Turning Dia	21"	533.4 mm
Tailstock	Yes	Yes
Live Tooling	No	No
Sub Spindle	No	No

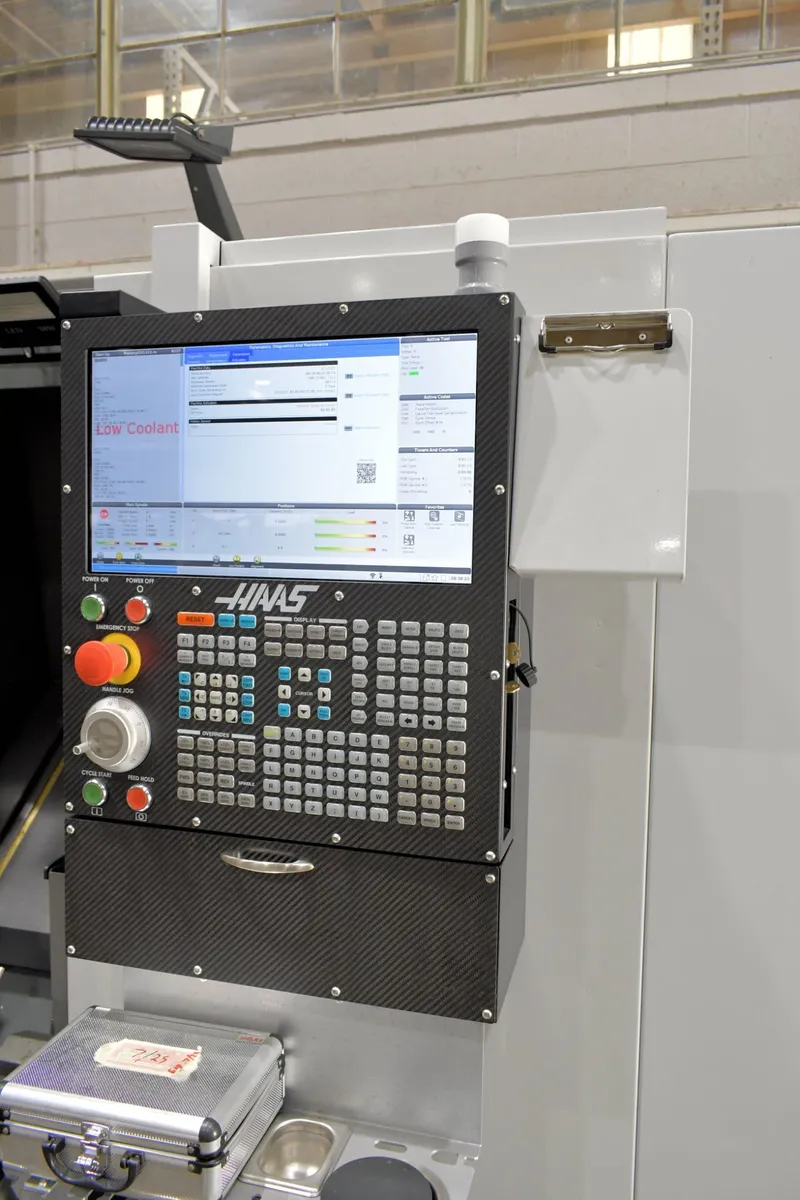

Control	CNC (Haas)	CNC (Haas)
Dimensions	171" x 90" x 98"	171" x 90" x 98"
Weight	10,900 Lbs.	10,900 Lbs.

Brand: Haas
Model: ST-30

Specifications:

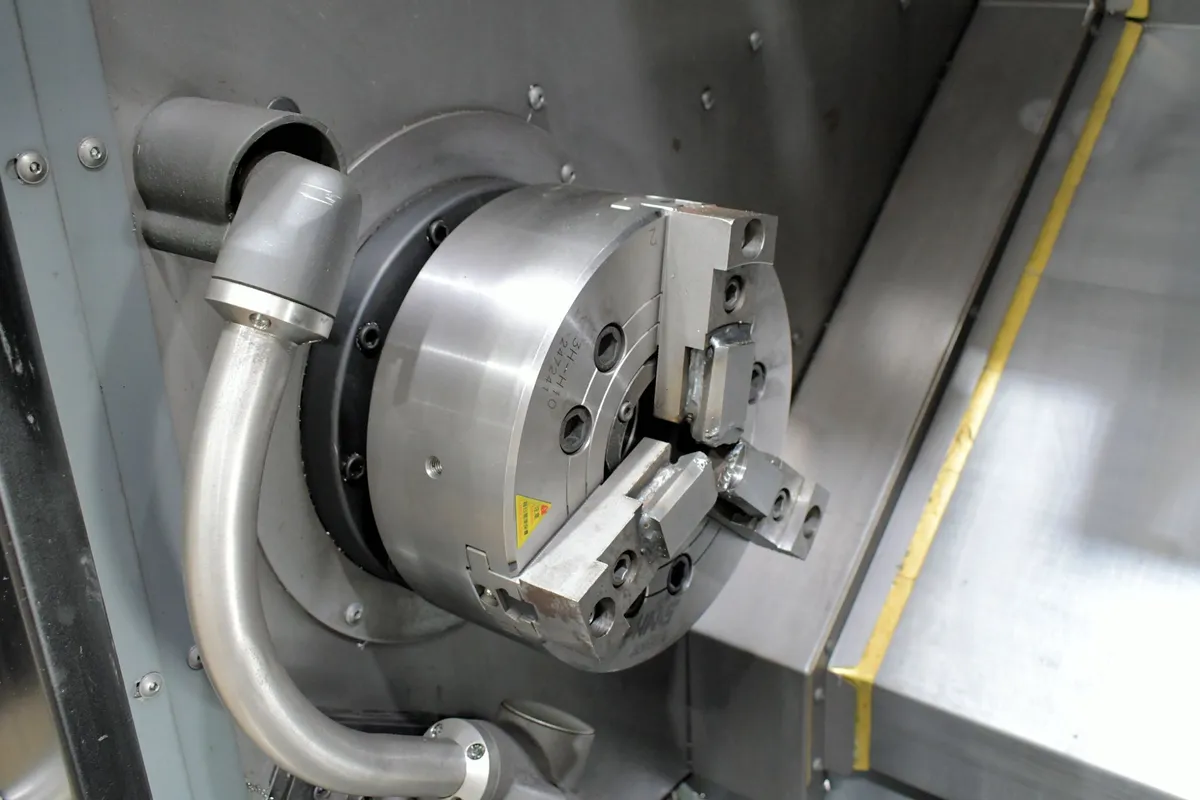

Chuck size: 10" hydraulic
Max. part swing: 21"
Max. cutting diameter: 15"
Max. cutting length: 32.5" (varies with workholding)
Bar capacity: 3"
X-axis travel: 9.4"
Z-axis travel: 32.5"
Rapid feed rates X & Z: 945 IPM
Max. thrust X: 4,100 LBF
Max. thrust Z: 5,100 LBF
Spindle nose: A2-6
Max speed: 3,400 RPM
Max torque: 300 FT-LBF @ 500 RPM
Spindle bore: 3.5"
Number of tools: 12
Boring bar rear clearance: 4"
Coolant capacity: 55 gallons
Air requirements: 100 PSI
Drive system: Direct speed, belt drive
Main motor: 30 H.P.
Voltage: 220 volt 3 phase
Dimensions: 171" x 90" x 98"
Weight: 10,900 LBS.

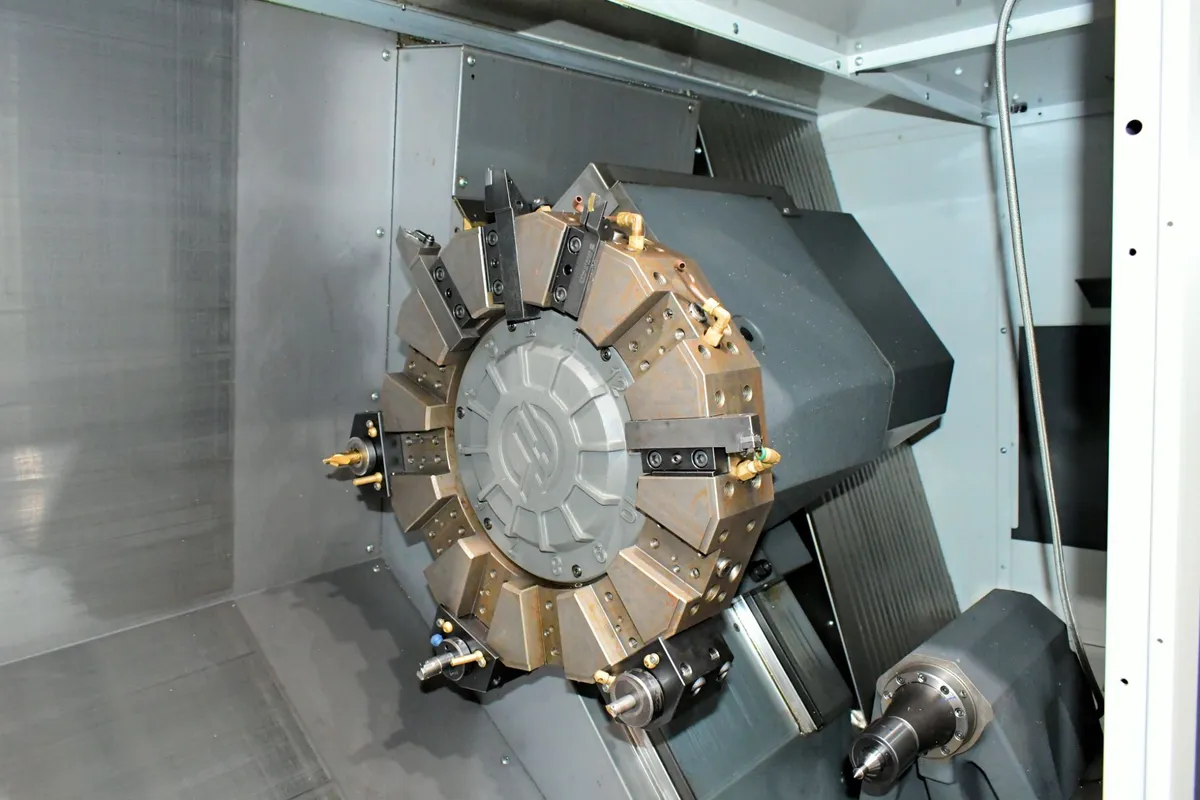

12 station BOT turret

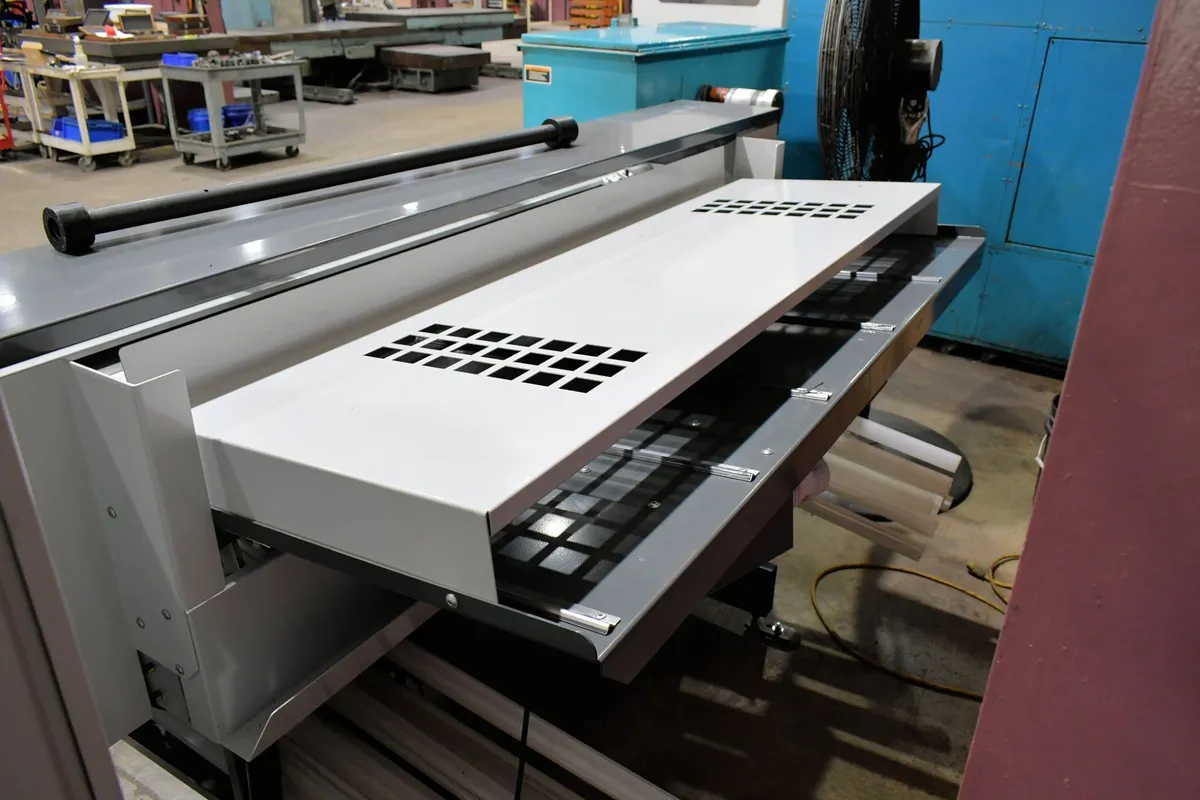

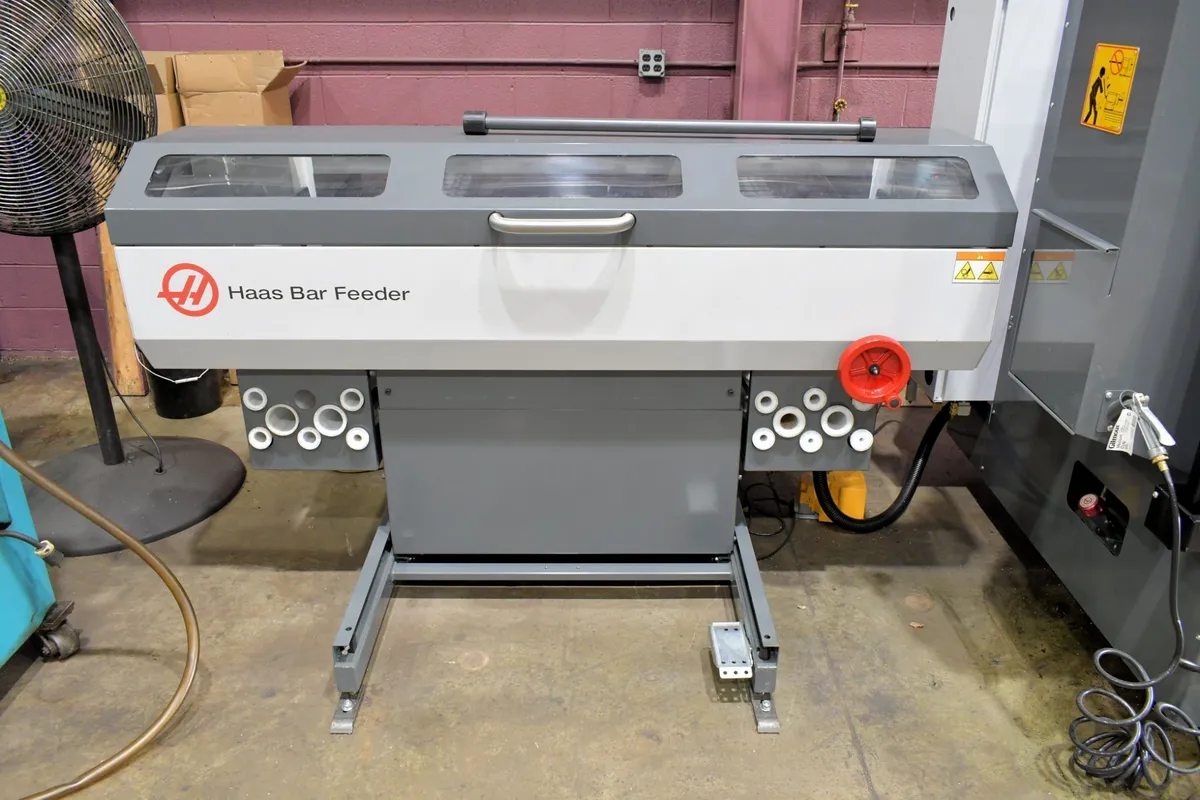

Haas V2 automatic barfeeder 0.375" to 3" bar capacity, 48" max bar length, 10" minimum bar length, (30) 1" bar tray capacity

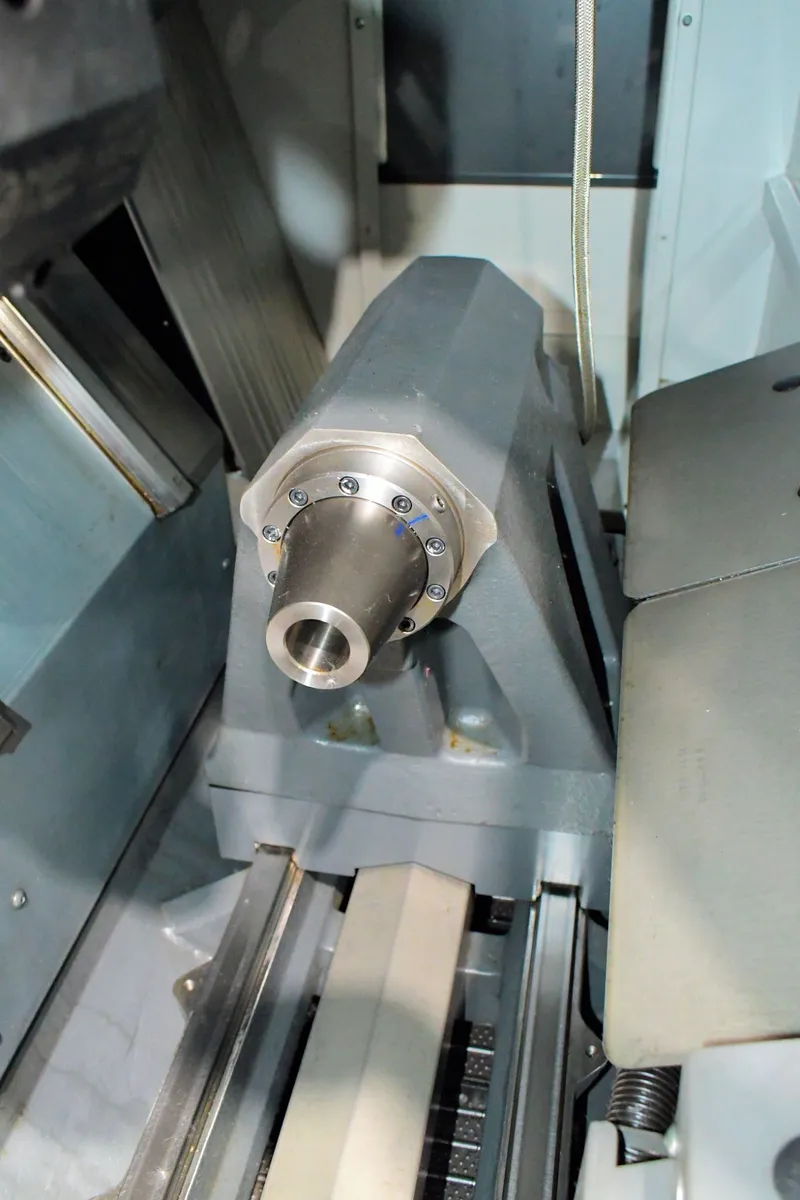

Programmable Hydraulic Tailstock

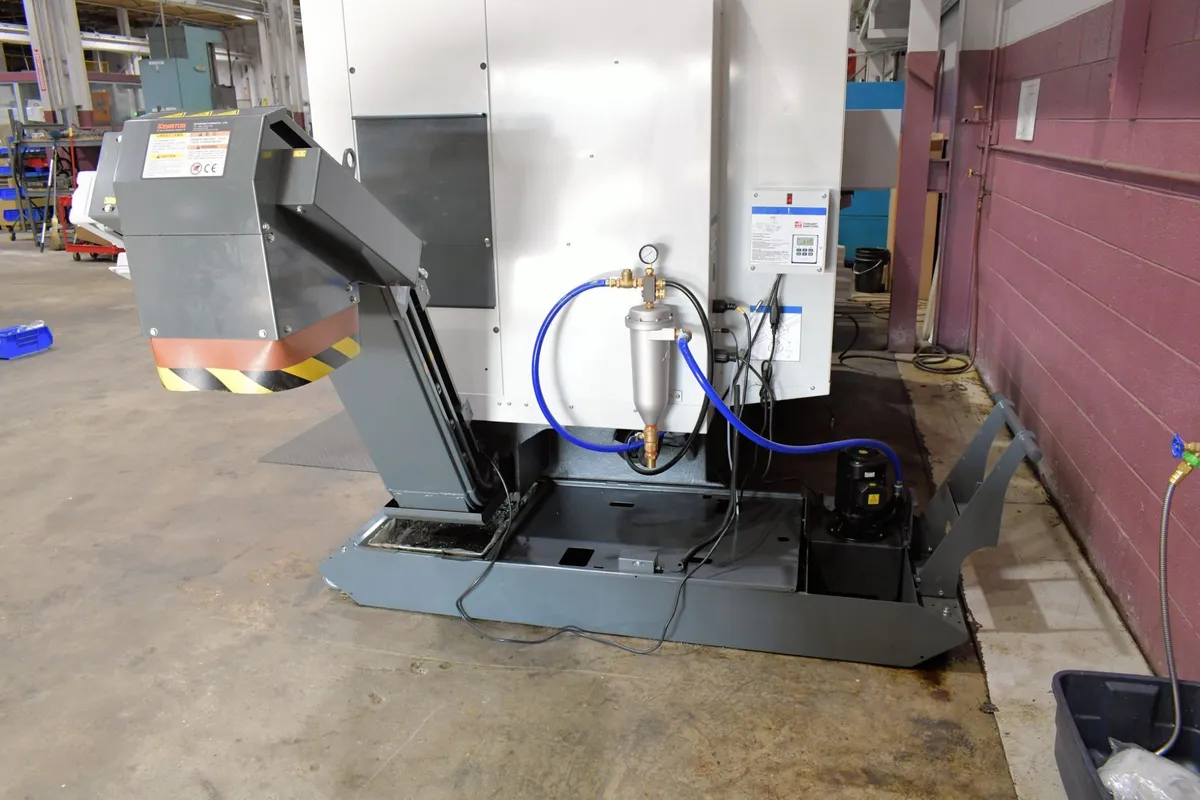

Key arrow belt type motorized discharge chip conveyor

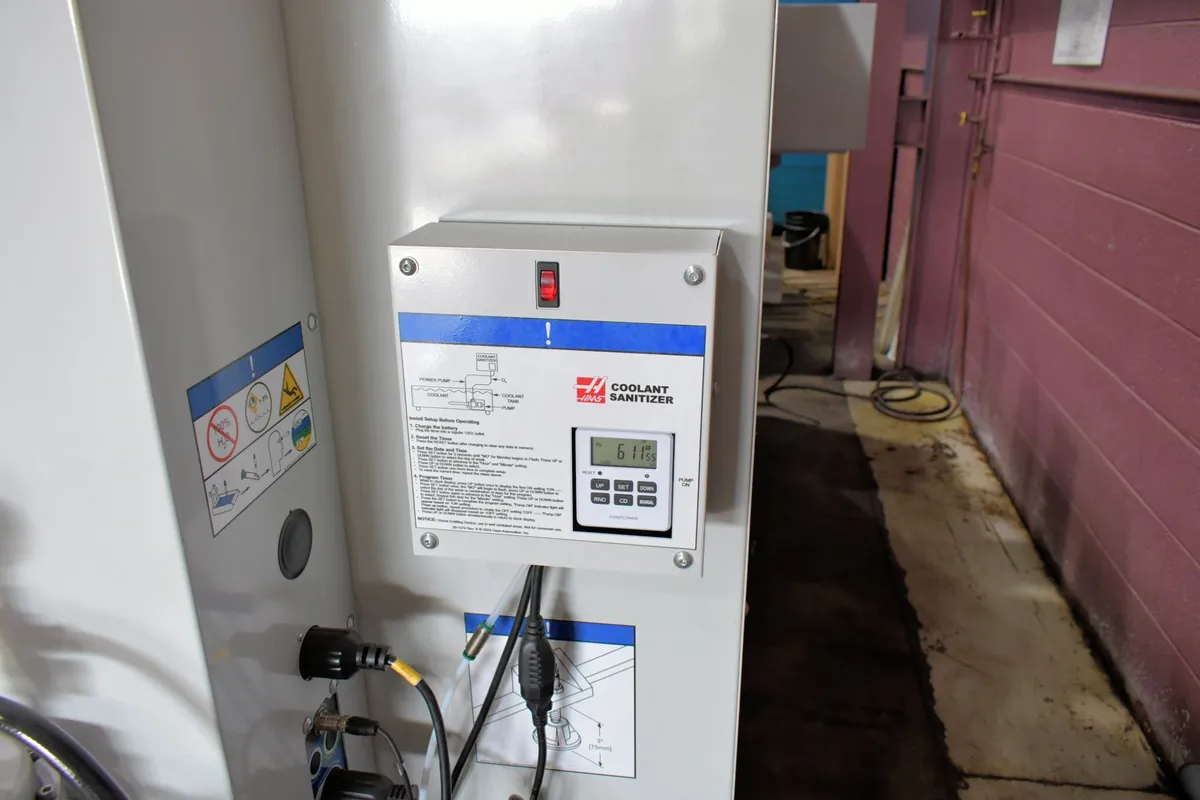

Haas coolant sanitizer
55-Gallon coolant tank capacity
Single stage coolant pump

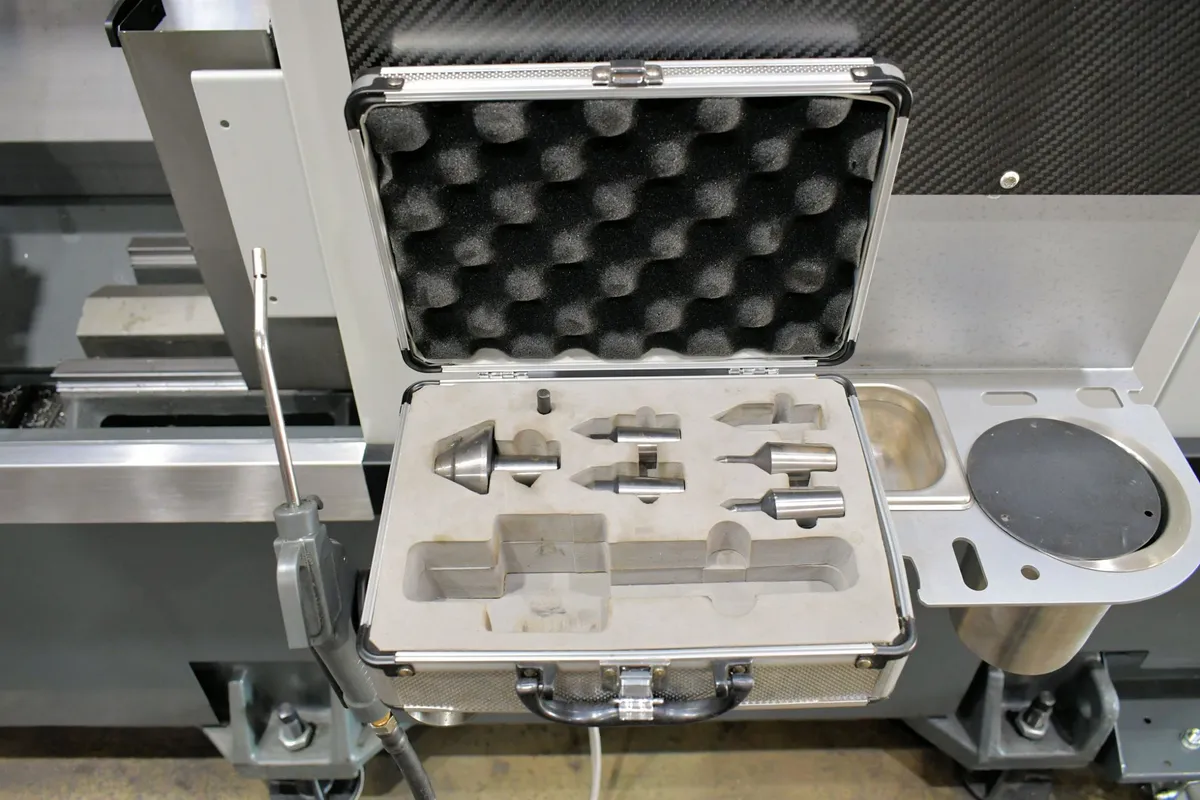

Automatic tool presetter
Rigid tapping
Parts catcher
CNC control cabinet cooler
24V high intensity lighting
1GB standard program memory
Visual part programming system
User-definable macros
Early power failure detection module
Ethernet interface
Haas Connect: remote monitoring
HaasDrop
Media display M-code; M-130
Phone charging stand
Safe run
Power surge protection

Machine sold As-Is Where-Is
