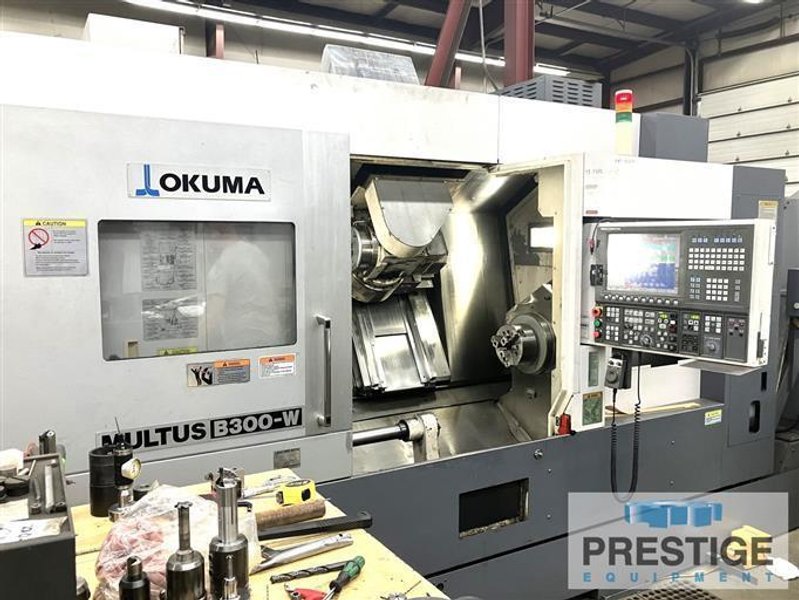

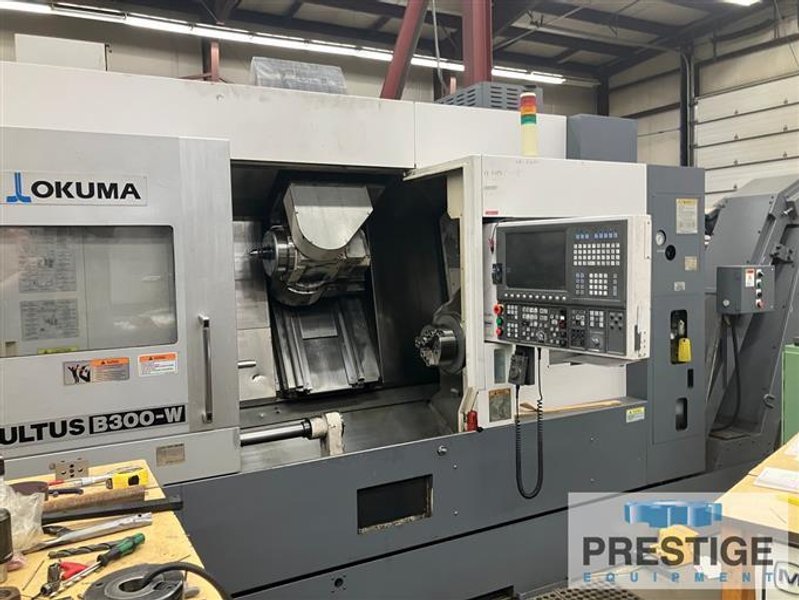

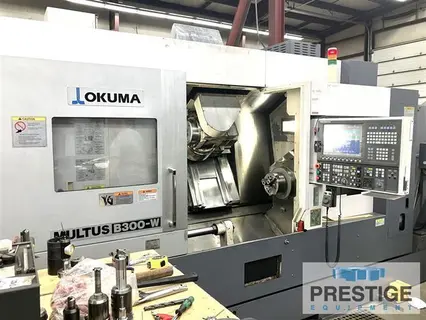

Lathes CNC

Specifications:
Maximum Swing Over Bed 27.95"
Maximum Swing Over Saddle 27.95"
Maximum Distance Between Centers 59.05"
Main Spindle Speed Range 38-3800 RPM
Milling Speeds 50-6,000 RPM
Spindle Nose & Sub Spindle A2-11/ A2-8
X-Axis Travel......................... 27.17" 27.17"
Y-Axis Travel 9.06"
Z-Axis Travel 60.83"
C-Axis Indexing 0.001 Degree
B-Axis Indexing 225 Degrees/.001 Min Angle
Spindle Bore 4.33"
Main Motor 40 HP/ 30 HP
Milling Motor 19 HP/ 13 HP
Rapid Traverse X/Z.................... 1,574 IPM 1,574 IPM
Rapid Traverse Y 1,024 IPM
Approximate Dimensions 226" x 104" x 118"
Approximate Weight 37,500 Lbs.



Equipped With:

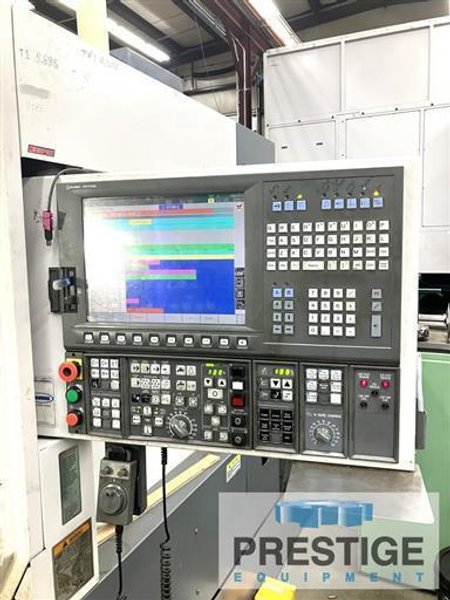

OOSP-P200L CNC Control
15" 3-Jaw Chuck (Main)
10" 3-Jaw Chuck (Sub)
60-Station Tool Changer
Live Milling
C-Axis Indexing
Sub Spindle
Tool Presetter
Coolant Through the Tool
Coolant System
Chip Conveyor
