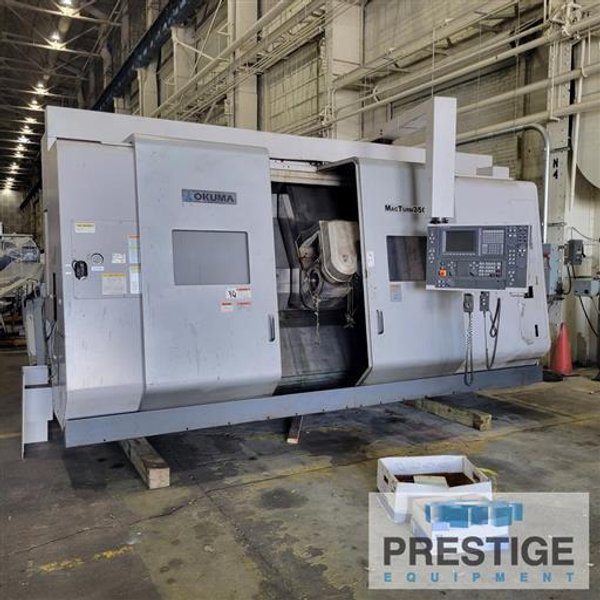

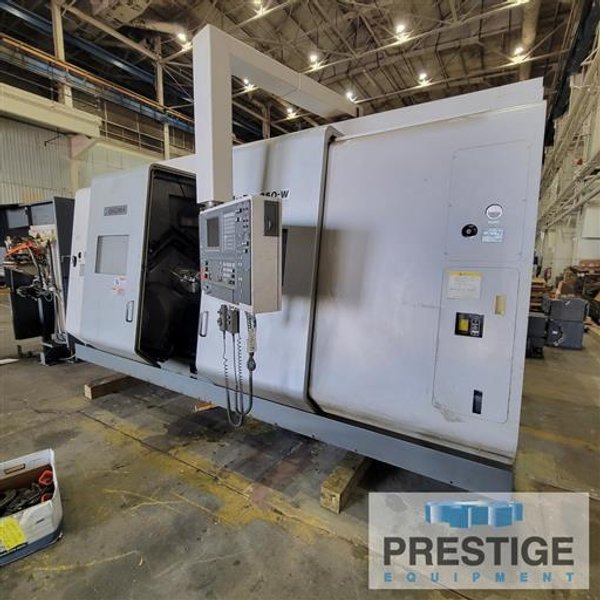

Lathes CNC

CAPACITIES:
Swing Over Bed 21.65"
Maximum Turning Diameter 20.87"
Maximum Turning Length 63.98"
X-Axis Cross Travel 19.88"
Z-Axis Longitudinal Travel 65.75"
Y-Axis Travel, Tool Spindle 7.48"
C-Axis Resolution 0.001 Degrees
SPINDLE 1:
Spindle Motor 30 HP
Maximum Spindle Speed 5000 RPM
Spindle Nose JIS A2-8
Spindle Bore 2.44"
Bar Capacity 2.0"
SPINDLE 2:
Spindle Motor 15 HP
Maximum Spindle Speed 5000 RPM
Spindle Nose JIS A2-8
B-AXIS TOOL SPINDLE:
Spindle Speed to 12,000 RPM
Spindle Taper CAPTO C6
AUTOMATIC TOOL CHANGER:
Total Tool Positions 84 ATC
Tool Taper CAPTO C6
RAPID FEEDRATES:
X-Axis Rapid Traverse Rate 1161 IPM
Z-Axis Rapid Traverse Rate 1575 IPM



Equipped With:

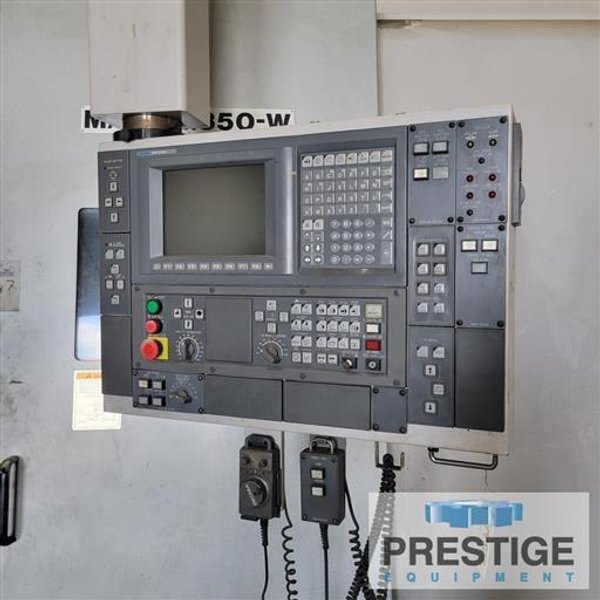

OSP-E100L CNC Control

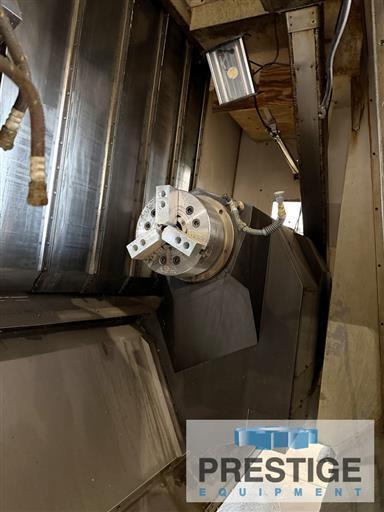

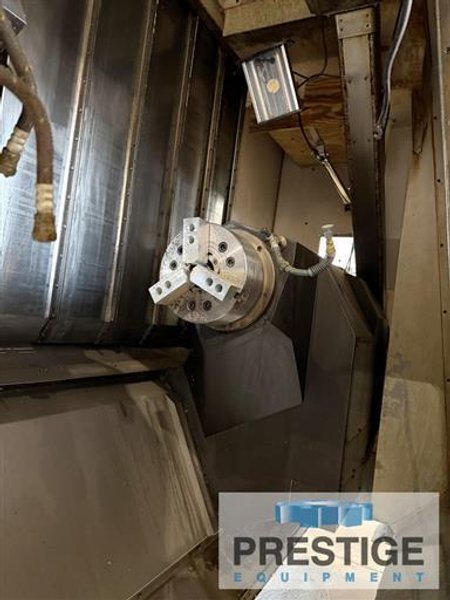

10" 3-Jaw Chuck on Left Spindle
10" 3-Jaw Chuck on Right Spindle
2-Axis 12,000 RPM Tool Spindle

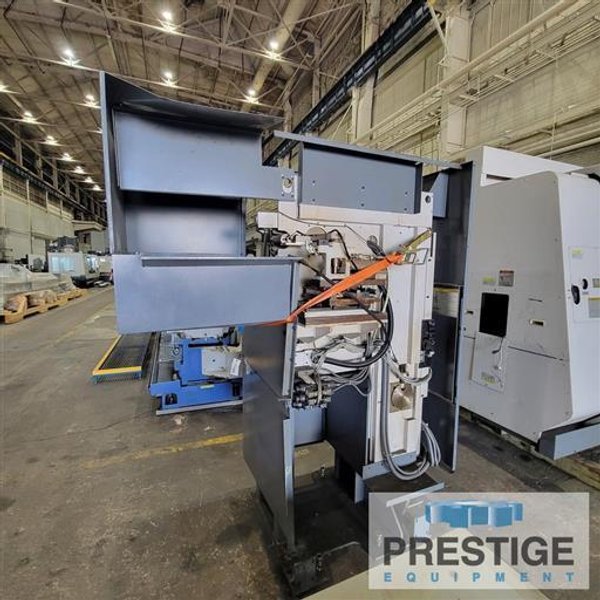

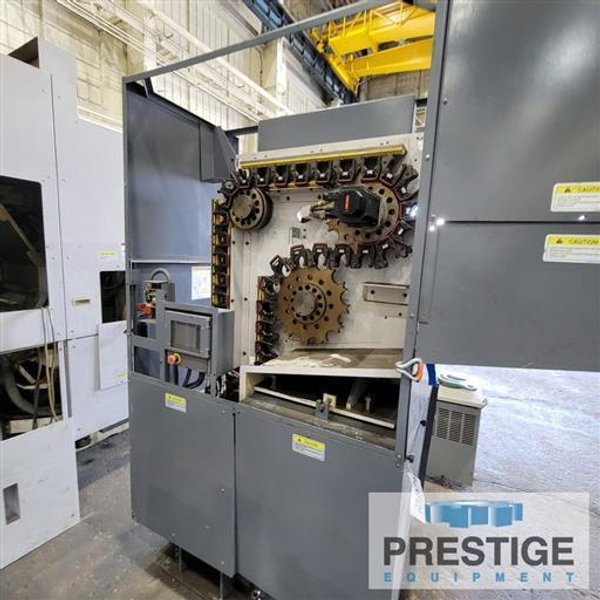

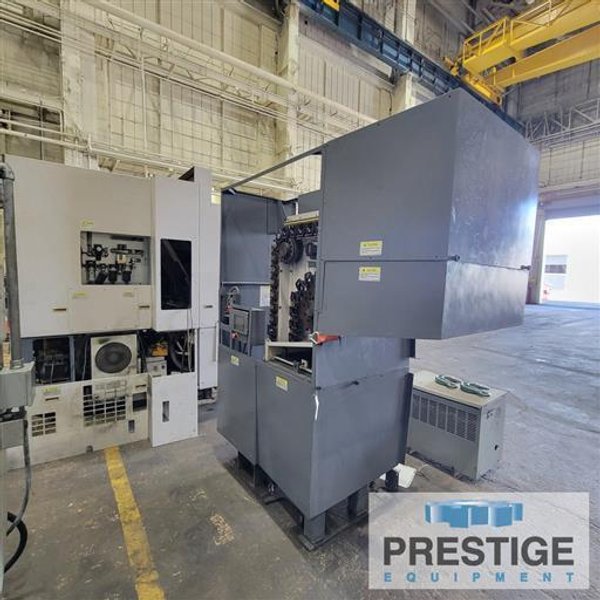

84-Position Automatic Tool Changer
Touch Setter
Thru-Spindle Coolant
Chip Conveyor
Includes (18) CAPTO C6 Tool Holders

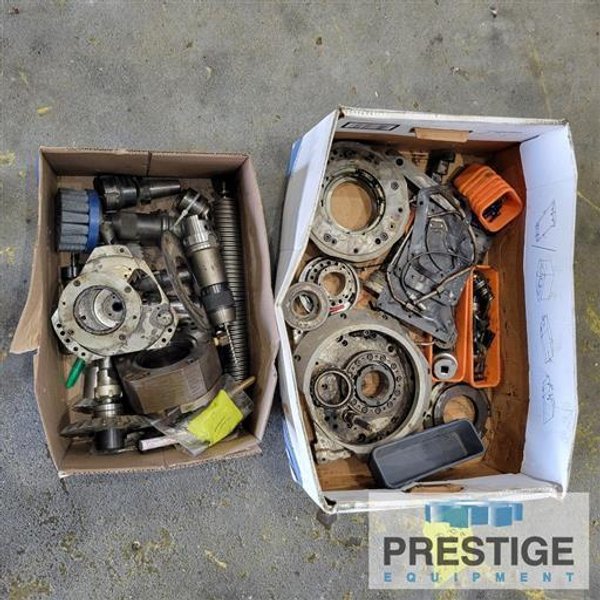

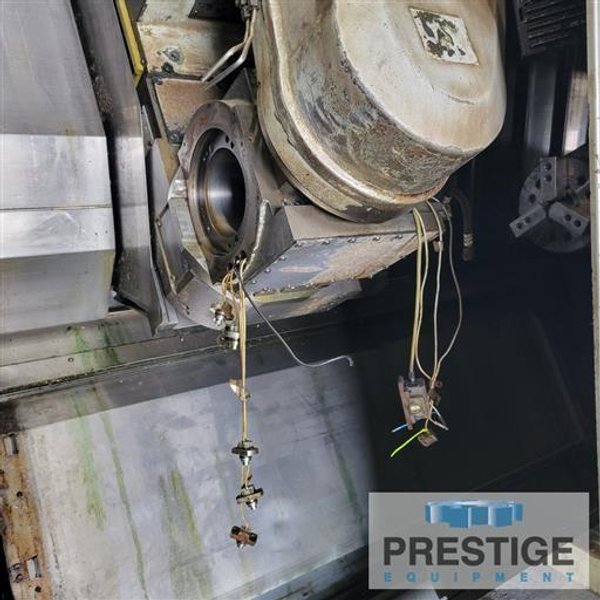

NOTE: Tool Spindle Needs Repairs - Please Call For More Information


LOCATION: Philadelphia, PA
