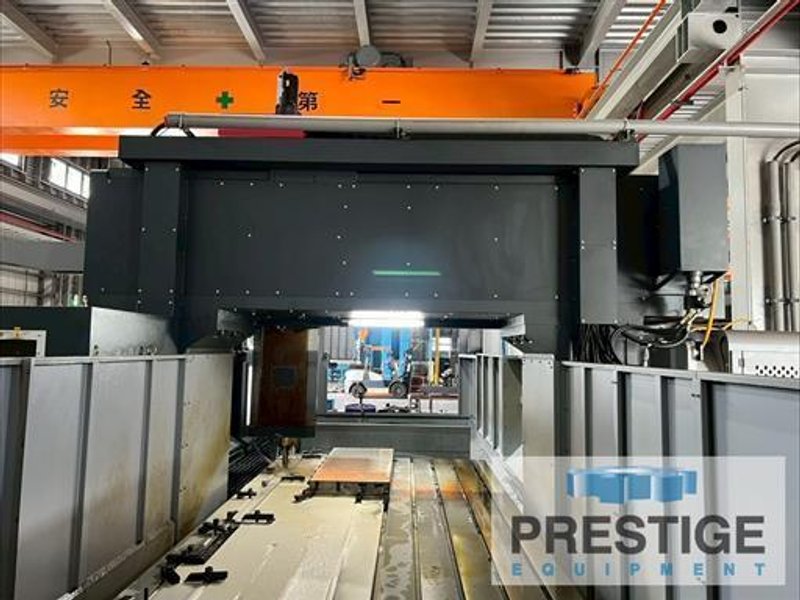

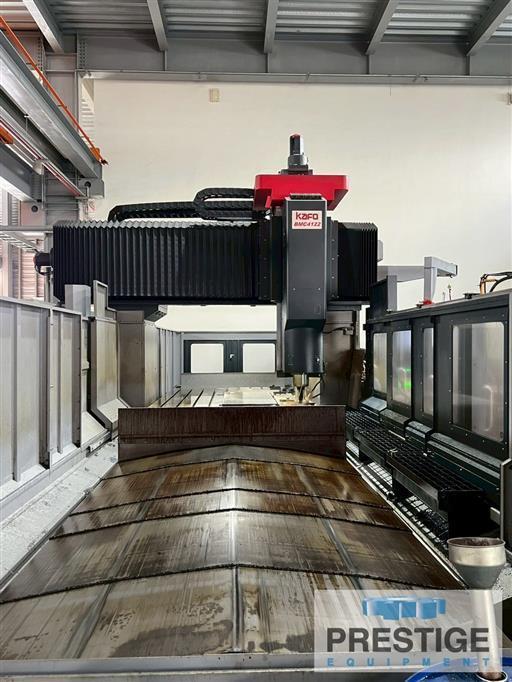

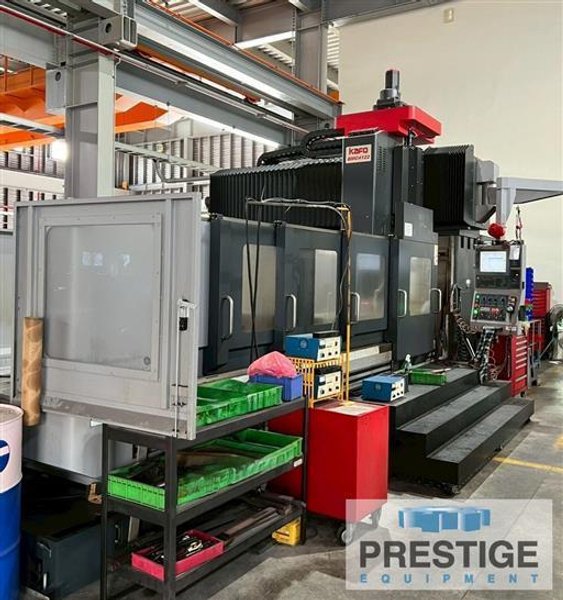

Machining Centers Vertical Bridge Type CNC

SPECIFICATIONS:
Table Size 157.48" x 82.67"
Table Capacity 37,400 Lbs.
Distance Between Columns 90.55"
X-Axis Travel (Table Longitudinal) 161.41"
Y-Axis Travel (Head) 86.61"
Z-Axis Travel (Spindle) 35.43"
Distance From Spindle Nose to Table 7.87"-43.3"
Spindle Speeds (Gear Driven)........... 6000 RPM 6000 RPM
Spindle Taper BT #50
Spindle Drive Motor 34.6 HP
Rapid Traverse (X,Z) 590.55 IPM
Rapid Traverse (Y) 787.40 IPM



Equipped With:

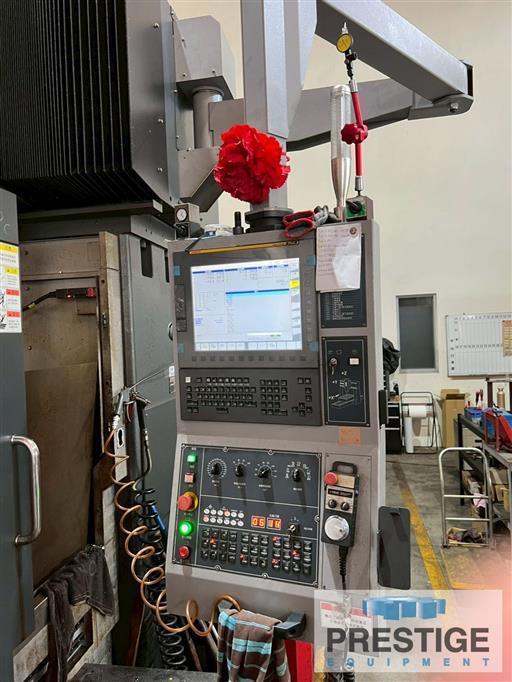

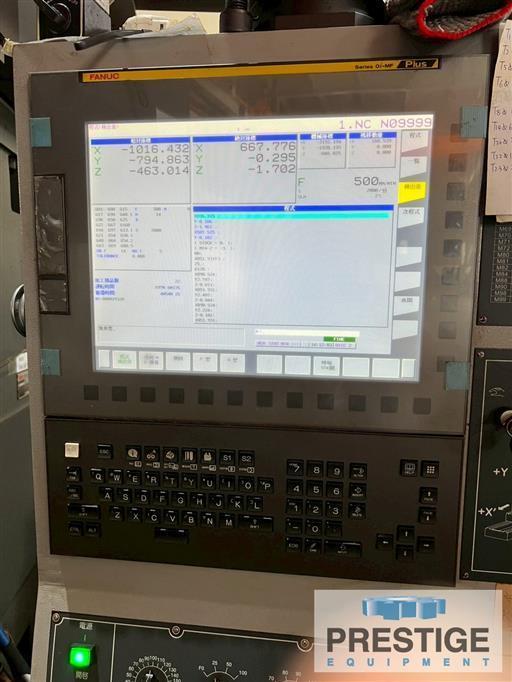

Fanuc OiMF Plus CNC Control with 15" LCD
30-Position Automatic Tool Changer
Coolant Thru Spindle (20 Bar)
Air Thru Spindle

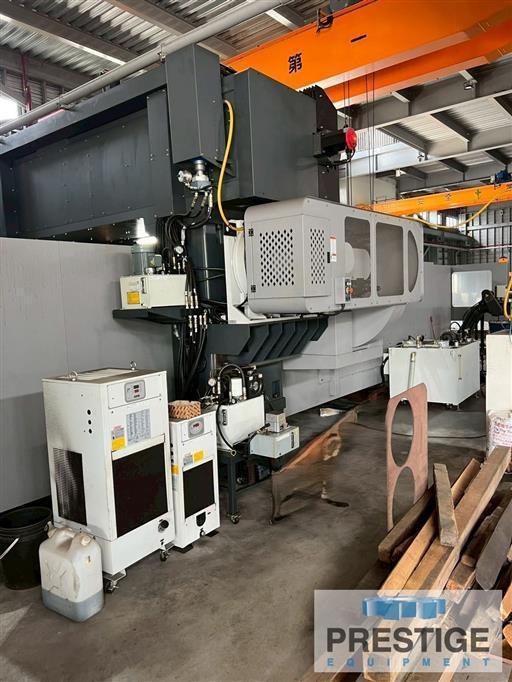

Spindle Oil Cooler
3-Axis Cooling System
Heat Exchanger
Oil Skimmer
Chip Conveyor


NOTE: Inspect In Plant Under Power
