60" x 7.00" x 60,000#/45,000# Paxson/ Braner Slitting Line STOCK# 3696
Brand
Category
Model
Not specified
Stock #
3696
Year
Not specified
Condition
Good
Location
Ohio
|

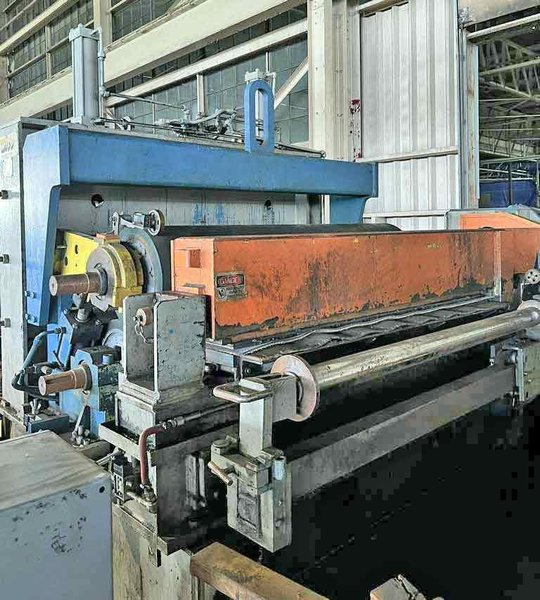

60" x 7.00" x 60,000#/45,000# Paxson Slitting Line

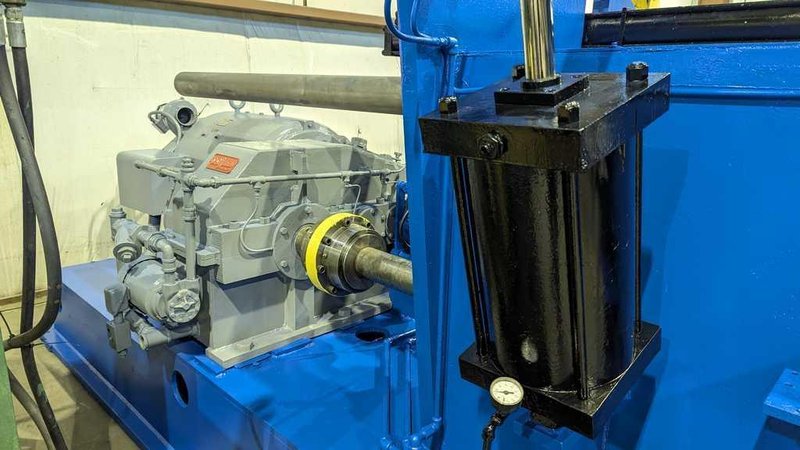

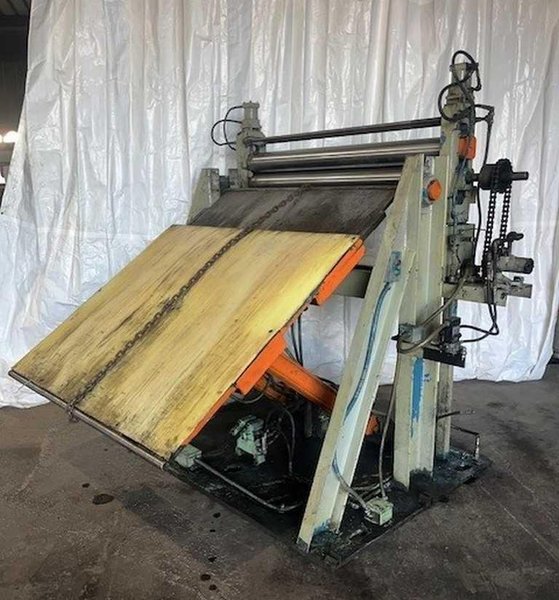

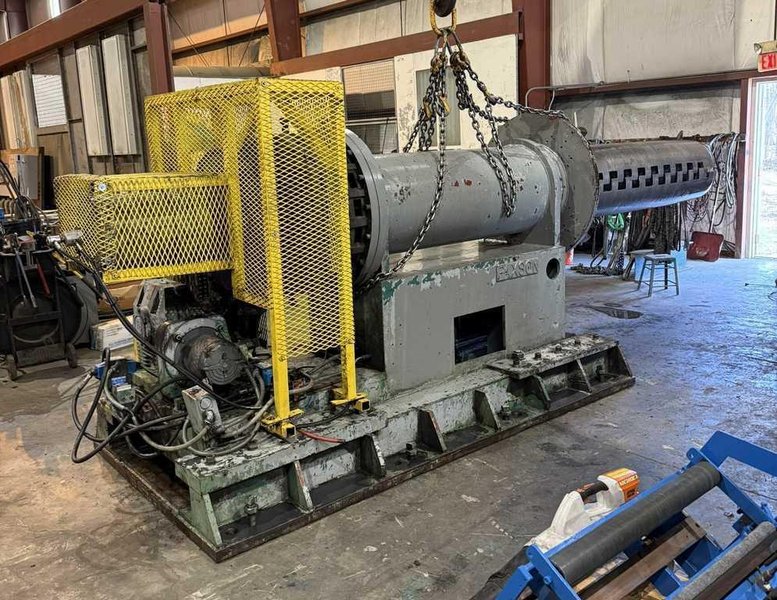

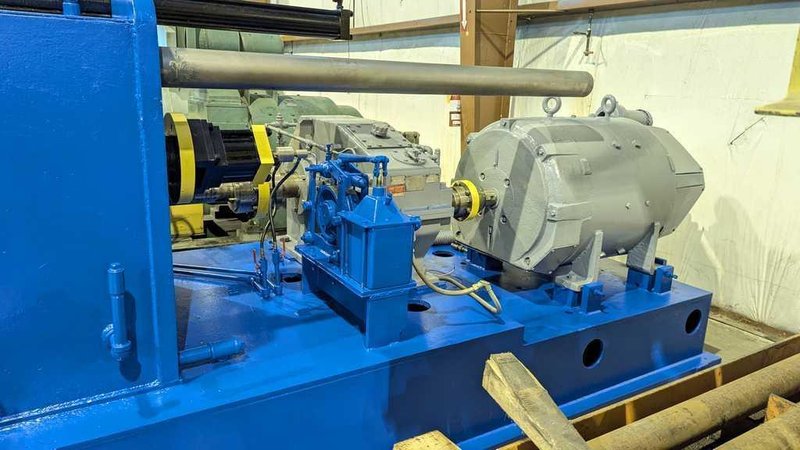

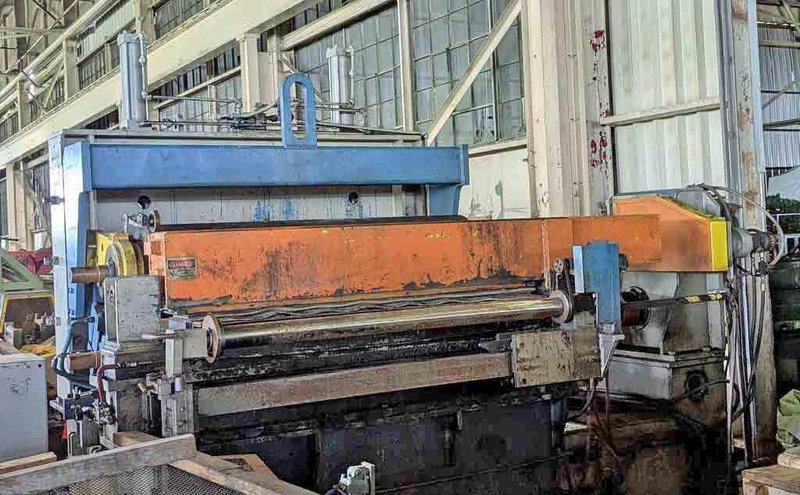

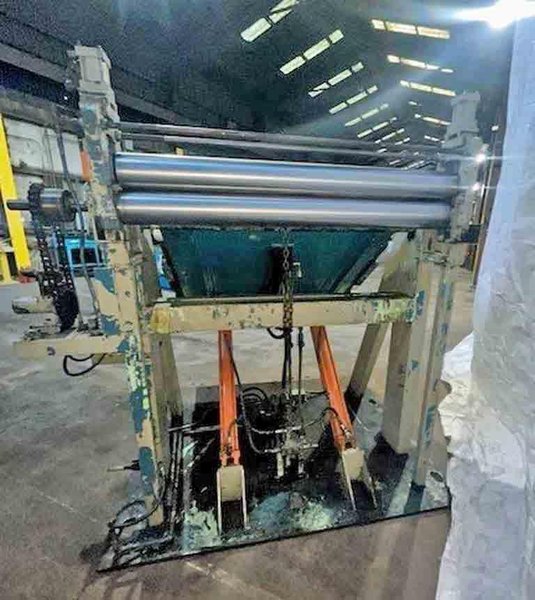

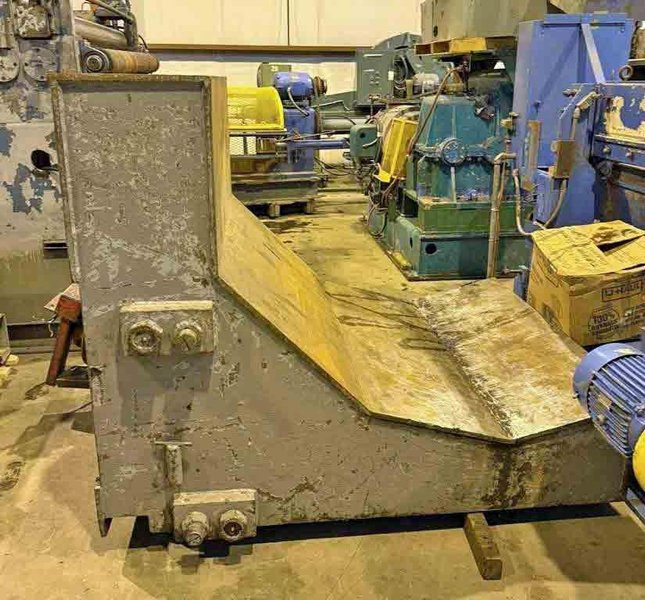

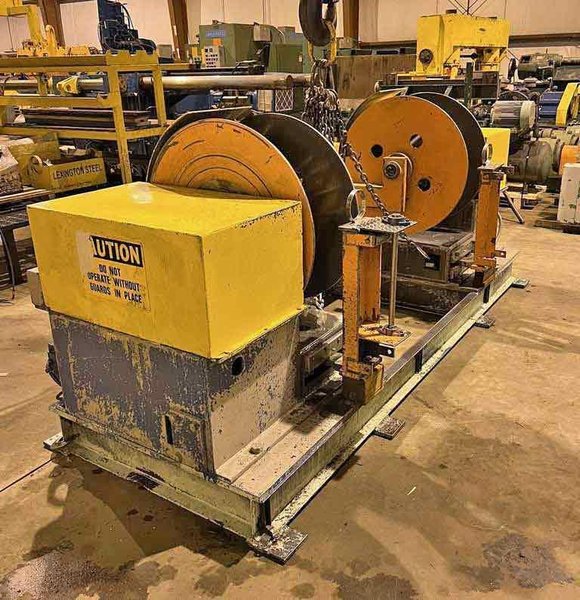

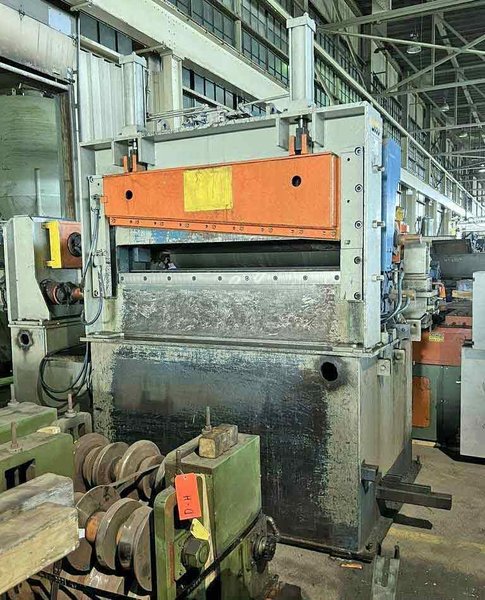

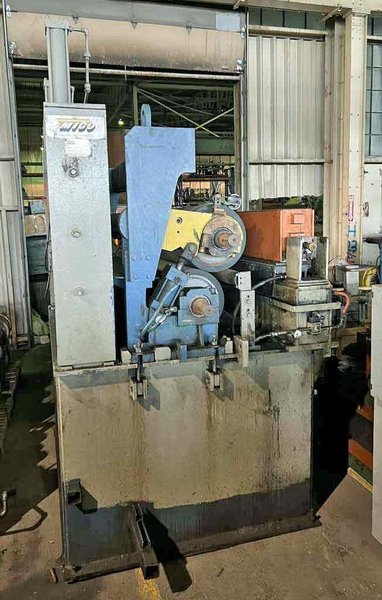

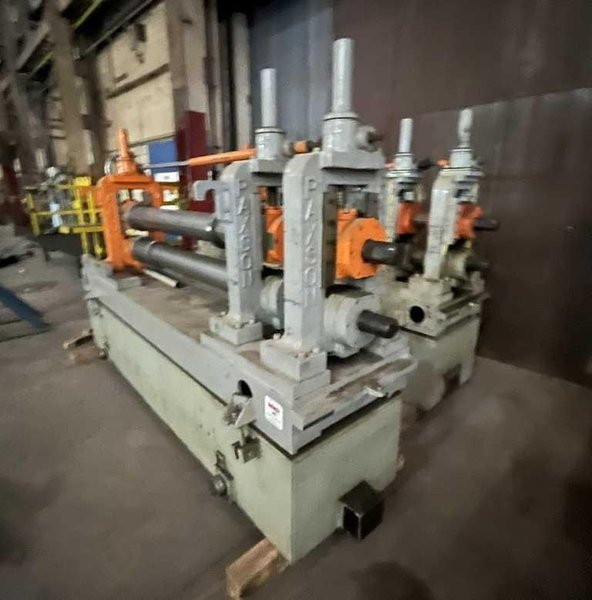

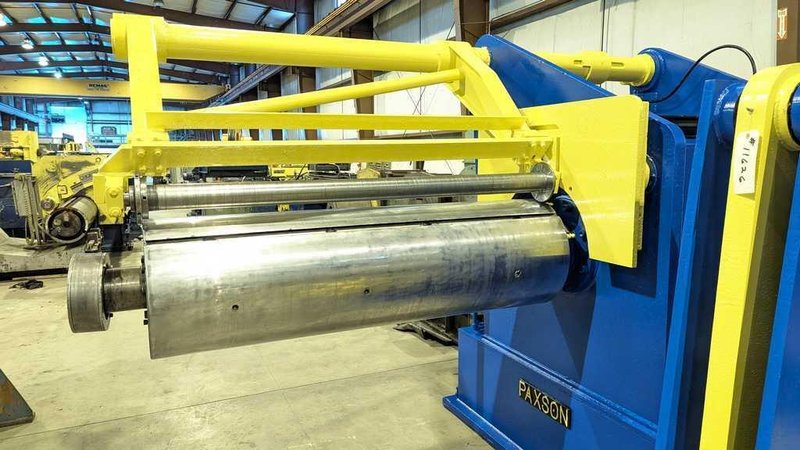

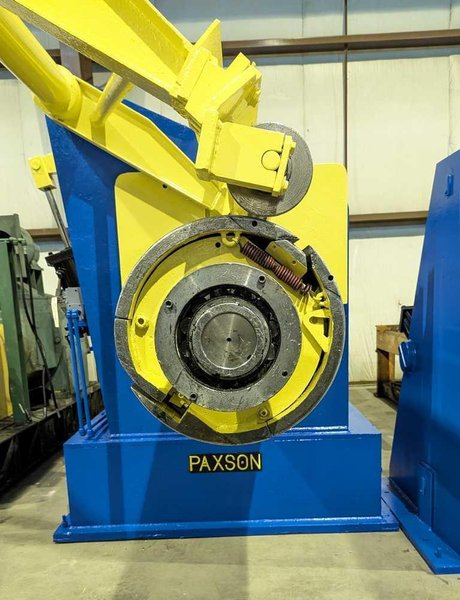

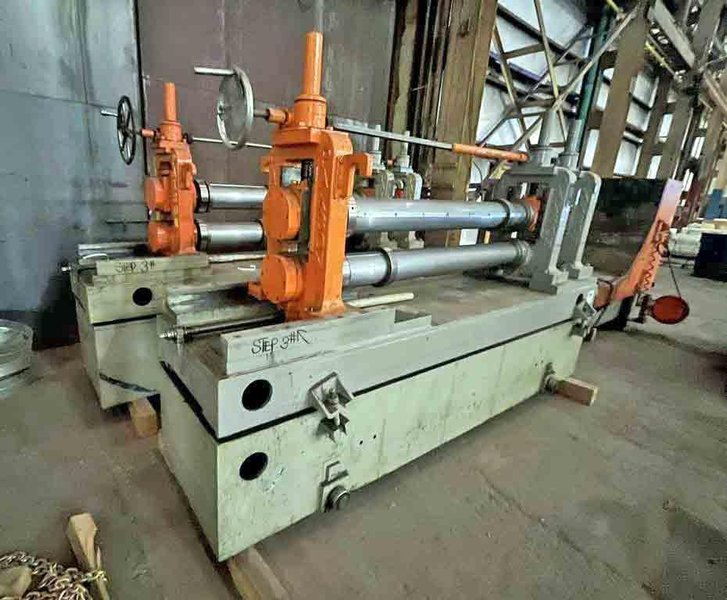

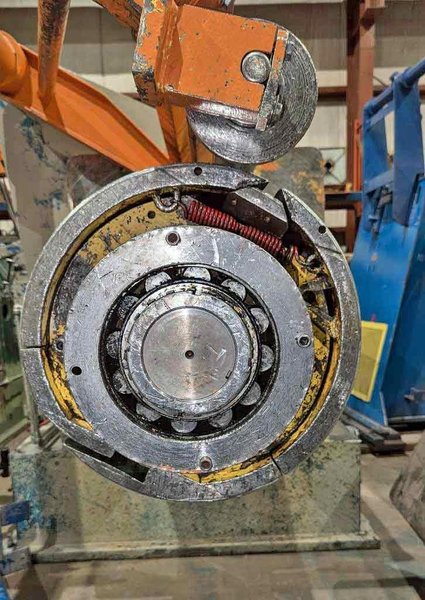

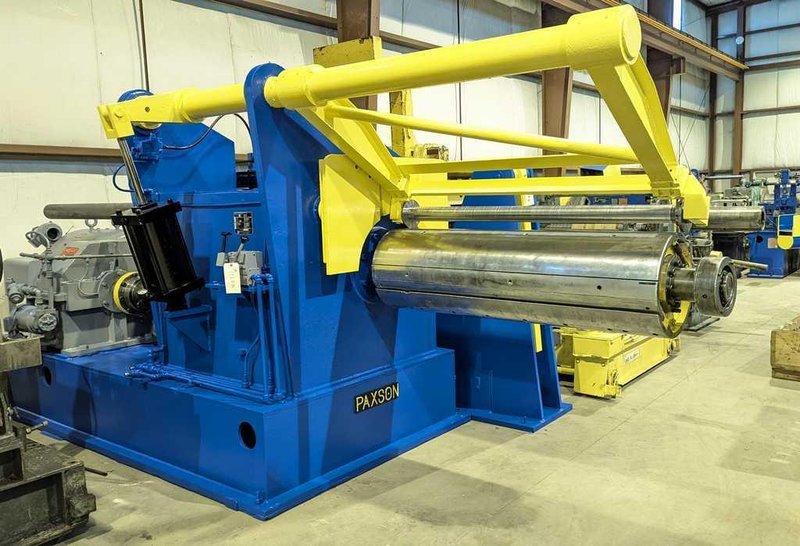

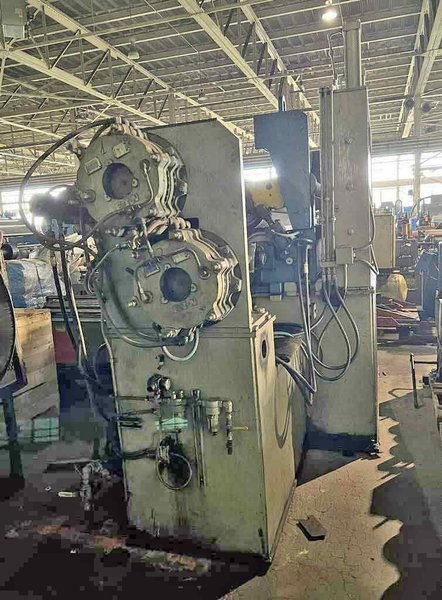

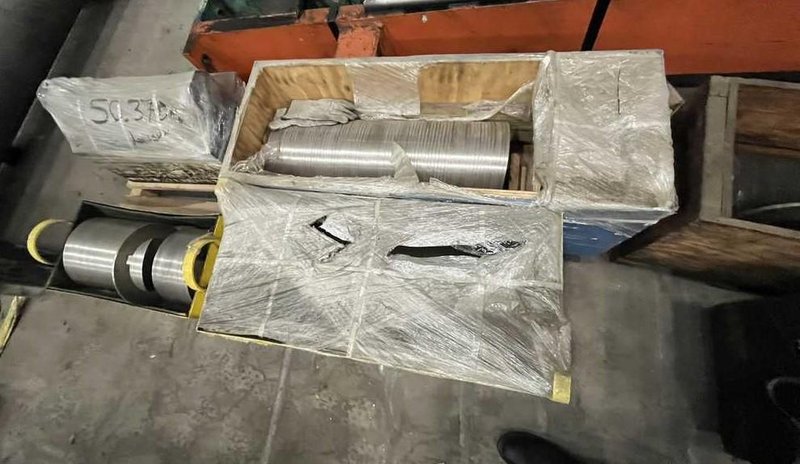

Driven Loop / Injector Head Material Processed: CR, Galv. Aluminum & Painted Maximum Entry Width: 60" Maximum Entry Weight: 60,000 lbs. Maximum Exit Weight: 45,000 lbs. Coil ID Range Entry: 20" to 24" Coil ID Range Exit: 20" to 24" Line Speed: 80 - 700 FPM (Coil Build-Up Mode) 190 FPM (Bare Drum Speed) Line Direction: Right to Left Consisting of the following: -Entry Coil Car: Paxson Capacity: 60.000# 56" Wide Bed 72" O.D. Capacity Self-Contained Hydraulics Retractable Cable Reel -Uncoiler: Paxson Capacity: 60,000# x 72" wide Mandrel Type Hydraulic Expansion 20" - 24" Coil I.D. Range 4 Segment Pumpkin Tooth Mandrel Slide Base Water Cooled Brake 5 HP AC Motor Feedup Drive, 1735 RPM, 230/460 V -Peeler Table: -(2) Slitter Heads: Paxson Injection Head Design 7.00" Dia. x 62" Face Arbors Entry Side Guides 100 HP DC Motor, 850/1750 RPM, 500 V In-Line Reducer w/5.952:1 Ratio Slitter Tooling -Tension Stand: Mico 60" Wide Combination Pad and Roll Type Roll Stand is a Quick Change Style Entry Separator Tooling Shaft Cartridge Type Drag Type Tension Unit w/Air Bladder Alligator Type, Air Cylinder Open/Close (2) - 16" Dia. x 66" Face Urethane Coated Rolls Hydraulic Motor Threading Drive (2) Eaton 214WCB Water Cooled Brakes Exit Hydraulic Crop Shear 66" Face 4 Sided Blades 65" Pass Line Overall Size: 150" L x 77" W x 128" High 23,000 lbs. -(2) Scrap Winders: Approx. 13" W x 32" Dia. Scrap Ball Capacity Hydraulic Motor Driven Powered Scrap Dump Oscillate Wind -Recoiler: Paxson 45,000# x 60" Capacity (with Outboard Support) S/N: 11349-7-8 20" Dia. x 66" Face Drum w/24" pads Powered Clamp and Expansion Overarm Separator Hydraulic Pushoff 150 HP Main Motor, 850/2000 RPM Main Gear Box w/3.5:1 Ratio (approx.) Secondary Reducer w/10.8:1 Ratio Passline: 48" from Floor to center of Drum -Outboard Bearing Support: -Less Electrics: -Removed and in storage: Toledo, OH. |
