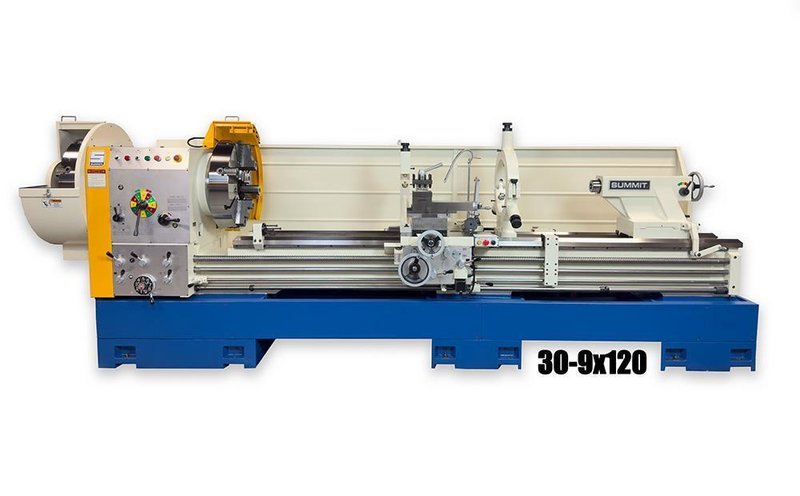

1 - NEW SUMMIT BIG HOLE ENGINE LATHE, MODEL #: 30-9 X 200
Brand
Category
Type
Model
30-9 X 200
Stock #
87406
Year
Not specified
Condition
New
Location
Oklahoma
|
Specifications:
Capacities:
Swing over bed 30 1/4”
Swing over cross slide 22”
Swing over gap 39”
Length of gap 18”
Work Piece Weights:
At The Headstock 1100 Lbs.
Between Centers 8,800 Lbs.
Between Centers, One Steady Rest 11,000 Lbs.
Between Centers, Two Steady Rests 13,200 Lbs. Headstock:
Spindle speeds (no.) range RPM (12) 11 - 700
Hole through spindle 9” Spindle nose A2 - 15
Quick Change Gearbox:
Threads per inch (no.) range (36) 2-28 TPI
Metric threads (no.) range (65) .08 – 14mm Module threads (no.) range (22) .5 – 7M Diametral Pitch (no.) range (36) 4 – 56P Longitudinal feeds (no.) range (36) .0019 - .0276
Cross feeds (no.) range (36) .0009 - .0137 Leadscrew (Dia) range (1 ¾”) 2 TPI Carriage & Apron:
Cross Slide Travel 17”
Compound rest travel 9”
Tailstock:
Travel of spindle barrel 9”
Diameter of spindle barrel 3 ¾”
Taper of center #5 MT
Two Speed 1:1, 4:1
Bed:
Width of bed 18”
Hardness of bed (Rockwell C) 42 – 50

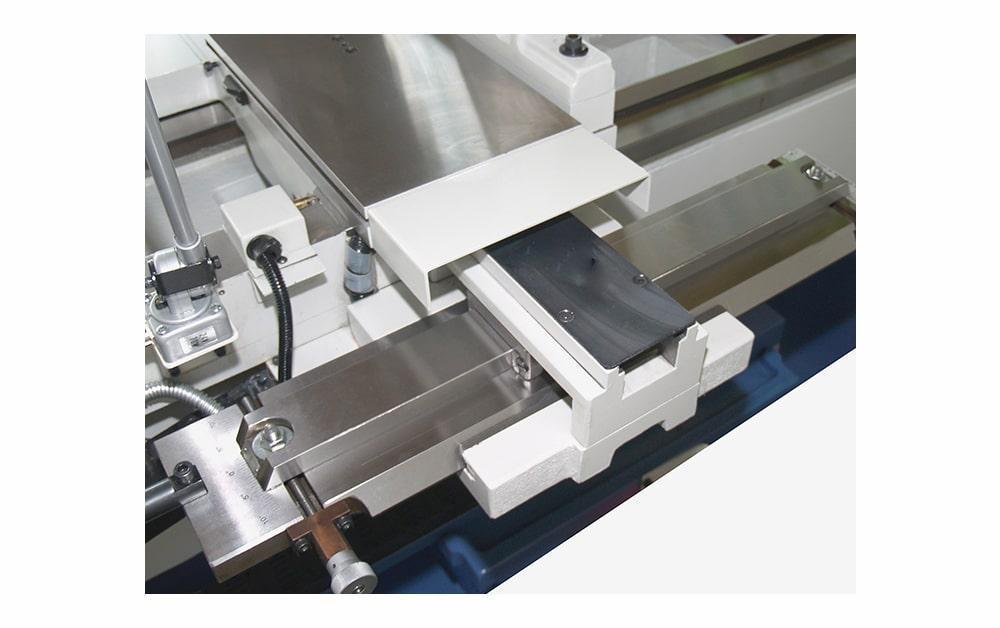

Taper Attachment:
Degrees of taper +/- 10 Degrees
Maximum turning length per setting 20”
Motors:
Main Drive 20HP
Coolant pump 1/8HP
Steady and Follow Rest:
Standard Steady Rest 2” – 14.9”
Follow rest 1.2” – 5.9”
Shipping Data:
Overall width 54”
Overall height 66”
Overall length 284”
Weight 12,540 lbs
Electrics 220/440/3/60 Standard Features:
Big 9” thru hole
Inch/metric threads w/single switch lever
Cuts most inch/metric threads without change gears
Hardened & ground bedways Forced lubrication to the headstock, carriage and bedways
Removable gap
Precision tapered roller spindle bearings
Crossfeed and threading safety interlock 4-way rapid traverse Two Speed Tailstock
Included Accessories:
➢ Standard Steady Rest
➢ Follow Rest
➢ Thread Dial
➢ Coolant System
➢ Taper Attachment

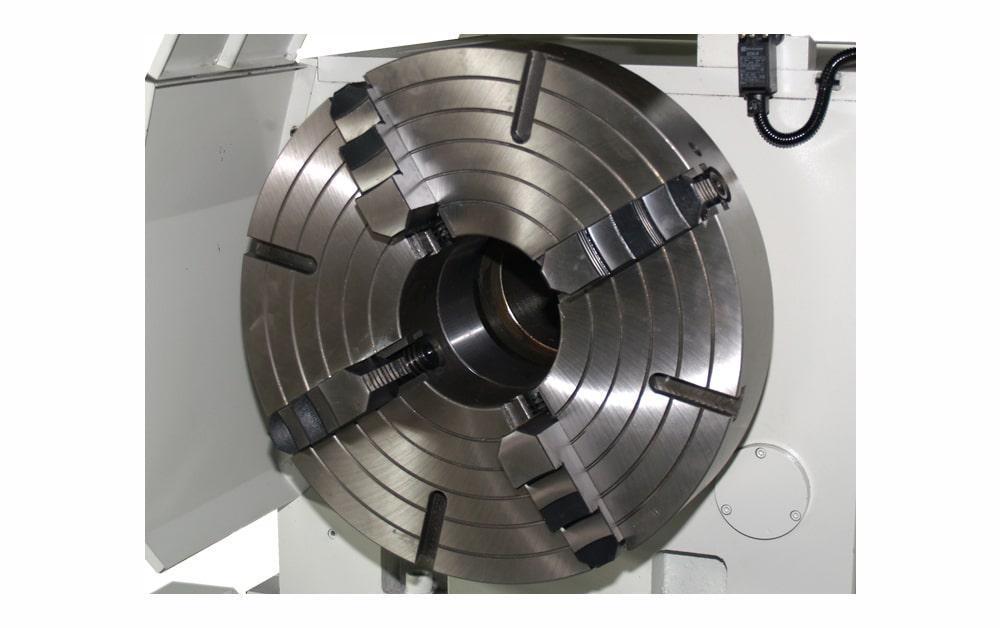

➢ Front & Rear 26” Steel Body 4 Jaw Chucks
➢ Carriage Stop ➢ Work Light ➢ Full Length Splash Guard
➢ Service Wrenches & Spanners
NOTES:SPECIFICATIONS SUBJECT TO VERIFICATION Options:
Extra Capacity Steady Rest (11.8” – 20.8”) $,500
Aloris Quick Change Tool Post w/Holders (2#1, 2#2) $2,500
Newall 2 Axis Digital Readout Installed $9,500
DELIVERY:Fagor 2 Axis Digital Readout Installed $7,000 **Installation Assistance TBD 4-5 Months |
