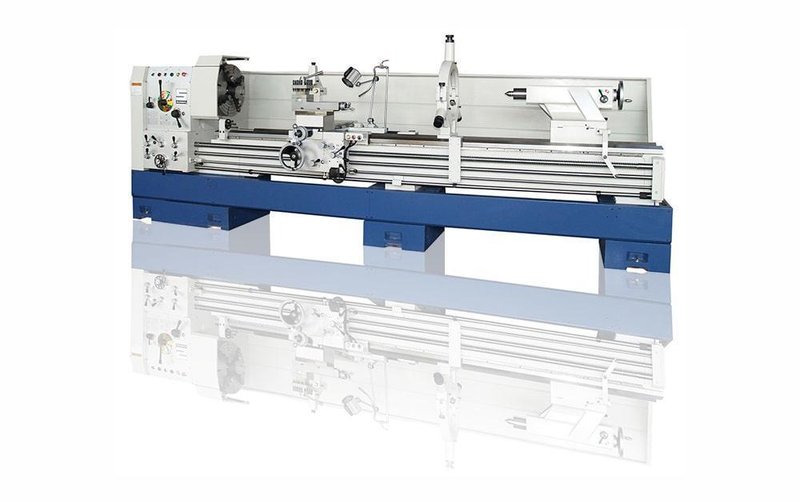

1 - NEW SUMMIT BIG HOLE ENGINE LATHE, MODEL #: 30-9 X 160
Brand
Category
Type
Model
30-9 X 160
Stock #
87036
Year
Not specified
Condition
New
Location
Oklahoma
|
SPECIFICATIONS:
CAPACITIES: SWING OVER BED ------------------------ 30" SWING OVER CROSS SLIDE ---------------- 22" SWING OVER GAP ------------------------ 39" SPINDLE BORE ---------------------------- 9.1" SPINDLE SPEEDS ------------------------ 11-700 SPINDLE NORE -------------------------- A2-15 WIDTH OF BED -------------------------- 18" MAIN DRIVE MOTOR -------------------- 20 HP FEATURES: • Electric spindle brake for precise control
• Cast iron construction provides a solid foundation for vibration absorption & rigidity
• Hardened & precision ground bedways for long-lasting accuracy
EQUIPPED WITH:• Quick change gearbox will cut American (inch), metric and module pitch threads
• Rapid traverse on carriage (4 way)
• 2-Speed tailstock for faster setups
• Huge 6″ & 9″ spindle bores for maximum workpiece flexibility
• Steady Rest
• Taper Attachment
• 16” 3 Jaw Chuck (6.1”/D1-11)

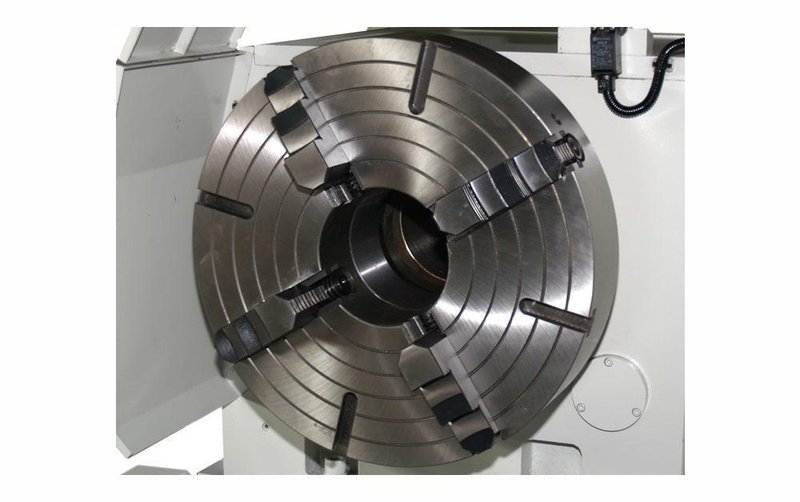

• Front & Rear 26” Steel Body 4 Jaw Chucks (9.1”/A2-15)
NOTES:• Follow Rest
• Full Length Splash Guard
• 20” 4 Jaw Chuck (6.1”/D1-11)
• Work Light
• Two Speed Tailstock
• Coolant System SPECIFICATIONS SUBJECT TO VERIFICATION OPTIONAL FEATURES: • Quick change tool post w/ holders - $2,500
• Rear Flange (D1-11) to Mount Additional Chuck (6.1” Bore) - $950
• Electronic 2 Axis Digital Readout Installed - P.O.R.
DELIVERY:• 28" Steel Body Heavy Duty 4 Jaw Chuck w/7.5" Bore - P.O.R.
• 25” Steel Body 3 Jaw Precision Chuck w/9.9” Bore - P.O.R. • 20” Steel Body 3 Jaw Precision Chuck w/7.5” Bore - P.O.R.
• 15-3/4” Steel Body 4 Jaw Chuck w/6.5” Bore - P.O.R.
SUBJECT TO PRIOR SALE |
