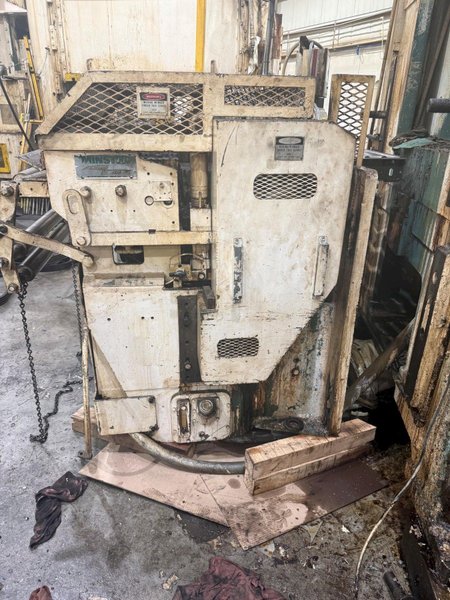

MINSTER MEF7-32 Servo Feeder - 32" Width, .125" Thickness

Name: MINSTER MEF7-32 Servo Feeder - 32" Width, .125" Thickness
Brand: MINSTER
SKU: 3031
Availability: InStock

Brand

MINSTER

Michigan

Coil Width	32 inches
Coil Thickness	.125 inches

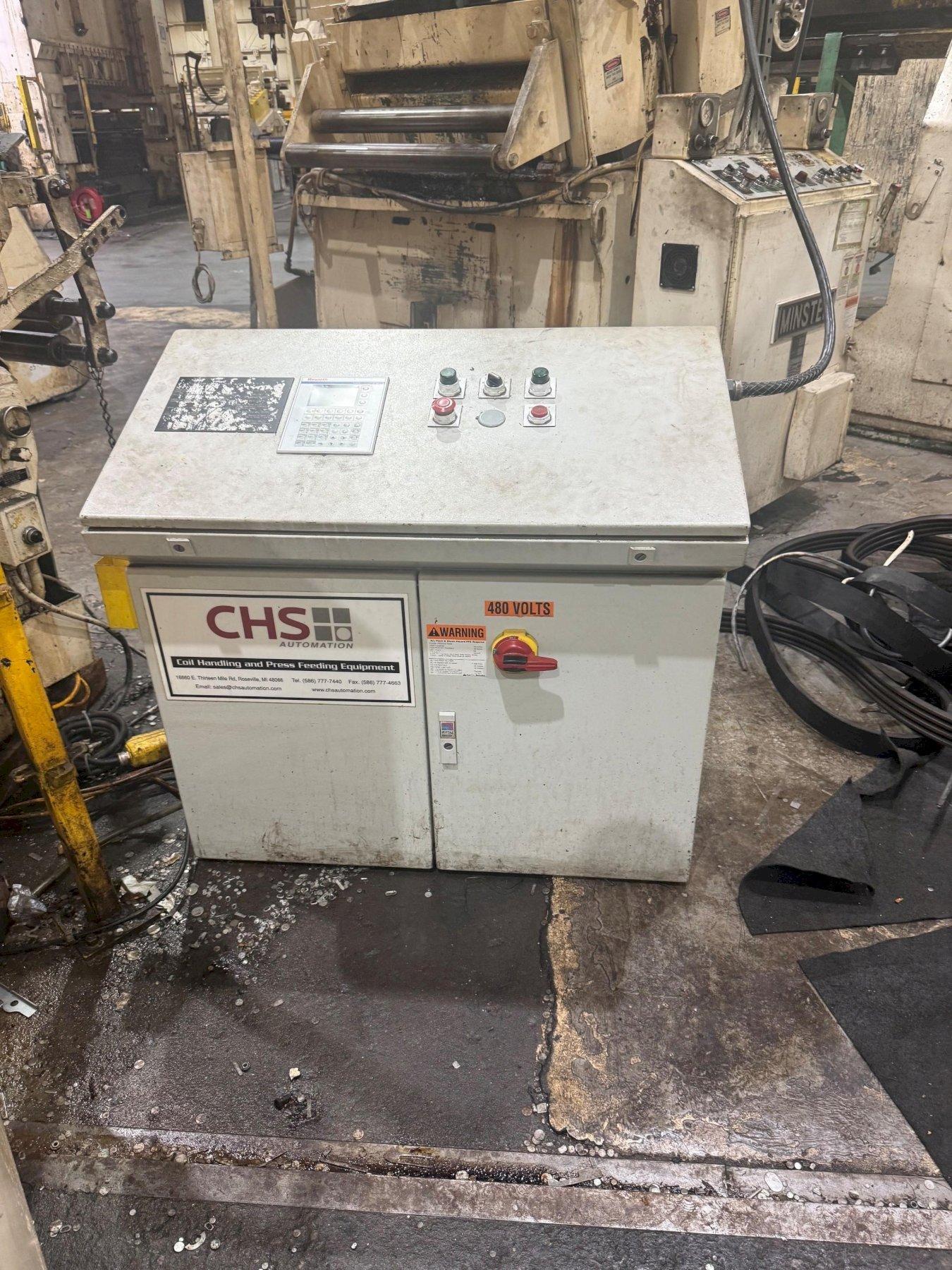

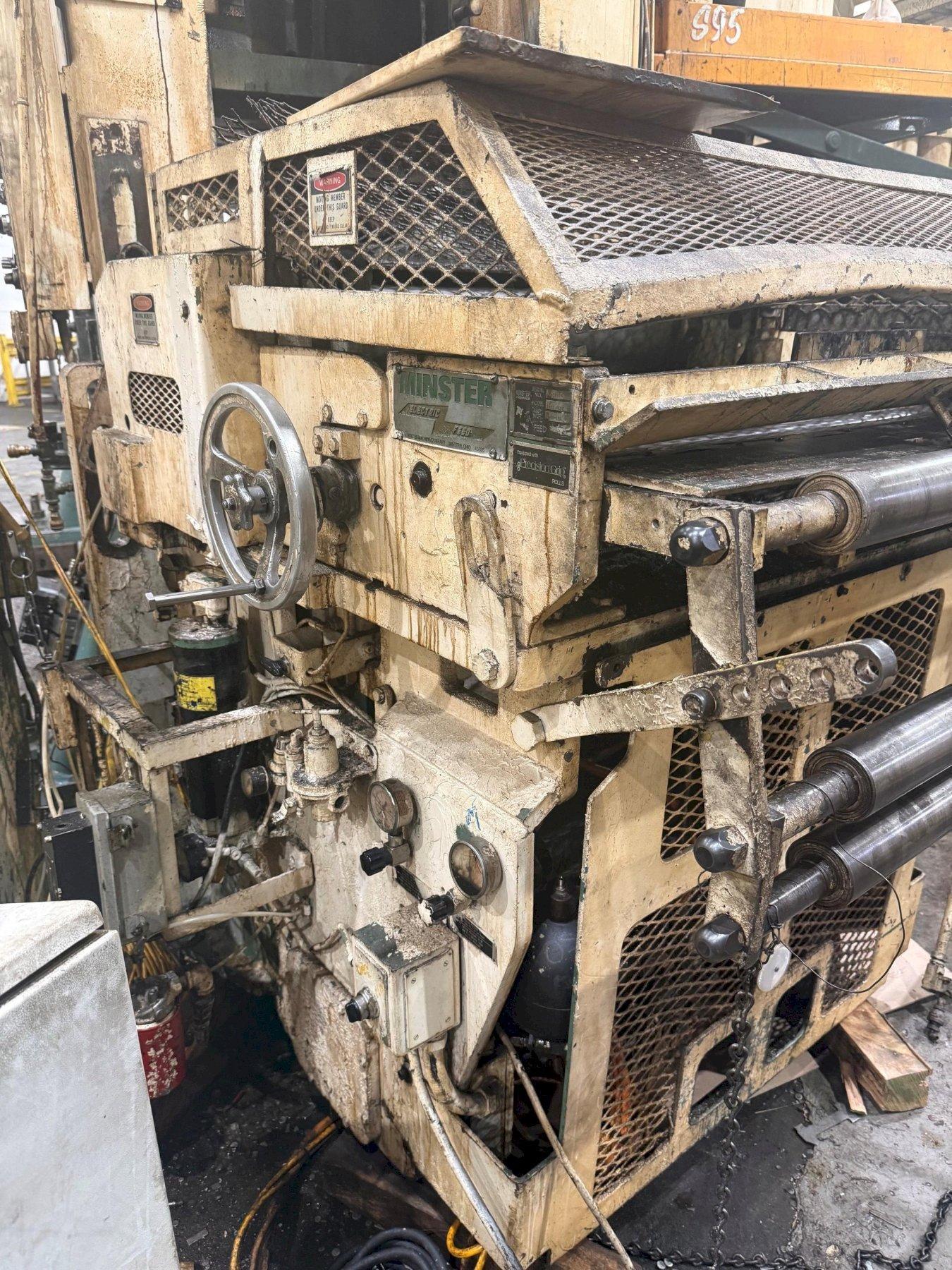

Minster Single Roll Electric Drive Feed Model: MEF7-32 32" @ .125" Material Capacity 16" @ .250" Material Maximum Capacity Low inertia feed rolls are 6.366" in diameter Standard hardened and ground smooth chrome finish Both upper and lower feed rolls are mounted in anti-friction bearings and are driven thru precision square gearing to maintain full tooth engagement during roll lift and varying material thicknesses. Includes electro-hydraulic automatic roll lifters Roll lift dwell and position is totally adjustable thru a programmable limit switch. A manual control is provided to open rolls for strip Material is automatically clamped in event of a power loss. Power feed line height adjustment thru full range driven by a hydraulic motor Update Rexroth Control Package - VCP-08 Voltage: 480/3/60 Maximize your stamping efficiency with this Minster Servo Feed, fully updated with advanced Rexroth VCP 08 controls. Engineered for high-precision coil feeding, this reliable servo feed delivers exceptional accuracy, seamless integration, and minimized downtime. Optimize your automotive or heavy-industrial press room production with modern control technology today.

No files or videos to display

Specifications
