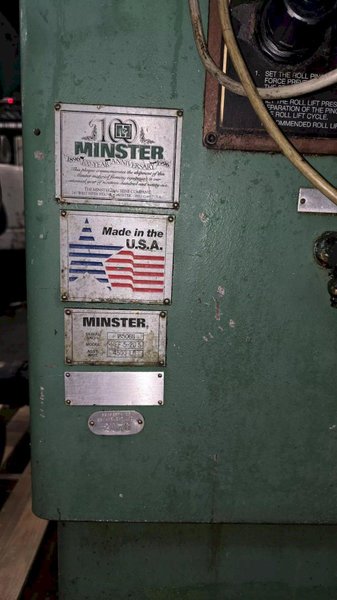

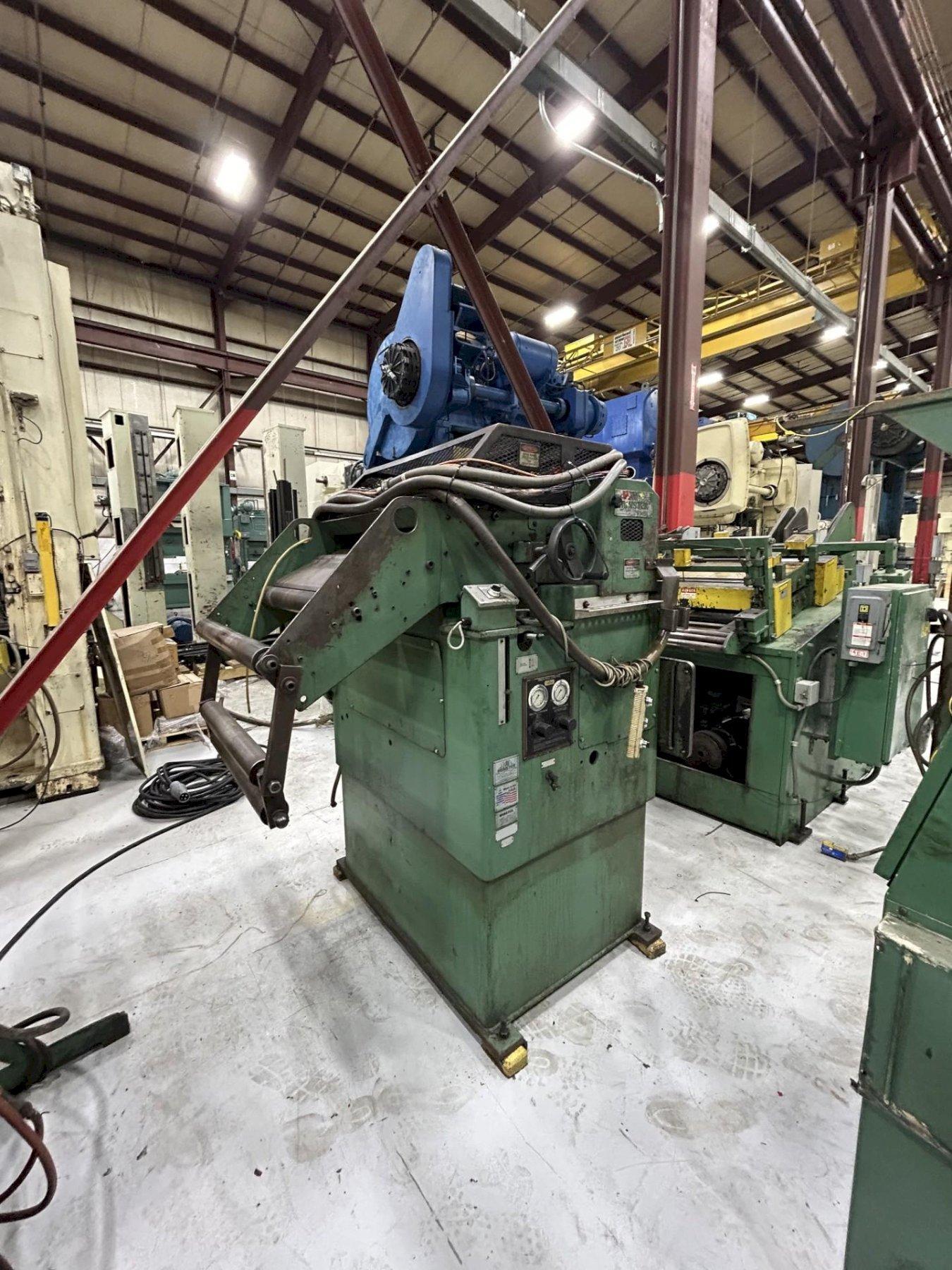

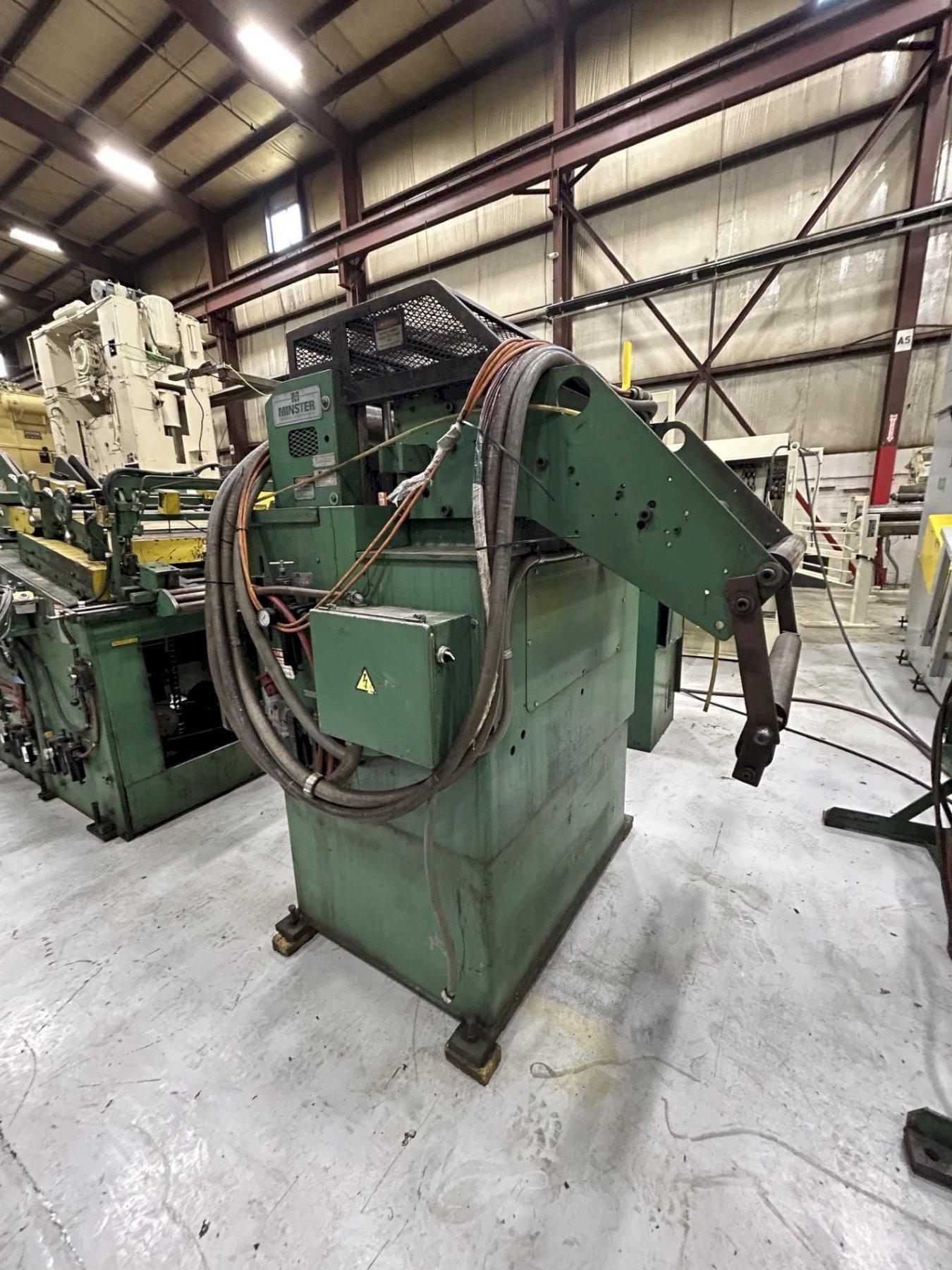

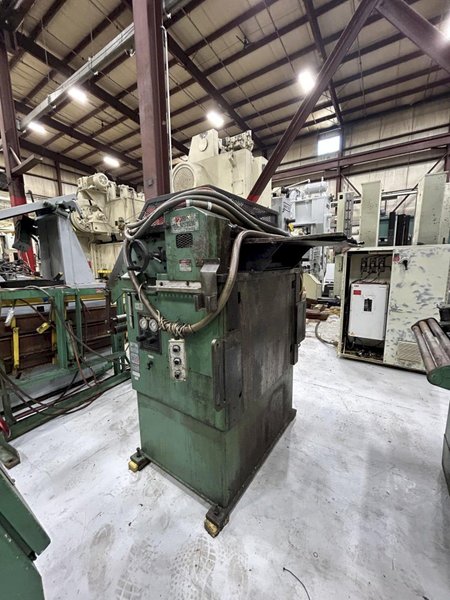

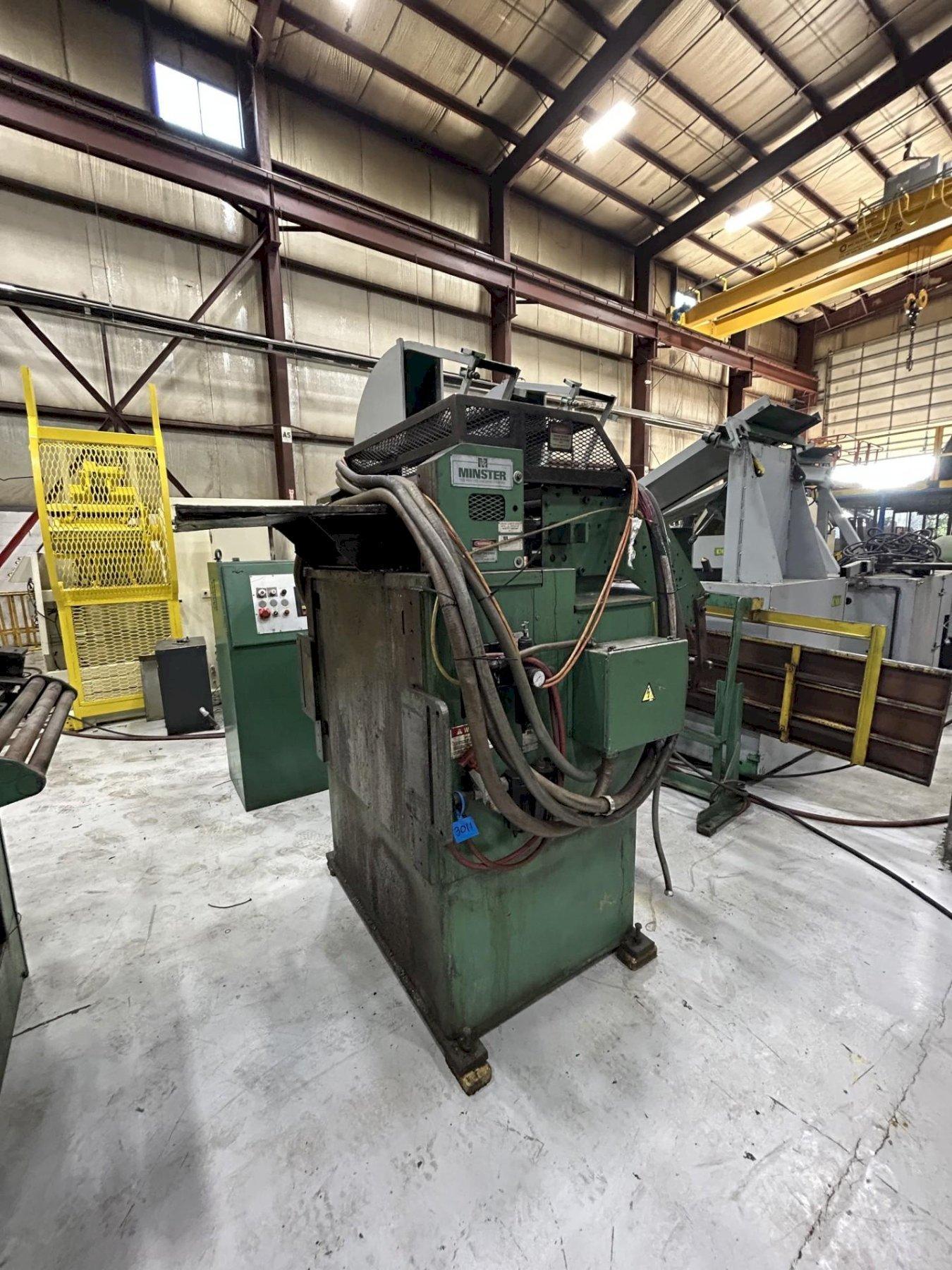

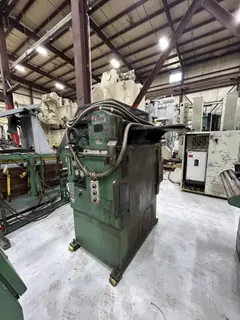

26 inch Minster Servo Feed Model MEF 526-S For Sale

Minster Servo Feed For Sale

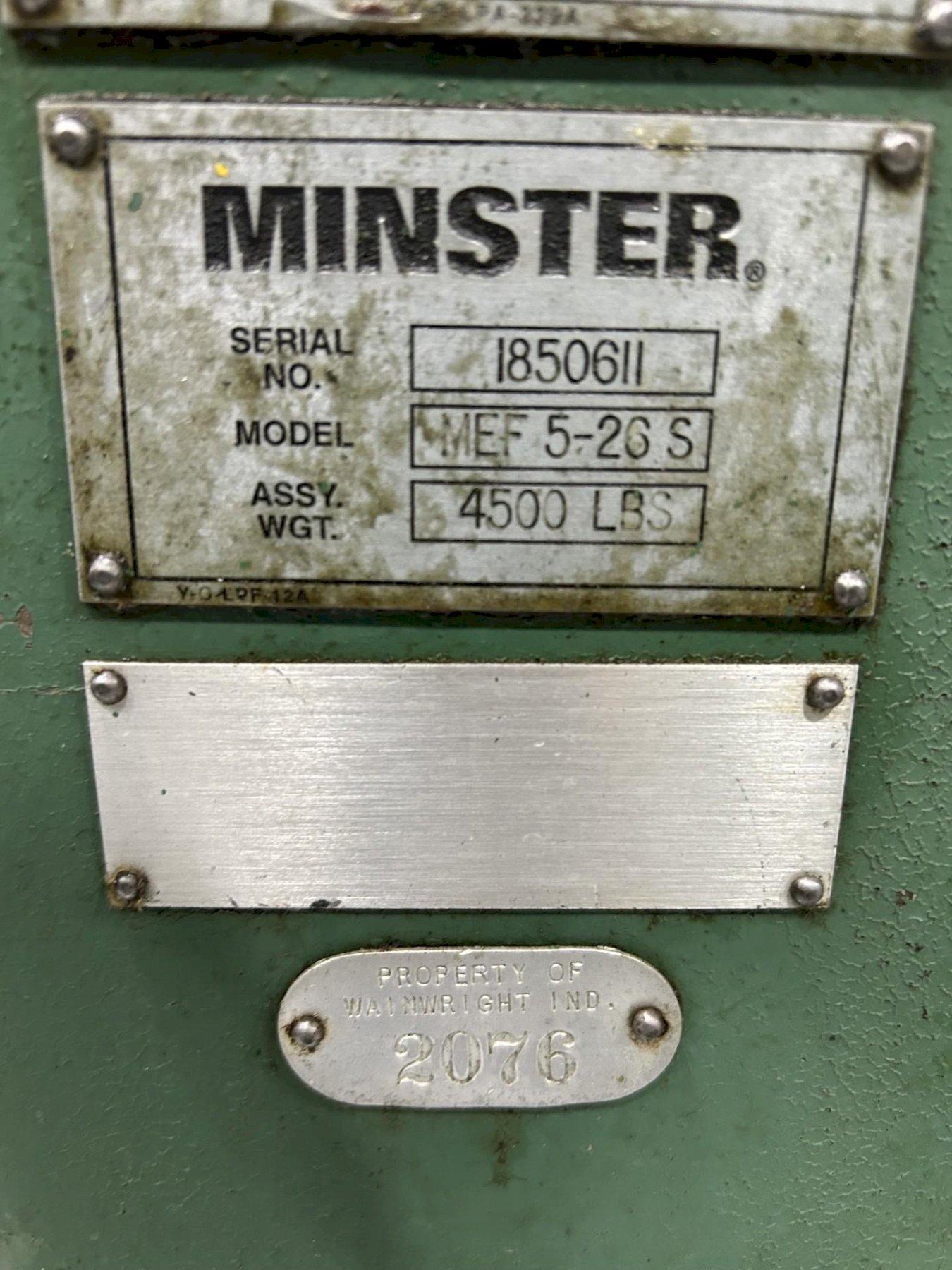

Model MEF 5-26S

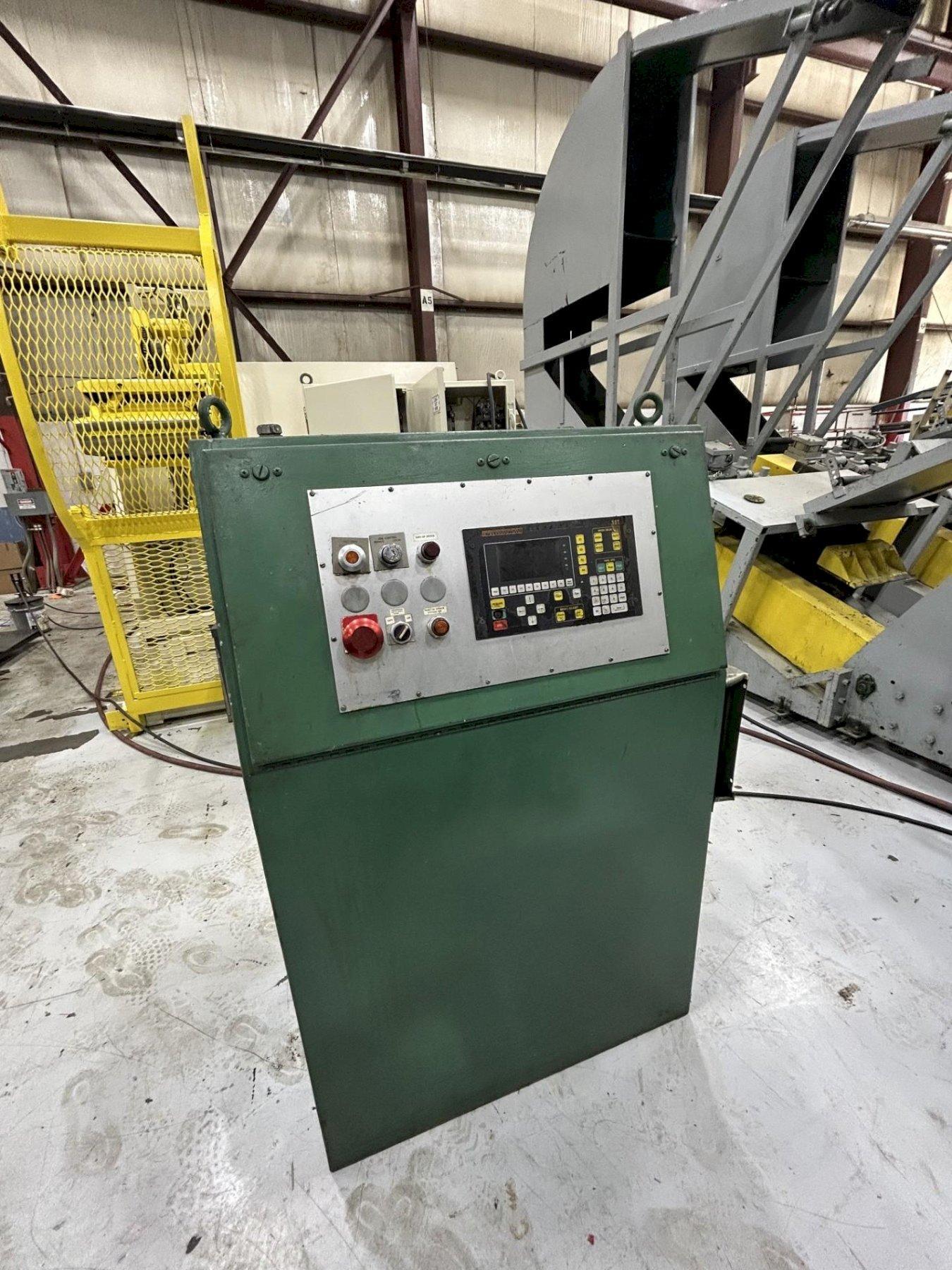

Cabinet Mounted

The standard specifications for the Minster MEF-526 (often designated within the MEF5 series as an MEF5-26 or MEF-526S) electric servo roll feed typically include the following mechanical capacities and features:

Material & Capacity Specifications

• Maximum Material Width: 26 inches (660 mm)

• Feed Roll Diameter: 5.0 inches (127 mm) dual upper and lower rolls

• Feed Length Range: Fully programmable (typically 0 to 999.99 inches)

• Roll Opening (Threading): Approximately 0.47 inches (12 mm)

• Passline Height Adjustment: Motorized or manually adjustable via a cabinet base mounting, allowing flexible alignment to varying press shut heights.

Material Thickness Thresholds

The material thickness rating is dependent on the width and yield strength of the stock being processed:

• Maximum Thickness at Full Width (26"): Nominal capacities range from .090 inches to .151 inches depending on the specific series configuration (e.g., standard MEF-526 vs. high-heavy optioned MEF5-26 variations processing up to 50,000 PSI yield material).

• Maximum Thickness at Narrow Widths: Capable of handling up to .180 inches at a reduced width of 5 inches, or up to .312 – .350 inches on heavy-duty option packages at narrow strip widths (under 5" to 8" depending on the specific servo package).

Standard Engineering Features

• Roll Lift / Pilot Release: Pneumatically actuated upper feed roll for high-speed material piloting, compatible with standard press automation signaling.

• Stock Edge Guides: Manual hand-crank adjustable edge guides with hardened rollers for precise stock tracking.

• Cascade Entry: Typically paired with entry cascade loop support rollers or basic thread-table integration.
