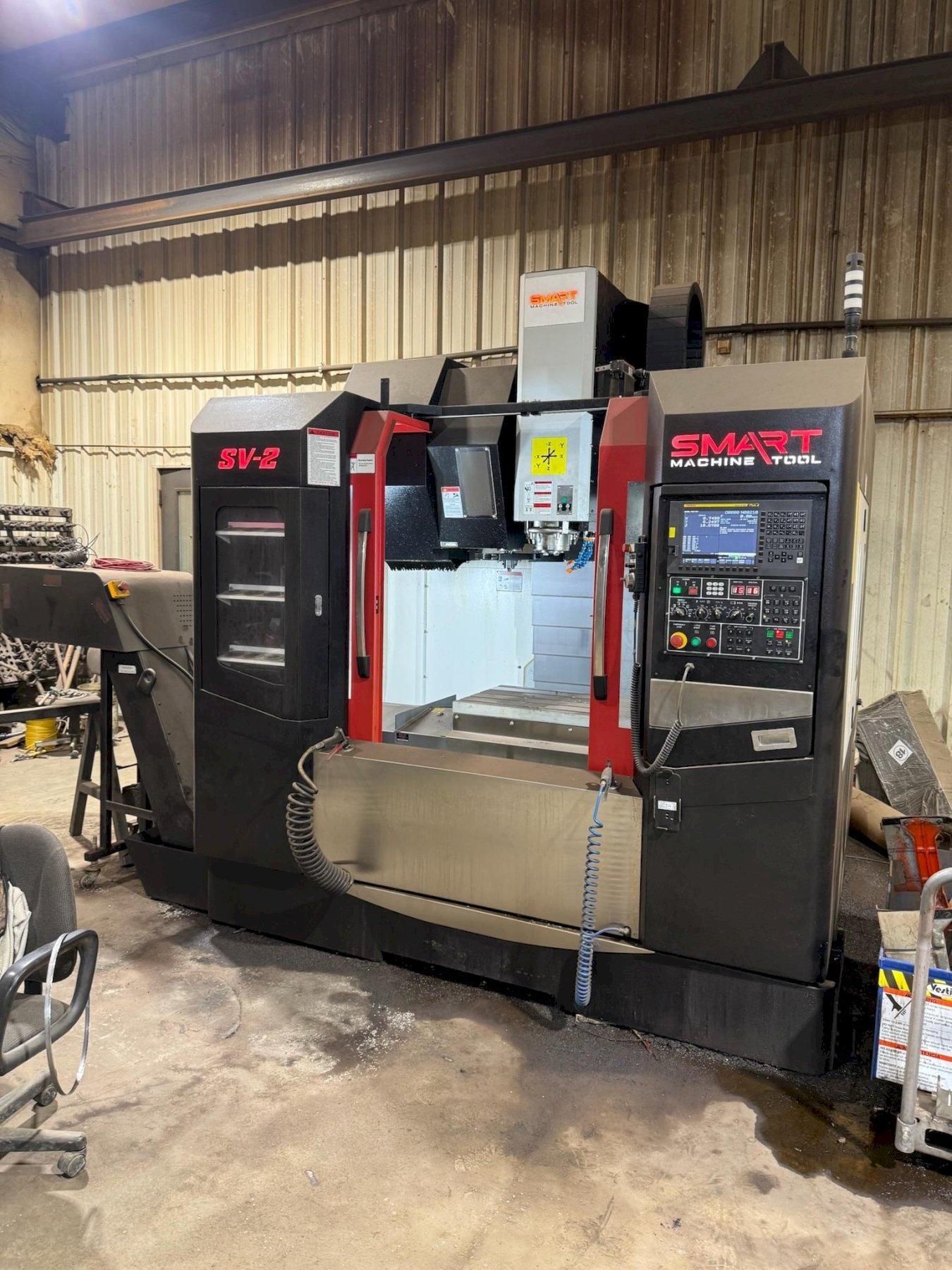

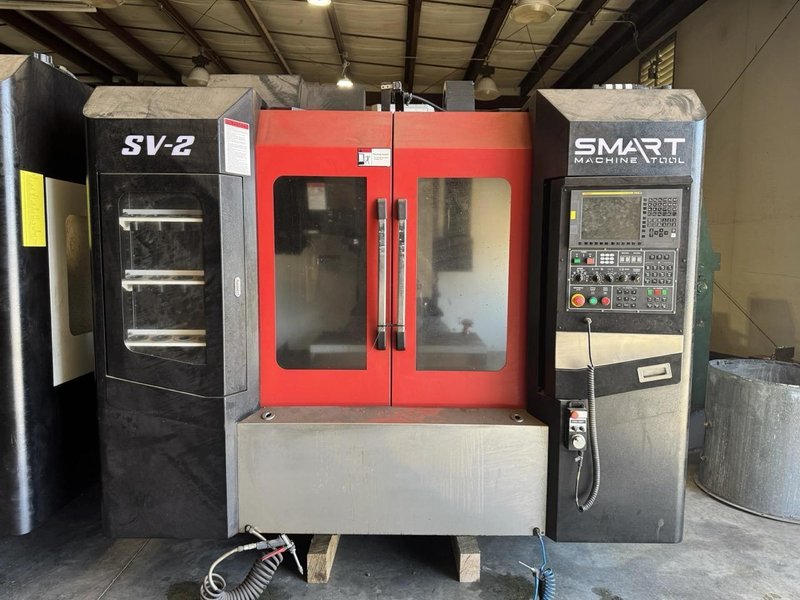

Smart Machine Tool SV-2 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40, 10,000 RPM, 30 ATC, 31.4″ X Travel – VMC Mill

Clean 2022 Smart Machine Tool SV-2 CNC vertical machining center equipped with Fanuc control, CAT40 spindle, 30-station tool changer, fast 1,890 IPM rapids, and a compact 31.4″ x 19.6″ x 19.6″ work envelope ideal for precision milling, job shop production, and prototype machining.

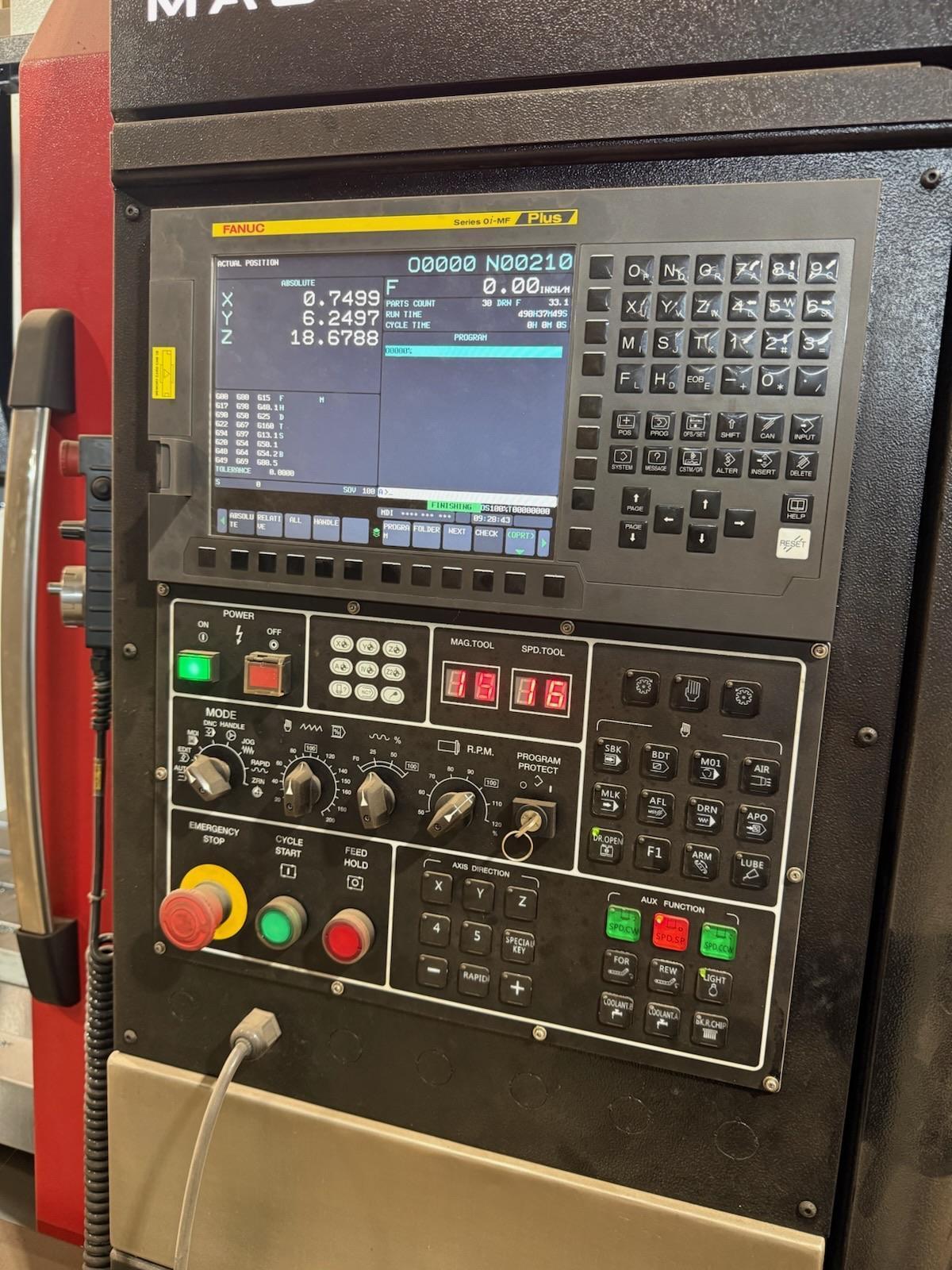

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spec Details Manufacturer Smart Machine Tool Model SV-2 Year 2022 Machine Type CNC Vertical Machining Center / VMC Control Fanuc 0i-MF Plus CNC Control X-Axis Travel 31.4″ Y-Axis Travel 19.6″ Z-Axis Travel 19.6″ Table Size 19.6″ x 39.2″ Spindle Taper CAT40 / Big Plus Spindle Speed 10,000 RPM Spindle Motor 20/25 HP Tool Changer 30-Station Side-Mount ATC Rapid Traverse 1,890 IPM Cutting Feedrate Up to 394 IPM Power 220V / 60Hz Approx. Machine Dimensions 134.6″ L x 98″ W x 110.2″ H Approx. Machine Weight 11,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
