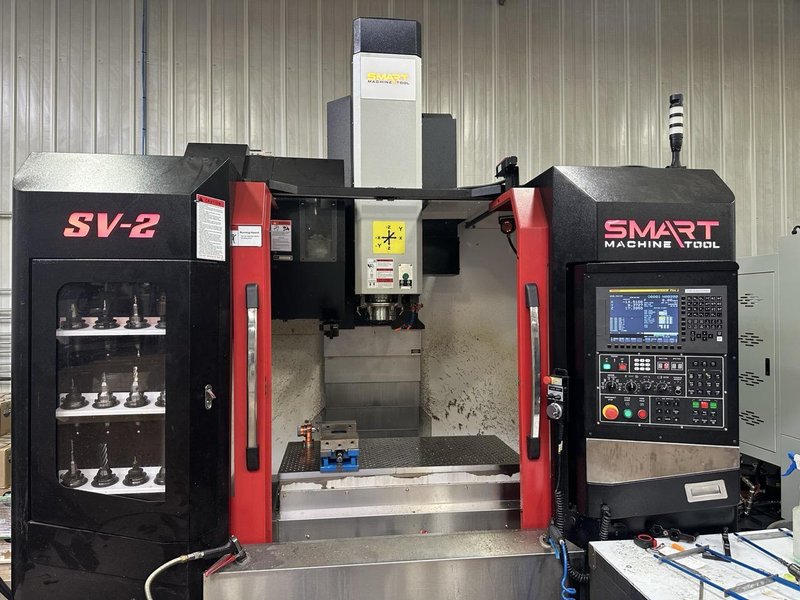

Smart SV-2 VMC, 2022
Brand
Category
Model
SV2
Stock #
860774
Year
2022
Condition
Not specified
Location
Not specified
|
Power Requirements: 220v/60hz
Spindle Motor HP 20/25 hp
X Travel: 31.4″
Y Travel: 19.6″
Z Travel: 19.6″
Table Size: 19.6″ x 39.2″
Spindle Taper CAT40
Spindle Speed 10,000 rpm
Rapid Traverse Rate: 1,890 ipm
Cutting Feedrate: Up to 394 IP
Magazine Capacity 30
Machine Dimensions: 134.6″ x 98″ x 110.2″
Machine Weight: 11,000

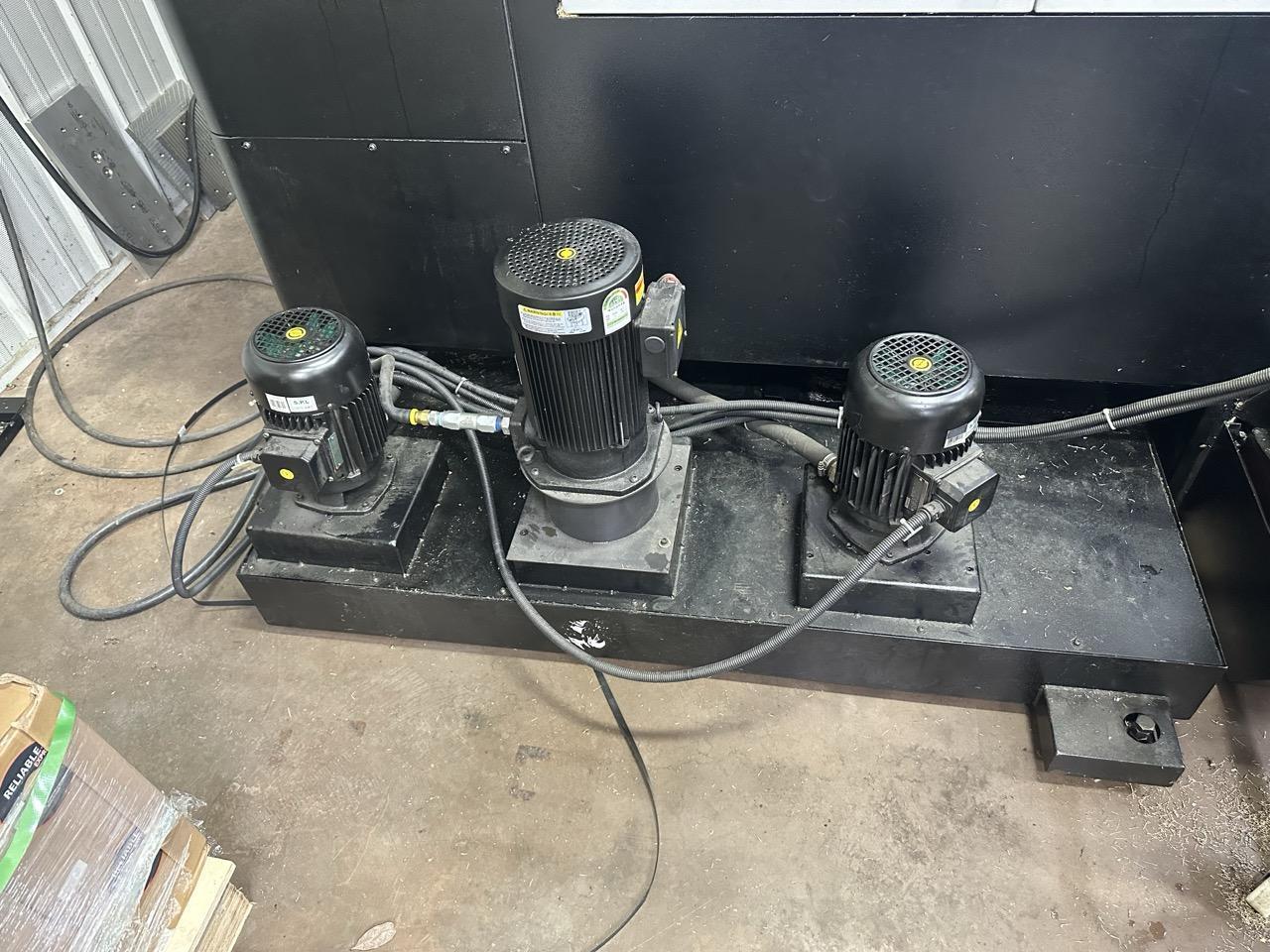

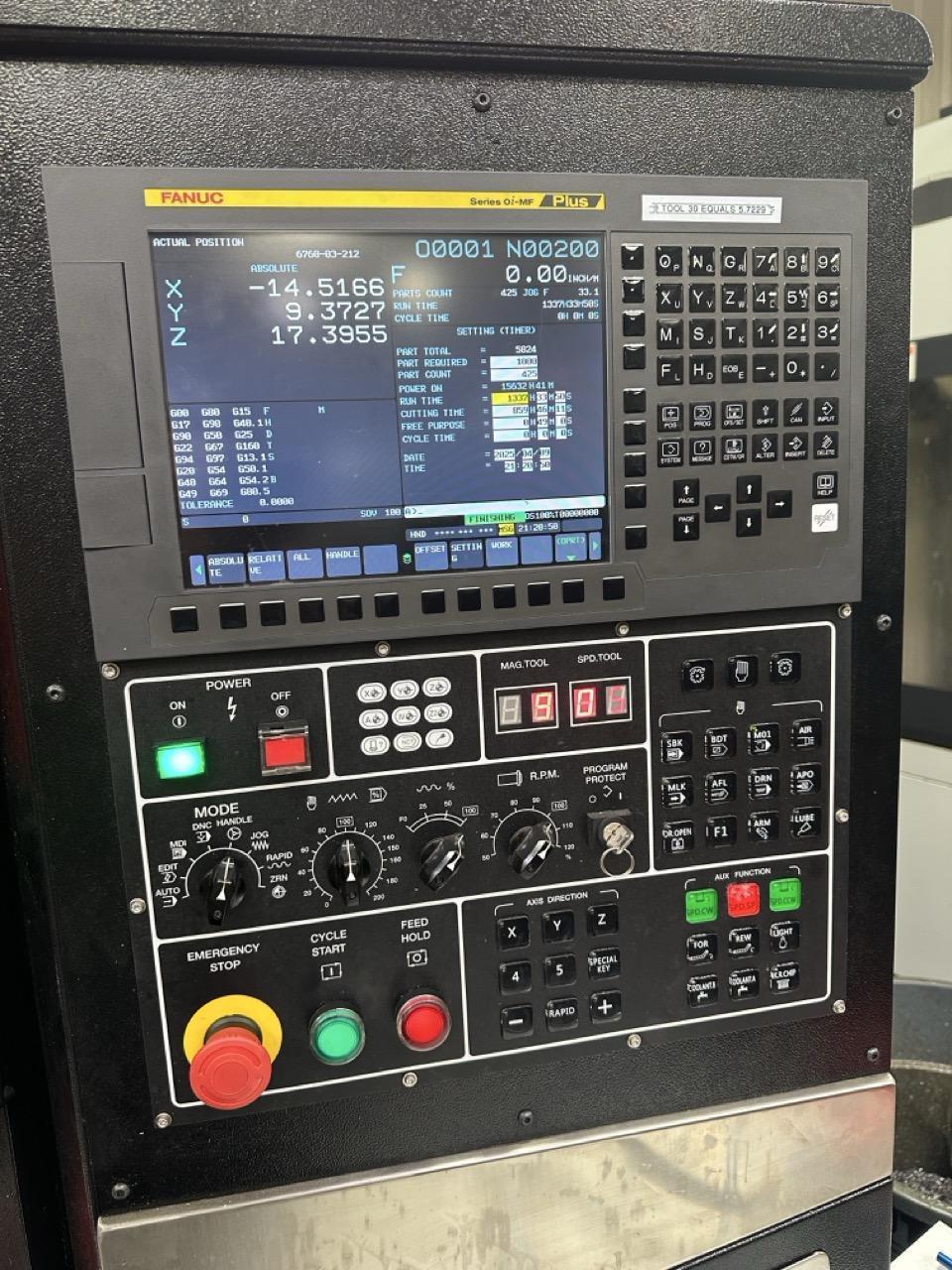

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Fanuc 0i-MF Plus CNC Control Chip Conveyor Coolant Through Spindle Spindle Oil Cooler Renishaw Probe Ready Rigid Tapping Chip Flushing System All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
