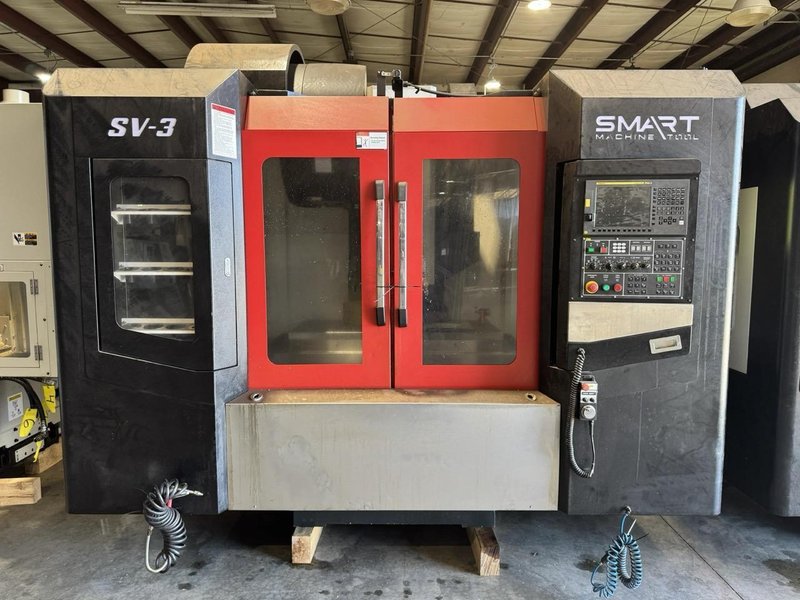

Smart Machine Tool SV-3 CNC Vertical Machining Center, 2022 – Fanuc 0i-MF Plus, CAT40 Big Plus, 12,000 RPM, 30 ATC, 41.3″ X Travel – VMC Mill

Clean 2022 Smart Machine Tool SV-3 CNC vertical machining center featuring Fanuc 0i-MF Plus control, CAT40 Big Plus 12,000 RPM spindle, 30-station automatic tool changer, and 41.3″ x 20.5″ x 20.5″ travels for precision milling, production machining, and job shop applications.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spec Details Manufacturer Smart Machine Tool Model SV-3 Year 2022 Machine Type CNC Vertical Machining Center / VMC Control Fanuc 0i-MF Plus CNC Control X-Axis Travel 41.34″ Y-Axis Travel 20.47″ Z-Axis Travel 20.47″ Table Size 45.28″ x 19.69″ Spindle Taper CAT40 Big Plus Spindle Speed 12,000 RPM Spindle Motor 20/25 HP Tool Changer 30-Station ATC Rapid Traverse Approx. 1,417 IPM Power 220V / 3-Phase / 60Hz Air Requirement Approx. 87 PSI / 6 bar

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
