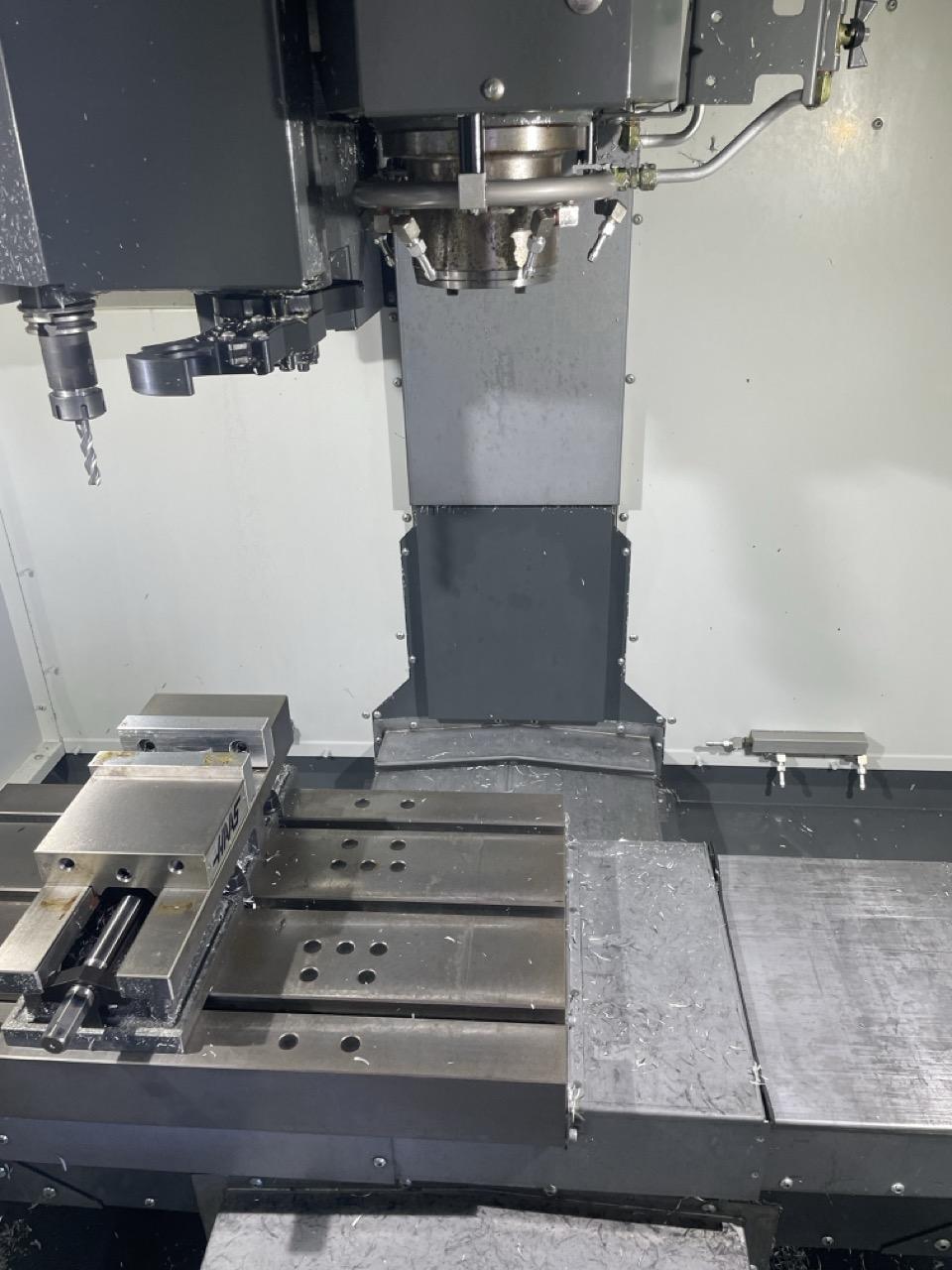

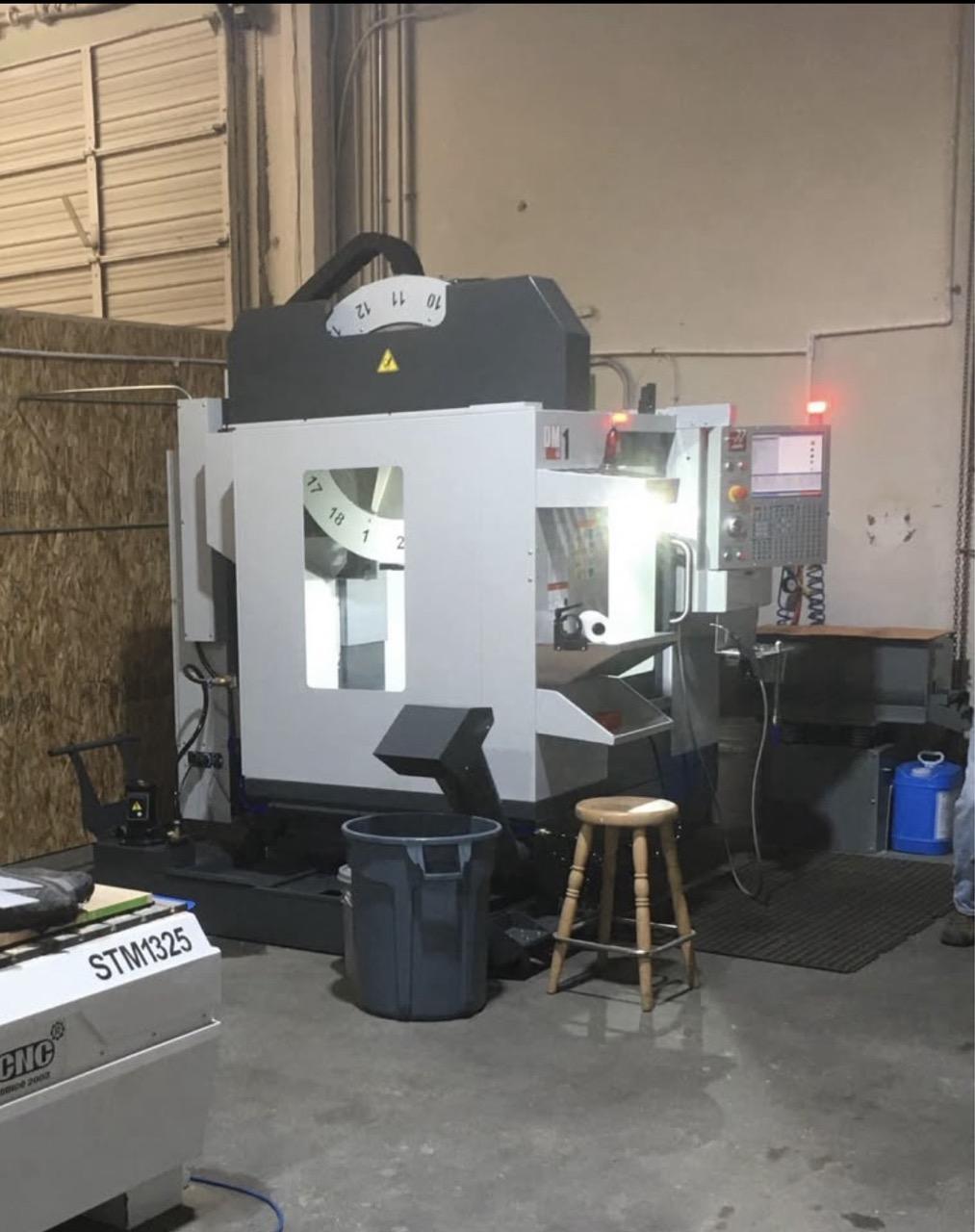

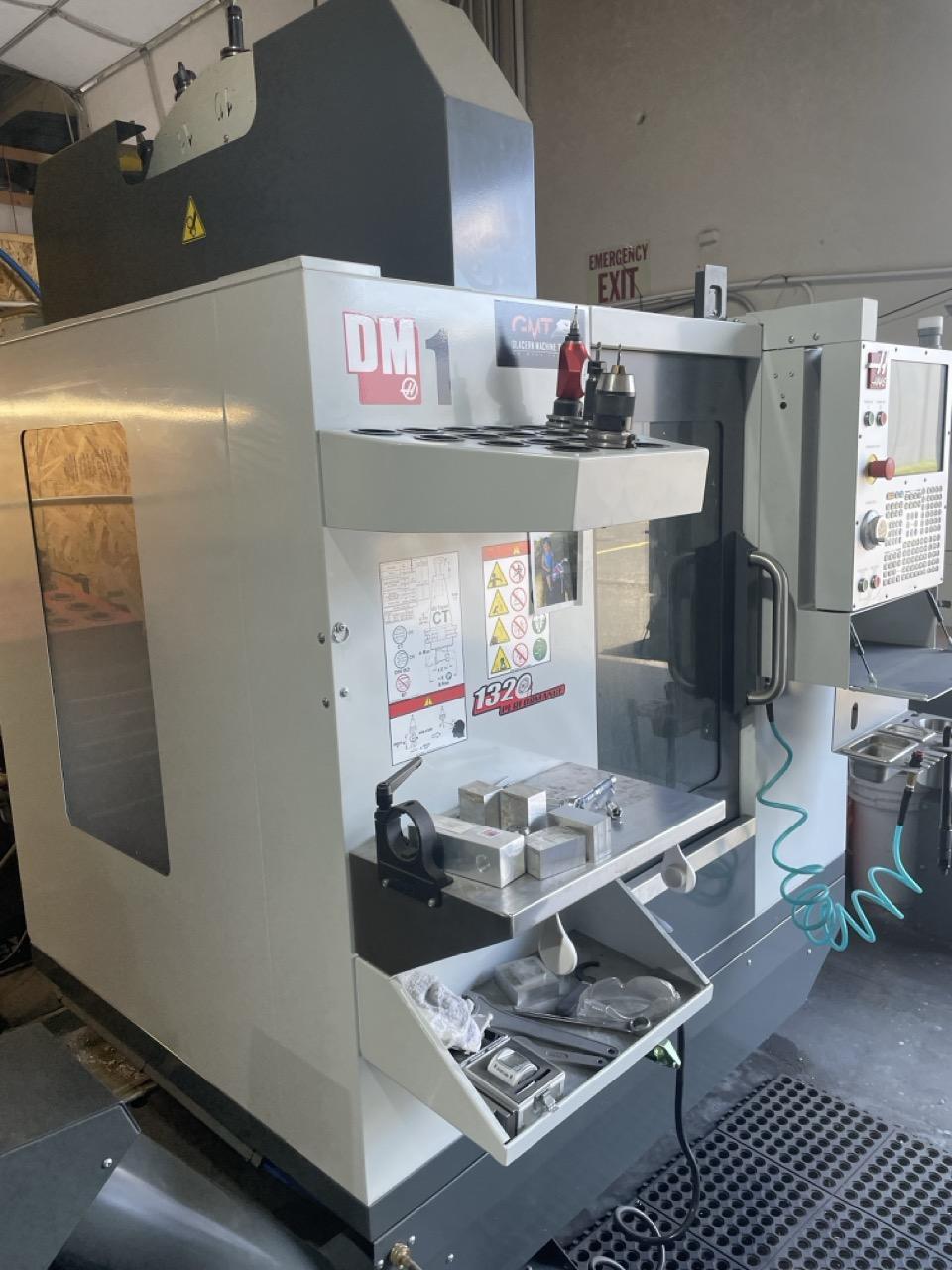

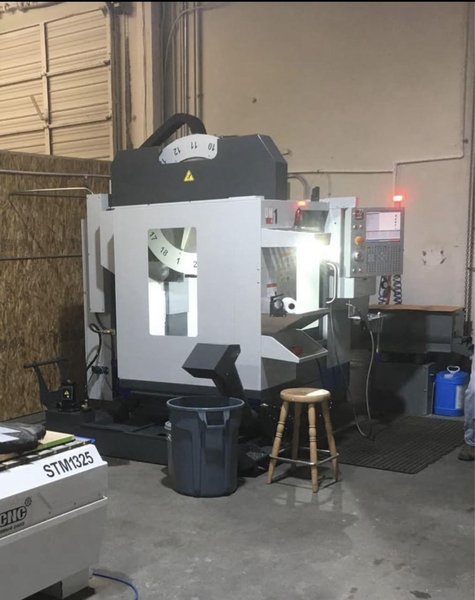

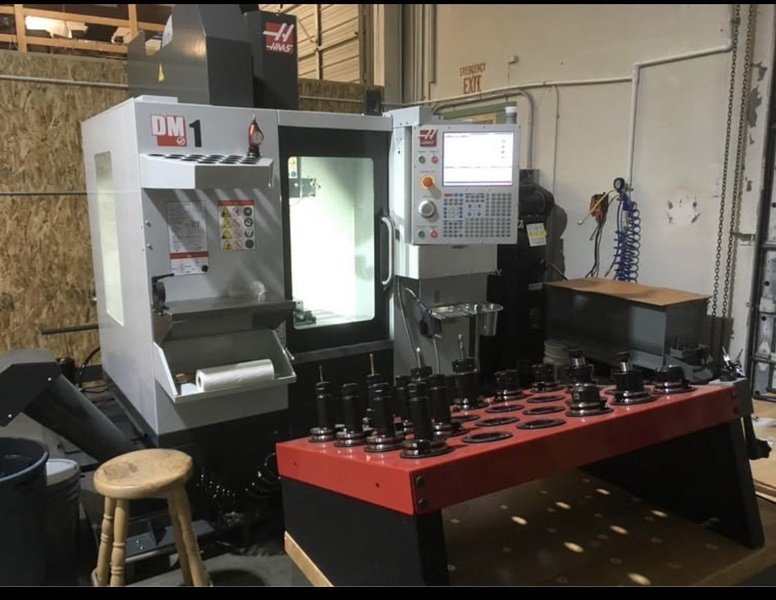

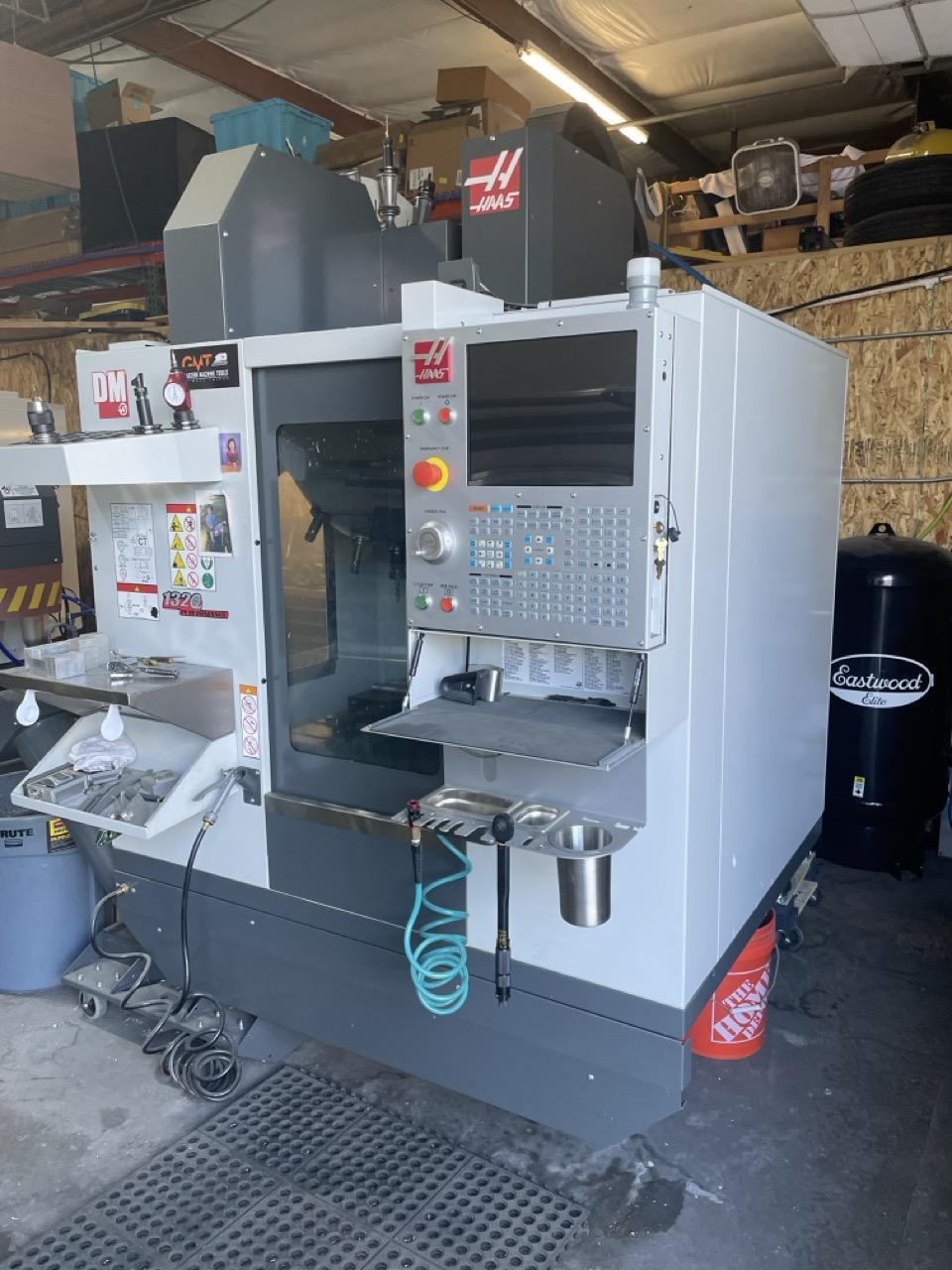

Haas DM-1 VMC, 2020 – HSM, Chip Conveyor
Brand
Category
Model
DM-1
Stock #
660548
Year
2020
Condition
Not specified
Location
Not specified
|
X Axis Travel: 20″
Y Axis Travel: 16″
Z Axis Travel: 15.5″
Table Size: 26″ x 15″
Max Weight On Table: 250 LBS
Spindle Speed: 15,000 RPM
Spindle Rating: 15 HP
Spindle Taper: 40
Rapids on X,Y,Z: 2400 IPM
ATC: 18+1
Machine Weight: 5,200 LBS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Haas CNC Control Chip Conveyor High Speed Machining All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
