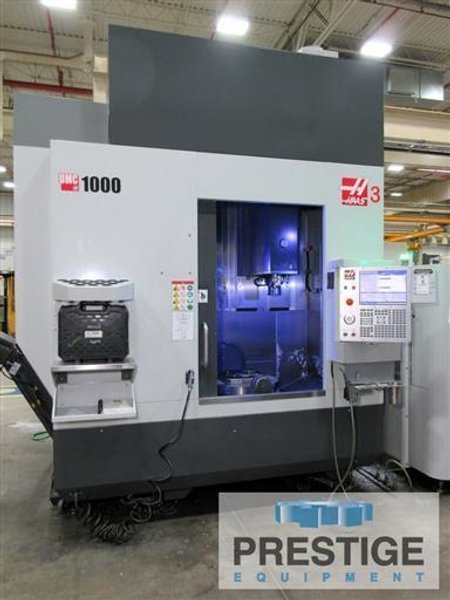

Machining Centers Vertical CNC

CAPACITY:
X-Axis Travel 40"
Y-Axis Travel 25"
Z-Axis Travel 25"
Spindle Nose to Platter 4"-29"
Max. Part Swing 34"

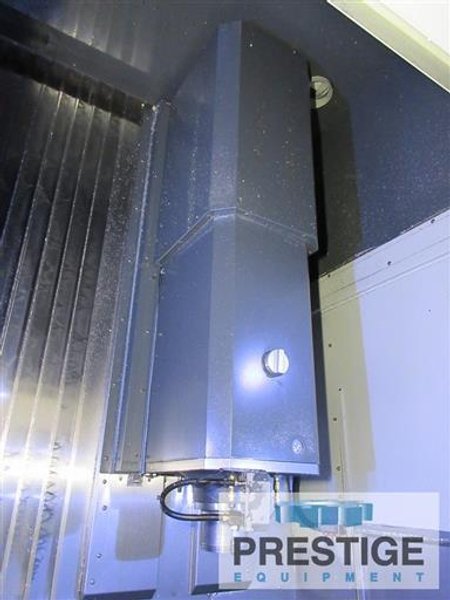

SPINDLE:
Max. Spindle Speed 15,000 RPM
Spindle Taper HSK-A 63
Spindle Drive Inline Direct Drive
Spindle Motor 30 HP Vector Drive

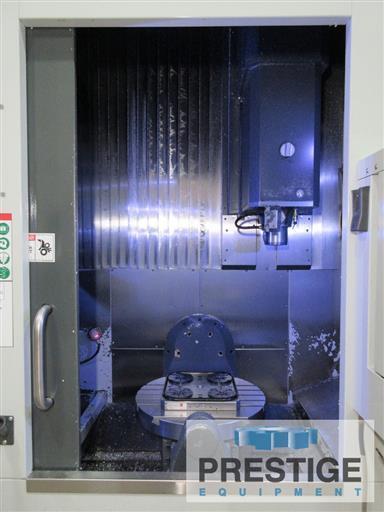

B-AXIS TILT/TRUNNION ROTARY TABLE:
Platter Diameter 25"
B-Axis Tilt Travel +120/-35 Degrees
C-Axis Rotation 360 Degrees
Max Weight on Platter 1000 Lbs.
FEEDRATES:
Max Cutting 650 IPM
Rapids, XYZ 900 IPM
TOOL CHANGER:
Capacity 50 ATC
Max Tool Dia, Adjacent Full 2.5"
Max Tool Dia, Adjacent Empty 5.0"
Max Tool Length 12.0"
Max Tool Weight 12.0 Lbs.
DIMENSIONS & WEIGHT:
Domestic Pallet 168" x 94" x 116"
Approx. Weight of Machine 15,600 Lbs.



Equipped With:

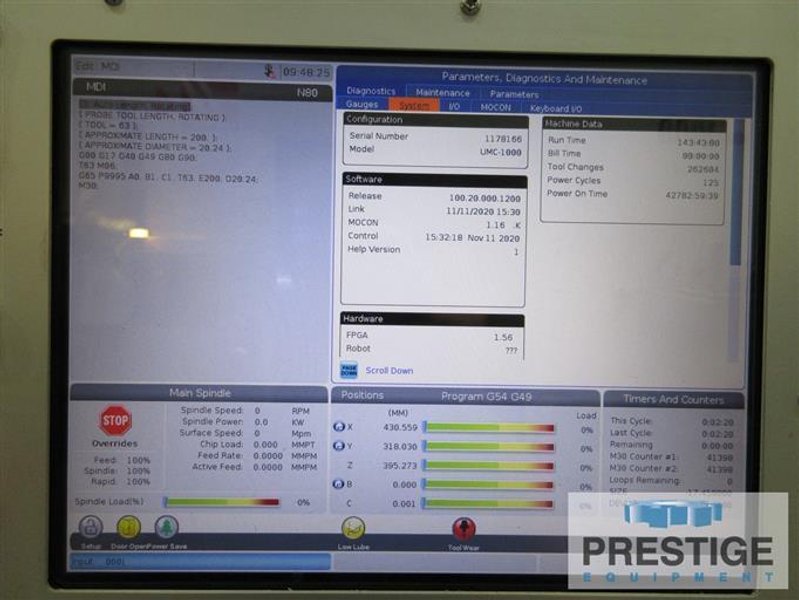

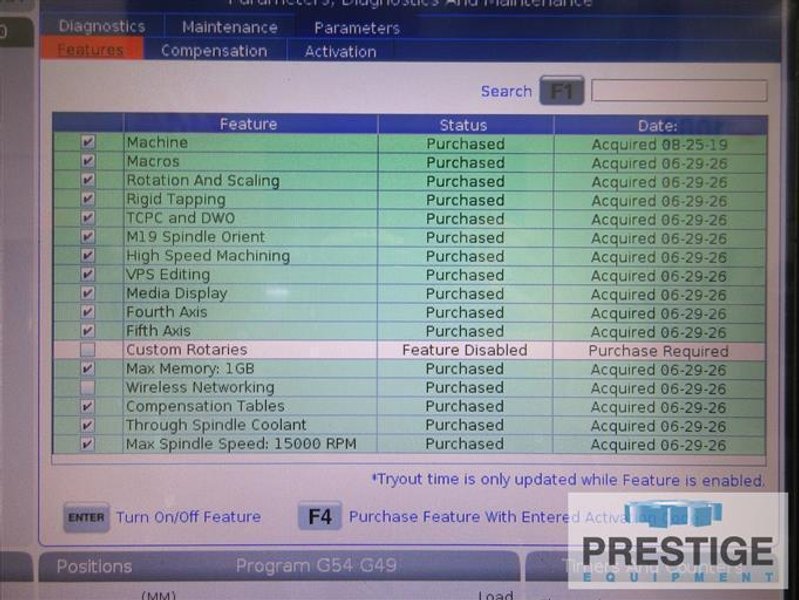

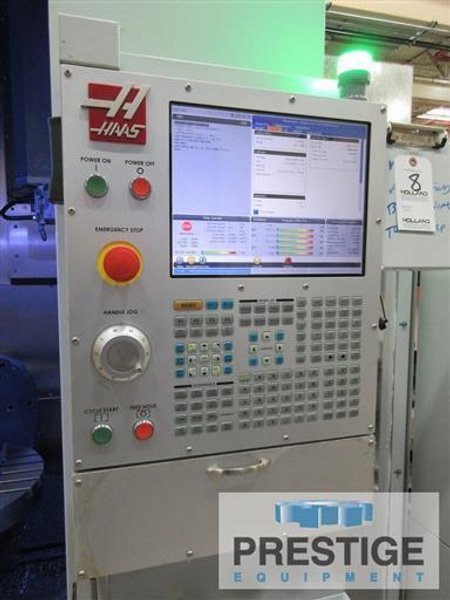

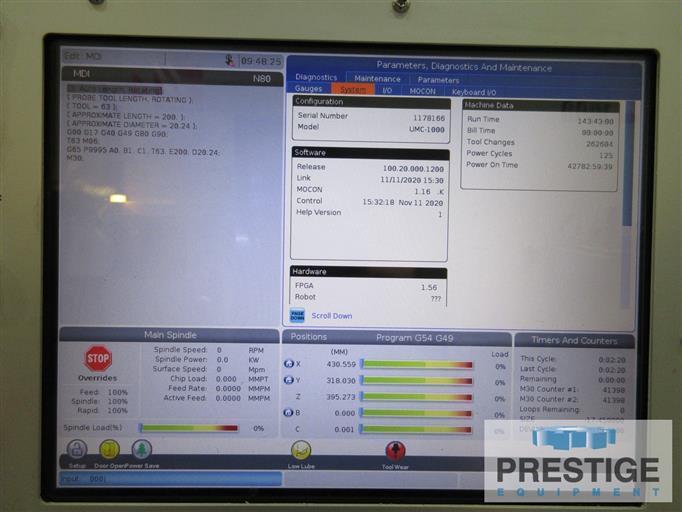

Haas CNC Control

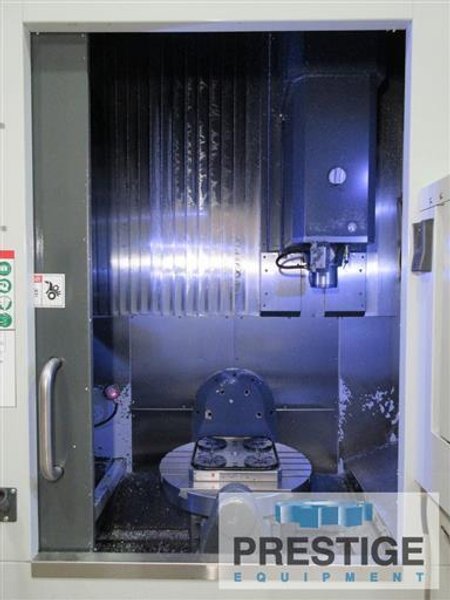

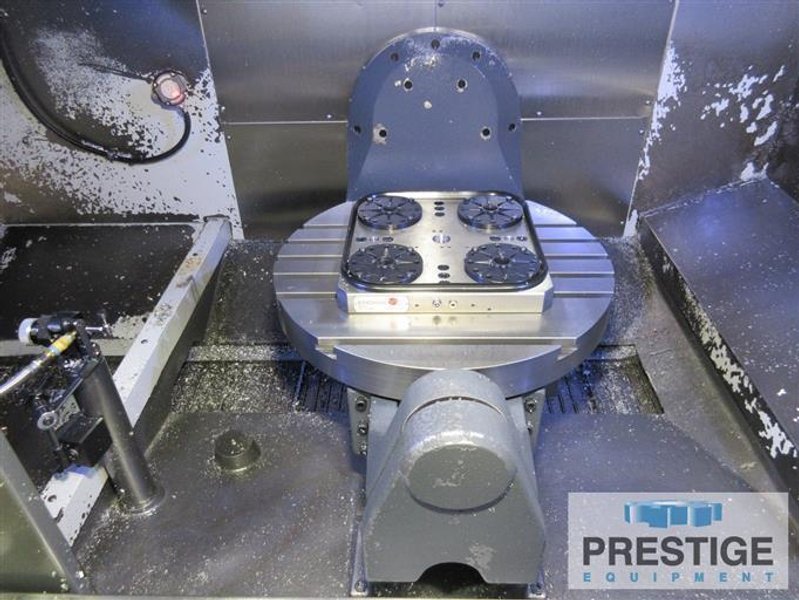

25" 2-Axis Tilt/Trunnion Rotary Table

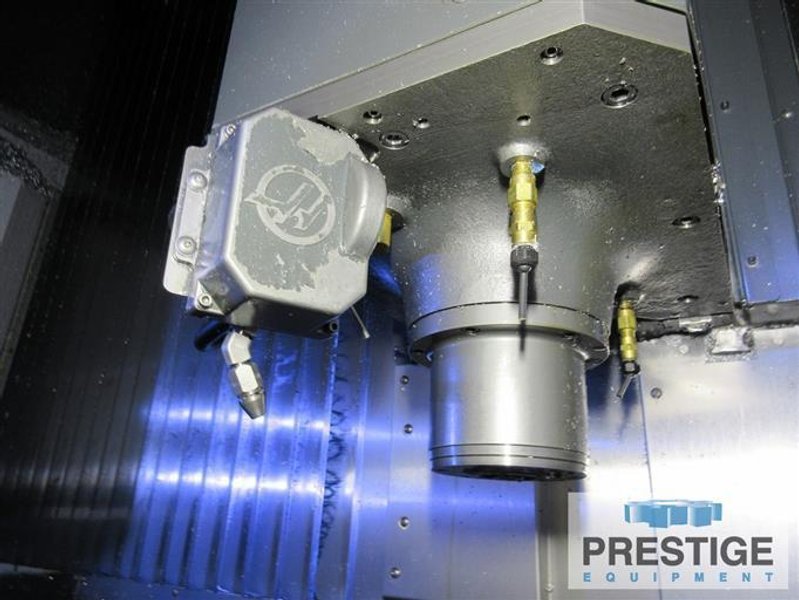

15,000 RPM HSK-A63 Spindle

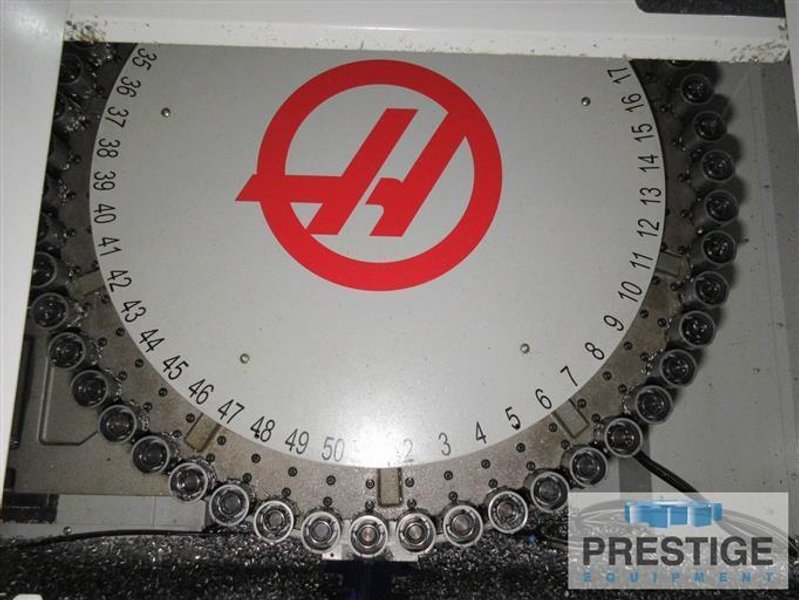

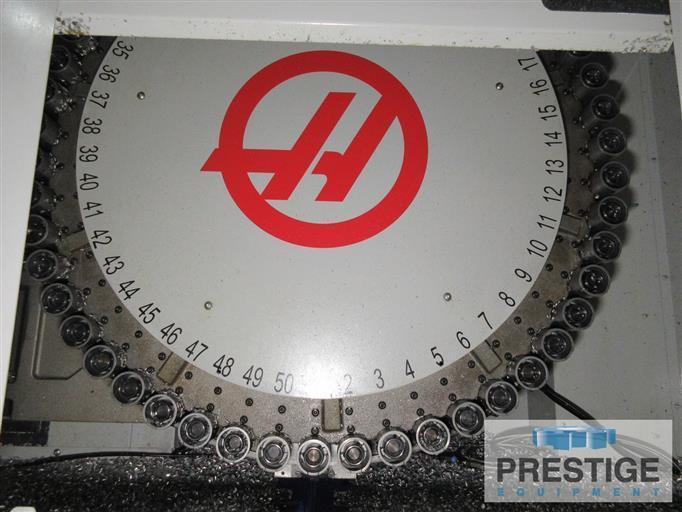

50-Position Side Mount Tool Changer

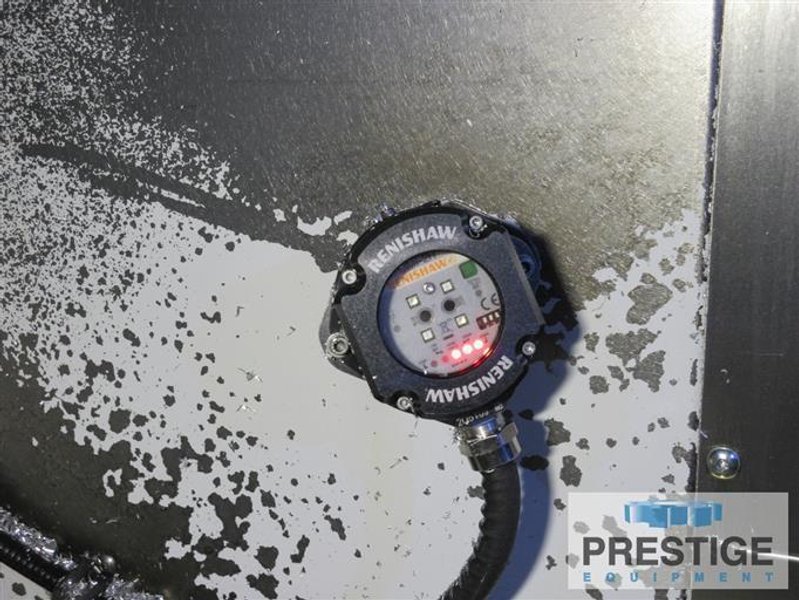

Renishaw Probe

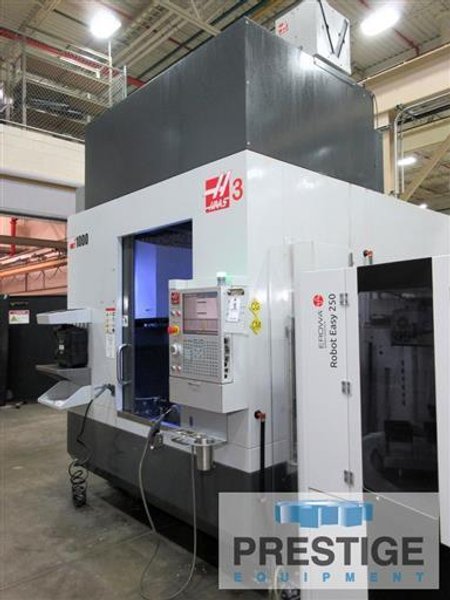

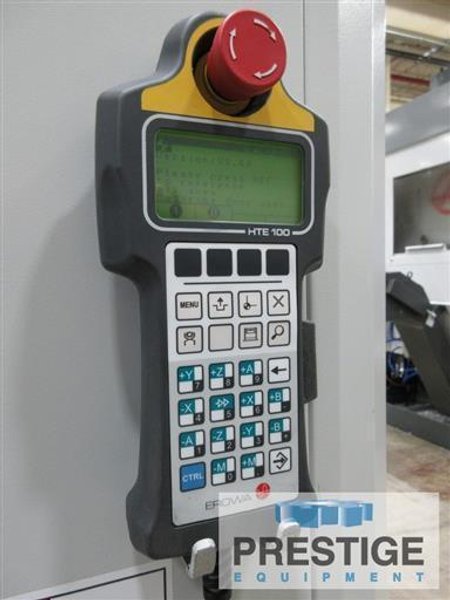

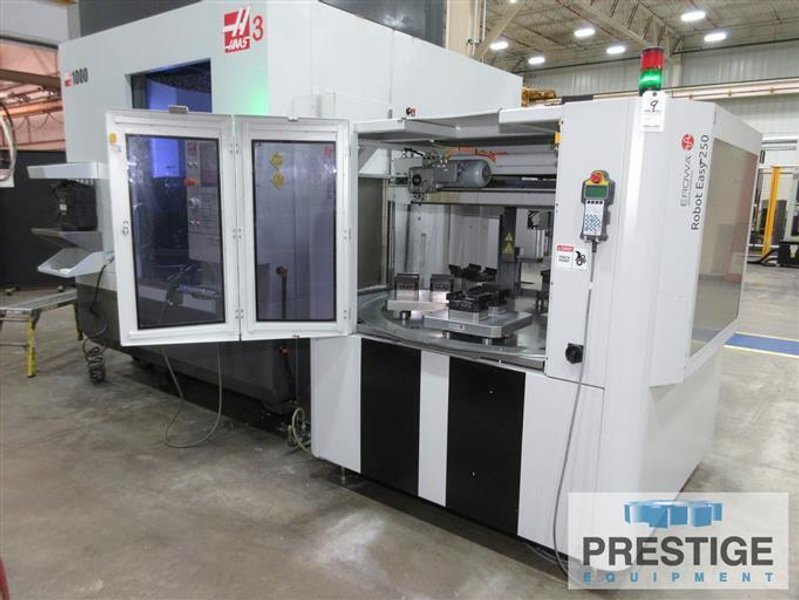

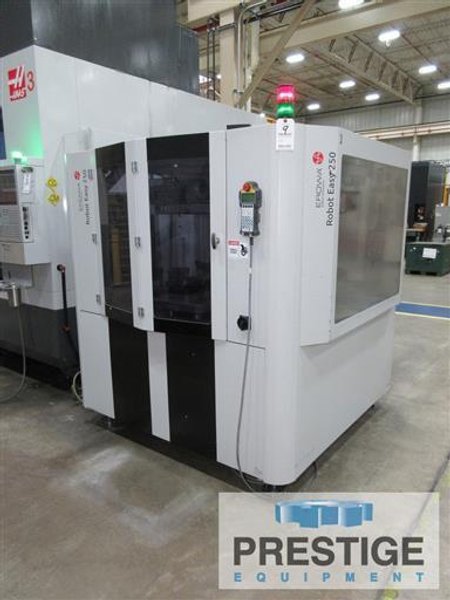

Erowa Easy 250 Robot with Pendant

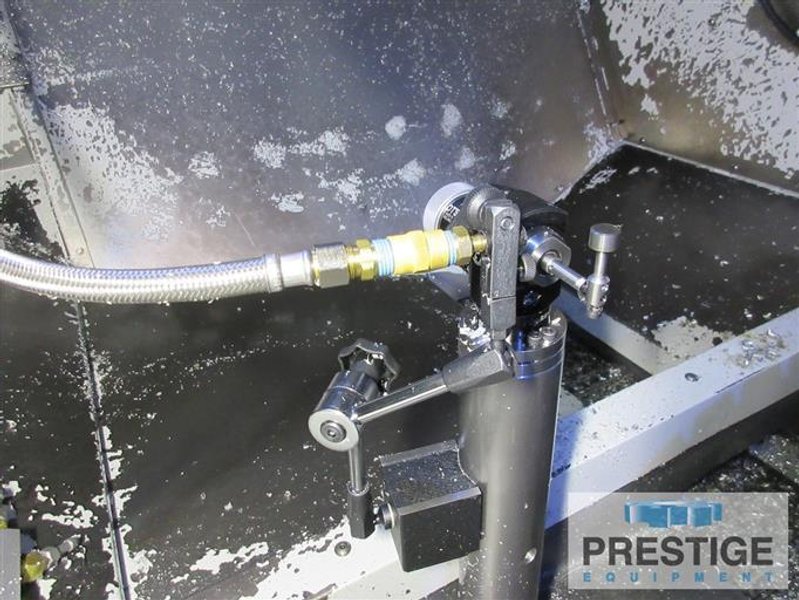

High Pressure Through Spindle Coolant
Chip Conveyor


Auction Message:
Offered At Our Upcoming August 25th Auction Sale: "Complete Late Model CNC Mold Facility." Pre-Auction Offers Will Be Considered. Please Click The Link Below To See The Entire Offering.
