Name: Used 2006 Hyd-Mech 22" x 22" automatic dual column horizontal bandsaw model H-22A
Brand: HYD-MECH
SKU: 11266
Availability: InStock

Brand

HYD-MECH

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Saws, Band, Horizontal

Manufacturer:

HYD-MECH

Model:

H-22-A

Year:

2006

Stock #:

11266

Status:

For Sale

Serial #:

C0406193S

Description

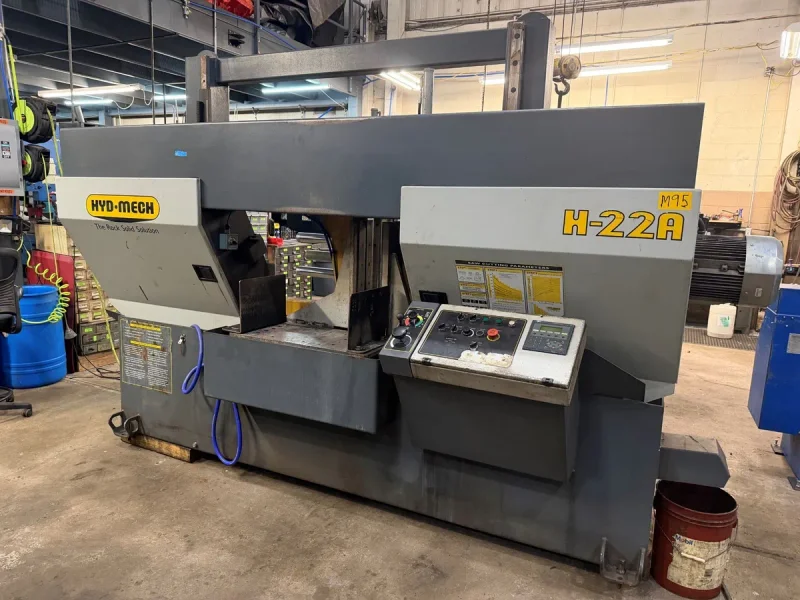

Used 2006 Hyd-Mech H-22A automatic dual column horizontal bandsaw with 22" capacity and 10 hp power. Features Mitsubishi PLC control, overhead bundling clamps, and hydraulic chip auger.

ImperialMetric

Rect-Cap (H)	22"	558.8 mm
Rect-Cap (W)	22"	558.8 mm
Rounds-Cap	22"	558.8 mm
Square-Cap	22"	558.8 mm
Power	10 hp	7.5 kW
Type (Auto, Manual, Semi)	Auto	Auto
Blade Width	2"	50.8 mm
Blade Thickness	0.063"	1.6002 mm
Blade Length	270"	6,858 mm
Control	CNC (Mitsubishi)	CNC (Mitsubishi)
Dimensions	141" x 89" x 93"	141" x 89" x 93"
Weight	12,500 Lbs.	12,500 Lbs.

Brand: Hyd-Mech
Model: H-22A

Capacity: 22" x 22"
Blade size: 22'6" x 2" x .063"
Blade speed: 40 - 300 FPM (variable frequency drive)
Blade guides: Carbide
Blade wheel diameter: 27"

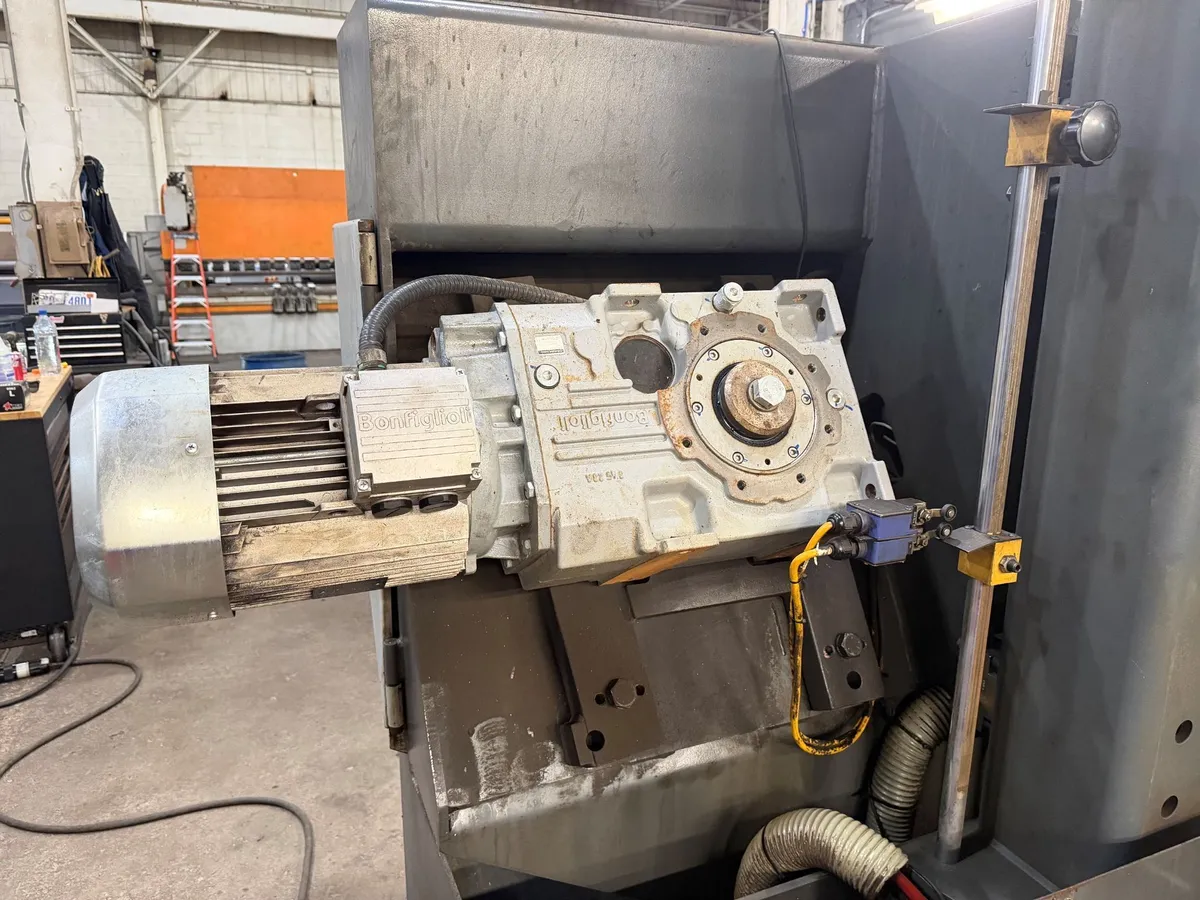

Blade drive: 10 H.P.
Hydraulic motor: 3 H.P.
Hydraulic tank capacity: 9 gallons
Coolant tank: 30 gallons
Shuttle stroke: Up to 34" single stoke (multi index up to 9x)

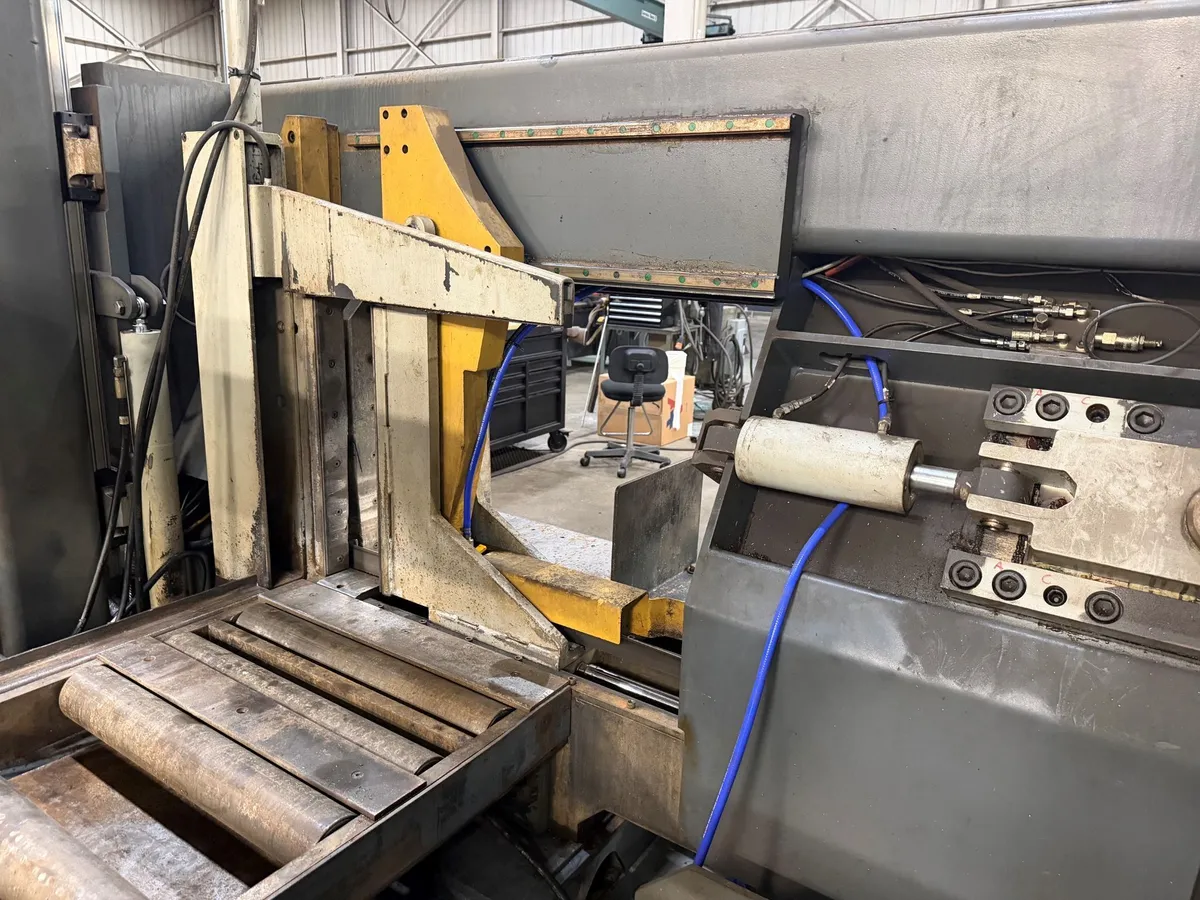

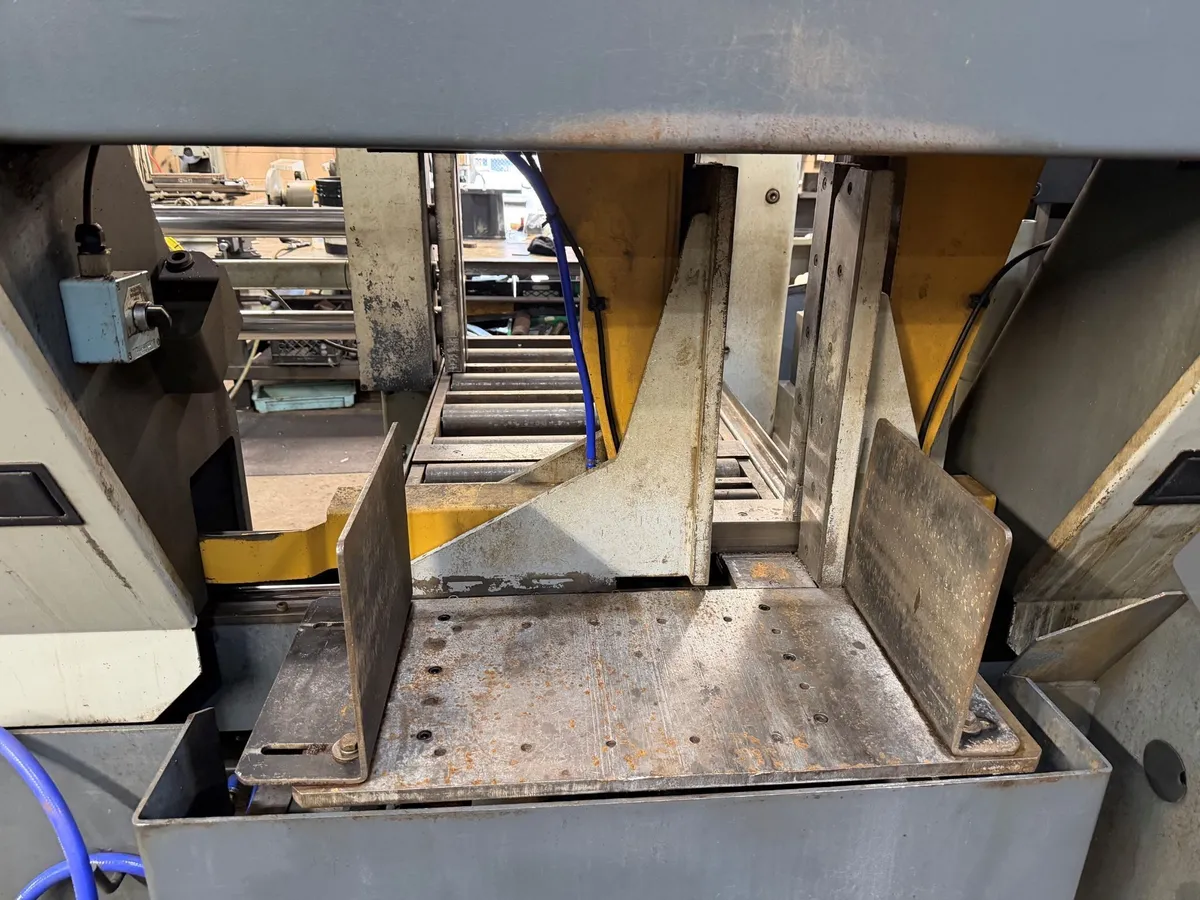

Vise control: hydraulic
Table height: 31"
Maximum work load: 15,000 Lbs.
Voltage: 480 volt 3 phase
Dimensions: 141" x 89" x 93"
Weight: 12,500 Lbs.

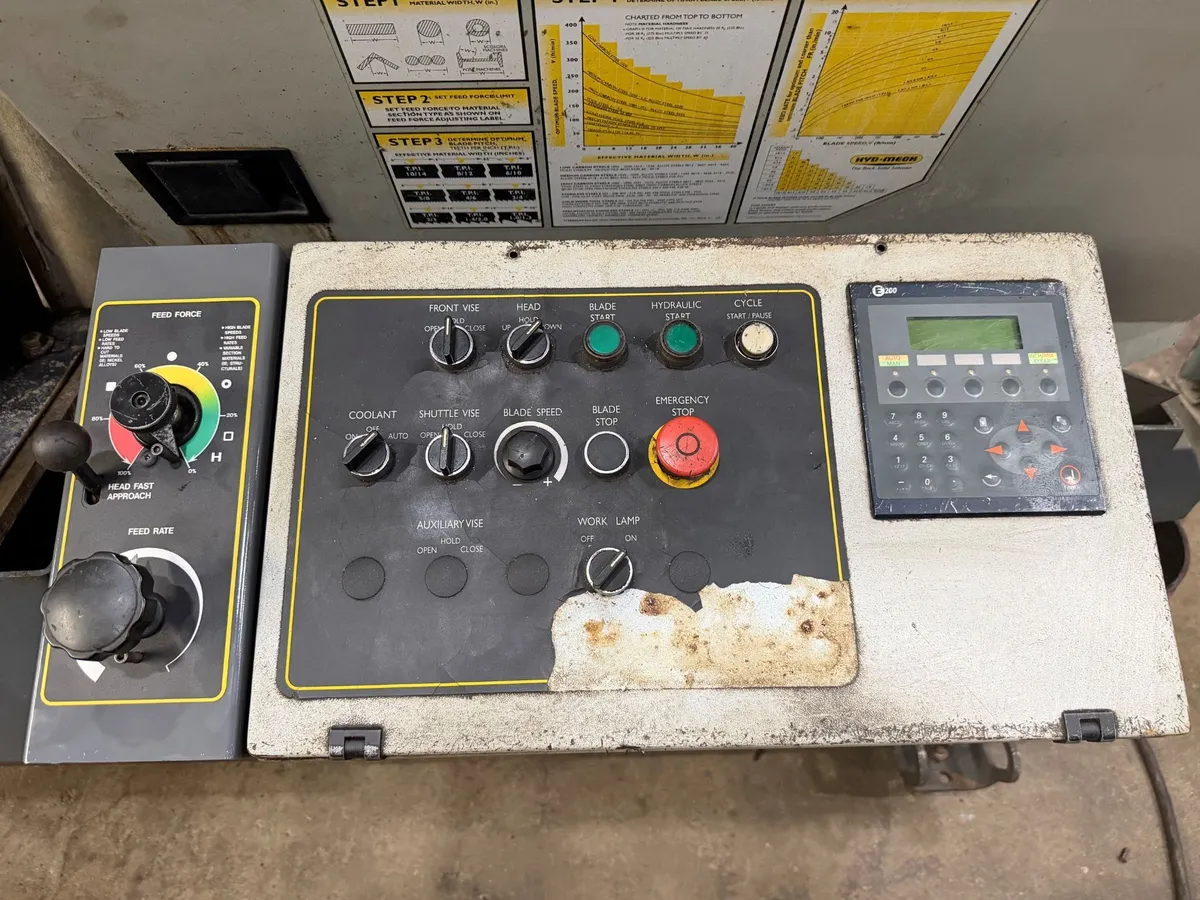

Mitsubishi PLC control

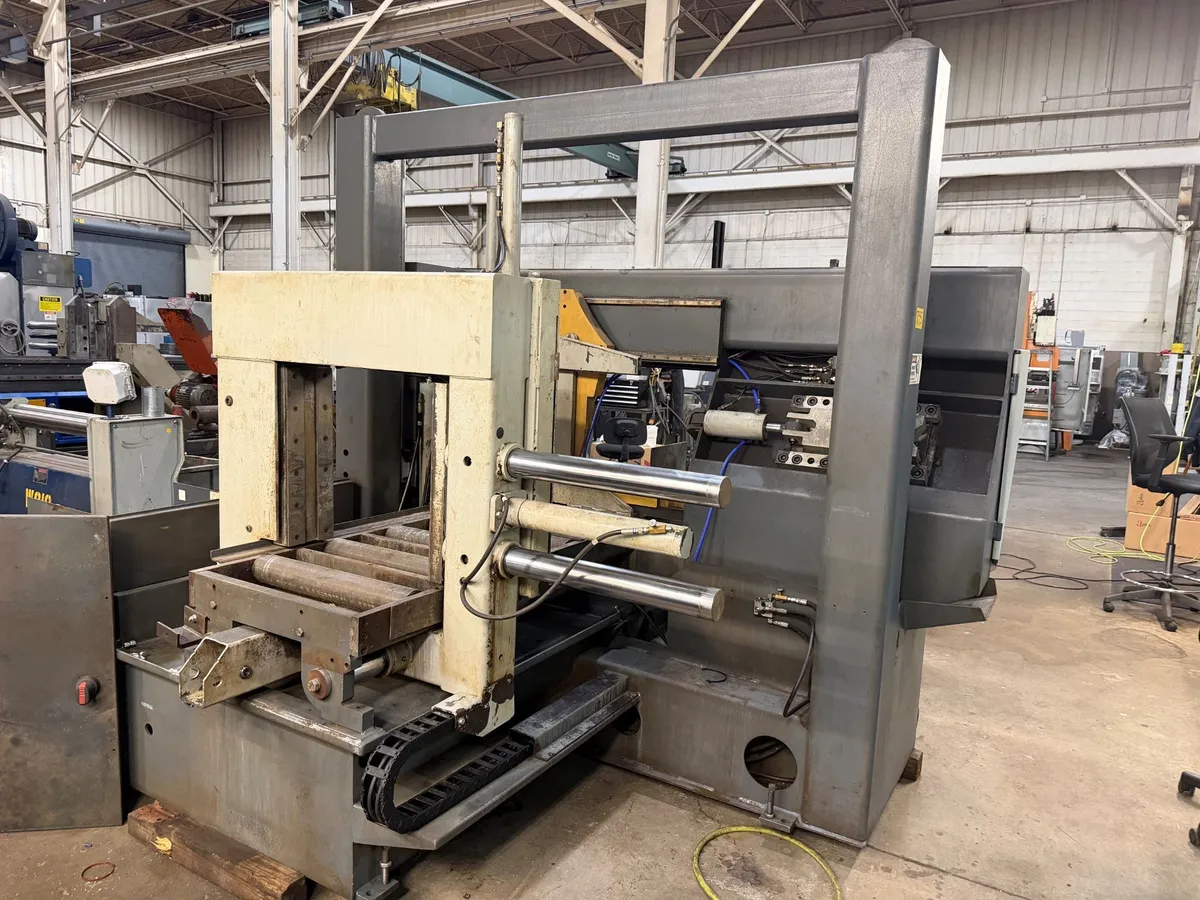

Full capacity overhead bundling clamps
Heavy duty cast iron guide arms
Hydraulic chip auger
Powered guide arm
Flood coolant
Hydraulic blade tension
Work light
Coolant wash down hose

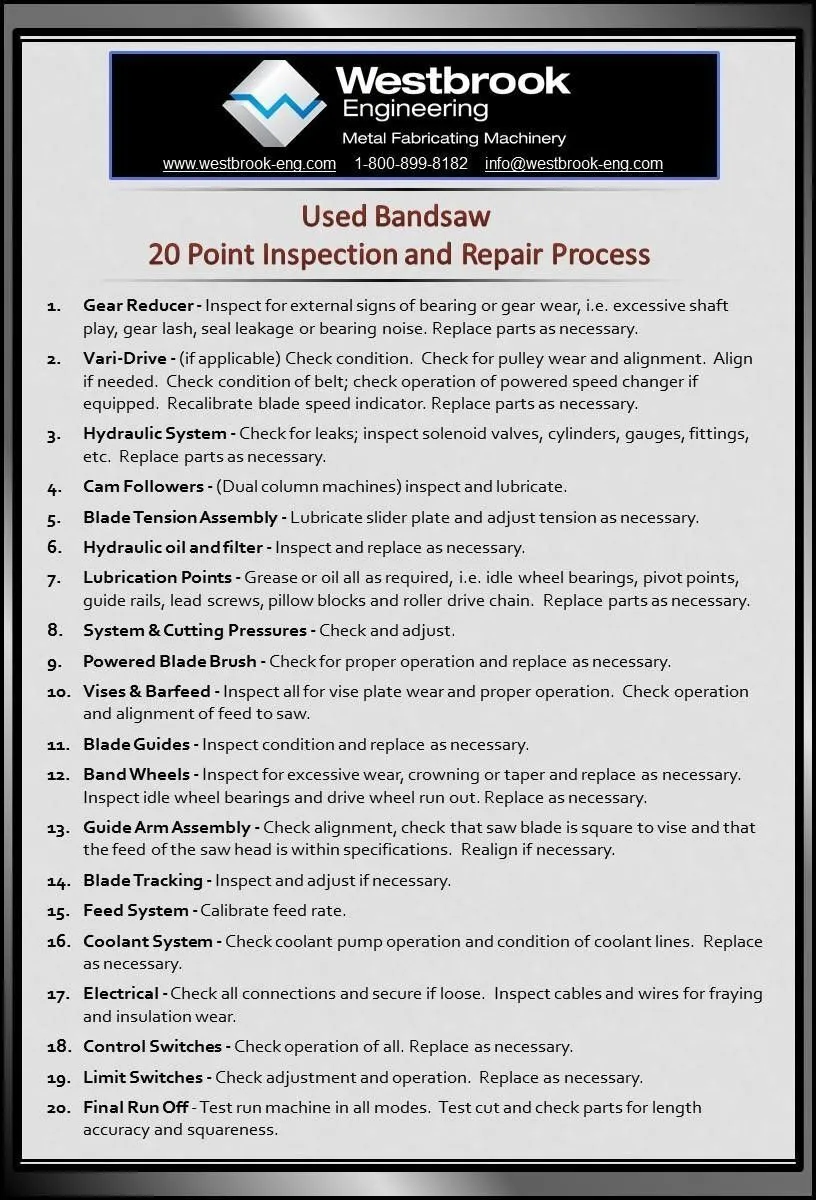

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
