S-20PNG SEMI-AUTOMATIC MITER BAND SAW
Precision. Versatility. Value.

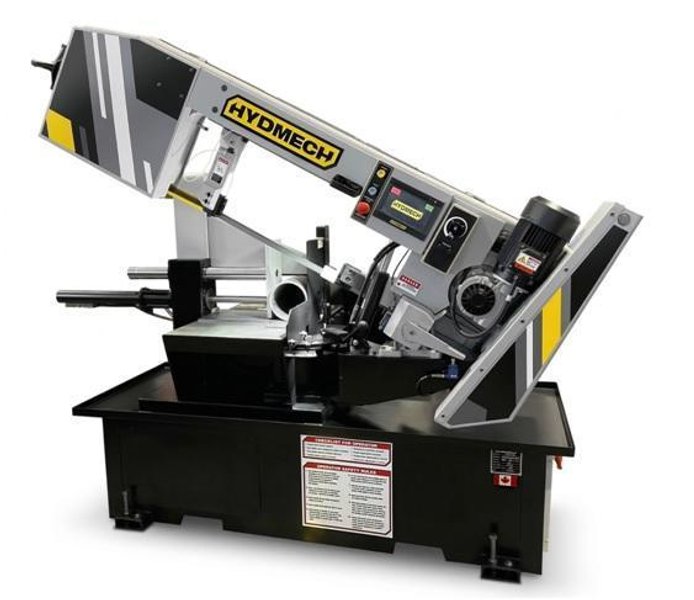

The HYDMECH S-20PNG is a semi-automatic, mitering band saw engineered for production shops that demand faster cycle times and consistent, hands-free operation. Hydraulic vise clamp material automatically, the powered head lift reduces operator fatigue, and variable vise pressure safely handles everything from solid bar stock to thin-wall tubing.
The S-20PNG features HYDMECH’s exclusive 7" HMI touchscreen with digital angle display and a standard mist lubrication system offering unique advantages found on no competitor’s saw in this class.
Performance Highlights
• Hydraulic powered vise with variable pressure for hands-free automatic clamping and safe handling of all material types
• Industry-exclusive 7" touch screen with digital angle display
• Compact footprint at only 91" W × 33" L taking up less floor space
• Mist lubrication system uses up to 90% less lubrication than flood systems resulting in a cleaner shop, lower cost, and greener operation
• VFD variable blade speed for cutting steel, aluminum, stainless, and more
Eco-Smart Mist Lubrication System
Every HYDMECH S-20PNG ships standard with a precision air-mist lubrication system designed for clean, efficient cutting without the mess and cost of flood coolant. Unlike flood systems that pump gallons of fluid per hour, the mist system delivers a fine, targeted spray directly on the band saw blade.
• Up to 90% less coolant consumption versus flood systems
• Cleaner shop floor with no coolant puddles, no slip hazards
• Reduced environmental footprint with less waste to dispose of
• Lower operating costs with coolant supply that lasts significantly longer
• Faster end-of-shift cleanup
Mist lubrication is controlled via solenoid activation from the HMI touchscreen. Reservoir: 64 oz (1893 mL) with low-level detection. Shop air required: 60–100 PSI. Requires shop air.
|

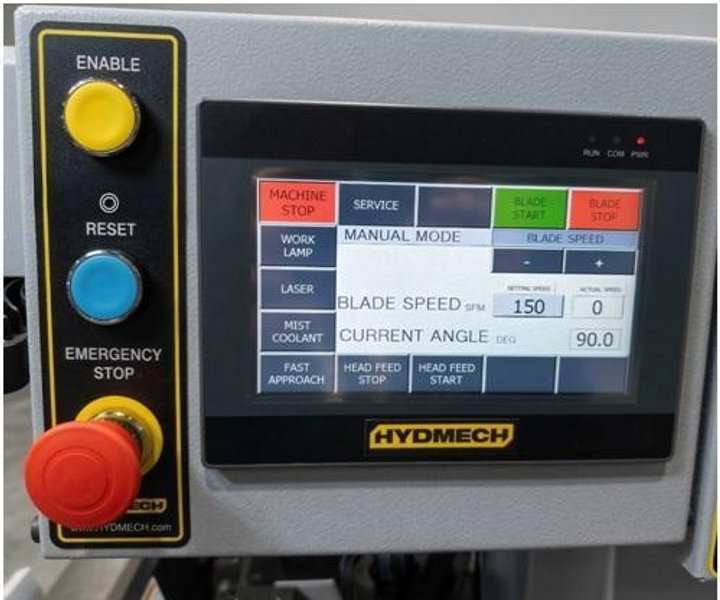

The HYDMECH S-20PNG introduces an industry-exclusive 7" (178 mm) HMI touchscreen that displays the miter angle digitally in real time. No other band saw in this class offers this. Operators of any experience level can confidently dial in precise miter angles at the touch of a button, eliminating analog gauges, protractors, and costly setup errors.
The touchscreen puts full machine control at the operator's fingertips:
• Real-time digital miter angle readout
• Blade speed display and VFD control
• Mist lubrication on/off activation
• Machine status and operating diagnostics
Manual Blade Tension System
Proper blade tension is the single most important factor in cut quality and blade life. The HYDMECH S-20PNG's manual tension system is designed for straightforward, repeatable tensioning. Operators can set correct tension quickly and confidently, without over- or under-tensioning.
• Extends blade life as correctly tensioned blades run cooler and straighter
• Improves cut quality by helping to eliminate blade deviation and deflection
|
Capacity — 90° Rectangular
|
13" H x 18" W
355 mm x 457 mm
|
|
Capacity — 90° Round
|
13"
330 mm
|
|
Capacity — 45° Rectangular
|
13" x 10.9"
355 mm x 277 mm
|
|
Capacity — 45° Round
|
12"
305 mm
|
|
Capacity — 30° Rectangular
|
13" x 7.3"
355 mm x 185 mm
|
|
Capacity — 30° Round
|
8"
203 mm
|
|
Blade Size
|
1" x 14’ 10"
25.4 mm x 4521 mm
|
|
Blade Speed
|
45–375 SFM VFD
14–114 m/min
|
|
Blade Drive
|
3 HP
2.2 kW
|
|
Blade Wheel Diameter
|
17¾"
451 mm
|
|
Vises
|
Hydraulic Full Stroke
|
|
Variable Vise Pressure
|
50-400 PSI
|
|
Head Lift
|
Hydraulic powered
|
|
Hydraulic Motor
|
0.5 HP
0.37 kW
|
|
Hydraulic System Pressure
|
400 PSI 2578 kPa
|
|
Hydraulic Tank Capacity
|
0.66 US Gal. 2.5 L
|
|
Feed System
|
Variable Rate: Gravity Driven
|
|
Guide Arm
|
Manual Positioned
|
|
Machine Voltage
|
480V
208V, 240V, 575V with optional transformer
|
|
Machine Weight
|
1,830 lbs.
830 kg
|
|
Table Height
|
33"
838 mm
|
|
Machine Dimensions
|
91" x 33" x 61"
2311 mm x 838 mm x 1549 mm
|
Standard Features
- Easy swing, heavy-duty cast iron saw head (swings 90°–30°)
- Hydraulic powered head lift
- Hydraulic full-stroke vise
- Variable vise pressure – 50-400 PSI
- 3 HP true direct blade drive — no belts or pulleys
- VFD variable blade speed — 45–375 SFM
- Gravity-fed variable rate down-feed
- Carbide blade guide inserts
- Manually positioned guide arm
- Manual blade tensioning
- Cast iron band wheels
- Mist lubrication system (solenoid activation, 64 oz reservoir with low level detection — shop air required 60–100 PSI).
- 7" HMI touchscreen with digital angle display
- Laser light
- Work light
- Replaceable blade brush
- Robust steel base
- Safety door interlocks
- Blade breakage switch
- Built in material in-feed rollers and out-feed table
Optional Features
· Full capacity overhead bundling
· Material work stop
· Power transformers

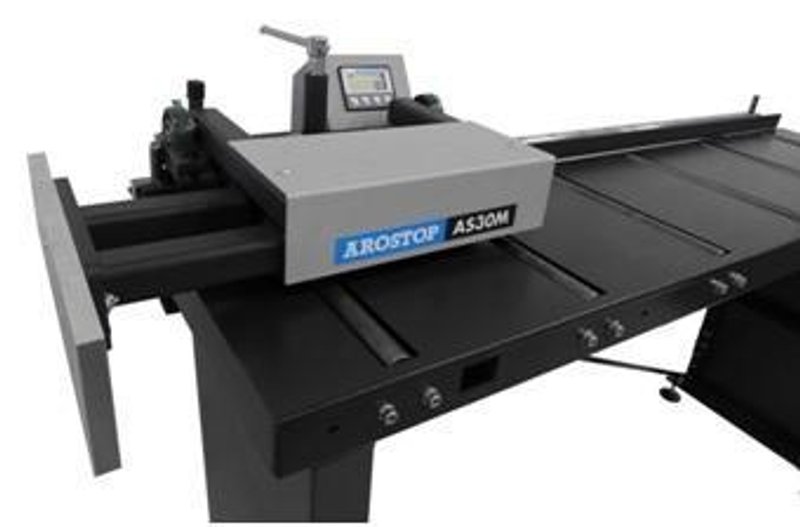

· Idler conveyors
|
|
