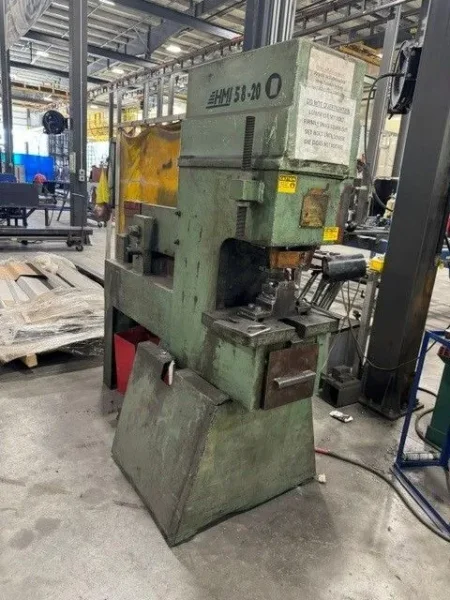

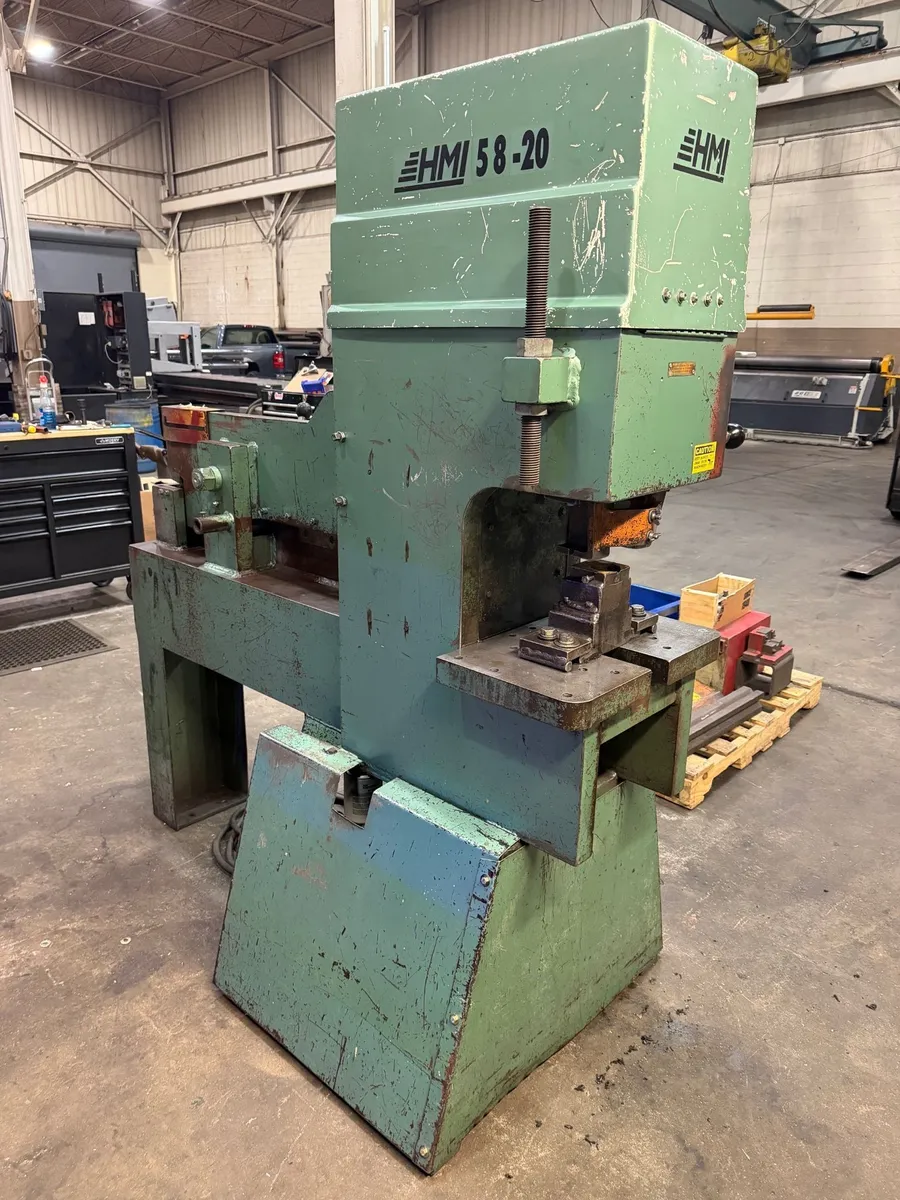

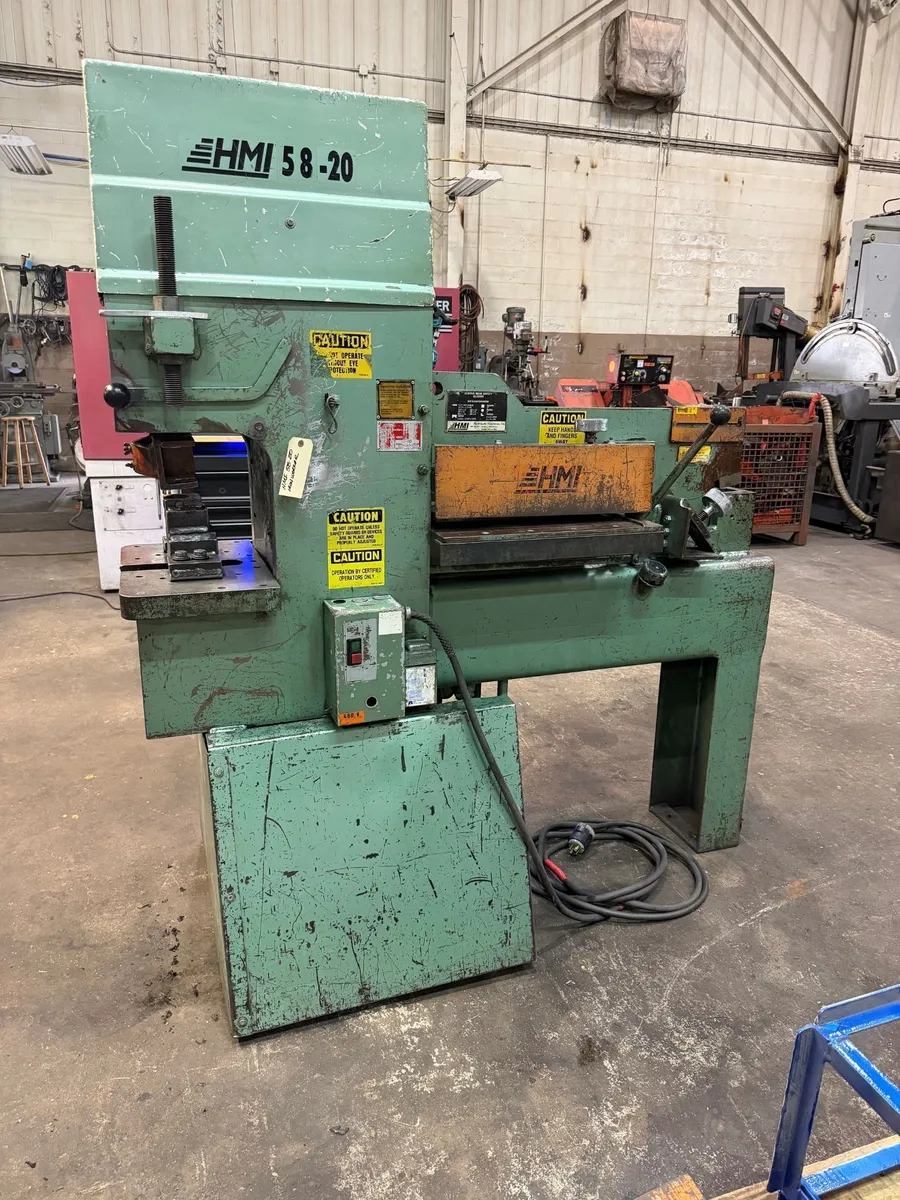

USED HMI 58 TON DUAL OPERATOR HYDRAULIC IRONWORKER MODEL 58-20

USED HMI 58 TON DUAL OPERATOR HYDRAULIC IRONWORKER MODEL 58-20

Name: USED HMI 58 TON DUAL OPERATOR HYDRAULIC IRONWORKER MODEL 58-20
Brand: HMI
SKU: 11270
Availability: InStock

Brand

HMI

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Ironworkers

Manufacturer:

HMI

Model:

58-20

Stock #:

11270

Status:

For Sale

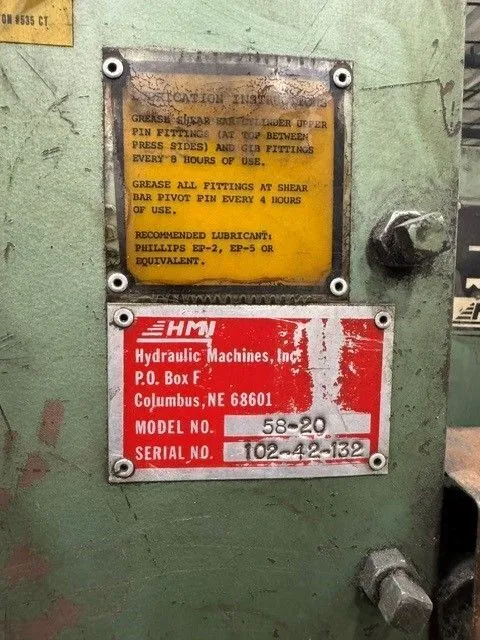

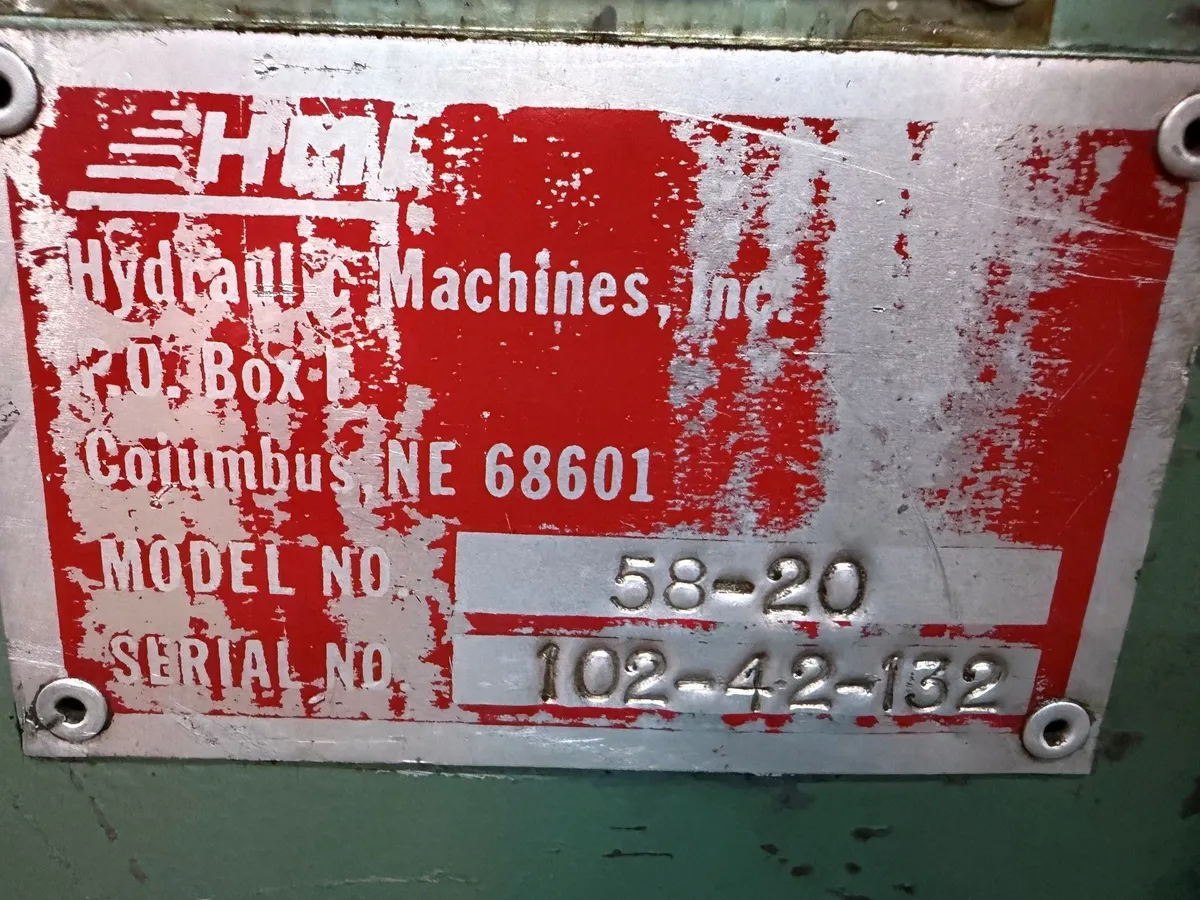

Serial #:

102-42-132

Description

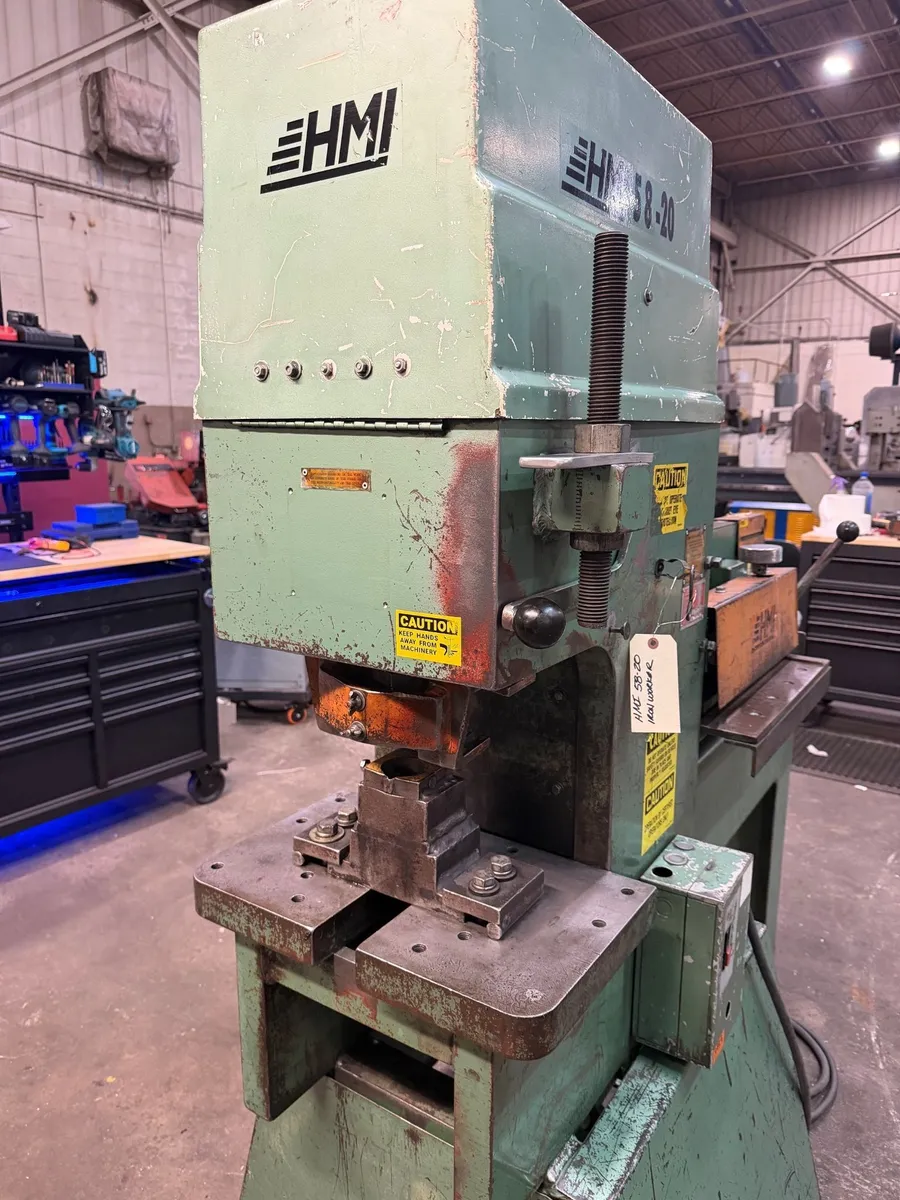

Used HMI 58 Ton Model 58-20 dual operator hydraulic ironworker, excellent choice for high-efficiency needs. Features include 58-ton capacity, 7" throat, dual control, and equipped with punches and dies. Compact yet powerful with independent press/shear control.

ImperialMetric

Tonnage	58 T	52.617 t
Angle (L1)	4"	101.6 mm
Angle (L2)	4"	101.6 mm
Angle (T)	0.25"	6.35 mm
Power	3 hp	3 hp
Throat	7"	177.8 mm
Stroke	6"	152.4 mm
Dimensions	33" x 66" x 76"	33" x 66" x 76"
Weight	2,415 Lbs.	2,415 Lbs.

Brand: HMI
Model: 58-20

Specifications:
Tonnage: 58 tons
Throat depth: 7"
Throat height: 12"
Ram diameter: 3"
Stroke length: 0"-6"
Strokes per minute: 21 @ 7/8" stroke
Platen table: 11" x 22"

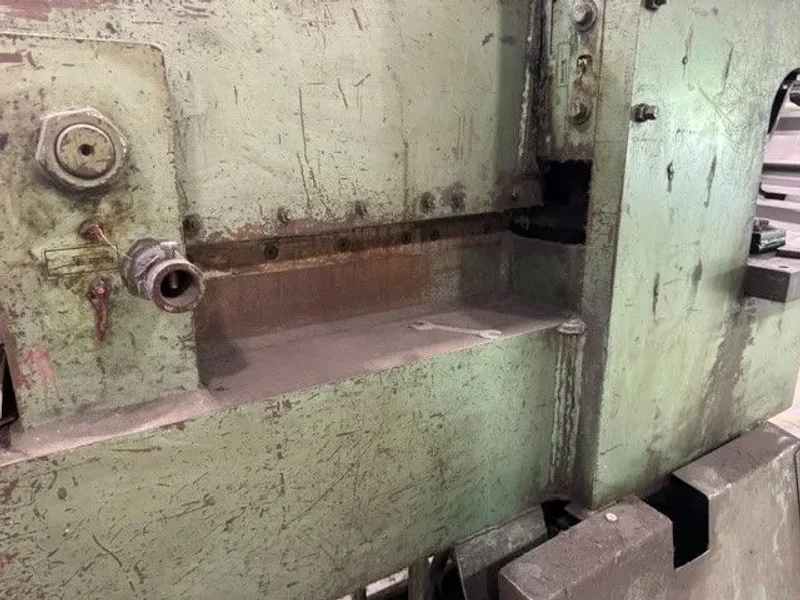

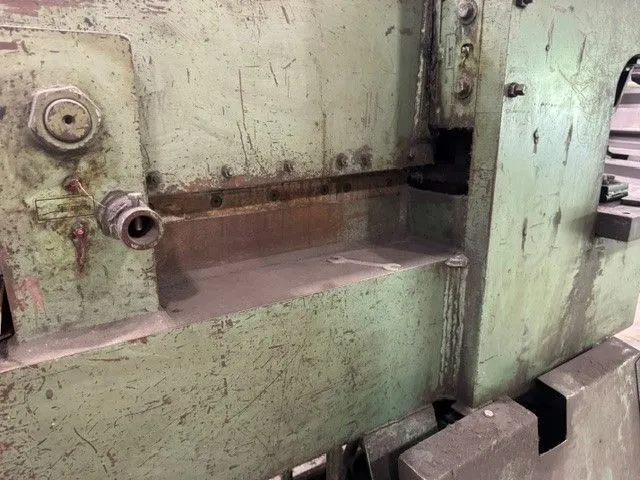

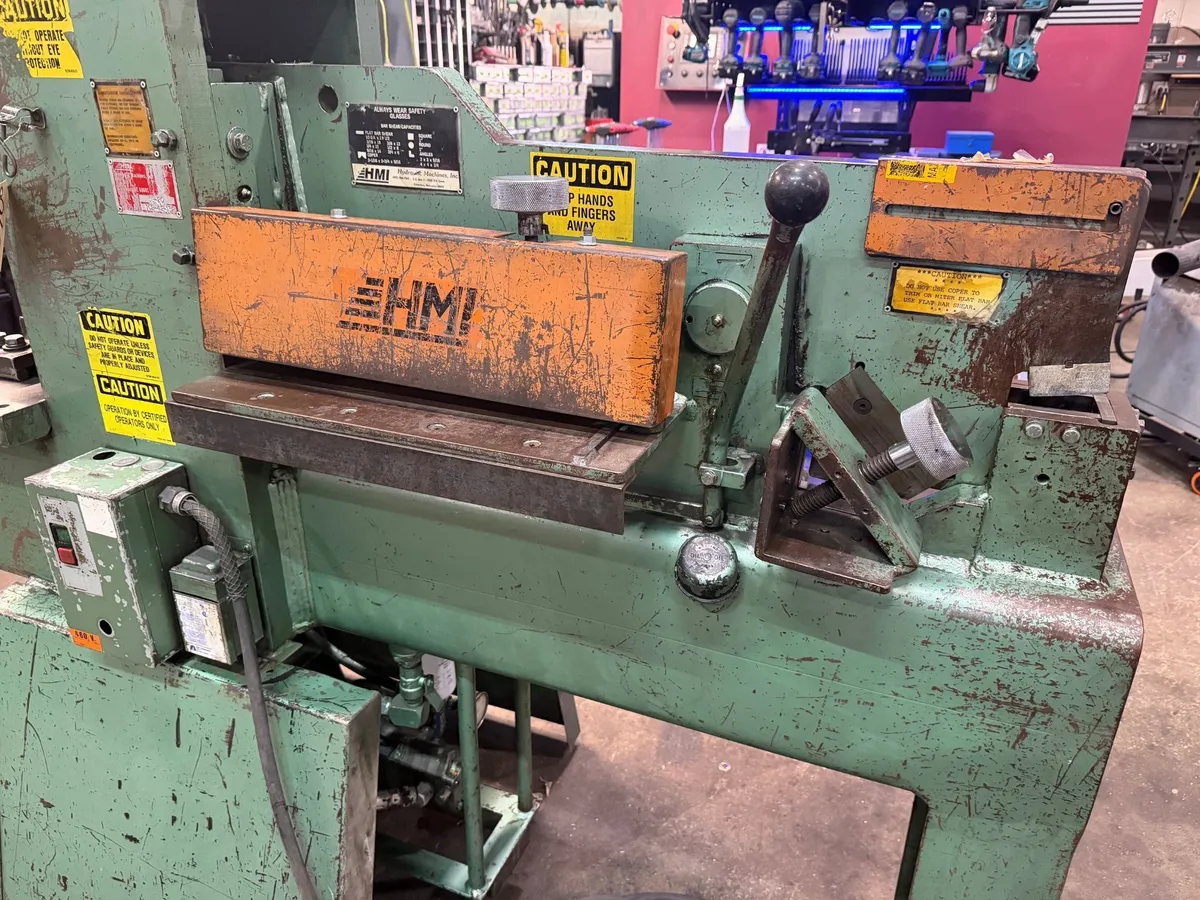

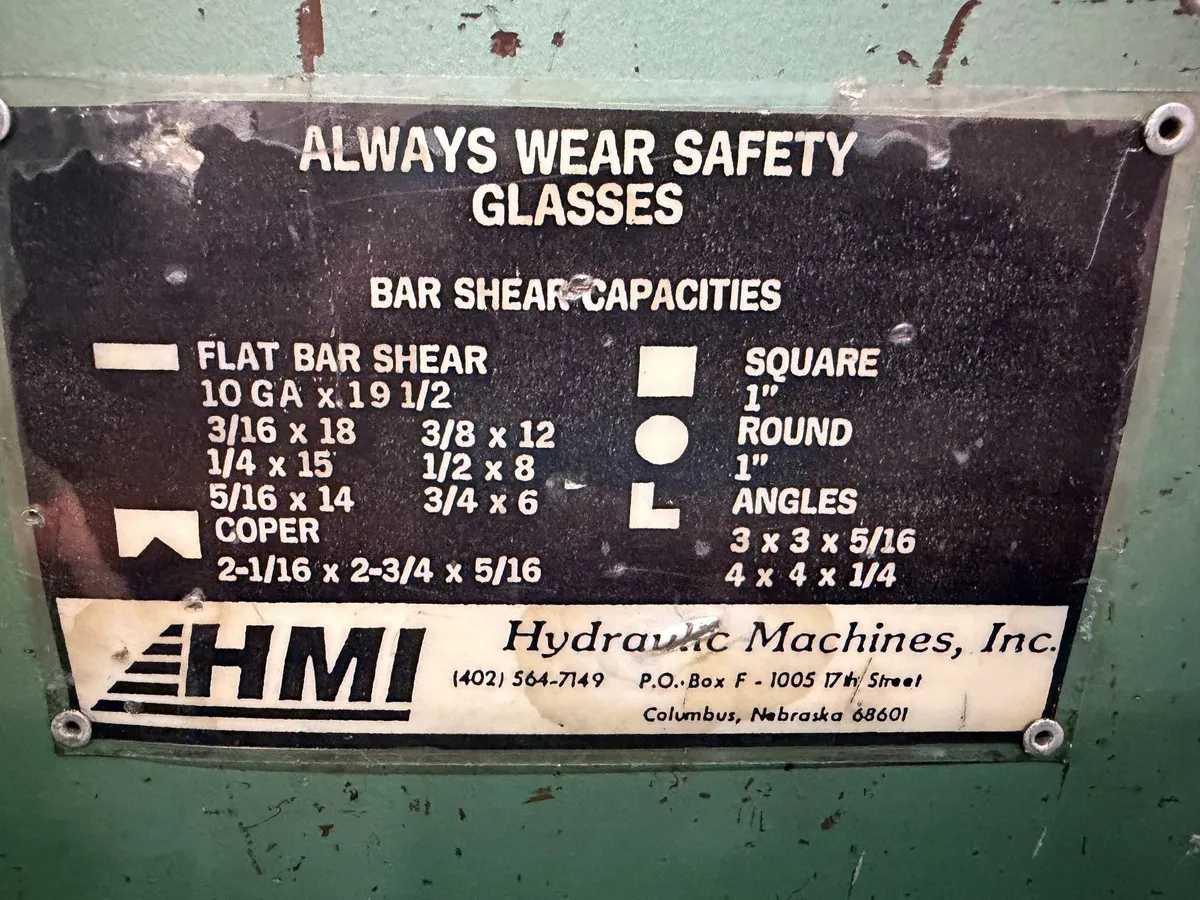

Flat bar shear: 20"

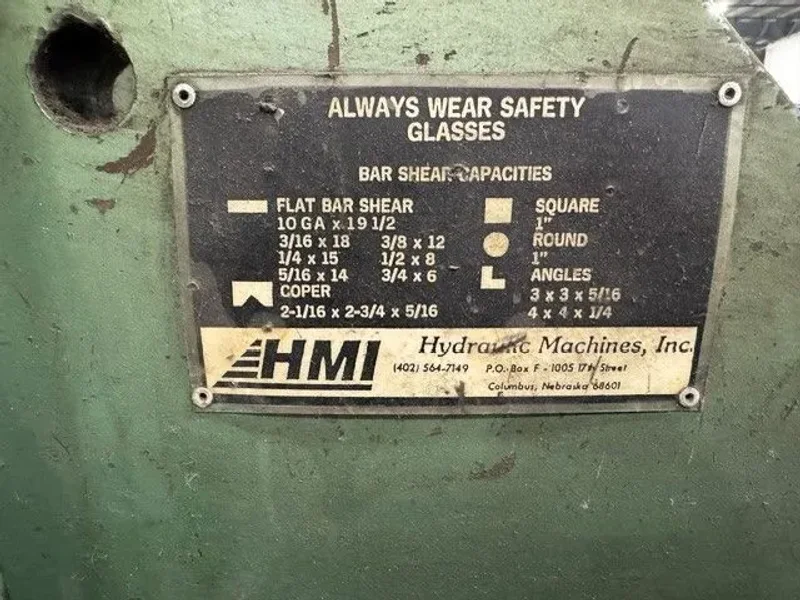

Flat bar capacity: 1/8" x 19.5", 1/4" x 15", 5/16" x 14", 3/8" x 12", 1/2" x 8", 3/4" x 6"
Angle shear: 4" x 4" x 1/4", 3" x 3" x 5/16"
Coper notcher: 2-1/16" x 2-3/4" x 5/16"
Motor: 3 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 33" x 66" x 76"
Weight: 2,415 Lbs.

Independent press control
Independent shear control
Two-man operation

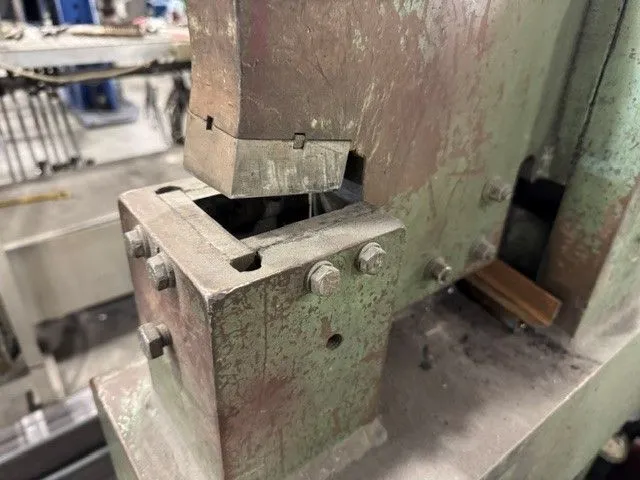

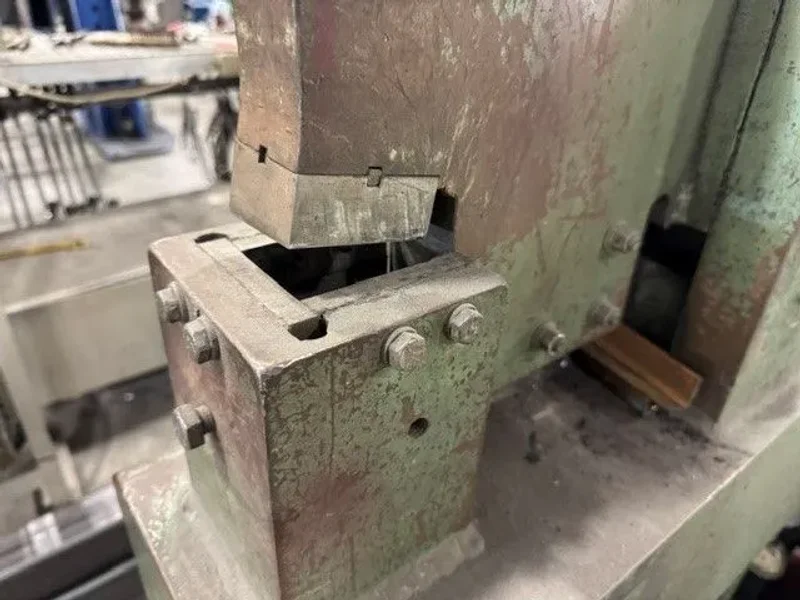

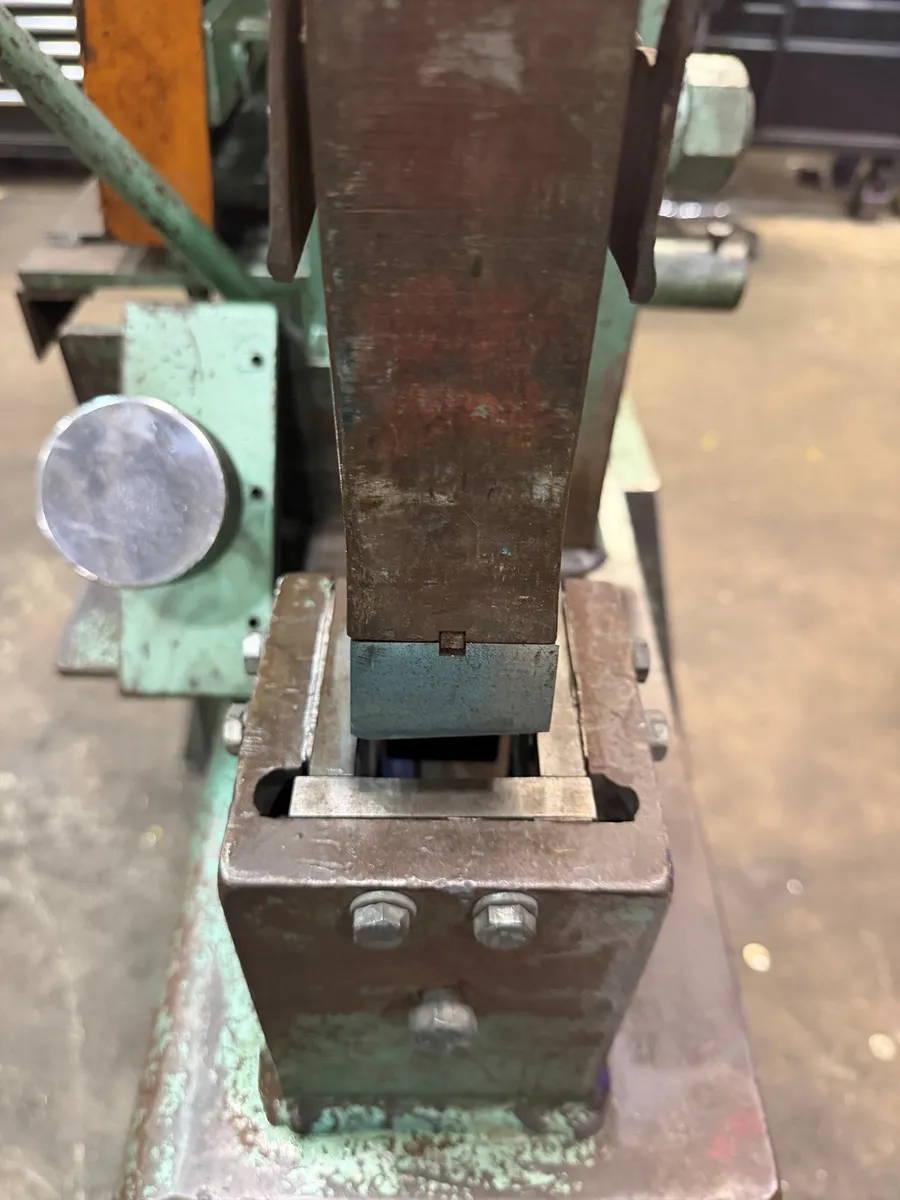

1-1/4" tube notcher

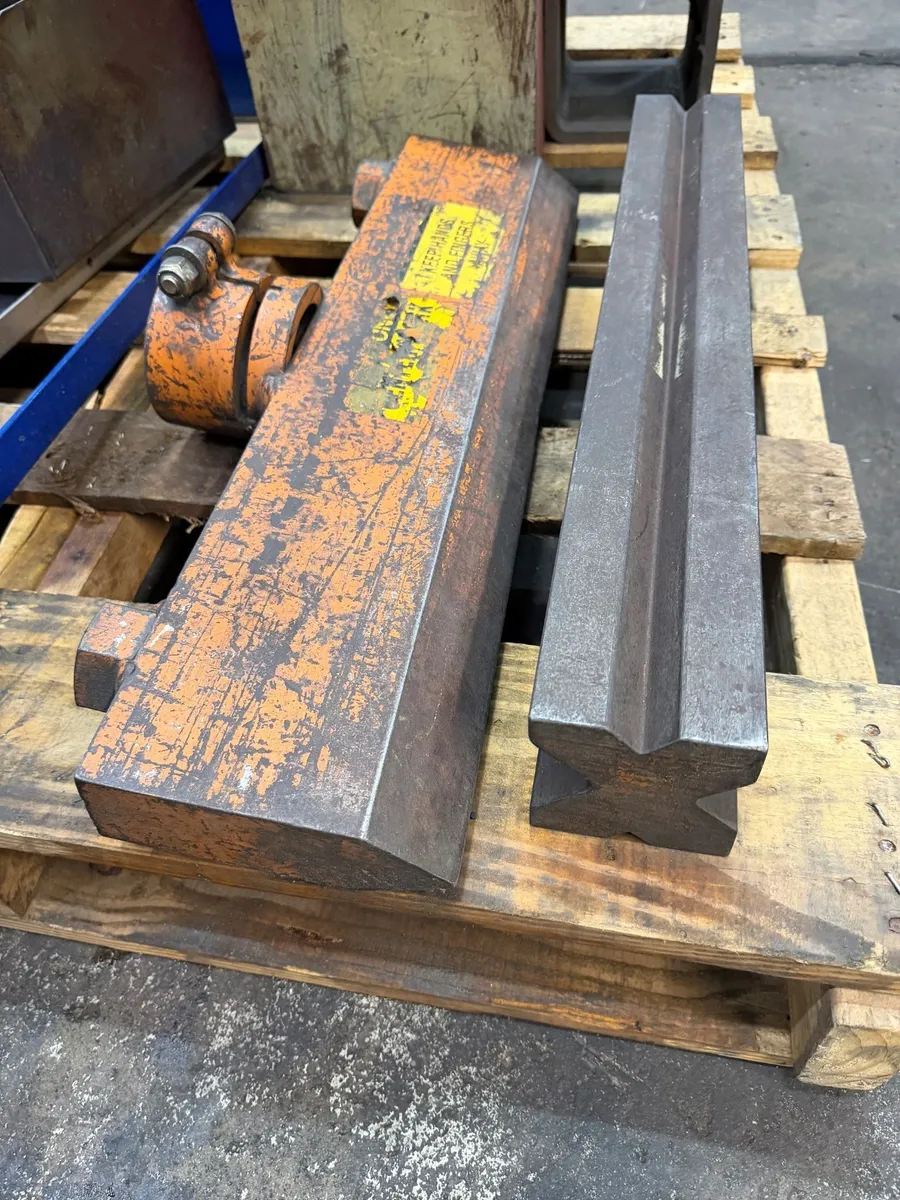

24" 4-way die and punch
Punch stripper

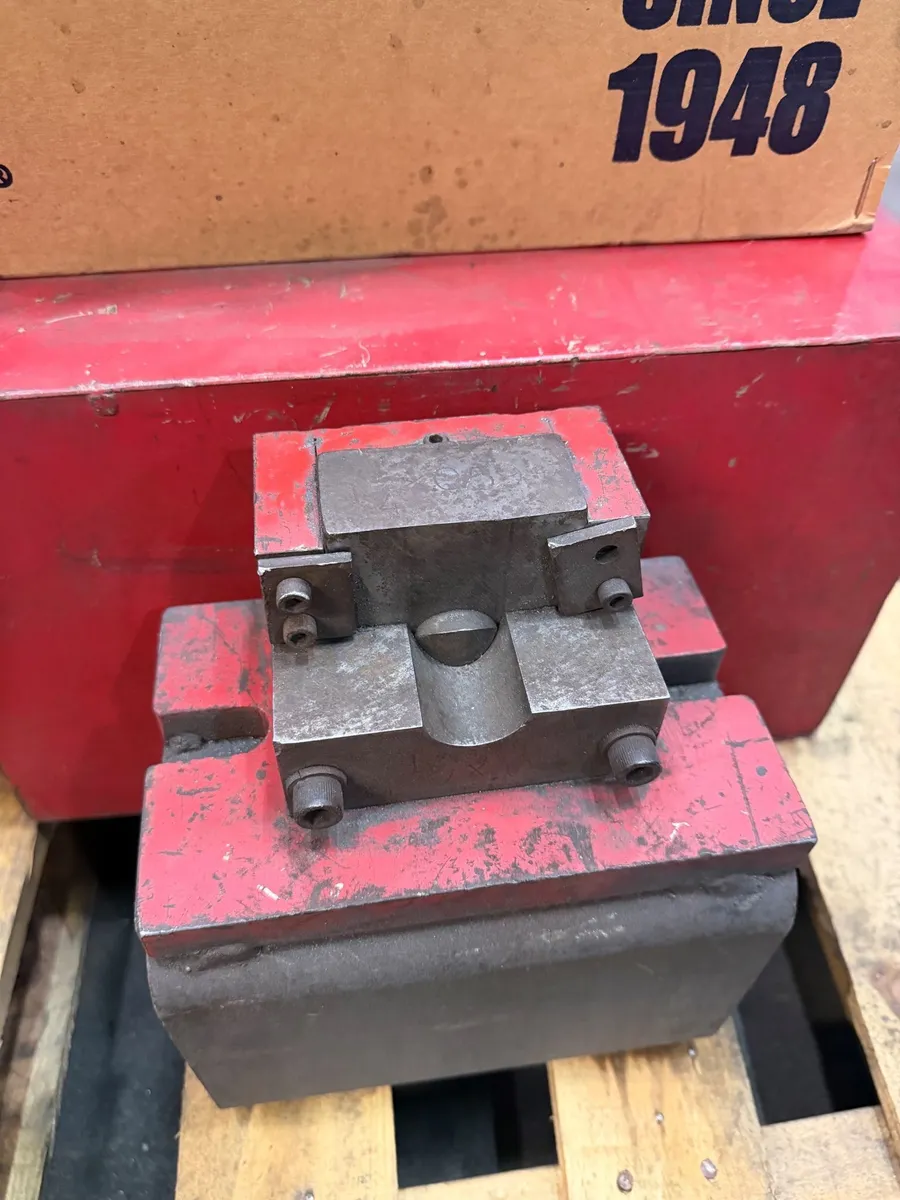

Die block

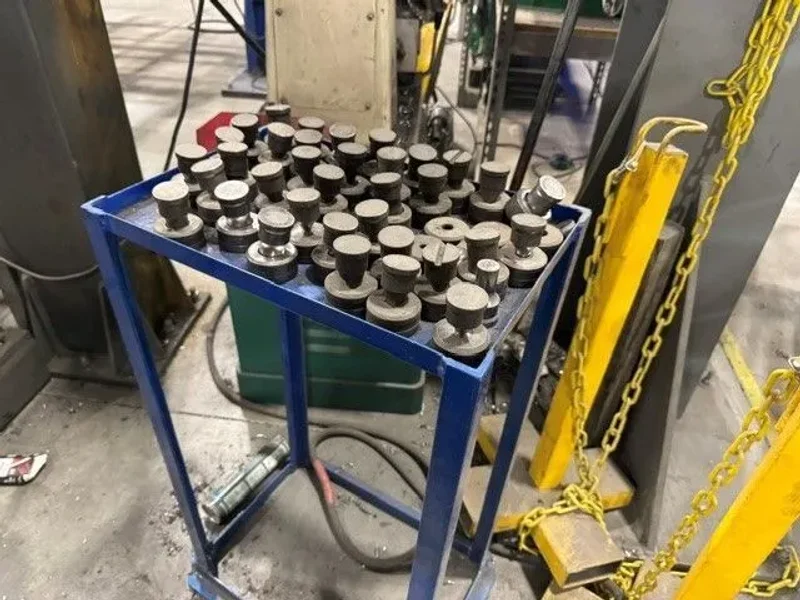

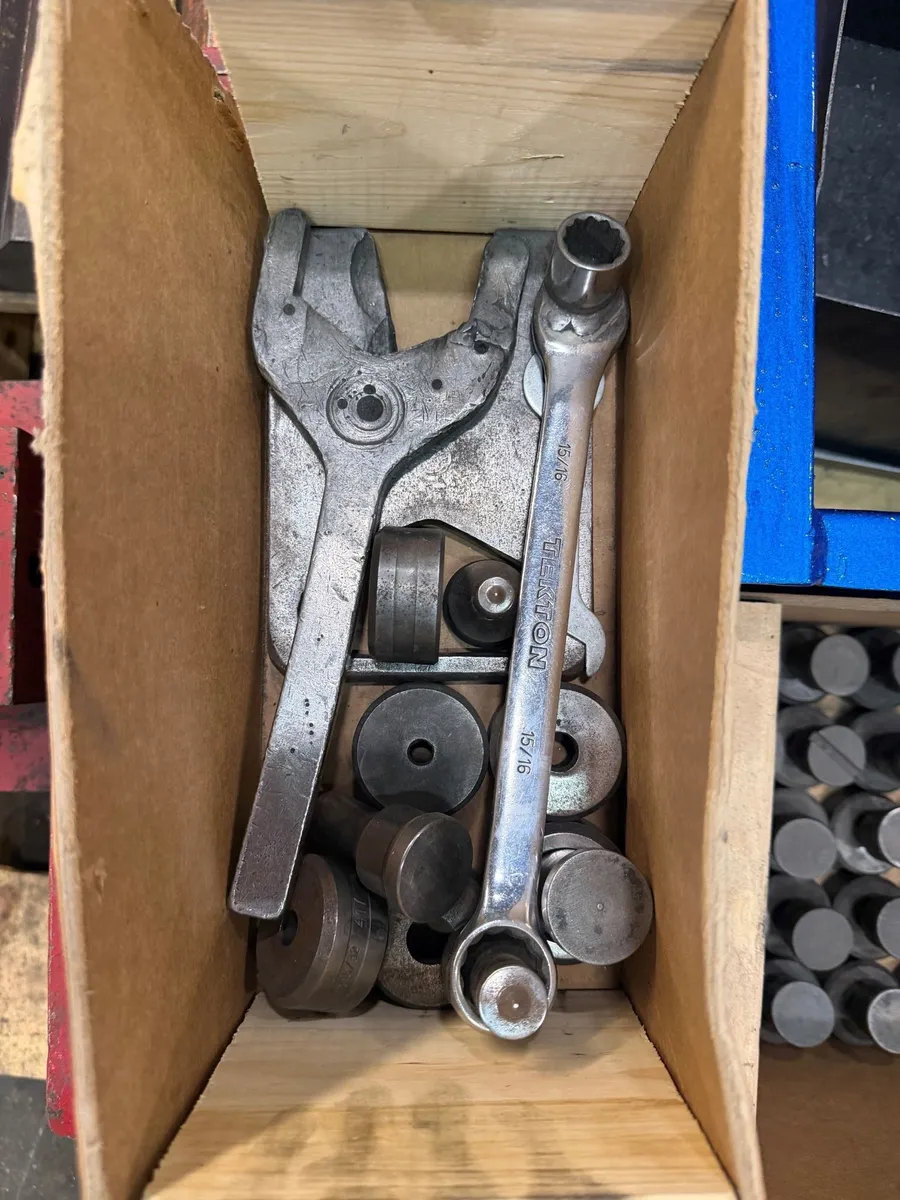

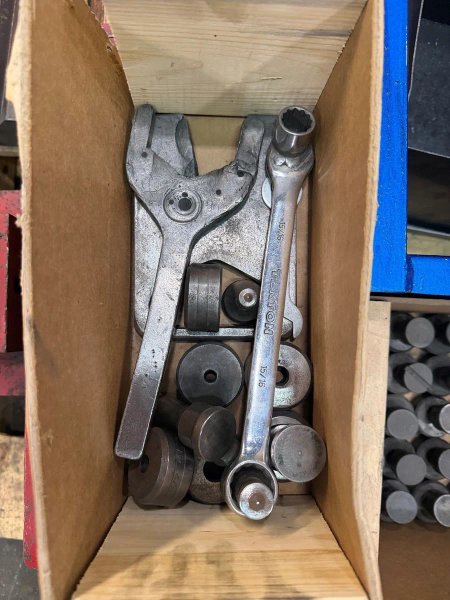

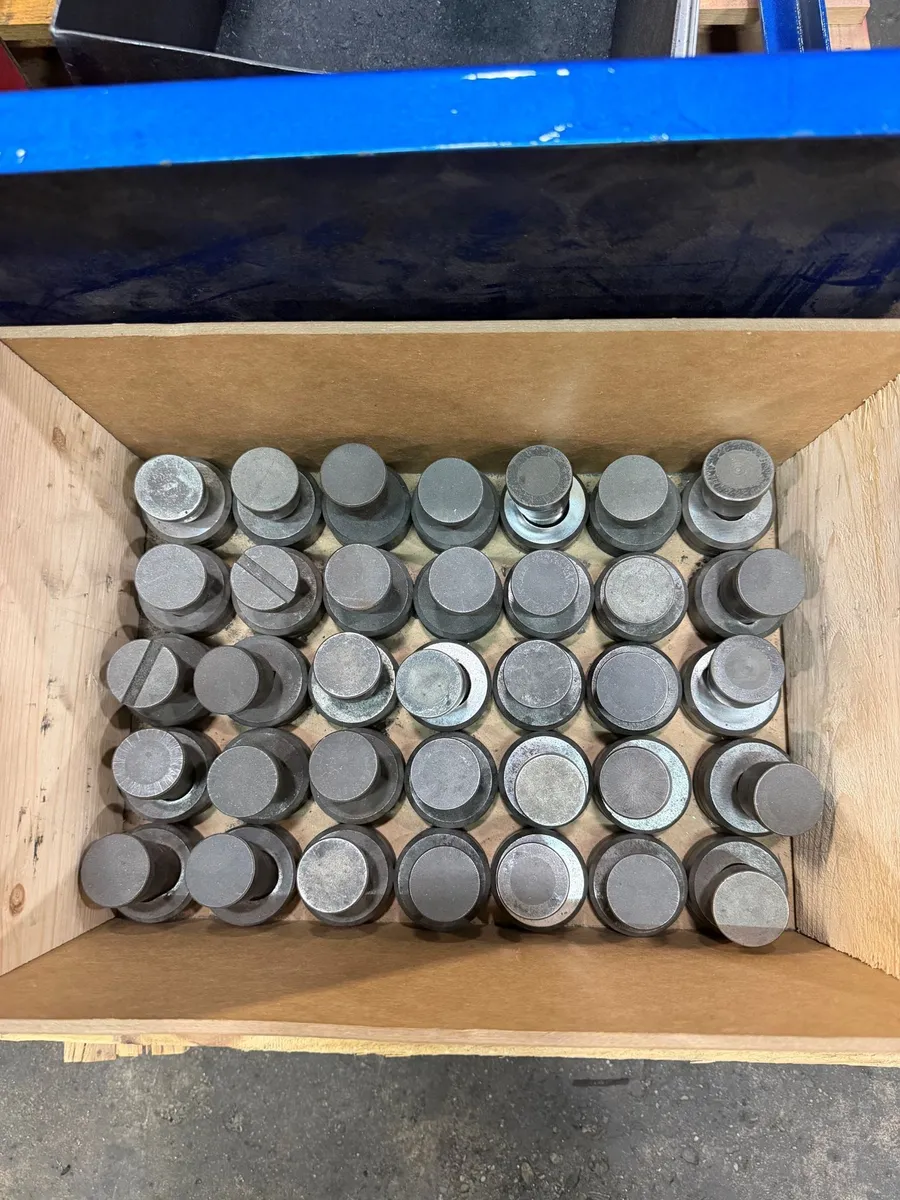

Assortment of punches and dies
